在汽车的应用中，是有可能使用 SPI 接口来连接外设的，甚至有可能是 MCU做主通过SPI接口来访问 i.MX8X，刚好我们项目中MCU做从效率低有丢包情况，所以测试一下i.MX8X从模式MCU主模式。
IMX8QXP SPI资源
疑问：MCLK_IN0，MCLK_IN0，MCLK_OUT0为何与SPI2复用，但电路图设计分开？？
16.12.3.1 LPSPI register descriptions
4个spi，怎么单独设置每个spi的寄存器呢？
16.12.3.1.9 Configuration Register 1 (CFGR1)
IMX8QXP demo板spi0与spi3飞线连接
由于驱动中PINCFG[25/24]默认设置spi从模式下SDI和SDO交换输入输出，所以需要反向连接如下所示：
dts文件和驱动
参考手册《MX8X_4.14.98_ga_kernel_V3-20190903_chn.pdf》6.10 SPI与SPI Slave驱动
由于spi3的MISO不好飞线，所以spi3做主，spi0做从。内核版本基于NXP的linux-4.14.98
修改设备树：fsl-imx8qxp-mek.dtsi
pinctrl_lpspi0: lpspi0grp {
fsl,pins = <
SC_P_SPI0_SCK_ADMA_SPI0_SCK 0x0600004c
SC_P_SPI0_SDO_ADMA_SPI0_SDO 0x0600004c
SC_P_SPI0_SDI_ADMA_SPI0_SDI 0x0600004c
SC_P_SPI0_CS0_ADMA_SPI0_CS0 0x0600004c
>;
};
pinctrl_lpspi3_cs: lpspi0cs {
fsl,pins = <
SC_P_SPI3_CS0_LSIO_GPIO0_IO16 0x21
>;
};
pinctrl_lpspi3: lpspi3grp {
fsl,pins = <
SC_P_SPI3_SCK_ADMA_SPI3_SCK 0x0600004c
SC_P_SPI3_SDO_ADMA_SPI3_SDO 0x0600004c
SC_P_SPI3_SDI_ADMA_SPI3_SDI 0x0600004c
>;
};
&lpspi0 {
#address-cells = <1>;
#size-cells = <0>;
fsl,spi-num-chipselects = <1>;
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_lpspi0>;
spi-slave;
status = "okay";
};
&lpspi3 {
#address-cells = <1>;
#size-cells = <0>;
fsl,spi-num-chipselects = <1>;
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_lpspi3 &pinctrl_lpspi3_cs>;
cs-gpios = <&gpio0 16 GPIO_ACTIVE_LOW>;
status = "okay";
spidev0: spi@0 {
reg = <0>;
compatible = "rohm,dh2228fv";
spi-max-frequency = <30000000>;
};
};
fsl-imx8dx.dtsi
lpspi3: lpspi@5a030000 { //寄存器值
compatible = "fsl,imx7ulp-spi";
reg = <0x0 0x5a030000 0x0 0x10000>;
interrupts = <GIC_SPI 219 IRQ_TYPE_LEVEL_HIGH>; //中断号
interrupt-parent = <&gic>;
clocks = <&clk IMX8QXP_SPI3_CLK>,
<&clk IMX8QXP_SPI3_IPG_CLK>;
clock-names = "per", "ipg";
assigned-clocks = <&clk IMX8QXP_SPI3_CLK>;
assigned-clock-rates = <20000000>;
power-domains = <&pd_dma2_chan7>; //johnli details as follows DMA channel
dma-names = "tx","rx";
dmas = <&edma2 7 0 0>, <&edma2 6 0 1>;
status = "disabled";
};
pd_dma_lpspi3: PD_DMA_SPI_3 { //PD
reg = <SC_R_SPI_3>;
#power-domain-cells = <0>;
power-domains = <&pd_dma>;
wakeup-irq = <339>;
//johnli add
pd_dma2_chan6: PD_LPSPI3_RX {
reg = <SC_R_DMA_2_CH6>;
power-domains =<&pd_dma_lpspi3>;
#power-domain-cells = <0>;
#address-cells = <1>;
#size-cells = <0>;
pd_dma2_chan7: PD_LPSPI3_TX {
reg = <SC_R_DMA_2_CH7>;
power-domains =<&pd_dma2_chan6>;
#power-domain-cells = <0>;
#address-cells = <1>;
#size-cells = <0>;
};
};
//end
}; 从：
echo spidev > /sys/class/spi_slave/spi0/slave
./spidev-test -D /dev/spidev0.0 -p slave-hello-to-master -v
主：
./spidev-test -D /dev/spidev1.0 -p slave-hello-to-master -v
root@genvict_imx8qxp:~# ls /dev/spidev* -l
crw------- 1 root root 236, 0 Mar 17 11:59 /dev/spidev2.0
crw------- 1 root root 153, 0 Mar 17 09:38 /dev/spidev3.0
root@genvict_imx8qxp:~# ls /sys/class/spi_master/
spi2 spi3
root@genvict_imx8qxp:~# ls /sys/class/spi_master/ -l
total 0
lrwxrwxrwx 1 root root 0 Mar 17 09:38 spi2 -> ../../devices/platform/5a020000.lpspi/spi_master/spi2
lrwxrwxrwx 1 root root 0 Mar 17 09:38 spi3 -> ../../devices/platform/5a030000.lpspi/spi_master/spi3
root@genvict_imx8qxp:~# ls /sys/class/spi_slave/
root@genvict_imx8qxp:~# ls /sys/class/spi*
/sys/class/spi_master:
spi2 spi3
/sys/class/spi_slave:
/sys/class/spidev:
spidev3.0
/sys/class/spidev2.0:
spidev2.0
怎么查看已经设置为slave模式了呢？spi_master下面还是有spi3，spi_slave下面没有设备节点。
外部使用MCU做主模式验证【验证不通过】
NXP官方方案测试-失败的案例
NXP官方手册《MX8X_4.14.98_ga_kernel_V3-20190903_chn.pdf》《6.10 SPI与SPI Slave驱动》，修改项目的DTS设备树，spi2做主，spi3做从：
pinctrl_lpspi3: lpspi3grp {
fsl,pins = <
SC_P_SPI3_SCK_ADMA_SPI3_SCK 0x0600004c
SC_P_SPI3_SDO_ADMA_SPI3_SDO 0x0600004c
SC_P_SPI3_SDI_ADMA_SPI3_SDI 0x0600004c
SC_P_SPI3_CS0_ADMA_SPI3_CS0 0x0600004c
>;
};
&lpspi3 {
#address-cells = <1>;
#size-cells = <0>;
fsl,spi-num-chipselects = <1>;
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_lpspi3>;
spi-slave;
status = "okay";
}; pd_dma_lpspi3: PD_DMA_SPI_3 { //PD
reg = <SC_R_SPI_3>;
#power-domain-cells = <0>;
power-domains = <&pd_dma>;
wakeup-irq = <339>;
pd_dma2_chan6: PD_LPSPI3_RX {
reg = <SC_R_DMA_2_CH6>;
power-domains =<&pd_dma_lpspi3>;
#power-domain-cells = <0>;
#address-cells = <1>;
#size-cells = <0>;
pd_dma2_chan7: PD_LPSPI3_TX {
reg = <SC_R_DMA_2_CH7>;
power-domains =<&pd_dma2_chan6>;
#power-domain-cells = <0>;
#address-cells = <1>;
#size-cells = <0>;
};
};
};
lpspi3: lpspi@5a030000 {
compatible = "fsl,imx7ulp-spi";
reg = <0x0 0x5a030000 0x0 0x10000>;
interrupts = <GIC_SPI 219 IRQ_TYPE_LEVEL_HIGH>;
interrupt-parent = <&gic>;
clocks = <&clk IMX8QXP_SPI3_CLK>,
<&clk IMX8QXP_SPI3_IPG_CLK>;
clock-names = "per", "ipg";
assigned-clocks = <&clk IMX8QXP_SPI3_CLK>;
assigned-clock-rates = <20000000>;
power-domains = <&pd_dma2_chan7>; //johnli details as follows DMA channel
dma-names = "tx","rx";
dmas = <&edma2 7 0 0>, <&edma2 6 0 1>;
status = "disabled";
};
root@genvict_imx8qxp:~# ls /dev/spidev2.0 -l
crw------- 1 root root 236, 0 Mar 17 11:59 /dev/spidev2.0
root@genvict_imx8qxp:~# ls /sys/class/spi_master/
spi2
root@genvict_imx8qxp:~# ls /sys/class/spi_slave/
spi3
root@genvict_imx8qxp:~# ls /sys/class/spi_slave/spi3/
device of_node power slave statistics subsystem uevent
root@genvict_imx8qxp:~# echo spidev > /sys/class/spi_slave/spi3/slave
root@genvict_imx8qxp:~# ls /dev/spidev* -l
crw------- 1 root root 236, 0 Mar 17 11:59 /dev/spidev2.0
crw------- 1 root root 153, 0 Mar 17 12:02 /dev/spidev3.0编译内核工具spidev_test：tools/spi
[wangyb@wangyb-VirtualBox:spi]$ ls
Build include Makefile spidev_fdx spidev_fdx.c spidev_fdx-in.o spidev_fdx.o spidev_test spidev_test.c spidev_test-in.o spidev_test.o
root@genvict_imx8qxp:~# ./spidev_test --help
./spidev_test: unrecognized option '--help'
Usage: ./spidev_test [-DsbdlHOLC3vpNR24SI]
-D --device device to use (default /dev/spidev1.1)
-s --speed max speed (Hz)
-d --delay delay (usec)
-b --bpw bits per word
-i --input input data from a file (e.g. "test.bin")
-o --output output data to a file (e.g. "results.bin")
-l --loop loopback
-H --cpha clock phase
-O --cpol clock polarity
-L --lsb least significant bit first
-C --cs-high chip select active high
-3 --3wire SI/SO signals shared
-v --verbose Verbose (show tx buffer)
-p Send data (e.g. "1234\xde\xad")
-N --no-cs no chip select
-R --ready slave pulls low to pause
-2 --dual dual transfer
-4 --quad quad transfer
-S --size transfer size
-I --iter iterationsNXP IMX8QXP demo板SPI0连接测试用例：
项目中由于SPI2连接了安全芯片，IMX8与MCU验证：IMX8从机，MCU主机。
/home/root/spidev_test -D /dev/spidev3.0 -p slave-hello-to-master -v
spi mode: 0x0
bits per word: 8
max speed: 500000 Hz (500 KHz)从机未开始运行测试程序时，主机时钟片选核发送数据正常，从机运行测试程序后，发送数据异常。
参考手册，使用IMX8QXP B.V demo板，短接SPI0与SPI3，由于SPI3的MISO直接到连接器不能飞线，所以改为SPI3作为主机，SPI0作为从机。
时钟和片选波形正常：

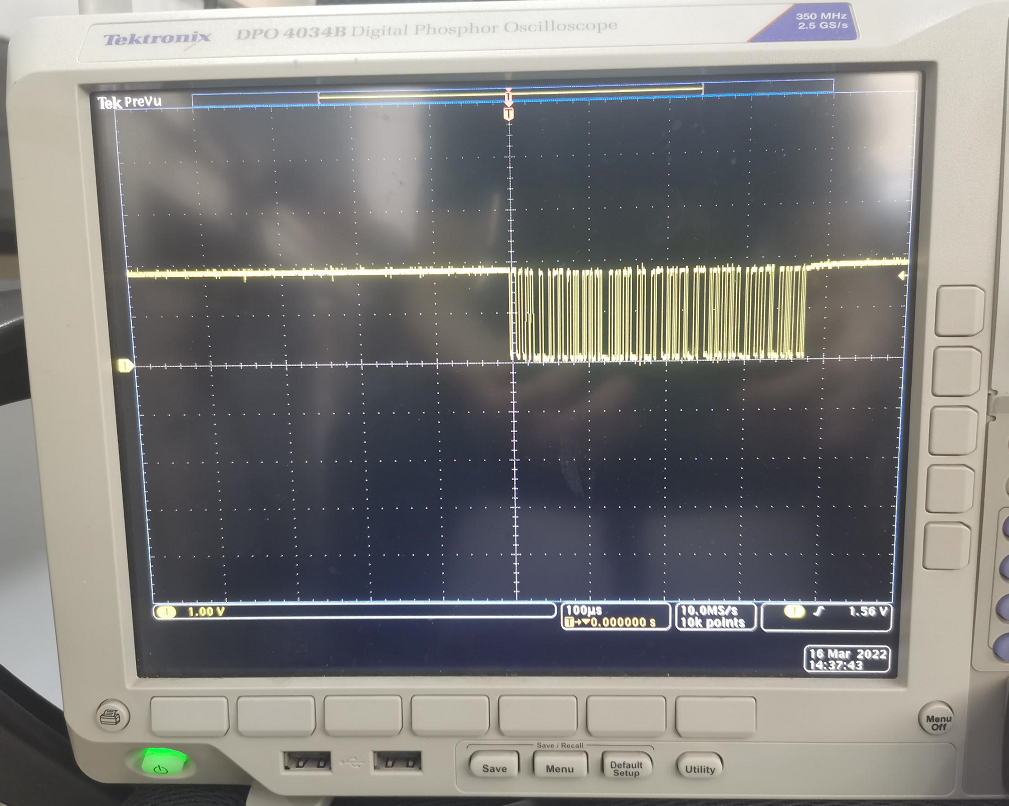

全部参考手册默认dts配置，SPI3单独发送数据正常：
从机运行spidev-test接收数据，发送数据就开始异常了：
root@OpenWrt:~# ./spidev-test -D /dev/spidev1.0 -p slave-hello-to-master -v
spi mode: 0x0
bits per word: 8
max speed: 500000 Hz (500 KHz)
TX | 73 6C 61 76 65 2D 68 65 6C 6C 6F 2D 74 6F 2D 6D 61 73 74 65 72 __ __ __ __ __ __ __ __ __ __ __ | slave-hello-to-master
RX | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 __ __ __ __ __ __ __ __ __ __ __ | .....................root@OpenWrt:~# ./spidev-test -D /dev/spidev0.0 -p slave-hello-to-master -v
spi mode: 0x0
bits per word: 8
max speed: 500000 Hz (500 KHz)
TX | 73 6C 61 76 65 2D 68 65 6C 6C 6F 2D 74 6F 2D 6D 61 73 74 65 72 __ __ __ __ __ __ __ __ __ __ __ | slave-hello-to-master
RX | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 __ __ __ __ __ __ __ __ __ __ __ | .....................
后面主机单独发送电平不能拉低：
使用spi-slave-read接收数据异常：
root@OpenWrt:~# ./spi-slave-read-2
recv :0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0
recv :0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 1
这是为什么呢？ 改数据线为上下拉都无改善，难道是NXP的SPI从模式本身有问题，或者需要打驱动补丁？
咨询过NXP支持，看到示波器波形得出两端都在驱动，所以需要交叉数据线，然后通信就正常了：
通过查看手册和驱动有说明：
spi-fsl-lpspi.c :405
还需修改驱动测试一下不交叉线的情况，验证不交叉飞线可行：
#define CFGR1_PINCFG 0
附上spi slave补丁：
From bfb5b9bbcf115410353b9b952516814c3ea610c1 Mon Sep 17 00:00:00 2001
From: Taichun Yuan <[email protected]>
Date: Mon, 18 Nov 2019 14:08:32 +0800
Subject: [PATCH 2/2] enable lpspi3 as spi_slave
Note:
When working under slave mode, spidev should not be in
the DT since it will be dynamically controlled by the sysfs:
/sys/class/spi_slave/spi<X>/slave
To enable spidev on slave:
echo spidev > /sys/class/spi_slave/spi<X>/slave
There're also other modes supported if enabled in defconfig
spi-slave-system-control
spi-slave-time
Details can be found:
/Documentation/spi/spi-summary
LWN for slave support:
https://lwn.net/Articles/723440/
---
arch/arm64/boot/dts/freescale/fsl-imx8qxp-mek.dtsi | 7 +------
arch/arm64/configs/defconfig | 4 ++++
2 files changed, 5 insertions(+), 6 deletions(-)
diff --git a/arch/arm64/boot/dts/freescale/fsl-imx8qxp-mek.dtsi b/arch/arm64/boot/dts/freescale/fsl-imx8qxp-mek.dtsi
index cda6e7902..b345c1c4a 100755
--- a/arch/arm64/boot/dts/freescale/fsl-imx8qxp-mek.dtsi
+++ b/arch/arm64/boot/dts/freescale/fsl-imx8qxp-mek.dtsi
@@ -1417,12 +1417,7 @@
fsl,spi-num-chipselects = <1>;
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_lpspi3>;
+ spi-slave;
status = "okay";
-
- spidev0: spi@0 {
- reg = <0>;
- compatible = "rohm,dh2228fv";
- spi-max-frequency = <10000000>;
- };
};
diff --git a/arch/arm64/configs/defconfig b/arch/arm64/configs/defconfig
index 9c3d9ea7c..9bf0676e2 100644
--- a/arch/arm64/configs/defconfig
+++ b/arch/arm64/configs/defconfig
@@ -826,3 +826,7 @@ CONFIG_CRYPTO_AES_ARM64_CE_CCM=y
CONFIG_CRYPTO_AES_ARM64_CE_BLK=y
CONFIG_CRYPTO_CHACHA20_NEON=m
CONFIG_CRYPTO_AES_ARM64_BS=m
+CONFIG_SPI_SPIDEV=y
+CONFIG_SPI_SLAVE=y
+CONFIG_SPI_SLAVE_TIME=y
+CONFIG_SPI_SLAVE_SYSTEM_CONTROL=y
--
2.17.0
