- 此次试验的目的是计算目标图像偏转的角度,在不改变图像尺寸下纠正
- 这里主要用到minAreaRect()函数和getRotationMatrix2D()函数
- 先简单的介绍下minAreaRect()函数,本人在这里踩了一些坑,在这里说明一下,如有不妥的地方,大家尽管指正。
函数为minAreaRect(InputArray points) ,InputArray points是所要求最小外接矩形的点集,这个点集不定个数。
这个矩形是可以有偏转角度的,可以与图像的边界不平行。
调用形式:RotatedRect minAreaRect(InputArray points)
- 角度计算规则:以左上角为原点,X轴逆时针旋转,所得到的第一个角度即为旋转角度,第一条边为最小外接矩形的宽。角度范围[-90,0],当最小外接矩形平行(或垂直)X轴时角度为-90。(跟目标图像的长宽没关系)
顺时针为正,逆时针为负
- 函数getRotationMatrix2D(Point2f center, double angle, double scale)
参数详解:
Point2f center:表示旋转的中心点
double angle:表示旋转的角度 //这里的角度顺时针为负,逆时针为正
double scale:图像缩放因子
- 踩坑的地方主要在角度分不清,我总结了一下:
minAreaRect():以X轴正方向为起点,顺时针为正,逆时针为负
getRotationMatrix2D():以X轴正方向为起点,顺时针为负,逆时针为正
- 下面是一个例子:
-

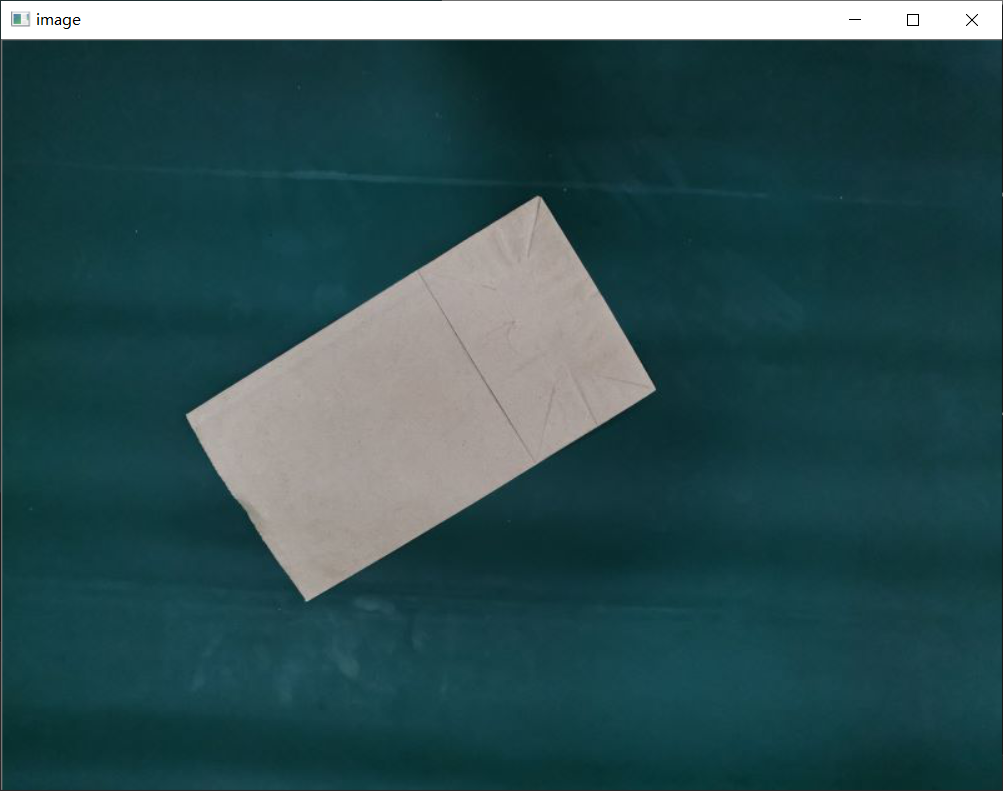

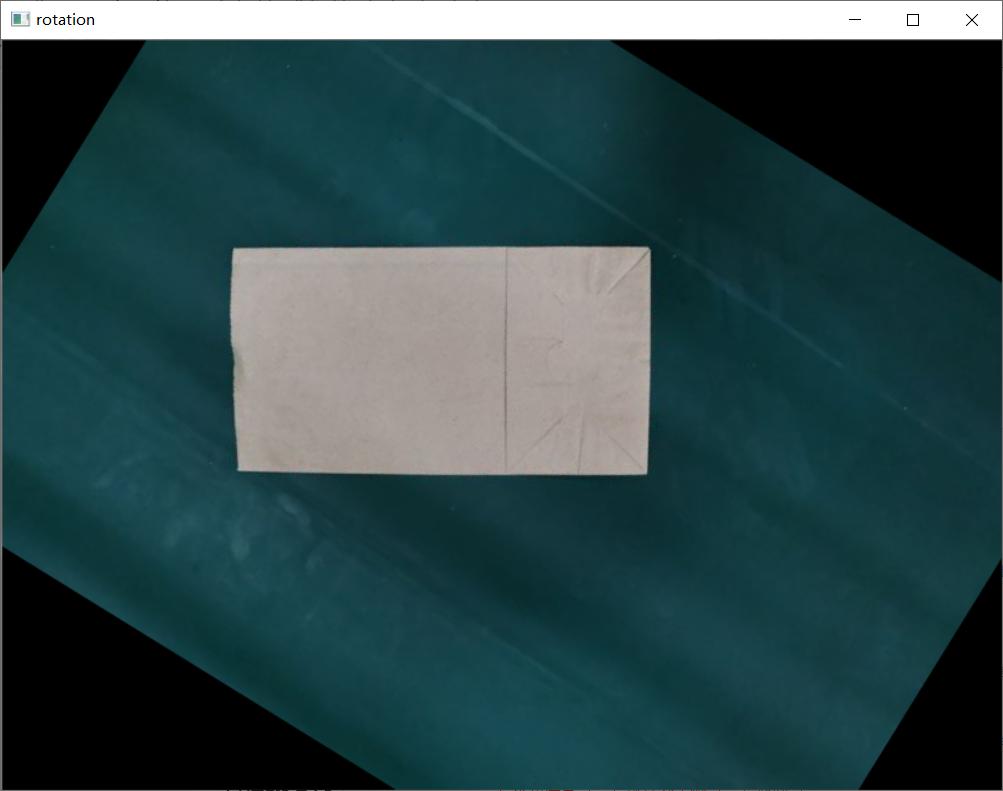

效果图:#include <iostream> #include <string> #include <math.h> #include <vector> #include <io.h> #include <fstream> #include <opencv2/opencv.hpp> #include <opencv2/core/core.hpp> #include <opencv2/highgui/highgui.hpp> using namespace cv; using namespace std; int main() { Mat image = imread("a11.jpg"); Mat gaussianimage,grayimage, cannyimage, thresholdimage; //---------------------旋转----------------- //计算偏转角度 GaussianBlur(image, gaussianimage, Size(5, 5), 3, 3);//尽可能多的去除杂质 Canny(gaussianimage, cannyimage, 50, 150, 3); cvtColor(cannyimage, grayimage, CV_GRAY2BGR); vector<vector<Point>>vec_point; vector<Vec4i>hireachy; findContours(cannyimage, vec_point, hireachy, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE); double degree = 0; for (size_t i = 0; i < vec_point.size(); i++) { RotatedRect minrect = minAreaRect(vec_point[i]);//minAreaRect():以X轴正方形为起点,顺时针为正,逆时针为负 degree = minrect.angle; //此处目的是为了让目标图像旋转到水平位置 if (degree > -90 && degree <= -45) { degree += 90; } else if (degree >-45 && degree < 0) { degree; } else { degree = 0; } cout <<"degree:" << degree << endl; } //旋转纠正 Point center = Point(image.cols / 2, image.rows / 2); double angle = degree; double scale = 1; Mat rot(2, 3, CV_32FC1); rot = getRotationMatrix2D(center, angle, scale);//getRotationMatrix2D():以X轴正方形为起点,顺时针为负,逆时针为正 Mat rotimage; warpAffine(image, rotimage, rot, image.size()); namedWindow("rotation", 0); resizeWindow("rotation", 800, 600); imshow("rotation", rotimage); }
