人脸检测部分解析
参考文章：https://blog.csdn.net/chiukeung/article/details/79923558

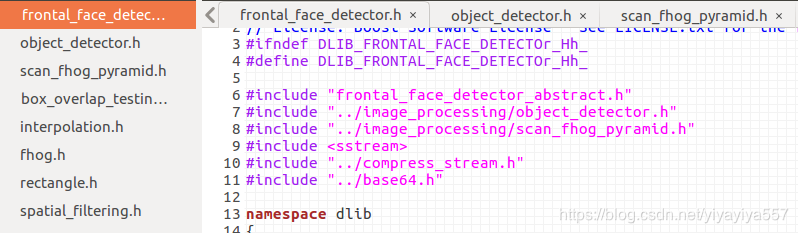

主要用到的函数：
以第一次优化后的代码进行分析，行数与原版有所一些差异。
初始化
执行 frontal_face_detector hogFaceDetector = get_frontal_face_detector();调用 frontal_face_detection.h 18:
namespace dlib
{
typedef object_detector<scan_fhog_pyramid<pyramid_down<6> > > frontal_face_detector;
inline const std::string get_serialized_frontal_faces();
inline frontal_face_detector get_frontal_face_detector()
{
std::istringstream sin(get_serialized_frontal_faces());
frontal_face_detector detector;
deserialize(detector, sin);
std::cout << __FUNCTION__ << " num of detectors = " << detector.num_detectors() << std::endl;
return detector;
}执行 deserialize(detector, sin); 调用 object_detector.h 246:
template <typename T>
void deserialize (
object_detector<T>& item,
std::istream& in
)
{
int version = 0;
deserialize(version, in);
if (version == 1)
{
deserialize(item.scanner, in);
item.w.resize(1);
deserialize(item.w[0].w, in);
item.w[0].init(item.scanner);
deserialize(item.boxes_overlap, in);
}
else if (version == 2)
{
deserialize(item.scanner, in);
deserialize(item.boxes_overlap, in);
unsigned long num_detectors = 0;
deserialize(num_detectors, in);
std::cout << __FUNCTION__ << " num_detectors = " << num_detectors << std::endl;
item.w.resize(num_detectors);
for (unsigned long i = 0; i < item.w.size(); ++i)
{
deserialize(item.w[i].w, in);
item.w[i].init(item.scanner);
}
}
else
{
throw serialization_error("Unexpected version encountered while deserializing a dlib::object_detector object.");
}
}执行object_detector.h 263 deserialize(item.scanner, in); 调用 scan_fhog_pyramid.h 492:
template <typename T, typename U>
void deserialize (
scan_fhog_pyramid<T,U>& item,
std::istream& in
)
{
int version = 0;
deserialize(version, in);
if (version != 1)
throw serialization_error("Unsupported version found when deserializing a scan_fhog_pyramid object.");
deserialize(item.fe, in);
deserialize(item.feats, in);
deserialize(item.cell_size, in);
deserialize(item.padding, in);
deserialize(item.window_width, in);
deserialize(item.window_height, in);
deserialize(item.max_pyramid_levels, in);
deserialize(item.min_pyramid_layer_width, in);
deserialize(item.min_pyramid_layer_height, in);
deserialize(item.nuclear_norm_regularization_strength, in);
// When developing some feature extractor, it's easy to accidentally change its
// number of dimensions and then try to deserialize data from an older version of
// your extractor into the current code. This check is here to catch that kind of
// user error.
long dims;
deserialize(dims, in);
if (item.get_num_dimensions() != dims)
throw serialization_error("Number of dimensions in serialized scan_fhog_pyramid doesn't match the expected number.");
}基本参数，fe, feats,cell_size,padding, window_width, window_height等
执行object_detector.h 264 deserialize(item.boxes_overlap, in); 调用 box_overlap_testing.h 132：
inline void deserialize (
test_box_overlap& item,
std::istream& in
)
{
double percent_covered_thresh, iou_thresh;
deserialize(iou_thresh, in);
deserialize(percent_covered_thresh, in);
item = test_box_overlap(iou_thresh, percent_covered_thresh);
}
执行object_detector.h 266 deserialize(num_detectors, in); 调用
num_detectors = 5 //front, left,right, front left rotated, front right rotated人脸的五面
item.w.resize(num_detectors);
for (unsigned long i = 0; i < item.w.size(); ++i)
{
deserialize(item.w[i].w, in);
item.w[i].init(item.scanner);
}对w进行赋值， w的size = 5
加载图像
// Convert OpenCV image format to Dlib's image format
cv_image<bgr_pixel> dlibIm(frameDlibHogSmall);调用cv_image.h 26，将mat转化为dlib_image：
cv_image (const cv::Mat img)
{
DLIB_CASSERT(img.depth() == cv::DataType<typename pixel_traits<pixel_type>::basic_pixel_type>::depth &&
img.channels() == pixel_traits<pixel_type>::num,
"The pixel type you gave doesn't match pixel used by the open cv Mat object."
<< "\n\t img.depth(): " << img.depth()
<< "\n\t img.cv::DataType<typename pixel_traits<pixel_type>::basic_pixel_type>::depth: "
<< cv::DataType<typename pixel_traits<pixel_type>::basic_pixel_type>::depth
<< "\n\t img.channels(): " << img.channels()
<< "\n\t img.pixel_traits<pixel_type>::num: " << pixel_traits<pixel_type>::num
);
IplImage temp = img;
init(&temp);
}人脸检测
// Detect faces in the image
std::vector<dlib::rectangle> faceRects = hogFaceDetector(dlibIm);调用object_detector.h 528：
template <
typename image_scanner_type
>
template <
typename image_type
>
std::vector<rectangle> object_detector<image_scanner_type>::
operator() (
const image_type& img,
double adjust_threshold
)
{
std::vector<rect_detection> dets;
(*this)(img,dets,adjust_threshold);
std::vector<rectangle> final_dets(dets.size());
for (unsigned long i = 0; i < dets.size(); ++i)
final_dets[i] = dets[i].rect;
return final_dets;
}执行object_detector.h 535 (*this)(img,dets,adjust_threshold); 调用 object_detector.h 438：（人脸检测核心函数，入口）
template <
typename image_scanner_type
>
template <
typename image_type
>
void object_detector<image_scanner_type>::
operator() (
const image_type& img,
std::vector<rect_detection>& final_dets,
double adjust_threshold
)
{
scanner.load(img); //执行完此句，图像金字塔建立完成
std::vector<std::pair<double, rectangle> > dets;
std::vector<rect_detection> dets_accum;
/*
for (unsigned long i = 0; i < w.size(); ++i)
{
const double thresh = w[i].w(scanner.get_num_dimensions());
scanner.detect(w[i].get_detect_argument(), dets, thresh + adjust_threshold);
for (unsigned long j = 0; j < dets.size(); ++j)
{
rect_detection temp;
temp.detection_confidence = dets[j].first-thresh;
temp.weight_index = i;
temp.rect = dets[j].second;
dets_accum.push_back(temp);
}
}
*/
//for_arm_top
dlib::parallel_for(0,w.size(),[&](long i){
//std::vector<std::pair<double, rectangle> > dets;
const double thresh = w[i].w(scanner.get_num_dimensions());
scanner.detect(w[i].get_detect_argument(), dets, thresh + adjust_threshold);
for (unsigned long j = 0; j < dets.size(); ++j)
{
rect_detection temp;
temp.detection_confidence = dets[j].first-thresh;
temp.weight_index = i;
temp.rect = dets[j].second;
dets_accum.push_back(temp);
}
});
// Do non-max suppression
final_dets.clear();
if (w.size() > 1)
std::sort(dets_accum.rbegin(), dets_accum.rend());
for (unsigned long i = 0; i < dets_accum.size(); ++i)
{
if (overlaps_any_box(final_dets, dets_accum[i].rect))
continue;
final_dets.push_back(dets_accum[i]);
}
}执行object_detector.h 445 scanner.load(img); 调用 scan_fhog_pyramid.h 730:
template <
typename Pyramid_type,
typename feature_extractor_type
>
template <
typename image_type
>
void scan_fhog_pyramid<Pyramid_type,feature_extractor_type>::
load (
const image_type& img
)
{
unsigned long width, height;
compute_fhog_window_size(width,height); //10*10
impl::create_fhog_pyramid<Pyramid_type>(img, fe, feats, cell_size, height,
width, min_pyramid_layer_width, min_pyramid_layer_height,
max_pyramid_levels);
}执行scan_fhog_pyramid.h 735 compute_fhog_window_size(width,height); 调用scan_fhog_pyramid.h 356
private:
inline void compute_fhog_window_size(
unsigned long& width,
unsigned long& height
) const
{
const rectangle rect = centered_rect(point(0,0),window_width,window_height); //得到中心点为point的矩形
const rectangle temp = grow_rect(fe.image_to_feats(rect, cell_size, 1, 1), padding);
width = temp.width();
height = temp.height();
}执行scan_fhog_pyramid.h 362 const rectangle temp = grow_rect(...); 调用scan_fhog_pyramid.h 22
public:
inline rectangle image_to_feats (
const rectangle& rect,
int cell_size,
int filter_rows_padding,
int filter_cols_padding
) const
{
return image_to_fhog(rect, cell_size, filter_rows_padding, filter_cols_padding);
}执行scan_fhog_pyramid.h 29 return image_to_fhog(...); 调用fhog.h 1187:
inline rectangle image_to_fhog (
const rectangle& rect,
int cell_size = 8,
int filter_rows_padding = 1,
int filter_cols_padding = 1
)
{
// make sure requires clause is not broken
DLIB_ASSERT( cell_size > 0 &&
filter_rows_padding > 0 &&
filter_cols_padding > 0 ,
"\t rectangle image_to_fhog()"
<< "\n\t Invalid inputs were given to this function. "
<< "\n\t cell_size: " << cell_size
<< "\n\t filter_rows_padding: " << filter_rows_padding
<< "\n\t filter_cols_padding: " << filter_cols_padding
);
return rectangle(image_to_fhog(rect.tl_corner(),cell_size,filter_rows_padding,filter_cols_padding),
image_to_fhog(rect.br_corner(),cell_size,filter_rows_padding,filter_cols_padding));
}执行fhog.h 1205 return rectangle(image_to_fhog); 调用fhog.h 1161:
inline point image_to_fhog (
point p,
int cell_size = 8,
int filter_rows_padding = 1,
int filter_cols_padding = 1
)
{
// make sure requires clause is not broken
DLIB_ASSERT( cell_size > 0 &&
filter_rows_padding > 0 &&
filter_cols_padding > 0 ,
"\t point image_to_fhog()"
<< "\n\t Invalid inputs were given to this function. "
<< "\n\t cell_size: " << cell_size
<< "\n\t filter_rows_padding: " << filter_rows_padding
<< "\n\t filter_cols_padding: " << filter_cols_padding
);
// There is a one pixel border around the image.
p -= point(1,1);
// There is also a 1 "cell" border around the HOG image formation.
return p/cell_size - point(1,1) + point((filter_cols_padding-1)/2,(filter_rows_padding-1)/2);
}// scan_fhog_pyramid.h 362 fe.image_to_feats(...)结束
执行scan_fhog_pyramid.h 362 const rectangle temp = grow_rect(...);
const rectangle temp = grow_rect(fe.image_to_feats(rect, cell_size, 1, 1), padding);调用 rectangle.h 614:
inline const rectangle grow_rect (
const rectangle& rect,
long num
)
{
return shrink_rect(rect, -num);
}调用 rectangle.h 604:
inline const rectangle shrink_rect (
const rectangle& rect,
long num
)
{
return rectangle(rect.left()+num, rect.top()+num, rect.right()-num, rect.bottom()-num);
}// scan_fhog_pyramid.h 735 compute_fhog_window_size(width,height)结束
执行scan_fhog_pyramid.h 736 impl::create_fhog_pyramid<Pyramid_type>(...); 调用 scan_fhog_pyramid.h 620:（核心函数）
template <
typename pyramid_type,
typename image_type,
typename feature_extractor_type
>
void create_fhog_pyramid (
const image_type& img,
const feature_extractor_type& fe,
array<array<array2d<float> > >& feats,
int cell_size,
int filter_rows_padding,
int filter_cols_padding,
unsigned long min_pyramid_layer_width,
unsigned long min_pyramid_layer_height,
unsigned long max_pyramid_levels
)
{
unsigned long levels = 0;
rectangle rect = get_rect(img);
//生成金字塔图像， levels表示多少级， 图像最小是64*64
// figure out how many pyramid levels we should be using based on the image size
pyramid_type pyr;
do
{
rect = pyr.rect_down(rect);
++levels;
} while (rect.width() >= min_pyramid_layer_width && rect.height() >= min_pyramid_layer_height &&
levels < max_pyramid_levels);
if (feats.max_size() < levels)
feats.set_max_size(levels);
feats.set_size(levels); //我的输入图像是1024*1024， feats_size = 20
//for_arm_top
//std::cout << "feats.size() = " << feats.size() << std::endl;
#if 1
typedef typename image_traits<image_type>::pixel_type pixel_type;
//long long t0 = currentTimeInMilliseconds();
array<array2d<pixel_type>> image_pyr;
image_pyr.set_max_size(levels);
image_pyr.set_size(levels);
assign_image(image_pyr[0],img);
for(int i=0;i<image_pyr.size()-1;i++)
{
pyr(image_pyr[i], image_pyr[i+1]);
}
//long long t1 = currentTimeInMilliseconds();
//impl::total_pyr_time = (t1-t0);
// build our feature pyramid
DLIB_ASSERT(feats[0].size() == fe.get_num_planes(),
"Invalid feature extractor used with dlib::scan_fhog_pyramid. The output does not have the \n"
"indicated number of planes.");
//t0 = currentTimeInMilliseconds();
param_for_fill_in_feats<pixel_type, feature_extractor_type,image_type> param;
param.cell_size = cell_size;
param.fe = (feature_extractor_type*)&fe;
param.feats = &feats;
param.filter_cols_padding = filter_cols_padding;
param.filter_rows_padding = filter_rows_padding;
param.image_pyr = &image_pyr;
param.mutex = PTHREAD_MUTEX_INITIALIZER;
param.feats_idx = 0;
//fill_in_feats<pixel_type, feature_extractor_type>((void*)¶m);
int num_of_thread = 3;
pthread_t fill_in_fe_thread[num_of_thread];
for(int i=0;i<num_of_thread;i++)
{
pthread_create(&fill_in_fe_thread[i], NULL, &fill_in_feats<pixel_type, feature_extractor_type, image_type>, (void*)¶m);
}
for(int i=0;i<num_of_thread;i++)
{
pthread_join(fill_in_fe_thread[i], NULL);
}
//t1 = currentTimeInMilliseconds();
//impl::total_fe_time = (t1-t0);
#else
//for_arm_below
// build our feature pyramid
fe(img, feats[0], cell_size,filter_rows_padding,filter_cols_padding);
DLIB_ASSERT(feats[0].size() == fe.get_num_planes(),
"Invalid feature extractor used with dlib::scan_fhog_pyramid. The output does not have the \n"
"indicated number of planes.");
if (feats.size() > 1)
{
typedef typename image_traits<image_type>::pixel_type pixel_type;
array2d<pixel_type> temp1, temp2;
pyr(img, temp1);
fe(temp1, feats[1], cell_size,filter_rows_padding,filter_cols_padding);
swap(temp1,temp2);
for (unsigned long i = 2; i < feats.size(); ++i)
{
pyr(temp2, temp1);
fe(temp1, feats[i], cell_size,filter_rows_padding,filter_cols_padding);
swap(temp1,temp2);
}
}
#endif
}执行 scan_fhog_pyramid.h 696 fe(img, feats[0], cell_size,filter_rows_padding,filter_cols_padding);调用scan_fhog_pyramid.h 45:（优化后，未执行该语句，转而执行 673 param.fe = (feature_extractor_type*)&fe;）
template <
typename image_type
>
void operator()(
const image_type& img,
dlib::array<array2d<float> >& hog,
int cell_size,
int filter_rows_padding,
int filter_cols_padding
) const
{
extract_fhog_features(img,hog,cell_size,filter_rows_padding,filter_cols_padding);
}执行 scan_fhog_pyramid.h 53 extract_fhog_features(...); 调用fhog.h 1085 :
(优化前后，都是执行default_fhog_feature_extractor、Feature_extractor_type)
template <
typename image_type,
typename T,
typename mm1,
typename mm2
>
void extract_fhog_features(
const image_type& img,
dlib::array<array2d<T,mm1>,mm2>& hog,
int cell_size = 8,
int filter_rows_padding = 1,
int filter_cols_padding = 1
)
{
impl_fhog::impl_extract_fhog_features(img, hog, cell_size, filter_rows_padding, filter_cols_padding);
// If the image is too small then the above function outputs an empty feature map.
// But to make things very uniform in usage we require the output to still have the
// 31 planes (but they are just empty).
if (hog.size() == 0)
hog.resize(31);
}执行fhog.h 1093 impl_fhog::impl_extract_fhog_features(); 调用fhog.h 704：（很长，核心HOG计算函数）
template <
typename image_type,
typename out_type
>
void impl_extract_fhog_features(
const image_type& img_,
out_type& hog,
int cell_size,
int filter_rows_padding,
int filter_cols_padding
)
{
const_image_view<image_type> img(img_);
// make sure requires clause is not broken
DLIB_ASSERT( cell_size > 0 &&
filter_rows_padding > 0 &&
filter_cols_padding > 0 ,
"\t void extract_fhog_features()"
<< "\n\t Invalid inputs were given to this function. "
<< "\n\t cell_size: " << cell_size
<< "\n\t filter_rows_padding: " << filter_rows_padding
<< "\n\t filter_cols_padding: " << filter_cols_padding
);
...
}hog提取特征向量。在算cell里每个像素合梯度属于9个bin中的哪个bin时，采用x方向梯度，y方向梯度分别与9个方向单位向量的x,y相乘，计算得到哪个值最小，就属于哪个方向的bin，这种方法比计算方向角度(反正切值)速度快，而且可以定点化。
另外在计算属于哪个bin时，采用了插值的思想（回头补上）。hog特征为31维，18个360°bin+9个180°bin+4个邻域行特征向量的和做归一化。截断系数为0.2
// scan_fhog_pyramid.h 696 fe(img, feats[0], cell_size,filter_rows_padding,filter_cols_padding) 结束
执行 scan_fhog_pyramid.h 711 pyr(temp2, temp1); pyramid_type pyr; typename pyramid_type,
即初始时定义的类型 pyramid_down<6>
// scan_fhog_pyramid.h 736 impl::create_fhog_pyramid<Pyramid_type>(...) 结束
// object_detector.h 445 scanner.load(img) 结束
执行 object_detector.h 466 const double thresh = w[i].w(scanner.get_num_dimensions()); 调用scan_fhog_pyramid.h 808：
template <
typename Pyramid_type,
typename feature_extractor_type
>
long scan_fhog_pyramid<Pyramid_type,feature_extractor_type>::
get_num_dimensions (
) const
{
unsigned long width, height;
compute_fhog_window_size(width,height);
return width*height*fe.get_num_planes(); //width = 10, height = 10, fe.get_num_planes() = 31
}执行 object_detector.h 466 const double thresh = w[i].w(scanner.get_num_dimensions()); //scanner.get_num_dimensions()=3100=10*10*31
执行 object_detector.h 467 scanner.detect(w[i].get_detect_argument(), dets, thresh + adjust_threshold); 调用scan_fhog_pyramid.h 977:
template <
typename Pyramid_type,
typename feature_extractor_type
>
void scan_fhog_pyramid<Pyramid_type,feature_extractor_type>::
detect (
const fhog_filterbank& w,
std::vector<std::pair<double, rectangle> >& dets,
const double thresh
) const
{
// make sure requires clause is not broken
DLIB_ASSERT(is_loaded_with_image() &&
w.get_num_dimensions() == get_num_dimensions(),
"\t void scan_fhog_pyramid::detect()"
<< "\n\t Invalid inputs were given to this function "
<< "\n\t is_loaded_with_image(): " << is_loaded_with_image()
<< "\n\t w.get_num_dimensions(): " << w.get_num_dimensions()
<< "\n\t get_num_dimensions(): " << get_num_dimensions()
<< "\n\t this: " << this
);
unsigned long width, height;
compute_fhog_window_size(width,height);
//for_arm_top
const int num_of_threads = 3;
//long long t0 = currentTimeInMilliseconds();
array<array<array2d<float> >> feats_dp[num_of_threads];
std::vector<std::pair<double, rectangle> > dets_dp[num_of_threads];
for(int h=0;h<num_of_threads;h++)
{
feats_dp[h].set_max_size(feats.size());
feats_dp[h].set_size(feats.size());
for(int i=0;i<feats_dp[h].size();i++)
{
feats_dp[h][i].set_max_size(feats[i].size());
feats_dp[h][i].set_size(feats[i].size());
for(int j=0;j<feats_dp[h][i].size();j++)
{
feats_dp[h][i][j].set_private_member(feats[i][j]);
//std::cout << " h = " << h << " i = " << i << " j = " << j << "ret = " << feats_dp[h][i][j].config_by_tid(h,num_of_threads,height) << std::endl;
feats_dp[h][i][j].config_by_tid(h,num_of_threads,height);
//if (feats_dp[h][i][j].config_by_tid(h,num_of_threads,height) == -1)
//if(j == 0)
//{
// std::cout << " h = " << h << " i = " << i << " nr = " << feats_dp[h][i][j].nr() << " ori nr = " << feats[i][j].nr() << std::endl;
//}
}
}
}
//long long t1 = currentTimeInMilliseconds();
//std::cout << "build feats time = " << t1-t0 << std::endl;
pthread_t detect_thread[num_of_threads];
impl::param_for_detect<fhog_filterbank, feature_extractor_type> param[num_of_threads];
for(int i=0;i<num_of_threads;i++)
{
param[i].feats = &feats_dp[i];
param[i].fe = &fe;
param[i].w = &w;
param[i].thresh = thresh;
param[i].det_box_height = height-2*padding;
param[i].det_box_width = width-2*padding;
param[i].cell_size = cell_size;
param[i].filter_rows_padding = height;
param[i].filter_cols_padding = width;
param[i].dets = &dets_dp[i];
pthread_create(&detect_thread[i], NULL, &impl::detect_from_fhog_pyramid_wrapper<fhog_filterbank, feature_extractor_type,pyramid_type>, (void*)¶m[i]);
}
//long long t2 = currentTimeInMilliseconds();
//std::cout << "create threads time = " << t2-t1 << std::endl;
for(int i=0;i<num_of_threads;i++)
{
pthread_join(detect_thread[i], NULL);
}
//long long t3 = currentTimeInMilliseconds();
//std::cout << "wait for threads are finished time = " << t3-t2 << std::endl;
#if 0
for(int h=0;h<num_of_threads;h++)
{
impl::detect_from_fhog_pyramid<pyramid_type>(feats_dp[h], fe, w, thresh,
height-2*padding, width-2*padding, cell_size, height, width, dets_dp[h]);
}
#endif
for(int h=0;h<num_of_threads;h++)
{
while(!dets_dp[h].empty())
{
dets.push_back(dets_dp[h].back());
dets_dp[h].pop_back();
}
}
//long long t4 = currentTimeInMilliseconds();
//std::cout << "build dets time = " << t4-t3 << std::endl;
//for_arm_below
//impl::detect_from_fhog_pyramid<pyramid_type>(feats, fe, w, thresh,
// height-2*padding, width-2*padding, cell_size, height, width, dets);
}其中 object_detector.h 467 std::vector<processed_weight_vector<image_scanner_type> > w;定义了参数w，抽象实现调用scan_fhog_pyramid.h 1407:
template <
typename Pyramid_type,
typename feature_extractor_type
>
struct processed_weight_vector<scan_fhog_pyramid<Pyramid_type,feature_extractor_type> >
{
processed_weight_vector(){}
typedef matrix<double,0,1> feature_vector_type;
typedef typename scan_fhog_pyramid<Pyramid_type,feature_extractor_type>::fhog_filterbank fhog_filterbank;
void init (
const scan_fhog_pyramid<Pyramid_type,feature_extractor_type>& scanner
)
{
fb = scanner.build_fhog_filterbank(w);
}
const fhog_filterbank& get_detect_argument() const { return fb; }
feature_vector_type w;
fhog_filterbank fb;
};执行 scan_fhog_pyramid.h 1038 &impl::detect_from_fhog_pyramid_wrapper<...>; 调用 scan_fhog_pyramid.h 955：
template <
typename fhog_filterbank,
typename feature_extractor_type,
typename pyramid_type
>
void* detect_from_fhog_pyramid_wrapper (
void* ptr
)
{
//long long t0 = currentTimeInMilliseconds();
param_for_detect<fhog_filterbank, feature_extractor_type>* p = (param_for_detect<fhog_filterbank, feature_extractor_type>*)ptr;
impl::detect_from_fhog_pyramid<pyramid_type>(*(p->feats), *(p->fe), *(p->w), p->thresh,
p->det_box_height, p->det_box_width, p->cell_size, p->filter_rows_padding, p->filter_cols_padding, *(p->dets));
//long long t1 = currentTimeInMilliseconds();
//std::cout << "single thread finished time = " << t1-t0 << std::endl;
return NULL;
}
//for_arm_below执行 scan_fhog_pyramid.h 961 impl::detect_from_fhog_pyramid<pyramid_type>(...) ; 调用scan_fhog_pyramid.h 778:
template <
typename pyramid_type,
typename feature_extractor_type,
typename fhog_filterbank
>
void detect_from_fhog_pyramid (
const array<array<array2d<float> > >& feats,
const feature_extractor_type& fe,
const fhog_filterbank& w,
const double thresh,
const unsigned long det_box_height,
const unsigned long det_box_width,
const int cell_size,
const int filter_rows_padding,
const int filter_cols_padding,
std::vector<std::pair<double, rectangle> >& dets,
bool clear = true //for_arm
)
{
if(clear) dets.clear(); //for_arm
//dets.clear(); //检测器初始化
array2d<float> saliency_image; //显著图
pyramid_type pyr;
// for all pyramid levels 遍历所有金字塔图像
for (unsigned long l = 0; l < feats.size(); ++l)
{
const rectangle area = apply_filters_to_fhog(w, feats[l], saliency_image); //得到显著图，区域
// now search the saliency image for any detections
for (long r = area.top(); r <= area.bottom(); ++r)
{
for (long c = area.left(); c <= area.right(); ++c)
{
// if we found a detection
if (saliency_image[r][c] >= thresh)
{ //该区域位置
rectangle rect = fe.feats_to_image(centered_rect(point(c,r+feats[l][0].offset()),det_box_width,det_box_height),
cell_size, filter_rows_padding, filter_cols_padding);
rect = pyr.rect_up(rect, l); //图像放大到原图
dets.push_back(std::make_pair(saliency_image[r][c], rect));
}
}
}
}
std::sort(dets.rbegin(), dets.rend(), compare_pair_rect); //根据分数排序
}执行 scan_fhog_pyramid.h 892 const rectangle area = apply_filters_to_fhog(w, feats[l], saliency_image); 调用 scan_fhog_pyramid.h 417：
namespace impl
{
template <typename fhog_filterbank>
rectangle apply_filters_to_fhog (
const fhog_filterbank& w,
const array<array2d<float> >& feats,
array2d<float>& saliency_image
)
{
const unsigned long num_separable_filters = w.num_separable_filters(); //61
rectangle area;
// use the separable filters if they would be faster than running the regular filters.
if (num_separable_filters > w.filters.size()*std::min(w.filters[0].nr(),w.filters[0].nc())/3.0)
{
area = spatially_filter_image(feats[0], saliency_image, w.filters[0]);
for (unsigned long i = 1; i < w.filters.size(); ++i)
{
// now we filter but the output adds to saliency_image rather than
// overwriting it.
spatially_filter_image(feats[i], saliency_image, w.filters[i], 1, false, true);
}
}
else
{
saliency_image.clear();
array2d<float> scratch;
// find the first filter to apply
unsigned long i = 0;
while (i < w.row_filters.size() && w.row_filters[i].size() == 0)
++i;
for (; i < w.row_filters.size(); ++i)
{
for (unsigned long j = 0; j < w.row_filters[i].size(); ++j)
{
if (saliency_image.size() == 0)
area = float_spatially_filter_image_separable(feats[i], saliency_image, w.row_filters[i][j], w.col_filters[i][j],scratch,false);
else
area = float_spatially_filter_image_separable(feats[i], saliency_image, w.row_filters[i][j], w.col_filters[i][j],scratch,true);
} //横向卷积，纵向卷积比二维卷积速度快
}
if (saliency_image.size() == 0)
{
saliency_image.set_size(feats[0].nr(), feats[0].nc());
assign_all_pixels(saliency_image, 0);
}
}
return area;
}
}注：FILT(r,c) == col_filter(r)*row_filter(c) //二维卷积和行、列卷积间的关系
执行 scan_fhog_pyramid.h 423 const unsigned long num_separable_filters = w.num_separable_filters(); 调用 scan_fhog_pyramid.h 223:
unsigned long num_separable_filters() const
{
unsigned long num = 0;
for (unsigned long i = 0; i < row_filters.size(); ++i)
{
num += row_filters[i].size();
}
return num;
}执行 scan_fhog_pyramid.h 451 area = float_spatially_filter_image_separable(...); 调用 spatial_filtering.h 562:
// This overload is optimized to use SIMD instructions when filtering float images with
// float filters.
template <
typename in_image_type,
typename out_image_type,
typename EXP1,
typename EXP2
>
rectangle float_spatially_filter_image_separable (
const in_image_type& in_img_,
out_image_type& out_img_,
const matrix_exp<EXP1>& _row_filter,
const matrix_exp<EXP2>& _col_filter,
out_image_type& scratch_,
bool add_to = false
)
{
// You can only use this function with images and filters containing float
// variables.
COMPILE_TIME_ASSERT((is_float_filtering<in_image_type,out_image_type,EXP1,EXP2>::value == true));
const_temp_matrix<EXP1> row_filter(_row_filter);
const_temp_matrix<EXP2> col_filter(_col_filter);
DLIB_ASSERT(row_filter.size() != 0 && col_filter.size() != 0 &&
is_vector(row_filter) &&
is_vector(col_filter),
"\trectangle float_spatially_filter_image_separable()"
<< "\n\t Invalid inputs were given to this function."
<< "\n\t row_filter.size(): "<< row_filter.size()
<< "\n\t col_filter.size(): "<< col_filter.size()
<< "\n\t is_vector(row_filter): "<< is_vector(row_filter)
<< "\n\t is_vector(col_filter): "<< is_vector(col_filter)
);
DLIB_ASSERT(is_same_object(in_img_, out_img_) == false,
"\trectangle float_spatially_filter_image_separable()"
<< "\n\tYou must give two different image objects"
);
const_image_view<in_image_type> in_img(in_img_);
image_view<out_image_type> out_img(out_img_);
// if there isn't any input image then don't do anything
if (in_img.size() == 0)
{
out_img.clear();
return rectangle();
}
//out_img为结果
out_img.set_size(in_img.nr(),in_img.nc());
//卷积区域
// figure out the range that we should apply the filter to
const long first_row = col_filter.size()/2;
const long first_col = row_filter.size()/2;
const long last_row = in_img.nr() - ((col_filter.size()-1)/2);
const long last_col = in_img.nc() - ((row_filter.size()-1)/2);
const rectangle non_border = rectangle(first_col, first_row, last_col-1, last_row-1);
if (!add_to)
zero_border_pixels(out_img, non_border);
image_view<out_image_type> scratch(scratch_);
scratch.set_size(in_img.nr(), in_img.nc());
// apply the row filter 行卷积
for (long r = 0; r < in_img.nr(); ++r)
{
long c = first_col;
for (; c < last_col-7; c+=8)
{
simd8f p,p2,p3, temp = 0, temp2=0, temp3=0;
long n = 0;
for (; n < row_filter.size()-2; n+=3)
{
// pull out the current pixel and put it into p
p.load(&in_img[r][c-first_col+n]);
p2.load(&in_img[r][c-first_col+n+1]);
p3.load(&in_img[r][c-first_col+n+2]);
temp += p*row_filter(n);
temp2 += p2*row_filter(n+1);
temp3 += p3*row_filter(n+2);
}
for (; n < row_filter.size(); ++n)
{
// pull out the current pixel and put it into p
p.load(&in_img[r][c-first_col+n]);
temp += p*row_filter(n);
}
temp += temp2 + temp3;
temp.store(&scratch[r][c]);
}
for (; c < last_col; ++c)
{
float p;
float temp = 0;
for (long n = 0; n < row_filter.size(); ++n)
{
// pull out the current pixel and put it into p
p = in_img[r][c-first_col+n];
temp += p*row_filter(n);
}
scratch[r][c] = temp;
}
}
// apply the column filter 列卷积
for (long r = first_row; r < last_row; ++r)
{
long c = first_col;
for (; c < last_col-7; c+=8)
{
simd8f p, p2, p3, temp = 0, temp2 = 0, temp3 = 0;
long m = 0;
for (; m < col_filter.size()-2; m+=3)
{
p.load(&scratch[r-first_row+m][c]);
p2.load(&scratch[r-first_row+m+1][c]);
p3.load(&scratch[r-first_row+m+2][c]);
temp += p*col_filter(m);
temp2 += p2*col_filter(m+1);
temp3 += p3*col_filter(m+2);
}
for (; m < col_filter.size(); ++m)
{
p.load(&scratch[r-first_row+m][c]);
temp += p*col_filter(m);
}
temp += temp2+temp3;
// save this pixel to the output image
if (add_to == false)
{
temp.store(&out_img[r][c]);
}
else
{
p.load(&out_img[r][c]);
temp += p;
temp.store(&out_img[r][c]);
}
}
for (; c < last_col; ++c)
{
float temp = 0;
for (long m = 0; m < col_filter.size(); ++m)
{
temp += scratch[r-first_row+m][c]*col_filter(m);
}
// save this pixel to the output image
if (add_to == false)
{
out_img[r][c] = temp;
}
else
{
out_img[r][c] += temp;
}
}
}
return non_border;
}// scan_fhog_pyramid.h 892 const rectangle area = apply_filters_to_fhog(w, feats[l], saliency_image); 结束
// scan_fhog_pyramid.h 961 impl::detect_from_fhog_pyramid<pyramid_type>(...) 结束
// object_detector.h 467 scanner.detect(w[i].get_detect_argument(), dets, thresh + adjust_threshold); 结束，多线程detect完成
// object_detector.h 478 // Do non-max suppression 完成，人脸检测完成
