OPENCV系列博客主要记录自己学习OPENCV的历程,以及存储已经实现的代码,以备后续回顾使用,代码中包含了主要的备注。
#include <opencv2/opencv.hpp>
#include <iostream>
#include <math.h>
using namespace cv;
int main(int argc, char** argv) {
//Step1 读取图片
Mat src, dst;
src = imread("sample.jpg");
if (!src.data) {
printf("Could not lod image \n");
}
namedWindow("input_image", CV_WINDOW_AUTOSIZE);
imshow("input_image",src);
//Step2 通过操作像素的方式来进行mask卷积
/*
int cols = src.cols * src.channels();
int offsetx = src.channels();
int rows = src.rows;
dst = Mat::zeros(src.size(), src.type());
for (int row = 1; row < (rows - 1); row++) {
const uchar* previous = src.ptr<uchar>(row - 1);
const uchar* current = src.ptr<uchar>(row);
const uchar* next = src.ptr<uchar>(row+1);
uchar* output = dst.ptr<uchar>(row);
for (int col = offsetx; col < cols; col++) {
output[col] = saturate_cast<uchar>(5 * current[col] - (current[col - offsetx] + current[col + offsetx] + previous[col] + next[col]));
}
}
*/
//Step3 使用kernal和filter2D的方式来对照片进行滤波
double t = getTickCount(); //开始执行时间
Mat kernal = (Mat_<char>(3, 3) << 0, -1, 0, -1, 5, -1, 0, -1, 0);//掩膜矩阵3x3
filter2D(src, dst, src.depth(), kernal);
double timeconsume = (getTickCount() - t) / getTickFrequency(); //结束执行时间-开始执行时间=总共用时
printf("Time consume %.2f\n", timeconsume);
namedWindow("constrast image demo",CV_WINDOW_AUTOSIZE);
imshow("constrast image demo",dst);
waitKey();
}

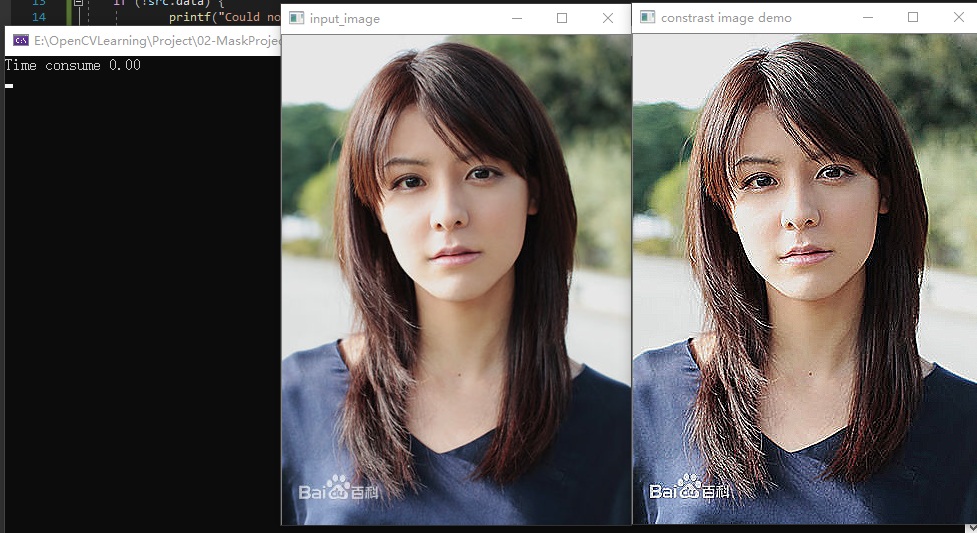

效果如下,增加了对比度:
