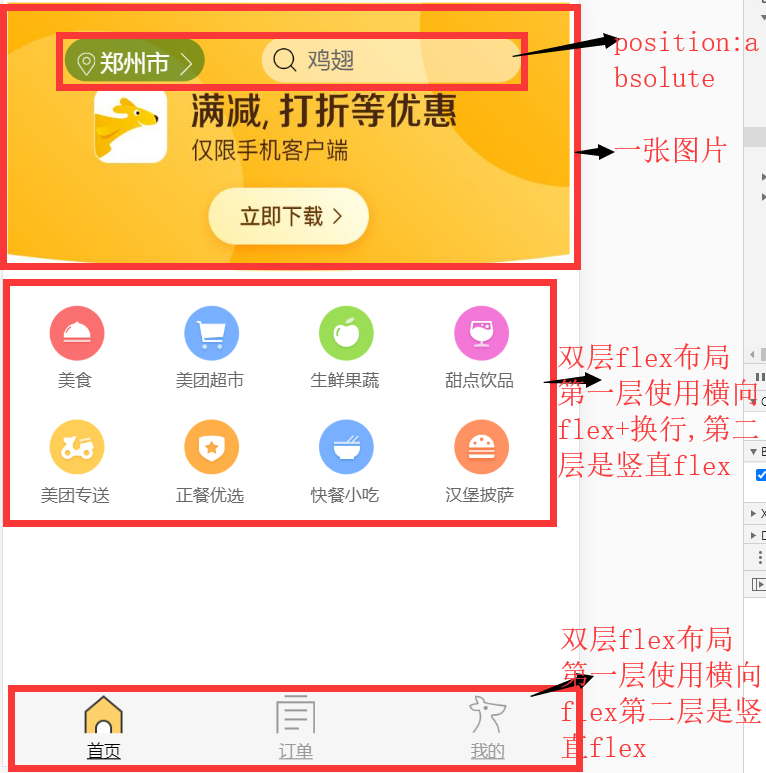

1 美团外卖app部分布局讲解:
2.使用js实现:将数据获取之后渲染到dom上

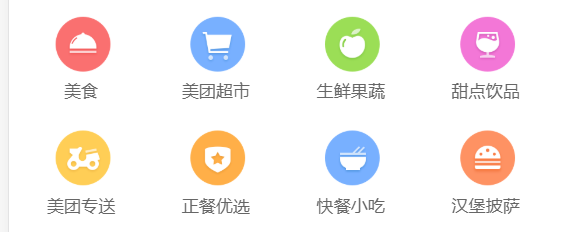

比如针对:
首先数据是从外部获取,所以要获取数据之后,在js中使用for循环来生成dom树的字符串,然后追加到完整的dom树上。
(function () {
//字符串模板
var temStr = '<div class="category-item">' +
' <div class="category-image"><img src="$imgSrc"></img></div>' +
'<div class="category-text">$text</div>' +
'</div>'
//获取数据,并替换模板,这个文件最后要放到index.htm中,所以这里json的相对路径是相对于index.htm
$.get("../json/head.json", function (backData) {
var items, result='';
if (backData.code === 0) {
items = backData.data.primary_filter.slice(0,8);
items.forEach((item, index) => {
//替换temStr中的变量
let str=temStr.replace('$imgSrc', item.url)
.replace('$text', item.name)
result += str;
})
}
//追加到htm中
$(".category").append(result)
})
})()
css部分如下:
.category {
display: flex;
flex-direction: row;
flex-wrap: wrap;
width: 100%;
align-items: center;
margin-top: 0.5rem;
}
.category-item {
display: flex;
flex-direction: column;
align-items: center;
width: 24%;
margin-bottom: 0.4rem;
}
.category .category-image{
width: 0.9rem;
height: 1.2rem;
}
.category .category-text{
font-size: 0.3rem;
color: #666;
}
3.底部的三个链接,可以实现跳转,同时跳转之后底图图标颜色会发生相应变化。
跳到那个那个网页,对应的图标就变高亮,实际上是替换了图标
(function(){
var itemTmpl = '<a class="$key btn-item" href="../$key/$key.htm">'+
'<div class="tab-icon"></div>'+
'<div class="btn-name">$text</div>'+
'</a>'
function init(){
var items = [{
key: 'index',
text: '首页'
},{
key: 'order',
text: '订单'
},{
key: 'my',
text: '我的'
}];
var str = '';
items.forEach(function(item){
str += itemTmpl.replace(/\$key/g,item.key)
.replace('$text',item.text)
});
$('.bottom-bar').append($(str));
// 找到当前页面的url来确定key值
var arr = window.location.pathname.split('/');
var page = arr[arr.length-1].replace('.htm','');
// 将当前的页面对应的key值的a元素设置active的class
$('a.'+page).addClass('active');
}
init();
})();
css部分代码如下:
.bottom-bar {
position: fixed;
bottom: 0;
width: 100%;
height: 1.333333rem;
display: flex;
border-top: 1px solid #b6b6b6;
background-color: rgba(246,246,246,0.95);
}
.bottom-bar .btn-item {
flex: 1;
display: flex;
font-size: 0.293333rem;
flex-direction: column;
align-items: center;
justify-content: center;
color: #999;
}
.bottom-bar .tab-icon {
margin-bottom: 0.106667rem;
width: 0.666667rem;
height: 0.666667rem;
background-size: cover;
}
.bottom-bar .index.btn-item .tab-icon {
background-image: url('./img/homeIcon.png');
}
.bottom-bar .my.btn-item .tab-icon {
background-image: url('./img/myIcon.png');
}
.bottom-bar .order.btn-item .tab-icon {
background-image: url('./img/orderIcon.png');
}
.bottom-bar .btn-item.active {
color: #000;
}
.bottom-bar .index.btn-item.active .tab-icon {
background-image: url('./img/homeIconActive.png');
}
.bottom-bar .my.btn-item.active .tab-icon {
background-image: url('./img/myIconActive.png');
}
.bottom-bar .order.btn-item.active .tab-icon {
background-image: url('./img/orderIconActive.png');
}
