SpringBoot如何配置嵌入式Servlet容器
SpringBoot默认使用Tomcat作为嵌入式的Servlet容器
1. 如何定制和修改Servlet容器的相关配置
1.1 修改和server有关的配置
1.1.1 通过配置文件来修改
server.port=8081
server.context-path=/crud
server.tomcat.uri-encoding=UTF-8
//通用的Servlet容器设置
server.xxx
//Tomcat的设置
server.tomcat.xxx
1.1.2 编写EmbeddedServletContainerCustomizer
@Bean //一定要将这个定制器加入到容器中
public EmbeddedServletContainerCustomizer embeddedServletContainerCustomizer(){
return new EmbeddedServletContainerCustomizer() {
//定制嵌入式的Servlet容器相关的规则
@Override
public void customize(ConfigurableEmbeddedServletContainer container) {
container.setPort(8083);
}
};
}
2. 注册Servlet三大组件
2.1 注册Servlet
首先编写一个Servlet
public class MyServlet extends HttpServlet {
//处理get请求
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doPost(req,resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
resp.getWriter().write("Hello MyServlet");
}
}
然后将编写的Servlet注入容器
@Configuration
public class MyServerConfig {
//注册三大组件
@Bean
public ServletRegistrationBean myServlet(){
ServletRegistrationBean registrationBean = new ServletRegistrationBean(new MyServlet(),"/myServlet");
registrationBean.setLoadOnStartup(1);
return registrationBean;
}
}
2.2 注册Filter
首先编写一个过滤器
public class MyFilter implements Filter {
@Override
public void init(FilterConfig filterConfig) throws ServletException {
}
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
System.out.println("MyFilter process...");
chain.doFilter(request,response);
}
@Override
public void destroy() {
}
}
然后将编写的过滤器注入
@Configuration
public class MyServerConfig {
@Bean
public FilterRegistrationBean myFilter(){
FilterRegistrationBean registrationBean = new FilterRegistrationBean();
registrationBean.setFilter(new MyFilter());
registrationBean.setUrlPatterns(Arrays.asList("/hello","/myServlet"));
return registrationBean;
}
2.3 注册Listener
首先编写一个监听器
public class MyListener implements ServletContextListener {
@Override
public void contextInitialized(ServletContextEvent sce) {
System.out.println("contextInitialized...web应用启动");
}
@Override
public void contextDestroyed(ServletContextEvent sce) {
System.out.println("contextDestroyed...当前web项目销毁");
}
}
再注入监听器
@Configuration
public class MyServerConfig {
@Bean
public ServletListenerRegistrationBean myListener(){
ServletListenerRegistrationBean<MyListener> registrationBean = new ServletListenerRegistrationBean<>(new MyListener());
return registrationBean;
}
}
3.将Tomca替换为其他嵌入式Servlet容器
我们在ConfigurableEmbeddedServletContainer接口的实现类工厂中,发现SpringBoot中默认的内置Servlet容器有三种:
Tomcat是默认使用的
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
引入web模块默认就是使用嵌入式的Tomcat作为Servlet容器;
</dependency>
下面我们来修改默认的设置:
<!-- 引入web模块 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<artifactId>spring-boot-starter-tomcat</artifactId>
<groupId>org.springframework.boot</groupId>
</exclusion>
</exclusions>
</dependency>
<!--引入其他的Servlet容器-->
<dependency>
<artifactId>spring-boot-starter-jetty</artifactId>
<groupId>org.springframework.boot</groupId>
</dependency>
我们先排除Tomcat,然后再引入其他的容器。
同理
<!-- 引入web模块 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<artifactId>spring-boot-starter-tomcat</artifactId>
<groupId>org.springframework.boot</groupId>
</exclusion>
</exclusions>
</dependency>
<!--引入其他的Servlet容器-->
<dependency>
<artifactId>spring-boot-starter-undertow</artifactId>
<groupId>org.springframework.boot</groupId>
</dependency>
4. 使用外置的Servlet容器
嵌入式的Servlet容器:应用打成可执行的jar
优点:简单便携
缺点:默认不支持JSP、优化定制比较复杂
外置的Servlet容器:外面安装Tomcat,应用以war包的方式打包
步骤如下:
- 创建一个war项目;(可以利用idea创建好目录结构)
- 将Tomcat指定为provided,idea创建目录结构时自动更改。
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-tomcat</artifactId>
<scope>provided</scope>
</dependency>
- 编写一个SpringBootServletInitializer的子类,并调用configure方法,如果时IDEA创建的目录结构,可以发现此类已经创建
public class ServletInitializer extends SpringBootServletInitializer {
@Override
protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
//传入SpringBoot应用的主程序
return application.sources(SpringBoot04WebJspApplication.class);
}
}
除此之外,还要注意的一点就是项目结构的问题。

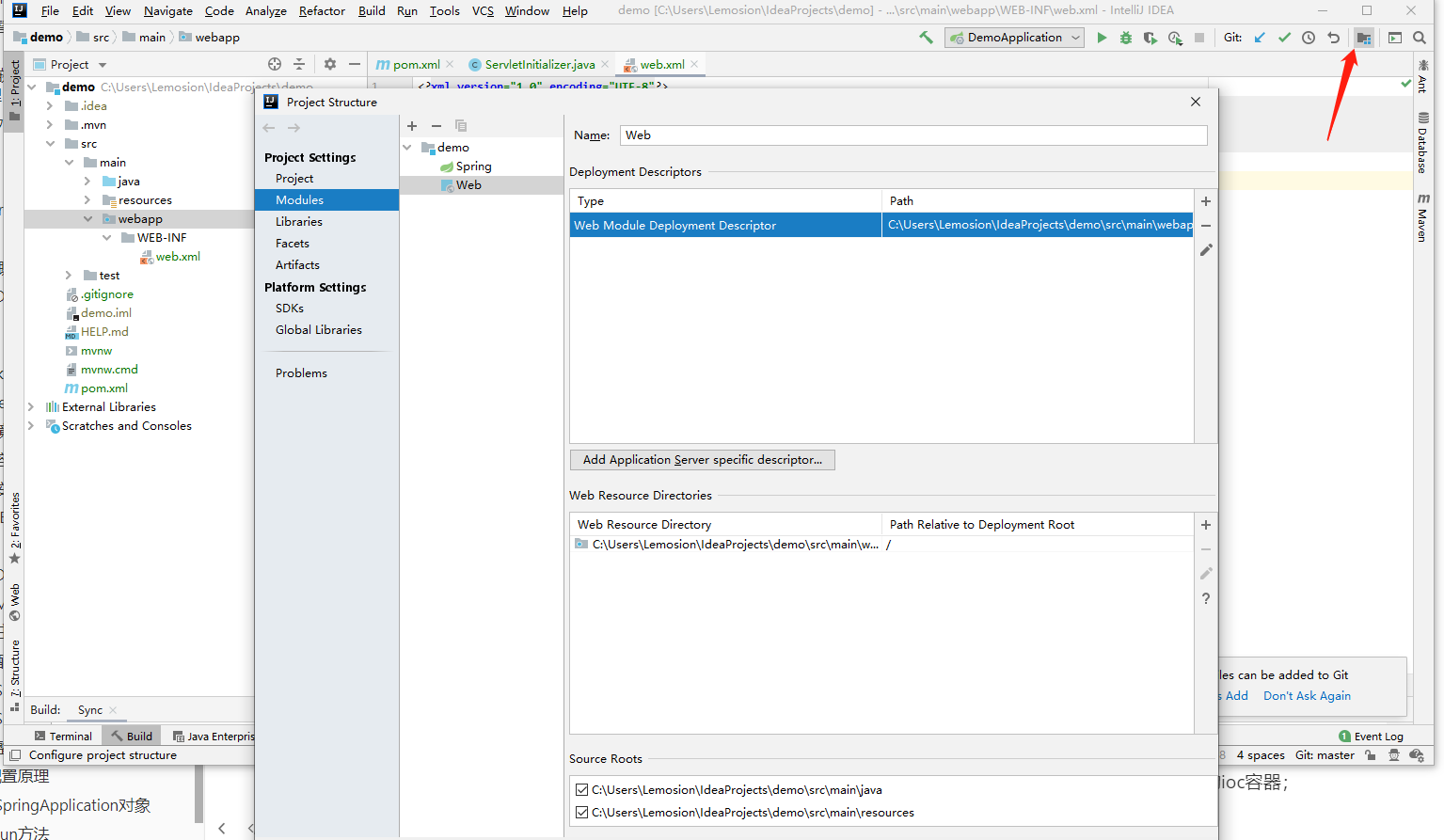

利用IDEA的便捷方式创建好相应目录后就可以编写业务代码,并启动应用。
