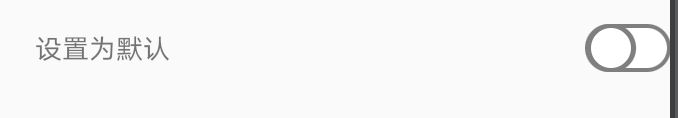

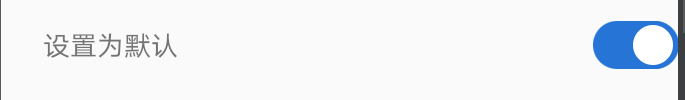

先看看效果
1：写一个自定义view实现按钮及效果
/**
* date:2020/7/3
* author: wsm(Administrator)
* function:默认地址按钮动画
*/
public class SwitchButton extends View {
/** 圆角大小*/
private float radius;
/** 开启颜色*/
private int onColor = Color.parseColor("#4ebb7f");
/** 关闭颜色*/
private int offBorderColor = Color.parseColor("#dadbda");
/** 灰色带颜色*/
private int offColor = Color.parseColor("#ffffff");
/** 手柄颜色*/
private int spotColor = Color.parseColor("#ffffff");
/** 边框颜色*/
private int borderColor = offBorderColor;
/** 画笔*/
private Paint paint ;
/** 开关状态*/
private boolean toggleOn = false;
/** 边框大小*/
private int borderWidth = 2;
/** 垂直中心*/
private float centerY;
/** 按钮的开始和结束位置*/
private float startX, endX;
/** 手柄X位置的最小和最大值*/
private float spotMinX, spotMaxX;
/**手柄大小 */
private int spotSize ;
/** 手柄X位置*/
private float spotX;
/** 关闭时内部灰色带高度*/
private float offLineWidth;
/** */
private RectF rect = new RectF();
/** 默认使用动画*/
private boolean defaultAnimate = true;
private OnToggleChanged listener;
private SwitchButton(Context context) {
super(context);
}
public SwitchButton(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
setup(attrs);
}
public SwitchButton(Context context, AttributeSet attrs) {
super(context, attrs);
setup(attrs);
}
public void setup(AttributeSet attrs) {
paint = new Paint(Paint.ANTI_ALIAS_FLAG);
paint.setStyle(Paint.Style.FILL);
paint.setStrokeCap(Paint.Cap.ROUND);
this.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View arg0) {
toggle(defaultAnimate);
}
});
TypedArray typedArray = getContext().obtainStyledAttributes(attrs, R.styleable.SwitchButton);
offBorderColor = typedArray.getColor(R.styleable.SwitchButton_offBorderColor, offBorderColor);
onColor = typedArray.getColor(R.styleable.SwitchButton_onColor, onColor);
spotColor = typedArray.getColor(R.styleable.SwitchButton_spotColor, spotColor);
offColor = typedArray.getColor(R.styleable.SwitchButton_offColor, offColor);
borderWidth = typedArray.getDimensionPixelSize(R.styleable.SwitchButton_borderWidth, borderWidth);
defaultAnimate = typedArray.getBoolean(R.styleable.SwitchButton_animate, defaultAnimate);
typedArray.recycle();
borderColor = offBorderColor;
}
public void toggle() {
toggle(true);
}
public void toggle(boolean animate) {
toggleOn = !toggleOn;
takeEffect(animate);
if(listener != null){
listener.onToggle(toggleOn);
}
}
public void toggleOn() {
setToggleOn();
if(listener != null){
listener.onToggle(toggleOn);
}
}
public void toggleOff() {
setToggleOff();
if(listener != null){
listener.onToggle(toggleOn);
}
}
/**
* 设置显示成打开样式，不会触发toggle事件
*/
public void setToggleOn() {
setToggleOn(true);
}
/**
* @param animate
*/
public void setToggleOn(boolean animate){
toggleOn = true;
takeEffect(animate);
}
/**
* 设置显示成关闭样式，不会触发toggle事件
*/
public void setToggleOff() {
setToggleOff(true);
}
public void setToggleOff(boolean animate) {
toggleOn = false;
takeEffect(animate);
}
private void takeEffect(boolean animate) {
if(animate){
slide();
}else{
calculateEffect(toggleOn ? 1 : 0);
}
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
final int widthMode = MeasureSpec.getMode(widthMeasureSpec);
final int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
Resources r = Resources.getSystem();
if(widthMode == MeasureSpec.UNSPECIFIED || widthMode == MeasureSpec.AT_MOST){
widthSize = (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 50, r.getDisplayMetrics());
widthMeasureSpec = MeasureSpec.makeMeasureSpec(widthSize, MeasureSpec.EXACTLY);
}
if(heightMode == MeasureSpec.UNSPECIFIED || heightSize == MeasureSpec.AT_MOST){
heightSize = (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 30, r.getDisplayMetrics());
heightMeasureSpec = MeasureSpec.makeMeasureSpec(heightSize, MeasureSpec.EXACTLY);
}
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
}
@Override
protected void onLayout(boolean changed, int left, int top, int right,
int bottom) {
super.onLayout(changed, left, top, right, bottom);
final int width = getWidth();
final int height = getHeight();
radius = Math.min(width, height) * 0.5f;
centerY = radius;
startX = radius;
endX = width - radius;
spotMinX = startX + borderWidth;
spotMaxX = endX - borderWidth;
spotSize = height - 4 * borderWidth;
spotX = toggleOn ? spotMaxX : spotMinX;
offLineWidth = 0;
}
private void slide(){
Animation animation = new Animation() {
@Override
protected void applyTransformation(float interpolatedTime,
Transformation t) {
if(toggleOn){
calculateEffect(interpolatedTime);
}else{
calculateEffect(1-interpolatedTime);
}
}
};
animation.setDuration(200);
clearAnimation();
startAnimation(animation);
}
private int clamp(int value, int low, int high) {
return Math.min(Math.max(value, low), high);
}
@Override
public void draw(Canvas canvas) {
//
super.draw(canvas);
rect.set(0, 0, getWidth(), getHeight());
paint.setColor(borderColor);
canvas.drawRoundRect(rect, radius, radius, paint);
if (offLineWidth > 0) {
final float cy = offLineWidth * 0.5f;
rect.set(spotX - cy, centerY - cy, endX + cy, centerY + cy);
paint.setColor(offColor);
canvas.drawRoundRect(rect, cy, cy, paint);
}
rect.set(spotX - 1 - radius, centerY - radius, spotX + 1.1f + radius, centerY + radius);
paint.setColor(borderColor);
canvas.drawRoundRect(rect, radius, radius, paint);
final float spotR = spotSize * 0.5f;
rect.set(spotX - spotR, centerY - spotR, spotX + spotR, centerY + spotR);
paint.setColor(spotColor);
canvas.drawRoundRect(rect, spotR, spotR, paint);
}
/**
* @param value
*/
private void calculateEffect(final double value) {
final float mapToggleX = (float) mapValueFromRangeToRange(value, 0, 1, spotMinX, spotMaxX);
spotX = mapToggleX;
float mapOffLineWidth = (float) mapValueFromRangeToRange(1 - value, 0, 1, 10, spotSize);
offLineWidth = mapOffLineWidth;
final int fb = Color.blue(onColor);
final int fr = Color.red(onColor);
final int fg = Color.green(onColor);
final int tb = Color.blue(offBorderColor);
final int tr = Color.red(offBorderColor);
final int tg = Color.green(offBorderColor);
int sb = (int) mapValueFromRangeToRange(1 - value, 0, 1, fb, tb);
int sr = (int) mapValueFromRangeToRange(1 - value, 0, 1, fr, tr);
int sg = (int) mapValueFromRangeToRange(1 - value, 0, 1, fg, tg);
sb = clamp(sb, 0, 255);
sr = clamp(sr, 0, 255);
sg = clamp(sg, 0, 255);
borderColor = Color.rgb(sr, sg, sb);
postInvalidate();
}
public interface OnToggleChanged{
/**
* @param on
*/
public void onToggle(boolean on);
}
public void setOnToggleChanged(OnToggleChanged onToggleChanged) {
listener = onToggleChanged;
}
public boolean isAnimate() {
return defaultAnimate;
}
public void setAnimate(boolean animate) {
this.defaultAnimate = animate;
}
/**
* Map a value within a given range to another range.
* @param value the value to map
* @param fromLow the low end of the range the value is within
* @param fromHigh the high end of the range the value is within
* @param toLow the low end of the range to map to
* @param toHigh the high end of the range to map to
* @return the mapped value
*/
public static double mapValueFromRangeToRange(
double value,
double fromLow,
double fromHigh,
double toLow,
double toHigh) {
double fromRangeSize = fromHigh - fromLow;
double toRangeSize = toHigh - toLow;
double valueScale = (value - fromLow) / fromRangeSize;
return toLow + (valueScale * toRangeSize);
}
}
2：value文件下创建attrs.xml文件
<declare-styleable name="SwitchButton">
<attr name="borderWidth" format="dimension"></attr>
<attr name="offBorderColor" format="reference|color"></attr>
<attr name="offColor" format="reference|color"></attr>
<attr name="onColor" format="reference|color"></attr>
<attr name="spotColor" format="reference|color"></attr>
<attr name="animate" format="reference|boolean"></attr>
3：布局文件中实现按钮
<自定义view包名地址.SwitchButton
android:id="@+id/switchButton"
android:layout_width="45dp"
android:layout_height="25dp"
app:borderWidth="0.8dp"//边框线
app:offBorderColor="@color/txtgray"//未选中灰色边框
app:offColor="@color/main_bg"//内部填充白色
app:onColor="@color/txtblue"//选中蓝色
app:spotColor="@color/main_bg"//内部填充白色
app:animate="true" />
4：代码中实现选中未选中
private boolean istacitly ;
case R.id.switchButton:
if (istacitly) {
//关闭默认
switchButton.setToggleOff(true);
istacitly = false;
} else {
//打开默认
switchButton.setToggleOn(true);
istacitly = true;
}
break;
效果就实现了
