Spring之IoC操作Bean
上一篇博客主要介绍IoC是什么,本篇主要介绍IoC的Bean管理,刚学的时候懵懵懂懂,不知道xml配置是干什么呀,有的类头上还有个注解是什么意思呢,相信很多初学者也是这样,下面带来管理Bean的两种主要方式。(其实有三种)

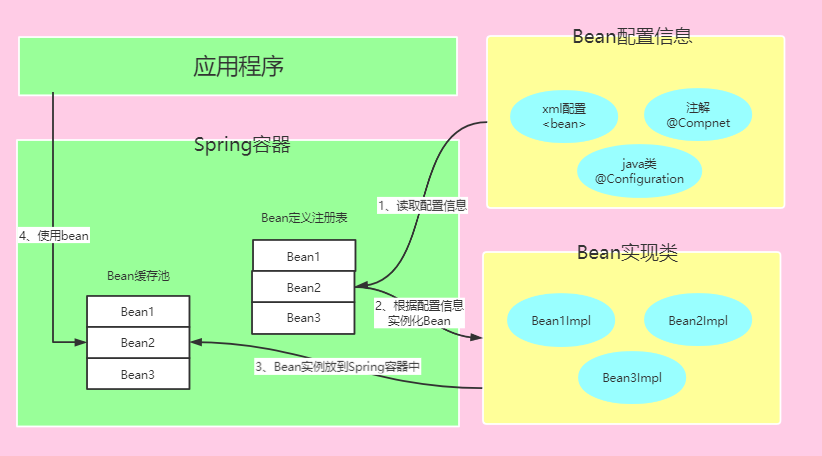

这里可以先看一下Spring中Bean是如何由容器管理创建并实例化的
Bean管理的三种方式
Bean管理主要是Spring创建对象和Spring注入属性
1、IoC管理(基于xml)
上一篇博客里的bean.xml里其实已经出现了这样一段
<bean id="hello" class="com.feng.pojo.Hello">
<property name="name" value="Spring"/>
</bean>
这个就是基于xml方式创建对象,
<!--使用Spring来创建对象,在Spring这些都成为Bean
类型 变量名 = new 类型();
Hello hello = new Hello();
id = 变量名
class = new 的对象
property 相当于给对象的属性设置一个值
ref:引用Spring容器中创建好的对象
value:具体的值,基本数据类型
-->
在Spring配置文件中,使用bean标签,标签里添加相应属性,就可以实现对象的创建。bean标签中有很多属性,其中几个重要的属性有,
- id:唯一标识,不能添加特殊符号
- class:类的全路径
- name:定义独享的标识,可以添加特殊符号
还有是
基于xml方式注入属性
1#构造器注入
-
使用无参构造创建对象,默认!
-
假设我们要使用有参构造创建对象
-
下标赋值
<!--下标赋值--> <bean id="user" class="com.feng.pojo.User"> <constructor-arg index="0" value="歪比歪比"/> </bean>
-
类型
<!--第二种方式:通过类型创建,不建议使用!--> <bean id="user" class="com.feng.pojo.User"> <constructor-arg type="java.lang.String" value="CBL"/> </bean>
-
参数名
<!--直接通过参数名--> <bean id="user" class="com.feng.pojo.User"> <constructor-arg name="name" value="歪比巴卜"/> </bean>
-
2#Set方式注入【重点】
首先创建一个类,定义属性和对应的set方法(这里创建了两个类,演示几个注入的对象)
Student.java
package com.feng.pojo;
import java.util.*;
public class Student {
private String name;
private Address address;
private String[] books;
private List<String> hobbys;
private Map<String,String> card;
private Set<String> games;
private String money;
private Properties info;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Address getAddress() {
return address;
}
public void setAddress(Address address) {
this.address = address;
}
public String[] getBooks() {
return books;
}
public void setBooks(String[] books) {
this.books = books;
}
public List<String> getHobbys() {
return hobbys;
}
public void setHobbys(List<String> hobbys) {
this.hobbys = hobbys;
}
public Map<String, String> getCard() {
return card;
}
public void setCard(Map<String, String> card) {
this.card = card;
}
public Set<String> getGames() {
return games;
}
public void setGames(Set<String> games) {
this.games = games;
}
public String getMoney() {
return money;
}
public void setMoney(String money) {
this.money = money;
}
public Properties getInfo() {
return info;
}
public void setInfo(Properties info) {
this.info = info;
}
@Override
public String toString() {
return "Student{" +
"name='" + name + '\'' +
", address=" + address.getAddress() +
", books=" + Arrays.toString(books) +
", hobbys=" + hobbys +
", card=" + card +
", games=" + games +
", money='" + money + '\'' +
", info=" + info +
'}';
}
}
Address.java
package com.feng.pojo;
public class Address {
private String address;
public String getAddress() {
return address;
}
public void setAddress(String address) {
this.address = address;
}
}
beans.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="address" class="com.feng.pojo.Address">
<property name="address" value="中国"/>
</bean>
<bean id="student" class="com.feng.pojo.Student">
<!--第一种,普通值注入-->
<property name="name" value="冯半仙"/>
<!--第二种,Bean注入,ref-->
<property name="address" ref="address"/>
<!--数组注入,ref-->
<property name="books">
<array>
<value>红楼梦</value>
<value>西游记</value>
<value>水浒传</value>
<value>三国演义</value>
</array>
</property>
<!--List-->
<property name="hobbys">
<list>
<value>听歌</value>
<value>敲代码</value>
<value>看电影</value>
<value>吃火锅</value>
</list>
</property>
<!--Map-->
<property name="card">
<map>
<entry key="身份证" value="100111200010112222"/>
<entry key="银行卡" value="621888888888888888"/>
</map>
</property>
<!--Set-->
<property name="games">
<set>
<value>CS</value>
<value>OW</value>
<value>GTA5</value>
</set>
</property>
<!--null值注入,设为空值-->
<!-- <property name="money" value=""/>-->
<!--若要复制为null,则-->
<property name="money">
<null/>
</property>
<!--Properties
key=value
key=value
key=value
-->
<property name="info">
<props>
<prop key="学号">20201808</prop>
<prop key="性别">男</prop>
<prop key="姓名">小明</prop>
</props>
</property>
</bean>
</beans>
MyTest.java
import com.feng.pojo.Student;
import com.feng.pojo.User;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class MyTest {
public static void main(String[] args) {
ApplicationContext context = new ClassPathXmlApplicationContext("beans.xml");
Student student = (Student) context.getBean("student");
System.out.println(student.toString());
}
}
执行结果
/*
* Student{
* name='冯半仙',
* address=中国,
* books=[红楼梦, 西游记, 水浒传, 三国演义],
* hobbys=[听歌, 敲代码, 看电影, 吃火锅],
* card={
* 身份证=100111200010112222, 银行卡=621888888888888888
* },
* games=[CS, OW, GTA5],
* money='null',
* info={
* 姓名=小明,
* 学号=20201808,
* 性别=男
* }
* }
* */
其他几种注入集合、工厂Bean不再赘述
感兴趣的见
https://blog.csdn.net/java_cxrs/article/details/108289664
2、通过注解管理Bean
什么是注解?
(1)代码里特殊的标记,格式:@注解名称(属性名称=属性值…)
(2)可以在类、方法、属性上添加注解。
创建对象用到的注解主要有
- @Componet
- @Service
- @Controller
- @Repository
其实这四个注解功能一致,只是作用的范围有所区别
注解 | 含义 |
---|---|
@Component | 最普通的组件,可以被注入到spring容器进行管理 |
@Repository | 作用于持久层,dao |
@Service | 作用于业务逻辑层,service |
@Controller | 作用于表现层,Controller类 |
例子:User.java
//等价于<bean id="user" class="com.feng.pojo.User"/>
//@Component 组件
@Component
//作用域注解
@Scope("singleton")
public class User {
@Value("冯半仙")
//相当于<property name="name" value="冯半仙"/>
public String name;
//使其为空,用属性注入
//public String name = "冯半仙";
public void setName(String name) {
this.name = name;
}
}
属性注入提供的注解:
- @Autowired
- @Qualifier
- @Resource
- @Value
四个区别如下
注解 | 含义 |
---|---|
@Autowired | 根据属性类型进行自动装配 |
@Qualifier | 根据属性名称进行注入 |
@Resource | 可以根据属性、名称进行注入 |
@Value | 注入普通类型的属性 |
具体例子见
https://blog.csdn.net/java_cxrs/article/details/108331579
3、通过java类管理Bean
实体类
//这个注解的意思,就是说明这个类被Spring注册到了容器中
@Component
public class User {
private String name;
@Value("冯半仙")//属性注入值
public void setName(String name) {
this.name = name;
}
public String getName() {
return name;
}
@Override
public String toString() {
return "User{" +
"name='" + name + '\'' +
'}';
}
}
Javaconfig
//这个也会被Spring注册到容器中,因为它本来就是一个@Component,
// @Configuration代表这是一个配置类,就和我们之前的bean.xml是一样的
@Configuration
@ComponentScan("com.feng.pojo")
@Import(FengConfig2.class)
public class FengConfig {
//注册一个bean,就相当于之前写的一个bean标签
//这个方法的名字就相当于bean标签中的id属性
//这个方法的返回值就相当于bean标签中的class属性
@Bean
public User getUser()
{
return new User();//返回要注入到bean的对象
}
}
测试类
public class MyTest {
public static void main(String[] args) {
//如果完全使用了配置类方式去做,我们就只能通过AnnotationConfig 上下文来获取容器
//通过配置类的class对象加载
ApplicationContext context = new AnnotationConfigApplicationContext(FengConfig.class);
User getUser = context.getBean("user", User.class);
System.out.println(getUser.getName());
}
}
这种纯Java的配置方式,在SpringBoot中见的比较多。
了解了Bean的三种管理方式以后来讲点理论的东西
Bean的生命周期
Spring IOC容器可以管理Bean的生命周期,Spring允许在Bean生命周期的特定点执行定制的任务。
Spring IOC容器对Bean的生命周期进行管理的过程:
1.通过构造器或工厂方法创建Bean实例
2.为Bean的属性设置值和对其他Bean的引用
3.调用Bean的初始化方法(init-method)
4.Bean可以使用了
5.当容器关闭时,调用Bean的销毁方法(destory-method)
Bean的自动装配
- 自动装配是Spring满足bean依赖一种方式
- Spring会在上下文中自动寻找,并自动给bean装配属性
在Spring中有三种自动装配的方式
- 在xml中显示的配置
- 在java中显示配置
- 隐式的自动装配bean【重要】
测试
环境搭建:一个人有两个宠物
ByName 自动装配
<!--
byName:会自动在容器上下文中查找,和自己对象set方法后面的值对应的bean id
-->
<bean id="people" class="com.feng.pojo.People" autowire="byName">
<property name="name" value="冯半仙"/>
</bean>
ByType自动装配
<bean id="cat" class="com.feng.pojo.Cat"/>
<bean class="com.feng.pojo.Dog"/>
<!--
byType:会自动在容器上下文中查找,和自己对象属性类型相同的bean!但只能保证全局唯一,例如你只能有一只狗
-->
<bean id="people" class="com.feng.pojo.People" autowire="byType">
<property name="name" value="冯半仙"/>
</bean>
小结:
- byname的时候,需要保证所有的bean的id唯一,并且这个bean需要和自动注入的属性的set方法的值一致
- bytype的时候,需要保证所有的bean的class唯一,并且这个bean需要和自动注入的属性的类型一致!
使用注解实现自动装配
要使用注解须知:
- 导入约束: context约束
- 配置注解的支持:
<context:annotation-config/>
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<context:annotation-config/>
</beans>
@Autowired
直接在属性上使用即可!也可以在set方法上使用
使用Autowired我们可以不用编写Set方法了,前提是你这个自动装配的属性在IOC(Spring)容器中存在,且符合名字byname。
科普:
@Nullable 字段标记了这个注解,说明这个注解可以为null
public @interface Autowired {
boolean required() default true;
}
测试代码
public class People{
//如果显示定义了Autowired的required属性为false,说明这个对象可以为null,否则不允许为空
@Autowired(required = false)
private Cat cat;
@Autowired
private Dog dog;
private String name;
}
如果@Autowired自动装配的环境比较复杂,自动装配无法通过一个注解【@Autowired】完成的时候,我们可以使用@Qualifier(value=“xxx”)去配置@Autowired的使用,指定一个唯一的bean对象注入!
public class People {
@Autowired(required = false)
private Cat cat;
@Autowired
@Qualifier(value = "dog2")
private Dog dog;
private String name;
}
小结:
@Resource 和 @Autowired
- 相同点:
- 都是用来自动装配的,都可以放在属性字段上
- 不同点:
- @Autowired 通过byType的方式实现,而且必须要求这个对象存在,否则报空指针 【常用】
- @Resource 默认通过byname的方式实现,如果找不到名字,则通过bytype实现!如果两个都找不到就报错
false)
private Cat cat;
@Autowired
private Dog dog;
private String name;
}
如果@Autowired自动装配的环境比较复杂,自动装配无法通过一个注解【@Autowired】完成的时候,我们可以使用@Qualifier(value="xxx")去配置@Autowired的使用,指定一个唯一的bean对象注入!
```java
public class People {
@Autowired(required = false)
private Cat cat;
@Autowired
@Qualifier(value = "dog2")
private Dog dog;
private String name;
}
小结:
@Resource 和 @Autowired
- 相同点:
- 都是用来自动装配的,都可以放在属性字段上
- 不同点:
- @Autowired 通过byType的方式实现,而且必须要求这个对象存在,否则报空指针 【常用】
- @Resource 默认通过byname的方式实现,如果找不到名字,则通过bytype实现!如果两个都找不到就报错
- 执行顺序不同
自定义IoC
到这里IoC就告一段落了,如果要自己实现一个IoC需要做什么?想过具体步骤吗?
前面说到IoC就是控制反转,这也是Spring的核心。换句话说,所谓IoC,对Spring框架来说。就是由Spring来负责管理控制对象的生命周期和对象间的关系。我们要自己实现它,需要做啥,简要的说一下就是:
首先需要一个描述bean配置的Java类,
然后需要解析bean的配置,将bean的配置信息转化为上面的BeanDefinition对象保存在内存中,Spring中采用HashMap进行对象的存储,会用到xml解析技术。
最后遍历存放在BeanDefinition的HashMap对象,逐个取出BeanDefinition独享,获取bean配置信息,利用Java反射机制实例化对象,再将实例化对象保存在另外一个Map中即可。
具体实现见
