目录
前言
1、通常情况下 我们new一个线程执行任务，任务执行完之后线程也随之销毁了
2、为了减少创建线程的开销，使线程可以复用，我们使用线程池
3、那么问题来了，线程池是如何保证池子里的线程执行完不被销毁的呢？
线程池使用入口
入口：我们使用线程池时，代码如下
Executors.newFixedThreadPool(5);public static ExecutorService newFixedThreadPool(int nThreads) {
return new ThreadPoolExecutor(nThreads, nThreads,
0L, TimeUnit.MILLISECONDS,
new LinkedBlockingQueue<Runnable>());
}或者
ThreadPoolExecutor threadPoolExecutor = new ThreadPoolExecutor(5,10,60L,TimeUnit.SECONDS,new LinkedBlockingDeque<Runnable>());
threadPoolExecutor.execute(new Runnable() {
@Override
public void run() {
//business code..
}
});源码
所以我们从execute这个方法开始探寻
public void execute(Runnable command) {
if (command == null)
throw new NullPointerException();
/*
* Proceed in 3 steps:
*
* 1. If fewer than corePoolSize threads are running, try to
* start a new thread with the given command as its first
* task. The call to addWorker atomically checks runState and
* workerCount, and so prevents false alarms that would add
* threads when it shouldn't, by returning false.
*
* 2. If a task can be successfully queued, then we still need
* to double-check whether we should have added a thread
* (because existing ones died since last checking) or that
* the pool shut down since entry into this method. So we
* recheck state and if necessary roll back the enqueuing if
* stopped, or start a new thread if there are none.
*
* 3. If we cannot queue task, then we try to add a new
* thread. If it fails, we know we are shut down or saturated
* and so reject the task.
*/
//clt保存了两种状态 当前线程数workerCountOf(c) 和 线程池的状态 runStateOf(c)
int c = ctl.get();
//如果当前线程数 < 核心线程数 直接增加一个线程
if (workerCountOf(c) < corePoolSize) {
if (addWorker(command, true))
return;
c = ctl.get();
}
//如果线程池状态是RUNNING 且 阻塞队列可以继续添加任务
if (isRunning(c) && workQueue.offer(command)) {
int recheck = ctl.get();
//如果线程池状态不是RUNNING 且 成功移除任务
if (! isRunning(recheck) && remove(command))
//拒绝执行当前任务
reject(command);
//当前线程数 == 0
else if (workerCountOf(recheck) == 0)
addWorker(null, false);
}
//执行任务失败 - 拒绝执行
else if (!addWorker(command, false))
reject(command);
}发现重点在addWorker方法中：
private boolean addWorker(Runnable firstTask, boolean core) {
retry:
for (;;) {
int c = ctl.get();
//获取线程池的状态
int rs = runStateOf(c);
// Check if queue empty only if necessary.
//线程池状态异常 则退出不执行任务
if (rs >= SHUTDOWN &&
! (rs == SHUTDOWN &&
firstTask == null &&
! workQueue.isEmpty()))
return false;
//循环
for (;;) {
//获取当前线程数
int wc = workerCountOf(c);
//如果 当前线程数 大于 线程池最大线程容纳数量 或者 大于 设定的最大线程数 不执行任务
if (wc >= CAPACITY ||
wc >= (core ? corePoolSize : maximumPoolSize))
return false;
//用CAS算法 将当前线程数加1，并跳出循环 继续执行
if (compareAndIncrementWorkerCount(c))
break retry;
c = ctl.get(); // Re-read ctl
if (runStateOf(c) != rs)
continue retry;
// else CAS failed due to workerCount change; retry inner loop
}
}
boolean workerStarted = false;
boolean workerAdded = false;
Worker w = null;
try {
//Worker是ThreadPoolExecutor的私有内部类，实现了Runnable接口
w = new Worker(firstTask);
final Thread t = w.thread;
if (t != null) {
final ReentrantLock mainLock = this.mainLock;
//加锁 防并发
mainLock.lock();
try {
// Recheck while holding lock.
// Back out on ThreadFactory failure or if
// shut down before lock acquired.
//再次检查线程池状态
int rs = runStateOf(ctl.get());
//如果线程池状态正常 或者 是SHUTDOWN且任务是空的，继续执行
if (rs < SHUTDOWN ||
(rs == SHUTDOWN && firstTask == null)) {
//线程的alive是指线程已经开始执行并且没有销毁，所以如果是alive则抛异常
if (t.isAlive()) // precheck that t is startable
throw new IllegalThreadStateException();
//workers是线程池定义的存放Worker的集合 HashSet<Worker> workers
workers.add(w);
int s = workers.size();
if (s > largestPoolSize)
largestPoolSize = s;
workerAdded = true;
}
} finally {
mainLock.unlock();
}
//如果前边没问题 则开始执行线程run方法
if (workerAdded) {
t.start();
workerStarted = true;
}
}
} finally {
if (! workerStarted)
addWorkerFailed(w);
}
return workerStarted;
}接下来我们需要看一下Worker类和它的run方法
Worker(Runnable firstTask) {
setState(-1); // inhibit interrupts until runWorker
this.firstTask = firstTask;
this.thread = getThreadFactory().newThread(this);
}构造方法中 创建了一个线程
public void run() {
runWorker(this);
}然后进入runWorker方法
final void runWorker(Worker w) {
Thread wt = Thread.currentThread();
Runnable task = w.firstTask;
w.firstTask = null;
w.unlock(); // allow interrupts
boolean completedAbruptly = true;
try {
//如果task不为空 或者 getTask不为空时 会一直循环
//有任务时肯定不为空，没任务时task=null，所以要维持while永真，getTask一定不为空
while (task != null || (task = getTask()) != null) {
w.lock();
// If pool is stopping, ensure thread is interrupted;
// if not, ensure thread is not interrupted. This
// requires a recheck in second case to deal with
// shutdownNow race while clearing interrupt
if ((runStateAtLeast(ctl.get(), STOP) ||
(Thread.interrupted() &&
runStateAtLeast(ctl.get(), STOP))) &&
!wt.isInterrupted())
wt.interrupt();
try {
beforeExecute(wt, task);
Throwable thrown = null;
try {
task.run();
} catch (RuntimeException x) {
thrown = x; throw x;
} catch (Error x) {
thrown = x; throw x;
} catch (Throwable x) {
thrown = x; throw new Error(x);
} finally {
afterExecute(task, thrown);
}
} finally {
//执行完后将task置为null 继续走getTask的逻辑
task = null;
w.completedTasks++;
w.unlock();
}
}
completedAbruptly = false;
} finally {
processWorkerExit(w, completedAbruptly);
}
}getTask 代码如下：
/**
* Performs blocking or timed wait for a task, depending on
* current configuration settings, or returns null if this worker
* must exit because of any of:
* 1. There are more than maximumPoolSize workers (due to
* a call to setMaximumPoolSize).
* 2. The pool is stopped.
* 3. The pool is shutdown and the queue is empty.
* 4. This worker timed out waiting for a task, and timed-out
* workers are subject to termination (that is,
* {@code allowCoreThreadTimeOut || workerCount > corePoolSize})
* both before and after the timed wait, and if the queue is
* non-empty, this worker is not the last thread in the pool.
*
* @return task, or null if the worker must exit, in which case
* workerCount is decremented
*/
private Runnable getTask() {
boolean timedOut = false; // Did the last poll() time out?
for (;;) {
int c = ctl.get();
int rs = runStateOf(c);
// Check if queue empty only if necessary.
//如果线程池状态为STOP/TIDYING/TERMINATED 或者 线程池状态为SHUTDOWN/STOP/TIDYING/TERMINATED且阻塞队列为空
//return null 不再维持线程
if (rs >= SHUTDOWN && (rs >= STOP || workQueue.isEmpty())) {
decrementWorkerCount();
return null;
}
int wc = workerCountOf(c);
// Are workers subject to culling?
//允许核心线程超时销毁 或者 当前线程数大于核心线程数
boolean timed = allowCoreThreadTimeOut || wc > corePoolSize;
if ((wc > maximumPoolSize || (timed && timedOut))
&& (wc > 1 || workQueue.isEmpty())) {
if (compareAndDecrementWorkerCount(c))
return null;
continue;
}
try {
//重点：poll会一直阻塞直到超过keepAliveTime或者获取到任务
//take 会一直阻塞直到获取到任务
//在没有任务的时候 如果没有特别设置allowCoreThreadTimeOut，我们的核心线程会一直阻塞在这里
Runnable r = timed ?
workQueue.poll(keepAliveTime, TimeUnit.NANOSECONDS) :
workQueue.take();
if (r != null)
return r;
timedOut = true;
} catch (InterruptedException retry) {
timedOut = false;
}
}
}真相大白~
结论
总结就是：如果队列中没有任务时，核心线程会一直阻塞在获取任务的方法，直到返回任务。
而且执行完后 会继续循环执行getTask的逻辑
附take poll源码注释：
/**
* Retrieves and removes the head of this queue, waiting if necessary
* until an element becomes available.
*
* @return the head of this queue
* @throws InterruptedException if interrupted while waiting
*/
E take() throws InterruptedException;
/**
* Retrieves and removes the head of this queue, waiting up to the
* specified wait time if necessary for an element to become available.
*
* @param timeout how long to wait before giving up, in units of
* {@code unit}
* @param unit a {@code TimeUnit} determining how to interpret the
* {@code timeout} parameter
* @return the head of this queue, or {@code null} if the
* specified waiting time elapses before an element is available
* @throws InterruptedException if interrupted while waiting
*/
E poll(long timeout, TimeUnit unit)

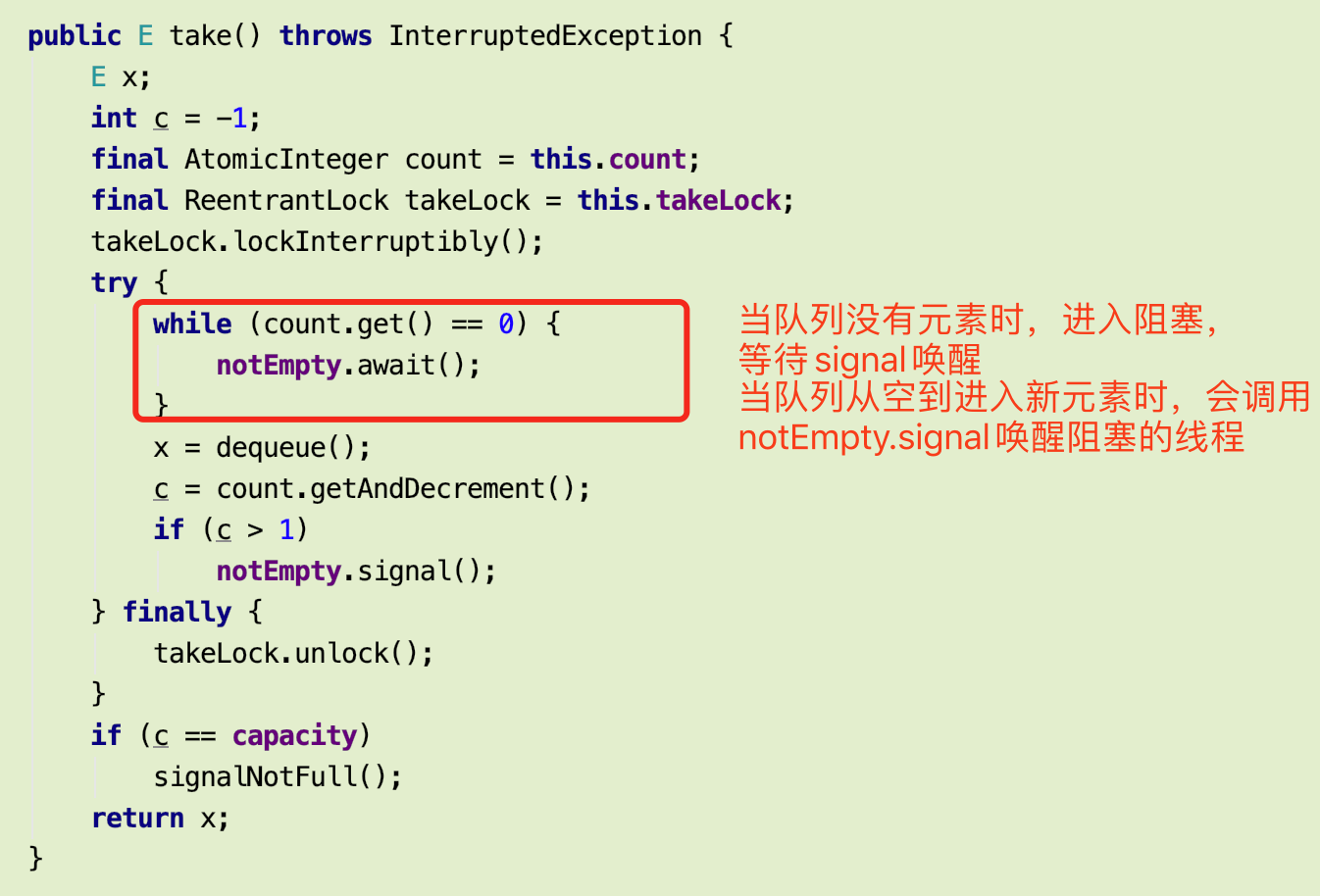

throws InterruptedException;LinkedBlockingQueue实现的take方法：
这里有一个小问题，这里的while可不可以用if代替呢？
正常来说，每次signal时，只会有一个线程被唤醒，用if好像也没有问题，但是，实际上存在虚假唤醒的问题，即队列没有元素但是线程被唤醒了，需要while保证准确性。
所以，不能
