一、创建webapi项目
(一)分别创建2个webapi项目,分别是3.1(3.0)版本和2.2(2.1)版本。
先在3.1版本中做测试
1、将Core3.1API应用程序配置URL为http://localhost:5001
。
2、在打开Properties→launchSettings.json配置文件将iis相关配置信息删除。
删除后的launchSettings.json
{
"$schema": "http://json.schemastore.org/launchsettings.json",
"profiles": {
"WebApi3.x": {
"commandName": "Project",
"launchBrowser": true,
"launchUrl": "weatherforecast",
"applicationUrl": "http://localhost:5001",
"environmentVariables": {
"ASPNETCORE_ENVIRONMENT": "Development"
}
}
}
}
3、将创建项目时默认添加的WeatherForecastController进行代码修改。
在控制器上方添加 [Authorize]特性,用于授权测试。
[ApiController]
[Route("[controller]")]
[Authorize]
public class WeatherForecastController : ControllerBase
{
private static readonly string[] Summaries = new[]
{
"Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
};
private readonly ILogger<WeatherForecastController> _logger;
public WeatherForecastController(ILogger<WeatherForecastController> logger)
{
_logger = logger;
}
[HttpGet]
public IEnumerable<WeatherForecast> Get()
{
var rng = new Random();
return Enumerable.Range(1, 5).Select(index => new WeatherForecast
{
Date = DateTime.Now.AddDays(index),
TemperatureC = rng.Next(-20, 55),
Summary = Summaries[rng.Next(Summaries.Length)]
})
.ToArray();
}
}

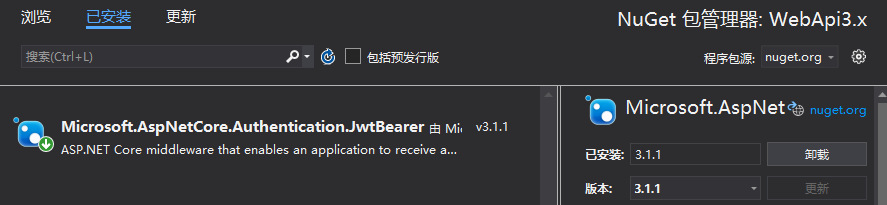

4、在Nuget中添加Microsoft.AspNetCore.Authentication.JwtBearer包
5、最后一步是将身份验证服务添加到DI(依赖注入),并将身份验证中间件添加到管道。这些将:
- 验证传入令牌以确保它来自受信任的发行者
- 验证令牌是否可以与此API一起使用
修改Startup文件
public class Startup
{
public Startup(IConfiguration configuration)
{
Configuration = configuration;
}
public IConfiguration Configuration { get; }
public void ConfigureServices(IServiceCollection services)
{
services.AddControllers();
//将身份验证服务添加到DI并配置Bearer为默认方案。
services.AddAuthentication("Bearer")
.AddJwtBearer("Bearer", options =>
{
//配置id4授权服务器Url
options.Authority = "http://localhost:5000";
options.RequireHttpsMetadata = false;
//设置当前webapi项目的资源名称为api1
options.Audience = "api1";
});
}
public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
if (env.IsDevelopment())
{
app.UseDeveloperExceptionPage();
}
app.UseHttpsRedirection();
app.UseRouting();
//将身份验证中间件添加到管道中,以便对主机的每次调用都将自动执行身份验证。
app.UseAuthentication();
//添加了授权中间件,以确保匿名客户端无法访问我们的API端点。
app.UseAuthorization();
app.UseEndpoints(endpoints =>
{
endpoints.MapControllers();
});
}
}
http://localhost:5001/identity
在浏览器上导航至控制器应返回401状态代码。这意味着您的API需要凭据,并且现在受IdentityServer保护。
二、创建控制台客户端,用于API资源访问

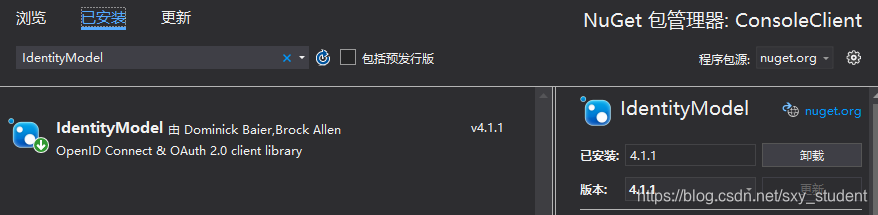

1、Nuget安装IdentityModel库
2、修改Program.cs文件
class Program
{
static async Task Main(string[] args)
{
// IdentityModel包括一个与发现端点一起使用的客户端库。这样,您只需要知IdentityServer的基地址-可以从元数据中读取实际的端点地址。http://localhost:5000identityserver4的Url地址
var client = new HttpClient();
var disco = await client.GetDiscoveryDocumentAsync("http://localhost:5000");
if (disco.IsError)
{
Console.WriteLine(disco.Error);
return;
}
//接下来,您可以使用发现文档中的信息向IdentityServer请求令牌以访问api1
var tokenResponse = await client.RequestClientCredentialsTokenAsync(new ClientCredentialsTokenRequest
{
Address = disco.TokenEndpoint,
ClientId = "client",
//Secret在id4项目中Config.cs文件中配置的AllowedGrantTypes = GrantTypes.ClientCredentials客户端中的ClientSecrets
ClientSecret = "511536EF-F270-4058-80CA-1C89C192F69A",
Scope = "api1"
});
if (tokenResponse.IsError)
{
Console.WriteLine(tokenResponse.Error);
return;
}
Console.WriteLine(tokenResponse.Json);
//要将访问令牌发送到API。这是使用SetBearerToken扩展方法完,设置HTTP授权标头:
var clientapi = new HttpClient();
clientapi.SetBearerToken(tokenResponse.AccessToken);
//访问webapi资源地址
var response = await clientapi.GetAsync("http://localhost:5001/WeatherForecast");
if (!response.IsSuccessStatusCode)
{
Console.WriteLine(response.StatusCode);
}
else
{
var content = await response.Content.ReadAsStringAsync();
Console.WriteLine(JArray.Parse(content));
}
Console.ReadKey();
}
}

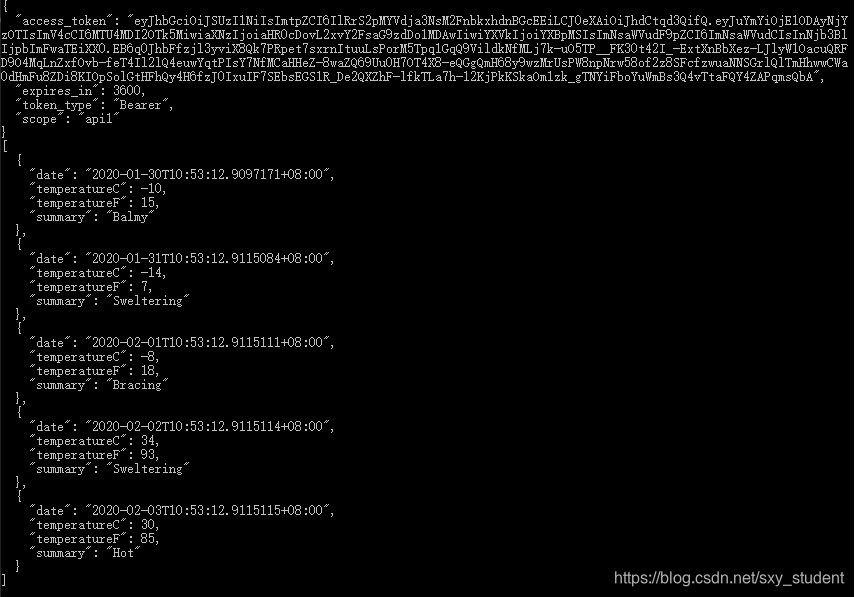

3、先后运行id4项目、webapi项目和客户端项目
客户端项目中打印出webapi项目中WeatherForecast控制器返回的api资源。
Core3.x测试完毕。接下来我们测试2.x版本的webapi保护
三、创建Core2.xwepi项目
1、将创建项目时默认添加的WeatherForecastController进行代码修改。
在控制器上方添加 [Authorize]特性,用于授权测试。
[Route("api/[controller]")]
[ApiController]
[Authorize]
public class ValuesController : ControllerBase
{
// GET api/values
[HttpGet]
public ActionResult<IEnumerable<string>> Get()
{
return new string[] { "value1", "value2" };
}
// GET api/values/5
[HttpGet("{id}")]
public ActionResult<string> Get(int id)
{
return "value";
}
// POST api/values
[HttpPost]
public void Post([FromBody] string value)
{
}
// PUT api/values/5
[HttpPut("{id}")]
public void Put(int id, [FromBody] string value)
{
}
// DELETE api/values/5
[HttpDelete("{id}")]
public void Delete(int id)
{
}
}
2、修改Startup.cs文件
public class Startup
{
public Startup(IConfiguration configuration)
{
Configuration = configuration;
}
public IConfiguration Configuration { get; }
// This method gets called by the runtime. Use this method to add services to the container.
public void ConfigureServices(IServiceCollection services)
{
services.AddMvc().SetCompatibilityVersion(CompatibilityVersion.Version_2_1);
//添加认证
services.AddMvcCore()
.AddAuthorization()
.AddJsonFormatters();
services.AddAuthentication("Bearer")
.AddJwtBearer("Bearer", options =>
{
options.Authority = "http://localhost:5000";
options.RequireHttpsMetadata = false;
options.Audience = "api2";
});
}
// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
if (env.IsDevelopment())
{
app.UseDeveloperExceptionPage();
}
else
{
app.UseHsts();
}
//添加认证中间件
app.UseAuthentication();
app.UseHttpsRedirection();
app.UseMvc();
}
}
注意:2.x版本不需要像3.x版本一样添加Microsoft.AspNetCore.Authentication.JwtBearer依赖库
3、在打开Properties→launchSettings.json配置文件将iis相关配置信息删除。
删除后的launchSettings.json
{
"$schema": "http://json.schemastore.org/launchsettings.json",
"profiles": {
"WebApi2.x": {
"commandName": "Project",
"launchBrowser": true,
"launchUrl": "api/values",
"applicationUrl": "http://localhost:5002",
"environmentVariables": {
"ASPNETCORE_ENVIRONMENT": "Development"
}
}
}
}
4、在id4项目的Config.cs文件中添加ApiResource
public static IEnumerable<ApiResource> Apis =>
new ApiResource[]
{
new ApiResource("api1", "My API #1"),
new ApiResource("api2", "My API #2")
};
5、将client客户端AllowedScopes修改为api2。
new Client
{
ClientId = "client",
ClientName = "Client Credentials Client",
AllowedGrantTypes = GrantTypes.ClientCredentials,
ClientSecrets = { new Secret("511536EF-F270-4058-80CA-1C89C192F69A".Sha256()) },
AllowedScopes = { "api2" }
},
6、修改ConsoleClient客户端Program.cs文件
class Program
{
static async Task Main(string[] args)
{
// IdentityModel包括一个与发现端点一起使用的客户端库。这样,您只需要知IdentityServer的基地址-可以从元数据中读取实际的端点地址。http://localhost:5000identityserver4的Url地址
var client = new HttpClient();
var disco = await client.GetDiscoveryDocumentAsync("http://localhost:5000");
if (disco.IsError)
{
Console.WriteLine(disco.Error);
return;
}
//接下来,您可以使用发现文档中的信息向IdentityServer请求令牌以访问api1
var tokenResponse = await client.RequestClientCredentialsTokenAsync(new ClientCredentialsTokenRequest
{
Address = disco.TokenEndpoint,
ClientId = "client",
//Secret在id4项目中Config.cs文件中配置的AllowedGrantTypes = GrantTypes.ClientCredentials客户端中的ClientSecrets
ClientSecret = "511536EF-F270-4058-80CA-1C89C192F69A",
//将原来的api1修改为 api2
Scope = "api2"
});
if (tokenResponse.IsError)
{
Console.WriteLine(tokenResponse.Error);
return;
}
Console.WriteLine(tokenResponse.Json);
//要将访问令牌发送到API。这是使用SetBearerToken扩展方法完,设置HTTP授权标头:
var clientapi = new HttpClient();
clientapi.SetBearerToken(tokenResponse.AccessToken);
//var response = await clientapi.GetAsync("http://localhost:5001/WeatherForecast");
//修改api请求地址
var response = await clientapi.GetAsync("http://localhost:5002/api/Values");
if (!response.IsSuccessStatusCode)
{
Console.WriteLine(response.StatusCode);
}
else
{
var content = await response.Content.ReadAsStringAsync();
Console.WriteLine(JArray.Parse(content));
}
Console.ReadKey();
}
}

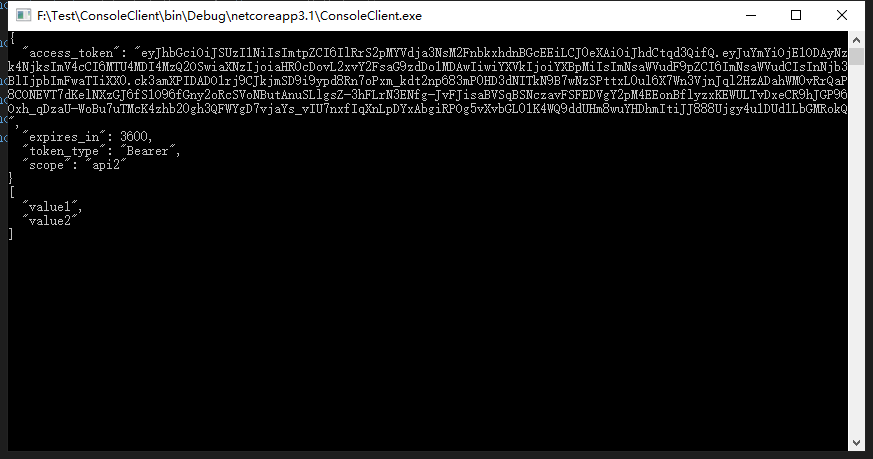

7、依次运行id4项目、core2.1webapi项目和控制台客户端项目
正确的获取到了core2.x被保护资源。
四、小结
保护Core3.x与2.x的区别就在与Startup文件的配置上。
1、core3.x需要添加Microsoft.AspNetCore.Authentication.JwtBearer包依赖 ,2.x则不需要。
2、core3.x webapi项目 Startup添加文件配置
//ConfigureServices方法中添加
//将身份验证服务添加到DI并配置Bearer为默认方案。
services.AddAuthentication("Bearer")
.AddJwtBearer("Bearer", options =>
{
//配置id4授权服务器Url
options.Authority = "http://localhost:5000";
options.RequireHttpsMetadata = false;
//设置当前webapi项目的资源名称为api1
options.Audience = "api1";
});
//Configure方法中添加
app.UseAuthentication();
app.UseAuthorization();
3、core2.x webapi项目 Startup添加文件配置
//ConfigureServices方法中添加
//添加认证
services.AddMvcCore()
.AddAuthorization()
.AddJsonFormatters();
services.AddAuthentication("Bearer")
.AddJwtBearer("Bearer", options =>
{
options.Authority = "http://localhost:5000";
options.RequireHttpsMetadata = false;
options.Audience = "api2";
});
//Configure方法中添加
//添加认证中间件
app.UseAuthentication();
