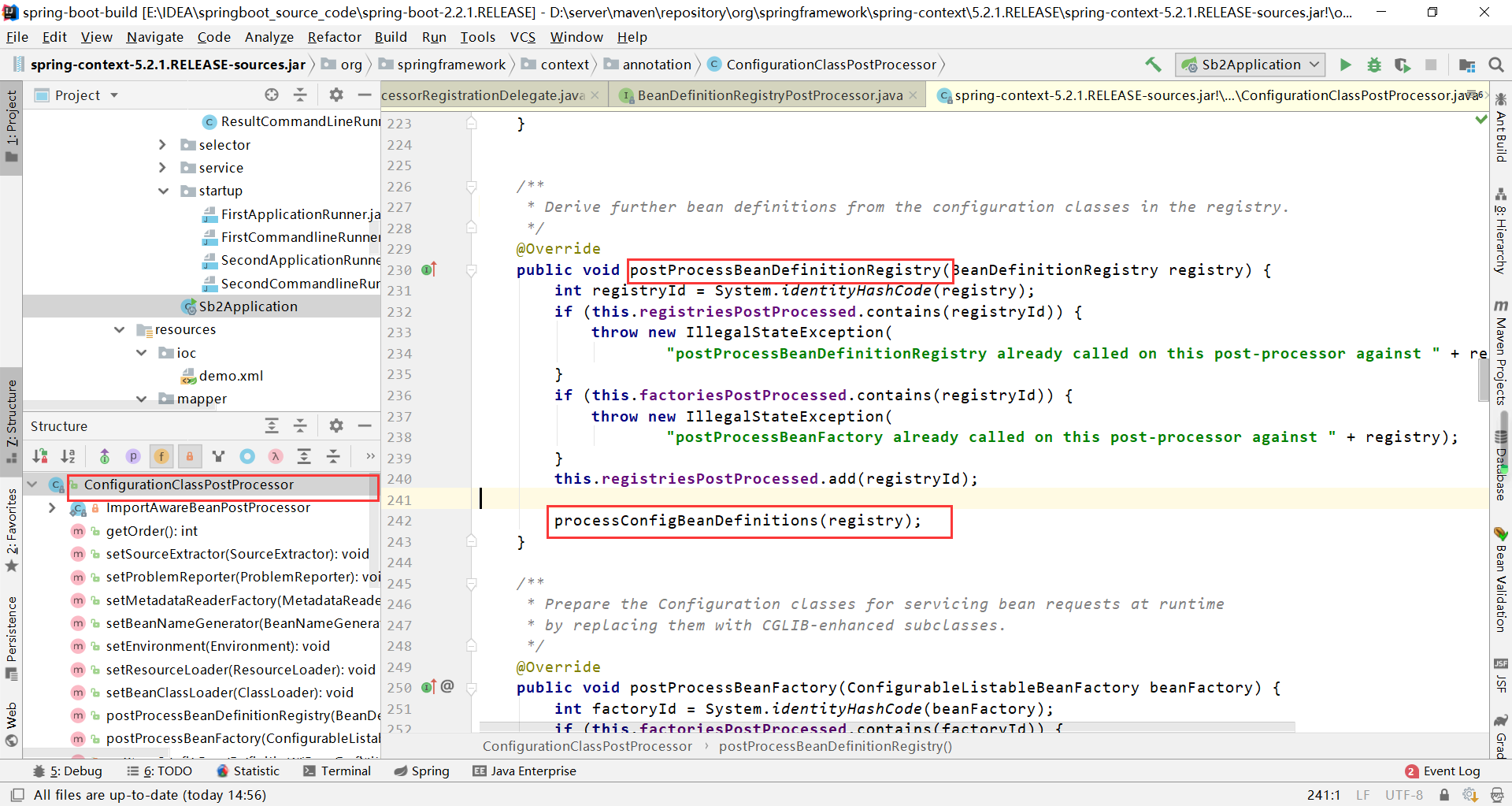

里面有一个BeanDefinitionRegistryPostProcessor的实现类ConfigurationClassPostProcessor，它的postProcessBeanDefinitionRegistry()方法如下，其调用了processConfigBeanDefinitions()方法
进入该方法
/**
* Build and validate a configuration model based on the registry of
* {@link Configuration} classes.
*/
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
// 获得所有的registry的名称
String[] candidateNames = registry.getBeanDefinitionNames();
// 遍历这些名称
for (String beanName : candidateNames) {
// 获取registry的描述类
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
// 获取当前bean的ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE属性
// 如果属性不为null。表示已经被处理过了
if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
if (logger.isDebugEnabled()) {
logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
}
}
// 解析beanDef元数据（也就是bean上带有哪些注解）
else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
// 将当前bean封装成BeanDefinitionHolder
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
// Return immediately if no @Configuration classes were found
if (configCandidates.isEmpty()) {
return;
}
// Sort by previously determined @Order value, if applicable
// 根据解析bean中的order注解排序
configCandidates.sort((bd1, bd2) -> {
int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
return Integer.compare(i1, i2);
});
// Detect any custom bean name generation strategy supplied through the enclosing application context
SingletonBeanRegistry sbr = null;
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
if (!this.localBeanNameGeneratorSet) { // localBeanNameGeneratorSet默认为false
// 查看当前的bean是否含有CONFIGURATION_BEAN_NAME_GENERATOR
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
if (generator != null) {
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
// 检查environment
if (this.environment == null) {
this.environment = new StandardEnvironment();
}
// Parse each @Configuration class
// 解析@Configuration注解的类
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
// candidates是待处理的bean集合。alreadyParsed是已经处理完毕的bean集合
Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
do {
parser.parse(candidates);// 解析发现的@Configuration类，引入新的Bean
parser.validate();// 验证解析器中的
// 得到所有的配置类
Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
// 移除掉我们解析过的类
configClasses.removeAll(alreadyParsed);
// Read the model and create bean definitions based on its content
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(
registry, this.sourceExtractor, this.resourceLoader, this.environment,
this.importBeanNameGenerator, parser.getImportRegistry());
}
// 将刚解析出来的bean转化成BeanDefinition对象
this.reader.loadBeanDefinitions(configClasses);
// 将这些解析完成的bean，且转化为BeanDefinition对象的configClasses放入alreadyParsed中
alreadyParsed.addAll(configClasses);
candidates.clear();// 清空
// 查看bean的个数是否大于之前没有解析之前的bean的个数，这些新的Bean很可能也是@Configuration，需要继续解析
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<String> alreadyParsedClasses = new HashSet<>();
// 将所有的已经处理过的ConfigurationClass放入alreadyParsedClasses
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
// 将解析@Configuration类中发现的新的@Configuration类
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
!alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
// 新发现的@Configuration类作为下一次循环需要解析的对象
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
}
// 清空元数据阅读器
if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
// Clear cache in externally provided MetadataReaderFactory; this is a no-op
// for a shared cache since it'll be cleared by the ApplicationContext.
((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
}
}
1. checkConfigurationClassCandidate()
public static boolean checkConfigurationClassCandidate(
BeanDefinition beanDef, MetadataReaderFactory metadataReaderFactory) {
String className = beanDef.getBeanClassName();
if (className == null || beanDef.getFactoryMethodName() != null) {
return false;
}
// 将bean的元数据解析出来
AnnotationMetadata metadata;
if (beanDef instanceof AnnotatedBeanDefinition &&
className.equals(((AnnotatedBeanDefinition) beanDef).getMetadata().getClassName())) {
// Can reuse the pre-parsed metadata from the given BeanDefinition...
// 获取当前bean的元数据
metadata = ((AnnotatedBeanDefinition) beanDef).getMetadata();
}
else if (beanDef instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) beanDef).hasBeanClass()) {
// Check already loaded Class if present...
// since we possibly can't even load the class file for this Class.
Class<?> beanClass = ((AbstractBeanDefinition) beanDef).getBeanClass();
if (BeanFactoryPostProcessor.class.isAssignableFrom(beanClass) ||
BeanPostProcessor.class.isAssignableFrom(beanClass) ||
AopInfrastructureBean.class.isAssignableFrom(beanClass) ||
EventListenerFactory.class.isAssignableFrom(beanClass)) {
return false;
}
metadata = AnnotationMetadata.introspect(beanClass);
}
else {
try {
// 通过一个元数据阅读器去获取元数据
MetadataReader metadataReader = metadataReaderFactory.getMetadataReader(className);
metadata = metadataReader.getAnnotationMetadata();
}
catch (IOException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Could not find class file for introspecting configuration annotations: " +
className, ex);
}
return false;
}
}
// 解析元数据
Map<String, Object> config = metadata.getAnnotationAttributes(Configuration.class.getName());
// 查看元数据中是否有proxyBeanMethods
if (config != null && !Boolean.FALSE.equals(config.get("proxyBeanMethods"))) {
// 给bean设置attribute
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_FULL);
}
// 查看其是否含有一些注解
else if (config != null || isConfigurationCandidate(metadata)) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_LITE);
}
else {
return false;
}
// It's a full or lite configuration candidate... Let's determine the order value, if any.
// 获取order注解
Integer order = getOrder(metadata);
if (order != null) {
// 给bean设置
beanDef.setAttribute(ORDER_ATTRIBUTE, order);
}
return true;
}
查看里面是否带有注解的核心方法
public static boolean isConfigurationCandidate(AnnotationMetadata metadata) {
// Do not consider an interface or an annotation...
if (metadata.isInterface()) {
return false;
}
// Any of the typical annotations found?
// 查看当前元数据中是否有含有candidateIndicators这四个注解
// 这四个为：Component ComponentScan Import ImportResource
for (String indicator : candidateIndicators) {
if (metadata.isAnnotated(indicator)) {
return true;
}
}
// Finally, let's look for @Bean methods...
try {
// 该bean的方法是否含有@bean注解
return metadata.hasAnnotatedMethods(Bean.class.getName());
}
catch (Throwable ex) {
if (logger.isDebugEnabled()) {
logger.debug("Failed to introspect @Bean methods on class [" + metadata.getClassName() + "]: " + ex);
}
return false;
}
}
2. parser.parse(candidates)
里面调用了通过名方法进行解析
protected final void parse(@Nullable String className, String beanName) throws IOException {
Assert.notNull(className, "No bean class name for configuration class bean definition");
MetadataReader reader = this.metadataReaderFactory.getMetadataReader(className);
processConfigurationClass(new ConfigurationClass(reader, beanName));
}
parse解析交给了processConfigurationClass()方法，里面使用do while循环解析
protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
return;
}
// existingClass存储了解析好的ConfigurationClass
ConfigurationClass existingClass = this.configurationClasses.get(configClass);
if (existingClass != null) {
if (configClass.isImported()) {
if (existingClass.isImported()) {
existingClass.mergeImportedBy(configClass);
}
// Otherwise ignore new imported config class; existing non-imported class overrides it.
return;
}
else {
// Explicit bean definition found, probably replacing an import.
// Let's remove the old one and go with the new one.
this.configurationClasses.remove(configClass);
this.knownSuperclasses.values().removeIf(configClass::equals);
}
}
// Recursively process the configuration class and its superclass hierarchy.
// 将其封装成sourceClass
SourceClass sourceClass = asSourceClass(configClass);
do {
// doProcessConfigurationClass会返回其父类
sourceClass = doProcessConfigurationClass(configClass, sourceClass);
}
while (sourceClass != null);
// configClass同时能够hi作为k和v放入configurationClasses中
this.configurationClasses.put(configClass, configClass);
}
doProcessConfigurationClass()方法解析
/**
* Apply processing and build a complete {@link ConfigurationClass} by reading the
* annotations, members and methods from the source class. This method can be called
* multiple times as relevant sources are discovered.
* @param configClass the configuration class being build
* @param sourceClass a source class
* @return the superclass, or {@code null} if none found or previously processed
*/
@Nullable
protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
throws IOException {
// 当前类是否含有Component注解
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// Recursively process any member (nested) classes first
processMemberClasses(configClass, sourceClass);
}
// Process any @PropertySource annotations
// 处理@PropertySource注解
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
// 处理带有@PropertySource注解带有的文件
// 将文件中的信息加载到spring环境中
processPropertySource(propertySource);
}
else {
logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
"]. Reason: Environment must implement ConfigurableEnvironment");
}
}
// Process any @ComponentScan annotations
// 解析@ComponentScan注解
// 如果@ComponentScan注解扫描的bean中也含有@ComponentScan注解，也需要解析
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
// The config class is annotated with @ComponentScan -> perform the scan immediately
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// Check the set of scanned definitions for any further config classes and parse recursively if needed
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
// Process any @Import annotations
processImports(configClass, sourceClass, getImports(sourceClass), true);
// Process any @ImportResource annotations
// 如果@ImportResource 注解引入的bean中也含有@ImportResource，也需要解析
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
// 获取@ImportResource 注解上的资源
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
// Process individual @Bean methods
// 读取@Bean，增加新的BeanDefinition
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
// Process default methods on interfaces
// 查看接口的Default方法上是否有@Bean注解，有就注入到spring中
processInterfaces(configClass, sourceClass);
// Process superclass, if any
// 处理当前类的父类
if (sourceClass.getMetadata().hasSuperClass()) {
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {// knownSuperclasses中不含有当前父类
this.knownSuperclasses.put(superclass, configClass);
// Superclass found, return its annotation metadata and recurse
// 就返回该父类
return sourceClass.getSuperClass();
}
}
// No superclass -> processing is complete
return null;
}
总结
processConfigBeanDefinitions逻辑
解析处理的核心逻辑
doProcessConfigurationClass处理几类注解
因为@SpringBootApplication注解带有@Configuration注解，所以springboot的主函数会是程序的入口，扫描解析Bean从这里开始，又因为它会扫描里面也带有@EnableAutoConfiguration等注解，所以springboot主函数为根路径开始扫描整个springboot根路径同一级和下一个级的文件。如果再高一级的包中定义相关文件还不是用@ComponentScan和@Import等相关注解，那么这个包中的bean就无法注入到springboot中了。
