DreamView数据通信机制

DreamView数据通信

---

WebSock通信机制

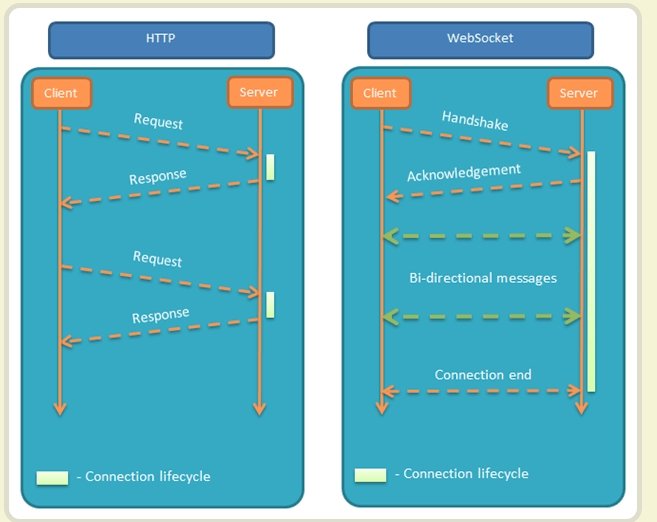

''前后端是通过WebSock进行通信，WebSock是一个双工通信。

里面有几个重要的函数

var ws = new WebSocket(“ws://echo.websocket.org”);

ws.onopen = function(){ws.send(“Test!”); };

ws.onmessage = function(evt){console.log(evt.data);ws.close();};

ws.onclose = function(evt){console.log(“WebSocketClosed!”);};

ws.onerror = function(evt){console.log(“WebSocketError!”);};

• 第一行代码是在申请一个WebSocket对象，参数是需要连接的服务器端的地址，同http协议使用http://开头一样，WebSocket协议的URL使用ws://开头，另外安全的WebSocket协议使用wss://开头。

  第二行到第五行为WebSocket对象注册消息的处理函数，WebSocket对象一共支持四个消息 onopen, onmessage, onclose和onerror.

• 当Browser和WebSocketServer连接成功后，会触发onopen消息；

• 如果连接失败，发送、接收数据失败或者处理数据出现错误，browser会触发onerror消息；

• 当Browser接收到WebSocketServer发送过来的数据时，就会触发onmessage消息，参数evt中包含server传输过来的数据；

• 当Browser接收到WebSocketServer端发送的关闭连接请求时，就会触发onclose消息。我们可以看出所有的操作都是采用消息的方式触发的，这样就不会阻塞UI，使得UI有更快的响应时间，得到更好的用户体验。

frontend To backend

以start auto按钮为例进行讲解：

• 前端：当按下按钮，触发按钮事件WS.changeDrivingMode("COMPLETE_AUTO_DRIVE"); WS为WebSock对象，进入到函数changeDrivingMode会发现函数里面执行了websocket.send（）发送后端消息，类型为ChangeDrivingMode

 changeDrivingMode(mode) {
        this.websocket.send(JSON.stringify({
            type: "ChangeDrivingMode",
            new_mode: mode,
        }));
    }

• 后端：当后端收到前端的消息时会进入到后端的onmess()，后端的处理函数为

  handleData（CivetServer *server, Connection *conn, int bits, char *data,size_t data_len）

该函数会调用handleJsonData或者handleBinaryData

在这两个函数中（handleBinaryData或handleJsonData）有一个map映射函数message_handlers_[type](json, conn);该函数的定义为

 // Message handlers keyed by message type.
  std::unordered_map<std::string, MessageHandler> message_handlers_;

可以看出他根据消息类型来找出对应的处理函数，消息处理函数在函数RegisterMessageHandlers（）中注册，(该函数在hmi.cc文件里面)，在函数RegisterMessageHandler（）里面有许多处理句柄函数,调用 websocket对象的注册函数，进行类型和函数的一一对应关系，例如，截取其中一部分显示如下

 // HMI client asks for changing driving mode.
  websocket_->RegisterMessageHandler(
      "ChangeDrivingMode",
      [this](const Json &json, WebSocketHandler::Connection *conn) {
        // json should contain {new_mode: "DrivingModeName"}.
        // DrivingModeName should be one of canbus::Chassis::DrivingMode.
        // For now it is either COMPLETE_MANUAL or COMPLETE_AUTO_DRIVE.
        std::string new_mode;
        if (JsonUtil::GetStringFromJson(json, "new_mode", &new_mode)) {
          Chassis::DrivingMode mode;
          if (Chassis::DrivingMode_Parse(new_mode, &mode)) {
            HMIWorker::ChangeToDrivingMode(mode);
          } else {
            AERROR << "Unknown driving mode " << new_mode;
          }
        } else {
          AERROR << "Truncated ChangeDrivingMode request.";
        }
      });
// HMI client asks for executing mode command.
  websocket_->RegisterMessageHandler(
      "ExecuteModeCommand",
      [this](const Json &json, WebSocketHandler::Connection *conn) {
        // json should contain {command: "command_name"}.
        // Supported commands are: "start", "stop".
        std::string command;
        if (JsonUtil::GetStringFromJson(json, "command", &command)) {
          HMIWorker::instance()->RunModeCommand(command);
        } else {
          AERROR << "Truncated mode command.";
        }
      });

当收到类型为ChangeDrivingMode时，就会执行相应的函数。继续auto按钮，这里为HMIWorker::ChangeToDrivingMode(mode);进入该函数，会发现他设置了pad topic，然后周期发送该主题AdapterManager::PublishPad(pad)，当别的模块接收到该主题的时候，就会去执行相应的操作，切换驾驶模式。该行为还没有找到反馈，-----> 或许前端就不再需要后端反馈了，只是让后端去执行而已。

...
control::PadMessage pad;
  switch (mode) {
    case Chassis::COMPLETE_MANUAL:
      pad.set_action(DrivingAction::RESET);
      break;
    case Chassis::COMPLETE_AUTO_DRIVE:
      pad.set_action(DrivingAction::START);
      break;
    default:
      AFATAL << "Unknown action to change driving mode to "
             << Chassis::DrivingMode_Name(mode);
  }
...
// Send driving action periodically until entering target driving mode.
    AdapterManager::FillPadHeader("HMI", &pad);
    AdapterManager::PublishPad(pad);

backend To frontend

前端会每个100ms向后端请求simulationWorld数据

modules/dreamview/frontend/src/store/websocket/websocket_realtime.js

// Request simulation world every 100ms.
        clearInterval(this.timer);
        this.timer = setInterval(() => {
            if (this.websocket.readyState === this.websocket.OPEN) {
                // Load default routing end point.
                if (this.updatePOI) {
                    this.requestDefaultRoutingEndPoint();
                    this.updatePOI = false;
                }

                const requestPlanningData = STORE.options.showPNCMonitor;
                this.websocket.send(JSON.stringify({
                    type: "RequestSimulationWorld",
                    planning: requestPlanningData,
                }));
            }
        }, this.simWorldUpdatePeriodMs);

当后端收到请求后，会根据类型RequestSimulationWorld找到对应的执行函数，该处理函数依旧在`

SimulationWorldUpdater::RegisterMessageHandlers()注册，只不过这次在SimulationWorldUpdater.cc文件中。找到类型RequestSimulationWorld`对应的处理函数

 websocket_->RegisterMessageHandler(
      "RequestSimulationWorld",
      [this](const Json &json, WebSocketHandler::Connection *conn) {
        if (!sim_world_service_.ReadyToPush()) {
          AWARN_EVERY(100)
              << "Not sending simulation world as the data is not ready!";
          return;
        }

        bool enable_pnc_monitor = false;
        auto planning = json.find("planning");
        if (planning != json.end() && planning->is_boolean()) {
          enable_pnc_monitor = json["planning"];
        }
        std::string to_send;
        {
          // Pay the price to copy the data instead of sending data over the
          // wire while holding the lock.
          boost::shared_lock<boost::shared_mutex> reader_lock(mutex_);
          to_send = enable_pnc_monitor ? simulation_world_with_planning_data_
                                       : simulation_world_;
        }
        if (FLAGS_enable_update_size_check && !enable_pnc_monitor &&
            to_send.size() > FLAGS_max_update_size) {
          AWARN << "update size is too big:" << to_send.size();
          return;
        }
        websocket_->SendBinaryData(conn, to_send, true);
      });

后端把simulation数据装到to_send，然后调用SendBinaryData（）函数发送出去。

后端是怎么把simulation数据封装好呢？

Dreamview初始化，定义好WebSock服务器端（协议，端口号8888，以及一些地图、点云的初始化），然后start启动，调用SimulationWorldUpdater::Start（）函数

 // Time interval, in milliseconds, between pushing SimulationWorld to frontend.
static constexpr double kSimWorldTimeIntervalMs = 100;

void SimulationWorldUpdater::Start() {
  // start ROS timer, one-shot = false, auto-start = true
  timer_ =
      AdapterManager::CreateTimer(ros::Duration(kSimWorldTimeIntervalMs / 1000),
                                  &SimulationWorldUpdater::OnTimer, this);
}

在该函数中启动一个定时器，定时回调SimulationWorldUpdater::OnTimer

void SimulationWorldUpdater::OnTimer(const ros::TimerEvent &event) {
  sim_world_service_.Update();

  {
    boost::unique_lock<boost::shared_mutex> writer_lock(mutex_);
    sim_world_service_.GetWireFormatString(
        FLAGS_sim_map_radius, &simulation_world_,//simulation_world_填值
        &simulation_world_with_planning_data_);
    sim_world_service_.GetRelativeMap().SerializeToString(
        &relative_map_string_);
  }
}

在OnTimer（）里面会执行SimulationWorldService::Update(),该函数里面把所有的数据填充到 world_对象中，该对象的类型为SimulationWorld，他是一个protobuf定义的类，里面是一些仿真的数据。

void SimulationWorldService::Update() {
 ...
  world_.Clear();
  AdapterManager::Observe();
  UpdateWithLatestObserved("Chassis", AdapterManager::GetChassis());
  UpdateWithLatestObserved("Gps", AdapterManager::GetGps());
  UpdateWithLatestObserved("Localization", AdapterManager::GetLocalization());

  // Clear objects received from last frame and populate with the new objects.
  // TODO(siyangy, unacao): For now we are assembling the simulation_world with
  // latest received perception, prediction and planning message. However, they
  // may not always be perfectly aligned and belong to the same frame.
  obj_map_.clear();
  world_.clear_object();
  UpdateWithLatestObserved("PerceptionObstacles",
                           AdapterManager::GetPerceptionObstacles());
  UpdateWithLatestObserved("PerceptionTrafficLight",
                           AdapterManager::GetTrafficLightDetection(), false);
  UpdateWithLatestObserved("PredictionObstacles",
                           AdapterManager::GetPrediction());
  UpdateWithLatestObserved("Planning", AdapterManager::GetPlanning());
  UpdateWithLatestObserved("ControlCommand",
                           AdapterManager::GetControlCommand());
  UpdateWithLatestObserved("Navigation", AdapterManager::GetNavigation(),
                           FLAGS_use_navigation_mode);
  UpdateWithLatestObserved("RelativeMap", AdapterManager::GetRelativeMap(),
                           FLAGS_use_navigation_mode);

  for (const auto &kv : obj_map_) {
    *world_.add_object() = kv.second;
  }

  UpdateDelays();

  world_.set_sequence_num(world_.sequence_num() + 1);
  world_.set_timestamp(apollo::common::time::AsInt64<millis>(Clock::Now()));
}

至此，整个DreamView通信原理分析完毕。
