状态设计模式主要用于在运行时更改状态。
状态模式的故事
人们可以以不同的财务状况生活。他们可以是富人,也可以是穷人。富国和穷国这两个国家可以不时相互转换。该示例背后的思想是:人们通常在穷人时会更努力地工作,而在富人时会更多地玩。他们的工作取决于他们所处的状态。可以根据他们的行为来改变状态,否则,社会将不公平。

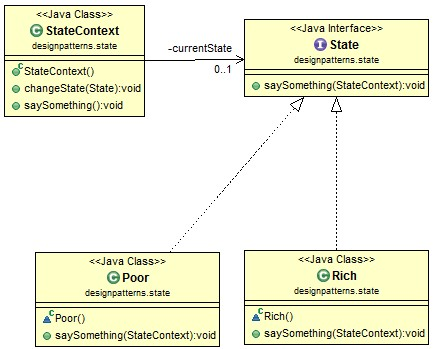

状态模式类图
这是类图。您可以将其与策略模式进行比较,以更好地理解差异。
状态模式Java代码
下面的Java示例显示了State模式的工作方式。
State classes.
package com.programcreek.designpatterns.state;
interface State {
public void saySomething(StateContext sc);
}
class Rich implements State{
@Override
public void saySomething(StateContext sc) {
System.out.println("I'm rick currently, and play a lot.");
sc.changeState(new Poor());
}
}
class Poor implements State{
@Override
public void saySomething(StateContext sc) {
System.out.println("I'm poor currently, and spend much time working.");
sc.changeState(new Rich());
}
}
StateContext class
package com.programcreek.designpatterns.state;
public class StateContext {
private State currentState;
public StateContext(){
currentState = new Poor();
}
public void changeState(State newState){
this.currentState = newState;
}
public void saySomething(){
this.currentState.saySomething(this);
}
}
Main class for testing
import com.programcreek.designpatterns.*;
public class Main {
public static void main(String args[]){
StateContext sc = new StateContext();
sc.saySomething();
sc.saySomething();
sc.saySomething();
sc.saySomething();
}
}
结果:
I'm poor currently, and spend much time working.
I'm rick currently, and play a lot.
I'm poor currently, and spend much time working.
I'm rick currently, and play a lot.
