Tensorflow2.0之三种方法自定义GoogLeNet

Inception块介绍

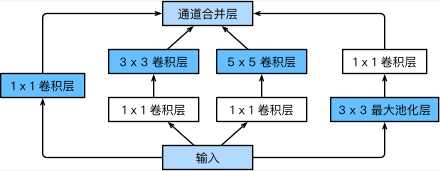

GoogLeNet中的基础卷积块叫作Inception块，得名于同名电影《盗梦空间》（Inception）其结构如下图所示。

由上图可以看出，Inception块里有4条并行的线路。前3条线路使用窗口大小分别用 $1\times 1$、 $3\times 3$ 和 $5\times 5$ 的卷积层来抽取不同空间尺寸下的信息，其中中间2个线路会对输入先做 $1\times 1$ 卷积来减少输入通道数，以降低模型复杂度。第四条线路则使用 $3\times 3$ 最大池化层，后接 $1\times 1$ 卷积层来改变通道数。4条线路都使用了合适的填充来使输入与输出的高和宽一致。最后我们将每条线路的输出在通道维上连结，并输入接下来的层中去。

代码构建GoogLeNet

1、Inception类 + GoogLeNet类

1.1 Inception类

class Inception(tf.keras.Model):
    def __init__(self, c1, c2, c3, c4):
        super().__init__()
        self.conv1 = tf.keras.layers.Conv2D(c1, kernel_size=1,
                                            activation='relu', padding='same')
        self.conv2_1 = tf.keras.layers.Conv2D(c2[0], kernel_size=1,
                                            activation='relu', padding='same')
        self.conv2_2 = tf.keras.layers.Conv2D(c2[1], kernel_size=3,
                                            activation='relu', padding='same')
        self.conv3_1 = tf.keras.layers.Conv2D(c3[0], kernel_size=1,
                                            activation='relu', padding='same')
        self.conv3_2 = tf.keras.layers.Conv2D(c3[1], kernel_size=5,
                                            activation='relu', padding='same')
        self.pool4_1 = tf.keras.layers.MaxPool2D(pool_size=3, padding='same',
                                                 strides=1)
        self.conv4_2 = tf.keras.layers.Conv2D(c4, kernel_size=1,
                                            activation='relu', padding='same')


    def call(self, inputs):
        x1 = self.conv1(inputs)
        x2 = self.conv2_2(self.conv2_1(inputs))
        x3 = self.conv3_2(self.conv3_1(inputs))
        x4 = self.conv4_2(self.pool4_1(inputs))

        return tf.concat((x1, x2, x3, x4), axis=-1)

1.2 GoogLeNet类

class GoogLeNet(tf.keras.Model):
    def __init__(self):
        super().__init__()
        self.conv1 = tf.keras.layers.Conv2D(filters=64, kernel_size=7, strides=2,
                                  activation='relu', padding='same')
        self.pool1 = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')
        self.conv2 = tf.keras.layers.Conv2D(filters=64, kernel_size=1,
                              activation='relu', padding='same')
        self.conv3 = tf.keras.layers.Conv2D(filters=192, kernel_size=3,
                                  activation='relu', padding='same')
        self.pool2 = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')
        self.inception1 = Inception(64, (96, 128), (16, 32), 32)
        self.inception2 = Inception(128, (128, 192), (32, 96), 64)
        self.pool3 = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')
        self.inception3 = Inception(192, (96, 208), (16, 48), 64)
        self.inception4 = Inception(160, (112, 224), (24, 64), 64)
        self.inception5 = Inception(128, (128, 256), (24, 64), 64)
        self.inception6 = Inception(112, (144, 288), (32, 64), 64)
        self.inception7 = Inception(256, (160, 320), (32, 128), 128)
        self.pool4 = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')
        self.inception8 = Inception(256, (160, 320), (32, 128), 128)
        self.inception9 = Inception(384, (192, 384), (48, 128), 128)
        self.gap = tf.keras.layers.GlobalAvgPool2D()
        self.dense = tf.keras.layers.Dense(10)

    def call(self, inputs):
        x = self.pool1(self.conv1(inputs))
        x = self.pool2(self.conv3(self.conv2(x)))
        x = self.pool3(self.inception2(self.inception1(x)))
        x = self.pool4(self.inception7(self.inception6(self.inception5(self.inception4(self.inception3(x))))))
        x = self.dense(self.gap(self.inception9(self.inception8(x))))
        return x

1.3 检验模型

net = GoogLeNet()
X = tf.random.uniform(shape=(1, 96, 96, 1))
for layer in net.layers:
    X = layer(X)
    print(layer.name, 'output shape:\t', X.shape)

conv2d output shape:	 (1, 48, 48, 64)
max_pooling2d output shape:	 (1, 24, 24, 64)
conv2d_1 output shape:	 (1, 24, 24, 64)
conv2d_2 output shape:	 (1, 24, 24, 192)
max_pooling2d_1 output shape:	 (1, 12, 12, 192)
inception output shape:	 (1, 12, 12, 256)
inception_1 output shape:	 (1, 12, 12, 480)
max_pooling2d_4 output shape:	 (1, 6, 6, 480)
inception_2 output shape:	 (1, 6, 6, 512)
inception_3 output shape:	 (1, 6, 6, 512)
inception_4 output shape:	 (1, 6, 6, 512)
inception_5 output shape:	 (1, 6, 6, 528)
inception_6 output shape:	 (1, 6, 6, 832)
max_pooling2d_10 output shape:	 (1, 3, 3, 832)
inception_7 output shape:	 (1, 3, 3, 832)
inception_8 output shape:	 (1, 3, 3, 1024)
global_average_pooling2d output shape:	 (1, 1024)
dense output shape:	 (1, 10)

2、Inception函数 + GoogLeNet函数

2.1 Inception函数

def Inception(c1, c2, c3, c4, input_):
    inputs = tf.keras.layers.Input(shape=input_.shape[1:])
    x1 = tf.keras.layers.Conv2D(c1, kernel_size=1,
                                        activation='relu', padding='same')(inputs)
    x2_1 = tf.keras.layers.Conv2D(c2[0], kernel_size=1,
                                        activation='relu', padding='same')(inputs)
    x2_2 = tf.keras.layers.Conv2D(c2[1], kernel_size=3,
                                        activation='relu', padding='same')(x2_1)
    x3_1 = tf.keras.layers.Conv2D(c3[0], kernel_size=1,
                                        activation='relu', padding='same')(inputs)
    x3_2 = tf.keras.layers.Conv2D(c3[1], kernel_size=5,
                                        activation='relu', padding='same')(x3_1)
    x4_1 = tf.keras.layers.MaxPool2D(pool_size=3, padding='same',
                                             strides=1)(inputs)
    x4_2 = tf.keras.layers.Conv2D(c4, kernel_size=1,
                                        activation='relu', padding='same')(x4_1)

    outputs = tf.concat((x1, x2_2, x3_2, x4_2), axis=-1)
    return tf.keras.Model(inputs=inputs, outputs=outputs)

inputs的形状不包括第一个（即batch_size）。

2.1.1 绘制Inception结构

构建Inception函数后，可以绘制Inception结构。

X = tf.random.uniform((1, 12, 12, 192))
inception = Inception(64, (96, 128), (16, 32), 32, input_=X)
tf.keras.utils.plot_model(inception, show_shapes=True, dpi=64)

用类绘制Inception结构的时候画不出这样的效果，如果有大佬知道怎么搞请告诉我一下……

2.2 GoogLeNet函数

def GoogLeNet(input_):
    inputs = tf.keras.layers.Input(shape=input_.shape[1:])

    x = tf.keras.layers.Conv2D(filters=64, kernel_size=7, strides=2,
                                  activation='relu', padding='same')(inputs)
    x = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')(x)
    x = tf.keras.layers.Conv2D(filters=64, kernel_size=1,
                              activation='relu', padding='same')(x)
    x = tf.keras.layers.Conv2D(filters=192, kernel_size=3,
                                  activation='relu', padding='same')(x)
    x = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')(x)
    x = Inception(64, (96, 128), (16, 32), 32, x)(x)
    x = Inception(128, (128, 192), (32, 96), 64, x)(x)
    x = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')(x)
    x = Inception(192, (96, 208), (16, 48), 64, x)(x)
    x = Inception(160, (112, 224), (24, 64), 64, x)(x)
    x = Inception(128, (128, 256), (24, 64), 64, x)(x)
    x = Inception(112, (144, 288), (32, 64), 64, x)(x)
    x = Inception(256, (160, 320), (32, 128), 128, x)(x)
    x = tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same')(x)
    x = Inception(256, (160, 320), (32, 128), 128, x)(x)
    x = Inception(384, (192, 384), (48, 128), 128, x)(x)
    x = tf.keras.layers.GlobalAvgPool2D()(x)
    outputs = tf.keras.layers.Dense(10)(x)

    return tf.keras.Model(inputs=inputs, outputs=outputs)

2.3 检验模型

net = GoogLeNet(X)
X = tf.random.uniform(shape=(1, 96, 96, 1))
net(X)

<tf.Tensor: id=7428, shape=(1, 10), dtype=float32, numpy=
array([[ 0.00416765, -0.00549915,  0.00206655, -0.00362523, -0.00011301,
         0.00076362,  0.00382673,  0.00137803, -0.00135476,  0.00257596]],
      dtype=float32)>

3、Inception类 + GoogLeNet函数

3.1 Inception类

class Inception(tf.keras.Model):
    def __init__(self, c1, c2, c3, c4):
        super().__init__()
        self.conv1 = tf.keras.layers.Conv2D(c1, kernel_size=1,
                                            activation='relu', padding='same')
        self.conv2_1 = tf.keras.layers.Conv2D(c2[0], kernel_size=1,
                                            activation='relu', padding='same')
        self.conv2_2 = tf.keras.layers.Conv2D(c2[1], kernel_size=3,
                                            activation='relu', padding='same')
        self.conv3_1 = tf.keras.layers.Conv2D(c3[0], kernel_size=1,
                                            activation='relu', padding='same')
        self.conv3_2 = tf.keras.layers.Conv2D(c3[1], kernel_size=5,
                                            activation='relu', padding='same')
        self.pool4_1 = tf.keras.layers.MaxPool2D(pool_size=3, padding='same',
                                                 strides=1)
        self.conv4_2 = tf.keras.layers.Conv2D(c4, kernel_size=1,
                                            activation='relu', padding='same')


    def call(self, inputs):
        x1 = self.conv1(inputs)
        x2 = self.conv2_2(self.conv2_1(inputs))
        x3 = self.conv3_2(self.conv3_1(inputs))
        x4 = self.conv4_2(self.pool4_1(inputs))

        return tf.concat((x1, x2, x3, x4), axis=-1)

3.2 GoogLeNet函数

def GoogLeNet(input_):
    inputs = tf.keras.layers.Input(shape=input_.shape[1:])

    model = [
        tf.keras.layers.Conv2D(filters=64, kernel_size=7, strides=2,
                                  activation='relu', padding='same'),
        tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same'),
        tf.keras.layers.Conv2D(filters=64, kernel_size=1,
                              activation='relu', padding='same'),
        tf.keras.layers.Conv2D(filters=192, kernel_size=3,
                                  activation='relu', padding='same'),
        tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same'),
        Inception(64, (96, 128), (16, 32), 32),
        Inception(128, (128, 192), (32, 96), 64),
        tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same'),
        Inception(192, (96, 208), (16, 48), 64),
        Inception(160, (112, 224), (24, 64), 64),
        Inception(128, (128, 256), (24, 64), 64),
        Inception(112, (144, 288), (32, 64), 64),
        Inception(256, (160, 320), (32, 128), 128),
        tf.keras.layers.MaxPool2D(pool_size=3, strides=2, padding='same'),
        Inception(256, (160, 320), (32, 128), 128),
        Inception(384, (192, 384), (48, 128), 128),
        tf.keras.layers.GlobalAvgPool2D()
    ]

    x = inputs
    for layer in model:
        x = layer(x)

    outputs = tf.keras.layers.Dense(10)(x)

    return tf.keras.Model(inputs=inputs, outputs=outputs)

3.3 检验模型

net = GoogLeNet(X)
X = tf.random.uniform(shape=(1, 96, 96, 1))
net(X)

<tf.Tensor: id=12274, shape=(1, 10), dtype=float32, numpy=
array([[-0.00310602, -0.00069746, -0.00513642,  0.00356312, -0.00862163,
        -0.00839284, -0.00085803, -0.00360573, -0.0004233 ,  0.00441669]],
      dtype=float32)>
