红黑树
一.概念:
本质上还是一棵二叉搜索树,每个节点又多了一个属性——结点的颜色,每个节点不是红色就是黑色。
二.性质:
1.根节点是黑色
2.对于每个节点而言,从该节点到其后代叶节点路径上的黑色结点数目都是相同的
3.不能有连续的红色结点出现。
三.实现
主要是旋转的情况:
1.叔叔节点存在且为红色
只需修改将父节点、叔叔节点、祖父节点的颜色即可
2.叔叔节点不存在/叔叔节点存在但为黑色
这时候需要对二叉树进行旋转操作:以p为轴进行右旋。

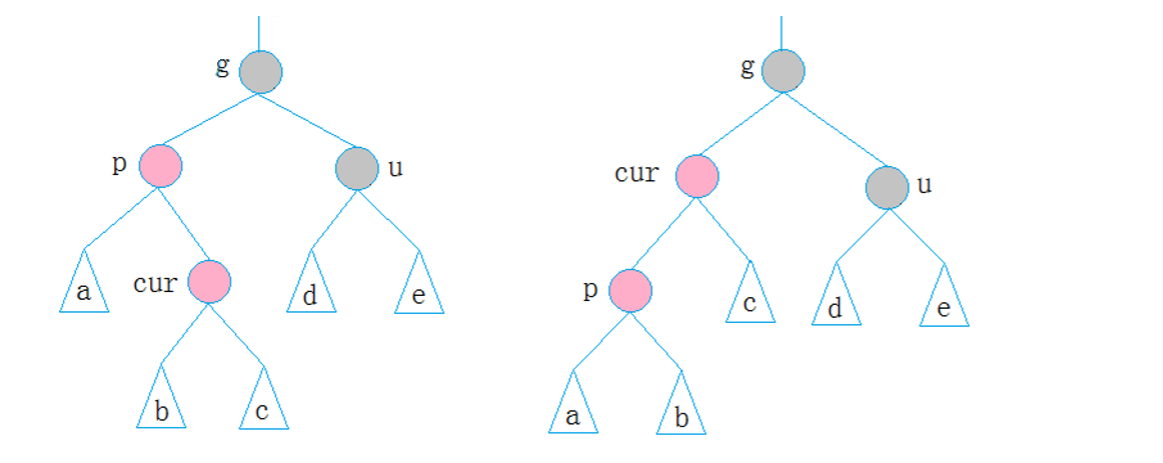

3.需要进行双旋
将该图转换为图二的情况即可。
四.代码
#include <iostream>
using namespace std;
//红黑树:本质上还是一棵二叉搜索树
// 性质:
// 1.根节点是黑色的
// 2.对于任意节点,从该节点到其后代叶节点路径上的黑色结点数目均相同
// 3.不能有连续的红色结点出现
enum Color{RED, BLACK};
template<class Key, class Value>
struct RBTNode {
//每个结点信息都是一个键值对
pair<Key, Value> _data;
typedef RBTNode<Key, Value> Node;
typedef Node* pNode;
pNode _left;
pNode _right;
pNode _parent;
Color _color;
RBTNode(const pair<Key, Value>& data = pair<Key, Value>()) :
_data(data),
_left(nullptr),
_right(nullptr),
_parent(nullptr),
_color(RED)
{}
};
template <class Key,class Value>
class RBTree {
public:
typedef RBTNode<Key, Value> Node;
typedef Node* pNode;
RBTree() :_header(new Node) {
_header->_color = BLACK;
_header->_left = _header;
_header->_parent = nullptr;
_header->_right = _header;
}
//1.左边的左边高:右旋
void RotateRight(pNode node) {
pNode subL = node->_left;
pNode subLR = subL->_right;
node->_left = subLR;
subL->_right = node;
if (subLR) {
subLR->_parent = node;
}
//判断是否是根节点
if (node == _header->_parent) {
_header->_parent = subL;
subL = _header->_parent;
}
else {
pNode parent = node->_parent;
if (parent->_left == node) {
parent->_left = subL;
}
else {
parent->_right = subL;
}
subL->_parent = parent;
}
node->_parent = subL;
}
//2.右边的右边高:左旋
void RotateLeft(pNode node) {
pNode subR = node->_right;
pNode subRL = subR->_left;
node->_right = subRL;
subR->_left = node;
if (subRL) {
subRL->_parent = node;
}
//判断是否是根节点
if (node == _header->_parent) {
_header->_parent = subR;
subR = _header->_parent;
}
else {
pNode parent = node->_parent;
if (parent->_left == node) {
parent->_left = subR;
}
else {
parent->_right = subR;
}
subR->_parent = parent;
}
node->_parent = subR;
}
//3.左边的右边高:先左旋,再右旋
void RotateLR(pNode node) {
pNode subL = node->_left;
pNode subLR = subL->_right;
RotateLeft(subL);
RotateRight(node);
}
//4.右边的左边高:先右旋,再左旋
void RotateRL(pNode node) {
pNode subR = node->_right;
pNode subRL = subR->_left;
RotateRight(subR);
RotateLeft(node);
}
bool Insert(const pair<Key, Value>& data) {
//1.先判断是否是空树
pNode root = _header->_parent;
if (root == nullptr) {
pNode node = new Node;
node->_color = BLACK;
node->_data = data;
node->_parent = _header;
_header->_left = node;
_header->_right = node;
_header->_parent = node;
return true;
}
//2.不是空树,按照二叉搜索树的性质查找到合适的位置,进行插入
pNode cur = root;
pNode parent = nullptr;
while (cur) {
if (cur->_data.first == data.first) {
cout << "same node!!!" << endl;
return false;
}
parent = cur;
if (cur->_data.first < data.first) {
cur = cur->_right;
}
else {
cur = cur->_left;
}
}
cur = new Node(data);
if (parent->_data.first > data.first) {
parent->_left = cur;
}
else {
parent->_right = cur;
}
cur->_parent = parent;
//3.判断是否破坏了红黑树的性质,并进行旋转
//有两个连在一起的红色节点
while (parent && parent->_color == RED) {
pNode gparent = parent->_parent;
if (gparent->_left == parent) {
pNode uncle = gparent->_right;
//1.叔叔节点存在,且为红色
if (uncle && uncle->_color == RED) {
//直接修改,parent和uncle结点的颜色为黑色,再将gparent的颜色修改为红色即可
parent->_color = BLACK;
uncle->_color = BLACK;
gparent->_color = RED;
cur = gparent;
parent = cur->_parent;
}
//2.叔叔节点不存在,或者存在但为黑
else {
//考虑是否需要双旋
if (cur == parent->_right) {
RotateLeft(parent);
swap(cur, parent);
}
RotateRight(gparent);
parent->_color = BLACK;
gparent->_color = RED;
}
}
//parent在右侧情况
else {
pNode uncle = gparent->_left;
//同样,先考虑叔叔节点存在,并且是红色的情况
if (uncle && uncle->_color == RED) {
//直接修改颜色即可
uncle->_color = BLACK;
parent->_color = BLACK;
gparent->_color = RED;
cur = gparent;
parent = cur->_parent;
}
//叔叔节点不存在,或者存在但是为黑的情况
else {
//先判断是否需要双旋的场景
if (cur == parent->_left) {
RotateRight(parent);
swap(cur, parent);
}
RotateLeft(gparent);
parent->_color = BLACK;
gparent->_color = RED;
}
}
}
//在旋转,重新着色的过程中可能影响到了根节点,为根节点重新着色
_header->_parent->_color = BLACK;
_header->_left = LeftMost();
_header->_right = RightMost();
return true;
}
//判断是否是红黑树
bool IsRBTree() {
if (_header->_parent == _header) {
cout << "空树也是红黑树!!!" << endl;
return true;
}
//1.根节点是否是黑色的
if (_header->_parent->_color == RED) {
cout << "根节点必须是黑色的!!!" << endl;
return false;
}
//判断每条路径上的黑色节点数目是否相同
size_t count = 0;
pNode cur = _header->_parent;
while (cur) {
if (cur->_color == BLACK) {
++count;
}
cur = cur->_left;
}
size_t bc = 0;
return _IsRBTree(_header->_parent, bc, count);
}
bool _IsRBTree(pNode root, size_t bc, size_t count) {
//走到空时,判断黑色结点的数目是否相同
if (root == nullptr) {
if (bc != count) {
cout << "每条路径上的黑色结点数目必须相同!!!" << endl;
return false;
}
return true;
}
if (root->_color == BLACK) {
++bc;
}
//判断是否有连续的红色结点
pNode parent = root->_parent;
if (parent && parent->_color == root->_color && parent->_color == RED) {
cout << "不能有连续的红色节点!!!" << endl;
return false;
}
return _IsRBTree(root->_left, bc, count) &&
_IsRBTree(root->_right, bc, count);
}
void _InOrder(pNode root) {
if (root == nullptr) {
return;
}
_InOrder(root->_left);
cout << root->_data.first << " ";
_InOrder(root->_right);
}
void InOrder() {
_InOrder(_header->_parent);
}
private:
pNode LeftMost() {
pNode cur = _header->_parent;
while (cur->_left) {
cur = cur->_left;
}
return cur;
}
pNode RightMost() {
pNode cur = _header->_parent;
while (cur->_right) {
cur = cur->_right;
}
return cur;
}
private:
pNode _header;
};
int main() {
RBTree<int,int> rbt;
rbt.Insert(make_pair(1,1));
rbt.Insert(make_pair(2,1));
rbt.Insert(make_pair(3,1));
rbt.Insert(make_pair(4,1));
rbt.Insert(make_pair(5,1));
rbt.Insert(make_pair(7,1));
rbt.InOrder();
cout << "\n" << rbt.IsRBTree() << endl;
system("pause");
return 0;
}
