PopupWindow 弹出式窗口,在安卓中应用广泛,相比于 PopupMenu 它更灵活,它的位置是可以自己调整的。

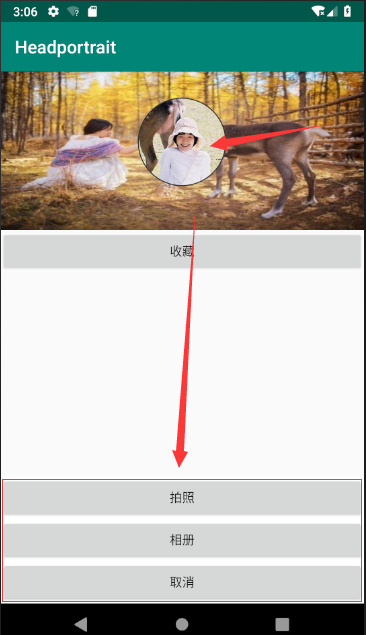

先看效果图,点击圆形头像后会在底部弹出一个窗口,每个窗口中子项都可以作为一个点击事件,执行相应的功能。
每一个 PopupWindow 窗口就是一个布局,所以需要一个布局文件,然后去实现它的点击事件。
1. 编写主界面的布局,activity_main.xml ,实现一个背景和圆形头像(这里的圆形头像使用了开源库roundedimageview,需要自己添加)添加地址:https://blog.csdn.net/weixin_43851639/article/details/90545273
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context=".MainActivity">
<RelativeLayout
android:id="@+id/top"
android:layout_width="match_parent"
android:layout_height="180dp"
android:background="@drawable/girl2">
<com.makeramen.roundedimageview.RoundedImageView xmlns:app="http://schemas.android.com/apk/res-auto"
android:id="@+id/head"
android:layout_width="200dp"
android:layout_height="100dp"
android:layout_marginTop="30dp"
android:layout_centerHorizontal="true"
android:src="@drawable/head"
app:riv_border_color="#333333"
app:riv_border_width="1dp"
app:riv_oval="true" />
</RelativeLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<Button
android:id="@+id/bt1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="收藏"/>
</LinearLayout>
</LinearLayout>
2. 在 layout 目录下新建一个布局文件,命名为 popupwindow。在里面定义了三个按钮。
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#ffffff"
android:layout_alignParentBottom="true">
<Button
android:id="@+id/take_photo"
android:layout_height="wrap_content"
android:layout_width="match_parent"
android:text="拍照" />
<Button
android:id="@+id/choose_picture"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="相册"/>
<Button
android:id="@+id/exit1"
android:layout_height="wrap_content"
android:layout_width="match_parent"
android:text="取消"/>
</LinearLayout>
3. 在 MainActivity.java 中实现点击事件,即点击头像,弹出窗口,然后获取每一个窗口子项的点击事件。
public class MainActivity extends AppCompatActivity {
private ImageView imageView;
private PopupWindow popupWindow = null;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
//获取图片id,然后设置监听
imageView = (ImageView) findViewById(R.id.head);
imageView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
showPopupWindow();
}
});
}
//弹窗
private void showPopupWindow() {
LayoutInflater inflater = (LayoutInflater) this.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
View popupWindowView = inflater.inflate(R.layout.popupwindow,null,false);
popupWindow = new
PopupWindow(popupWindowView,ActionBar.LayoutParams.MATCH_PARENT,ActionBar.LayoutParams.WRAP_CONTENT,true);
//引入依附的布局
View parentView = LayoutInflater.from(MainActivity.this).inflate(R.layout.activity_main,null);
//相对于父控件的位置
popupWindow.showAtLocation(parentView,Gravity.BOTTOM,0,0);
//获取焦点,否则无法点击
popupWindow.setFocusable(true);
//按钮点击事件,此处获取按钮的id不同,因为按钮来自popupwindow的视图
//拍照按钮
Button takeBtn = popupWindowView.findViewById(R.id.take_photo);
takeBtn.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(v.getContext(),"拍照设置头像",Toast.LENGTH_SHORT).show();
//调用拍照函数
popupWindow.dismiss();
takePhoto();
}
});
//相册按钮
Button chooseBt = popupWindowView.findViewById(R.id.choose_picture);
chooseBt.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(v.getContext(),"相册选择照片",Toast.LENGTH_SHORT).show();
//调用相册函数
popupWindow.dismiss();
choosePicture();
}
});
//取消按钮
Button exitBt = popupWindowView.findViewById(R.id.exit1);
exitBt.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(v.getContext(),"取消",Toast.LENGTH_SHORT).show();
popupWindow.dismiss();
}
});
}
划重点,划重点,划重点,怎么获取弹窗子项的 id,然后监听他们的点击事件。获取按钮id和以往不同,在上面代码中有,这里再写出来。注意是在 popupWindowView 对象中获取。
//定义一个对象 popupWindowView,承载弹窗布局,然后需要在 popupWindowView 中获取子项 id
View popupWindowView = inflater.inflate(R.layout.popupwindow,null,false);
...//省略中间代码
//按钮点击事件,此处获取按钮的id不同,因为按钮来自popupwindow的视图
Button takeBtn = popupWindowView.findViewById(R.id.take_photo);
到这里弹窗的功能已经实现了,而且已经成功监听了弹窗子项,至于每个子项实现的具体功能,要看自己的需求了。
