Spark Streaming三种运行场景

三种运行场景描述

• 无状态操作
• 有状态操作

1. updateStateByKey
2. window

场景一（无状态操作）描述：
对于无状态操作，每次操作都只是计算当前时间切片的内容，例如每次只计算一秒钟时间切片中产生的数据的RDD。

场景二（有状态操作之updateStateByKey）描述：
对于有状态操作，要不断地把当前和历史的时间切片的RDD累加计算，随着时间流逝，计算的数据规模越来越大。

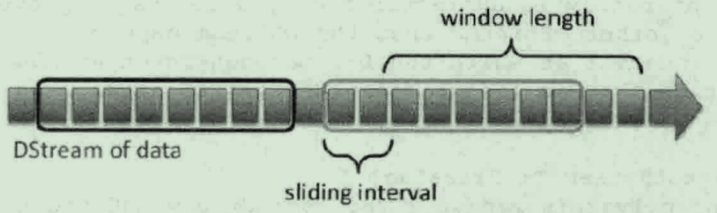

场景三（window）描述：
对于window操作，是针对特定的时间段并以特定时间间隔为单位进行的滑动操作，例如在以1秒钟为时间切片的情况下，我们要统计最近10分钟内Spark Streaming产生的数据，并以每隔2分钟进行更新。

三种场景的wordcount案例

• 无状态操作

object StreamWordCount {

  def main(args: Array[String]): Unit = {

    //1.初始化Spark配置信息
    val sparkConf = new SparkConf().setMaster("local[*]").setAppName("StreamWordCount")

    //2.初始化SparkStreamingContext
    val ssc = new StreamingContext(sparkConf, Seconds(5))

    //3.通过监控端口创建DStream，读进来的数据为一行行
    val lineStreams = ssc.socketTextStream("node02", 9999)

    //将每一行数据做切分，形成一个个单词
    val wordStreams = lineStreams.flatMap(_.split(" "))

    //将单词映射成元组（word,1）
    val wordAndOneStreams = wordStreams.map((_, 1))

    //将相同的单词次数做统计
    val wordAndCountStreams = wordAndOneStreams.reduceByKey(_+_)

    //打印
    wordAndCountStreams.print()

    //启动SparkStreamingContext
    ssc.start()
    ssc.awaitTermination()
  }
}

• 有状态操作之updateStateByKey

object WorldCount {

  def main(args: Array[String]) {

    // 定义更新状态方法，参数values为当前批次单词频度，state为以往批次单词频度
    val updateFunc = (values: Seq[Int], state: Option[Int]) => {
     // val currentCount = values.foldLeft(0)(_ + _)  // 可以直接用下面的values.sum方法
      val currentCount = values.sum()
      val previousCount = state.getOrElse(0)
      Some(currentCount + previousCount)
    }

    val conf = new SparkConf().setMaster("local[2]").setAppName("NetworkWordCount")
    val ssc = new StreamingContext(conf, Seconds(3))
    ssc.checkpoint("hdfs://node02:9000/streamCheck")

    // Create a DStream that will connect to hostname:port, like hadoop102:9999
    val lines = ssc.socketTextStream("node02", 9999)

    // Split each line into words
    val words = lines.flatMap(_.split(" "))

    //import org.apache.spark.streaming.StreamingContext._ // not necessary since Spark 1.3
    // Count each word in each batch
    val pairs = words.map(word => (word, 1))


    // 使用updateStateByKey来更新状态，统计从运行开始以来单词总的次数
    val stateDstream = pairs.updateStateByKey[Int](updateFunc)
    stateDstream.print()

    //val wordCounts = pairs.reduceByKey(_ + _)

    // Print the first ten elements of each RDD generated in this DStream to the console
    //wordCounts.print()

    ssc.start()             // Start the computation
    ssc.awaitTermination()  // Wait for the computation to terminate
    //ssc.stop()
  }

}

• 有状态操作之window 操作

object WorldCount {

  def main(args: Array[String]) {

    // 定义更新状态方法，参数values为当前批次单词频度，state为以往批次单词频度
    val updateFunc = (values: Seq[Int], state: Option[Int]) => {
       // val currentCount = values.foldLeft(0)(_ + _)  // 可以直接用下面的values.sum方法
      val currentCount = values.sum()
      val previousCount = state.getOrElse(0)
      Some(currentCount + previousCount)
    }

    val conf = new SparkConf().setMaster("local[2]").setAppName("NetworkWordCount")
    val ssc = new StreamingContext(conf, Seconds(3))
    ssc.checkpoint(".")

    // Create a DStream that will connect to hostname:port, like localhost:9999
    val lines = ssc.socketTextStream("hadoop102", 9999)

    // Split each line into words
    val words = lines.flatMap(_.split(" "))

    //import org.apache.spark.streaming.StreamingContext._ // not necessary since Spark 1.3
    // Count each word in each batch
    val pairs = words.map(word => (word, 1))

    val wordCounts = pairs.reduceByKeyAndWindow((a:Int,b:Int) => (a + b),Seconds(12), Seconds(6))

    // Print the first ten elements of each RDD generated in this DStream to the console
    wordCounts.print()

    ssc.start()             // Start the computation
    ssc.awaitTermination()  // Wait for the computation to terminate
    //ssc.stop()
  }

}
