王学岗高级UI7——————PathMeasur的使用(上)

其他 2020-02-05 13:31:44 阅读次数: 0

PathMeasure
概念：路径测量，一个用来测量path的工具类
常用API：Path长度测量，path跳转，path片段获取

效果一：

package com.example.testpathmeasure;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathMeasure;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import androidx.annotation.Nullable;

/**
 * @author writing
 * @time 2019/12/23 13:51
 * @note
 */
public class TestView extends View {

    private Paint deafultPaint;
    private Paint paint;
    private int viewWidth;
    private int viewHeight;

    public TestView(Context context) {
        super(context);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();

    }


    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();

    }

    private void init() {
        deafultPaint = new Paint();
        deafultPaint.setColor(Color.RED);
        deafultPaint.setStrokeWidth(10);
        deafultPaint.setStyle(Paint.Style.STROKE);

        paint = new Paint();
        paint.setColor(Color.DKGRAY);
        paint.setStrokeWidth(3);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        viewWidth = w;
        viewHeight = h;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //平移坐标系
        canvas.translate(viewWidth / 2, viewHeight / 2);
        //画坐标线
        canvas.drawLine(-canvas.getWidth(), 0, canvas.getWidth(), 0, paint);
        canvas.drawLine(0, -canvas.getHeight(), 0, canvas.getHeight(), paint);
        testForceClosed(canvas);
    }

    private void testForceClosed(Canvas canvas) {
        Path path = new Path();
        path.lineTo(0, 200);
        path.lineTo(200, 200);
        path.lineTo(200, 0);
        //如果path是闭合状态，那么无论PathMeasure中的参数是true还是false,都是闭合状态。
        //如果Path是非闭合状态，那么无论PathMeasure中的参数是true,则是闭合状态，false则是非闭合状态。
        PathMeasure pathMeasure1 = new PathMeasure(path, false);
        PathMeasure pathMeasure2 = new PathMeasure(path, true);
        Log.i("zhang_xin", "length of false:" + pathMeasure1.getLength());
        Log.i("zhang_xin", "length or true:" + pathMeasure2.getLength());
        canvas.drawPath(path, deafultPaint);
    }
}

看下打印输出

2019-12-23 14:40:28.234 21174-21174/? I/zhang_xin: length of false:600.0
2019-12-23 14:40:28.234 21174-21174/? I/zhang_xin: length or true:800.0

效果二：

package com.example.testpathmeasure;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathMeasure;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import androidx.annotation.Nullable;

/**
 * @author writing
 * @time 2019/12/23 13:51
 * @note
 */
public class TestView extends View {

    private Paint deafultPaint;
    private Paint paint;
    private int viewWidth;
    private int viewHeight;

    public TestView(Context context) {
        super(context);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();

    }


    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();

    }

    private void init() {
        deafultPaint = new Paint();
        deafultPaint.setColor(Color.RED);
        deafultPaint.setStrokeWidth(10);
        deafultPaint.setStyle(Paint.Style.STROKE);

        paint = new Paint();
        paint.setColor(Color.DKGRAY);
        paint.setStrokeWidth(3);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        viewWidth = w;
        viewHeight = h;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //平移坐标系
        canvas.translate(viewWidth / 2, viewHeight / 2);
        //画坐标线
        canvas.drawLine(-canvas.getWidth(), 0, canvas.getWidth(), 0, paint);
        canvas.drawLine(0, -canvas.getHeight(), 0, canvas.getHeight(), paint);

        testNextContour(canvas);
    }

    private void testNextContour(Canvas canvas) {
        Path path0 = new Path();
        Path path1 = new Path();
        Path path2 = new Path();
        //添加小矩形
        path1.addRect(-100,-100,100,100, Path.Direction.CW);
        PathMeasure pathMeasure1 = new PathMeasure(path1,false);
        Log.i("zhang_xin","path1:"+pathMeasure1.getLength());
        path2.addRect(-200,-200,200,200, Path.Direction.CW);
        /**
         * 对path1与path2进行布尔运算
         * XOP保留path1与path2不共同的部分
         */
        path0.op(path1,path2,Path.Op.XOR);
        canvas.drawPath(path0,deafultPaint);
        PathMeasure pathMeasure = new PathMeasure(path0,false);
        Log.i("zhang_xin","length of pathMeasure:"+pathMeasure.getLength());
    }


}

打印输出

2019-12-23 15:24:54.646 26441-26441/com.example.testpathmeasure I/zhang_xin: path1:800.0
2019-12-23 15:24:54.646 26441-26441/com.example.testpathmeasure I/zhang_xin: length of pathMeasure:1600.0

在这里插入图片描述
继续完善我们的代码

package com.example.testpathmeasure;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathMeasure;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import androidx.annotation.Nullable;

/**
 * @author writing
 * @time 2019/12/23 13:51
 * @note
 */
public class TestView extends View {

    private Paint deafultPaint;
    private Paint paint;
    private int viewWidth;
    private int viewHeight;

    public TestView(Context context) {
        super(context);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();

    }


    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();

    }

    private void init() {
        deafultPaint = new Paint();
        deafultPaint.setColor(Color.RED);
        deafultPaint.setStrokeWidth(10);
        deafultPaint.setStyle(Paint.Style.STROKE);

        paint = new Paint();
        paint.setColor(Color.DKGRAY);
        paint.setStrokeWidth(3);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        viewWidth = w;
        viewHeight = h;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //平移坐标系
        canvas.translate(viewWidth / 2, viewHeight / 2);
        //画坐标线
        canvas.drawLine(-canvas.getWidth(), 0, canvas.getWidth(), 0, paint);
        canvas.drawLine(0, -canvas.getHeight(), 0, canvas.getHeight(), paint);

        testNextContour(canvas);
    }

    private void testNextContour(Canvas canvas) {
        Path path0 = new Path();
        Path path1 = new Path();
        Path path2 = new Path();
        //添加小矩形
        path1.addRect(-100,-100,100,100, Path.Direction.CW);
        PathMeasure pathMeasure1 = new PathMeasure(path1,false);
        Log.i("zhang_xin","path1:"+pathMeasure1.getLength());
        path2.addRect(-200,-200,200,200, Path.Direction.CW);
        Log.i("zhang_xin","path2:"+pathMeasure1.getLength());
        /**
         * 对path1与path2进行布尔运算
         * XOP保留path1与path2不共同的部分
         */
        path0.op(path1,path2,Path.Op.XOR);
        canvas.drawPath(path0,deafultPaint);
        PathMeasure pathMeasure = new PathMeasure(path0,false);
        Log.i("zhang_xin","length of pathMeasure:"+pathMeasure.getLength());

        float[] tan = new float[2];
        float[] pos = new float[2];
        /**
         * diatance 指定Path路径上的长度
         * 两个长度为2的浮点数组，这个数组是用来接收数据
         * tan 当前位置的正切点的XY
         * pos 当前Path路径点的XY
         */
        pathMeasure.getPosTan(50f,pos,tan);
        canvas.drawLine(tan[0],tan[1],pos[0],pos[1],paint);
        Log.i("zhang_xin","tan[0]:"+tan[0]+",tan[1]:"+tan[1]+",pos[0]:"+pos[0]+",pos[1]:"+pos[1]);
        //获取path的长度
        float len1 = pathMeasure.getLength();
        //跳转到下一个路径，由大矩形跳转到小矩形,大矩形与小矩形通过path.op()连接在一起
        pathMeasure.nextContour();
        pathMeasure.getPosTan(50f,pos,tan);
        Log.i("zhang_xin","tan[0]:"+tan[0]+",tan[1]:"+tan[1]+",pos[0]:"+pos[0]+",pos[1]:"+pos[1]);
        canvas.drawLine(tan[0],tan[1],pos[0],pos[1],deafultPaint);
        float len2 = pathMeasure.getLength();
        Log.i("zhang_xin","len1:"+len1);
        Log.i("zhang_xin","len2:"+len2);
    }


}

看下打印输出

2019-12-23 16:45:57.299 32583-32583/com.example.testpathmeasure I/zhang_xin: path1:800.0
2019-12-23 16:45:57.300 32583-32583/com.example.testpathmeasure I/zhang_xin: path2:1600.0
2019-12-23 16:45:57.301 32583-32583/com.example.testpathmeasure I/zhang_xin: length of pathMeasure:1600.0
2019-12-23 16:45:57.302 32583-32583/com.example.testpathmeasure I/zhang_xin: tan[0]:-1.0,tan[1]:0.0,pos[0]:150.0,pos[1]:-200.0
2019-12-23 16:45:57.302 32583-32583/com.example.testpathmeasure I/zhang_xin: tan[0]:-1.0,tan[1]:0.0,pos[0]:50.0,pos[1]:-100.0
2019-12-23 16:45:57.302 32583-32583/com.example.testpathmeasure I/zhang_xin: len1:1600.0
2019-12-23 16:45:57.303 32583-32583/com.example.testpathmeasure I/zhang_xin: len2:800.0

在这里插入图片描述

效果三

package com.example.testpathmeasure;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathMeasure;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import androidx.annotation.Nullable;

/**
 * @author writing
 * @time 2019/12/23 13:51
 * @note
 */
public class TestView extends View {

    private Paint deafultPaint;
    private Paint paint;
    private int viewWidth;
    private int viewHeight;

    public TestView(Context context) {
        super(context);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();

    }


    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();

    }

    private void init() {
        deafultPaint = new Paint();
        deafultPaint.setColor(Color.RED);
        deafultPaint.setStrokeWidth(10);
        deafultPaint.setStyle(Paint.Style.STROKE);

        paint = new Paint();
        paint.setColor(Color.DKGRAY);
        paint.setStrokeWidth(3);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        viewWidth = w;
        viewHeight = h;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //平移坐标系
        canvas.translate(viewWidth / 2, viewHeight / 2);
        //画坐标线
        canvas.drawLine(-canvas.getWidth(), 0, canvas.getWidth(), 0, paint);
        canvas.drawLine(0, -canvas.getHeight(), 0, canvas.getHeight(), paint);

        testGetSegment(canvas);
    }

    private void testGetSegment(Canvas canvas) {
        Path path = new Path();
        //添加一个顺时针的矩形
        path.addRect(-200,-200,200,200, Path.Direction.CW);
        Path dst = new Path();
        //Path 与 PathMeasure关联
        PathMeasure pathMeasure = new PathMeasure();
        pathMeasure.setPath(path,true);
        //截取一部分保存到dst中，并使用moveTo保持截取到的Path第一个点的位置不变
        pathMeasure.getSegment(200,600,dst,true);
        canvas.drawPath(path,paint);
        canvas.drawPath(dst,deafultPaint);
    }


}

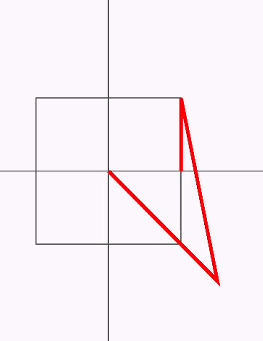

在这里插入图片描述

效果四

看下true与false的区别

package com.example.testpathmeasure;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathMeasure;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import androidx.annotation.Nullable;

/**
 * @author writing
 * @time 2019/12/23 13:51
 * @note
 */
public class TestView extends View {

    private Paint deafultPaint;
    private Paint paint;
    private int viewWidth;
    private int viewHeight;

    public TestView(Context context) {
        super(context);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();

    }

    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();

    }


    public TestView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        init();

    }

    private void init() {
        deafultPaint = new Paint();
        deafultPaint.setColor(Color.RED);
        deafultPaint.setStrokeWidth(10);
        deafultPaint.setStyle(Paint.Style.STROKE);

        paint = new Paint();
        paint.setColor(Color.DKGRAY);
        paint.setStrokeWidth(3);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        viewWidth = w;
        viewHeight = h;
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        //平移坐标系
        canvas.translate(viewWidth / 2, viewHeight / 2);
        //画坐标线
        canvas.drawLine(-canvas.getWidth(), 0, canvas.getWidth(), 0, paint);
        canvas.drawLine(0, -canvas.getHeight(), 0, canvas.getHeight(), paint);
        testGetSegmentMoveTo(canvas);
    }

    private void testGetSegmentMoveTo(Canvas canvas) {
        Path path = new Path();
        path.addRect(-200,-200,200,200, Path.Direction.CW);
        Path dst = new Path();
        dst.lineTo(300,300);

        PathMeasure pathMeasure = new PathMeasure(path,false);
        //tru与fasle会产生两种不同的效果
        pathMeasure.getSegment(200,600,dst,true/false);
        canvas.drawPath(path,paint);
        canvas.drawPath(dst,deafultPaint);
    }
}

为true的时候
在这里插入图片描述
为false的时候
在这里插入图片描述

对PathMeasure中getPosTan不理解的可以看这篇文章

qczg_wxg
发布了208 篇原创文章 · 获赞 15 · 访问量 7万+
私信 关注

猜你喜欢

转载自blog.csdn.net/qczg_wxg/article/details/103663430
今日推荐
TIOBE 5 月榜单：Fortran “复活”进入 Top 10
GCC 14.1 发布
面壁智能发布 Eurux-8x22B 开源大模型 —— 堪称「理科状元」
开源日报 | 谷歌扶持鸿蒙上位；开源Rabbit R1；Docker加持的安卓手机；微软的焦虑和野心；海尔电器把开放平台关了
中国码农的“35岁魔咒”
蘭雅 CorelDRAW 插件 2024.5.1 国际劳动节版，免费下载
Arc Browser for Windows 1.0 正式 GA
90后程序员开发视频搬运软件、不到一年获利超 700 万，结局很刑！
周排行
Java自定义时间格式
同步整形电路
在开发中最最最常用的字符串的属性大集合
Linux 查看端口占用并杀掉
Java基础四：ArrayList
多线程之死锁就是这么简单
mysql 基础命令集
awk 命令详解
Centos6.3编译安装nginx+php步骤
OCR （Optical Character Recognition，光学字符识别）
每日归档
更多
2024-05-08(42)
2024-05-07(14)
2024-05-06(40)
2024-05-05(0)
2024-05-04(7)
2024-05-03(19)
2024-05-02(0)
2024-05-01(4)
2024-04-30(1)
2024-04-29(40)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
