Pure Pursuit纯跟踪算法Python/Matlab算法实现

本文的python源代码来自：
https://github.com/gameinskysky/PythonRobotics/blob/master/PathTracking/pure_pursuit/pure_pursuit.py

纯跟踪算法的原理，详见https://blog.csdn.net/gophae/article/details/100012763

我们对纯跟踪算法进行一次仿真，python 我已经改过，如下：

import numpy as np
import math
import matplotlib.pyplot as plt
#定义常数
k = 0.1  # look forward gain
Lfc = 1.0  # look-ahead distance
Kp = 1.0  # speed propotional gain
dt = 0.1  # [s]
L = 2.9  # [m] wheel base of vehicle


show_animation = True


class VehicleState:# 定义一个类，用于调用车辆状态信息

    def __init__(self, x=0.0, y=0.0, yaw=0.0, v=0.0):
        self.x = x
        self.y = y
        self.yaw = yaw
        self.v = v


def update(state, a, delta):#更新车辆状态信息

    state.x = state.x + state.v * math.cos(state.yaw) * dt
    state.y = state.y + state.v * math.sin(state.yaw) * dt
    state.yaw = state.yaw + state.v / L * math.tan(delta) * dt
    state.v = state.v + a * dt

    return state


def PIDControl(target, current):#PID控制，定速巡航
    a = Kp * (target - current)

    return a


def pure_pursuit_control(state, cx, cy, pind):# 纯跟踪控制器

    ind = calc_target_index(state, cx, cy)#找到最近点的函数，输出最近点位置

    if pind >= ind:
        ind = pind

    if ind < len(cx):
        tx = cx[ind]
        ty = cy[ind]
    else:
        tx = cx[-1]
        ty = cy[-1]
        ind = len(cx) - 1

    alpha = math.atan2(ty - state.y, tx - state.x) - state.yaw

    if state.v < 0:  # 如果是倒车的话，就要反过来
        alpha = math.pi - alpha

    Lf = k * state.v + Lfc

    delta = math.atan2(2.0 * L * math.sin(alpha) / Lf, 1.0)#核心计算公式

    return delta, ind


def calc_target_index(state, cx, cy):
# 找到与车辆当前位置最近点的序号

    # search nearest point index
    dx = [state.x - icx for icx in cx]
    dy = [state.y - icy for icy in cy]
    d = [abs(math.sqrt(idx ** 2 + idy ** 2)) for (idx, idy) in zip(dx, dy)]
    ind = d.index(min(d))
    L = 0.0

    Lf = k * state.v + Lfc

    # search look ahead target point index
    while Lf > L and (ind + 1) < len(cx):
        dx = cx[ind + 1] - cx[ind]
        dy = cx[ind + 1] - cx[ind]
        L += math.sqrt(dx ** 2 + dy ** 2)
        ind += 1

    return ind

def main():
    #  target course ，随机出来一条sin函数曲线
    cx = np.arange(0, 50, 0.1)
    cy = [math.sin(ix / 5.0) * ix / 2.0 for ix in cx]

    target_speed = 10.0 / 3.6  # [m/s]

    T = 100.0  # max simulation time

    # initial state
    state = VehicleState(x=-0.0, y=-3.0, yaw=0.0, v=0.0)

    lastIndex = len(cx) - 1
    time = 0.0
    x = [state.x]
    y = [state.y]
    yaw = [state.yaw]
    v = [state.v]
    t = [0.0]
    target_ind = calc_target_index(state, cx, cy)
    # 不断执行更新操作
    while T >= time and lastIndex > target_ind:
        ai = PIDControl(target_speed, state.v)
        di, target_ind = pure_pursuit_control(state, cx, cy, target_ind)
        state = update(state, ai, di)

        time = time + dt

        x.append(state.x)
        y.append(state.y)
        yaw.append(state.yaw)
        v.append(state.v)
        t.append(time)
        if show_animation:
            plt.cla()
            plt.plot(cx, cy, ".r", label="course")
            plt.plot(x, y, "-b", label="trajectory")
            plt.plot(cx[target_ind], cy[target_ind], "xg", label="target")
            plt.axis("equal")
            plt.grid(True)
            plt.title("Speed[km/h]:" + str(state.v * 3.6)[:4])
            plt.pause(0.001)
            plt.show()


if __name__ == '__main__':
    print("Pure pursuit path tracking simulation start")
    main()

将本段代码改为MATLAB版本：

k = 0.1;  % look forward gain
Lfc = 1.0;  % look-ahead distance
Kp = 1.0 ; % speed propotional gain
dt = 0.1  ;% [s]
L = 2.9  ;% [m] wheel base of vehicle
cx = 0:0.1:50;
cx = cx';
for i = 1:length(cx)
cy(i) = sin(cx(i)/5)*cx(i)/2;
end

i = 1;
target_speed = 10/3.6;
T = 80;
lastIndex = length(cx);
x = 0; y = -3; yaw = 0; v = 0;
time = 0;
 Lf = k * v + Lfc;
 figure
while T > time
    target_ind= calc_target_index(x,y,cx,cy,Lf)
    ai = PIDcontrol(target_speed, v,Kp);
  di = pure_pursuit_control(x,y,yaw,v,cx,cy,target_ind,k,Lfc,L,Lf);

    [x,y,yaw,v] = update(x,y,yaw,v, ai, di,dt,L)
    time = time + dt;
%     pause(0.1)
    plot(cx,cy,'b',x,y,'r-*')
    drawnow
    hold on
end
% plot(cx,cy,x,y,'*')
% hold on


function [x, y, yaw, v] = update(x, y, yaw, v, a, delta,dt,L)
    x = x + v * cos(yaw) * dt;
    y = y + v * sin(yaw) * dt;
    yaw = yaw + v / L * tan(delta) * dt;
   v = v + a * dt;
end

function [a] = PIDcontrol(target_v, current_v, Kp)
a = Kp * (target_v - current_v);
end

function [delta] = pure_pursuit_control(x,y,yaw,v,cx,cy,ind,k,Lfc,L,Lf)
    tx = cx(ind);
    ty = cy(ind);

    alpha = atan((ty-y)/(tx-x))-yaw;

 Lf = k * v + Lfc;
 delta = atan(2*L * sin(alpha)/Lf)  ;
end

function [ind] = calc_target_index(x,y, cx,cy,Lf)
N =  length(cx);
Distance = zeros(N,1);
for i = 1:N
Distance(i) =  sqrt((cx(i)-x)^2 + (cy(i)-y)^2);
end
[~, location]= min(Distance);
ind = location;
% LL = 0;
%     while Lf > LL && (ind + 1) < length(cx)
%         dx = cx(ind + 1 )- cx(ind);
%         dy = cx(ind + 1) - cx(ind);
%         LL = LL + sqrt(dx * 2 + dy * 2);
%         ind  = ind + 1;
%     end
%
 ind = ind + 10
end

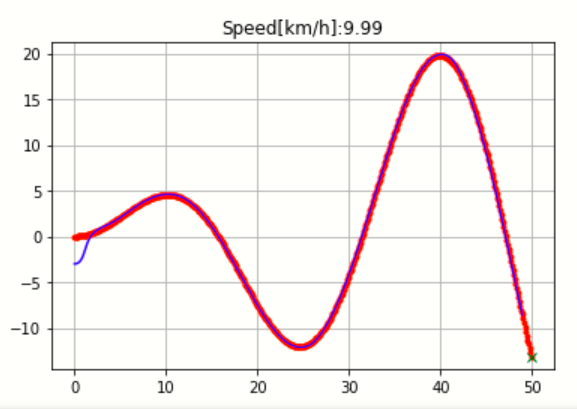

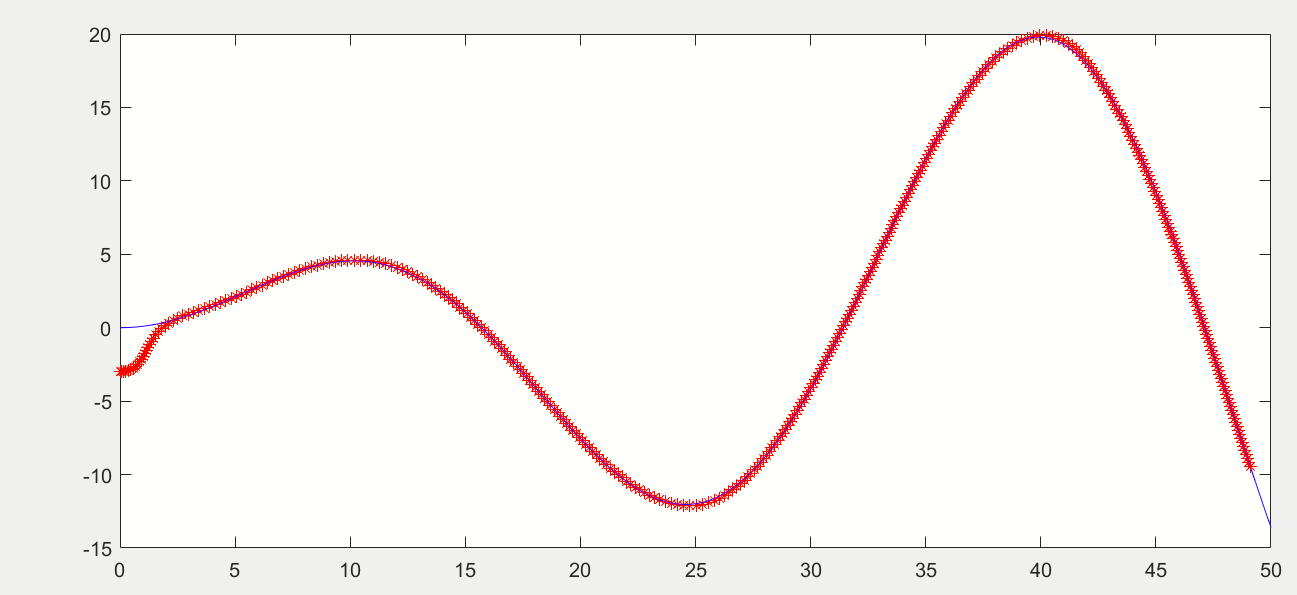

仿真结果如下：
