Paint - 效果

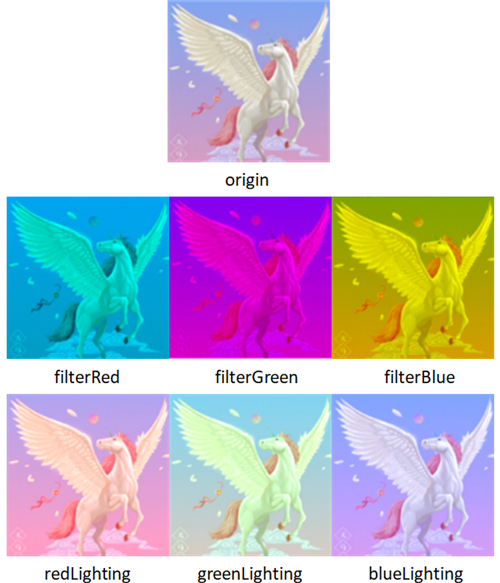

LightingColorFilter 滤镜

构造方法：

LightingColorFilter(int mul, int add)

mul和add都是和颜色值格式相同的int值，其中mul用来和目标像素相乘，add用来和目标像素相加：
R’ = R * mul.R / 0xff + add.R
G’ = G * mul.G / 0xff + add.G
B’ = B * mul.B / 0xff + add.B

使用：

LightingColorFilter lighting = new LightingColorFilter(0xffffff,0x000000);
mPaint.setColorFilter(lighting);
canvas.drawBitmap(mBitmap, 0,0, mPaint);

// 原始图片效果
private void showOriginBitmap(Canvas canvas) {
    // mul进行乘法运算，add表明不偏移
    LightingColorFilter lighting = new LightingColorFilter(0xffffff,0x000000);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}
// 过滤红色效果
private void filterRedBitmap(Canvas canvas) {
    // mul过滤红色，add表明不偏移
    LightingColorFilter lighting = new LightingColorFilter(0x00ffff,0x000000);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}
// 过滤绿色效果
private void filterGreenBitmap(Canvas canvas) {
    // mul过滤绿色，add表明不偏移
    LightingColorFilter lighting = new LightingColorFilter(0xff00ff,0x000000);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}
// 过滤蓝色效果
private void filterBlueBitmap(Canvas canvas) {
    // mul过滤蓝色，add表明不偏移
    LightingColorFilter lighting = new LightingColorFilter(0xffff00,0x000000);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}
// 红色更亮效果
private void redLightingBitmap(Canvas canvas) {
    // mul不过滤颜色，add表明红色更亮
    LightingColorFilter lighting = new LightingColorFilter(0xffffff,0x300000);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}
// 绿色更亮效果
private void greenLightingBitmap(Canvas canvas) {
    // mul不过滤颜色，add表明绿色更亮
    LightingColorFilter lighting = new LightingColorFilter(0xffffff,0x003000);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}
// 蓝色更亮效果
private void blueLightingBitmap(Canvas canvas) {
    // mul不过滤颜色，add表明蓝色更亮
    LightingColorFilter lighting = new LightingColorFilter(0xffffff,0x000030);
    mPaint.setColorFilter(lighting);
    canvas.drawBitmap(mBitmap, 0,0, mPaint);
}

---

PoterDuffColorFilter 滤镜

构造方法：

PorterDuffColorFilter(int color, PorterDuff.Mode mode)

color 具体的颜色值，例如：Color.RED。mode 指定图层混合模式。

bitmap就是dst，传入的color就是src。即底层是bitmap，上层是color层，最后混合效果呈现到src上。

使用：

PorterDuffColorFilter porterDuffColorFilter =
		new PorterDuffColorFilter(Color.RED, PorterDuff.Mode.DARKEN);
mPaint.setColorFilter(porterDuffColorFilter);
canvas.drawBitmap(mBitmap, 0, 0, mPaint);

//效果作用于src源图像区域
private static final PorterDuff.Mode[] pdModes = {
        //所绘制不会提交到画布上
        PorterDuff.Mode.CLEAR,
        //显示上层绘制的图像
        PorterDuff.Mode.SRC,
        //显示下层绘制图像
        PorterDuff.Mode.DST,
        //正常绘制显示，上下层绘制叠盖
        PorterDuff.Mode.SRC_OVER,
        //上下层都显示，下层居上显示
        PorterDuff.Mode.DST_OVER,
        //取两层绘制交集，显示上层
        PorterDuff.Mode.SRC_IN,
        //取两层绘制交集，显示下层
        PorterDuff.Mode.DST_IN,
        //取上层绘制非交集部分，交集部分变成透明
        PorterDuff.Mode.SRC_OUT,
        //取下层绘制非交集部分，交集部分变成透明
        PorterDuff.Mode.DST_OUT,
        //取上层交集部分与下层非交集部分
        PorterDuff.Mode.SRC_ATOP,
        //取下层交集部分与上层非交集部分
        PorterDuff.Mode.DST_ATOP,
        //去除两图层交集部分
        PorterDuff.Mode.XOR,
        //取两图层全部区域，交集部分饱和度相加
        PorterDuff.Mode.ADD,
        //取两图层交集部分，颜色叠加
        PorterDuff.Mode.MULTIPLY,
        //取两图层全部区域，交集部分滤色
        PorterDuff.Mode.SCREEN,
        //取两图层全部区域，交集部分叠加
        PorterDuff.Mode.OVERLAY,
        //取两图层全部区域，交集部分颜色加深
        PorterDuff.Mode.DARKEN,
        //取两图层全部区域，交集部分颜色点亮
        PorterDuff.Mode.LIGHTEN
};
private static final String[] labels = {
        "Clear", "Src", "Dst", "SrcOver", "DstOver", "SrcIn",
        "DstIn", "SrcOut", "DstOut", "SrcATop", "DstATop", "Xor",
        "Add", "Multiply", "Screen", "Overlay", "Darken", "Lighten"
};
static Bitmap makeDst(Context context, int w, int h) {
    Bitmap tempBitmap = BitmapFactory.decodeResource(context.getResources(), R.mipmap.horse)
    			.copy(Bitmap.Config.ARGB_8888, true);
    return scaleBitmap(tempBitmap, w, h);
}
/** 按比例缩放图片 */
private static Bitmap scaleBitmap(Bitmap origin, int w, int h) {
    if (origin == null) {
        return null;
    }
    int width = origin.getWidth();
    int height = origin.getHeight();
    float wRatio = (float) w/width;
    float hRatio = (float) h/height;
    Matrix matrix = new Matrix();
    matrix.preScale(wRatio, hRatio);
    Bitmap newBM = Bitmap.createBitmap(origin, 0, 0, width, height, matrix, false);
    if (newBM.equals(origin)) {
        return newBM;
    }
    origin.recycle();
    return newBM;
}
protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);
    canvas.drawColor(0x00ffffff);
    Paint labelP = new Paint(Paint.ANTI_ALIAS_FLAG);
    labelP.setTextAlign(Paint.Align.CENTER);
    labelP.setTextSize(30);
    Paint paint = new Paint();
    canvas.translate(column_space, row_space);
    int x = 0;
    int y = 0;
    for (int i = 0; i < pdModes.length; i++) {
        // draw the src/dst example into our offscreen bitmap
        int sc = canvas.saveLayer(x, y, x + imgW, y + imgH, null, Canvas.ALL_SAVE_FLAG);
        canvas.translate(x, y);
        PorterDuffColorFilter porterDuffColorFilter =
                new PorterDuffColorFilter(0xFFDD4040, pdModes[i]);
        paint.setColorFilter(porterDuffColorFilter);
        canvas.drawBitmap(dstBm, 0, 0, paint);
        paint.setXfermode(null);
        canvas.restoreToCount(sc);
        // draw the label
        canvas.drawText(labels[i], x + imgW / 2, y - labelP.getTextSize() / 2, labelP);
        x += imgW + column_space;
        // wrap around when we've drawn enough for one row
        if ((i % column_num) == column_num - 1) {
            x = 0;
            y += imgH + row_space;
        }
    }
}

---

ColorMatrixColorFilter 滤镜

构造方法：

ColorMatrixColorFilter(float[] colorMatrix)

colorMatrix 颜色矩阵数组

使用：

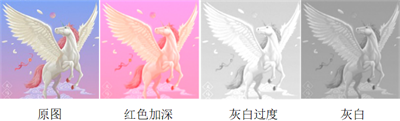

// 原图效果
float[] colorMatrix = {
        1,0,0,0,0,   //red
        0,1,0,0,0,   //green
        0,0,1,0,0,   //blue
        0,0,0,1,0    //alpha
};
// 红色加深效果
float[] colorMatrix = {
        2,0,0,0,0,   //red
        0,1,0,0,0,   //green
        0,0,1,0,0,   //blue
        0,0,0,1,0    //alpha
};
// 灰白效果，就是让red=green=blue，这张图片来讲，0.4f的倍数就有些过度曝光了。1的时候全白了。
float[] colorMatrix = {
        0.4f, 0.4f, 0.4f, 0, 0,   //red
        0.4f, 0.4f, 0.4f, 0, 0,   //green
        0.4f, 0.4f, 0.4f, 0, 0,   //blue
           0,    0,    0, 1, 0    //alpha
};
// 灰白效果，将亮度调小一点
float[] colorMatrix = {
        0.3f, 0.3f, 0.3f, 0, 0,   //red
        0.3f, 0.3f, 0.3f, 0, 0,   //green
        0.3f, 0.3f, 0.3f, 0, 0,   //blue
           0,    0,    0, 1, 0    //alpha
};
mColorMatrixColorFilter = new ColorMatrixColorFilter(colorMatrix);
mPaint.setColorFilter(mColorMatrixColorFilter);
canvas.drawBitmap(mBitmap, 0, 0, mPaint);

其他效果：

// 黑白
public static final float colormatrix_heibai[] = {
        0.8f, 1.6f, 0.2f, 0, -163.9f,
        0.8f, 1.6f, 0.2f, 0, -163.9f,
        0.8f, 1.6f, 0.2f, 0, -163.9f,
        0, 0, 0, 1.0f, 0};
// 怀旧
public static final float colormatrix_huaijiu[] = {
        0.2f, 0.5f, 0.1f, 0, 40.8f,
        0.2f, 0.5f, 0.1f, 0, 40.8f,
        0.2f, 0.5f, 0.1f, 0, 40.8f,
        0, 0, 0, 1, 0};
// 哥特
public static final float colormatrix_gete[] = {
        1.9f, -0.3f, -0.2f, 0, -87.0f,
        -0.2f, 1.7f, -0.1f, 0, -87.0f,
        -0.1f, -0.6f, 2.0f, 0, -87.0f,
        0, 0, 0, 1.0f, 0};
// 淡雅
public static final float colormatrix_danya[] = {
        0.6f, 0.3f, 0.1f, 0, 73.3f,
        0.2f, 0.7f, 0.1f, 0, 73.3f,
        0.2f, 0.3f, 0.4f, 0, 73.3f,
        0, 0, 0, 1.0f, 0};
// 蓝调
public static final float colormatrix_landiao[] = {
        2.1f, -1.4f, 0.6f, 0.0f, -71.0f,
        -0.3f, 2.0f, -0.3f, 0.0f, -71.0f,
        -1.1f, -0.2f, 2.6f, 0.0f, -71.0f,
        0.0f, 0.0f, 0.0f, 1.0f, 0.0f};
// 光晕
public static final float colormatrix_guangyun[] = {
        0.9f, 0, 0, 0, 64.9f,
        0, 0.9f, 0, 0, 64.9f,
        0, 0, 0.9f, 0, 64.9f,
        0, 0, 0, 1.0f, 0};
// 梦幻
public static final float colormatrix_menghuan[] = {
        0.8f, 0.3f, 0.1f, 0.0f, 46.5f,
        0.1f, 0.9f, 0.0f, 0.0f, 46.5f,
        0.1f, 0.3f, 0.7f, 0.0f, 46.5f,
        0.0f, 0.0f, 0.0f, 1.0f, 0.0f};
// 酒红
public static final float colormatrix_jiuhong[] = {
        1.2f, 0.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.9f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.0f, 0.8f, 0.0f, 0.0f,
        0, 0, 0, 1.0f, 0};
// 反色 底片效果，所谓反色，就是将颜色置负，再加255偏移
public static final float colormatrix_fanse[] = {
        -1.0f, 0.0f, 0.0f, 0.0f, 255.0f,
        0.0f, -1.0f, 0.0f, 0.0f, 255.0f,
        0.0f, 0.0f, -1.0f, 0.0f, 255.0f,
        0.0f, 0.0f, 0.0f, 1.0f, 0.0f};
// 湖光掠影
public static final float colormatrix_huguang[] = {
        0.8f, 0.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 1.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.0f, 0.9f, 0.0f, 0.0f,
        0, 0, 0, 1.0f, 0};
// 褐片
public static final float colormatrix_hepian[] = {
        1.0f, 0.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.8f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.0f, 0.8f, 0.0f, 0.0f,
        0, 0, 0, 1.0f, 0};
// 复古
public static final float colormatrix_fugu[] = {
        0.9f, 0.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.8f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.0f, 0.5f, 0.0f, 0.0f,
        0, 0, 0, 1.0f, 0};
// 泛黄
public static final float colormatrix_huan_huang[] = {
        1.0f, 0.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 1.0f, 0.0f, 0.0f, 0.0f,
        0.0f, 0.0f, 0.5f, 0.0f, 0.0f,
        0, 0, 0, 1.0f, 0};
// 传统
public static final float colormatrix_chuan_tong[] = {
        1.0f, 0.0f, 0.0f, 0, -10f,
        0.0f, 1.0f, 0.0f, 0, -10f,
        0.0f, 0.0f, 1.0f, 0, -10f,
        0, 0, 0, 1, 0};
// 胶片
public static final float colormatrix_jiao_pian[] = {
        0.71f, 0.2f, 0.0f, 0.0f, 60.0f,
        0.0f, 0.94f, 0.0f, 0.0f, 60.0f,
        0.0f, 0.0f, 0.62f, 0.0f, 60.0f,
        0, 0, 0, 1.0f, 0};
// 锐色
public static final float colormatrix_ruise[] = {
        4.8f, -1.0f, -0.1f, 0, -388.4f,
        -0.5f, 4.4f, -0.1f, 0, -388.4f,
        -0.5f, -1.0f, 5.2f, 0, -388.4f,
        0, 0, 0, 1.0f, 0};
// 清宁
public static final float colormatrix_qingning[] = {
        0.9f, 0, 0, 0, 0,
        0, 1.1f, 0, 0, 0,
        0, 0, 0.9f, 0, 0,
        0, 0, 0, 1.0f, 0};
// 浪漫
public static final float colormatrix_langman[] = {
        0.9f, 0, 0, 0, 63.0f,
        0, 0.9f, 0, 0, 63.0f,
        0, 0, 0.9f, 0, 63.0f,
        0, 0, 0, 1.0f, 0};
// 夜色
public static final float colormatrix_yese[] = {
        1.0f, 0.0f, 0.0f, 0.0f, -66.6f,
        0.0f, 1.1f, 0.0f, 0.0f, -66.6f,
        0.0f, 0.0f, 1.0f, 0.0f, -66.6f,
        0.0f, 0.0f, 0.0f, 1.0f, 0.0f};

将ColorMatrix替代颜色矩阵数组

// 亮度调节 绿色调亮
ColorMatrix cm = new ColorMatrix();
cm.setScale(1,2,1,1);

// 饱和度调节 0:无色彩 1:原图 2:饱和度加强
ColorMatrix cm = new ColorMatrix();
cm.setSaturation(0);

// 色调调节 第一个参数为0、1、2时代表绕红、绿、蓝轴旋转；第二个参数是旋转的角度。
ColorMatrix cm = new ColorMatrix();
cm.setRotate(2, 45);

mColorMatrixColorFilter = new ColorMatrixColorFilter(cm);
mPaint.setColorFilter(mColorMatrixColorFilter);
canvas.drawBitmap(mBitmap, 0, 0, mPaint);

---

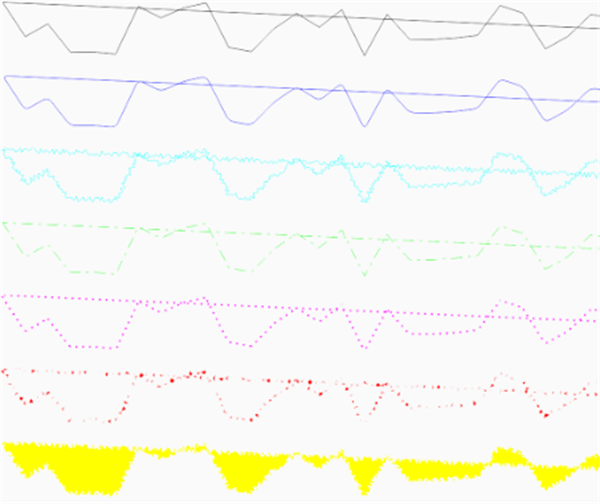

private Paint mPaint; // 画笔
float phase;
PathEffect[] effects = new PathEffect[7];
int[] colors;
Path path;

private void init() {
	mPaint = new Paint(); // 初始化
	mPaint.setAntiAlias(true); // 抗锯齿
	mPaint.setStyle(Paint.Style.STROKE); // 描边效果
	path = new Path();
	path.moveTo(0, 0);
	for (int i=1; i<=40; i++) {
    	path.lineTo(i*40, (float) Math.random()*100);
	}
	path.close();
	colors = new int[]{Color.BLACK, Color.BLUE, Color.CYAN, Color.GREEN,
					Color.MAGENTA, Color.RED, Color.YELLOW};
}

protected void onDraw(Canvas canvas) {
    super.onDraw(canvas);

    effects[0] = null; // 原路径
    effects[1] = new CornerPathEffect(10); // 在原路径基础上，拐角的地方成圆角。
    effects[2] = new DiscretePathEffect(3.0f, 5.0f); // 在原路径基础上，进行路径的偏离。
    effects[3] = new DashPathEffect(new float[]{20, 10, 5, 10}, phase); // 在原路径基础上，做虚线路径效果。
    Path p = new Path();
    p.addRect(0, 0, 3, 3, Path.Direction.CCW);
    effects[4] = new PathDashPathEffect(p, 12, phase, PathDashPathEffect.Sty
    effects[5] = new ComposePathEffect(effects[2], effects[4]);
    effects[6] = new SumPathEffect(effects[2], effects[4]);

    //将画布移动至（8，8）处开始绘制；
    canvas.translate(8, 8);
    for (int i = 0; i < effects.length; i++) {
        mPaint.setPathEffect(effects[i]);
        mPaint.setColor(colors[i]);
        canvas.drawPath(path, mPaint);
        canvas.translate(0, 130);
    }
    // 解除下面两行 图像就会动起来。
    phase += 1;//改变phase的值，形成动画效果
    invalidate();
}

注：DiscretePathEffect、DashPathEffect 这两个用到的比较多

---

CornerPathEffect 圆角路径效果

构造方法：

CornerPathEffect(float radius)

参数：radius 圆角半径

使用：

CornerPathEffect effects = new CornerPathEffect(10);
mPaint.setPathEffect(effects);
canvas.drawPath(path, mPaint);

---

DiscretePathEffect 偏离路径效果

构造方法：

DiscretePathEffect(float segmentLength, float deviation)

参数：segmentLength 线段长度，deviation 偏差

使用：

DiscretePathEffect effects = new DiscretePathEffect(3.0f, 5.0f);
mPaint.setPathEffect(effects);
canvas.drawPath(path, mPaint);

---

DashPathEffect 虚线路径效果

构造方法：

DashPathEffect(float intervals[], float phase)

参数：intervals间隔数组（数量必须为偶数个，且>=2，奇数下标的值表示绘制线的长，偶数下标的值表示间隔的长度），phase 偏移

使用：

DashPathEffect effects = new DashPathEffect(new float[]{20, 10, 5, 10}, phase);
mPaint.setPathEffect(effects);
canvas.drawPath(path, mPaint);

---

PathDashPathEffect 路径虚线路径效果

构造方法：

PathDashPathEffect(Path shape, float advance, float phase, Style style)

参数：shape 指定的形状，advance 每个形状之间的距离，phase 偏移，style 在填充时如何变换每个位置的形状

使用：

PathDashPathEffect effects =
	new PathDashPathEffect(p, 12, phase, PathDashPathEffect.Style.MORPH);
mPaint.setPathEffect(effects);
canvas.drawPath(path, mPaint);

---

ComposePathEffect、SumPathEffect 组合路径效果

构造方法：

ComposePathEffect(PathEffect outerpe, PathEffect innerpe)
SumPathEffect(PathEffect first, PathEffect second)

使用：

ComposePathEffect effects =
	new ComposePathEffect(new DiscretePathEffect(3.0f, 5.0f),
	new PathDashPathEffect(p, 12, phase, PathDashPathEffect.Style.MORPH));
SumPathEffect effects =
	new SumPathEffect(new DiscretePathEffect(3.0f, 5.0f),
	new PathDashPathEffect(p, 12, phase, PathDashPathEffect.Style.MORPH));

mPaint.setPathEffect(effects);
canvas.drawPath(path, mPaint);

---
