在springboot+dubbo的架构下实现sentinel持久化到nacos,并贴上所有配置和代码

架构:

springboot+dubbo+sentinel+nacos+mysql

本文内容:全部配置+代码(伸手党的福利)

一:sentinel持久化到nacos(全部配置)

二:sentinel控制台的改造(全部代码)

设计思路：

a) 实现 readSource 方法将数据源中的原始数据转换成我们可以处理的数据S
b) 提供一个 Converter 来将数据S转换成最终的数据T
c) 将最终的数据T更新到具体的 RuleManager 中去

实现原理：

a) 控制台推送规则到Nacos/远程配置中心
b) Sentinel client 监听Nacos配置变化，更新本地缓存
配置中心控制台/Sentinel 控制台 → 配置中心 → Sentinel 数据源 → Sentinel

流程步骤：

引入依赖:

dubbo服务端引入

```java
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
    <version>1.7.1</version>
</dependency>
<!—这里只是引入springcloud包作为nacos和sentinel连接的桥梁，用springcloud配置文件代替代码,简化代码开发,不与dubbo冲突,而且现在阿里正在逐步将dubbo和springcloud实行整合,是一个发展趋势-->
<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
			<version>RELEASE</version>
</dependency>

dubbo服务端配置

```java
application-xxx.properties中增加配置
#jvm启动设置
#-Dproject.name=gh-demo-provide
#-Dcsp.sentinel.api.port=9000
#-Dcsp.sentinel.dashboard.server=127.0.0.1:8085

spring.application.name=gh-demo-provide
#同一服务器项目需要端用端口区分
spring.cloud.sentinel.transport.port=9000
#sentinel控制台地址
spring.cloud.sentinel.transport.dashboard=127.0.0.1:8085

# sentinel dashboard
#流量控制
# nacos的访问地址,我这里是nigix代理nacos的集群地址
spring.cloud.sentinel.datasource.flow.nacos.server-addr=10.151.0.84:8848
#与sentinel控制台的namespeace统一
spring.cloud.sentinel.datasource.flow.nacos.namespace=16b7fa67-d3e0-47e4-bc0d-76056712afc4
#nacos中存储规则的dataId,对于dataId使用了${spring.application.name}变量，这样可以根据应用名来区分不同的规则配置
spring.cloud.sentinel.datasource.flow.nacos.data-id=${spring.application.name}-flow-rules
#nacos中存储规则的groupId
spring.cloud.sentinel.datasource.flow.nacos.group-id=SENTINEL_GROUP
#定义存储的规则类型
# 规则类型，取值见：
# org.springframework.cloud.alibaba.sentinel.datasource.RuleType
spring.cloud.sentinel.datasource.flow.nacos.rule-type=flow

#除流控以外的其他规则配置,可以选择性配置,也就是持久化哪个规则就配哪个
#熔断降级
spring.cloud.sentinel.datasource.degrade.nacos.server-addr=10.151.0.84:8848
spring.cloud.sentinel.datasource.degrade.nacos.namespace=16b7fa67-d3e0-47e4-bc0d-76056712afc4
spring.cloud.sentinel.datasource.degrade.nacos.data-id=${spring.application.name}-degrade-rules
spring.cloud.sentinel.datasource.degrade.nacos.group-id=SENTINEL_GROUP
spring.cloud.sentinel.datasource.degrade.nacos.rule-type=degrade
#系统规则
spring.cloud.sentinel.datasource.system.nacos.server-addr=10.151.0.84:8848
spring.cloud.sentinel.datasource.system.nacos.namespace=16b7fa67-d3e0-47e4-bc0d-76056712afc4
spring.cloud.sentinel.datasource.system.nacos.data-id=${spring.application.name}-system-rules
spring.cloud.sentinel.datasource.system.nacos.group-id=SENTINEL_GROUP
spring.cloud.sentinel.datasource.system.nacos.rule-type=system
#授权规则
spring.cloud.sentinel.datasource.authority.nacos.server-addr=10.151.0.84:8848
spring.cloud.sentinel.datasource.authority.nacos.namespace=16b7fa67-d3e0-47e4-bc0d-76056712afc4
spring.cloud.sentinel.datasource.authority.nacos.data-id=${spring.application.name}-authority-rules
spring.cloud.sentinel.datasource.authority.nacos.group-id=SENTINEL_GROUP
spring.cloud.sentinel.datasource.authority.nacos.rule-type=authority
#热点规则
spring.cloud.sentinel.datasource.param-flow.nacos.server-addr=10.151.0.84:8848
spring.cloud.sentinel.datasource.param-flow.nacos.namespace=16b7fa67-d3e0-47e4-bc0d-76056712afc4
spring.cloud.sentinel.datasource.param-flow.nacos.data-id=${spring.application.name}-param-flow-rules
spring.cloud.sentinel.datasource.param-flow.nacos.group-id=SENTINEL_GROUP
spring.cloud.sentinel.datasource.param-flow.nacos.rule-type=param-flow

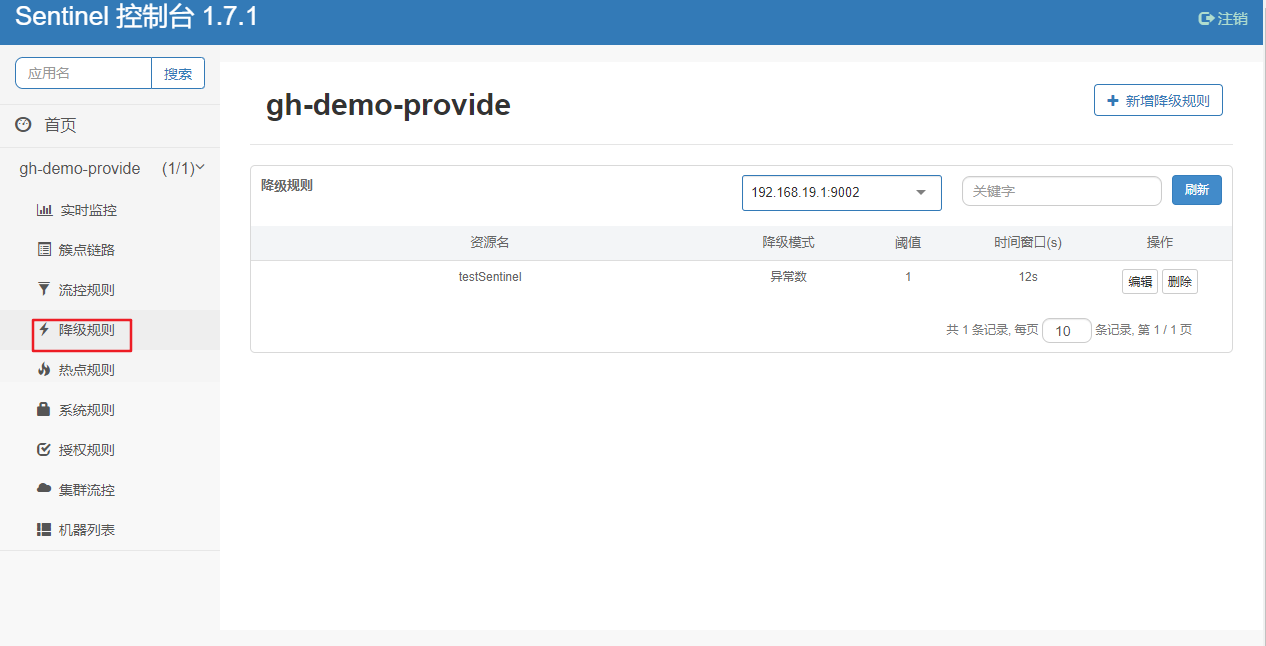

改造sentinel控制台：

由于sentinel都将规则内容存入内存中，在重启服务或者5分钟之后，规则将被清除，所有这里修改sentinel控制台，使规则在nacos中实现增删改的储存，实现持久化。

sentinel控制台application.properties中加入：

application.properties中增加配置
server.port=8085
#nacos的集群地址
nacos.address=10.151.0.84:8848
#二选一public为空,namespeace为uuid,这里与dubbo服务一致
#nacos.namespace=
nacos.namespace=16b7fa67-d3e0-47e4-bc0d-76056712afc4

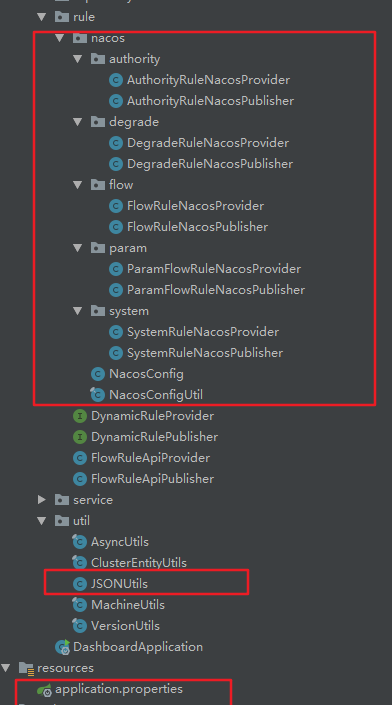

增加指定类 *在rule文件夹下增加nacos文件夹，在nacos文件夹下创建5个规则存储和拉取所需要的class，在nacos文件夹下增加NacosConfig和NacosConfigUtil配置类，在util中增加JSONUtils工具类。

增加类中具体的代码如下：

JSONUtils

public class JSONUtils {
    public static <T> String toJSONString(Object object) {
        try {
            return new ObjectMapper().writeValueAsString(object);
        } catch (JsonProcessingException e) {
            throw new IllegalArgumentException(e);
        }
    }

    public static JavaType getCollectionType(Class<?> collectionClass, Class<?>... elementClasses) {
        return new ObjectMapper()
            .getTypeFactory()
            .constructParametricType(collectionClass, elementClasses);
    }

    public static <T> List<T> parseObject(Class<T> clazz, String string) {
        JavaType javaType = getCollectionType(ArrayList.class, clazz);
        try {
            return (List<T>) new ObjectMapper().readValue(string, javaType);
        } catch (IOException e) {
            throw new IllegalArgumentException(e);
        }
    }
}

NacosConfig

@Configuration
public class NacosConfig {

    @Value("${nacos.address}")
    private String address;

    @Value("${nacos.namespace}")
    private String namespace;

    @Bean
    public ConfigService nacosConfigService() throws Exception {
        Properties properties = new Properties();
        //nacos集群地址
        properties.put(PropertyKeyConst.SERVER_ADDR,address);
        //namespace为空即为public
      properties.put(PropertyKeyConst.NAMESPACE,namespace);
        return ConfigFactory.createConfigService(properties);
    }
}

NacosConfigUtil

public final class NacosConfigUtil {

    public static final String GROUP_ID = "SENTINEL_GROUP";

    public static final String FLOW_DATA_ID_POSTFIX = "-flow-rules";
    public static final String DEGRADE_DATA_ID_POSTFIX = "-degrade-rules";
    public static final String SYSTEM_DATA_ID_POSTFIX = "-system-rules";
    public static final String PARAM_FLOW_DATA_ID_POSTFIX = "-param-flow-rules";
    public static final String AUTHORITY_DATA_ID_POSTFIX = "-authority-rules";
    public static final String DASHBOARD_POSTFIX = "-sentinel-dashboard";
    public static final String CLUSTER_MAP_DATA_ID_POSTFIX = "-cluster-map";

    /**
     * cc for `cluster-client`
     */
    public static final String CLIENT_CONFIG_DATA_ID_POSTFIX = "-cc-config";
    /**
     * cs for `cluster-server`
     */
    public static final String SERVER_TRANSPORT_CONFIG_DATA_ID_POSTFIX = "-cs-transport-config";
    public static final String SERVER_FLOW_CONFIG_DATA_ID_POSTFIX = "-cs-flow-config";
    public static final String SERVER_NAMESPACE_SET_DATA_ID_POSTFIX = "-cs-namespace-set";

    private NacosConfigUtil() {}

    /**
     *
     * 将规则序列化成JSON文本，存储到Nacos server中
     *
     * @param configService nacos config service
     * @param app           应用名称
     * @param postfix       规则后缀 eg.NacosConfigUtil.FLOW_DATA_ID_POSTFIX
     * @param rules         规则对象
     * @throws NacosException 异常
     */

    public static <T> void setRuleStringToNacos(ConfigService configService, String app, String postfix, List<T> rules) throws NacosException {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }

        List<Rule> ruleForApp = rules.stream()
                .map(rule -> {
                    RuleEntity rule1 = (RuleEntity) rule;
                    System.out.println(rule1.getClass());
                    Rule rule2 = rule1.toRule();
                    System.out.println(rule2.getClass());
                    return rule2;
                })
                .collect(Collectors.toList());


        String dataId = genDataId(app, postfix);
        /**

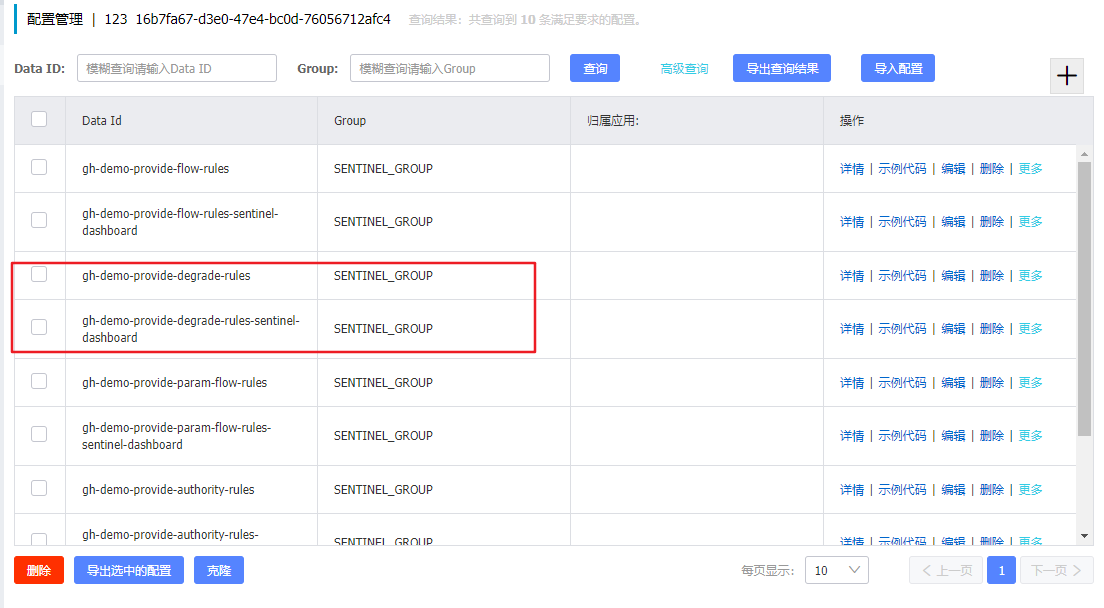

         * 俩种存储只是入参不同,为了满足功能的实现,存入nacos后,会有俩个配置,以后继续完善
         */
        // 存储，控制微服务使用,即可以起到拦截作用,但是由于无法显示到控制台
        configService.publishConfig(
                dataId,
                NacosConfigUtil.GROUP_ID,
                JSONUtils.toJSONString(ruleForApp)
        );

        // 存储，给控制台显示使用,由于数据太多,会出现转化异常,虽然可以提供控制台显示,但是无法对微服务进行保护
        configService.publishConfig(
                dataId + DASHBOARD_POSTFIX,
                NacosConfigUtil.GROUP_ID,
                JSONUtils.toJSONString(rules)
        );
    }

    /**
     *
     * 从Nacos server中查询响应规则，并将其反序列化成对应Rule实体
     *
     * @param configService nacos config service
     * @param appName       应用名称
     * @param postfix       规则后缀 eg.NacosConfigUtil.FLOW_DATA_ID_POSTFIX
     * @param clazz         类
     * @param <T>           泛型
     * @return 规则对象列表
     * @throws NacosException 异常
     */
    public static <T> List<T> getRuleEntitiesFromNacos(ConfigService configService, String appName, String postfix, Class<T> clazz) throws NacosException {
        String rules = configService.getConfig(
                genDataId(appName, postfix) + DASHBOARD_POSTFIX,
                NacosConfigUtil.GROUP_ID,
                3000
        );
        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return JSONUtils.parseObject(clazz, rules);
    }

    private static String genDataId(String appName, String postfix) {
        return appName + postfix;
    }
}

AuthorityRuleNacosProvider

@Component("authorityRuleNacosProvider")
public class AuthorityRuleNacosProvider implements DynamicRuleProvider<List<AuthorityRuleEntity>> {
    @Autowired
    private ConfigService configService;
    @Override
    public List<AuthorityRuleEntity> getRules(String appName) throws Exception {
        return NacosConfigUtil.getRuleEntitiesFromNacos(
            this.configService,
            appName,
            NacosConfigUtil.AUTHORITY_DATA_ID_POSTFIX,
            AuthorityRuleEntity.class
        );
    }
}

AuthorityRuleNacosPublisher

@Component("authorityRuleNacosPublisher")
public class AuthorityRuleNacosPublisher implements DynamicRulePublisher<List<AuthorityRuleEntity>> {
    @Autowired
    private ConfigService configService;
      @Override
    public void publish(String app, List<AuthorityRuleEntity> rules) throws Exception {
        NacosConfigUtil.setRuleStringToNacos(
            this.configService,
            app,
            NacosConfigUtil.AUTHORITY_DATA_ID_POSTFIX,
            rules
        );
    }
}

DegradeRuleNacosProvider

@Component("degradeRuleNacosProvider")
public class DegradeRuleNacosProvider implements DynamicRuleProvider<List<DegradeRuleEntity>> {
    @Autowired
    private ConfigService configService;

    @Override
    public List<DegradeRuleEntity> getRules(String appName) throws Exception {
        return NacosConfigUtil.getRuleEntitiesFromNacos(
            this.configService,
            appName,
            NacosConfigUtil.DEGRADE_DATA_ID_POSTFIX,
            DegradeRuleEntity.class
        );
    }
}

DegradeRuleNacosPublisher

@Component("degradeRuleNacosPublisher")
public class DegradeRuleNacosPublisher implements DynamicRulePublisher<List<DegradeRuleEntity>> {
    @Autowired
    private ConfigService configService;

    @Override
    public void publish(String app, List<DegradeRuleEntity> rules) throws Exception {
        NacosConfigUtil.setRuleStringToNacos(
            this.configService,
            app,
            NacosConfigUtil.DEGRADE_DATA_ID_POSTFIX,
            rules
        );
    }
}

FlowRuleNacosProvider

@Component("flowRuleNacosProvider")
public class FlowRuleNacosProvider implements DynamicRuleProvider<List<FlowRuleEntity>> {

    @Autowired
    private ConfigService configService;

   @Override
   public List<FlowRuleEntity> getRules(String appName) throws Exception {
       return NacosConfigUtil.getRuleEntitiesFromNacos(
               this.configService,
               appName,
               NacosConfigUtil.FLOW_DATA_ID_POSTFIX,
               FlowRuleEntity.class
       );
   }
}

FlowRuleNacosPublisher

@Component("flowRuleNacosPublisher")
public class FlowRuleNacosPublisher implements DynamicRulePublisher<List<FlowRuleEntity>> {

    @Autowired
    private ConfigService configService;

    @Override
    public void publish(String app, List<FlowRuleEntity> rules) throws Exception {
        NacosConfigUtil.setRuleStringToNacos(
                this.configService,
                app,
                NacosConfigUtil.FLOW_DATA_ID_POSTFIX,
                rules
        );
    }
}

ParamFlowRuleNacosProvider

@Component("paramFlowRuleNacosProvider")
public class ParamFlowRuleNacosProvider implements DynamicRuleProvider<List<ParamFlowRuleEntity>> {
    @Autowired
    private ConfigService configService;

    @Override
    public List<ParamFlowRuleEntity> getRules(String appName) throws Exception {
        return NacosConfigUtil.getRuleEntitiesFromNacos(
            this.configService,
            appName,
            NacosConfigUtil.PARAM_FLOW_DATA_ID_POSTFIX,
            ParamFlowRuleEntity.class
        );
    }
}

ParamFlowRuleNacosPublisher

@Component("paramFlowRuleNacosPublisher")
public class ParamFlowRuleNacosPublisher implements DynamicRulePublisher<List<ParamFlowRuleEntity>> {
    @Autowired
    private ConfigService configService;

    @Override
    public void publish(String app, List<ParamFlowRuleEntity> rules) throws Exception {
        NacosConfigUtil.setRuleStringToNacos(
            this.configService,
            app,
            NacosConfigUtil.PARAM_FLOW_DATA_ID_POSTFIX,
            rules
        );
    }
}

SystemRuleNacosProvider

@Component("systemRuleNacosProvider")
public class SystemRuleNacosProvider implements DynamicRuleProvider<List<SystemRuleEntity>> {
    @Autowired
    private ConfigService configService;

    @Override
    public List<SystemRuleEntity> getRules(String appName) throws Exception {
        return NacosConfigUtil.getRuleEntitiesFromNacos(
            this.configService,
            appName,
            NacosConfigUtil.SYSTEM_DATA_ID_POSTFIX,
            SystemRuleEntity.class
        );
    }
}

SystemRuleNacosPublisher

@Component("systemRuleNacosPublisher")
public class SystemRuleNacosPublisher implements DynamicRulePublisher<List<SystemRuleEntity>> {
    @Autowired
    private ConfigService configService;

    @Override
    public void publish(String app, List<SystemRuleEntity> rules) throws Exception {
        NacosConfigUtil.setRuleStringToNacos(
            this.configService,
            app,
            NacosConfigUtil.SYSTEM_DATA_ID_POSTFIX,
            rules
        );
    }
}

*修改5种规则crud的controller层 主要修改数据的存储，将原来存入内存的规则，现在存入nacos，并将nacos的数据push到sentinel的数据源中。

AuthorityRuleController

@RestController
@RequestMapping(value = "/authority")
public class AuthorityRuleController {

    private final Logger logger = LoggerFactory.getLogger(AuthorityRuleController.class);

    @Autowired
    @Qualifier("authorityRuleNacosProvider")
    private DynamicRuleProvider<List<AuthorityRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("authorityRuleNacosPublisher")
    private DynamicRulePublisher<List<AuthorityRuleEntity>> rulePublisher;

  /*  @Autowired
    private SentinelApiClient sentinelApiClient;*/
    @Autowired
    private RuleRepository<AuthorityRuleEntity, Long> repository;

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<AuthorityRuleEntity>> apiQueryAllRulesForMachine(@RequestParam String app,
                                                                        @RequestParam String ip,
                                                                        @RequestParam Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app cannot be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip cannot be null or empty");
        }
        if (port == null || port <= 0) {
            return Result.ofFail(-1, "Invalid parameter: port");
        }
        try {
//            List<AuthorityRuleEntity> rules = sentinelApiClient.fetchAuthorityRulesOfMachine(app, ip, port);
            List<AuthorityRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Error when querying authority rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    private <R> Result<R> checkEntityInternal(AuthorityRuleEntity entity) {
        if (entity == null) {
            return Result.ofFail(-1, "bad rule body");
        }
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null || entity.getPort() <= 0) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (entity.getRule() == null) {
            return Result.ofFail(-1, "rule can't be null");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource name cannot be null or empty");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp should be valid");
        }
        if (entity.getStrategy() != RuleConstant.AUTHORITY_WHITE
            && entity.getStrategy() != RuleConstant.AUTHORITY_BLACK) {
            return Result.ofFail(-1, "Unknown strategy (must be blacklist or whitelist)");
        }
        return null;
    }

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<AuthorityRuleEntity> apiAddAuthorityRule(@RequestBody AuthorityRuleEntity entity) {
        Result<AuthorityRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to add flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @PutMapping("/rule/{id}")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<AuthorityRuleEntity> apiUpdateParamFlowRule(@PathVariable("id") Long id,
                                                              @RequestBody AuthorityRuleEntity entity) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        Result<AuthorityRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(id);
        Date date = new Date();
        entity.setGmtCreate(null);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            if (entity == null) {
                return Result.ofFail(-1, "Failed to save authority rule");
            }
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to save authority rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @DeleteMapping("/rule/{id}")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> apiDeleteRule(@PathVariable("id") Long id) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        AuthorityRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }
        try {
            repository.delete(id);
            publishRules(oldEntity.getApp());
        } catch (Exception e) {
            return Result.ofFail(-1, e.getMessage());
        }
        return Result.ofSuccess(id);
    }

   /* private boolean publishRules(String app, String ip, Integer port) {
        List<AuthorityRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setAuthorityRuleOfMachine(app, ip, port, rules);
    }*/
   private void publishRules(String app) throws Exception {
       List<AuthorityRuleEntity> rules = repository.findAllByApp(app);
       rulePublisher.publish(app, rules);
   }
}

DegradeController

@Controller
@RequestMapping(value = "/degrade", produces = MediaType.APPLICATION_JSON_VALUE)
public class DegradeController {

    private final Logger logger = LoggerFactory.getLogger(DegradeController.class);

    @Autowired
    private InMemDegradeRuleStore repository;

    @Autowired
    @Qualifier("degradeRuleNacosProvider")
    private DynamicRuleProvider<List<DegradeRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("degradeRuleNacosPublisher")
    private DynamicRulePublisher<List<DegradeRuleEntity>> rulePublisher;
    /*@Autowired
    private SentinelApiClient sentinelApiClient;*/

    @ResponseBody
    @RequestMapping("/rules.json")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<DegradeRuleEntity>> queryMachineRules(String app, String ip, Integer port) {

        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        try {
//            List<DegradeRuleEntity> rules = sentinelApiClient.fetchDegradeRuleOfMachine(app, ip, port);
            //去nacos中取数据
            List<DegradeRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("queryApps error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    @ResponseBody
    @RequestMapping("/new.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<DegradeRuleEntity> add(String app, String ip, Integer port, String limitApp, String resource,
                                         Double count, Integer timeWindow, Integer grade) {
        if (StringUtil.isBlank(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (StringUtil.isBlank(limitApp)) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(resource)) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (count == null) {
            return Result.ofFail(-1, "count can't be null");
        }
        if (timeWindow == null) {
            return Result.ofFail(-1, "timeWindow can't be null");
        }
        if (grade == null) {
            return Result.ofFail(-1, "grade can't be null");
        }
        if (grade < RuleConstant.DEGRADE_GRADE_RT || grade > RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT) {
            return Result.ofFail(-1, "Invalid grade: " + grade);
        }
        DegradeRuleEntity entity = new DegradeRuleEntity();
        entity.setApp(app.trim());
        entity.setIp(ip.trim());
        entity.setPort(port);
        entity.setLimitApp(limitApp.trim());
        entity.setResource(resource.trim());
        entity.setCount(count);
        entity.setTimeWindow(timeWindow);
        entity.setGrade(grade);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            //推送信息
            publishRules(app);
        } catch (Throwable throwable) {
            logger.error("add error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
  /*      if (!publishRules(app, ip, port)) {
            logger.info("publish degrade rules fail after rule add");
        }*/
        return Result.ofSuccess(entity);
    }

    @ResponseBody
    @RequestMapping("/save.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<DegradeRuleEntity> updateIfNotNull(Long id, String app, String limitApp, String resource,
                                                     Double count, Integer timeWindow, Integer grade) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        if (grade != null) {
            if (grade < RuleConstant.DEGRADE_GRADE_RT || grade > RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT) {
                return Result.ofFail(-1, "Invalid grade: " + grade);
            }
        }
        DegradeRuleEntity entity = repository.findById(id);
        if (entity == null) {
            return Result.ofFail(-1, "id " + id + " dose not exist");
        }

        if (StringUtil.isNotBlank(app)) {
            entity.setApp(app.trim());
        }

        if (StringUtil.isNotBlank(limitApp)) {
            entity.setLimitApp(limitApp.trim());
        }
        if (StringUtil.isNotBlank(resource)) {
            entity.setResource(resource.trim());
        }
        if (count != null) {
            entity.setCount(count);
        }
        if (timeWindow != null) {
            entity.setTimeWindow(timeWindow);
        }
        if (grade != null) {
            entity.setGrade(grade);
        }
        Date date = new Date();
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            //推送规则
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("save error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
      /*  if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {
            logger.info("publish degrade rules fail after rule update");
        }*/
        return Result.ofSuccess(entity);
    }

    @ResponseBody
    @RequestMapping("/delete.json")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> delete(Long id) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }

        DegradeRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
            //推送规则
            publishRules(oldEntity.getApp());
        } catch (Throwable throwable) {
            logger.error("delete error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
       /* if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {
            logger.info("publish degrade rules fail after rule delete");
        }*/
        return Result.ofSuccess(id);
    }

  /*  private boolean publishRules(String app, String ip, Integer port) {
        List<DegradeRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setDegradeRuleOfMachine(app, ip, port, rules);
    }*/
  private void publishRules(String app) throws Exception {
      List<DegradeRuleEntity> rules = repository.findAllByApp(app);
      rulePublisher.publish(app, rules);
  }
}

FlowControllerV1

@RestController
@RequestMapping(value = "/v1/flow")
public class FlowControllerV1 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV1.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;

   /* @Autowired
    private SentinelApiClient sentinelApiClient;*/

    @Autowired
    @Qualifier("flowRuleNacosProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleNacosPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;



    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<FlowRuleEntity>> apiQueryMachineRules( @RequestParam String app) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
       /* if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }*/
        try {
//            List<FlowRuleEntity> rules = sentinelApiClient.fetchFlowRuleOfMachine(app, ip, port);
            List<FlowRuleEntity> rules = ruleProvider.getRules(app);
            if (rules != null && !rules.isEmpty()) {
                for (FlowRuleEntity entity : rules) {
                    entity.setApp(app);
                    if (entity.getClusterConfig() != null && entity.getClusterConfig().getFlowId() != null) {
                        entity.setId(entity.getClusterConfig().getFlowId());
                    }
                }
            }
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Error when querying flow rules", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    private <R> Result<R> checkEntityInternal(FlowRuleEntity entity) {
        if (entity == null) {
            return Result.ofFail(-1, "invalid body");
        }
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (entity.getGrade() == null) {
            return Result.ofFail(-1, "grade can't be null");
        }
        if (entity.getGrade() != 0 && entity.getGrade() != 1) {
            return Result.ofFail(-1, "grade must be 0 or 1, but " + entity.getGrade() + " got");
        }
        if (entity.getCount() == null || entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be at lease zero");
        }
        if (entity.getStrategy() == null) {
            return Result.ofFail(-1, "strategy can't be null");
        }
        if (entity.getStrategy() != 0 && StringUtil.isBlank(entity.getRefResource())) {
            return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
        }
        if (entity.getControlBehavior() == null) {
            return Result.ofFail(-1, "controlBehavior can't be null");
        }
        int controlBehavior = entity.getControlBehavior();
        if (controlBehavior == 1 && entity.getWarmUpPeriodSec() == null) {
            return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
        }
        if (controlBehavior == 2 && entity.getMaxQueueingTimeMs() == null) {
            return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
        }
        if (entity.isClusterMode() && entity.getClusterConfig() == null) {
            return Result.ofFail(-1, "cluster config should be valid");
        }
        return null;
    }

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiAddFlowRule(@RequestBody FlowRuleEntity entity) {

        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        entity.setLimitApp(entity.getLimitApp().trim());
        entity.setResource(entity.getResource().trim());
        try {
            entity = repository.save(entity);
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to add flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @PutMapping("/save.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiUpdateFlowRule(@PathVariable("id") Long id,
                                                    @RequestBody FlowRuleEntity entity) {

        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "id " + id + " does not exist");
        }
        if (entity == null) {
            return Result.ofFail(-1, "invalid body");
        }

        entity.setApp(oldEntity.getApp());
        entity.setIp(oldEntity.getIp());
        entity.setPort(oldEntity.getPort());
        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }

        entity.setId(id);
        Date date = new Date();
        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            if (entity == null) {
                return Result.ofFail(-1, "save entity fail");
            }
            publishRules(oldEntity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to update flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);

    }

    @DeleteMapping("/delete.json")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> apiDeleteFlowRule(Long id) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
            publishRules(oldEntity.getApp());
        } catch (Exception e) {
            return Result.ofFail(-1, e.getMessage());
        }
        return Result.ofSuccess(id);
    }

 /*   private CompletableFuture<Void> publishRules(String app, String ip, Integer port) {
        List<FlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setFlowRuleOfMachineAsync(app, ip, port, rules);
    }*/

    private void publishRules(/*@NonNull*/ String app) throws Exception {
        List<FlowRuleEntity> rules = repository.findAllByApp(app);
        rulePublisher.publish(app, rules);
    }
}

ParamFlowRuleController

@RestController
@RequestMapping(value = "/paramFlow")
public class ParamFlowRuleController {

    private final Logger logger = LoggerFactory.getLogger(ParamFlowRuleController.class);

  /*  @Autowired
    private SentinelApiClient sentinelApiClient;*/
    @Autowired
    @Qualifier("paramFlowRuleNacosProvider")
    private DynamicRuleProvider<List<ParamFlowRuleEntity>> ruleProvider;

    @Autowired
    @Qualifier("paramFlowRuleNacosPublisher")
    private DynamicRulePublisher<List<ParamFlowRuleEntity>> rulePublisher;
    @Autowired
    private AppManagement appManagement;
    @Autowired
    private RuleRepository<ParamFlowRuleEntity, Long> repository;

    private boolean checkIfSupported(String app, String ip, int port) {
        try {
            return Optional.ofNullable(appManagement.getDetailApp(app))
                .flatMap(e -> e.getMachine(ip, port))
                .flatMap(m -> VersionUtils.parseVersion(m.getVersion())
                    .map(v -> v.greaterOrEqual(version020)))
                .orElse(true);
            // If error occurred or cannot retrieve machine info, return true.
        } catch (Exception ex) {
            return true;
        }
    }

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<ParamFlowRuleEntity>> apiQueryAllRulesForMachine(@RequestParam String app,
                                                                        @RequestParam String ip,
                                                                        @RequestParam Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app cannot be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip cannot be null or empty");
        }
        if (port == null || port <= 0) {
            return Result.ofFail(-1, "Invalid parameter: port");
        }
        if (!checkIfSupported(app, ip, port)) {
            return unsupportedVersion();
        }
        try {
           /* return sentinelApiClient.fetchParamFlowRulesOfMachine(app, ip, port)
                .thenApply(repository::saveAll)
                .thenApply(Result::ofSuccess)
                .get();*/
            List<ParamFlowRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (ExecutionException ex) {
            logger.error("Error when querying parameter flow rules", ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when querying parameter flow rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    private boolean isNotSupported(Throwable ex) {
        return ex instanceof CommandNotFoundException;
    }

    @PostMapping("/rule")
    @AuthAction(AuthService.PrivilegeType.WRITE_RULE)
    public Result<ParamFlowRuleEntity> apiAddParamFlowRule(@RequestBody ParamFlowRuleEntity entity) {
        Result<ParamFlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        if (!checkIfSupported(entity.getApp(), entity.getIp(), entity.getPort())) {
            return unsupportedVersion();
        }
        entity.setId(null);
        entity.getRule().setResource(entity.getResource().trim());
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
//            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get();
            publishRules(entity.getApp());
            return Result.ofSuccess(entity);
        } catch (ExecutionException ex) {
            logger.error("Error when adding new parameter flow rules", ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when adding new parameter flow rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    private <R> Result<R> checkEntityInternal(ParamFlowRuleEntity entity) {
        if (entity == null) {
            return Result.ofFail(-1, "bad rule body");
        }
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null || entity.getPort() <= 0) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (entity.getRule() == null) {
            return Result.ofFail(-1, "rule can't be null");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource name cannot be null or empty");
        }
        if (entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be valid");
        }
        if (entity.getGrade() != RuleConstant.FLOW_GRADE_QPS) {
            return Result.ofFail(-1, "Unknown mode (blockGrade) for parameter flow control");
        }
        if (entity.getParamIdx() == null || entity.getParamIdx() < 0) {
            return Result.ofFail(-1, "paramIdx should be valid");
        }
        if (entity.getDurationInSec() <= 0) {
            return Result.ofFail(-1, "durationInSec should be valid");
        }
        if (entity.getControlBehavior() < 0) {
            return Result.ofFail(-1, "controlBehavior should be valid");
        }
        return null;
    }

    @PutMapping("/rule/{id}")
    @AuthAction(AuthService.PrivilegeType.WRITE_RULE)
    public Result<ParamFlowRuleEntity> apiUpdateParamFlowRule(@PathVariable("id") Long id,
                                                              @RequestBody ParamFlowRuleEntity entity) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        ParamFlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "id " + id + " does not exist");
        }

        Result<ParamFlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        if (!checkIfSupported(entity.getApp(), entity.getIp(), entity.getPort())) {
            return unsupportedVersion();
        }
        entity.setId(id);
        Date date = new Date();
        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
         //   publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get();
            publishRules(entity.getApp());
            return Result.ofSuccess(entity);
        } catch (ExecutionException ex) {
            logger.error("Error when updating parameter flow rules, id=" + id, ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when updating parameter flow rules, id=" + id, throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    @DeleteMapping("/rule/{id}")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> apiDeleteRule(@PathVariable("id") Long id) {
        if (id == null) {
            return Result.ofFail(-1, "id cannot be null");
        }
        ParamFlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
        //    publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort()).get();
            publishRules(oldEntity.getApp());
            return Result.ofSuccess(id);
        } catch (ExecutionException ex) {
            logger.error("Error when deleting parameter flow rules", ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when deleting parameter flow rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

  /*  private CompletableFuture<Void> publishRules(String app, String ip, Integer port) {
        List<ParamFlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setParamFlowRuleOfMachine(app, ip, port, rules);
    }*/

    private void publishRules(String app) throws Exception {
        List<ParamFlowRuleEntity> rules = repository.findAllByApp(app);
        rulePublisher.publish(app, rules);
    }

    private <R> Result<R> unsupportedVersion() {
        return Result.ofFail(4041,
            "Sentinel client not supported for parameter flow control (unsupported version or dependency absent)");
    }

    private final SentinelVersion version020 = new SentinelVersion().setMinorVersion(2);
}

SystemController

@RestController
@RequestMapping("/system")
public class SystemController {

    private final Logger logger = LoggerFactory.getLogger(SystemController.class);

    @Autowired
    private RuleRepository<SystemRuleEntity, Long> repository;
    @Autowired
    @Qualifier("systemRuleNacosProvider")
    private DynamicRuleProvider<List<SystemRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("systemRuleNacosPublisher")
    private DynamicRulePublisher<List<SystemRuleEntity>> rulePublisher;

  /*  @Autowired
    private SentinelApiClient sentinelApiClient;*/

    private <R> Result<R> checkBasicParams(String app, String ip, Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (port <= 0 || port > 65535) {
            return Result.ofFail(-1, "port should be in (0, 65535)");
        }
        return null;
    }

    @GetMapping("/rules.json")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<SystemRuleEntity>> apiQueryMachineRules(String app, String ip,
                                                               Integer port) {
        Result<List<SystemRuleEntity>> checkResult = checkBasicParams(app, ip, port);
        if (checkResult != null) {
            return checkResult;
        }
        try {
           // List<SystemRuleEntity> rules = sentinelApiClient.fetchSystemRuleOfMachine(app, ip, port);
            List<SystemRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Query machine system rules error", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    private int countNotNullAndNotNegative(Number... values) {
        int notNullCount = 0;
        for (int i = 0; i < values.length; i++) {
            if (values[i] != null && values[i].doubleValue() >= 0) {
                notNullCount++;
            }
        }
        return notNullCount;
    }

    @RequestMapping("/new.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<SystemRuleEntity> apiAdd(String app, String ip, Integer port,
                                           Double highestSystemLoad, Double highestCpuUsage, Long avgRt,
                                           Long maxThread, Double qps) {

        Result<SystemRuleEntity> checkResult = checkBasicParams(app, ip, port);
        if (checkResult != null) {
            return checkResult;
        }

        int notNullCount = countNotNullAndNotNegative(highestSystemLoad, avgRt, maxThread, qps, highestCpuUsage);
        if (notNullCount != 1) {
            return Result.ofFail(-1, "only one of [highestSystemLoad, avgRt, maxThread, qps,highestCpuUsage] "
                    + "value must be set > 0, but " + notNullCount + " values get");
        }
        if (null != highestCpuUsage && highestCpuUsage > 1) {
            return Result.ofFail(-1, "highestCpuUsage must between [0.0, 1.0]");
        }
        SystemRuleEntity entity = new SystemRuleEntity();
        entity.setApp(app.trim());
        entity.setIp(ip.trim());
        entity.setPort(port);
        // -1 is a fake value
        if (null != highestSystemLoad) {
            entity.setHighestSystemLoad(highestSystemLoad);
        } else {
            entity.setHighestSystemLoad(-1D);
        }

        if (null != highestCpuUsage) {
            entity.setHighestCpuUsage(highestCpuUsage);
        } else {
            entity.setHighestCpuUsage(-1D);
        }

        if (avgRt != null) {
            entity.setAvgRt(avgRt);
        } else {
            entity.setAvgRt(-1L);
        }
        if (maxThread != null) {
            entity.setMaxThread(maxThread);
        } else {
            entity.setMaxThread(-1L);
        }
        if (qps != null) {
            entity.setQps(qps);
        } else {
            entity.setQps(-1D);
        }
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            //推送
            publishRules(app);
        } catch (Throwable throwable) {
            logger.error("Add SystemRule error", throwable);
            return Result.ofThrowable(-1, throwable);
        }
      /*  if (!publishRules(app, ip, port)) {
            logger.warn("Publish system rules fail after rule add");
        }*/
        return Result.ofSuccess(entity);
    }

    @GetMapping("/save.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<SystemRuleEntity> apiUpdateIfNotNull(Long id, String app, Double highestSystemLoad,
                                                       Double highestCpuUsage, Long avgRt, Long maxThread, Double qps) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        SystemRuleEntity entity = repository.findById(id);
        if (entity == null) {
            return Result.ofFail(-1, "id " + id + " dose not exist");
        }

        if (StringUtil.isNotBlank(app)) {
            entity.setApp(app.trim());
        }
        if (highestSystemLoad != null) {
            if (highestSystemLoad < 0) {
                return Result.ofFail(-1, "highestSystemLoad must >= 0");
            }
            entity.setHighestSystemLoad(highestSystemLoad);
        }
        if (highestCpuUsage != null) {
            if (highestCpuUsage < 0) {
                return Result.ofFail(-1, "highestCpuUsage must >= 0");
            }
            if (highestCpuUsage > 1) {
                return Result.ofFail(-1, "highestCpuUsage must <= 1");
            }
            entity.setHighestCpuUsage(highestCpuUsage);
        }
        if (avgRt != null) {
            if (avgRt < 0) {
                return Result.ofFail(-1, "avgRt must >= 0");
            }
            entity.setAvgRt(avgRt);
        }
        if (maxThread != null) {
            if (maxThread < 0) {
                return Result.ofFail(-1, "maxThread must >= 0");
            }
            entity.setMaxThread(maxThread);
        }
        if (qps != null) {
            if (qps < 0) {
                return Result.ofFail(-1, "qps must >= 0");
            }
            entity.setQps(qps);
        }
        Date date = new Date();
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            //推送
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("save error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
      /*  if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {
            logger.info("publish system rules fail after rule update");
        }*/
        return Result.ofSuccess(entity);
    }

    @RequestMapping("/delete.json")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<?> delete(Long id) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        SystemRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }
        try {
            repository.delete(id);
            //推送
            publishRules(oldEntity.getApp());
        } catch (Throwable throwable) {
            logger.error("delete error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
       /* if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {
            logger.info("publish system rules fail after rule delete");
        }*/
        return Result.ofSuccess(id);
    }

 /*   private boolean publishRules(String app, String ip, Integer port) {
        List<SystemRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setSystemRuleOfMachine(app, ip, port, rules);
    }*/
 private void publishRules(String app) throws Exception {
     List<SystemRuleEntity> rules = repository.findAllByApp(app);
     rulePublisher.publish(app, rules);
 }
}

控制台改造完成
Sentinel中加入规则

查看nacos中已经存入

若nacos用到了mysql，查看数据库

完成了sentinel->nacos->mysql->nacos->sentinel
