opencv mat操作总结

现在一写代码就忘了怎么赋值、怎么取元素，还是写得太少。现把目前用到的总结一下。

文章目录

Mat 访问元素

矩阵显示函数

Mat 初始化

数据类型

列向量转换成对角向量
转置
求逆
SVD
加减乘除

加减法
矩阵乘法
divide
multiply

Mat 访问元素

参考： https://blog.csdn.net/bendanban/article/details/30527785

使用Mat的成员函数at<>()

template<typename _Tp> _Tp& at(int i0, int i1);

  Vec3b pix;
  for (int r = 0; r < im.rows; r++)
  {
    for (int c = 0; c < im.cols; c++)
    {
      pix = im.at<Vec3b>(r,c);
      pix = pix*scale;
      om.at<Vec3b>(r,c) = pix;
    }
  }

使用Mat的成员函数ptr<>()

template<typename _Tp> _Tp* ptr(int i0=0);

  Vec3b *ppix_im(NULL);
  Vec3b *ppix_om(NULL);
  for (int r = 0; r < im.rows; r++)
  {
    ppix_im = im.ptr<Vec3b>(r);
    ppix_om = om.ptr<Vec3b>(r);
    for (int c = 0; c < im.cols; c++)
    {
       ppix_om[c] = ppix_im[c]*scale;
    }
  }

我的理解：

  Vec3b pix;
  for (int r = 0; r < im.rows; r++)
  {
    for (int c = 0; c < im.cols; c++)
    {
      pix = im.ptr<Vec3b>(r)[c];//注意括号不同
      pix = pix*scale;
      om.ptr<Vec3b>(r)[c] = pix;
    }
  }

使用迭代器

  MatIterator_<Vec3b> it_im, itEnd_im;
  MatIterator_<Vec3b> it_om;
  it_im    = im.begin<Vec3b>();
  itEnd_im = im.end<Vec3b>();
  it_om    = om.begin<Vec3b>();
  for (; it_im != itEnd_im; it_im++, it_om++)
  {
    *it_om = (*it_im)*scale;
  }

使用Mat_简化索引
Mat_这个类的元素访问比较容易一点，把原Mat类的对象可以直接赋值给Mat_对象，当然赋值操作并不会开辟新的数据空。也就是说使用Mat_时，不会在内存拷贝上花时间。

  Mat_<Vec3b> im_, om_;
  im_ = im;
  om_ = om;
  for (int r = 0; r < im.rows; r++)
  {
    for (int c = 0; c < im.cols; c++)
    {
      om_(r,c) = im_(r,c) * scale;
    }
  }

使用OpenCV原有的实现
使用*运算符重载

om = im*scale;

测试代码

/*************************************************************************
  > File Name: test.cpp
  > Author: aban
  > Mail: [email protected]
  > Created Time: 2014年06月13日 星期五 18时47分19秒
 ************************************************************************/


#include <iostream>
#include <opencv2/opencv.hpp>
using namespace cv;
using namespace std;

#if defined(_WIN32) && defined(_MSC_VER)
#include <windows.h>
double abtic() {
	__int64 freq;
	__int64 clock;
	QueryPerformanceFrequency( (LARGE_INTEGER *)&freq );
	QueryPerformanceCounter( (LARGE_INTEGER *)&clock );
	return (double)clock/freq*1000*1000;
}
#else
#include <time.h>
#include <sys/time.h>
double abtic() {
	double result = 0.0;
	struct timeval tv;
	gettimeofday( &tv, NULL );
	result = tv.tv_sec*1000*1000 + tv.tv_usec;
	return result;
}
#endif /* _WIN32 */

#define ISSHOW 0

int main(int argc, char** argv)
{
	double tRecorder(0.0);
	Mat im = imread("./bigim.tif");
	Mat om;
	om.create(im.rows, im.cols, CV_8UC3);

#if ISSHOW
	imshow("orignal Image", im);
	waitKey();
#endif

	float scale = 150.0f/255.0f;

	// 1. using at()
	tRecorder = abtic();
	Vec3b pix;
	for (int r = 0; r < im.rows; r++)
	{
		for (int c = 0; c < im.cols; c++)
		{
			pix = im.at<Vec3b>(r,c);
			pix = pix*scale;
			om.at<Vec3b>(r,c) = pix;
		}
	}
	cout << (abtic() - tRecorder) << " using at<>()" << endl;
#if ISSHOW
	imshow("Scaled Image: using at<>()", om);
	waitKey();
#endif

	// 2. using ptr
	tRecorder = abtic();
	Vec3b *ppix_im(NULL);
	Vec3b *ppix_om(NULL);
	for (int r = 0; r < im.rows; r++)
	{
		ppix_im = im.ptr<Vec3b>(r);
		ppix_om = om.ptr<Vec3b>(r);
		for (int c = 0; c < im.cols; c++)
		{
			 ppix_om[c] = ppix_im[c]*scale;
		}
	}
	cout << (abtic() - tRecorder) << " using ptr<>() " << endl;
#if ISSHOW
	imshow("Scaled Image: using ptr<>()", om);
	waitKey();
#endif

	// 3. using iterator
	tRecorder = abtic();
	MatIterator_<Vec3b> it_im, itEnd_im;
	MatIterator_<Vec3b> it_om;
	it_im    = im.begin<Vec3b>();
	itEnd_im = im.end<Vec3b>();
	it_om    = om.begin<Vec3b>();
	for (; it_im != itEnd_im; it_im++, it_om++)
	{
		*it_om = (*it_im)*scale;
	}
	cout << (abtic() - tRecorder) << " using iterator " << endl;
#if ISSHOW
	imshow("Scaled Image: using iterator", om);
	waitKey();
#endif

	// 4. using Mat_
	tRecorder = abtic();
	Mat_<Vec3b> im_, om_;
	im_ = im;
	om_ = om;
	for (int r = 0; r < im.rows; r++)
	{
		for (int c = 0; c < im.cols; c++)
		{
			om_(r,c) = im_(r,c) * scale;
		}
	}
	cout << (abtic() - tRecorder) << " using Mat_ " << endl;
#if ISSHOW
	imshow("Scaled Image: using Mat_", om);
	waitKey();
#endif

	// 5. using *
	tRecorder = abtic();
	om = im*scale;
	cout << (abtic() - tRecorder) << " using * " << endl;
#if ISSHOW
	imshow("Scaled Image: using *", om);
	waitKey();
#endif

	return 0;
}

矩阵显示函数

//可以直接：
cout<<m<<endl;
//或者通过函数：
void printMat(Mat & m){

	for (int row = 0; row < m.rows; row++){
        for (int col = 0; col < m.cols; col++){
            cout<<m.at<float>(row,col)<<"  ";
        }
		// float* ptr = (float*)(m.data.ptr + row * m.step);//第row行数据的起始指针
		// for (int col = 0; col < m.cols; col++)
		// 	cout<<*(ptr+3*col)<<"     ";
		cout<<endl;
	}
}

Mat 初始化

数据类型

CV_8UC1// 8位无符号单通道
CV_8UC3// 8位无符号3通道
CV_8UC4
CV_32FC1// 32位浮点型单通道
CV_32FC3// 32位浮点型3通道
CV_32FC4

// 初始化方法
	cv::Mat mz = cv::Mat::zeros(cv::Size(5,5),CV_8UC1); // 全零矩阵
	cv::Mat mo = cv::Mat::ones(cv::Size(5,5),CV_8UC1);  // 全1矩阵
	cv::Mat me = cv::Mat::eye(cv::Size(5,5),CV_32FC1);  // 对角线为1的对角矩阵
	cout<<"mz = "<<endl<<mz<<endl<<endl;
	cout<<"mo = "<<endl<<mo<<endl<<endl;
	cout<<"me = "<<endl<<me<<endl<<endl;

Mat mat = (Mat_<float>(3, 3) << 1,0,1,0,1,1,0,0,1);

列向量转换成对角向量

W = Mat::diag(D_inv);

转置

// 转置
	Mat m1= Mat::eye(2,3, CV_32F);
	Mat m1t = m1.t();
	//Mat m1t = m1.transpose();

求逆

// 求逆
	Mat meinv = me.inv();
//cv::Mat::inv(int method = DECOMP_LU)//default

Enumerator
DECOMP_LU	Gaussian elimination with the optimal pivot element chosen.
DECOMP_SVD	singular value decomposition (SVD) method; the system can be over-defined and/or the matrix src1 can be singular
DECOMP_EIG	eigenvalue decomposition; the matrix src1 must be symmetrical
DECOMP_CHOLESKY	Cholesky $LL^T$ factorization; the matrix src1 must be symmetrical and positively defined
DECOMP_QR	QR factorization; the system can be over-defined and/or the matrix src1 can be singular
DECOMP_NORMAL	while all the previous flags are mutually exclusive, this flag can be used together with any of the previous; it means that the normal equations $src1^T⋅src1⋅dst=src1^Tsrc2$ are solved instead of the original system $src1⋅dst=src2$

SVD

//SVD (InputArray src, int flags=0)
SVD svd(mat);
Mat U = svd.u;
Mat VT = svd.vt;
Mat W = svd.w;//列向量

// mat = U*W*Vt
//伪逆：Mat mat_inv = V*W_inv*UT;
//W_inv:
////Mat I3 = Mat::ones(3,1,CV_32F);
////divide(I3,D,D_inv);
////Mat W_inv = Mat::diag(D_inv)

加减乘除

参考：https://blog.csdn.net/iracer/article/details/51296631

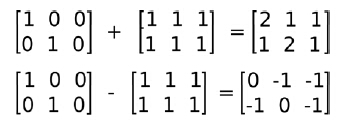

加减法

//逐元素
cv::Mat a= Mat::eye(Size(3,2), CV_32F);
cv::Mat b= Mat::ones(Size(3,2), CV_32F);
cv::Mat c= a+b;
cv::Mat d= a-b;

在这里插入图片描述

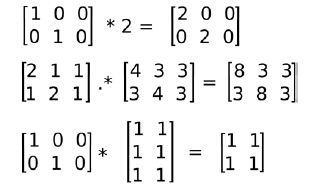

矩阵乘法

	Mat m1= Mat::eye(2,3, CV_32F); //使用cv命名空间可省略cv::前缀，下同
	Mat m2= Mat::ones(3,2, CV_32F);
	cout<<"m1  = "<<endl<<m1<<endl<<endl;
	cout<<"m2  = "<<endl<<m2<<endl<<endl;
	// Scalar by matrix
	cout << "\nm1.*2 = \n" << m1*2 << endl;
	// matrix per element multiplication
	cout << "\n(m1+2).*(m1+3) = \n" << (m1+1).mul(m1+3) << endl;
	// Matrix multiplication
	cout << "\nm1*m2 = \n" << m1*m2 << endl;

在这里插入图片描述

divide

C++: void divide(InputArray src1, InputArray src2, OutputArray dst, double scale=1, int dtype=-1)
C++: void divide(double scale, InputArray src2, OutputArray dst, int dtype=-1)

Parameters:
src1 – first input array.
src2 – second input array of the same size and type as src1.
scale – scalar factor.
dst – output array of the same size and type as src2.
dtype – optional depth of the output array; if -1, dst will have depth src2.depth(), but in case of an array-by-array division, you can only pass -1 when src1.depth()==src2.depth().
The functions divide divide one array by another:

$\texttt{dst(I) = saturate(src1(I)*scale/src2(I))}$

or a scalar by an array when there is no src1 :

$\texttt{dst(I) = saturate(scale/src2(I))}$

When src2(I) is zero, dst(I) will also be zero. Different channels of multi-channel arrays are processed independently.

multiply

C++: void multiply(InputArray src1, InputArray src2, OutputArray dst, double scale=1, int dtype=-1 )

Parameters:
src1 – first input array.
src2 – second input array of the same size and the same type as src1.
dst – output array of the same size and type as src1.
scale – optional scale factor.
The function multiply calculates the per-element product of two arrays:

$\texttt{dst} (I)= \texttt{saturate} ( \texttt{scale} \cdot \texttt{src1} (I) \cdot \texttt{src2} (I))$
