线程状态+profiler

package com.company.java_thread_design.status;

public class StatusChangeNotifyThread extends Thread{
    private Object waitObject;
    private boolean flag;
    public Thread peer1;
    public Thread peer2;

    public StatusChangeNotifyThread(Object waitObject, boolean flag) {
        this.waitObject = waitObject;
        this.flag = flag;
    }

    public void setPeer1(Thread peer1) {
        this.peer1 = peer1;
    }

    public void setPeer2(Thread peer2) {
        this.peer2 = peer2;
    }

    public void setFlag(boolean flag) {
        this.flag = flag;
    }

    /**
     * https://blog.csdn.net/pange1991/article/details/53860651
     */
    @Override
    public void run() {
        try {
            synchronized (waitObject) {
                System.out.println("come in : "+this.getName()+" "+this.getState()+"\t"+peer1.getName()+" "+peer1.getState()+"\t"+peer2.getName()+" "+peer2.getState());
                while (flag) {
                    System.out.println("while first: "+this.getName()+" "+this.getState()+"\t"+peer1.getName()+" "+peer1.getState()+"\t"+peer2.getName()+" "+peer2.getState());
                    Thread.sleep(2000);
                    waitObject.wait();
                    System.out.println("while second: "+this.getName()+" "+this.getState()+"\t"+peer1.getName()+" "+peer1.getState()+"\t"+peer2.getName()+" "+peer2.getState());

                }
                System.out.println("after: "+this.getName()+" "+this.getState());
            }
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

以上是线程类

package com.company.java_thread_design.status;

import static com.company.java_thread_design.status.MainNotifyAll.sleep;

public class Main {

    public static void main(String[] args) {
        Object waitObject = new Object();
        boolean flag = true;
        Thread t0 = new StatusChangeNotifyThread(waitObject, flag);
        Thread t1 = new StatusChangeNotifyThread(waitObject, flag);
        Thread t2 = new StatusChangeNotifyThread(waitObject, flag);

        ((StatusChangeNotifyThread) t0).setPeer1(t1);
        ((StatusChangeNotifyThread) t0).setPeer2(t2);
        ((StatusChangeNotifyThread) t1).setPeer1(t0);
        ((StatusChangeNotifyThread) t1).setPeer2(t2);
        ((StatusChangeNotifyThread) t2).setPeer1(t0);
        ((StatusChangeNotifyThread) t2).setPeer2(t1);

        System.out.println("\n====== >   start first Thread");
        t0.start();
        sleep(3000);
        printThreadStatus(t0, t1,t2);

        System.out.println("\n====== >   start second Thread");
        t1.start();
        sleep(3000);
        printThreadStatus(t0, t1,t2);


        System.out.println("\n====== >   start third Thread");
        t2.start();
        sleep(3000);
        printThreadStatus(t0, t1,t2);

        /**
         * 三个线程都是waiting状态
         */


        synchronized (waitObject) {
            System.out.println("\n\n\n====== >   notify first thread");
            waitObject.notify();
        }

        printThreadStatus(t0, t1,t2);

                sleep(10000);

//        flag = false;
//        ((StatusChangeNotifyThread) t0).setFlag(flag);
//        ((StatusChangeNotifyThread) t1).setFlag(flag);
//        ((StatusChangeNotifyThread) t2).setFlag(flag);

        synchronized (waitObject) {
            System.out.println("\n====== >   notify second thread");
            waitObject.notify();
        }
        printThreadStatus(t0, t1,t2);

        /**
         * 两个被唤醒，一个还是waiting
         */

        sleep(10000);

        System.out.println("t0: "+t0.getState());
        System.out.println("t1: "+t1.getState());
        System.out.println("t2: "+t2.getState());

        sleep(1000);

    }

    public static void sleep(int mill) {
        try {
            Thread.sleep(mill);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
    public static void printThreadStatus(Thread t0, Thread t1, Thread t2) {
        System.out.println("###### --  >>  "+t0.getName()+" "+t0.getState()+"\t"+t1.getName()+" "+t1.getState()+"\t"+t2.getName()+" "+t2.getState());
    }




    /**
     * ====== >   start first Thread
     * come in : Thread-0 RUNNABLE    Thread-1 NEW    Thread-2 NEW
     * while : Thread-0 RUNNABLE    Thread-1 NEW    Thread-2 NEW
     * ###### --  >>  Thread-0 WAITING    Thread-1 NEW    Thread-2 NEW
     *
     * ====== >   start second Thread
     * come in : Thread-1 RUNNABLE    Thread-0 WAITING    Thread-2 NEW
     * while : Thread-1 RUNNABLE    Thread-0 WAITING    Thread-2 NEW
     * ###### --  >>  Thread-0 WAITING    Thread-1 WAITING    Thread-2 NEW
     *
     * ====== >   start third Thread
     * come in : Thread-2 RUNNABLE    Thread-0 WAITING    Thread-1 WAITING
     * while : Thread-2 RUNNABLE    Thread-0 WAITING    Thread-1 WAITING
     * ###### --  >>  Thread-0 WAITING    Thread-1 WAITING    Thread-2 WAITING
     * 注解：上面是三个线程启动
     *
     *
     * ====== >   notify first thread
     * ###### --  >>  Thread-0 BLOCKED    Thread-1 WAITING    Thread-2 WAITING
     * while : Thread-0 RUNNABLE    Thread-1 WAITING    Thread-2 WAITING
     * 注解：唤醒一个（thread-0）刚notify时候还没释放锁，所以为blocked，后来重新获得锁，runnable，并又一次判断condition
     *
     * ====== >   notify second thread
     * ###### --  >>  Thread-0 WAITING    Thread-1 BLOCKED    Thread-2 WAITING
     * while : Thread-1 RUNNABLE    Thread-0 WAITING    Thread-2 WAITING
     * 和上一次类似
     *
     * t0: WAITING
     * t1: WAITING
     * t2: WAITING
     */
}

package com.company.java_thread_design.status;

public class MainNotifyAll {

    public static void main(String[] args) {
        Object waitObject = new Object();
        boolean flag = true;
        Thread t0 = new StatusChangeNotifyThread(waitObject, flag);
        Thread t1 = new StatusChangeNotifyThread(waitObject, flag);
        Thread t2 = new StatusChangeNotifyThread(waitObject, flag);

        ((StatusChangeNotifyThread) t0).setPeer1(t1);
        ((StatusChangeNotifyThread) t0).setPeer2(t2);
        ((StatusChangeNotifyThread) t1).setPeer1(t0);
        ((StatusChangeNotifyThread) t1).setPeer2(t2);
        ((StatusChangeNotifyThread) t2).setPeer1(t0);
        ((StatusChangeNotifyThread) t2).setPeer2(t1);

        System.out.println("\n====== >   start first Thread");
        t0.start();
        sleep(3000);
        printThreadStatus(t0, t1,t2);

        System.out.println("\n====== >   start second Thread");
        t1.start();
        sleep(3000);
        printThreadStatus(t0, t1,t2);


        System.out.println("\n====== >   start third Thread");
        t2.start();
        sleep(3000);
        printThreadStatus(t0, t1,t2);

        /**
         * 三个线程都是waiting状态
         */


        synchronized (waitObject) {
            System.out.println("\n\n\n====== >   notify first thread");
            waitObject.notifyAll();
        }

        printThreadStatus(t0, t1,t2);

//        flag = false;
//        ((StatusChangeNotifyThread) t0).setFlag(flag);
//        ((StatusChangeNotifyThread) t1).setFlag(flag);
//        ((StatusChangeNotifyThread) t2).setFlag(flag);

        sleep(10000);

        synchronized (waitObject) {
            System.out.println("\n====== >   notify second thread");
            waitObject.notifyAll();
        }
        printThreadStatus(t0, t1,t2);

        /**
         * 两个被唤醒，一个还是waiting
         */

        sleep(10000);

        System.out.println("t0: "+t0.getState());
        System.out.println("t1: "+t1.getState());
        System.out.println("t2: "+t2.getState());

        sleep(2000);

    }

    public static void sleep(int mill) {
        try {
            Thread.sleep(mill);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
    public static void printThreadStatus(Thread t0, Thread t1, Thread t2) {
        System.out.println("###### --  >>  "+t0.getName()+" "+t0.getState()+"\t"+t1.getName()+" "+t1.getState()+"\t"+t2.getName()+" "+t2.getState());
    }

    /**  这里的注释不太对（是在没有sleep的情况下，三个线程都block，然后排队依次获取锁，然后再wait的过程）
     * ====== >   start first Thread
     * come in : Thread-0 RUNNABLE    Thread-1 NEW    Thread-2 NEW
     * while : Thread-0 RUNNABLE    Thread-1 NEW    Thread-2 NEW
     * ###### --  >>  Thread-0 WAITING    Thread-1 NEW    Thread-2 NEW
     *
     * ====== >   start second Thread
     * come in : Thread-1 RUNNABLE    Thread-0 WAITING    Thread-2 NEW
     * while : Thread-1 RUNNABLE    Thread-0 WAITING    Thread-2 NEW
     * ###### --  >>  Thread-0 WAITING    Thread-1 WAITING    Thread-2 NEW
     *
     * ====== >   start third Thread
     * come in : Thread-2 RUNNABLE    Thread-0 WAITING    Thread-1 WAITING
     * while : Thread-2 RUNNABLE    Thread-0 WAITING    Thread-1 WAITING
     * ###### --  >>  Thread-0 WAITING    Thread-1 WAITING    Thread-2 WAITING
     * 注解：上面是三个线程启动
     *
     *
     ====== >   notify first thread
     ###### --  >>  Thread-0 BLOCKED    Thread-1 BLOCKED    Thread-2 BLOCKED (刚notify，三个都没抢到，都是block)
     while : Thread-2 RUNNABLE    Thread-0 BLOCKED    Thread-1 BLOCKED
     while : Thread-1 RUNNABLE    Thread-0 BLOCKED    Thread-2 WAITING
     while : Thread-0 RUNNABLE    Thread-1 WAITING    Thread-2 WAITING
     注解：这里唤醒了所有的waiting线程，刚开始主线程没有释放锁，所以都是block，然后2、1、0线程依次获得了锁，重新执行且只执行了condicion方法（不是从synchronize开始）

     ====== >   notify second thread
     ###### --  >>  Thread-0 BLOCKED    Thread-1 BLOCKED    Thread-2 BLOCKED
     while : Thread-0 RUNNABLE    Thread-1 BLOCKED    Thread-2 BLOCKED
     while : Thread-1 RUNNABLE    Thread-0 WAITING    Thread-2 BLOCKED
     while : Thread-2 RUNNABLE    Thread-0 WAITING    Thread-1 WAITING
     * 和上一次类似
     *
     * t0: WAITING
     * t1: WAITING
     * t2: WAITING
     */
}

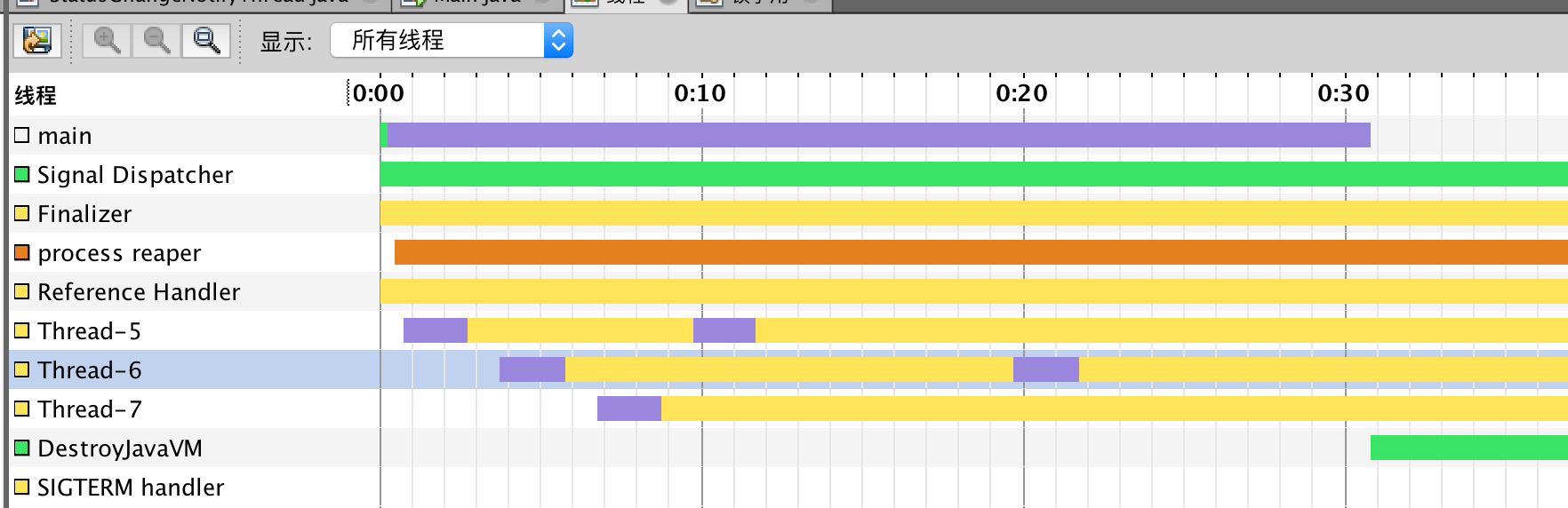

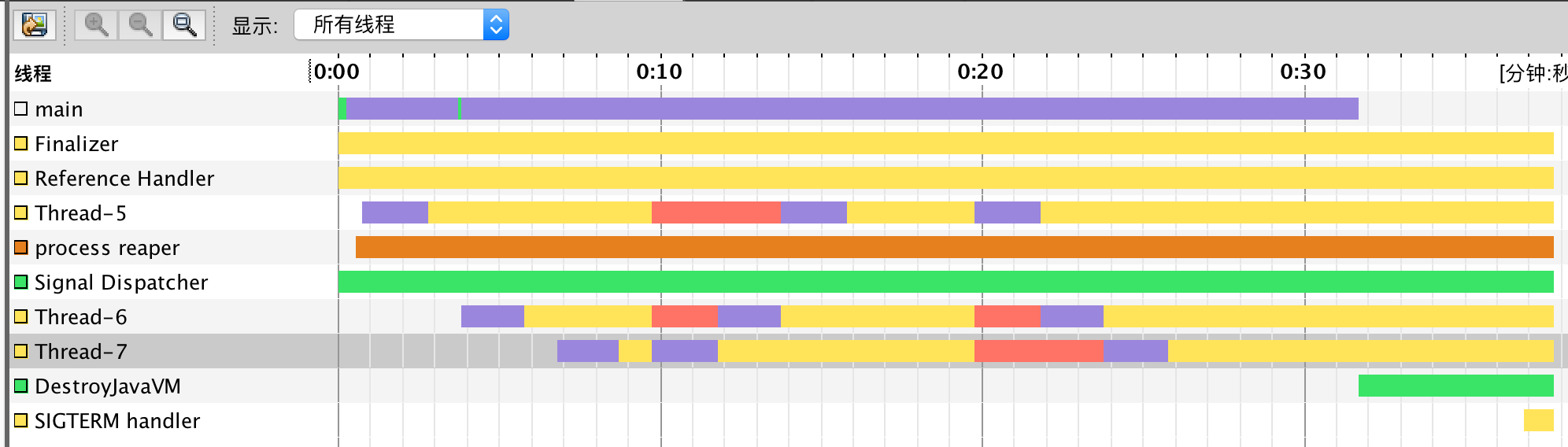

这张图是各种状态的转换过程，但是没有极短时间的线程切换过程，比如notify后还没有释放锁，被唤醒的应该是block，然后才是runnable，然后再是sleep、wait
