介绍
一个支持线程优先级排序的无界队列,默认自然序进行排序,也可以自定义实现compareTo()方法来指定元素排序规则,不能保证同优先级元素的顺序。队列中的元素必须是可比较的,即实现Comparable接口,或者在构建函数时提供可对队列元素进行比较的Comparator对象。不可以放null,会报空指针异常。
数据结构

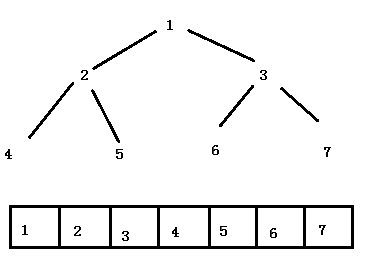

PriorityBlockingQueue内部使用heap做为存储结构,如下图:
二叉树存入数组的方式很简单,就是从上到下,从左到右。PriorityQueue的是一个有特点的完全二叉树,且不允许出现null节点,其父节点都比叶子节点小,这个是堆排序中的小顶堆。如果按数组顺序我们可以得到如下结论:
- 左叶子节点=父节点下标*2+1
- 右叶子节点=父节点下标*2+2
- 父节点=(叶子节点-1)/2

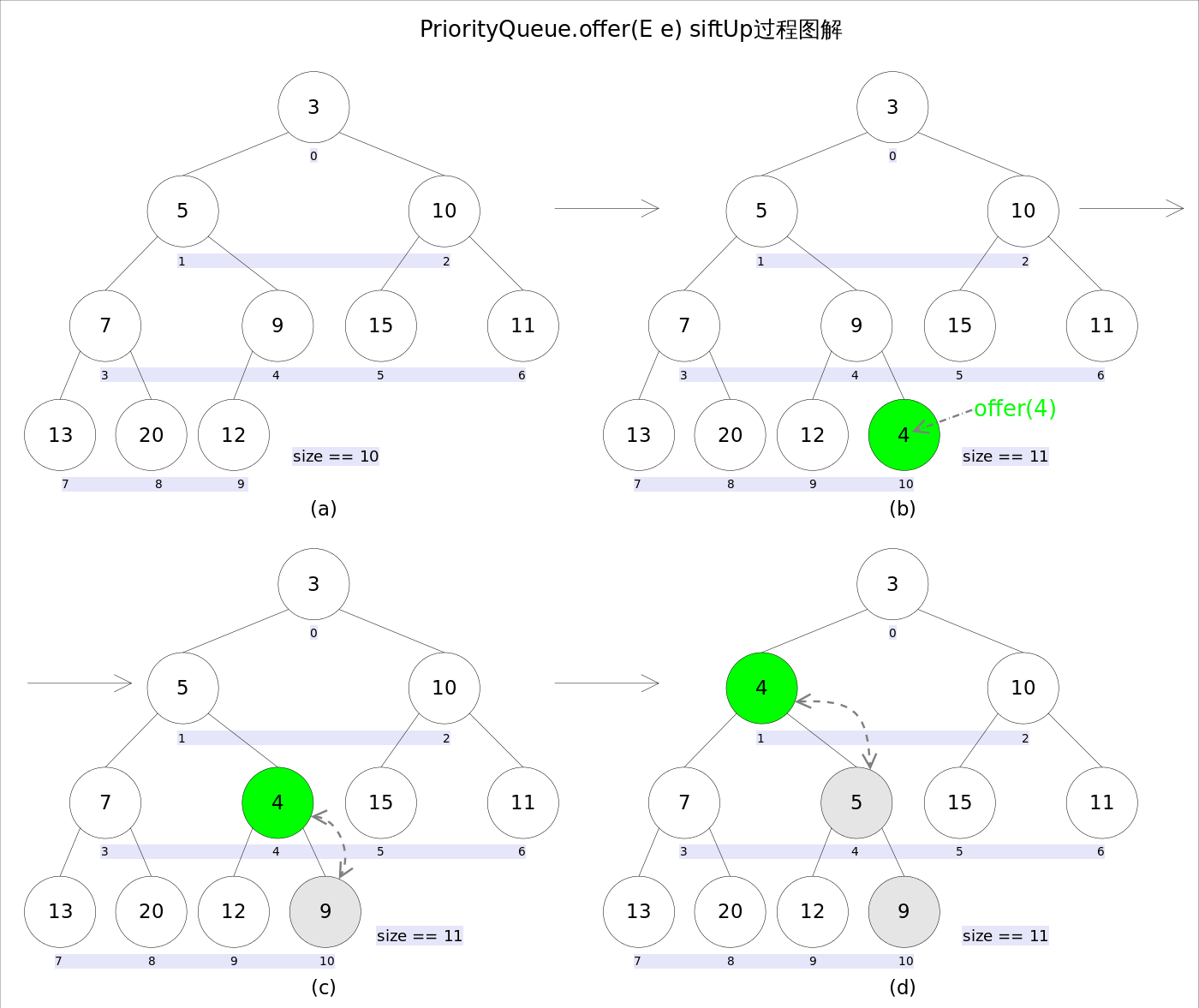

加入节点:
新加入的元素x
可能会破坏小顶堆的性质,因此需要进行调整。调整的过程为:从k
指定的位置开始,将x
逐层与当前点的parent
进行比较并交换,直到满足x >= queue[parent]
为止
获取元素
由于堆用数组表示,根据下标关系,0
下标处的那个元素既是堆顶元素。所以直接返回数组0
下标处的那个元素即可。

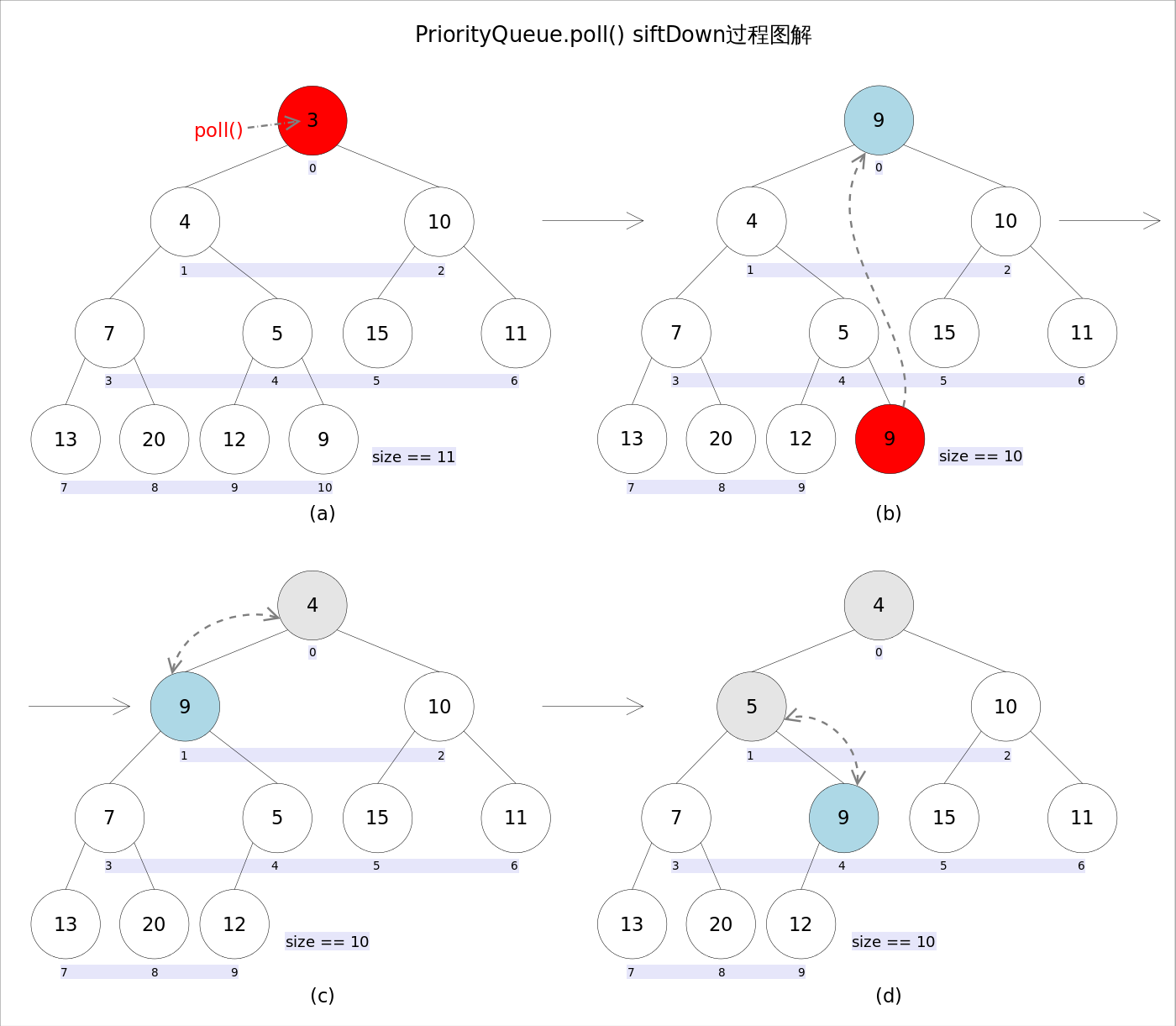

删除第一个元素
从k
指定的位置开始,将x
逐层向下与当前点的左右孩子中较小的那个交换,直到x
小于或等于左右孩子中的任何一个为止。
删除任意一个元素
由于删除操作会改变队列结构,所以要进行调整;又由于删除元素的位置可能是任意的,所以调整过程比其它函数稍加繁琐。具体来说,remove(Object o)
可以分为2种情况:1. 删除的是最后一个元素。直接删除即可,不需要调整。2. 删除的不是最后一个元素,从删除点开始以最后一个元素为参照调用一次siftDown()
即可
主要属性
/**
* 空间大小默认值:11.
*/
private static final int DEFAULT_INITIAL_CAPACITY = 11;
/**
* 空间大小最大值:Integer.MAX_VALUE - 8.
*/
private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
/**
* 队列元素数组。平衡二叉堆实现,父节点下标是n,左节点则是2n+1,右节点是2n+2。最小的元素在最前面,元素通过comparator比较。
*/
private transient Object[] queue;
/**
* 入队元素个数
*/
private transient int size;
/**
* The comparator, or null 表示自然排序
*/
private transient Comparator<? super E> comparator;
/**
* Lock used for all public operations
*/
private final ReentrantLock lock;
/**
* Condition for blocking when empty
*/
private final Condition notEmpty;
/**
*扩容数组分配资源时的自旋锁,CAS需要
*/
private transient volatile int allocationSpinLock;
/**
*只用于序列化的时候,为了兼容之前的版本。只有在序列化和反序列化的时候不为null。
*/
private PriorityQueue<E> q;
方法实现
offer,poll,peek
public boolean offer(E e) {
if (e == null)
throw new NullPointerException();
final ReentrantLock lock = this.lock;
lock.lock();
int n, cap;
Object[] array;
//如果入队数量大于或者等于heap大小,则扩容
while ((n = size) >= (cap = (array = queue).length))
tryGrow(array, cap);
try {
Comparator<? super E> cmp = comparator;
if (cmp == null)
siftUpComparable(n, e, array);
else
siftUpUsingComparator(n, e, array, cmp);
size = n + 1;
notEmpty.signal();
} finally {
lock.unlock();
}
return true;
}
public boolean offer(E e, long timeout, TimeUnit unit) {
return offer(e); // never need to block
}
public E poll() {
final ReentrantLock lock = this.lock;
lock.lock();
try {
return dequeue();
} finally {
lock.unlock();
}
}
public E poll(long timeout, TimeUnit unit) throws InterruptedException {
long nanos = unit.toNanos(timeout);
final ReentrantLock lock = this.lock;
lock.lockInterruptibly();
E result;
try {
while ( (result = dequeue()) == null && nanos > 0)
nanos = notEmpty.awaitNanos(nanos);
} finally {
lock.unlock();
}
return result;
}
public E peek() {
final ReentrantLock lock = this.lock;
lock.lock();
try {
return (size == 0) ? null : (E) queue[0];
} finally {
lock.unlock();
}
}
put,take
public void put(E e) {
offer(e); // never need to block
}
public E take() throws InterruptedException {
final ReentrantLock lock = this.lock;
lock.lockInterruptibly();
E result;
try {
while ( (result = dequeue()) == null)
notEmpty.await();
} finally {
lock.unlock();
}
return result;
}
enqueue,dequeue
private E dequeue() {
int n = size - 1;
if (n < 0)
return null;
else {
Object[] array = queue;
//array[0]即为队首。
E result = (E) array[0];
//最后一个元素
E x = (E) array[n];
array[n] = null;
Comparator<? super E> cmp = comparator;
//把最后一个元素放置在0位置。并进行下沉。
if (cmp == null)
siftDownComparable(0, x, array, n);
else
siftDownUsingComparator(0, x, array, n, cmp);
size = n;
return result;
}
}
private static <T> void siftUpComparable(int k, T x, Object[] array) {
Comparable<? super T> key = (Comparable<? super T>) x;
while (k > 0) {
int parent = (k - 1) >>> 1;
Object e = array[parent];
if (key.compareTo((T) e) >= 0)
break;
array[k] = e;
k = parent;
}
array[k] = key;
}
private static <T> void siftUpUsingComparator(int k, T x, Object[] array,
Comparator<? super T> cmp) {
while (k > 0) {
int parent = (k - 1) >>> 1;
Object e = array[parent];
if (cmp.compare(x, (T) e) >= 0)
break;
array[k] = e;
k = parent;
}
array[k] = x;
}
up,down
/**
* 在位置k处插入x。一直向root方向up,直到大于等于等于它的父亲
* @param k the position to fill
* @param x the item to insert
* @param array the heap array
*/
private static <T> void siftUpComparable(int k, T x, Object[] array) {
Comparable<? super T> key = (Comparable<? super T>) x;
while (k > 0) {
//获取父亲元素下标。
int parent = (k - 1) >>> 1;
Object e = array[parent];
//不比父亲元素小,则退出
if (key.compareTo((T) e) >= 0)
break;
array[k] = e;
k = parent;
}
//在位置k处插入x
array[k] = key;
}
private static <T> void siftUpUsingComparator(int k, T x, Object[] array,
Comparator<? super T> cmp) {
while (k > 0) {
int parent = (k - 1) >>> 1;
Object e = array[parent];
if (cmp.compare(x, (T) e) >= 0)
break;
array[k] = e;
k = parent;
}
array[k] = x;
}
/**
* 在k处插入x,将x逐层向下与当前点的左右孩子中较小的那个交换,直到x小于或等于左右孩子中的任何一个为止
* @param k the position to fill
* @param x the item to insert
* @param array the heap array
* @param n heap size
*/
private static <T> void siftDownComparable(int k, T x, Object[] array,
int n) {
if (n > 0) {
Comparable<? super T> key = (Comparable<? super T>)x;
int half = n >>> 1; // k <half,才可能有子节点。
while (k < half) {
int child = (k << 1) + 1; // assume left child is least
Object c = array[child];
int right = child + 1;
//有右孩子,并且右孩子值小于或者右孩子,则与右孩子进行交换
if (right < n &&
((Comparable<? super T>) c).compareTo((T) array[right]) > 0)
c = array[child = right];
//如果值小于孩子,直接退出
if (key.compareTo((T) c) <= 0)
break;
//否则,k处放置孩子的值,k设置为孩子的位置
array[k] = c;
k = child;
}
array[k] = key;
}
}
private static <T> void siftDownUsingComparator(int k, T x, Object[] array,
int n,
Comparator<? super T> cmp) {
if (n > 0) {
int half = n >>> 1;
while (k < half) {
int child = (k << 1) + 1;
Object c = array[child];
int right = child + 1;
if (right < n && cmp.compare((T) c, (T) array[right]) > 0)
c = array[child = right];
if (cmp.compare(x, (T) c) <= 0)
break;
array[k] = c;
k = child;
}
array[k] = x;
}
}
private void removeAt(int i) {
Object[] array = queue;
int n = size - 1;
if (n == i) // 最后一个元素
array[i] = null;
else {
E moved = (E) array[n];
array[n] = null;
Comparator<? super E> cmp = comparator;
if (cmp == null)
siftDownComparable(i, moved, array, n);
else
siftDownUsingComparator(i, moved, array, n, cmp);
//如果是最后一个元素移动到i,说明未下层,则UP
if (array[i] == moved) {
if (cmp == null)
siftUpComparable(i, moved, array);
else
siftUpUsingComparator(i, moved, array, cmp);
}
}
size = n;
}
注意
- 所有入库操作,例如offer,put等都不会阻塞,因为队列是无界的。
