软件需求
-

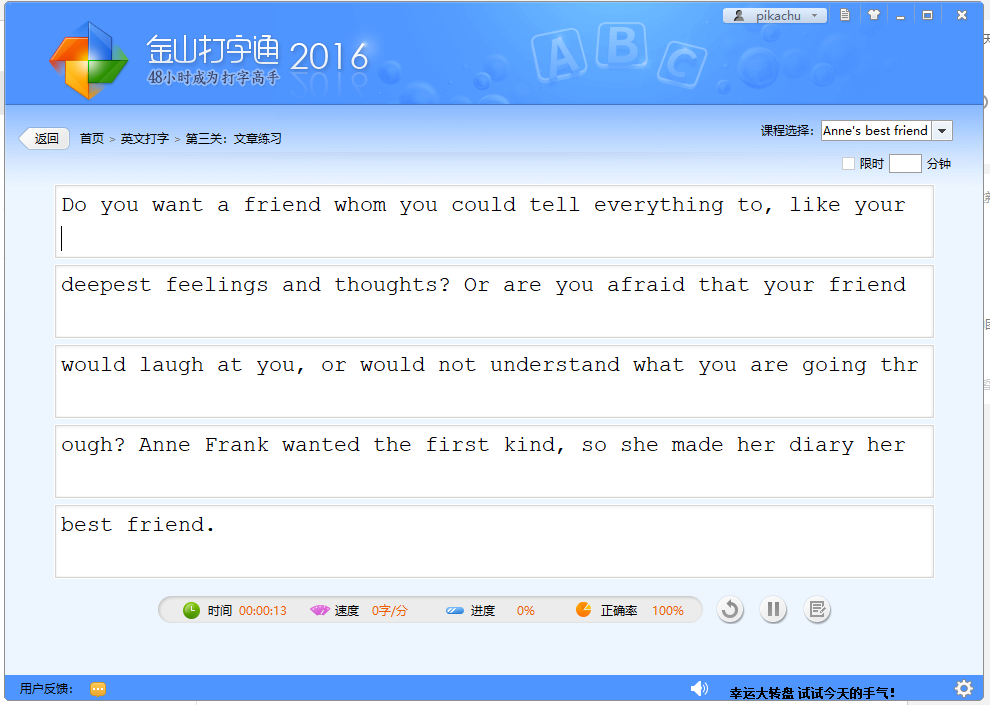

打字练习的UI界面保持和windows版本一致
-
图标从简,只显示文字
- 时间
- 速度
- 进度
- 正确率
- 重置
- 暂停
-
课程选择,使用下拉列表框
-
去掉其他的部分
-
打字的部分实现
- 仅支持英文
- 需要打的字为黑色,打字正确变成灰色,错误变成红色,都需要变
- 自动换行
- 每篇文章分成多个页,不同页之前不能干扰
- 每页有5行输入的文本

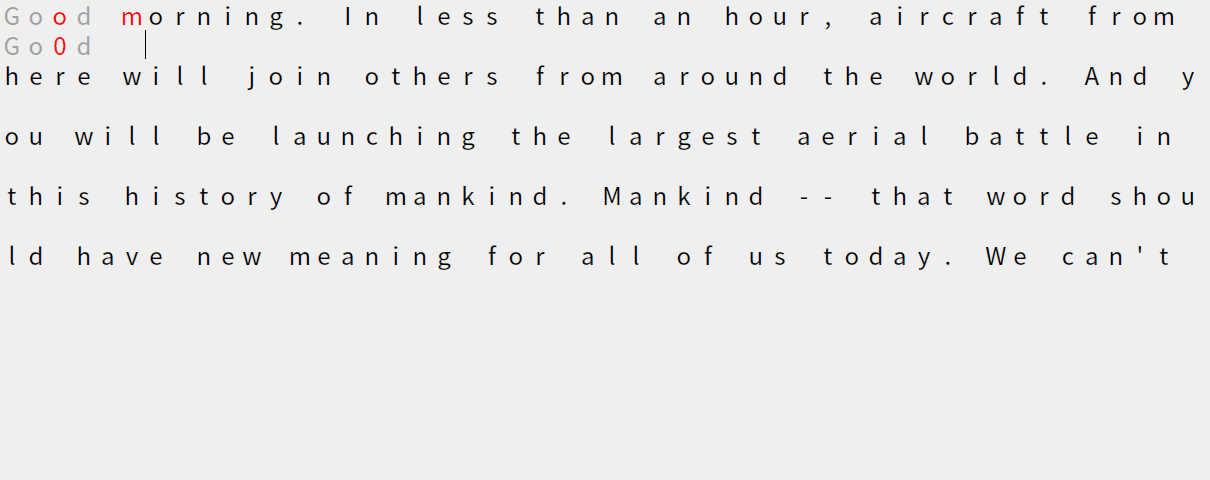

当前实现的一个核心展示
后面继续完善。
代码很简单
头文件
#ifndef WIDGET_H
#define WIDGET_H
#include <QWidget>
class Widget : public QWidget
{
Q_OBJECT
public:
Widget(QWidget *parent = 0);
~Widget();
// QWidget interface
protected:
void paintEvent(QPaintEvent *event) override;
void keyReleaseEvent(QKeyEvent *event) override;
private:
QRect genTargetTextRect(int i, int j);
QRect genInputTextRect(int i, int j);
QLineF genCursorLine(int i, int j);
void drawWrongChar(QPainter &painter, int i, int j, QChar targetCh, QChar inputCh);
void drawCorrectChar(QPainter &painter, int i, int j, QChar ch);
void drawCursor(QPainter &painter);
void nextPageJudge();
private:
QString m_text;
QString m_input;
QStringList m_pageText;
int m_eachLineCharCount;
int m_fontWidth;
int m_lineHeight;
bool m_cursorShow;
int m_pageNum;
int m_eachPageLineCount;
};
#endif // WIDGET_H
cpp文件
#include "widget.h"
#include <QtCore>
#include <QtWidgets>
Widget::Widget(QWidget *parent)
: QWidget(parent)
{
m_eachLineCharCount = 50;
m_fontWidth = 24;
m_lineHeight = 30;
m_cursorShow = true;
m_pageNum = 0;
m_eachPageLineCount = 5;
resize(m_eachLineCharCount * m_fontWidth + 10, height());
QFile file(":/test.txt");
file.open(QIODevice::ReadOnly);
auto text = file.readAll();
for(int i = 0; i * m_eachPageLineCount * m_eachLineCharCount < text.length(); i++ ) {
int index = i * m_eachPageLineCount * m_eachLineCharCount;
int len = m_eachPageLineCount * m_eachLineCharCount;
m_pageText.append(text.mid(index, len));
}
auto timer = new QTimer(this);
connect(timer, &QTimer::timeout, [=]() {
this->update();
});
timer->setInterval(500);
timer->start();
m_input = "Go0d ";
m_text = m_pageText[m_pageNum];
}
Widget::~Widget()
{
}
void Widget::paintEvent(QPaintEvent *event)
{
Q_UNUSED(event)
QPainter painter(this);
auto font = painter.font();
font.setPixelSize(m_fontWidth);
painter.setFont(font);
for(int i = 0; i * m_eachLineCharCount < m_text.length(); i++) {
for(int j = 0; j < m_eachLineCharCount; j++) {
int index = i * m_eachLineCharCount + j;
if (m_input.length() <= index) {
auto textRect = genTargetTextRect(i, j);
painter.drawText(textRect, Qt::AlignCenter, QString(m_text[index]));
} else {
if (m_text[index] == m_input[index]) {
drawCorrectChar(painter, i, j, m_text[index]);
} else {
drawWrongChar(painter, i, j, m_text[index], m_input[index]);
}
}
}
}
drawCursor(painter);
}
void Widget::keyReleaseEvent(QKeyEvent *event)
{
switch (event->key()) {
case Qt::Key_Backspace:
m_input.remove(m_input.length() -1, 1);
break;
default:
auto key = event->text();
if (key.isEmpty()) {
// ignore
} else {
m_input.append(key);
nextPageJudge();
}
break;
}
update();
}
QRect Widget::genTargetTextRect(int i, int j)
{
int y = i * m_lineHeight * 2;
int x = j * m_fontWidth;
return QRect(x, y, m_fontWidth, m_lineHeight);
}
QRect Widget::genInputTextRect(int i, int j)
{
int y = i * m_lineHeight * 2 + m_lineHeight;
int x = j * m_fontWidth;
return QRect(x, y, m_fontWidth, m_lineHeight);
}
QLineF Widget::genCursorLine(int i, int j)
{
int y = i * m_lineHeight * 2 + m_lineHeight;
int x = j * m_fontWidth;
return QLineF(
x + 1,
y,
x + 1,
y + m_lineHeight - 2
);
}
void Widget::drawWrongChar(QPainter& painter, int i, int j, QChar targetCh, QChar inputCh)
{
painter.save();
painter.setPen(Qt::red);
auto targetRect = genTargetTextRect(i, j);
painter.drawText(targetRect, Qt::AlignCenter, QString(targetCh));
auto inputRect = genInputTextRect(i, j);
painter.drawText(inputRect, Qt::AlignCenter, QString(inputCh));
painter.restore();
}
void Widget::drawCorrectChar(QPainter& painter, int i, int j, QChar ch)
{
painter.save();
painter.setPen(Qt::gray);
auto targetRect = genTargetTextRect(i, j);
painter.drawText(targetRect, Qt::AlignCenter, QString(ch));
auto inputRect = genInputTextRect(i, j);
painter.drawText(inputRect, Qt::AlignCenter, QString(ch));
painter.restore();
}
void Widget::drawCursor(QPainter &painter)
{
if (m_cursorShow) {
int i = m_input.length() / m_eachLineCharCount;
int j = m_input.length() % m_eachLineCharCount;
painter.drawLine(genCursorLine(i, j));
}
m_cursorShow = !m_cursorShow;
}
void Widget::nextPageJudge()
{
if (m_pageNum == m_pageText.length()) {
return;
}
if (m_input.length() == m_text.length()) {
m_pageNum++;
m_input.clear();
m_text = m_pageText[m_pageNum];
}
}
