第32节 图的存储结构

版权声明:本文为博主原创文章,未经博主允许不得转载。 https://blog.csdn.net/pt_raspi_fresher/article/details/87646826

-------------------------------------资源来源于网络,仅供自学使用,如有侵权,联系我必删.

第一:

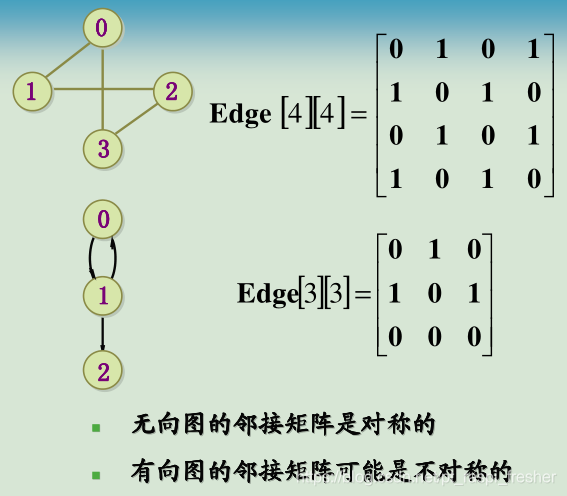

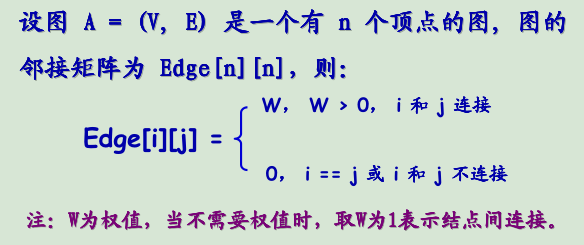

邻接矩阵法

?   基本思想 :
    ?  用一维数组存储顶点 – 描述顶点相关的数据
    ?  用二维数组存储边 – 描述顶点间的边

第二:

?  邻接矩阵法的头结点
?  记录顶点个数
?  记录与顶点相关的数据描述
?  记录描述边集的二维数组

typedef struct _tag_MGraph
{
    int count;
    MVertex** v;
    int** matrix;
} TMGraph;

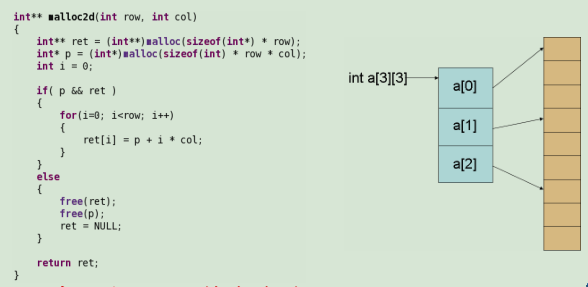

?  动态申请二维数组原理
    通过二级指针动态申请一维指针数组
    通过一级指针申请数据空间
    将一维指针数组中的指针连接到数据空间

第三

邻接矩阵法实现图结构

基于LinkQueue.h 和 LinkQueue.c 实现


#ifndef _MGRAPH_H_
#define _MGRAPH_H_

typedef void MGraph;
typedef void MVertex;
typedef void (MGraph_Printf)(MVertex*);

MGraph* MGraph_Create(MVertex** v, int n);

void MGraph_Destroy(MGraph* graph);

void MGraph_Clear(MGraph* graph);

int MGraph_AddEdge(MGraph* graph, int v1, int v2, int w);

int MGraph_RemoveEdge(MGraph* graph, int v1, int v2);

int MGraph_GetEdge(MGraph* graph, int v1, int v2);

int MGraph_TD(MGraph* graph, int v);

int MGraph_VertexCount(MGraph* graph);

int MGraph_EdgeCount(MGraph* graph);

void MGraph_DFS(MGraph* graph, int v, MGraph_Printf* pFunc);

void MGraph_BFS(MGraph* graph, int v, MGraph_Printf* pFunc);

void MGraph_Display(MGraph* graph, MGraph_Printf* pFunc);

#endif
#include <malloc.h>
#include <stdio.h>
#include "MGraph.h"
#include "LinkQueue.h"

typedef struct _tag_MGraph
{
    int count;
    MVertex** v;
    int** matrix;
} TMGraph;

static void recursive_dfs(TMGraph* graph, int v, int visited[], MGraph_Printf* pFunc)
{
    int i = 0;

    pFunc(graph->v[v]);

    visited[v] = 1;

    printf(", ");

    for(i=0; i<graph->count; i++)
    {
        if( (graph->matrix[v][i] != 0) && !visited[i] )
        {
            recursive_dfs(graph, i, visited, pFunc);
        }
    }
}

static void bfs(TMGraph* graph, int v, int visited[], MGraph_Printf* pFunc)
{
    LinkQueue* queue = LinkQueue_Create();

    if( queue != NULL )
    {
        LinkQueue_Append(queue, graph->v + v);

        visited[v] = 1;

        while( LinkQueue_Length(queue) > 0 )
        {
            int i = 0;

            v = (MVertex**)LinkQueue_Retrieve(queue) - graph->v;

            pFunc(graph->v[v]);

            printf(", ");

            for(i=0; i<graph->count; i++)
            {
                if( (graph->matrix[v][i] != 0) && !visited[i] )
                {
                    LinkQueue_Append(queue, graph->v + i);

                    visited[i] = 1;
                }
            }
        }
    }

    LinkQueue_Destroy(queue);
}

MGraph* MGraph_Create(MVertex** v, int n)  // O(n)
{
    TMGraph* ret = NULL;

    if( (v != NULL ) && (n > 0) )
    {
        ret = (TMGraph*)malloc(sizeof(TMGraph));

        if( ret != NULL )
        {
            int* p = NULL;

            ret->count = n;

            ret->v = (MVertex**)malloc(sizeof(MVertex*) * n);

            ret->matrix = (int**)malloc(sizeof(int*) * n);

            p = (int*)calloc(n * n, sizeof(int));

            if( (ret->v != NULL) && (ret->matrix != NULL) && (p != NULL) )
            {
                int i = 0;

                for(i=0; i<n; i++)
                {
                    ret->v[i] = v[i];
                    ret->matrix[i] = p + i * n;
                }
            }
            else
            {
                free(p);
                free(ret->matrix);
                free(ret->v);
                free(ret);

                ret = NULL;
            }
        }
    }

    return ret;
}

void MGraph_Destroy(MGraph* graph) // O(1)
{
    TMGraph* tGraph = (TMGraph*)graph;

    if( tGraph != NULL )
    {
        free(tGraph->v);
        free(tGraph->matrix[0]);
        free(tGraph->matrix);
        free(tGraph);
    }
}

void MGraph_Clear(MGraph* graph) // O(n*n)
{
    TMGraph* tGraph = (TMGraph*)graph;

    if( tGraph != NULL )
    {
        int i = 0;
        int j = 0;

        for(i=0; i<tGraph->count; i++)
        {
            for(j=0; j<tGraph->count; j++)
            {
                tGraph->matrix[i][j] = 0;
            }
        }
    }
}

int MGraph_AddEdge(MGraph* graph, int v1, int v2, int w) // O(1)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int ret = (tGraph != NULL);

    ret = ret && (0 <= v1) && (v1 < tGraph->count);
    ret = ret && (0 <= v2) && (v2 < tGraph->count);
    ret = ret && (0 <= w);

    if( ret )
    {
        tGraph->matrix[v1][v2] = w;
    }

    return ret;
}

int MGraph_RemoveEdge(MGraph* graph, int v1, int v2) // O(1)
{
    int ret = MGraph_GetEdge(graph, v1, v2);

    if( ret != 0 )
    {
        ((TMGraph*)graph)->matrix[v1][v2] = 0;
    }

    return ret;
}

int MGraph_GetEdge(MGraph* graph, int v1, int v2) // O(1)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int condition = (tGraph != NULL);
    int ret = 0;

    condition = condition && (0 <= v1) && (v1 < tGraph->count);
    condition = condition && (0 <= v2) && (v2 < tGraph->count);

    if( condition )
    {
        ret = tGraph->matrix[v1][v2];
    }

    return ret;
}

int MGraph_TD(MGraph* graph, int v) // O(n)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int condition = (tGraph != NULL);
    int ret = 0;

    condition = condition && (0 <= v) && (v < tGraph->count);

    if( condition )
    {
        int i = 0;

        for(i=0; i<tGraph->count; i++)
        {
            if( tGraph->matrix[v][i] != 0 )
            {
                ret++;
            }

            if( tGraph->matrix[i][v] != 0 )
            {
                ret++;
            }
        }
    }

    return ret;
}

int MGraph_VertexCount(MGraph* graph) // O(1)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int ret = 0;

    if( tGraph != NULL )
    {
        ret = tGraph->count;
    }

    return ret;
}

int MGraph_EdgeCount(MGraph* graph) // O(n*n)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int ret = 0;

    if( tGraph != NULL )
    {
        int i = 0;
        int j = 0;

        for(i=0; i<tGraph->count; i++)
        {
            for(j=0; j<tGraph->count; j++)
            {
                if( tGraph->matrix[i][j] != 0 )
                {
                    ret++;
                }
            }
        }
    }

    return ret;
}

void MGraph_DFS(MGraph* graph, int v, MGraph_Printf* pFunc)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int* visited = NULL;
    int condition = (tGraph != NULL);

    condition = condition && (0 <= v) && (v < tGraph->count);
    condition = condition && (pFunc != NULL);
    condition = condition && ((visited = (int*)calloc(tGraph->count, sizeof(int))) != NULL);

    if( condition )
    {
        int i = 0;

        recursive_dfs(tGraph, v, visited, pFunc);

        for(i=0; i<tGraph->count; i++)
        {
            if( !visited[i] )
            {
                recursive_dfs(tGraph, i, visited, pFunc);
            }
        }

        printf("\n");
    }

    free(visited);
}

void MGraph_BFS(MGraph* graph, int v, MGraph_Printf* pFunc)
{
    TMGraph* tGraph = (TMGraph*)graph;
    int* visited = NULL;
    int condition = (tGraph != NULL);

    condition = condition && (0 <= v) && (v < tGraph->count);
    condition = condition && (pFunc != NULL);
    condition = condition && ((visited = (int*)calloc(tGraph->count, sizeof(int))) != NULL);

    if( condition )
    {
        int i = 0;

        bfs(tGraph, v, visited, pFunc);

        for(i=0; i<tGraph->count; i++)
        {
            if( !visited[i] )
            {
                bfs(tGraph, i, visited, pFunc);
            }
        }

        printf("\n");
    }

    free(visited);
}

void MGraph_Display(MGraph* graph, MGraph_Printf* pFunc) // O(n*n)
{
    TMGraph* tGraph = (TMGraph*)graph;

    if( (tGraph != NULL) && (pFunc != NULL) )
    {
        int i = 0;
        int j = 0;

        for(i=0; i<tGraph->count; i++)
        {
            printf("%d:", i);
            pFunc(tGraph->v[i]);
            printf(" ");
        }

        printf("\n");

        for(i=0; i<tGraph->count; i++)
        {
            for(j=0; j<tGraph->count; j++)
            {
                if( tGraph->matrix[i][j] != 0 )
                {
                    printf("<");
                    pFunc(tGraph->v[i]);
                    printf(", ");
                    pFunc(tGraph->v[j]);
                    printf(", %d", tGraph->matrix[i][j]);
                    printf(">");
                    printf(" ");
                }
            }
        }

        printf("\n");
    }
}
#include <stdio.h>
#include <stdlib.h>
#include "MGraph.h"

/* run this program using the console pauser or add your own getch, system("pause") or input loop */

void print_data(MVertex* v)
{
    printf("%s", (char*)v);
}

int main(int argc, char *argv[])
{
    MVertex* v[] = {"A", "B", "C", "D", "E", "F"};
    MGraph* graph = MGraph_Create(v, 6);

    MGraph_AddEdge(graph, 0, 1, 1);
    MGraph_AddEdge(graph, 0, 2, 1);
    MGraph_AddEdge(graph, 0, 3, 1);
    MGraph_AddEdge(graph, 1, 5, 1);
    MGraph_AddEdge(graph, 1, 4, 1);
    MGraph_AddEdge(graph, 2, 1, 1);
    MGraph_AddEdge(graph, 3, 4, 1);
    MGraph_AddEdge(graph, 4, 2, 1);

    MGraph_Display(graph, print_data);

    MGraph_DFS(graph, 0, print_data);
    MGraph_BFS(graph, 0, print_data);

    MGraph_Destroy(graph);

	return 0;
}

第四:

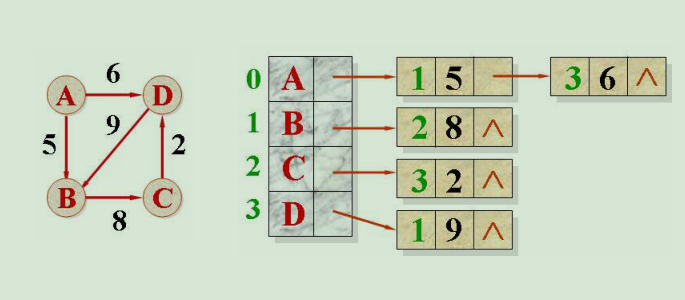

邻接链表法

?  邻接链表法的头结点
?  记录顶点个数
?  记录与顶点相关的数据描述
?  记录描述边集的链表数组

typedef struct _tag_LGraph
{
    int count;
    LVertex** v;
    LinkList** la;
} TLGraph;

第五:

邻接链表法实现图结构

基于LinkQueue.h 和 LinkQueue.c 实现


#ifndef _LGRAPH_H_
#define _LGRAPH_H_

typedef void LGraph;
typedef void LVertex;
typedef void (LGraph_Printf)(LVertex*);

LGraph* LGraph_Create(LVertex** v, int n);

void LGraph_Destroy(LGraph* graph);

void LGraph_Clear(LGraph* graph);

int LGraph_AddEdge(LGraph* graph, int v1, int v2, int w);

int LGraph_RemoveEdge(LGraph* graph, int v1, int v2);

int LGraph_GetEdge(LGraph* graph, int v1, int v2);

int LGraph_TD(LGraph* graph, int v);

int LGraph_VertexCount(LGraph* graph);

int LGraph_EdgeCount(LGraph* graph);

void LGraph_DFS(LGraph* graph, int v, LGraph_Printf* pFunc);

void LGraph_BFS(LGraph* graph, int v, LGraph_Printf* pFunc);

void LGraph_Display(LGraph* graph, LGraph_Printf* pFunc);

#endif
#include <malloc.h>
#include <stdio.h>
#include "LGraph.h"
#include "LinkList.h"
#include "LinkQueue.h"

typedef struct _tag_LGraph
{
    int count;
    LVertex** v;
    LinkList** la;
} TLGraph;

typedef struct _tag_ListNode
{
    LinkListNode header;
    int v;
    int w;
} TListNode;

static void recursive_dfs(TLGraph* graph, int v, int visited[], LGraph_Printf* pFunc)
{
    int i = 0;

    pFunc(graph->v[v]);

    visited[v] = 1;

    printf(", ");

    for(i=0; i<LinkList_Length(graph->la[v]); i++)
    {
        TListNode* node = (TListNode*)LinkList_Get(graph->la[v], i);

        if( !visited[node->v] )
        {
            recursive_dfs(graph, node->v, visited, pFunc);
        }
    }
}

static void bfs(TLGraph* graph, int v, int visited[], LGraph_Printf* pFunc)
{
    LinkQueue* queue = LinkQueue_Create();

    if( queue != NULL )
    {
        LinkQueue_Append(queue, graph->v + v);

        visited[v] = 1;

        while( LinkQueue_Length(queue) > 0 )
        {
            int i = 0;

            v = (LVertex**)LinkQueue_Retrieve(queue) - graph->v;

            pFunc(graph->v[v]);

            printf(", ");

            for(i=0; i<LinkList_Length(graph->la[v]); i++)
            {
                TListNode* node = (TListNode*)LinkList_Get(graph->la[v], i);

                if( !visited[node->v] )
                {
                    LinkQueue_Append(queue, graph->v + node->v);

                    visited[node->v] = 1;
                }
            }
        }
    }

    LinkQueue_Destroy(queue);
}

LGraph* LGraph_Create(LVertex** v, int n)  // O(n)
{
    TLGraph* ret = NULL;
    int ok = 1;

    if( (v != NULL ) && (n > 0) )
    {
        ret = (TLGraph*)malloc(sizeof(TLGraph));

        if( ret != NULL )
        {
            ret->count = n;

            ret->v = (LVertex**)calloc(n, sizeof(LVertex*));

            ret->la = (LinkList**)calloc(n, sizeof(LinkList*));

            ok = (ret->v != NULL) && (ret->la != NULL);

            if( ok )
            {
                int i = 0;

                for(i=0; i<n; i++)
                {
                    ret->v[i] = v[i];
                }

                for(i=0; (i<n) && ok; i++)
                {
                    ok = ok && ((ret->la[i] = LinkList_Create()) != NULL);
                }
            }

            if( !ok )
            {
                if( ret->la != NULL )
                {
                    int i = 0;

                    for(i=0; i<n; i++)
                    {
                        LinkList_Destroy(ret->la[i]);
                    }
                }

                free(ret->la);
                free(ret->v);
                free(ret);

                ret = NULL;
            }
        }
    }

    return ret;
}

void LGraph_Destroy(LGraph* graph) // O(n*n)
{
    TLGraph* tGraph = (TLGraph*)graph;

    LGraph_Clear(tGraph);

    if( tGraph != NULL )
    {
        int i = 0;

        for(i=0; i<tGraph->count; i++)
        {
            LinkList_Destroy(tGraph->la[i]);
        }

        free(tGraph->la);
        free(tGraph->v);
        free(tGraph);
    }
}

void LGraph_Clear(LGraph* graph) // O(n*n)
{
    TLGraph* tGraph = (TLGraph*)graph;

    if( tGraph != NULL )
    {
        int i = 0;

        for(i=0; i<tGraph->count; i++)
        {
            while( LinkList_Length(tGraph->la[i]) > 0 )
            {
                free(LinkList_Delete(tGraph->la[i], 0));
            }
        }
    }
}

int LGraph_AddEdge(LGraph* graph, int v1, int v2, int w) // O(1)
{
    TLGraph* tGraph = (TLGraph*)graph;
    TListNode* node = NULL;
    int ret = (tGraph != NULL);

    ret = ret && (0 <= v1) && (v1 < tGraph->count);
    ret = ret && (0 <= v2) && (v2 < tGraph->count);
    ret = ret && (0 < w) && ((node = (TListNode*)malloc(sizeof(TListNode))) != NULL);

    if( ret )
    {
       node->v = v2;
       node->w = w;

       LinkList_Insert(tGraph->la[v1], (LinkListNode*)node, 0);
    }

    return ret;
}

int LGraph_RemoveEdge(LGraph* graph, int v1, int v2) // O(n*n)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int condition = (tGraph != NULL);
    int ret = 0;

    condition = condition && (0 <= v1) && (v1 < tGraph->count);
    condition = condition && (0 <= v2) && (v2 < tGraph->count);

    if( condition )
    {
        TListNode* node = NULL;
        int i = 0;

        for(i=0; i<LinkList_Length(tGraph->la[v1]); i++)
        {
            node = (TListNode*)LinkList_Get(tGraph->la[v1], i);

            if( node->v == v2)
            {
                ret = node->w;

                LinkList_Delete(tGraph->la[v1], i);

                free(node);

                break;
            }
        }
    }

    return ret;
}

int LGraph_GetEdge(LGraph* graph, int v1, int v2) // O(n*n)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int condition = (tGraph != NULL);
    int ret = 0;

    condition = condition && (0 <= v1) && (v1 < tGraph->count);
    condition = condition && (0 <= v2) && (v2 < tGraph->count);

    if( condition )
    {
        TListNode* node = NULL;
        int i = 0;

        for(i=0; i<LinkList_Length(tGraph->la[v1]); i++)
        {
            node = (TListNode*)LinkList_Get(tGraph->la[v1], i);

            if( node->v == v2)
            {
                ret = node->w;

                break;
            }
        }
    }

    return ret;
}

int LGraph_TD(LGraph* graph, int v) // O(n*n*n)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int condition = (tGraph != NULL);
    int ret = 0;

    condition = condition && (0 <= v) && (v < tGraph->count);

    if( condition )
    {
        int i = 0;
        int j = 0;

        for(i=0; i<tGraph->count; i++)
        {
            for(j=0; j<LinkList_Length(tGraph->la[i]); j++)
            {
                TListNode* node = (TListNode*)LinkList_Get(tGraph->la[i], j);

                if( node->v == v )
                {
                    ret++;
                }
            }
        }

        ret += LinkList_Length(tGraph->la[v]);
    }

    return ret;
}

int LGraph_VertexCount(LGraph* graph) // O(1)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int ret = 0;

    if( tGraph != NULL )
    {
        ret = tGraph->count;
    }

    return ret;
}

int LGraph_EdgeCount(LGraph* graph) // O(n)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int ret = 0;

    if( tGraph != NULL )
    {
        int i = 0;

        for(i=0; i<tGraph->count; i++)
        {
            ret += LinkList_Length(tGraph->la[i]);
        }
    }

    return ret;
}

void LGraph_DFS(LGraph* graph, int v, LGraph_Printf* pFunc)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int* visited = NULL;
    int condition = (tGraph != NULL);

    condition = condition && (0 <= v) && (v < tGraph->count);
    condition = condition && (pFunc != NULL);
    condition = condition && ((visited = (int*)calloc(tGraph->count, sizeof(int))) != NULL);

    if( condition )
    {
        int i = 0;

        recursive_dfs(tGraph, v, visited, pFunc);

        for(i=0; i<tGraph->count; i++)
        {
            if( !visited[i] )
            {
                recursive_dfs(tGraph, i, visited, pFunc);
            }
        }

        printf("\n");
    }

    free(visited);
}

void LGraph_BFS(LGraph* graph, int v, LGraph_Printf* pFunc)
{
    TLGraph* tGraph = (TLGraph*)graph;
    int* visited = NULL;
    int condition = (tGraph != NULL);

    condition = condition && (0 <= v) && (v < tGraph->count);
    condition = condition && (pFunc != NULL);
    condition = condition && ((visited = (int*)calloc(tGraph->count, sizeof(int))) != NULL);

    if( condition )
    {
        int i = 0;

        bfs(tGraph, v, visited, pFunc);

        for(i=0; i<tGraph->count; i++)
        {
            if( !visited[i] )
            {
                bfs(tGraph, i, visited, pFunc);
            }
        }

        printf("\n");
    }

    free(visited);
}

void LGraph_Display(LGraph* graph, LGraph_Printf* pFunc) // O(n*n*n)
{
    TLGraph* tGraph = (TLGraph*)graph;

    if( (tGraph != NULL) && (pFunc != NULL) )
    {
        int i = 0;
        int j = 0;

        for(i=0; i<tGraph->count; i++)
        {
            printf("%d:", i);
            pFunc(tGraph->v[i]);
            printf(" ");
        }

        printf("\n");

        for(i=0; i<tGraph->count; i++)
        {
            for(j=0; j<LinkList_Length(tGraph->la[i]); j++)
            {
                TListNode* node = (TListNode*)LinkList_Get(tGraph->la[i], j);

                printf("<");
                pFunc(tGraph->v[i]);
                printf(", ");
                pFunc(tGraph->v[node->v]);
                printf(", %d", node->w);
                printf(">");
                printf(" ");
            }
        }

        printf("\n");
    }
}
#include <stdio.h>
#include <stdlib.h>
#include "LGraph.h"

/* run this program using the console pauser or add your own getch, system("pause") or input loop */

void print_data(LVertex* v)
{
    printf("%s", (char*)v);
}

int main(int argc, char *argv[])
{
    LVertex* v[] = {"A", "B", "C", "D", "E", "F"};
    LGraph* graph = LGraph_Create(v, 6);

    LGraph_AddEdge(graph, 0, 1, 1);
    LGraph_AddEdge(graph, 0, 2, 1);
    LGraph_AddEdge(graph, 0, 3, 1);
    LGraph_AddEdge(graph, 1, 5, 1);
    LGraph_AddEdge(graph, 1, 4, 1);
    LGraph_AddEdge(graph, 2, 1, 1);
    LGraph_AddEdge(graph, 3, 4, 1);
    LGraph_AddEdge(graph, 4, 2, 1);

    LGraph_Display(graph, print_data);

    LGraph_DFS(graph, 0, print_data);
    LGraph_BFS(graph, 0, print_data);

    LGraph_Destroy(graph);

	return 0;
}

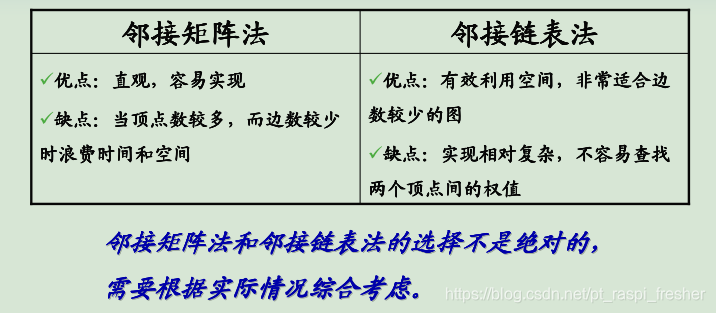

小结

猜你喜欢

转载自blog.csdn.net/pt_raspi_fresher/article/details/87646826
