当我们把web项目丢进tomcat等web容器后启动时会思考俩个问题:一,spring容器是怎么启动的,二,springmvc各组件是怎么加载的。再容器启动后我们对springmvc对各请求的处理也充满好奇心。那么我们对springmvc源码的分析也通过三部分来完成,本文主要是分析spring容器的启动,也就是web容器是怎样找到spring的配置文件并完成bean定义的加载和注入。
1.我们看看web.xml的配置:
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
version="3.0">
<!-- The definition of the Root Spring Container shared by all Servlets
and Filters -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext-root.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- Processes application requests -->
<servlet>
<servlet-name>appServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-mvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
<async-supported>true</async-supported>
</servlet>
<servlet-mapping>
<servlet-name>appServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
这是web.xml的最简配置,没有写任何的filter,因为过滤器对我们分析并没有影响,在web.xml中对加入springbean功能的配置主要是这俩句:
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext-root.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
一个contextConfigLocation参数和一个监听器。
问题一:这个监听器如何运行的,为什么web容器会自动运行这个监听器?
/*
* Copyright 2002-2013 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.springframework.web.context;
import javax.servlet.ServletContextEvent;
import javax.servlet.ServletContextListener;
/**
* Bootstrap listener to start up and shut down Spring's root {@link WebApplicationContext}.
* Simply delegates to {@link ContextLoader} as well as to {@link ContextCleanupListener}.
*
* <p>This listener should be registered after
* {@link org.springframework.web.util.Log4jConfigListener}
* in {@code web.xml}, if the latter is used.
*
* <p>As of Spring 3.1, {@code ContextLoaderListener} supports injecting the root web
* application context via the {@link #ContextLoaderListener(WebApplicationContext)}
* constructor, allowing for programmatic configuration in Servlet 3.0+ environments. See
* {@link org.springframework.web.WebApplicationInitializer} for usage examples.
*
* @author Juergen Hoeller
* @author Chris Beams
* @since 17.02.2003
* @see org.springframework.web.WebApplicationInitializer
* @see org.springframework.web.util.Log4jConfigListener
*/
public class ContextLoaderListener extends ContextLoader implements ServletContextListener {
/**
* Create a new {@code ContextLoaderListener} that will create a web application
* context based on the "contextClass" and "contextConfigLocation" servlet
* context-params. See {@link ContextLoader} superclass documentation for details on
* default values for each.
* <p>This constructor is typically used when declaring {@code ContextLoaderListener}
* as a {@code <listener>} within {@code web.xml}, where a no-arg constructor is
* required.
* <p>The created application context will be registered into the ServletContext under
* the attribute name {@link WebApplicationContext#ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE}
* and the Spring application context will be closed when the {@link #contextDestroyed}
* lifecycle method is invoked on this listener.
* @see ContextLoader
* @see #ContextLoaderListener(WebApplicationContext)
* @see #contextInitialized(ServletContextEvent)
* @see #contextDestroyed(ServletContextEvent)
*/
public ContextLoaderListener() {
}
/**
* Create a new {@code ContextLoaderListener} with the given application context. This
* constructor is useful in Servlet 3.0+ environments where instance-based
* registration of listeners is possible through the {@link javax.servlet.ServletContext#addListener}
* API.
* <p>The context may or may not yet be {@linkplain
* org.springframework.context.ConfigurableApplicationContext#refresh() refreshed}. If it
* (a) is an implementation of {@link ConfigurableWebApplicationContext} and
* (b) has <strong>not</strong> already been refreshed (the recommended approach),
* then the following will occur:
* <ul>
* <li>If the given context has not already been assigned an {@linkplain
* org.springframework.context.ConfigurableApplicationContext#setId id}, one will be assigned to it</li>
* <li>{@code ServletContext} and {@code ServletConfig} objects will be delegated to
* the application context</li>
* <li>{@link #customizeContext} will be called</li>
* <li>Any {@link org.springframework.context.ApplicationContextInitializer ApplicationContextInitializer}s
* specified through the "contextInitializerClasses" init-param will be applied.</li>
* <li>{@link org.springframework.context.ConfigurableApplicationContext#refresh refresh()} will be called</li>
* </ul>
* If the context has already been refreshed or does not implement
* {@code ConfigurableWebApplicationContext}, none of the above will occur under the
* assumption that the user has performed these actions (or not) per his or her
* specific needs.
* <p>See {@link org.springframework.web.WebApplicationInitializer} for usage examples.
* <p>In any case, the given application context will be registered into the
* ServletContext under the attribute name {@link
* WebApplicationContext#ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE} and the Spring
* application context will be closed when the {@link #contextDestroyed} lifecycle
* method is invoked on this listener.
* @param context the application context to manage
* @see #contextInitialized(ServletContextEvent)
* @see #contextDestroyed(ServletContextEvent)
*/
public ContextLoaderListener(WebApplicationContext context) {
super(context);
}
/**
* Initialize the root web application context.
*/
@Override
public void contextInitialized(ServletContextEvent event) {
initWebApplicationContext(event.getServletContext());
}
/**
* Close the root web application context.
*/
@Override
public void contextDestroyed(ServletContextEvent event) {
closeWebApplicationContext(event.getServletContext());
ContextCleanupListener.cleanupAttributes(event.getServletContext());
}
}
通过ContextLoaderListener的源码可知,ContextLoaderListener继承于ContextLoader实现了ServletContextListener接口。ServletContextListener接口是ContextLoaderListener能在web容器启动的时候运行的关键,因为web容器启动创建Servlet时会运行ServletContextListener中的contextInitialized方法,在web容器关闭销毁servlet时会ServletContextListener中的contextDestroyed方法,关于为什么会运行,这就涉及到web容器源码内容,我们会在以后的tomcat容器源码的讲解来说明。这里就不展开了。
现在我们已经解决了第一个问题,ContextLoaderListener如何启动的。
第二个问题:spring的启动过程是怎么样的?如何利用上了context-param这个参数?
通过上面分析我们知道启动时会调用contextLoaderLister中的contextInitialized方法,在contextLoaderLister的源码中:
public void contextInitialized(ServletContextEvent event) {
initWebApplicationContext(event.getServletContext());
}
我们在来看initWebApplicationContext方法:
public WebApplicationContext initWebApplicationContext(ServletContext servletContext) {
if (servletContext.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE) != null) {
throw new IllegalStateException(
"Cannot initialize context because there is already a root application context present - " +
"check whether you have multiple ContextLoader* definitions in your web.xml!");
}
Log logger = LogFactory.getLog(ContextLoader.class);
servletContext.log("Initializing Spring root WebApplicationContext");
if (logger.isInfoEnabled()) {
logger.info("Root WebApplicationContext: initialization started");
}
long startTime = System.currentTimeMillis();
try {
// Store context in local instance variable, to guarantee that
// it is available on ServletContext shutdown.
//创建WebApplicationContext
if (this.context == null) {
this.context = createWebApplicationContext(servletContext);
}
//设置父容器和刷新容器
if (this.context instanceof ConfigurableWebApplicationContext) {
ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context;
if (!cwac.isActive()) {
// The context has not yet been refreshed -> provide services such as
// setting the parent context, setting the application context id, etc
if (cwac.getParent() == null) {
// The context instance was injected without an explicit parent ->
// determine parent for root web application context, if any.
ApplicationContext parent = loadParentContext(servletContext);
cwac.setParent(parent);
}
configureAndRefreshWebApplicationContext(cwac, servletContext);
}
}
//把激活的spring容器注入到当前的servletContext中。
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.context);
ClassLoader ccl = Thread.currentThread().getContextClassLoader();
if (ccl == ContextLoader.class.getClassLoader()) {
currentContext = this.context;
}
//把创建的spring容器放入缓存中。
else if (ccl != null) {
currentContextPerThread.put(ccl, this.context);
}
if (logger.isDebugEnabled()) {
logger.debug("Published root WebApplicationContext as ServletContext attribute with name [" +
WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE + "]");
}
if (logger.isInfoEnabled()) {
long elapsedTime = System.currentTimeMillis() - startTime;
logger.info("Root WebApplicationContext: initialization completed in " + elapsedTime + " ms");
}
return this.context;
}
catch (RuntimeException ex) {
logger.error("Context initialization failed", ex);
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, ex);
throw ex;
}
catch (Error err) {
logger.error("Context initialization failed", err);
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, err);
throw err;
}
}
总结一下次方法完成的功能:
1.创建WebApplicationContext

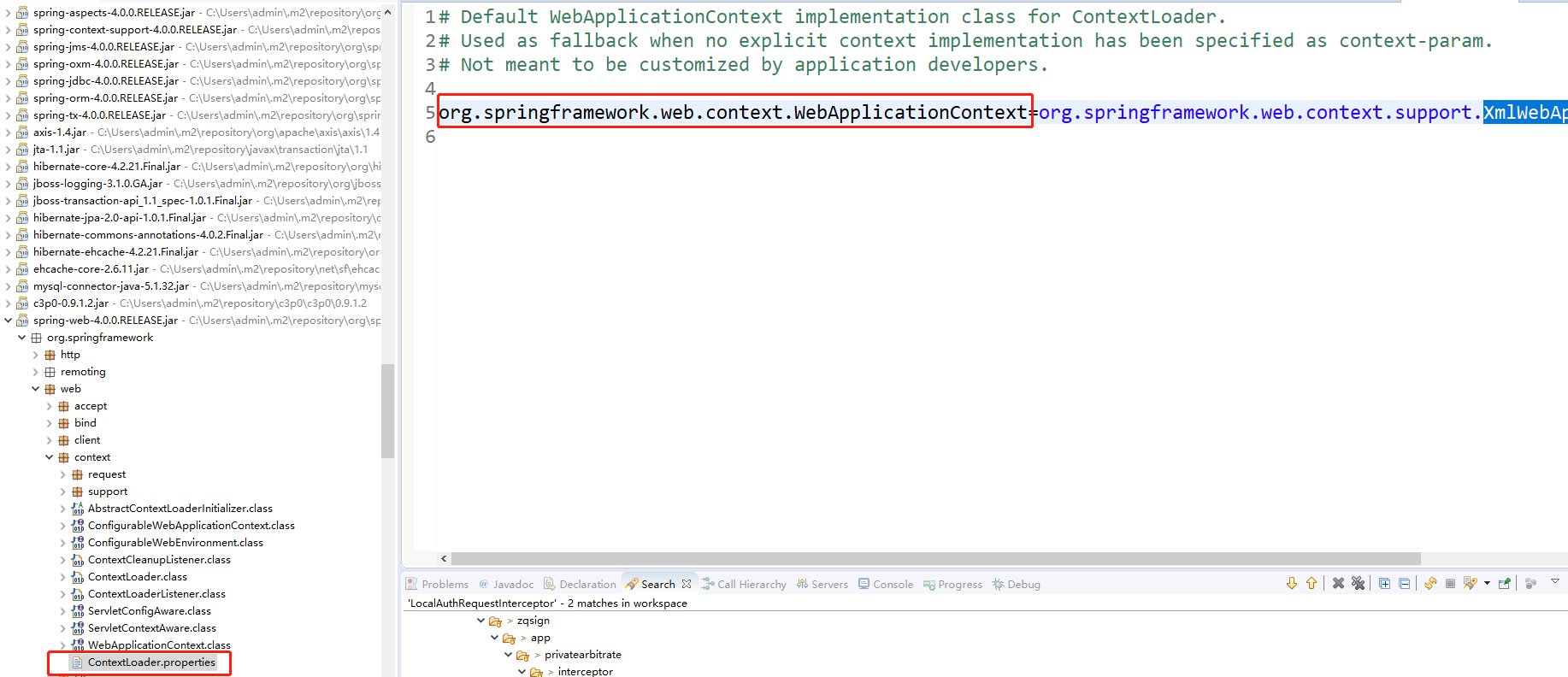

这里不详细分析,大概的思路是先从web.xml查看有没有配置contextClass,没有则取默认的配置通过反射创建实例,这个默认配置是ContextLoader.properties中,可以看到是XmlWebApplicationContext类。
2.设置父容器和刷新容器
上一步我们只是创建了XmlWebApplicationContext的实例,没有进行applicationContext.xml的读取和bean定义的加载和单例bean的实例化,这些功能都是在此进行的。
3.把激活的spring容器注入到当前的servletContext中。
4.把创建的spring容器放入缓存中。
configureAndRefreshWebApplicationContext方法:
protected void configureAndRefreshWebApplicationContext(ConfigurableWebApplicationContext wac, ServletContext sc) {
if (ObjectUtils.identityToString(wac).equals(wac.getId())) {
// The application context id is still set to its original default value
// -> assign a more useful id based on available information
//读取web.xml中的contextId属性并注入,没有则生成一个默认的
String idParam = sc.getInitParameter(CONTEXT_ID_PARAM);
if (idParam != null) {
wac.setId(idParam);
}
else {
// Generate default id...
wac.setId(ConfigurableWebApplicationContext.APPLICATION_CONTEXT_ID_PREFIX +
ObjectUtils.getDisplayString(sc.getContextPath()));
}
}
wac.setServletContext(sc);
//读取contextConfigLocation属性并注入
String initParameter = sc.getInitParameter(CONFIG_LOCATION_PARAM);
if (initParameter != null) {
wac.setConfigLocation(initParameter);
}
//自定义的contextInitializerClasses的调用
customizeContext(sc, wac);
//bean定义的加载和非懒加载,单例bean的实例化
wac.refresh();
}
此方法的功能:
1.读取web.xml中的contextId属性并注入,没有则生成一个默认的
2.读取contextConfigLocation属性并注入
这里就是对:
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext-root.xml</param-value>
</context-param>
此配置的解析和注入
3.自定义的contextInitializerClasses的调用
这里主要是加载用户自定义的上下文属性,要实现ApplicationContextInitializer接口,目前我还没使用过,但网友有分析在springboot中有大量使用。
4.bean定义的加载和非懒加载,单例bean的实例化
这里就是我们之前分析过的refresh方法。这里就不赘述了。
至此,本文要分析的部分就说完了,也就解决了我们要分析的第一个问题:spring容器的初始化,那么我们就剩下俩个问题:springmvc组件的加载和请求的处理过程。
