9.迭代器与组合模式

版权声明：本文为博主原创文章，未经博主允许不得转载。 https://blog.csdn.net/cuicanxingchen123456/article/details/84306752

Head-First-Design-Patterns-master\src\headfirst\designpatterns\iterator

Head-First-Design-Patterns-master\src\headfirst\designpatterns\composite

迭代器模式定义：提供一种方法顺序访问一个集合对象中的各个元素，而又不暴漏其内部的表示

案例：

对象村餐厅和对象村煎饼屋合并了

对象村餐厅菜单用的是ArrayList存储清单

对象村煎饼屋菜单用的是数据存储清单

实现一个java版的服务员。

例如实现取出清单，两种方法

ArrayList menu 使用menu.get(i)

MenuItem[] menu 使用 menu[i]

扫描二维码关注公众号，回复： 5393571 查看本文章

使用迭代器方式兼容

ArrayList和数组都使用

Iterator it=menu.createIterator();

hasNext（）和next（）方法

public class DinerMenu implements Menu {
    static final int MAX_ITEMS = 6;
    int numberOfItems = 0;
    MenuItem[] menuItems;

    public DinerMenu() {
        menuItems = new MenuItem[MAX_ITEMS];
        addItem("Vegetarian BLT",
            "(Fakin') Bacon with lettuce & tomato on whole wheat", true, 2.99);
        addItem("BLT",
            "Bacon with lettuce & tomato on whole wheat", false, 2.99);
        addItem("Soup of the day",
            "Soup of the day, with a side of potato salad", false, 3.29);
        addItem("Hotdog",
            "A hot dog, with saurkraut, relish, onions, topped with cheese",
            false, 3.05);
        addItem("Steamed Veggies and Brown Rice",
            "Steamed vegetables over brown rice", true, 3.99);
        addItem("Pasta",
            "Spaghetti with Marinara Sauce, and a slice of sourdough bread",
            true, 3.89);
    }

    public void addItem(String name, String description,
                         boolean vegetarian, double price)
    {
        MenuItem menuItem = new MenuItem(name, description, vegetarian, price);
        if (numberOfItems >= MAX_ITEMS) {
            System.err.println("Sorry, menu is full!  Can't add item to menu");
        } else {
            menuItems[numberOfItems] = menuItem;
            numberOfItems = numberOfItems + 1;
        }
    }
    public MenuItem[] getMenuItems() {
        return menuItems;
    }

    public Iterator<MenuItem> createIterator() {
        return new DinerMenuIterator(menuItems);
        //return new AlternatingDinerMenuIterator(menuItems);
    }
    // other menu methods here
}

public class DinerMenuIterator implements Iterator<MenuItem> {
    MenuItem[] list;
    int position = 0;
    public DinerMenuIterator(MenuItem[] list) {
        this.list = list;
    }
    public MenuItem next() {
        MenuItem menuItem = list[position];
        position = position + 1;
        return menuItem;
    }
    public boolean hasNext() {
        if (position >= list.length || list[position] == null) {
            return false;
        } else {
            return true;
        }
    }
    public void remove() {
        if (position <= 0) {
            throw new IllegalStateException
                ("You can't remove an item until you've done at least one next()");
        }
        if (list[position-1] != null) {
            for (int i = position-1; i < (list.length-1); i++) {
                list[i] = list[i+1];
            }
            list[list.length-1] = null;
        }
    }
}
public class Waitress {
    Menu pancakeHouseMenu;
    Menu dinerMenu;
    public Waitress(Menu pancakeHouseMenu, Menu dinerMenu) {
        this.pancakeHouseMenu = pancakeHouseMenu;
        this.dinerMenu = dinerMenu;
    }
    public void printMenu() {
        Iterator pancakeIterator = pancakeHouseMenu.createIterator();
        Iterator dinerIterator = dinerMenu.createIterator();

        System.out.println("MENU\n----\nBREAKFAST");
        printMenu(pancakeIterator);
        System.out.println("\nLUNCH");
        printMenu(dinerIterator);

    }
    private void printMenu(Iterator iterator) {
        while (iterator.hasNext()) {
            MenuItem menuItem = iterator.next();
            System.out.print(menuItem.getName() + ", ");
            System.out.print(menuItem.getPrice() + " -- ");
            System.out.println(menuItem.getDescription());
        }
    }
    public void printVegetarianMenu() {
        printVegetarianMenu(pancakeHouseMenu.createIterator());
        printVegetarianMenu(dinerMenu.createIterator());
    }
    public boolean isItemVegetarian(String name) {
        Iterator breakfastIterator = pancakeHouseMenu.createIterator();
        if (isVegetarian(name, breakfastIterator)) {
            return true;
        }
        Iterator dinnerIterator = dinerMenu.createIterator();
        if (isVegetarian(name, dinnerIterator)) {
            return true;
        }
        return false;
    }


    private void printVegetarianMenu(Iterator iterator) {
        while (iterator.hasNext()) {
            MenuItem menuItem = iterator.next();
            if (menuItem.isVegetarian()) {
                System.out.print(menuItem.getName());
                System.out.println("\t\t" + menuItem.getPrice());
                System.out.println("\t" + menuItem.getDescription());
            }
        }
    }

    private boolean isVegetarian(String name, Iterator iterator) {
        while (iterator.hasNext()) {
            MenuItem menuItem = iterator.next();
            if (menuItem.getName().equals(name)) {
                if (menuItem.isVegetarian()) {
                    return true;
                }
            }
        }
        return false;
    }
}

public interface Menu {
    public Iterator<?> createIterator();
}

单一责任：

一个类应该只有一个引起变化的原因

当一个模块或一个类被设计成只支持一组相关的功能时，我们说它具有高内聚。

内聚是比单一责任原则更普遍的概念。

Hashtable也支持迭代器，只不过是对散列值的集合的迭代器。

Collection和Iterator的好处在于，每个Collection都知道如何创建自己的Iterator。只要调用ArrayList上的Iterator90就可以返回一个具体的Iterator，而你根本不需要知道或者关心到底使用了哪个具体类，你只要使用它的Iterator接口就可以了。

java 5对所有集合的迭代器

for(Object obj: collection){}

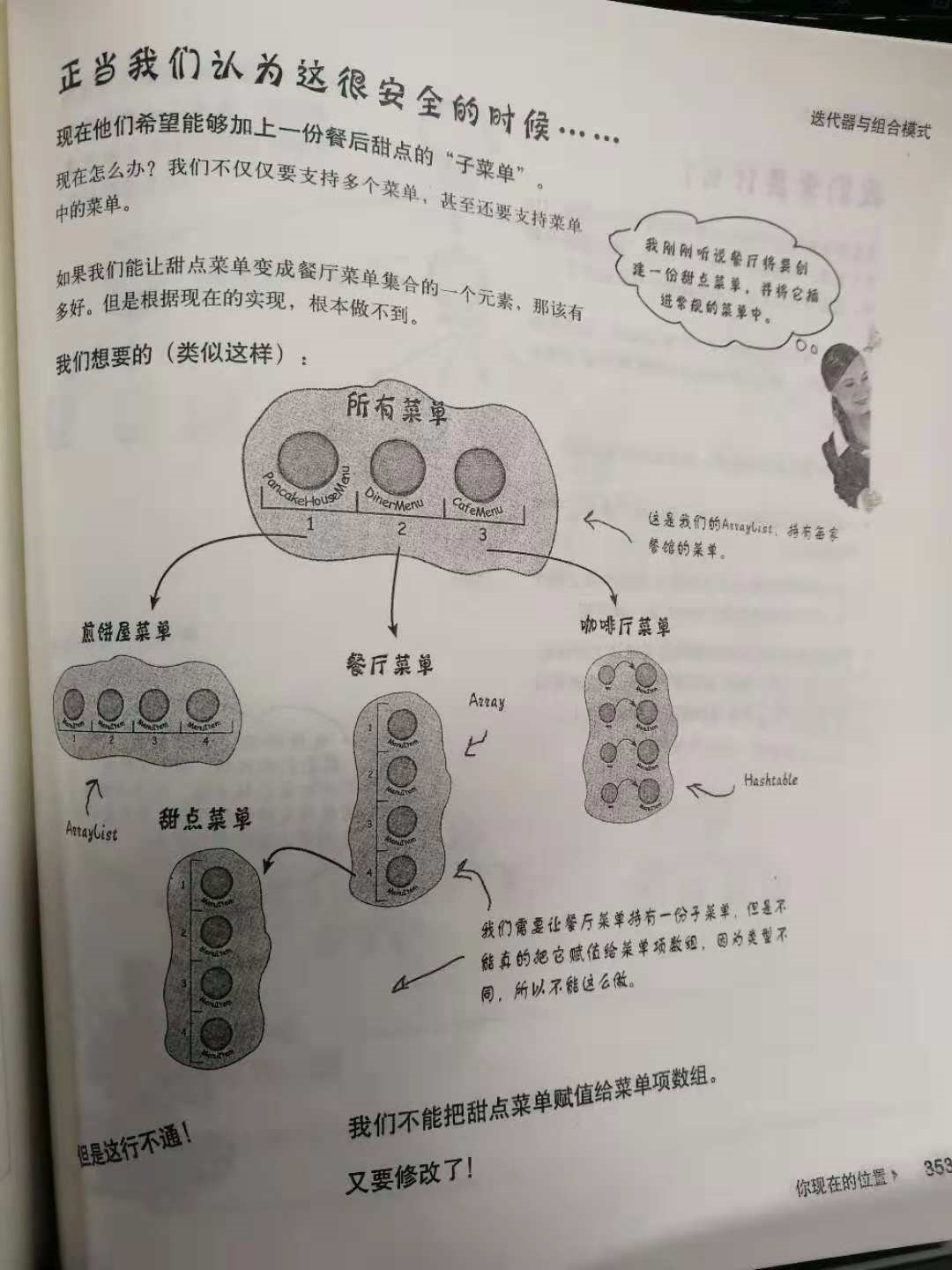

当遇到扩展子菜单的时候，代码需要重构了

能够用树形来表示菜单

定义组合模式：

允许你将对象组合成树形结构来表示“整体/部分”层次结构，组合能够让客户以一致的方式处理个别对象以及对象组合。

组件、组合、树的关系：

组合包含组件。组件有两种：组合与叶节点元素。听起来像递归，组合持有一群孩子，这些孩子可以是别的组合或者叶节点元素。使用这种方式组织数据时，最终会得到树形结构

使用组合设计菜单

创建组件接口
public abstract class MenuComponent {

    public void add(MenuComponent menuComponent) {
        throw new UnsupportedOperationException();
    }
    public void remove(MenuComponent menuComponent) {
        throw new UnsupportedOperationException();
    }
    public MenuComponent getChild(int i) {
        throw new UnsupportedOperationException();
    }

    public String getName() {
        throw new UnsupportedOperationException();
    }
    public String getDescription() {
        throw new UnsupportedOperationException();
    }
    public double getPrice() {
        throw new UnsupportedOperationException();
    }
    public boolean isVegetarian() {
        throw new UnsupportedOperationException();
    }

    public void print() {
        throw new UnsupportedOperationException();
    }
}
//属于叶节点，具体实现一个菜品
public class MenuItem extends MenuComponent {
    String name;
    String description;
    boolean vegetarian;
    double price;

    public MenuItem(String name,
                    String description,
                    boolean vegetarian,
                    double price)
    {
        this.name = name;
        this.description = description;
        this.vegetarian = vegetarian;
        this.price = price;
    }

    public String getName() {
        return name;
    }

    public String getDescription() {
        return description;
    }

    public double getPrice() {
        return price;
    }

    public boolean isVegetarian() {
        return vegetarian;
    }

    public void print() {
        System.out.print("  " + getName());
        if (isVegetarian()) {
            System.out.print("(v)");
        }
        System.out.println(", " + getPrice());
        System.out.println("     -- " + getDescription());
    }
}
//菜单继承菜单组件是因为，子菜单也是在菜单中的一个扩展，相对叶节点（菜品）来说，菜单具有对子菜单的一些行为而不是具体实现一个菜品。
public class Menu extends MenuComponent {
    ArrayList<MenuComponent> menuComponents = new ArrayList<MenuComponent>();
    String name;
    String description;

    public Menu(String name, String description) {
        this.name = name;
        this.description = description;
    }
    public void add(MenuComponent menuComponent) {
        menuComponents.add(menuComponent);
    }
    public void remove(MenuComponent menuComponent) {
        menuComponents.remove(menuComponent);
    }
    public MenuComponent getChild(int i) {
        return (MenuComponent)menuComponents.get(i);
    }
    public String getName() {
        return name;
    }
    public String getDescription() {
        return description;
    }
    public void print() {
        System.out.print("\n" + getName());
        System.out.println(", " + getDescription());
        System.out.println("---------------------");

        Iterator<MenuComponent> iterator = menuComponents.iterator();
        while (iterator.hasNext()) {
            MenuComponent menuComponent =
                (MenuComponent)iterator.next();
            menuComponent.print();
        }
    }
}
