基于前面一直在写这个Java画布,我们发现一个特点,那就是按钮好多,颜色好多,所以本节就是要简化我们的画布程序,从而也实现一个复习。
1.关于简化
相信学过编程语言的同学都知道数组,因为不同的图形,不同的颜色就要创建一个按钮,所以我们想能不能创建一个按钮的数组呢!如下:
String[] shape={"直线1","直线2","矩形","三角形","椭圆","多边形","曲线","橡皮擦","迭代","递归"};
Color[] color={Color.BLACK,Color.LIGHT_GRAY,Color.GREEN,Color.GRAY,Color.PINK};
加按钮颜色的时候直接一个for循环即可。
for(int i=0;i<shape.length;i++)
{
JButton jbu=new JButton(shape[i]);
jp.add(jbu);
jbu.addActionListener(mouse);
}
for(int i=0;i<color.length;i++)
{
JButton jbu=new JButton();
jbu.setBackground(color[i]);
jbu.setPreferredSize(new Dimension(30,30));
jp.add(jbu);
jbu.addActionListener(mouse);
}

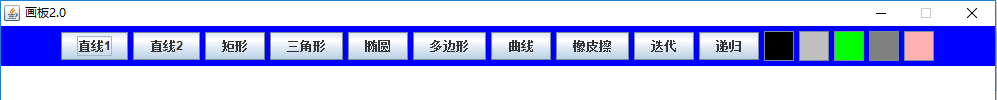

简化就到这。
2.保存
JFrame里面有个默认的绘图法pait,所以每次一旦改变窗体大小或者把它收到最小化,他就会重绘默认的界面,没有保存我们画出的图形。那么我们就会想办法保存我们画的图形,首先我们要知道保存的内容是什么:换个角度来说,我们是怎么画出来这个图形。
- 保存坐标
- 保存画的方法
- 保存颜色
- 重绘
所以我们可以设计一个类,用来写一些绘画方法。
public class Shape {
private Shape[] arrayShape=new Shape[9000];
private int x1,x2,y1,y2;
private String name;
private Color color;
public Shape(int x1,int y1,int x2,int y2,String name,Color color)
{
this.x1=x1;
this.x2=x2;
this.y1=y1;
this.y2=y2;
this.name=name;
this.color=color;
}
public void drawShape(Graphics g)
{
switch(name)
{
case "直线":
g.setColor(color);
g.drawLine(x1, y1, x2, y2);
break;
case "矩形":
g.setColor(color);
g.drawRect(Math.min(x1, x2), Math.min(y1, y2), Math.abs(x2 - x1), Math.abs(y2 - y1));
break;
case "椭圆":
g.setColor(color);
g.drawOval(Math.min(x1, x2), Math.min(y1, y2), Math.abs(x2 - x1), Math.abs(y2 - y1));
System.out.println("000");
break;
case "橡皮擦":
g.setColor(color);
g.drawRect(x1, y1, x2, y2);
break;
}
}
}
PS:在这里提一下this的用法,this很简单,就是表示本来的意思。
当我们存储的时候就类似这样:
if ("直线1".equals(name)) {
gr.drawLine(x1, y1, x2, y2);
Shape shape=new Shape(x1,y1,x2,y2,"直线",color);
arrayShape[index++]=shape;
}
一个图形数组来存储
private Shape[] arrayShape=new Shape[9000];
重绘方法需要把数组里的内容全画出来
public void paint(Graphics g)
{
super.paint(g);
for(int i=0;i<arrayShape.length;i++)
{
Shape shape= arrayShape[i];
if(shape!=null)
shape.drawShape(g);
else
break;
}
}
就这样大功告成了,也许讲得也没有那么清晰,欢迎留言。
3.画迭代递归图形
(1)迭代
public void iterate(double x,double y)
{
a=-1.2;b=1.6;c=-1;d=-1.5;
for(int i=0;i<25500;i++)
{
double tex=Math.sin(a*y)+c*Math.cos(a*x);
double tey=Math.sin(b*x)+c*Math.cos(b*y);
int x3=(int)(tex*130+400);
int y4=(int)(tey*130+400);
gr.setColor(new Color(i/20,i/100,i/100));
gr.drawLine(x3, y4, x3, y4);
x=tex;
y=tey;
}
}

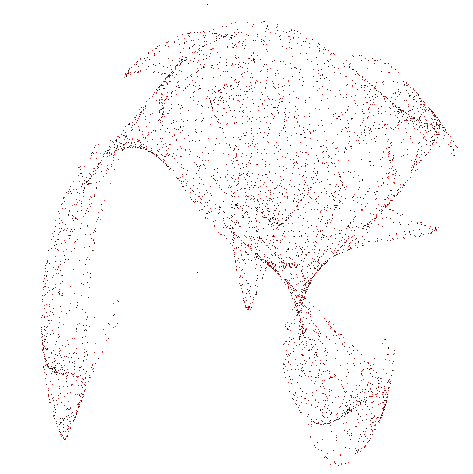

根据abcd的值不同,迭代图形也不同;你们可以自己尝试一下
递归
public void drawkoach(Graphics g,double a,double b,double c,double d,int count)
{
if(count<=1)
{
g.drawLine((int)a,(int)b,(int)c,(int)d);
}
else
{
double x6=(2*a+c)/3;
double y6=(2*b+d)/3;
double x4=(a+2*c)/3;
double y4=(b+2*d)/3;
double k=(a-c)*(b-d);
double x5=a,y5=b;
if(y6==y4)
{
x5=(x6+x4)/2;
y5=y6-(x4-x6)*Math.sqrt(3)/2;
}
else if(k<0)
{
x5 = a;
y5 = y4;
}
else if(k>0)
{
x5 = c;
y5 = y6;
}
if(x6==x4)
{
x5=x6;
y5=y6;
}
drawkoach(g,x6,y6,x5,y5,count-1);
drawkoach(g,x5,y5,x4,y4, count-1);
drawkoach(g,a,b,x6,y6, count-1);
drawkoach(g,x4,y4,c,d, count-1);
}
}
这个画出的一个是雪花,但是不知道为啥我只画出了半个雪花。若读者知道为啥可以给我留个言。/哭笑不得
