简单的对WebRtc里面texture转I420的代码抽取出来
首先是MainActivity：
package webrtc.example.com.texture2i420;
import android.graphics.SurfaceTexture;
import android.hardware.Camera;
import android.hardware.camera2.CameraManager;
import android.os.Handler;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.Surface;
import android.view.SurfaceHolder;
import android.view.SurfaceView;
import java.io.IOException;
import java.util.Arrays;
public class MainActivity extends AppCompatActivity implements SurfaceTexture.OnFrameAvailableListener, SurfaceHolder.Callback {
private SurfaceView mSurfaceView;
private Surface mSurface;
private YuvConverter yuvConverter;
private Camera camera;
float[] mtx = new float[16];
private int mTextureId;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mSurfaceView=findViewById(R.id.surfaceView);
mSurfaceView.getHolder().addCallback(this);
}
@Override
public void onAttachedToWindow() {
super.onAttachedToWindow();
}
@Override
protected void onDestroy() {
super.onDestroy();
camera.stopPreview();
camera.release();
yuvConverter.release();
}
@Override
public void onFrameAvailable(SurfaceTexture surfaceTexture) {
surfaceTexture.updateTexImage();
surfaceTexture.getTransformMatrix(mtx);
Log.w("yangTest", "mtx:" + Arrays.toString(mtx));
yuvConverter.convert(720, 1280, mtx);
}
@Override
public void surfaceCreated(SurfaceHolder holder) {
yuvConverter = new YuvConverter(holder.getSurface());
camera = Camera.open(1);
try {
yuvConverter.getmSurfaceTexture().setDefaultBufferSize(720, 1280);
camera.setPreviewTexture(yuvConverter.getmSurfaceTexture());
yuvConverter.getmSurfaceTexture().setOnFrameAvailableListener(this);
camera.setDisplayOrientation(90);
camera.startPreview();
} catch (IOException e) {
e.printStackTrace();
}
}
@Override
public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
}
@Override
public void surfaceDestroyed(SurfaceHolder holder) {
}
}
然后是GLShader
/*
* Copyright 2015 The WebRTC project authors. All Rights Reserved.
*
* Use of this source code is governed by a BSD-style license
* that can be found in the LICENSE file in the root of the source
* tree. An additional intellectual property rights grant can be found
* in the file PATENTS. All contributing project authors may
* be found in the AUTHORS file in the root of the source tree.
*/
package webrtc.example.com.texture2i420;
import android.opengl.GLES20;
import android.util.Log;
import java.nio.FloatBuffer;
// Helper class for handling OpenGL shaders and shader programs.
public class GlShader {
private static final String TAG = "GlShader";
private static int compileShader(int shaderType, String source) {
final int shader = GLES20.glCreateShader(shaderType);
GlUtil.checkNoGLES2Error("glCreateShader() failed. GLES20 error: " + GLES20.glGetError());
if (shader == 0) {
throw new RuntimeException("glCreateShader() failed. GLES20 error: " + GLES20.glGetError());
}
GLES20.glShaderSource(shader, source);
GLES20.glCompileShader(shader);
int[] compileStatus = new int[] {GLES20.GL_FALSE};
GLES20.glGetShaderiv(shader, GLES20.GL_COMPILE_STATUS, compileStatus, 0);
if (compileStatus[0] != GLES20.GL_TRUE) {
Log.e(
TAG, "Compile error " + GLES20.glGetShaderInfoLog(shader) + " in shader:\n" + source);
throw new RuntimeException(GLES20.glGetShaderInfoLog(shader));
}
GlUtil.checkNoGLES2Error("compileShader");
return shader;
}
private int program;
public GlShader(String vertexSource, String fragmentSource) {
final int vertexShader = compileShader(GLES20.GL_VERTEX_SHADER, vertexSource);
final int fragmentShader = compileShader(GLES20.GL_FRAGMENT_SHADER, fragmentSource);
program = GLES20.glCreateProgram();
if (program == 0) {
throw new RuntimeException("glCreateProgram() failed. GLES20 error: " + GLES20.glGetError());
}
GLES20.glAttachShader(program, vertexShader);
GLES20.glAttachShader(program, fragmentShader);
GLES20.glLinkProgram(program);
int[] linkStatus = new int[] {GLES20.GL_FALSE};
GLES20.glGetProgramiv(program, GLES20.GL_LINK_STATUS, linkStatus, 0);
if (linkStatus[0] != GLES20.GL_TRUE) {
Log.e(TAG, "Could not link program: " + GLES20.glGetProgramInfoLog(program));
throw new RuntimeException(GLES20.glGetProgramInfoLog(program));
}
// According to the documentation of glLinkProgram():
// "After the link operation, applications are free to modify attached shader objects, compile
// attached shader objects, detach shader objects, delete shader objects, and attach additional
// shader objects. None of these operations affects the information log or the program that is
// part of the program object."
// But in practice, detaching shaders from the program seems to break some devices. Deleting the
// shaders are fine however - it will delete them when they are no longer attached to a program.
GLES20.glDeleteShader(vertexShader);
GLES20.glDeleteShader(fragmentShader);
GlUtil.checkNoGLES2Error("Creating GlShader");
}
public int getAttribLocation(String label) {
if (program == -1) {
throw new RuntimeException("The program has been released");
}
int location = GLES20.glGetAttribLocation(program, label);
if (location < 0) {
throw new RuntimeException("Could not locate '" + label + "' in program");
}
return location;
}
/**
* Enable and upload a vertex array for attribute |label|. The vertex data is specified in
* |buffer| with |dimension| number of components per vertex.
*/
public void setVertexAttribArray(String label, int dimension, FloatBuffer buffer) {
setVertexAttribArray(label, dimension, 0 /* stride */, buffer);
}
/**
* Enable and upload a vertex array for attribute |label|. The vertex data is specified in
* |buffer| with |dimension| number of components per vertex and specified |stride|.
*/
public void setVertexAttribArray(String label, int dimension, int stride, FloatBuffer buffer) {
if (program == -1) {
throw new RuntimeException("The program has been released");
}
int location = getAttribLocation(label);
GLES20.glEnableVertexAttribArray(location);
GLES20.glVertexAttribPointer(location, dimension, GLES20.GL_FLOAT, false, stride, buffer);
GlUtil.checkNoGLES2Error("setVertexAttribArray");
}
public int getUniformLocation(String label) {
if (program == -1) {
throw new RuntimeException("The program has been released");
}
int location = GLES20.glGetUniformLocation(program, label);
if (location < 0) {
throw new RuntimeException("Could not locate uniform '" + label + "' in program");
}
return location;
}
public void useProgram() {
if (program == -1) {
throw new RuntimeException("The program has been released");
}
GLES20.glUseProgram(program);
GlUtil.checkNoGLES2Error("glUseProgram");
}
public void release() {
Log.d(TAG, "Deleting shader.");
// Delete program, automatically detaching any shaders from it.
if (program != -1) {
GLES20.glDeleteProgram(program);
program = -1;
}
}
}
GLTextureFrameBuffer
/*
* Copyright 2015 The WebRTC project authors. All Rights Reserved.
*
* Use of this source code is governed by a BSD-style license
* that can be found in the LICENSE file in the root of the source
* tree. An additional intellectual property rights grant can be found
* in the file PATENTS. All contributing project authors may
* be found in the AUTHORS file in the root of the source tree.
*/
package webrtc.example.com.texture2i420;
import android.opengl.GLES20;
/**
* Helper class for handling OpenGL framebuffer with only color attachment and no depth or stencil
* buffer. Intended for simple tasks such as texture copy, texture downscaling, and texture color
* conversion. This class is not thread safe and must be used by a thread with an active GL context.
*/
// TODO(magjed): Add unittests for this class.
public class GlTextureFrameBuffer {
private final int pixelFormat;
private int frameBufferId;
private int textureId;
private int width;
private int height;
/**
* Generate texture and framebuffer resources. An EGLContext must be bound on the current thread
* when calling this function. The framebuffer is not complete until setSize() is called.
*/
public GlTextureFrameBuffer(int pixelFormat) {
switch (pixelFormat) {
case GLES20.GL_LUMINANCE:
case GLES20.GL_RGB:
case GLES20.GL_RGBA:
this.pixelFormat = pixelFormat;
break;
default:
throw new IllegalArgumentException("Invalid pixel format: " + pixelFormat);
}
this.width = 0;
this.height = 0;
}
/**
* (Re)allocate texture. Will do nothing if the requested size equals the current size. An
* EGLContext must be bound on the current thread when calling this function. Must be called at
* least once before using the framebuffer. May be called multiple times to change size.
*/
public void setSize(int width, int height) {
if (width <= 0 || height <= 0) {
throw new IllegalArgumentException("Invalid size: " + width + "x" + height);
}
if (width == this.width && height == this.height) {
return;
}
this.width = width;
this.height = height;
// Lazy allocation the first time setSize() is called.
if (textureId == 0) {
textureId = GlUtil.generateTexture(GLES20.GL_TEXTURE_2D);
}
if (frameBufferId == 0) {
final int frameBuffers[] = new int[1];
GLES20.glGenFramebuffers(1, frameBuffers, 0);
frameBufferId = frameBuffers[0];
}
// Allocate texture.
GLES20.glActiveTexture(GLES20.GL_TEXTURE0);
GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, textureId);
GLES20.glTexImage2D(GLES20.GL_TEXTURE_2D, 0, pixelFormat, width, height, 0, pixelFormat,
GLES20.GL_UNSIGNED_BYTE, null);
GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, 0);
GlUtil.checkNoGLES2Error("GlTextureFrameBuffer setSize");
// Attach the texture to the framebuffer as color attachment.
GLES20.glBindFramebuffer(GLES20.GL_FRAMEBUFFER, frameBufferId);
GLES20.glFramebufferTexture2D(
GLES20.GL_FRAMEBUFFER, GLES20.GL_COLOR_ATTACHMENT0, GLES20.GL_TEXTURE_2D, textureId, 0);
// Check that the framebuffer is in a good state.
final int status = GLES20.glCheckFramebufferStatus(GLES20.GL_FRAMEBUFFER);
if (status != GLES20.GL_FRAMEBUFFER_COMPLETE) {
throw new IllegalStateException("Framebuffer not complete, status: " + status);
}
GLES20.glBindFramebuffer(GLES20.GL_FRAMEBUFFER, 0);
}
public int getWidth() {
return width;
}
public int getHeight() {
return height;
}
/** Gets the OpenGL frame buffer id. This value is only valid after setSize() has been called. */
public int getFrameBufferId() {
return frameBufferId;
}
/** Gets the OpenGL texture id. This value is only valid after setSize() has been called. */
public int getTextureId() {
return textureId;
}
/**
* Release texture and framebuffer. An EGLContext must be bound on the current thread when calling
* this function. This object should not be used after this call.
*/
public void release() {
GLES20.glDeleteTextures(1, new int[] {textureId}, 0);
textureId = 0;
GLES20.glDeleteFramebuffers(1, new int[] {frameBufferId}, 0);
frameBufferId = 0;
width = 0;
height = 0;
}
}
GLUtil
/*
* Copyright 2015 The WebRTC project authors. All Rights Reserved.
*
* Use of this source code is governed by a BSD-style license
* that can be found in the LICENSE file in the root of the source
* tree. An additional intellectual property rights grant can be found
* in the file PATENTS. All contributing project authors may
* be found in the AUTHORS file in the root of the source tree.
*/
package webrtc.example.com.texture2i420;
import android.opengl.GLES20;
import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.FloatBuffer;
/**
* Some OpenGL static utility functions.
*/
public class GlUtil {
private GlUtil() {}
// Assert that no OpenGL ES 2.0 error has been raised.
public static void checkNoGLES2Error(String msg) {
int error = GLES20.glGetError();
if (error != GLES20.GL_NO_ERROR) {
throw new RuntimeException(msg + ": GLES20 error: " + error);
}
}
public static FloatBuffer createFloatBuffer(float[] coords) {
// Allocate a direct ByteBuffer, using 4 bytes per float, and copy coords into it.
ByteBuffer bb = ByteBuffer.allocateDirect(coords.length * 4);
bb.order(ByteOrder.nativeOrder());
FloatBuffer fb = bb.asFloatBuffer();
fb.put(coords);
fb.position(0);
return fb;
}
/**
* Generate texture with standard parameters.
*/
public static int generateTexture(int target) {
final int textureArray[] = new int[1];
GLES20.glGenTextures(1, textureArray, 0);
final int textureId = textureArray[0];
GLES20.glBindTexture(target, textureId);
GLES20.glTexParameterf(target, GLES20.GL_TEXTURE_MIN_FILTER, GLES20.GL_LINEAR);
GLES20.glTexParameterf(target, GLES20.GL_TEXTURE_MAG_FILTER, GLES20.GL_LINEAR);
GLES20.glTexParameterf(target, GLES20.GL_TEXTURE_WRAP_S, GLES20.GL_CLAMP_TO_EDGE);
GLES20.glTexParameterf(target, GLES20.GL_TEXTURE_WRAP_T, GLES20.GL_CLAMP_TO_EDGE);
checkNoGLES2Error("generateTexture");
return textureId;
}
}
YUVConverter
package webrtc.example.com.texture2i420;
import android.graphics.SurfaceTexture;
import android.opengl.EGL14;
import android.opengl.EGLConfig;
import android.opengl.EGLContext;
import android.opengl.EGLDisplay;
import android.opengl.EGLSurface;
import android.opengl.GLES11Ext;
import android.opengl.GLES20;
import android.os.Environment;
import android.util.Log;
import android.view.Surface;
import java.io.File;
import java.io.FileOutputStream;
import java.nio.ByteBuffer;
import java.nio.FloatBuffer;
public class YuvConverter {
private static final FloatBuffer DEVICE_RECTANGLE = GlUtil.createFloatBuffer(new float[] {
-1.0f, -1.0f, // Bottom left.
1.0f, -1.0f, // Bottom right.
-1.0f, 1.0f, // Top left.
1.0f, 1.0f, // Top right.
});
private static final FloatBuffer TEXTURE_RECTANGLE = GlUtil.createFloatBuffer(new float[] {
0.0f, 0.0f, // Bottom left.
1.0f, 0.0f, // Bottom right.
0.0f, 1.0f, // Top left.
1.0f, 1.0f // Top right.
});
private static final String VERTEX_SHADER =
"varying vec2 interp_tc;\n"
+ "attribute vec4 in_pos;\n"
+ "attribute vec4 in_tc;\n"
+ "\n"
+ "uniform mat4 texMatrix;\n"
+ "\n"
+ "void main() {\n"
+ " gl_Position = in_pos;\n"
+ " interp_tc = (texMatrix * in_tc).xy;\n"
+ "}\n";
private static final String OES_FRAGMENT_SHADER =
"#extension GL_OES_EGL_image_external : require\n"
+ "precision mediump float;\n"
+ "varying vec2 interp_tc;\n"
+ "\n"
+ "uniform samplerExternalOES tex;\n"
// Difference in texture coordinate corresponding to one
// sub-pixel in the x direction.
+ "uniform vec2 xUnit;\n"
// Color conversion coefficients, including constant term
+ "uniform vec4 coeffs;\n"
+ "\n"
+ "void main() {\n"
// Since the alpha read from the texture is always 1, this could
// be written as a mat4 x vec4 multiply. However, that seems to
// give a worse framerate, possibly because the additional
// multiplies by 1.0 consume resources. TODO(nisse): Could also
// try to do it as a vec3 x mat3x4, followed by an add in of a
// constant vector.
+ " gl_FragColor.r = coeffs.a + dot(coeffs.rgb,\n"
+ " texture2D(tex, interp_tc - 1.5 * xUnit).rgb);\n"
+ " gl_FragColor.g = coeffs.a + dot(coeffs.rgb,\n"
+ " texture2D(tex, interp_tc - 0.5 * xUnit).rgb);\n"
+ " gl_FragColor.b = coeffs.a + dot(coeffs.rgb,\n"
+ " texture2D(tex, interp_tc + 0.5 * xUnit).rgb);\n"
+ " gl_FragColor.a = coeffs.a + dot(coeffs.rgb,\n"
+ " texture2D(tex, interp_tc + 1.5 * xUnit).rgb);\n"
+ "}\n";
private final int mTextureId;
public SurfaceTexture getmSurfaceTexture() {
return mSurfaceTexture;
}
private final SurfaceTexture mSurfaceTexture;
private EGLSurface eglSurface;
private EGLContext mEglContext;
private EGLDisplay mEglDisplay;
private GlShader shader;
private int texMatrixLoc;
private int xUnitLoc;
private int coeffsLoc;
private final GlTextureFrameBuffer textureFrameBuffer = new GlTextureFrameBuffer(GLES20.GL_RGBA);
private boolean isSaveFile=true;
public YuvConverter(Surface surface) {
mEglDisplay=EGL14.eglGetDisplay(EGL14.EGL_DEFAULT_DISPLAY);
if (mEglDisplay == EGL14.EGL_NO_DISPLAY) {
throw new RuntimeException("unable to get EGL14 display");
}
int[] version=new int[2];
if(!EGL14.eglInitialize(mEglDisplay,version ,0 ,version ,1 )){
mEglDisplay=null;
throw new RuntimeException("unable to initialize EGL14");
}
int[] attribiList={
EGL14.EGL_RED_SIZE,8,
EGL14.EGL_GREEN_SIZE,8,
EGL14.EGL_BLUE_SIZE,8,
EGL14.EGL_ALPHA_SIZE,8,
EGL14.EGL_RENDERABLE_TYPE, EGL14.EGL_OPENGL_ES2_BIT,
EGL14.EGL_SURFACE_TYPE, EGL14.EGL_PBUFFER_BIT,
EGL14.EGL_NONE
};
EGLConfig[] configs = new EGLConfig[1];
int[] numConfigs = new int[1];
if (!EGL14.eglChooseConfig(mEglDisplay,attribiList , 0, configs, 0, configs.length,numConfigs ,0 )) {
throw new RuntimeException("unable to find RGB888+recordable ES2 EGL config");
}
if (numConfigs[0] <= 0) {
throw new RuntimeException("Unable to find any matching EGL config");
}
final EGLConfig eglConfig = configs[0];
if (eglConfig == null) {
throw new RuntimeException("eglChooseConfig returned null");
}
int[] attrib_list = {
EGL14.EGL_CONTEXT_CLIENT_VERSION, 2,
EGL14.EGL_NONE
};
mEglContext=EGL14.eglCreateContext(mEglDisplay, eglConfig,EGL14.EGL_NO_CONTEXT ,attrib_list ,0 );
int[] surfaceAttribs = {EGL14.EGL_NONE};
mTextureId = GlUtil.generateTexture(GLES11Ext.GL_TEXTURE_EXTERNAL_OES);
mSurfaceTexture=new SurfaceTexture(mTextureId);
eglSurface = EGL14.eglCreateWindowSurface(mEglDisplay, eglConfig, surface, surfaceAttribs, 0);
if (eglSurface == EGL14.EGL_NO_SURFACE) {
throw new RuntimeException(
"Failed to create window surface: 0x" + Integer.toHexString(EGL14.eglGetError()));
}
if (!EGL14.eglMakeCurrent(mEglDisplay, eglSurface, eglSurface,mEglContext )) {
throw new RuntimeException("eglMakeCurrent failed");
}
initShader();
}
private void initShader() {
if (shader != null) {
shader.release();
}
shader = new GlShader(VERTEX_SHADER, OES_FRAGMENT_SHADER);
shader.useProgram();
texMatrixLoc = shader.getUniformLocation("texMatrix");
xUnitLoc = shader.getUniformLocation("xUnit");
coeffsLoc = shader.getUniformLocation("coeffs");
GLES20.glUniform1i(shader.getUniformLocation("tex"), 0);
GlUtil.checkNoGLES2Error("Initialize fragment shader uniform values.");
// Initialize vertex shader attributes.
shader.setVertexAttribArray("in_pos", 2, DEVICE_RECTANGLE);
// If the width is not a multiple of 4 pixels, the texture
// will be scaled up slightly and clipped at the right border.
shader.setVertexAttribArray("in_tc", 2, TEXTURE_RECTANGLE);
}
public void convert(int width, int height, float[] transformMatrix) {
// SurfaceTextureHelper requires a stride that is divisible by 8. Round width up.
// See SurfaceTextureHelper for details on the size and format.
final int stride = ((width + 7) / 8) * 8;
final int uvHeight = (height + 1) / 2;
// Due to the layout used by SurfaceTextureHelper, vPos + stride * uvHeight would overrun the
// buffer. Add one row at the bottom to compensate for this. There will never be data in the
// extra row, but now other code does not have to deal with v stride * v height exceeding the
// buffer's capacity.
final int size = stride * (height + uvHeight + 1);
ByteBuffer buffer = ByteBuffer.allocateDirect(size);
convert(buffer, width, height, stride, mTextureId,
transformMatrix);
final int yPos = 0;
final int uPos = yPos + stride * height;
// Rows of U and V alternate in the buffer, so V data starts after the first row of U.
final int vPos = uPos + stride / 2;
buffer.position(yPos);
buffer.limit(yPos + stride * height);
Log.w("yangTest", "YPos:"+yPos+" (yPos + stride * height):"+(yPos + stride * height));
ByteBuffer dataY = buffer.slice();
buffer.position(uPos);
buffer.limit(uPos + stride * uvHeight);
Log.w("yangTest", "uPos:"+uPos+" (uPos + stride * uvHeight):"+(uPos + stride * uvHeight));
ByteBuffer dataU = buffer.slice();
buffer.position(vPos);
buffer.limit(vPos + stride * uvHeight);
Log.w("yangTest", "vPos:"+vPos+" vPos + stride * uvHeight:"+(vPos + stride * uvHeight));
ByteBuffer dataV = buffer.slice();
Log.w("yangTest", "dataY:"+dataY+" dataY"+dataY.array().length+" dataU:"+dataU+" "+dataU.array().length+" dataV:"+dataV+" "+dataV.array().length+" size:"+size+" "+buffer.array().length);

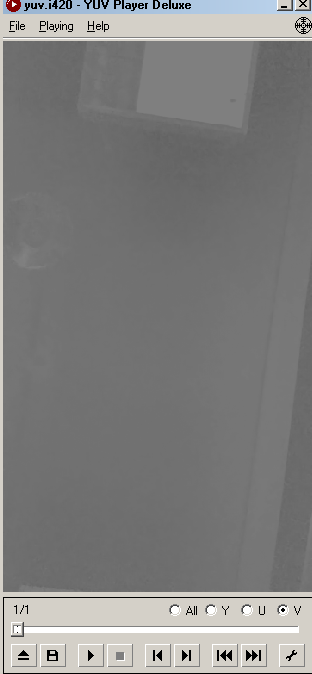

if(isSaveFile){
File file = new File(Environment.getExternalStorageDirectory(),
"yuv.i420");
try {
byte[] data=new byte[(int) (1280*720*1.5f)];
dataY.get(data,dataY.position(),dataY.limit());
for(int i=0;i<640;i++){
for(int j=0;j<360;j++){
byte b=dataU.get(i*720+j);
data[921600+i*360+j]=b;
}
Log.w("yangTest","u第i行数据Ok:"+i );
}
for(int i=0;i<640;i++){
for(int j=0;j<360;j++){
byte b=dataV.get(i*720+j);
data[921600+230400+i*360+j]=b;
}
Log.w("yangTest","v第i行数据Ok:"+i );
}
FileOutputStream outStream = new FileOutputStream(file);
outStream.write(data);
} catch (Exception e) {
e.printStackTrace();
}
isSaveFile=false;
}
}
private void convert(ByteBuffer buf, int width, int height, int stride, int srcTextureId,
float[] transformMatrix) {
shader.useProgram();
// We draw into a buffer laid out like
//
// +---------+
// | |
// | Y |
// | |
// | |
// +----+----+
// | U | V |
// | | |
// +----+----+
//
// In memory, we use the same stride for all of Y, U and V. The
// U data starts at offset |height| * |stride| from the Y data,
// and the V data starts at at offset |stride/2| from the U
// data, with rows of U and V data alternating.
//
// Now, it would have made sense to allocate a pixel buffer with
// a single byte per pixel (EGL10.EGL_COLOR_BUFFER_TYPE,
// EGL10.EGL_LUMINANCE_BUFFER,), but that seems to be
// unsupported by devices. So do the following hack: Allocate an
// RGBA buffer, of width |stride|/4. To render each of these
// large pixels, sample the texture at 4 different x coordinates
// and store the results in the four components.
//
// Since the V data needs to start on a boundary of such a
// larger pixel, it is not sufficient that |stride| is even, it
// has to be a multiple of 8 pixels.
if (stride % 8 != 0) {
throw new IllegalArgumentException("Invalid stride, must be a multiple of 8");
}
if (stride < width) {
throw new IllegalArgumentException("Invalid stride, must >= width");
}
int y_width = (width + 3) / 4;
int uv_width = (width + 7) / 8;
int uv_height = (height + 1) / 2;
int total_height = height + uv_height;
int size = stride * total_height;
if (buf.capacity() < size) {
throw new IllegalArgumentException("YuvConverter.convert called with too small buffer");
}
// Produce a frame buffer starting at top-left corner, not
// bottom-left.
// transformMatrix =
// RendererCommon.multiplyMatrices(transformMatrix, RendererCommon.verticalFlipMatrix());
final int frameBufferWidth = stride / 4;
final int frameBufferHeight = total_height;
textureFrameBuffer.setSize(frameBufferWidth, frameBufferHeight);
// Bind our framebuffer.
GLES20.glBindFramebuffer(GLES20.GL_FRAMEBUFFER, textureFrameBuffer.getFrameBufferId());
GlUtil.checkNoGLES2Error("glBindFramebuffer");
GLES20.glActiveTexture(GLES20.GL_TEXTURE0);
GLES20.glBindTexture(GLES11Ext.GL_TEXTURE_EXTERNAL_OES, srcTextureId);
GLES20.glUniformMatrix4fv(texMatrixLoc, 1, false, transformMatrix, 0);
// Draw Y
GLES20.glViewport(0, 0, y_width, height);
Log.w("yangTest","Y glViewport: x:"+(0)+" height:"+0+" uv_width:"+y_width+" uv_height:"+height );
// Matrix * (1;0;0;0) / width. Note that opengl uses column major order.
GLES20.glUniform2f(xUnitLoc, transformMatrix[0] / width, transformMatrix[1] / width);
// Y'UV444 to RGB888, see
// https://en.wikipedia.org/wiki/YUV#Y.27UV444_to_RGB888_conversion.
// We use the ITU-R coefficients for U and V */
GLES20.glUniform4f(coeffsLoc, 0.299f, 0.587f, 0.114f, 0.0f);
GLES20.glDrawArrays(GLES20.GL_TRIANGLE_STRIP, 0, 4);
// Draw U
GLES20.glViewport(0, height, uv_width, uv_height);
Log.w("yangTest","U glViewport: x:"+(0)+" height:"+height+" uv_width:"+uv_width+" uv_height:"+uv_height );
// Matrix * (1;0;0;0) / (width / 2). Note that opengl uses column major order.
GLES20.glUniform2f(
xUnitLoc, 2.0f * transformMatrix[0] / width, 2.0f * transformMatrix[1] / width);
GLES20.glUniform4f(coeffsLoc, -0.169f, -0.331f, 0.499f, 0.5f);
GLES20.glDrawArrays(GLES20.GL_TRIANGLE_STRIP, 0, 4);
// Draw V
GLES20.glViewport(stride / 8, height, uv_width, uv_height);
Log.w("yangTest","v glViewport: x:"+(stride/8)+" height:"+height+" uv_width:"+uv_width+" uv_height:"+uv_height );
GLES20.glUniform4f(coeffsLoc, 0.499f, -0.418f, -0.0813f, 0.5f);
GLES20.glDrawArrays(GLES20.GL_TRIANGLE_STRIP, 0, 4);
GLES20.glReadPixels(
0, 0, frameBufferWidth, frameBufferHeight, GLES20.GL_RGBA, GLES20.GL_UNSIGNED_BYTE, buf);
GlUtil.checkNoGLES2Error("YuvConverter.convert");
// Restore normal framebuffer.
GLES20.glBindFramebuffer(GLES20.GL_FRAMEBUFFER, 0);
GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, 0);
// Unbind texture. Reportedly needed on some devices to get
// the texture updated from the camera.
GLES20.glBindTexture(GLES11Ext.GL_TEXTURE_EXTERNAL_OES, 0);
}
public void release() {
if (shader != null) {
shader.release();
}
textureFrameBuffer.release();
if (eglSurface != EGL14.EGL_NO_SURFACE) {
EGL14.eglDestroySurface(mEglDisplay, eglSurface);
eglSurface = EGL14.EGL_NO_SURFACE;
}
if (!EGL14.eglMakeCurrent(
mEglDisplay, EGL14.EGL_NO_SURFACE, EGL14.EGL_NO_SURFACE, EGL14.EGL_NO_CONTEXT)) {
throw new RuntimeException(
"eglDetachCurrent failed: 0x" + Integer.toHexString(EGL14.eglGetError()));
}
EGL14.eglDestroyContext(mEglDisplay, mEglContext);
EGL14.eglReleaseThread();
EGL14.eglTerminate(mEglDisplay);
mSurfaceTexture.release();
mEglContext = EGL14.EGL_NO_CONTEXT;
mEglDisplay = EGL14.EGL_NO_DISPLAY;
}
}
最后布局文件
<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<SurfaceView
android:id="@+id/surfaceView"
android:layout_width="0dp"
android:layout_height="0dp"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
</android.support.constraint.ConstraintLayout>布局文件比较简单
代码里没有请求相机权限，请自动加上
运行后会在/sdcard目录存一帧I420的camera数据
效果如下图：
