Dubbo常用配置详解

1、启动时检查

Dubbo 缺省会在启动时检查依赖的服务是否可用,不可用时会抛出异常,阻止 Spring 初始化完成,以便上线时,能及早发现问题,默认 check="true"

可以通过 check="false" 关闭检查,比如,测试时,有些服务不关心,或者出现了循环依赖,必须有一方先启动。

另外,如果你的 Spring 容器是懒加载的,或者通过 API 编程延迟引用服务,请关闭 check,否则服务临时不可用时,会抛出异常,拿到 null 引用,如果 check="false",总是会返回引用,当服务恢复时,能自动连上。

示例:

通过 spring 配置文件

关闭某个服务的启动时检查 (没有提供者时报错):

<dubbo:reference interface="com.foo.BarService" check="false" />

关闭所有服务的启动时检查 (没有提供者时报错):

<dubbo:consumer check="false" />

关闭注册中心启动时检查 (注册订阅失败时报错):

<dubbo:registry check="false" />

通过 dubbo.properties

dubbo.reference.com.foo.BarService.check=false
dubbo.reference.check=false
dubbo.consumer.check=false
dubbo.registry.check=false

2、负载均衡

在集群负载均衡时,Dubbo 提供了多种均衡策略,缺省为 random 随机调用。

负载均衡策略:

(1)Random LoadBalance
随机,按权重设置随机概率。

(2)RoundRobin LoadBalance
轮询,按公约后的权重设置轮询比率。
存在慢的提供者累积请求的问题,比如:第二台机器很慢,但没挂,当请求调到第二台时就卡在那,久而久之,所有请求都卡在调到第二台上。

(3)LeastActive LoadBalance
最少活跃调用数,相同活跃数的随机,活跃数指调用前后计数差。
使慢的提供者收到更少请求,因为越慢的提供者的调用前后计数差会越大。

(4)ConsistentHash LoadBalance
一致性 Hash,相同参数的请求总是发到同一提供者。

配置示例:

服务端服务级别
<dubbo:service interface="..." loadbalance="roundrobin" />
客户端服务级别
<dubbo:reference interface="..." loadbalance="roundrobin" />
服务端方法级别

<dubbo:service interface="...">
    <dubbo:method name="..." loadbalance="roundrobin"/>
</dubbo:service>

客户端方法级别

<dubbo:reference interface="...">
    <dubbo:method name="..." loadbalance="roundrobin"/>
</dubbo:reference>

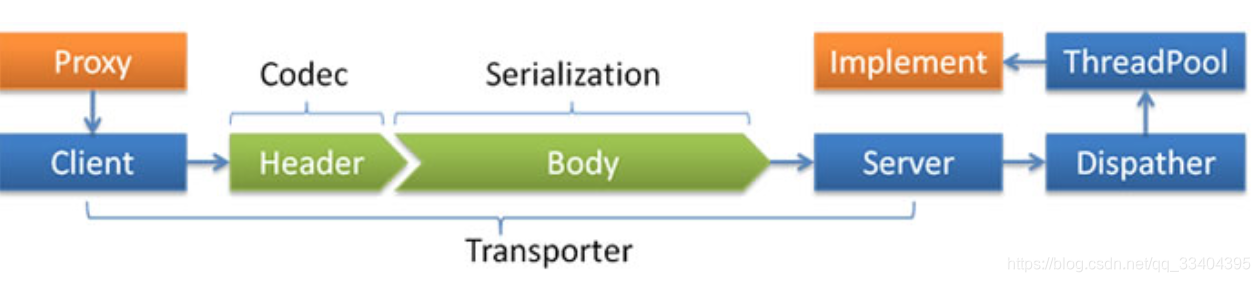

3、线程(并发)模型

如果事件处理的逻辑能迅速完成,并且不会发起新的 IO 请求,比如只是在内存中记个标识,则直接在 IO 线程上处理更快,因为减少了线程池调度。

但如果事件处理逻辑较慢,或者需要发起新的 IO 请求,比如需要查询数据库,则必须派发到线程池,否则 IO 线程阻塞,将导致不能接收其它请求。

如果用 IO 线程处理事件,又在事件处理过程中发起新的 IO 请求,比如在连接事件中发起登录请求,会报“可能引发死锁”异常,但不会真死锁。

在这里插入图片描述

因此,需要通过不同的派发策略和不同的线程池配置的组合来应对不同的场景:

  <dubbo:protocol name="dubbo" dispatcher="all" threadpool="fixed" threads="100" />

Dispatcher

all 所有消息都派发到线程池,包括请求,响应,连接事件,断开事件,心跳等。

direct 所有消息都不派发到线程池,全部在 IO 线程上直接执行。
message 只有请求响应消息派发到线程池,其它连接断开事件,心跳等消息,直接在 IO 线程上执行。

execution 只请求消息派发到线程池,不含响应,响应和其它连接断开事件,心跳等消息,直接在 IO 线程上执行。

connection 在 IO 线程上,将连接断开事件放入队列,有序逐个执行,其它消息派发到线程池。

ThreadPool

fixed :固定大小线程池,启动时建立线程,不关闭,一直持有。(缺省)

cached :缓存线程池,空闲一分钟自动删除,需要时重建。

limited :可伸缩线程池,但池中的线程数只会增长不会收缩。只增长不收缩的目的是为了避免收缩时突然来了大流量引起的性能问题。

eager :优先创建Worker线程池。在任务数量大于corePoolSize但是小于maximumPoolSize时,优先创建Worker来处理任务。当任务数量大于maximumPoolSize时,将任务放入阻塞队列中。阻塞队列充满时抛出RejectedExecutionException。(相比于cached:cached在任务数量超过maximumPoolSize时直接抛出异常而不是将任务放入阻塞队列)


4、只订阅

为方便开发测试,经常会在线下共用一个所有服务可用的注册中心,这时,如果一个正在开发中的服务提供者注册,可能会影响消费者不能正常运行。

可以让服务提供者开发方,只订阅服务(开发的服务可能依赖其它服务),而不注册正在开发的服务,通过直连测试正在开发的服务。

禁用注册配置
<dubbo:registry address=“10.20.153.10:9090” register=“false” />
或者
<dubbo:registry address=“10.20.153.10:9090?register=false” />


5、只注册

如果有两个镜像环境,两个注册中心,有一个服务只在其中一个注册中心有部署,另一个注册中心还没来得及部署,而两个注册中心的其它应用都需要依赖此服务。这个时候,可以让服务提供者方只注册服务到另一注册中心,而不从另一注册中心订阅服务。

禁用订阅配置

<dubbo:registry id="hzRegistry" address="10.20.153.10:9090" />
<dubbo:registry id="qdRegistry" address="10.20.141.150:9090" subscribe="false" />

或者

<dubbo:registry id="hzRegistry" address="10.20.153.10:9090" />
<dubbo:registry id="qdRegistry" address="10.20.141.150:9090?subscribe=false" />

6、多协议

Dubbo 允许配置多协议,在不同服务上支持不同协议或者同一服务上同时支持多种协议。
不同服务在性能上适用不同协议进行传输,比如大数据用短连接协议,小数据大并发用长连接协议。

示例:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">
    <dubbo:application name="world"  />
    <dubbo:registry id="registry" address="10.20.141.150:9090" username="admin" password="hello1234" />
    <!-- 多协议配置 -->
    <dubbo:protocol name="dubbo" port="20880" />
    <dubbo:protocol name="rmi" port="1099" />
    <!-- 使用dubbo协议暴露服务 -->
    <dubbo:service interface="com.alibaba.hello.api.HelloService" version="1.0.0" ref="helloService" protocol="dubbo" />
    <!-- 使用rmi协议暴露服务 -->
    <dubbo:service interface="com.alibaba.hello.api.DemoService" version="1.0.0" ref="demoService" protocol="rmi" />
</beans>

多协议暴露服务
需要与 http 客户端互操作

示例:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">
    <dubbo:application name="world"  />
    <dubbo:registry id="registry" address="10.20.141.150:9090" username="admin" password="hello1234" />
    <!-- 多协议配置 -->
    <dubbo:protocol name="dubbo" port="20880" />
    <dubbo:protocol name="hessian" port="8080" />
    <!-- 使用多个协议暴露服务 -->
    <dubbo:service id="helloService" interface="com.alibaba.hello.api.HelloService" version="1.0.0" protocol="dubbo,hessian" />
</beans>

更多配置请在Dubbo官网查看
