java设计模式精讲 Debug 方式+内存分析 第9章 原型模式

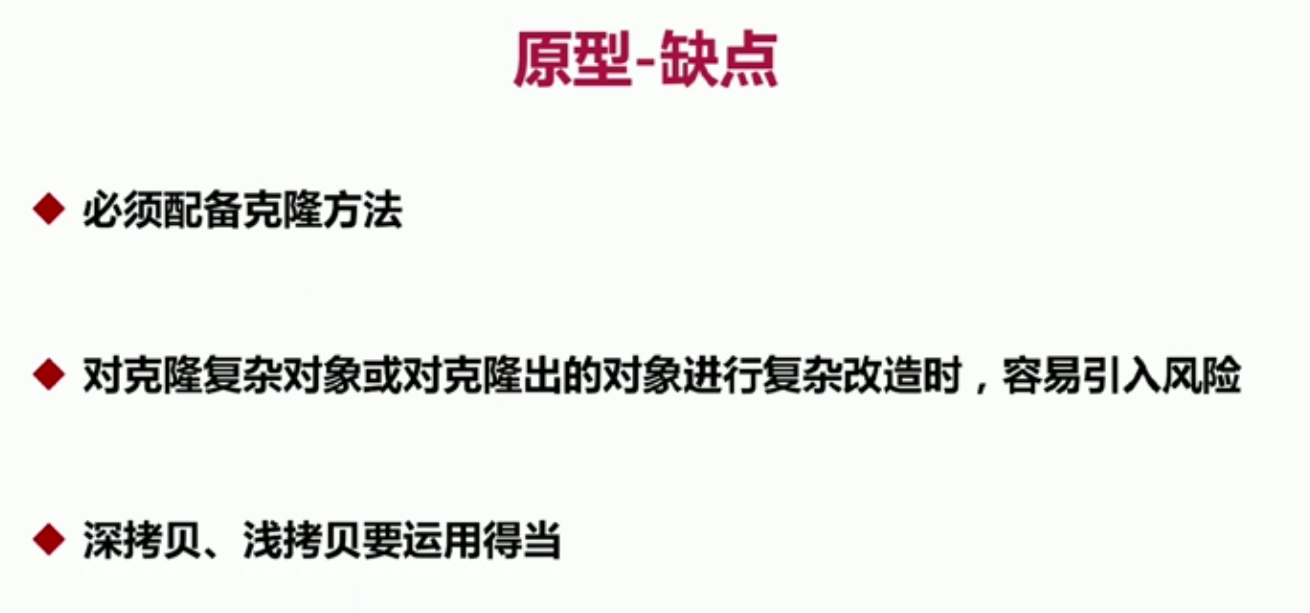

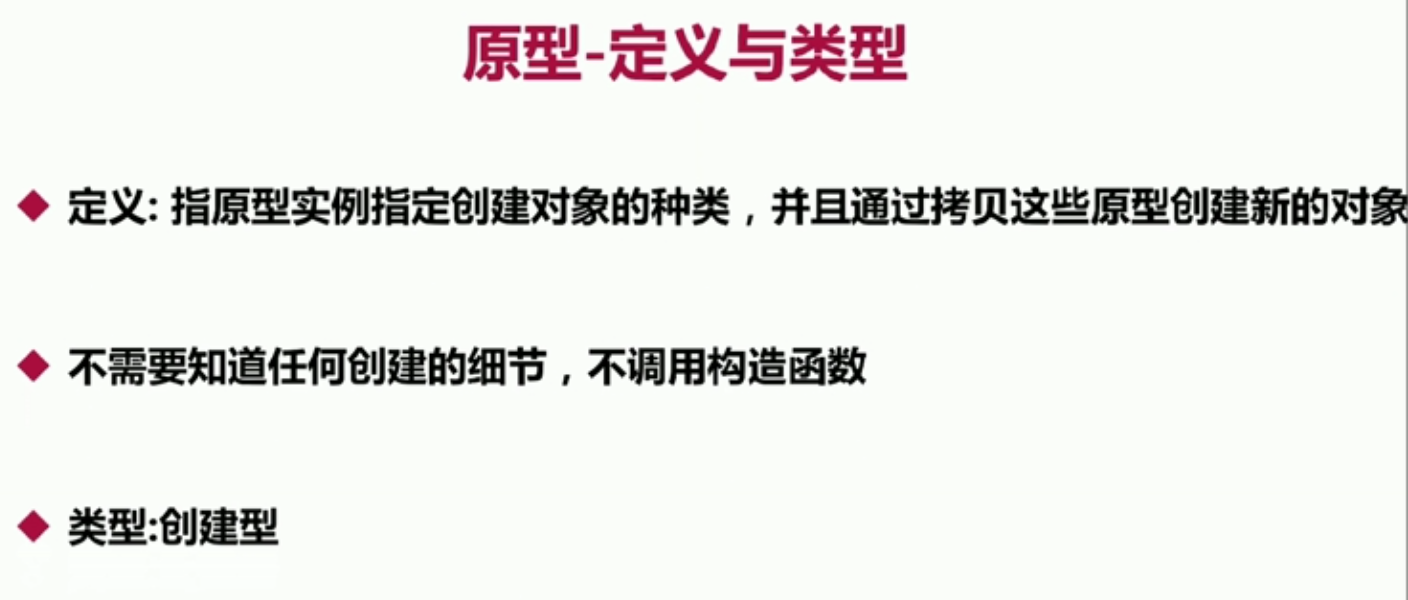

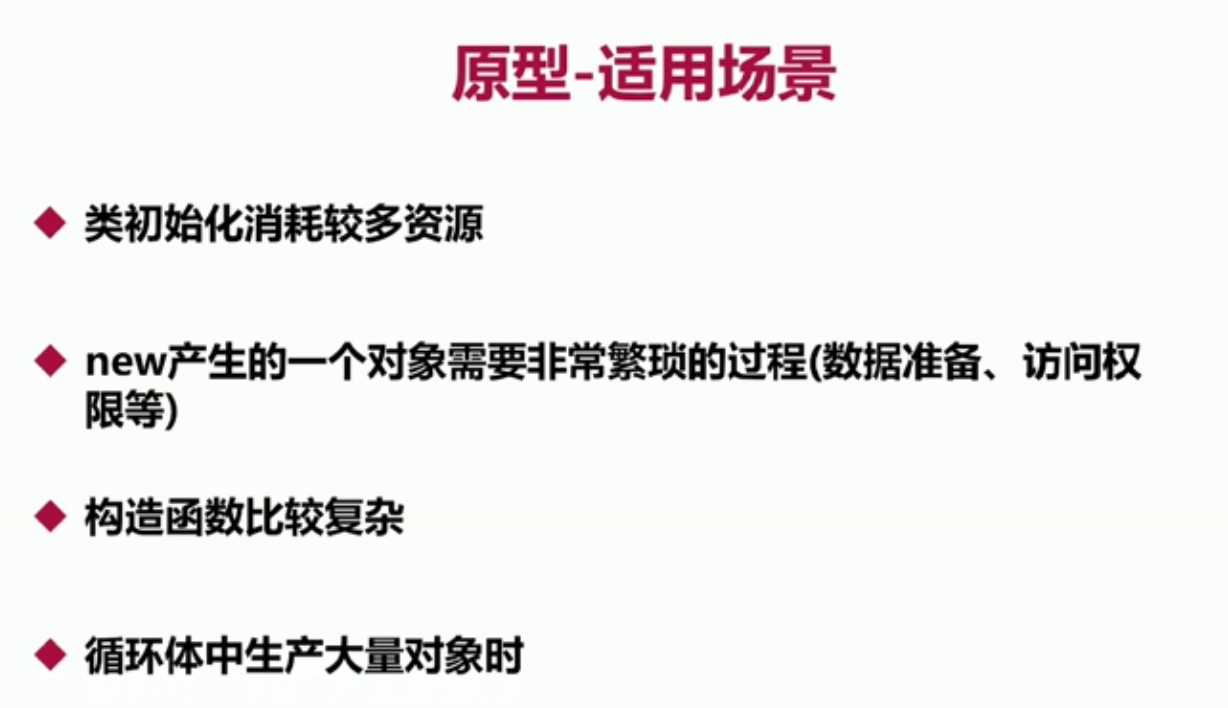

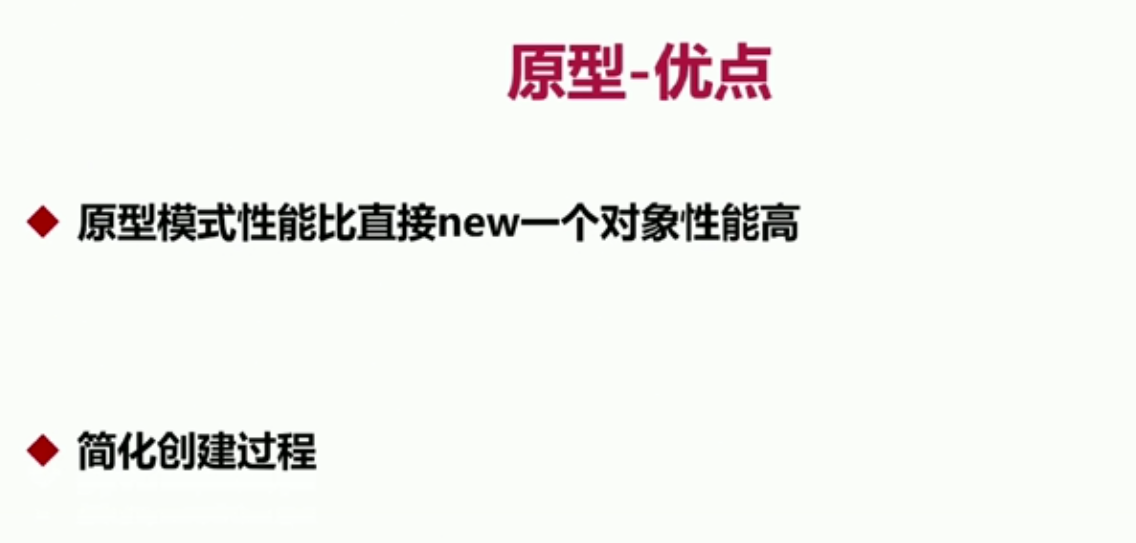

9-1 原型模式讲解

---

---

---

---

---

9-2 原型模式coding

有一个Mail类：

public class Mail {
    private String name;
    private String emailAddress;
    private String content;

    public Mail() {
        System.out.println("Mail Class Constructor");
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmailAddress() {
        return emailAddress;
    }

    public void setEmailAddress(String emailAddress) {
        this.emailAddress = emailAddress;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    @Override
    public String toString() {
        return "Mail{" +
                "name='" + name + '\'' +
                ", emailAddress='" + emailAddress + '\'' +
                ", content='" + content + '\'' +
                '}';
    }
}

还有一个发送邮件的类：
注：这里面的MessageFormat.format方法是用来拼接字符串的;

public class MailUtil {
    public static void sendMail(Mail mail) {
        String outputContent = "向{0}同学，邮件地址:{1},邮件内容:{2}发送邮件成功！";
        System.out.println(MessageFormat.format(outputContent, mail.getName(), mail.getEmailAddress(), mail.getContent()));
    }

    public static void saveOriginMailRecord(Mail mail) {
        System.out.println("存储OriginMail记录,OriginMail："+mail.getContent());
    }
}

测试：

public class Test {
    public static void main(String[]args){
        Mail mail = new Mail();
        mail.setContent("初始化的模板");
        for (int i = 0; i < 10; i++) {
            mail.setName("姓名"+i);
            mail.setEmailAddress("姓名" + i + "@126.com");
            mail.setContent("恭喜您，此次活动中奖了！");
            MailUtil.sendMail(mail);
        }
        MailUtil.saveOriginMailRecord(mail);
    }
}

测试结果：

Mail Class Constructor
向姓名0同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名1同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名2同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名3同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名4同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名5同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名6同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名7同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名8同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
向姓名9同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
存储OriginMail记录,OriginMail：恭喜您，此次活动中奖了！

---

现在，我们来用原型模式来写：
我们让Mail拥有克隆的功能，实现Cloneable接口：

public class Mail implements Cloneable{
    private String name;
    private String emailAddress;
    private String content;

    public Mail() {
        System.out.println("Mail Class Constructor");
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmailAddress() {
        return emailAddress;
    }

    public void setEmailAddress(String emailAddress) {
        this.emailAddress = emailAddress;
    }

    public String getContent() {
        return content;
    }

    public void setContent(String content) {
        this.content = content;
    }

    @Override
    public String toString() {
        return "Mail{" +
                "name='" + name + '\'' +
                ", emailAddress='" + emailAddress + '\'' +
                ", content='" + content + '\'' +
                '}';
    }

    @Override
    protected Object clone() throws CloneNotSupportedException {
        System.out.println("Clone mail object");
        return super.clone();
    }
}

测试：

public class Test {
    public static void main(String[]args) throws CloneNotSupportedException {
        Mail mail = new Mail();
        mail.setContent("初始化的模板");
        for (int i = 0; i < 10; i++) {
            /** 使用克隆出来的Mail */
            Mail mailTemp = (Mail) mail.clone();
            mailTemp.setName("姓名"+i);
            mailTemp.setEmailAddress("姓名" + i + "@126.com");
            mailTemp.setContent("恭喜您，此次活动中奖了！");
            MailUtil.sendMail(mailTemp);
        }
        MailUtil.saveOriginMailRecord(mail);
    }
}

测试结果：

Mail Class Constructor
Clone mail object
向姓名0同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名1同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名2同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名3同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名4同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名5同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名6同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名7同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名8同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Clone mail object
向姓名9同学，邮件地址:姓名[email protected],邮件内容:恭喜您，此次活动中奖了！发送邮件成功！
Disconnected from the target VM, address: ‘127.0.0.1:61704’, transport: ‘socket’
存储OriginMail记录,OriginMail：初始化的模板

---

在原型模式中，还有一种常见的使用方法：通过抽象类来实现原型模式
父类实现了克隆的接口：

public abstract class A implements Cloneable {
    @Override
    protected Object clone() throws CloneNotSupportedException {
        return super.clone();
    }
}

子类也具有克隆的方法：

public class B extends A {
    public static void main(String[]args) throws CloneNotSupportedException {
        B b = new B();
        b.clone();
    }
}

在实际的开发当中，直接让目标类实现Cloneable接口的方式用的比较多;

---

我们来说说克隆：深拷贝和浅拷贝
有一个Pig类：

public class Pig implements Cloneable{
    private String name;
    private Date birthday;

    public Pig(String name, Date birthday) {
        this.name = name;
        this.birthday = birthday;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    @Override
    protected Object clone() throws CloneNotSupportedException {
        return super.clone();
    }

    @Override
    public String toString() {
        return "Pig{" +
                "name='" + name + '\'' +
                ", birthday=" + birthday +
                '}'+super.toString();
    }
}

测试：

public class Test {
    public static void main(String[]args) throws CloneNotSupportedException {
        Date birthday = new Date(0L);
        Pig pig1 = new Pig("佩奇", birthday);
        Pig pig2 = (Pig) pig1.clone();
        System.out.println(pig1);
        System.out.println(pig2);
    }
}

测试结果：这是两个不同的对象

Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@27973e9b
Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@312b1dae

---

现在，我们来修改pig1的生日：
我们预期是只修改pig1的时间：

public class Test {
    public static void main(String[]args) throws CloneNotSupportedException {
        Date birthday = new Date(0L);
        Pig pig1 = new Pig("佩奇", birthday);
        Pig pig2 = (Pig) pig1.clone();
        System.out.println(pig1);
        System.out.println(pig2);

        pig1.getBirthday().setTime(666666666L);
        System.out.println(pig1);
        System.out.println(pig2);
    }
}

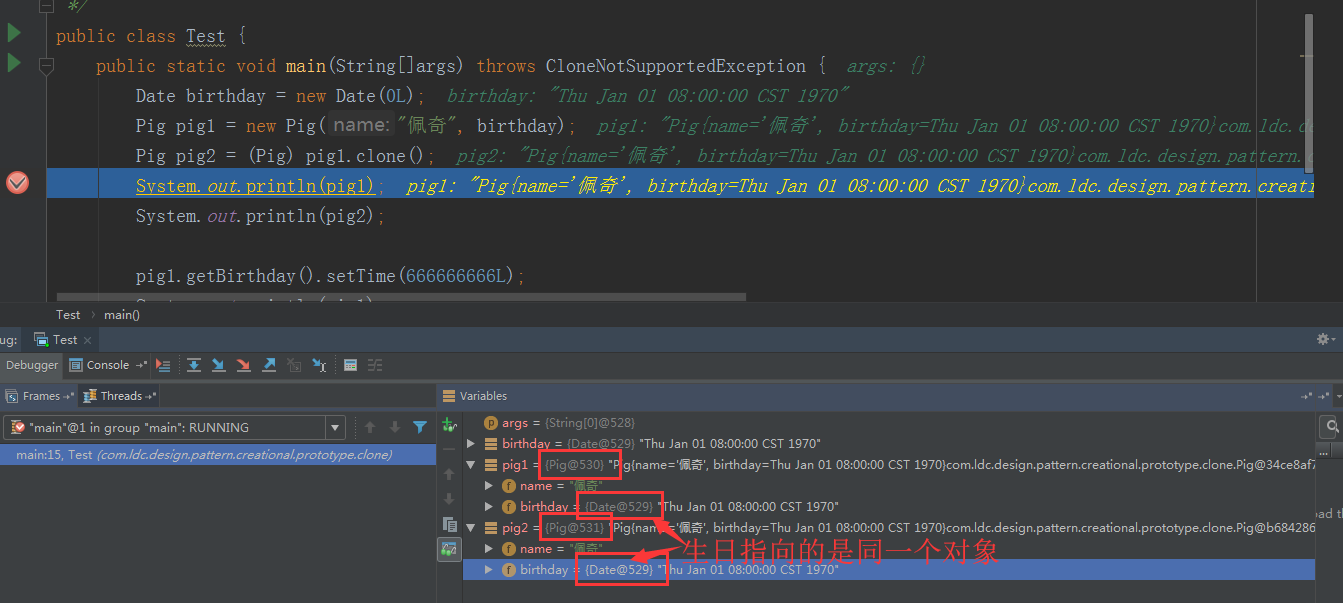

但是实际的结果是把两个对象的时间都进行了修改，这个就是和我们的预期就是不一样了：

Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@27973e9b
Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@312b1dae
Pig{name=‘佩奇’, birthday=Fri Jan 09 01:11:06 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@27973e9b
Pig{name=‘佩奇’, birthday=Fri Jan 09 01:11:06 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@312b1dae

---

这种默认的克隆方式就是一个浅克隆的方式;

---

现在，我们来实现一个深克隆：
在Pig的这个类里面实现这个方法：

    @Override
    protected Object clone() throws CloneNotSupportedException {
        Pig pig = (Pig) super.clone();
        /** 深克隆 */
        pig.birthday = (Date) pig.birthday.clone();
        return pig;
    }

Pig的这个类如下：

public class Pig implements Cloneable{
    private String name;
    private Date birthday;

    public Pig(String name, Date birthday) {
        this.name = name;
        this.birthday = birthday;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    @Override
    protected Object clone() throws CloneNotSupportedException {
        Pig pig = (Pig) super.clone();
        /** 深克隆 */
        pig.birthday = (Date) pig.birthday.clone();
        return pig;
    }

    @Override
    public String toString() {
        return "Pig{" +
                "name='" + name + '\'' +
                ", birthday=" + birthday +
                '}'+super.toString();
    }
}

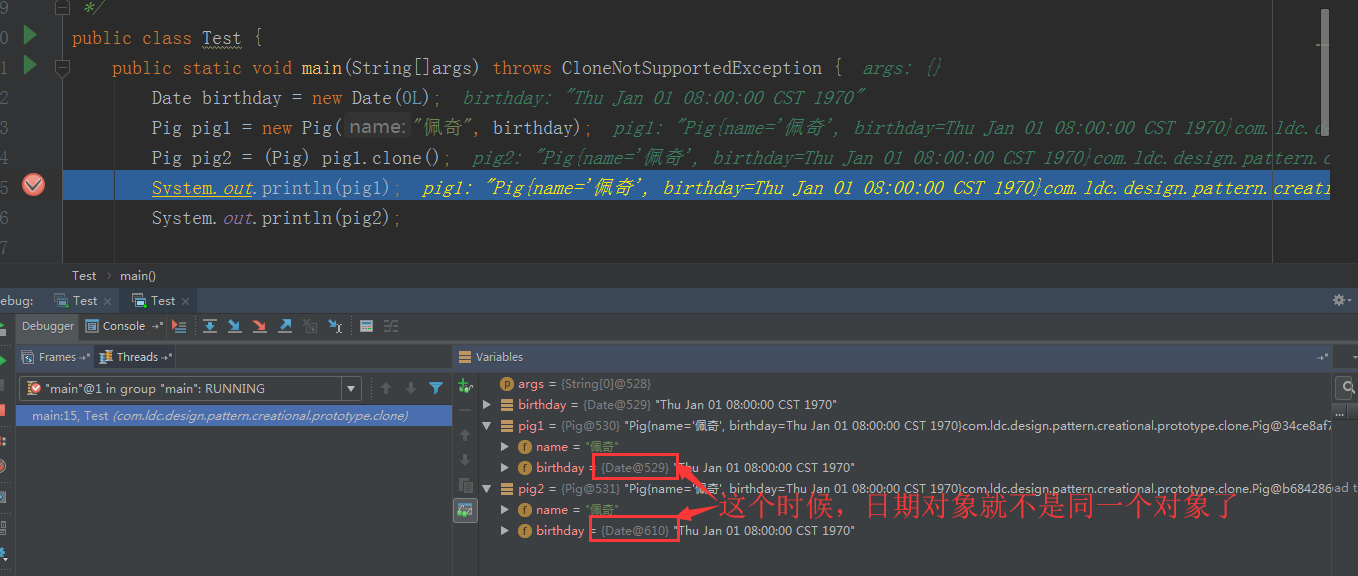

这个时候，日期对象就不是同一个对象了：

这个时候，输出就符合了我们的预期了：只修改了Pig1

Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@34ce8af7
Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@b684286
Pig{name=‘佩奇’, birthday=Fri Jan 09 01:11:06 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@34ce8af7
Pig{name=‘佩奇’, birthday=Thu Jan 01 08:00:00 CST 1970}com.ldc.design.pattern.creational.prototype.clone.Pig@b684286

---

总结：对于引用类型的变量，我们一定是注意是否要深克隆它，对于引用类型，我们还是建议克隆出来为好，否则就是留了一个隐患;

---

9-3 原型模式coding-克隆破坏单例

让之前写的单例模式实现Cloneable接口：

public class HungrySingleton implements Serializable,Cloneable{
    private final static HungrySingleton hungrySingleton;
    static {
        hungrySingleton = new HungrySingleton();
    }
    private HungrySingleton() {
        if (hungrySingleton != null) {
            throw new RuntimeException("单例构造器禁止反射调用");
        }
    }
    public static HungrySingleton getInstance() {
        return hungrySingleton;
    }
    /** 我们加上这样的一个方法 */
    private Object readResolve() {
        return hungrySingleton;
    }

    @Override
    protected Object clone() throws CloneNotSupportedException {
        return super.clone();
    }
}

测试：

public class Test {
    public static void main(String[]args) throws CloneNotSupportedException, NoSuchMethodException, InvocationTargetException, IllegalAccessException {
        HungrySingleton hungrySingleton = HungrySingleton.getInstance();
        Method method = hungrySingleton.getClass().getDeclaredMethod("clone");
        method.setAccessible(true);
        HungrySingleton cloneHungrySingleton = (HungrySingleton) method.invoke(hungrySingleton);
        System.out.println(hungrySingleton);
        System.out.println(cloneHungrySingleton);
    }
}

运行结果：

com.ldc.design.pattern.creational.singleton.HungrySingleton@34c45dca
com.ldc.design.pattern.creational.singleton.HungrySingleton@52cc8049

---

如果我们想要克隆不破坏单例，那么我们可以这样做：

public class HungrySingleton implements Serializable,Cloneable{
    private final static HungrySingleton hungrySingleton;
    static {
        hungrySingleton = new HungrySingleton();
    }
    private HungrySingleton() {
        if (hungrySingleton != null) {
            throw new RuntimeException("单例构造器禁止反射调用");
        }
    }
    public static HungrySingleton getInstance() {
        return hungrySingleton;
    }
    /** 我们加上这样的一个方法 */
    private Object readResolve() {
        return hungrySingleton;
    }

    @Override
    protected Object clone() throws CloneNotSupportedException {
        return getInstance();
    }
}

现在的运行结果：这个时候，是同一个对象，还是单例的

com.ldc.design.pattern.creational.singleton.HungrySingleton@34c45dca
com.ldc.design.pattern.creational.singleton.HungrySingleton@34c45dca

---

如何防止克隆不破坏单例模式：
1.要么不实现Cloneable接口
2.要么实现了Cloneable接口，但是在重写的方法clone方法里面获得对象的实例

这样的话，就不怕克隆破坏单例模式了;

---

9-4 原型模式源码解析

---

---

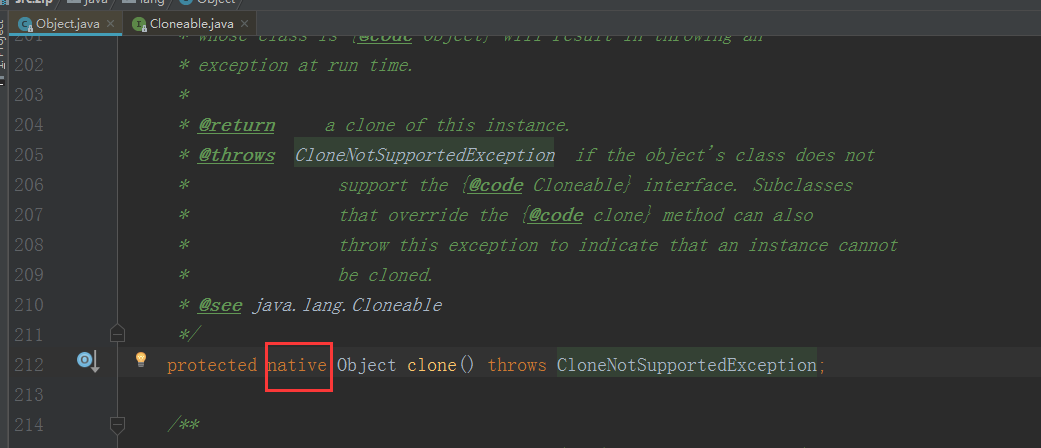

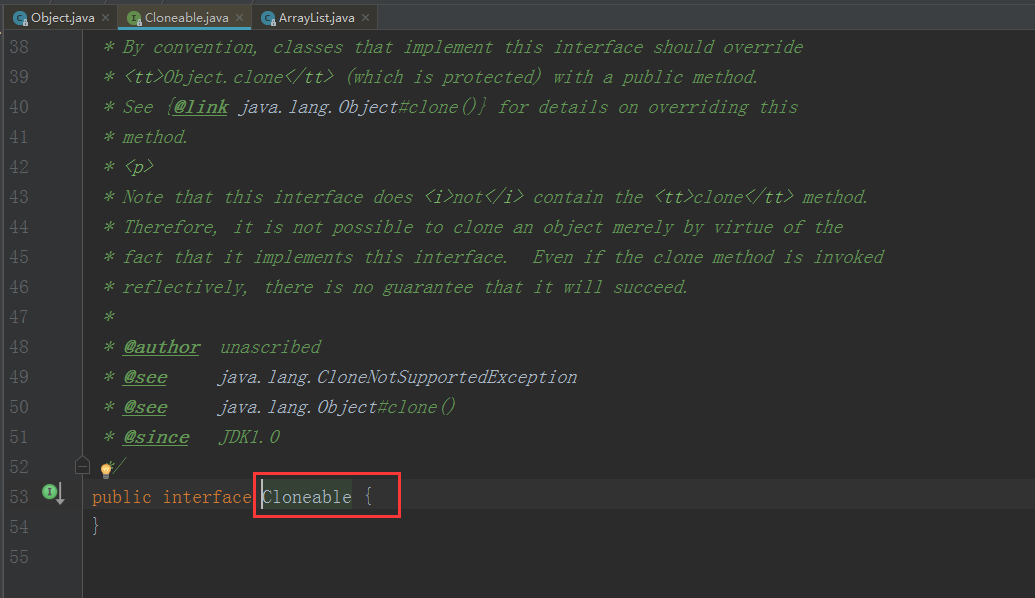

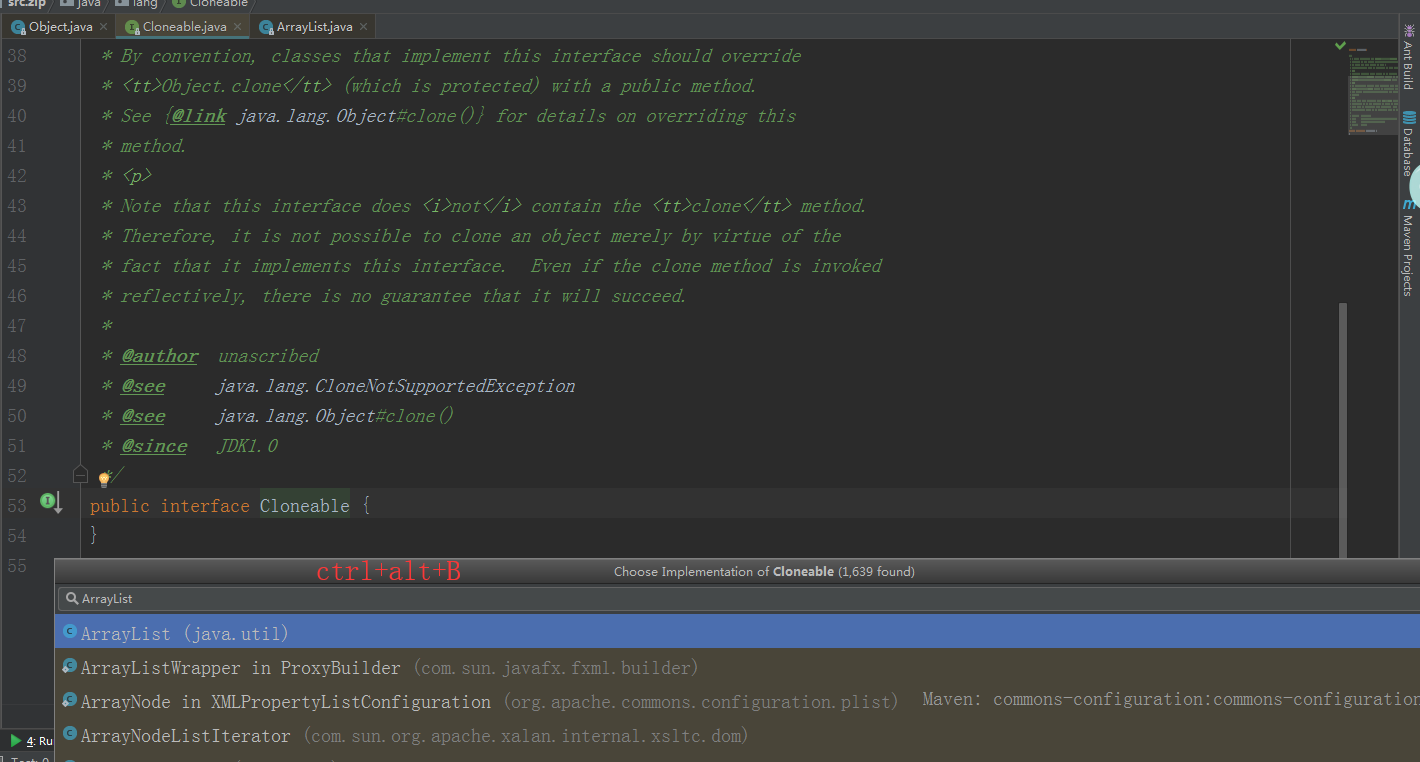

我们查看一下它的实现：

---

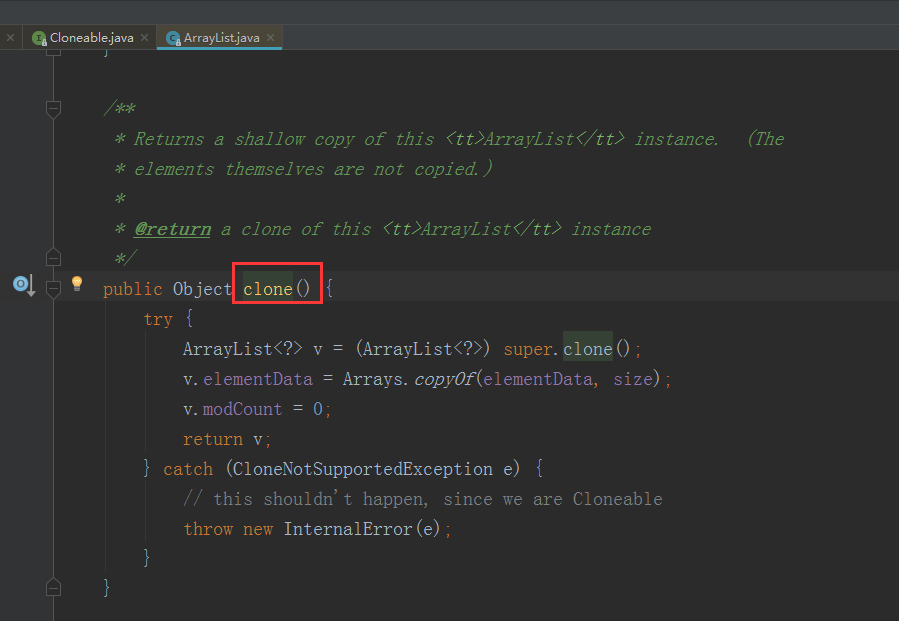

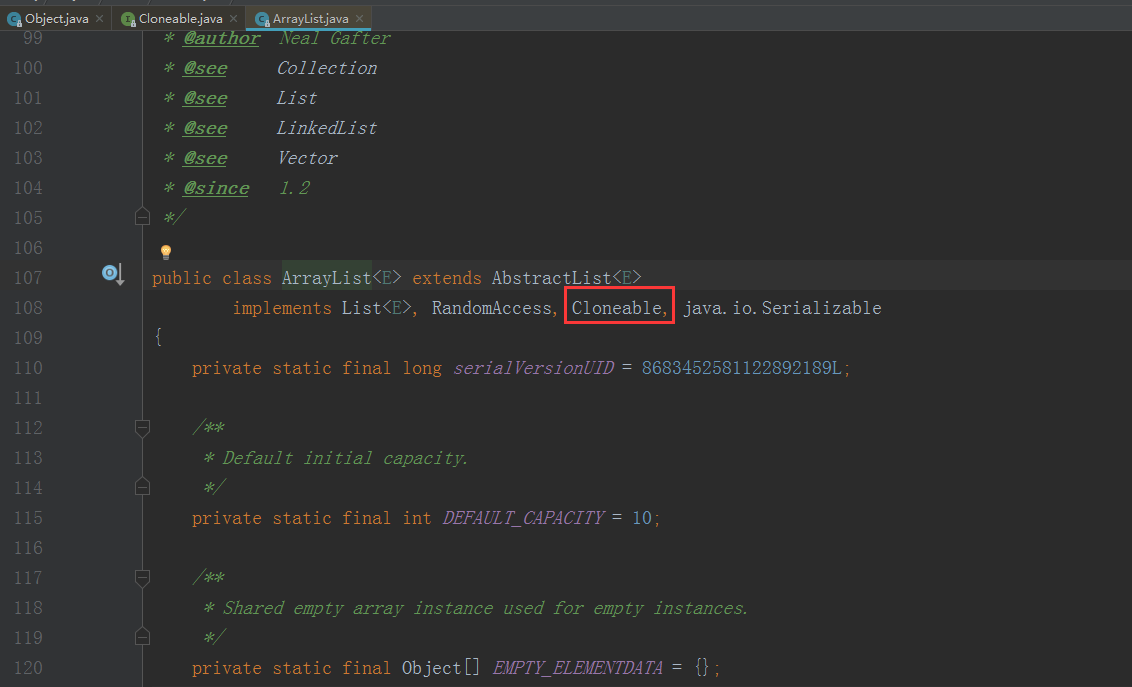

那它是如何重写的呢？
