最近有个需求,就是远程开机,网上搜了些方法,我选用的是网卡开机,也就是通过发送广播包唤醒电脑
网卡唤醒要求:
1 发送广播包: 6个“FF"+16个目标主机网卡地址
广播发送bys数据即可

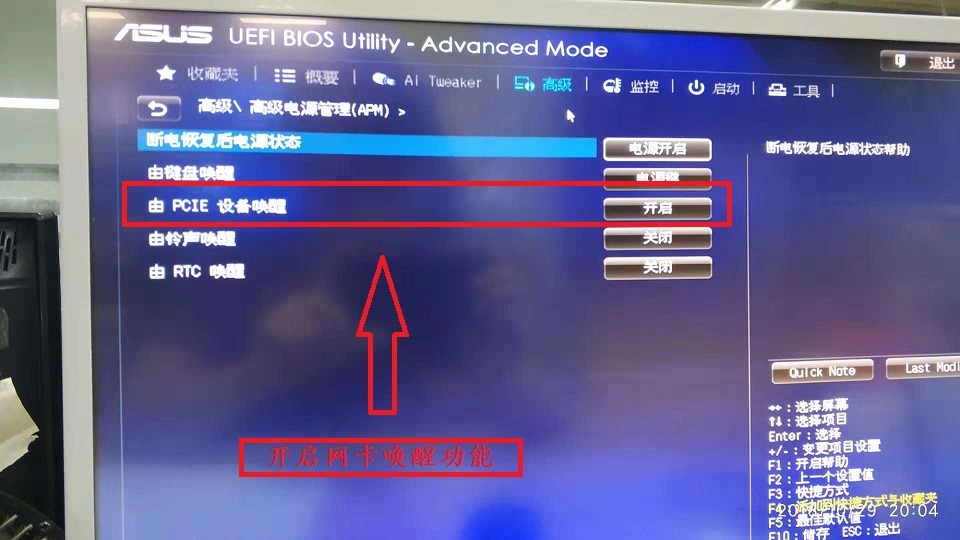

2 BIOS要设置LAN唤醒
有的需要设置本地连接的唤醒,其实基本不用设置,默认是开启的,主要是在bios里开启
了解网卡唤醒要求后,就可以写代码了
2 主要代码
public static void WakeUp(string macString)
{
try
{
if (macString.Split('-').Length == 6)
{
string macStr = macString.Replace('-',' ');;
byte[] macByteArray = HexStringSToByteArray(macStr);
UdpClient client = new UdpClient();
client.Connect(IPAddress.Broadcast, 1234);
byte[] packet = new byte[17 * 6];
for (int i = 0; i < 6; i++)
{
packet[i] = 0xFF;
}
for (int i = 1; i <= 16; i++)
{
for (int ii = 0; ii < 6; ii++)
{
packet[i * 6 + ii] = macByteArray[ii];
}
}
client.Send(packet, packet.Length);
}
}
catch (Exception ex)
{
// MessageBox.Show("网络唤醒失败:" + ex.StackTrace + " \r\n" + ex.Message);
}
}
3 字符串转换
/// <summary>
/// 2位16进制转int
/// </summary>
/// <param name="hex"></param>
/// <returns></returns>
public static int HexStringToInt(string hex)
{
int num1 = 0;
int num2 = 0;
char[] nums = hex.ToCharArray();
if (hex.Length == 2)
{
for (int i = 0; i < nums.Length; i++)
{
String strNum = nums[i].ToString().ToUpper();
switch (strNum)
{
case "A":
strNum = "10";
break;
case "B":
strNum = "11";
break;
case "C":
strNum = "12";
break;
case "D":
strNum = "13";
break;
case "E":
strNum = "14";
break;
case "F":
strNum = "15";
break;
default:
break;
}
if (i == 0)
{
num1 = int.Parse(strNum) * 16;
}
if (i == 1)
{
num2 = int.Parse(strNum);
}
}
}
return num1 + num2;
}
/// <summary>
/// 16进制字符串转byte[] 48 65 6C 6C 6F 20 57 6F 72 6C 64 21
/// </summary>
/// <param name="hexValues"></param>
/// <returns></returns>
public static byte[] HexStringSToByteArray(string hexValues)
{
string[] hexValuesSplit = hexValues.Split(' ');
byte[] val = new byte[hexValuesSplit.Length];
int i = 0;
foreach (string hex in hexValuesSplit)
{
int value = HexStringToInt(hex);
val[i] = (byte)value;
i++;
}
return val;
}
4 调用方法
WakeUp("F0-79-59-68-36-49");
5 远程关闭
可用Socket通讯,发送指令,然后调用下面指令代码,可以关机
/// <summary>
/// 关闭系统
/// </summary>
/// <param name="time"></param>
public static void CloseSystem(int time)
{
ProcessStartInfo ps = new ProcessStartInfo();
ps.FileName = "shutdown.exe";
ps.Arguments = "-s -t " + time;// -s -t 00
Process.Start(ps);
}
/// <summary>
/// 重启系统
/// </summary>
/// <param name="time"></param>
public static void ReSystem(int time)
{
ProcessStartInfo ps = new ProcessStartInfo();
ps.FileName = "shutdown.exe";
ps.Arguments = "-r -t " + time;// -r -t 00
Process.Start(ps);
}
6 测试

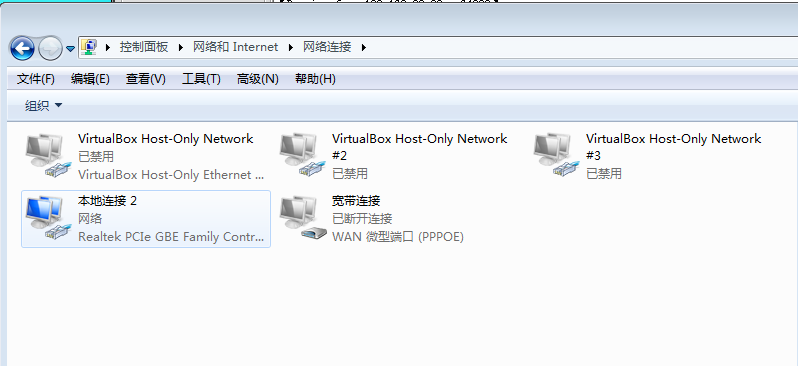

这一步很重要,如果你发广播自己都没收到,那就是有问题了,我也遇到了收不到的情况,最后的原因是自己的电脑有虚拟网卡,没有关闭掉,关掉就好了
