本文导读
- 本文承接《Spring MVC 自动配置原理》，全靠 Spring Boot 对 SpringMVC 的自动配置来开发应用是不够的，所以需要对其进行扩展和定制，本文主要讲扩展
- 现在就以下面这两个平时开发应用中常见的例子进行Spring MVC 自动配置扩展
<!-- 配置拦截器-->
<mvc:interceptors>
<mvc:interceptor>
<mvc:mapping path="/**"/>
<bean class="com.lct.interceptors.LoginInterceptor"/>
</mvc:interceptor>
</mvc:interceptors>
<!-- 当页面输入"localhost:8080/应用上下文路径/hello"之后，跳转到 classpath:/templates/home.html 页面-->
<mvc:view-controller path="/hello" view-name="home"/>
需求分析
- 需求：页面输入“http://localhost:8080/toto/home” 后进入“home.html”页面
- 页面输入“http://localhost:8080/toto/hello” 后进入“home.html”页面
- 所有页面请求都要经过自定义“LoginInterceptor”拦截器进行拦截
@ImportResource (value = {"classpath: springMVC. xml"})
- 一种很容易理解的方式就是以前SpringMVC.xml怎么写的，现在仍然怎么写，而且同一放在类路径下，再通过@ImportResource进行引用即可
UserController
package com.lct.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import java.util.Map;
/**
* Created by Administrator on 2018/7/17 0017.
* 用户控制器
*/
@Controller
public class UserController {
/**
* 全部基于 Spring Boot给 Thymeleaf的默认配置
* 所以下面会跳转到 classpath:/templates/home.html 页面
*
* @param paramMap
* @return
*/
@RequestMapping("home")
public String goHome(Map<String, Object> paramMap) {
/** 默认Map的内容会放大请求域中，页面可以直接使用Thymeleaf取值*/
paramMap.put("name", "张三");
paramMap.put("age", 35);
return "home";
}
}
LoginInterceptor
package com.lct.interceptors;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Date;
/**
* Created by Administrator on 2018/7/17 0017.
*/
public class LoginInterceptor implements HandlerInterceptor {
@Override
public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
System.out.println(new Date() + "----------拦截器拦截前 " + request.getRequestURL());
return true;
}
@Override
public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
System.out.println(new Date() + "----------拦截器拦截后");
}
@Override
public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
}
}
home.html
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head lang="en">
<meta charset="UTF-8">
<title>主页</title>
</head>
<body>
<h3>欢迎来到主页</h3>
<!--Thymeleaf 语法取值-->
姓名：<span th:text="${name}">未知</span>
年龄：<span th:text="${age}">未知</span>
</body>
</html>
application.properties
server.servlet.context-path=/toto
springMVC.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:task="http://www.springframework.org/schema/task"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task.xsd">
<!-- 配置拦截器-->
<mvc:interceptors>
<mvc:interceptor>
<mvc:mapping path="/**"/>
<bean class="com.lct.interceptors.LoginInterceptor"/>
</mvc:interceptor>
</mvc:interceptors>
<!-- 当页面输入"localhost:8080/应用上下文路径/hello"之后，跳转到 classpath:/templates/home.html 页面-->
<mvc:view-controller path="/hello" view-name="home"/>
</beans>
应用启动类
package com.lct;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.web.servlet.WebMvcAutoConfiguration;
import org.springframework.context.annotation.ImportResource;
import org.springframework.web.servlet.ViewResolver;
@ImportResource(value = {"classpath:springMVC.xml"})
@SpringBootApplication
public class ThymeleafStuApplication {
public static void main(String[] args) {
SpringApplication.run(ThymeleafStuApplication.class, args);
}
}

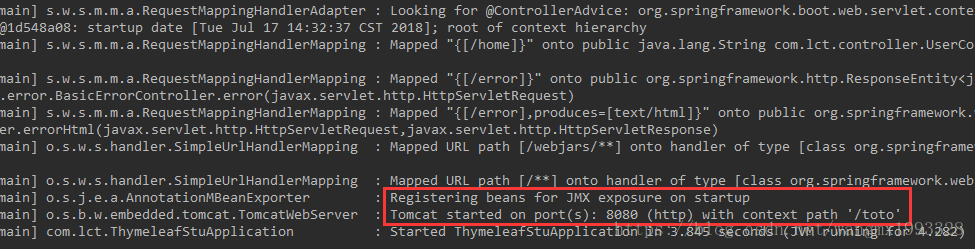

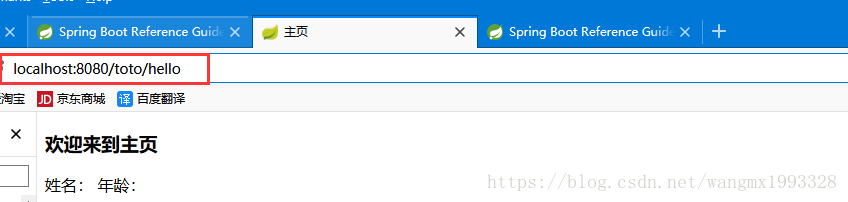

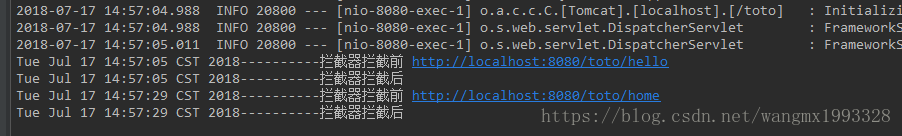

运行测试

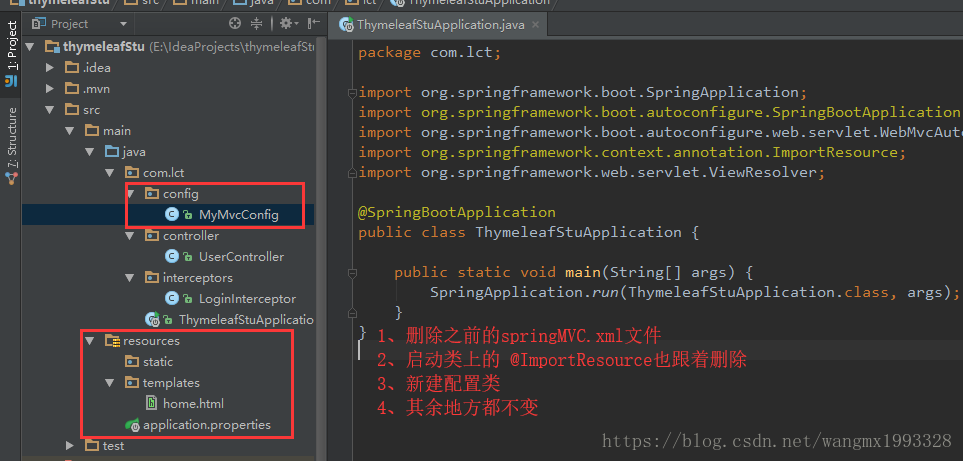

WebMvcConfigurerAdapter
- 编写一个配置类（@Configuration）继承 WebMvcConfigurerAdapter ，注意不加 @EnableWebMvc，然后重写指定的方法即可扩展自动配置
- 既保留了所有的自动配置，也能用自己扩展的配置；
MyMvcConfig
package com.lct.config;
import com.lct.interceptors.LoginInterceptor;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
/**
* Created by Administrator on 2018/7/17 0017.
* 针对应用中 Spring MVC 扩展的配置类---实现 WebMvcConfigurerAdapter
*/
@Configuration
public class MyMvcConfig extends WebMvcConfigurerAdapter {
/**
* 添加拦截器配置
*
* @param registry
*/
@Override
public void addInterceptors(InterceptorRegistry registry) {
registry.addInterceptor(new LoginInterceptor());
}
/**
* 添加视图控制器映射
* @param registry
*/
@Override
public void addViewControllers(ViewControllerRegistry registry) {
/**
* 当页面输入"localhost:8080/应用上下文路径/hello"之后，跳转到 classpath:/templates/home.html 页面
*/
registry.addViewController("/hello").setViewName("home");
}
}

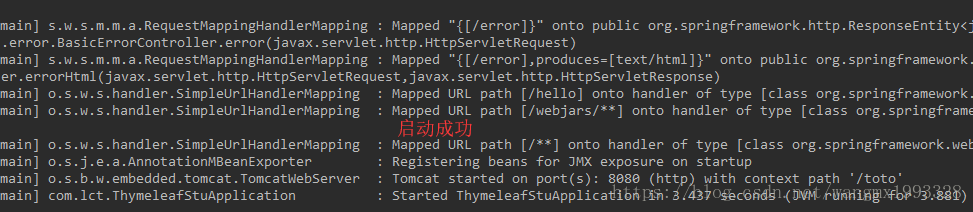

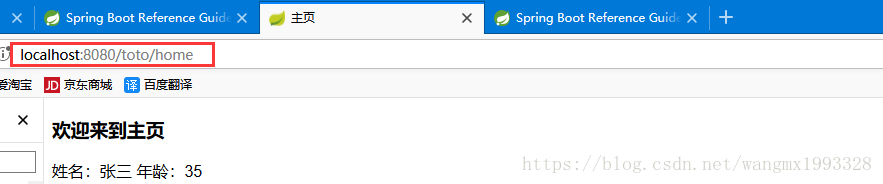

运行测试
