1、创建Maven工程
IDEA2020记得选择quickstart
导入相关配置
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>day02_XmlIocCase</artifactId>
<version>1.0-SNAPSHOT</version>
<name>day02_XmlIocCase</name>
<!-- FIXME change it to the project's website -->
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.2.8.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.2.8.RELEASE</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.6</version>
</dependency>
<dependency>
<groupId>commons-dbutils</groupId>
<artifactId>commons-dbutils</artifactId>
<version>1.7</version>
</dependency>
<dependency>
<groupId>c3p0</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.1.2</version>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.11</version>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
<plugins>
<!-- clean lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#clean_Lifecycle -->
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<!-- default lifecycle, jar packaging: see https://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_jar_packaging -->
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-jar-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
<!-- site lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#site_Lifecycle -->
<plugin>
<artifactId>maven-site-plugin</artifactId>
<version>3.7.1</version>
</plugin>
<plugin>
<artifactId>maven-project-info-reports-plugin</artifactId>
<version>3.0.0</version>
</plugin>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
<!--添加配置跳过测试-->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
<configuration>
<skipTests>true</skipTests>
</configuration>
</plugin>
<!--添加配置跳过测试-->
</plugins>
</pluginManagement>
</build>
</project>
2、创建实体类
创建domain包,同时创建Account.java
import java.io.Serializable;
/*
* 用户实体类
* */
public class Account implements Serializable {
private Integer id;
private String name;
private float money;
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public float getMoney() {
return money;
}
public void setMoney(float money) {
this.money = money;
}
@Override
public String toString() {
return "Account{" +
"id=" + id +
", name='" + name + '\'' +
", money=" + money +
'}';
}
}
3、创建业务层接口和实现类
业务层接口:IAccountService.java
import org.example.domain.Account;
import java.util.List;
/*
* 业务层接口
* */
public interface AccountService {
// 查询所有
List<Account> findAll();
// 根据id查询
Account findById(Integer accountId);
// 插入数据
void insert(Account account);
// 更新数据
void update(Account account);
// 根据Id删除数据
void delete(Integer accountId);
}
业务层实现类:AccountServiceImpl.java
import org.example.dao.IAccountDao;
import org.example.domain.Account;
import org.example.service.AccountService;
import java.util.List;
/*
* 业务层接口的实现类
* */
public class IAccountServiceImpl implements AccountService {
private IAccountDao accountDao;
// 通过set方法来让spring自动注入accountDao
public void setAccountDao(IAccountDao accountDao) {
this.accountDao = accountDao;
}
@Override
public List<Account> findAll() {
return accountDao.findAll();
}
@Override
public Account findById(Integer accountId) {
return accountDao.findById(accountId);
}
@Override
public void insert(Account account) {
accountDao.insert(account);
}
@Override
public void update(Account account) {
accountDao.update(account);
}
@Override
public void delete(Integer accountId) {
accountDao.delete(accountId);
}
}
4、创建持久层接口和实现类
持久层接口: IAccountDao.java
import org.example.domain.Account;
import java.util.List;
/*
* 账户的持久层接口
* */
public interface IAccountDao {
// 查询所有
List<Account> findAll();
// 根据id查询
Account findById(Integer accountId);
// 插入数据
void insert(Account account);
// 更新数据
void update(Account account);
// 根据Id删除数据
void delete(Integer accountId);
}
持久层实现类: AccountDaoImpl.java
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.BeanHandler;
import org.apache.commons.dbutils.handlers.BeanListHandler;
import org.example.dao.IAccountDao;
import org.example.domain.Account;
import java.util.List;
/*
* 永久层实现类
* */
public class AccountDaoImpl implements IAccountDao {
private QueryRunner queryRunner;
public void setQueryRunner(QueryRunner queryRunner) {
this.queryRunner = queryRunner;
}
@Override
public List<Account> findAll() {
try{
return queryRunner.query("select *from account", new BeanListHandler<Account>(Account.class));
}catch (Exception e) {
throw new RuntimeException(e);
}
}
@Override
public Account findById(Integer accountId) {
try{
return queryRunner.query("select *from account where id = ?", new BeanHandler<Account>(Account.class), accountId);
}catch (Exception e) {
throw new RuntimeException(e);
}
}
@Override
public void insert(Account account) {
try{
queryRunner.update("insert into account(name,money)values (?,?)", account.getName(),account.getMoney());
}catch (Exception e) {
throw new RuntimeException(e);
}
}
@Override
public void update(Account account) {
try{
queryRunner.update("update account set name = ?, money = ? where id = ?", account.getName(), account.getMoney(), account.getId());
}catch (Exception e) {
throw new RuntimeException(e);
}
}
@Override
public void delete(Integer accountId) {
try{
queryRunner.update("delete from account where id = ?", accountId);
}catch (Exception e) {
throw new RuntimeException(e);
}
}
}
5、配置文件
在resource文件夹中创建配置文件 Bean.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<!-- 配置service -->
<bean id="accountService" class="org.example.service.impl.IAccountServiceImpl">
<!-- 注入dao -->
<property name="accountDao" ref="accountDao"></property>
</bean>
<!-- 配置dao对象 -->
<bean id="accountDao" class="org.example.dao.impl.AccountDaoImpl">
<!-- 注入QueryRunner -->
<property name="queryRunner" ref="queryRunner"></property>
</bean>
<!-- 配置queryRunner -->
<bean id="queryRunner" class="org.apache.commons.dbutils.QueryRunner" scope="prototype">
<!-- 注入数据源 -->
<constructor-arg name="ds" ref="dataSource"></constructor-arg>
</bean>
<!-- 配置dataSource -->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<!-- 连接数据库 -->
<property name="driverClass" value="com.mysql.jdbc.Driver"></property>
<property name="jdbcUrl" value="jdbc:mysql://localhost/spring"></property>
<property name="user" value="root"></property>
<property name="password" value="123456"></property>
</bean>
</beans>

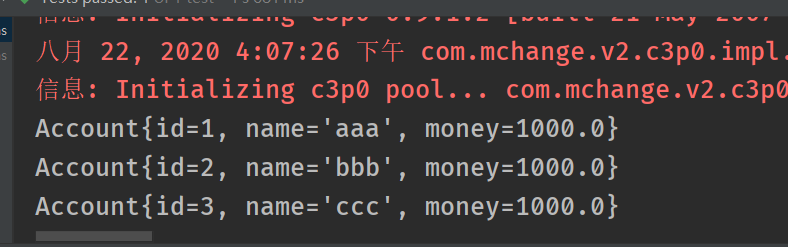

6、测试
@Test
public void findAll() {
// 1、获取容器
ApplicationContext ac = new ClassPathXmlApplicationContext("bean.xml");
// 2、得到业务对象
AccountService as = ac.getBean("accountService", AccountService.class);
// 3、执行方法
List<Account> accounts = as.findAll();
for (Account account : accounts) {
System.out.println(account);
}
}
