ReentrantLock 怎么使用
ReentrantLock 通常作为类的成员变量，用于加锁和释放锁，下面举个例子
java
复制代码
class X { private final ReentrantLock lock = new ReentrantLock(); // ... public void m() { lock.lock(); // block until condition holds try { // ... method body } finally { lock.unlock(); } } }
ReentrantLock 一般作为成员变量使用，通过 lock 方法获取锁，如果没有获取到锁会阻塞，获取到锁之后，执行业务逻辑，在 finally 代码中释放锁，防止死锁。
ReentrantLock 构造方法
我们首先看下 ReentrantLock 类的构造方法
java
复制代码
public class ReentrantLock implements Lock, java.io.Serializable { private static final long serialVersionUID = 7373984872572414699L; /** Synchronizer providing all implementation mechanics */ private final Sync sync; // 省略部分代码 /** * Creates an instance of {@code ReentrantLock}. * This is equivalent to using {@code ReentrantLock(false)}. */ public ReentrantLock() { sync = new NonfairSync(); } /** * Creates an instance of {@code ReentrantLock} with the * given fairness policy. * * @param fair {@code true} if this lock should use a fair ordering policy */ public ReentrantLock(boolean fair) { sync = fair ? new FairSync() : new NonfairSync(); } // 省略部分代码 }
ReentrantLock 提供了两个构造方法，默认的构造方法内部实现的是一个非公平锁 NonfairSync，也可以通过参数指定要创建的是公平锁 FairSync 还是非公平锁 NonfairSync。
静态内部类 Sync
我们先看下静态内部类 Sync 的结构
java
复制代码
public class ReentrantLock implements Lock, java.io.Serializable { private static final long serialVersionUID = 7373984872572414699L; /** Synchronizer providing all implementation mechanics */ private final Sync sync; /** * Base of synchronization control for this lock. Subclassed * into fair and nonfair versions below. Uses AQS state to * represent the number of holds on the lock. */ abstract static class Sync extends AbstractQueuedSynchronizer { private static final long serialVersionUID = -5179523762034025860L; /** * Performs {@link Lock#lock}. The main reason for subclassing * is to allow fast path for nonfair version. */ abstract void lock(); /** * Performs non-fair tryLock. tryAcquire is implemented in * subclasses, but both need nonfair try for trylock method. */ final boolean nonfairTryAcquire(int acquires) { final Thread current = Thread.currentThread(); int c = getState(); if (c == 0) { if (compareAndSetState(0, acquires)) { setExclusiveOwnerThread(current); return true; } } else if (current == getExclusiveOwnerThread()) { int nextc = c + acquires; if (nextc < 0) // overflow throw new Error("Maximum lock count exceeded"); setState(nextc); return true; } return false; } protected final boolean tryRelease(int releases) { int c = getState() - releases; if (Thread.currentThread() != getExclusiveOwnerThread()) throw new IllegalMonitorStateException(); boolean free = false; if (c == 0) { free = true; setExclusiveOwnerThread(null); } setState(c); return free; } protected final boolean isHeldExclusively() { // While we must in general read state before owner, // we don't need to do so to check if current thread is owner return getExclusiveOwnerThread() == Thread.currentThread(); } final ConditionObject newCondition() { return new ConditionObject(); } // Methods relayed from outer class final Thread getOwner() { return getState() == 0 ? null : getExclusiveOwnerThread(); } final int getHoldCount() { return isHeldExclusively() ? getState() : 0; } final boolean isLocked() { return getState() != 0; } /** * Reconstitutes the instance from a stream (that is, deserializes it). */ private void readObject(java.io.ObjectInputStream s) throws java.io.IOException, ClassNotFoundException { s.defaultReadObject(); setState(0); // reset to unlocked state } } // 省略部分代码 }

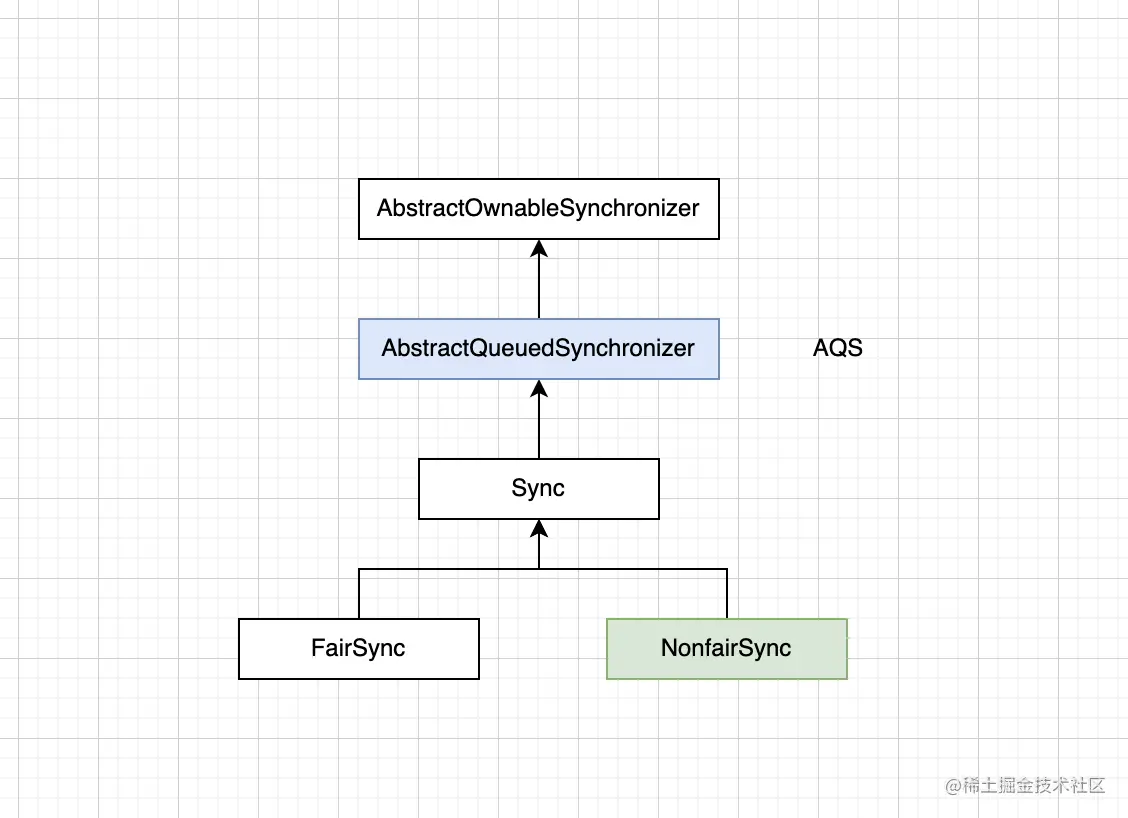

Sync 是一个抽象类，默认提供了两个实现，分别是我们上面提到的公平锁 FairSync 和非公平锁 NonfairSync，公平锁和非公平锁获取锁的方式不同，公平锁会先判断等待队列中是否有其他线程在排队，如果有，则加入等待队列的尾部，如果没有则通过 CAS 去尝试获取锁，如果获取不到锁则加入等待队列的尾部。而非公平锁获取锁的时候直接通过 CAS 尝试获取锁，不管等待队列中是否有其他线程在排队。
Sync 继承了 AbstractQueuedSynchronizer ，AbstractQueuedSynchronizer就是我们常说的 AQS 类。
AQS (AbstractQueuedSynchronizer)
内部就是一个 int 状态字段 state 和一个FIFO等待队列（双向链表），state 等于0 表示没有线程持有该锁，state 大于0表示有线程持有该锁。
ReentrantLock#lock 非公平锁的实现
下面我们通过 ReentrantLock#lock 方法一步一步的跟进代码
java
复制代码
public class ReentrantLock implements Lock, java.io.Serializable { private static final long serialVersionUID = 7373984872572414699L; /** Synchronizer providing all implementation mechanics */ private final Sync sync; // 省略部分代码 /** * Acquires the lock. * * <p>Acquires the lock if it is not held by another thread and returns * immediately, setting the lock hold count to one. * * <p>If the current thread already holds the lock then the hold * count is incremented by one and the method returns immediately. * * <p>If the lock is held by another thread then the * current thread becomes disabled for thread scheduling * purposes and lies dormant until the lock has been acquired, * at which time the lock hold count is set to one. */ public void lock() { sync.lock(); } // 省略部分代码 }
我们可以看到 lock 方法内部调用了 Sync 一个子类的 lock方法，我们先看下非公平锁 NonfairSync 的实现
java
复制代码
public class ReentrantLock implements Lock, java.io.Serializable { private static final long serialVersionUID = 7373984872572414699L; /** Synchronizer providing all implementation mechanics */ private final Sync sync; // 省略部分代码 /** * Sync object for non-fair locks */ static final class NonfairSync extends Sync { private static final long serialVersionUID = 7316153563782823691L; /** * Performs lock. Try immediate barge, backing up to normal * acquire on failure. */ final void lock() { if (compareAndSetState(0, 1)) setExclusiveOwnerThread(Thread.currentThread()); else acquire(1); } protected final boolean tryAcquire(int acquires) { return nonfairTryAcquire(acquires); } } // 省略部分代码 public void lock() { sync.lock(); } // 省略部分代码 }
非公平锁首先通过 compareAndSetState 方法尝试将 state 的值从0改为1，如果修改成功，则将当前线程设置为持有锁的线程。
java
复制代码
final void lock() { if (compareAndSetState(0, 1)) setExclusiveOwnerThread(Thread.currentThread()); else acquire(1); }
否在执行父类 AQS 的 acquire 方法，我们继续跟进到 AbstractQueuedSynchronizer 类中的 acquire 方法
java
复制代码
/** * Acquires in exclusive mode, ignoring interrupts. Implemented * by invoking at least once {@link #tryAcquire}, * returning on success. Otherwise the thread is queued, possibly * repeatedly blocking and unblocking, invoking {@link * #tryAcquire} until success. This method can be used * to implement method {@link Lock#lock}. * * @param arg the acquire argument. This value is conveyed to * {@link #tryAcquire} but is otherwise uninterpreted and * can represent anything you like. */ public final void acquire(int arg) { if (!tryAcquire(arg) && acquireQueued(addWaiter(Node.EXCLUSIVE), arg)) selfInterrupt(); }
首先调用了 tryAcquire 方法，可以看到在 AbstractQueuedSynchronizer 类中的tryAcquire 方法是一个 protected 修饰的方法，并且内部直接抛出了异常，那么很明显这个方法需要子类去实现（模版方法模式）
java
复制代码
/** * Attempts to acquire in exclusive mode. This method should query * if the state of the object permits it to be acquired in the * exclusive mode, and if so to acquire it. * * <p>This method is always invoked by the thread performing * acquire. If this method reports failure, the acquire method * may queue the thread, if it is not already queued, until it is * signalled by a release from some other thread. This can be used * to implement method {@link Lock#tryLock()}. * * <p>The default * implementation throws {@link UnsupportedOperationException}. * * @param arg the acquire argument. This value is always the one * passed to an acquire method, or is the value saved on entry * to a condition wait. The value is otherwise uninterpreted * and can represent anything you like. * @return {@code true} if successful. Upon success, this object has * been acquired. * @throws IllegalMonitorStateException if acquiring would place this * synchronizer in an illegal state. This exception must be * thrown in a consistent fashion for synchronization to work * correctly. * @throws UnsupportedOperationException if exclusive mode is not supported */ protected boolean tryAcquire(int arg) { throw new UnsupportedOperationException(); }
那么我们去 NonfairSync 类中看到 tryAcquire 方法调用了父类 Sync 的 nonfairTryAcquire 方法
java
复制代码
/** * Performs non-fair tryLock. tryAcquire is implemented in * subclasses, but both need nonfair try for trylock method. */ final boolean nonfairTryAcquire(int acquires) { final Thread current = Thread.currentThread(); int c = getState(); if (c == 0) { // 当前没有线程持有锁 if (compareAndSetState(0, acquires)) { // 通过 CAS 去抢锁 // 抢到锁了，抢持有锁的线程 exclusiveOwnerThread 设置为当前线程 setExclusiveOwnerThread(current); return true; } } // 当前已经有线程获取到了锁，判断持有锁到线程是不是自己 else if (current == getExclusiveOwnerThread()) { // 持有锁的线程是自己（可重入锁） int nextc = c + acquires; if (nextc < 0) // overflow throw new Error("Maximum lock count exceeded"); // 将 state 值+1 setState(nextc); return true; } // 没有获取到锁，返回 false return false; }
至此，AQS 类中的 tryAcquire 实现已经分析完了，如果没有获取到锁，会继续执行 if 中的条件判断，我们继续分析 AQS 类 addWaiter 方法
java
复制代码
public final void acquire(int arg) { if (!tryAcquire(arg) && acquireQueued(addWaiter(Node.EXCLUSIVE), arg)) selfInterrupt(); }
addWaiter 方法实现，在没有获取到锁的情况下，需要将当前线程加入到等待队列
java
复制代码
/** * Creates and enqueues node for current thread and given mode. * * @param mode Node.EXCLUSIVE for exclusive, Node.SHARED for shared * @return the new node */ private Node addWaiter(Node mode) { // 将当前线程封装到 Node 实例 Node node = new Node(Thread.currentThread(), mode); // Try the fast path of enq; backup to full enq on failure Node pred = tail; // 链表尾指针 if (pred != null) { // 新node.prev 指向前面node node.prev = pred; if (compareAndSetTail(pred, node)) { // 通过 CAS 将 tail 指向新加入的 node pred.next = node; // 将前面node.next 指向新node return node; } } // 尾指针为 null 的情况 enq(node); return node; }
AQS 类中 compareAndSetTail 方法
java
复制代码
/** * CAS tail field. Used only by enq. */ private final boolean compareAndSetTail(Node expect, Node update) { return unsafe.compareAndSwapObject(this, tailOffset, expect, update); }
AQS 类中 enq 方法
java
复制代码
/** * Inserts node into queue, initializing if necessary. See picture above. * @param node the node to insert * @return node's predecessor */ private Node enq(final Node node) { for (;;) { // for 循环，通过 CAS 将新node加入到链表尾部 Node t = tail; if (t == null) { // Must initialize if (compareAndSetHead(new Node())) // 通过 CAS 初始化 head 结点 tail = head; // 将 tail 指向 head } else { // 以下逻辑与 addWaiter 方法上面实现一致 node.prev = t; if (compareAndSetTail(t, node)) { t.next = node; return t; } } } }
至此，没有获取到锁的线程已经成功加入到等待队列的尾部了，AQS 类 addWaiter 方法会返回新加入到等待队列中的 node
java
复制代码
public final void acquire(int arg) { if (!tryAcquire(arg) && acquireQueued(addWaiter(Node.EXCLUSIVE), arg)) selfInterrupt(); }
我们继续分析 acquireQueued 方法
java
复制代码
/** * Acquires in exclusive uninterruptible mode for thread already in * queue. Used by condition wait methods as well as acquire. * * @param node the node * @param arg the acquire argument * @return {@code true} if interrupted while waiting */ final boolean acquireQueued(final Node node, int arg) { boolean failed = true; try { boolean interrupted = false; for (;;) { // 自旋 final Node p = node.predecessor(); // 新加入node的前一个结点 // p == head 说明新加入的node是链表中的第一个数据结点，尝试获取锁 if (p == head && tryAcquire(arg)) { // 获取锁成功，将链表中的第一个结点设置为头结点 setHead(node); p.next = null; // help GC failed = false; return interrupted; } if (shouldParkAfterFailedAcquire(p, node) && parkAndCheckInterrupt()) interrupted = true; } } finally { if (failed) cancelAcquire(node); } }

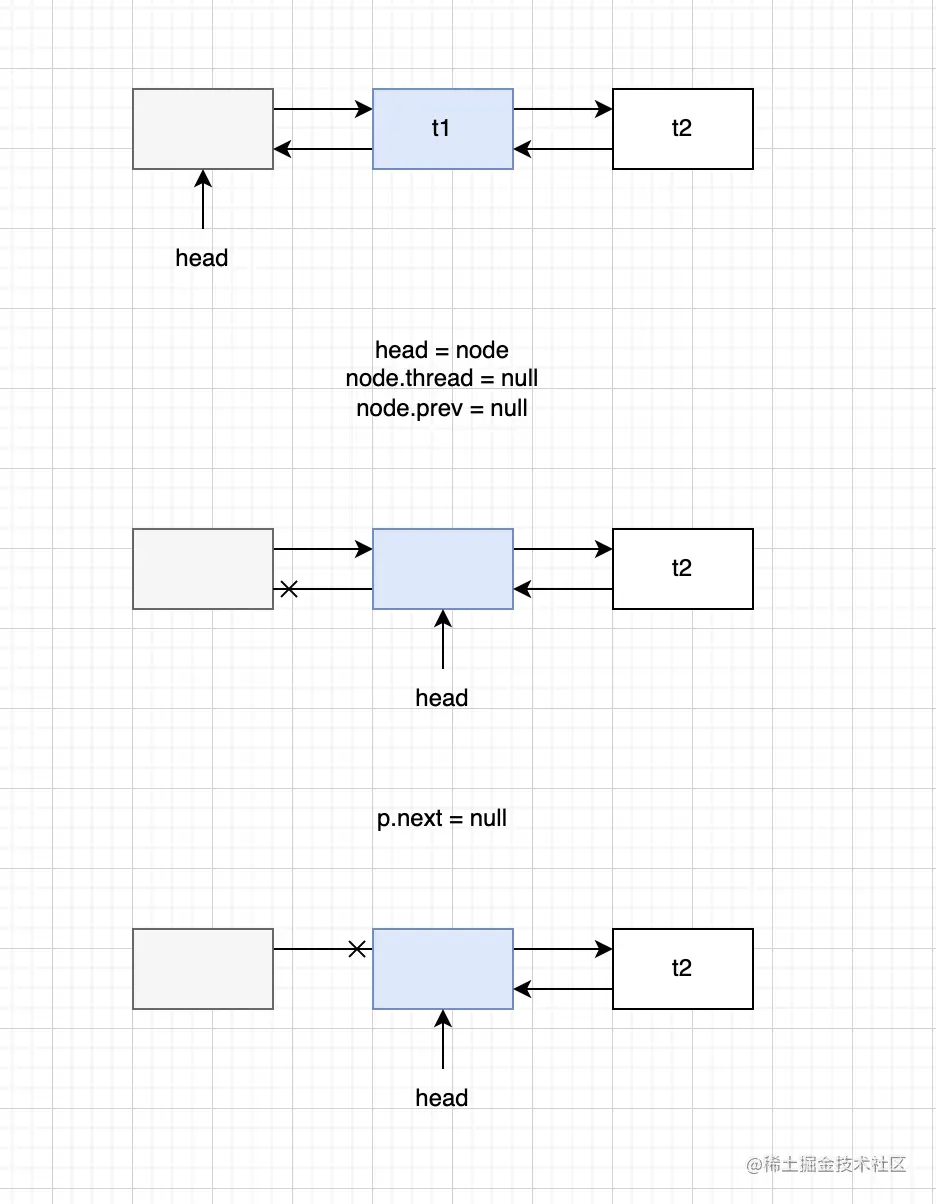

通过 for 循环自旋，获取当前结点的前一个结点，如果前一个结点是头结点，然后尝试获取锁，如果获取锁成功。更新队列的头结点为当前结点，之前 head 指向一个空的 Node 结点(new Node())，这里将当前结点 node 的thread 和 prev 设置为 null，将 head 指向当前结点。
java
复制代码
/** * Sets head of queue to be node, thus dequeuing. Called only by * acquire methods. Also nulls out unused fields for sake of GC * and to suppress unnecessary signals and traversals. * * @param node the node */ private void setHead(Node node) { head = node; // 将当前结点设置为头结点 node.thread = null; node.prev = null; }
如果新加入等待队列的结点不是第一个结点，或者是第一个结点但是尝试获取锁失败了，会执行shouldParkAfterFailedAcquire 方法，这个方法用于判断当前线程在尝试获取锁失败后是否需要 park（挂起）。
java
复制代码
/** * Checks and updates status for a node that failed to acquire. * Returns true if thread should block. This is the main signal * control in all acquire loops. Requires that pred == node.prev. * * @param pred node's predecessor holding status * @param node the node * @return {@code true} if thread should block */ private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) { int ws = pred.waitStatus; if (ws == Node.SIGNAL) /* * This node has already set status asking a release * to signal it, so it can safely park. */ return true; if (ws > 0) { /* * Predecessor was cancelled. Skip over predecessors and * indicate retry. */ do { node.prev = pred = pred.prev; } while (pred.waitStatus > 0); pred.next = node; } else { /* * waitStatus must be 0 or PROPAGATE. Indicate that we * need a signal, but don't park yet. Caller will need to * retry to make sure it cannot acquire before parking. */ compareAndSetWaitStatus(pred, ws, Node.SIGNAL); } return false; }
如果当前线程需要挂起，则执行 parkAndCheckInterrupt 方法
java
复制代码
/** * Convenience method to park and then check if interrupted * * @return {@code true} if interrupted */ private final boolean parkAndCheckInterrupt() { LockSupport.park(this); return Thread.interrupted(); }
ReentrantLock#unlock 非公平锁的实现
java
复制代码
/** * Attempts to release this lock. * * <p>If the current thread is the holder of this lock then the hold * count is decremented. If the hold count is now zero then the lock * is released. If the current thread is not the holder of this * lock then {@link IllegalMonitorStateException} is thrown. * * @throws IllegalMonitorStateException if the current thread does not * hold this lock */ public void unlock() { sync.release(1); }
调用了 AQS 的 release 方法
java
复制代码
/** * Releases in exclusive mode. Implemented by unblocking one or * more threads if {@link #tryRelease} returns true. * This method can be used to implement method {@link Lock#unlock}. * * @param arg the release argument. This value is conveyed to * {@link #tryRelease} but is otherwise uninterpreted and * can represent anything you like. * @return the value returned from {@link #tryRelease} */ public final boolean release(int arg) { if (tryRelease(arg)) { // 释放锁成功，获取头结点 Node h = head; if (h != null && h.waitStatus != 0) // 唤醒等待队列中的其他线程 unparkSuccessor(h); return true; } return false; }
调用 AQS 的 tryRelease 方法尝试释放锁，同样的 AQS 中的 tryRelease 方法并没有具体实现，这个方法需要子类去实现，我们进入到 Sync 类中查看具体实现
java
复制代码
protected final boolean tryRelease(int releases) { int c = getState() - releases; if (Thread.currentThread() != getExclusiveOwnerThread()) // 判断持有锁的线程是否是当前线程，如果不是抛异常 throw new IllegalMonitorStateException(); boolean free = false; if (c == 0) { // 如果state 的值为0，表示锁释放，对于可重入锁，加锁和解锁要成对出现 free = true; // 将持有锁的线程设置为 null setExclusiveOwnerThread(null); } // 更新 state 的值为0 setState(c); return free; }
释放锁成功，获取等待队列头结点，唤醒等待队列中的其他线程
java
复制代码
/** * Wakes up node's successor, if one exists. * * @param node the node */ private void unparkSuccessor(Node node) { /* * If status is negative (i.e., possibly needing signal) try * to clear in anticipation of signalling. It is OK if this * fails or if status is changed by waiting thread. */ int ws = node.waitStatus; if (ws < 0) compareAndSetWaitStatus(node, ws, 0); /* * Thread to unpark is held in successor, which is normally * just the next node. But if cancelled or apparently null, * traverse backwards from tail to find the actual * non-cancelled successor. */ Node s = node.next; if (s == null || s.waitStatus > 0) { s = null; for (Node t = tail; t != null && t != node; t = t.prev) if (t.waitStatus <= 0) s = t; } if (s != null) LockSupport.unpark(s.thread); }
本文主要介绍了 ReentrantLock 非公平锁的底层实现原理，公平锁的实现大家可自行查看源码。
