java使用WebSocket实现一对一实时对话

最近的项目中有实时对话的需求。这里也是查阅了很多的资料。使用webSocket实现一对一对话是最多的。

链接: https://pan.baidu.com/s/1Vn1e1qw7nRnU1_4R-4fcGg

提取码: qwer

逻辑讲解：

现在我们要给张三丰发一个你好，我们要解决下面两个问题

·  这个你好怎么展示在我的窗口
·  这个你好怎么展示在张三丰的窗口

第一个问题很好解决，我们的消息都是存在一个数组里面的，而我们前端是使用vue实现的，我们只需要在发消息的时候把新的消息push到这个数组里面去就行了。

我们要推送消息，我们只要知道要推送的session就好了，我们可以在连接的时候，把每一个session装进Map里面去，key使用userId。

前端拿到数据后，在websocketonmessage里面push到数组里面去就好了。

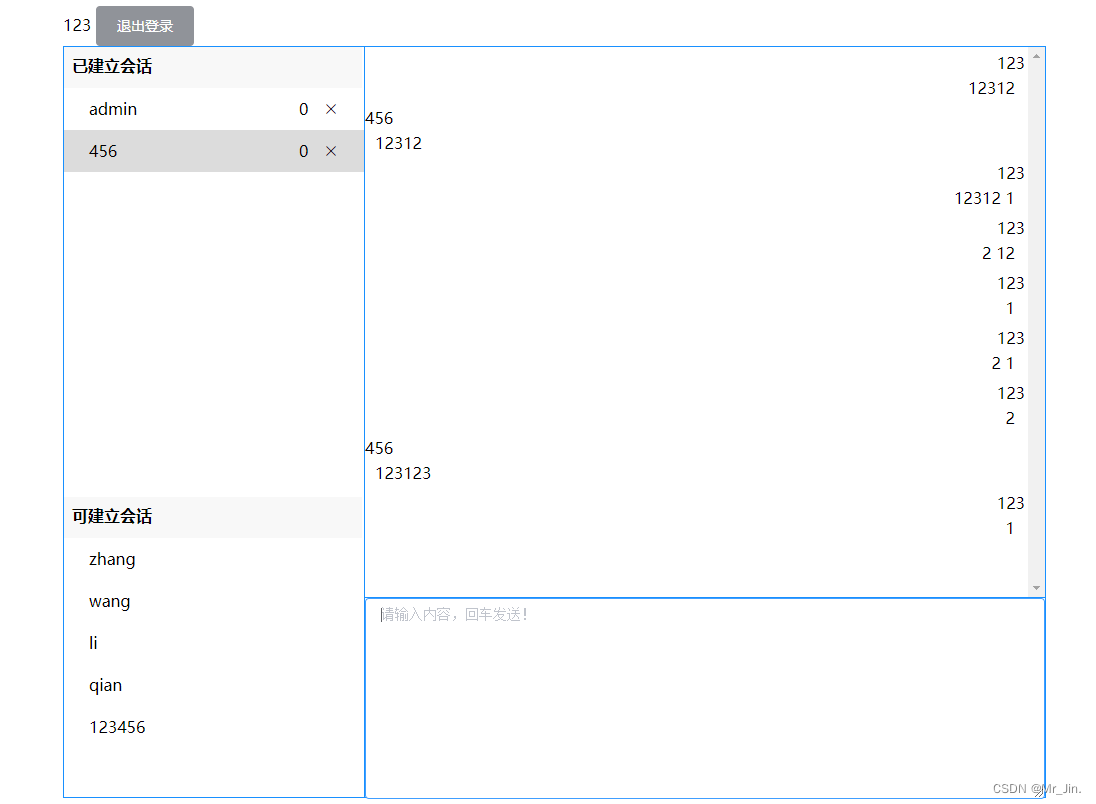

这样就实现了两个用户实时的聊天了。

当前会话存在就显示消息，当前会话不存在就显示消息+1

我们知道一个人可能和多个用户聊天，如果当前消息是该会话用户发的，那么我们的消息要显示出来（上面说了直接push到list里面），如果不是当前会话，我们就要显示消息+1。

引入依赖：此依赖封装了对实时对话的创建到取消链接

		<!-- websocket -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-websocket</artifactId>
		</dependency>

项目所需要的表：

 消息表

用来存每一个的对话消息，通过当前用户id，和点击会话列表，我们就和查询到当前会话的消息了。

CREATE TABLE `msg_info` (
  `id` int(6) NOT NULL AUTO_INCREMENT COMMENT '消息id',
  `from_user_id` int(6) NOT NULL COMMENT '消息发送者id',
  `from_user_name` varchar(50) NOT NULL COMMENT '消息发送者名称',
  `to_user_id` int(6) NOT NULL COMMENT '消息接收者id',
  `to_user_name` varchar(50) NOT NULL COMMENT '消息接收者名称',
  `content` varchar(200) NOT NULL COMMENT '消息内容',
  `create_time` datetime NOT NULL COMMENT '消息发送时间',
  `un_read_flag` int(1) NOT NULL COMMENT '是否已读（1 已读）',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=273 DEFAULT CHARSET=utf8 ROW_FORMAT=COMPACT COMMENT='消息表';

 会话列表

A和B、A和C、A和D、B和A，都可以建立会话，我们需要把存在的会话都存在起来，这样用户一登陆就可以看到自己之前的会话列表了。

CREATE TABLE `session_list` (
  `id` int(6) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `user_id` int(6) NOT NULL COMMENT '所属用户',
  `to_user_id` int(6) NOT NULL COMMENT '到用户',
  `list_name` varchar(50) NOT NULL COMMENT '会话名称',
  `un_read_count` int(6) NOT NULL COMMENT '未读消息数',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=51 DEFAULT CHARSET=utf8 ROW_FORMAT=COMPACT COMMENT='会话列表';

 用户表（一般只需要id和用户名建立通话即可，其他的如有需求自行添加）

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'ID',
  `name` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '用户名',
  `password` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '密码',
  `nick_name` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '昵称',
  `age` int(11) DEFAULT NULL COMMENT '年龄',
  `sex` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '性别',
  `address` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '地址',
  `avatar` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '头像',
  `account` decimal(10,2) DEFAULT 0.00 COMMENT '账户余额',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=20 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci ROW_FORMAT=DYNAMIC COMMENT='用户信息表';

配置WebSocketConfig

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

@Configuration
public class WebSocketConfig {

    /**
     * 注入一个ServerEndpointExporter,该Bean会自动注册使用@ServerEndpoint注解申明的websocket endpoint
     */
    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }

}

配置跨域

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
import org.springframework.web.filter.CorsFilter;

@Configuration
public class CorsConfig {

    // 当前跨域请求最大有效时长。这里默认1天
    private static final long MAX_AGE = 24 * 60 * 60;

    private CorsConfiguration buildConfig() {
        CorsConfiguration corsConfiguration = new CorsConfiguration();
        corsConfiguration.addAllowedOrigin("*"); // 1 设置访问源地址
        corsConfiguration.addAllowedHeader("*"); // 2 设置访问源请求头
        corsConfiguration.addAllowedMethod("*"); // 3 设置访问源请求方法
        corsConfiguration.setMaxAge(MAX_AGE);
        return corsConfiguration;
    }

    @Bean
    public CorsFilter corsFilter() {
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", buildConfig()); // 4 对接口配置跨域设置
        return new CorsFilter(source);
    }
}

 mybatis-plus配置   分页插件

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 *  mybatis-plus 分页插件
 */
@Configuration
@MapperScan("com.jt.mapper")
public class MybatisPlusConfig {

    /**
     * 分页插件
     */
    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }

}

Util工具类

CurPool 统一管理session、websocket、curUser(存储当前登录的用户)

package com.jt.util;

import com.jt.pojo.User;
import com.jt.websocket.WebSocket;

import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * 统一管理session、websocket、curUser
 */
public class CurPool {

    //    public static CopyOnWriteArraySet<WebSocket> webSockets =new CopyOnWriteArraySet<>();
    public static Map<Integer, WebSocket> webSockets = new ConcurrentHashMap<>();
    // list 里面第一个存sessionId，第二个存session
    public static Map<Integer, List<Object>> sessionPool = new ConcurrentHashMap<>();
    // 当前登录用户x
    public static Map<String, User> curUserPool = new ConcurrentHashMap<>();
}

JsonUtils JSON转换工具类，其实可以用其他的

例如：alibba的JSON  gson的JSON

package com.jt.util;

import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JavaType;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;

import java.io.IOException;
import java.util.List;
import java.util.Map;

/**
 * json 相关格式化
 */
public class JsonUtils {

    // 定义jackson对象
    private static ObjectMapper MAPPER = new ObjectMapper();

    {
        MAPPER.setSerializationInclusion(Include.ALWAYS);
    }

    /**
     * 将对象转换成json字符串。
     * <p>Title: pojoToJson</p >
     * <p>Description: </p >
     * @param data
     * @return
     */
    public static String objectToJson(Object data) {
        try {
            String string = MAPPER.writeValueAsString(data);
            return string;
        } catch (JsonProcessingException e) {
            e.printStackTrace();
        }
        return null;
    }

    public static JsonNode stringToJsonNode(String data) {
        try {
            JsonNode jsonNode = MAPPER.readTree(data);
            return jsonNode;
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
        return null;
    }

    /**
     * 将json结果集转化为对象
     *
     * @param jsonData json数据
     * @param beanType 对象中的object类型
     * @return
     * @throws Exception
     */
    public static <T> T objectToPojo(Object jsonData, Class<T> beanType) throws Exception {
        T t = MAPPER.readValue(MAPPER.writeValueAsString(jsonData), beanType);
        return t;
    }

    /**
     * 将json结果集转化为对象
     *
     * @param jsonData json数据
     * @param beanType 对象中的object类型
     * @return
     * @throws Exception
     */
    public static <T> T jsonToPojo(String jsonData, Class<T> beanType) throws Exception {
        T t = MAPPER.readValue(jsonData, beanType);
        return t;
    }

    /**
     * 将json数据转换成pojo对象list
     * <p>Title: jsonToList</p >
     * <p>Description: </p >
     * @param jsonData
     * @param beanType
     * @return
     */
    public static <T>List<T> jsonToList(String jsonData, Class<T> beanType) {
        JavaType javaType = MAPPER.getTypeFactory().constructParametricType(List.class, beanType);
        try {
            List<T> list = MAPPER.readValue(jsonData, javaType);
            return list;
        } catch (Exception e) {
            e.printStackTrace();
        }

        return null;
    }

    /**
     * 将object数据转换成pojo对象list
     * <p>Title: jsonToList</p >
     * <p>Description: </p >
     * @param jsonData
     * @param beanType
     * @return
     */
    public static <T>List<T> objectToList(Object jsonData, Class<T> beanType) {
        JavaType javaType = MAPPER.getTypeFactory().constructParametricType(List.class, beanType);
        try {
            List<T> list = MAPPER.readValue(MAPPER.writeValueAsString(jsonData), javaType);
            return list;
        } catch (Exception e) {
            e.printStackTrace();
        }

        return null;
    }

    /**
     * 将JSON数据转换成Map
     * @param jsonData
     * @return
     */
    public static Map<String,Object> jsonToMap(String jsonData) {
        try {
            Map map = MAPPER.readValue(jsonData, Map.class);
            return map;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

}

SpringContextUtil 重要：获取spring中的bean对象工具类，因为websocket中无法直接使用mapper

package com.jt.util;

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

/**
 * 获取spring中的bean对象工具类
 */
@Component
public class SpringContextUtil implements ApplicationContextAware {

    /**
     *  Spring应用上下文环境
     */
    private static ApplicationContext applicationContext;


    /**
     * 实现ApplicationContextAware接口的回调方法，设置上下文环境
     */
    @Override
    public void setApplicationContext(ApplicationContext applicationContext)
            throws BeansException {
        SpringContextUtil.applicationContext = applicationContext;
    }

    public static ApplicationContext getApplicationContext() {
        return applicationContext;
    }

    /**
     * 获取对象 这里重写了bean方法，起主要作用
     */
    public static Object getBean(String beanId) throws BeansException {
        return applicationContext.getBean(beanId);
    }
}

Controller

MsgInfoController   获取消息列表

package com.jt.controller;


import com.jt.mapper.MsgInfoMapper;
import com.jt.mapper.SessionListMapper;
import com.jt.pojo.MsgInfo;
import com.jt.pojo.SessionList;
import com.jt.vo.SysResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.util.List;

@RestController
public class MsgInfoController {

    @Resource
    private MsgInfoMapper msgInfoMapper;

    @Autowired
    private SessionListMapper sessionListMapper;

    // 消息列表
    @GetMapping("/msgList")
    public SysResult msgList(@RequestParam Integer sessionId){
        SessionList sessionList = sessionListMapper.selectByPrimaryKey(sessionId);
        if(sessionList == null){
            return SysResult.success();
        }
        Integer fromUserId = sessionList.getUserId();
        Integer toUserId = sessionList.getToUserId();
        List<MsgInfo> msgInfoList = msgInfoMapper.selectMsgList(fromUserId,toUserId);
        // 更新消息已读
        msgInfoMapper.msgRead(fromUserId, toUserId);
        // 更新会话里面的未读消息
        sessionListMapper.delUnReadCount(fromUserId, toUserId);
        return SysResult.success(msgInfoList);
    }


}

SessionController 创建会话、查询可建立的会话、查询已建立的会话

package com.jt.controller;


import com.jt.mapper.SessionListMapper;
import com.jt.mapper.UserMapper;
import com.jt.pojo.SessionList;
import com.jt.pojo.User;
import com.jt.vo.SysResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class SessionController {

    @Autowired
    private UserMapper userMapper;

    @Autowired
    private SessionListMapper seesionListMapper;

    /**
     * 已建立会话
     */
    @GetMapping("/sessionList/already")
    public SysResult sessionListAlready(@RequestParam Integer id){
        List<SessionList> sessionLists = seesionListMapper.selectByUserId(id);
        return  SysResult.success(sessionLists);
    }

    // 可建立会话的用户
    @GetMapping("/sessionList/not")
    public SysResult sessionListNot(@RequestParam Integer id){
        List<Integer> list = seesionListMapper.selectUserIdByUserId(id);
        list.add(id);
        List<User> cloudList = userMapper.getCloudList(list);
        return SysResult.success(cloudList);
    }

    // 创建会话
    @GetMapping("/createSession")
    public SysResult createSession(@RequestParam Integer id,@RequestParam Integer toUserId,@RequestParam String toUserName){
        SessionList sessionList = new SessionList();
        sessionList.setUserId(id);
        sessionList.setUnReadCount(0);
        sessionList.setListName(toUserName);
        sessionList.setToUserId(toUserId);
        seesionListMapper.insert(sessionList);
        // 判断对方和我建立会话没有？ 没有也要建立
        Integer integer = seesionListMapper.selectIdByUser(toUserId, id);
        if (integer == null || integer <= 0){
            User user = userMapper.selectByPrimaryKey(id);
            sessionList.setUserId(toUserId);
            sessionList.setToUserId(id);
            sessionList.setListName(user.getName());
            seesionListMapper.insert(sessionList);
        }
        return SysResult.success();
    }

    // 删除会话
    @GetMapping("/delSession")
    public SysResult delSession(@RequestParam Integer sessionId){
        seesionListMapper.deleteByPrimaryKey(sessionId);
        return SysResult.success();
    }

}

UserController  用户注册、登录（登录时将用户存入池中）、注销（用户退出时，在池中清除）

package com.jt.controller;


import com.jt.mapper.UserMapper;
import com.jt.pojo.User;
import com.jt.util.CurPool;
import com.jt.vo.SysResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class UserController {

    @Autowired
    private UserMapper userMapper;

    // 注册用户
    @GetMapping("/register")
    public SysResult register(@RequestParam String name) {
        String s = userMapper.selectByName(name);
        if (s != null || "".equals(s)){
            return SysResult.fail().setMsg("改用户已存在");
        }
        User user = new User();
        user.setName(name);
        userMapper.insert(user);
        return SysResult.success();
    }

    // 登录
    @GetMapping("/login")
    public SysResult login(@RequestParam String name){

        if (CurPool.curUserPool.get(name) != null){
            return SysResult.fail().setMsg("该用户已登录");
        }
        User user = userMapper.selectUserByName(name);
        if (user == null || user.getId() == null){
            return SysResult.fail().setMsg("该用户不存在");
        }
        CurPool.curUserPool.put(user.getName(), user);
        return SysResult.success(user);
    }

    // 注销
    @GetMapping("/loginOut")
    public SysResult loginOut(@RequestParam String name){
        if (name != null && !"".equals(name)){
            CurPool.curUserPool.remove(name);
            User user = userMapper.selectUserByName(name);
            CurPool.sessionPool.remove(user.getId());
            CurPool.webSockets.remove(user.getId());
            System.out.println("【websocket消息】连接断开，总数为:"+CurPool.webSockets.size());
        }
        return SysResult.success();
    }


}

Mapper

MsgInfoMapper

package com.jt.mapper;

import com.jt.pojo.MsgInfo;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

import java.util.List;

@Mapper
public interface MsgInfoMapper  {

    int insert(MsgInfo msgInfo);

    void msgRead(@Param("fromUserId") Integer fromUserId, @Param("toUserId") Integer toUserId);

    List<MsgInfo> selectMsgList(@Param("fromUserId") Integer fromUserId, @Param("toUserId") Integer toUserId);
}

 MsgInfoMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.jt.mapper.MsgInfoMapper">
    <resultMap id="BaseResultMap" type="com.jt.pojo.MsgInfo">
        <id column="id" jdbcType="INTEGER" property="id" />
        <result column="from_user_id" jdbcType="INTEGER" property="fromUserId" />
        <result column="from_user_name" jdbcType="VARCHAR" property="fromUserName" />
        <result column="to_user_id" jdbcType="INTEGER" property="toUserId" />
        <result column="to_user_name" jdbcType="VARCHAR" property="toUserName" />
        <result column="content" jdbcType="VARCHAR" property="content" />
        <result column="create_time" jdbcType="TIMESTAMP" property="createTime" />
        <result column="un_read_flag" jdbcType="INTEGER" property="unReadFlag" />
    </resultMap>
    <sql id="Base_Column_List">
        id, from_user_id, from_user_name, to_user_id,to_user_name, content, create_time, un_read_flag
    </sql>

    <insert id="insert" parameterType="com.jt.pojo.MsgInfo"  useGeneratedKeys="true" keyProperty="id">
        insert into msg_info (id, from_user_id, from_user_name,
                              to_user_id, to_user_name, content, create_time,
                              un_read_flag)
        values (#{id,jdbcType=INTEGER}, #{fromUserId,jdbcType=INTEGER}, #{fromUserName,jdbcType=VARCHAR},
                #{toUserId,jdbcType=INTEGER},#{toUserName,jdbcType=VARCHAR},  #{content,jdbcType=VARCHAR}, #{createTime,jdbcType=TIMESTAMP},
                #{unReadFlag,jdbcType=INTEGER})
    </insert>



    <update id="msgRead">
        UPDATE msg_info SET un_read_flag = 1 WHERE from_user_id = #{fromUserId} AND to_user_id = #{toUserId}
    </update>

    <select id="selectMsgList" resultMap="BaseResultMap">
        SELECT * FROM msg_info
        WHERE (
                      (to_user_id = #{toUserId} AND from_user_id = #{fromUserId})
                      OR (to_user_id = #{fromUserId} AND from_user_id = #{toUserId})
                  )
    </select>
</mapper>

SessionListMapper

package com.jt.mapper;


import com.jt.pojo.SessionList;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

import java.util.List;

@Mapper
public interface SessionListMapper {

    int deleteByPrimaryKey(Integer id);

    int insert(SessionList sessionList);

    SessionList selectByPrimaryKey(Integer id);

    List<Integer> selectUserIdByUserId(Integer id);

    List<SessionList> selectByUserId(Integer id);

    Integer selectIdByUser(@Param("fromId") Integer fromId,@Param("toId") Integer toId);


    void addUnReadCount(@Param("userId") Integer userId,@Param("toUserId") Integer toUserId);

    void delUnReadCount(@Param("fromUserId") Integer fromUserId,@Param("toUserId") Integer toUserId);
}

 SessionListMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.jt.mapper.SessionListMapper">
    <resultMap id="BaseResultMap" type="com.jt.pojo.SessionList">
        <id column="id" jdbcType="INTEGER" property="id" />
        <result column="user_id" jdbcType="INTEGER" property="userId" />
        <result column="to_user_id" jdbcType="INTEGER" property="toUserId" />
        <result column="list_name" jdbcType="VARCHAR" property="listName" />
        <result column="un_read_count" jdbcType="INTEGER" property="unReadCount" />
    </resultMap>
    <sql id="Base_Column_List">
        id, user_id,to_user_id, list_name, un_read_count
    </sql>
    <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
        select
        <include refid="Base_Column_List" />
        from session_list
        where id = #{id,jdbcType=INTEGER}
    </select>
    <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
        delete from session_list
        where id = #{id,jdbcType=INTEGER}
    </delete>
    <insert id="insert" parameterType="com.jt.pojo.SessionList">
        insert into session_list (id, user_id, to_user_id,list_name,
                                  un_read_count)
        values (#{id,jdbcType=INTEGER}, #{userId,jdbcType=INTEGER}, #{toUserId,jdbcType=INTEGER}, #{listName,jdbcType=VARCHAR},
                #{unReadCount,jdbcType=INTEGER})
    </insert>



    <select id="selectUserIdByUserId" resultType="java.lang.Integer">
        SELECT to_user_id FROM session_list WHERE user_id = #{id}
    </select>

    <select id="selectByUserId" resultMap="BaseResultMap">
        SELECT * FROM session_list WHERE user_id = #{id}
    </select>

    <select id="selectIdByUser" resultType="java.lang.Integer">
        SELECT id FROM session_list WHERE user_id = #{fromId} AND to_user_id = #{toId}
    </select>



    <update id="addUnReadCount">
        UPDATE session_list SET un_read_count = un_read_count + 1 WHERE user_id = #{userId} AND to_user_id = #{toUserId}
    </update>

    <update id="delUnReadCount">
        UPDATE session_list SET un_read_count = 0 WHERE user_id = #{fromUserId} AND to_user_id = #{toUserId}
    </update>
</mapper>

UserMapper

package com.jt.mapper;

import cn.hutool.db.Page;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.jt.pojo.User;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

import java.util.List;

@Mapper
public interface UserMapper {

    int insert(User user);

    User selectByPrimaryKey(Integer id);


    String selectByName(String name);

    List<User> getCloudList(@Param("list") List<Integer> list);

    User selectUserByName(@Param("name") String name);

}

 UserMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.jt.mapper.UserMapper">
    <resultMap id="BaseResultMap" type="com.jt.pojo.User">
        <id column="id" jdbcType="INTEGER" property="id" />
        <result column="name" jdbcType="VARCHAR" property="name" />
    </resultMap>
    <sql id="Base_Column_List">
        id, `name`
    </sql>
    <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
        select
        <include refid="Base_Column_List" />
        from user
        where id = #{id,jdbcType=INTEGER}
    </select>


    <insert id="insert" parameterType="com.jt.pojo.User">
        insert into user (id, `name`)
        values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR})
    </insert>



    <select id="selectByName" resultType="java.lang.String">
        SELECT name FROM user WHERE name = #{name}
    </select>

    <select id="getCloudList" resultMap="BaseResultMap">
        SELECT id,name FROM user
        <if test="list != null">
            WHERE id not in
            <foreach collection="list" open="(" close=")" separator="," item="i">
                #{i}
            </foreach>
        </if>
    </select>

    <select id="selectUserByName" resultMap="BaseResultMap" parameterType="java.lang.String">
        SELECT id,name FROM user WHERE name = #{name}
    </select>
</mapper>

 连接建立成功调用的方法                onOpen

连接关闭调用的方法                        onClose

收到客户端消息后调用的方法          onMessage

发生错误时调用                                onError

package com.jt.websocket;


import com.jt.mapper.MsgInfoMapper;
import com.jt.mapper.SessionListMapper;
import com.jt.mapper.UserMapper;
import com.jt.pojo.MsgInfo;
import com.jt.pojo.SessionList;
import com.jt.pojo.User;
import com.jt.util.CurPool;
import com.jt.util.JsonUtils;
import com.jt.util.SpringContextUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

@Slf4j
@Component
@ServerEndpoint("/websocket/{userId}/{sessionId}")
//此注解相当于设置访问URL
public class WebSocket {

    @Autowired
    private SessionListMapper sessionListMapper;

    @Autowired
    private UserMapper userMapper;

    @Autowired
    private MsgInfoMapper msgInfoMapper;

    private Session session;

    /**
     * 连接建立成功调用的方法
     */
    @OnOpen
    public void onOpen(Session session,@PathParam(value="userId")Integer userId, @PathParam(value="sessionId")String sessionId) {
        this.session = session;
        CurPool.webSockets.put(userId,this);
        List<Object> list = new ArrayList<>();
        list.add(sessionId);
        list.add(session);
        CurPool.sessionPool.put(userId , list);
        System.out.println("【websocket消息】有新的连接，总数为:"+CurPool.webSockets.size());
    }
    /**
     * 连接关闭调用的方法
     */
    @OnClose
    public void onClose() {
        // 断开连接删除用户删除session
        Integer userId = Integer.parseInt(this.session.getRequestParameterMap().get("userId").get(0));
        CurPool.sessionPool.remove(userId);
        CurPool.webSockets.remove(userId);
        if (userMapper == null){
            this.userMapper = (UserMapper) SpringContextUtil.getBean("userMapper");
        }
        User user = userMapper.selectByPrimaryKey(userId);
        CurPool.curUserPool.remove(user.getName());
        System.out.println("【websocket消息】连接断开，总数为:"+CurPool.webSockets.size());
    }
    /**
     * 收到客户端消息后调用的方法
     * 后台收到客户端发送过来的消息
     * onMessage 是一个消息的中转站
     * @param message 客户端发送过来的消息
     */
    @OnMessage
    public void onMessage(String message) {

        String sessionId = this.session.getRequestParameterMap().get("sessionId").get(0);
        if (sessionId == null){
            System.out.println("sessionId 错误");
        }
        // 在这里无法注入Mapper所以使用这种方式注入Mapper
        if (sessionListMapper == null){
            this.sessionListMapper = (SessionListMapper)SpringContextUtil.getBean("sessionListMapper");
        }
        if (userMapper == null){
            this.userMapper = (UserMapper)SpringContextUtil.getBean("userMapper");
        }
        if (msgInfoMapper == null){
            this.msgInfoMapper = (MsgInfoMapper)SpringContextUtil.getBean("msgInfoMapper");
        }
        SessionList sessionList = sessionListMapper.selectByPrimaryKey(Integer.parseInt(sessionId));
        User user = userMapper.selectByPrimaryKey(sessionList.getUserId());
        MsgInfo msgInfo = new MsgInfo();
        msgInfo.setContent(message);
        msgInfo.setCreateTime(new Date());
        msgInfo.setFromUserId(sessionList.getUserId());
        msgInfo.setFromUserName(user.getName());
        msgInfo.setToUserId(sessionList.getToUserId());
        msgInfo.setToUserName(sessionList.getListName());
        msgInfo.setUnReadFlag(0);
        // 消息持久化
        msgInfoMapper.insert(msgInfo);

        // 判断用户是否存在，不存在就结束
        List<Object> list = CurPool.sessionPool.get(sessionList.getToUserId());
        if (list == null || list.isEmpty()){
            // 用户不存在，更新未读数
            sessionListMapper.addUnReadCount(sessionList.getToUserId(),sessionList.getUserId());
        }else{
            // 用户存在，判断会话是否存在
            String id = sessionListMapper.selectIdByUser(sessionList.getToUserId(), sessionList.getUserId())+"";
            String o = list.get(0) + "";
            if (id.equals(o)){
                // 会话存在直接发送消息
                sendTextMessage(sessionList.getToUserId(), JsonUtils.objectToJson(msgInfo));
            }else {
                // 判断会话列表是否存在
                if (id == null || "".equals(id) || "null".equals(id)){
                    // 新增会话列表
                    SessionList tmpSessionList = new SessionList();
                    tmpSessionList.setUserId(sessionList.getToUserId());
                    tmpSessionList.setToUserId(sessionList.getUserId());
                    tmpSessionList.setListName(user.getName());
                    tmpSessionList.setUnReadCount(1);
                    sessionListMapper.insert(tmpSessionList);
                }else {
                    // 更新未读消息数量
                    sessionListMapper.addUnReadCount(sessionList.getToUserId(),sessionList.getUserId());
                }
                // 会话不存在发送列表消息
                List<SessionList> sessionLists = sessionListMapper.selectByUserId(sessionList.getToUserId());
                sendTextMessage(sessionList.getToUserId() ,JsonUtils.objectToJson(sessionLists));
            }
        }
        System.out.println("【websocket消息】收到客户端消息:"+message);
    }

    @OnError
    public void onError(Session session, Throwable error) {
        log.error("发生错误");
        error.printStackTrace();
    }

    // 此为广播消息
//    public void sendAllMessage(String message) {
//        for(WebSocket webSocket : webSockets) {
//            System.out.println("【websocket消息】广播消息:"+message);
//            try {
//                webSocket.session.getAsyncRemote().sendText(message);
//            } catch (Exception e) {
//                e.printStackTrace();
//            }
//        }
//    }

    // 此为单点消息 (发送文本)
    public void sendTextMessage(Integer userId, String message) {
        Session session = (Session)CurPool.sessionPool.get(userId).get(1);
        if (session != null) {
            try {
                session.getBasicRemote().sendText(message);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    // 此为单点消息 (发送对象)
//    public void sendObjMessage(String sessionId, Object message) {
//        Session session = CurPool.sessionPool.get(sessionId);
//        if (session != null) {
//            try {
                session.getAsyncRemote().sendObject(message);
//                session.getBasicRemote().sendText(JsonUtils.objectToJson(message));
//            } catch (Exception e) {
//                e.printStackTrace();
//            }
//        }
//    }

}

前端vue调用：

<template>
 <div class="main">
  <div class="main_up">
   <div v-if="curUserName == ''">
    <el-button @click="openDialog('登录')">登录</el-button>
    <el-button @click="openDialog('注册')">注册</el-button>
   </div>
   <div v-else>
    {

   {this.curUserName}}
    <el-button type="info" @click="loginOut">退出登录</el-button>
   </div>

  </div>
  <div class="main_down">
   <div class="left">
    <div class="left_up">
     <div class="label_title">
      已建立会话
     </div>
     <div :class="curSessionId == item.id ? 'box_select' : 'box'" v-for="item in sessionList_already" :key="item.id">
      <div class="box_left"  @click="startSession(item.id)">
       {

   {item.listName}}
      </div>
      <div class="right_left">
       <div class="right_left_count">
        {

   {item.unReadCount}}
       </div>
       <div class="right_left_del">
        <i class="el-icon-close" @click="delSession(item.id)"></i>
       </div>
      </div>
     </div>
    </div>
    <div class="left_down">
     <div class="label_title">
      可建立会话
     </div>
     <div v-for="item in sessionList_not" :key="item.id" class="box" @click="createSession(item.id, item.name)">
      <div class="box_left">
       {

   {item.name}}
      </div>
     </div>
    </div>

   </div>
   <div class="right">
    <div class="up" ref="element" id="msg_end">
     <div v-for="(item,i) in list" :key="i" :class="item.fromUserId === curUserId ? 'msg_right' : 'msg_left'">
      <div class="msg_right_up">
       {

   {item.fromUserName}}
      </div>
      <div :class="item.fromUserId === curUserId ? 'msg_right_down' : 'msg_left_down'">
       {

   {item.content}}
      </div>
     </div>

    </div>
    <div class="down">
     <el-input
     type="textarea"
     :rows="9"
     placeholder="请输入内容，回车发送！"
     @keyup.enter.native = "sendMsg"
     v-model="textarea">
     </el-input>

     <!-- <el-button  @click="sendMsg">发送</el-button> -->
    </div>
   </div>
  </div>

  <el-dialog
   :title="dialogTitle"
   :visible.sync="dialogVisible"
   width="30%"
   >
   <el-input v-model="loginName" placeholder="请输入用户名..."></el-input>
   <span slot="footer" class="dialog-footer">
    <el-button @click="dialogVisible = false">取 消</el-button>
    <el-button type="primary" @click="loginOrRegister">确 定</el-button>
   </span>
  </el-dialog>
  </div>
</template>

<script>
import axios from 'axios';
export default {

 name: 'HelloWorld',
 data(){
  return{
   dialogVisible: false,
   dialogTitle: '',
   loginName: '',
   textarea: "",
   list: [],
   curUserId: "",
   curUserName: "",
   curSessionId: '',
   sessionList_already:[],
   sessionList_not:[],
  }
 },
 created() { // 页面创建生命周期函数

 },
 updated(){
  // 解决每次发消息到最后面
  var elmnt = document.getElementById("msg_end");
  elmnt.scrollTop = elmnt.scrollHeight;
 },
 destroyed: function () { // 离开页面生命周期函数
  this.websocketclose();
 },
 methods: {
  initWebSocket: function (userId,sessionId) {
   // WebSocket与普通的请求所用协议有所不同，ws等同于http，wss等同于https
   this.websock = new WebSocket("ws://127.0.0.1:9090/websocket/"+userId+"/"+sessionId);
   this.websock.onopen = this.websocketonopen;
   this.websock.onerror = this.websocketonerror;
   this.websock.onmessage = this.websocketonmessage;
   this.websock.onclose = this.websocketclose;
  },
  websocketonopen: function () {
   console.log("WebSocket连接成功");
  },
  websocketonerror: function (e) {
   console.log("WebSocket连接发生错误",e);
  },
  websocketonmessage: function (e) {
   let data = JSON.parse(e.data);
   if(data instanceof Array){
    // 列表数据
    this.sessionList_already = data
   }else{
    // 消息数据
    this.list.push(data)
   }
  },
  websocketclose: function (e) {
   if(this.curUserId != null){
    if(this.curSessionId != null){
     this.initWebSocket(this.curUserId, this.curSessionId)
    }else{
     this.initWebSocket(this.curUserId, 99999999)
    }
   }
   console.log("connection closed",e);
   console.log(e);
  },
  // 消息发送
  sendMsg(){
   if(this.curSessionId == ''){
    return this.$message.error("请选择左边的对话框开始聊天!")
   }
   let data = {
    "fromUserId": this.curUserId,
    "fromUserName": this.curUserName,
    "content": this.textarea
   }
   this.list.push(data)
   this.websock.send(this.textarea)
   this.textarea = ''
  },
  openDialog(openName){
   this.dialogTitle = openName
   this.dialogVisible = true
  },
  // 登录or注册
  loginOrRegister(){
   let thus = this
   if(this.dialogTitle == "注册"){
    axios.get('http://127.0.0.1:9090/register?name=' + this.loginName)
    .then(function (response) {
     if(response.data.code == -1){
      return thus.$message.error(response.data.errDesc);
     }
     thus.$message.success("注册成功");
     thus.dialogVisible = false
    })
    .catch(function (error) {
     console.log(error);
    });
   }else if(this.dialogTitle == '登录'){
    axios.get('http://127.0.0.1:9090/login?name=' + this.loginName)
    .then(function (response) {
     console.log(response.data);
     if(response.data.code == -1){
      return thus.$message.error(response.data.errDesc);
     }
     thus.curUserId = response.data.data.id
     thus.curUserName = response.data.data.name
     thus.dialogVisible = false
     thus.getSessionListNot()
     thus.sessionListAlready()
     thus.startSession(99999999)
    })
    .catch(function (error) {
     console.log(error);
    });
   }
  },
  // 获取可建立会话列表
  getSessionListNot(){
   let thus = this
   axios.get('http://127.0.0.1:9090/sessionList/not?id=' + this.curUserId)
   .then(function (response) {
    if(response.data.code == -1){
     return thus.$message.error(response.data.errDesc);
    }
    thus.sessionList_not = response.data.data
   })
   .catch(function (error) {
    console.log(error);
   });
  },
  // 获取已存在的会话列表
  sessionListAlready(){
   let thus = this
   axios.get('http://127.0.0.1:9090/sessionList/already?id=' + this.curUserId)
   .then(function (response) {
    if(response.data.code == -1){
     return thus.$message.error(response.data.errDesc);
    }
    thus.sessionList_already = response.data.data
   })
   .catch(function (error) {
    console.log(error);
   });
  },
  // 创建会话
  createSession(toUserId, toUserName){
   let thus = this
   axios.get('http://127.0.0.1:9090/createSession?id=' + this.curUserId + "&toUserId=" + toUserId + "&toUserName=" + toUserName)
   .then(function (response) {
    if(response.data.code == -1){
     return thus.$message.error(response.data.errDesc);
    }
    thus.getSessionListNot()
    thus.sessionListAlready()
   })
   .catch(function (error) {
    console.log(error);
   });
  },
  // 开始会话
  startSession(sessionId){
   console.log(this.websock);
   if(this.websock != undefined){
    this.websock.close()
   }
   this.curSessionId = sessionId
   this.initWebSocket(this.curUserId, sessionId)
   this.msgList(sessionId)
  },
  // 删除会话
  delSession(sessionId){
   let thus = this
   axios.get('http://127.0.0.1:9090/delSession?sessionId=' + sessionId)
   .then(function (response) {
    if(response.data.code == -1){
     return thus.$message.error(response.data.errDesc);
    }
    thus.getSessionListNot()
    thus.sessionListAlready()
   })
   .catch(function (error) {
    console.log(error);
   });
  },
  // 退出登录
  loginOut(){
   let thus = this
   axios.get('http://127.0.0.1:9090/loginOut?name=' + this.curUserName)
   .then(function (response) {
    if(response.data.code == -1){
     return thus.$message.error(response.data.errDesc);
    }
    thus.curUserId = ''
    thus.curUserName = ''
    return thus.$message.success("退出登录成功");
   })
   .catch(function (error) {
    console.log(error);
   });
  },
  // 获取消息数据
  msgList(sessionId){
   let thus = this
   axios.get('http://127.0.0.1:9090/msgList?sessionId=' + sessionId)
   .then(function (response) {
    if(response.data.code == -1){
     return thus.$message.error(response.data.errDesc);
    }
    thus.list = response.data.data
    // 从新获取列表
    thus.sessionListAlready()
   })
   .catch(function (error) {
    console.log(error);
   });

  }
 }
}
</script>

<!-- Add "scoped" attribute to limit CSS to this component only -->
<style scoped>
 .main{
  width: 980px;
  /* border: 1px #1890ff solid; */
  margin-top: 50px;
  height: 790px;
 }
 .main_up{
  width: 980px;
  height: 40px;
  /* border:1px red solid; */
 }
 .main_down{
  width: 981px;
  height: 750px;
  border: 1px #1890ff solid;
  display: flex;
  justify-self: space-between;
 }
 .left{
  width: 300px;
  height: 750px;
  border-right: 1px #1890ff solid;
 }
 .left_up{
  width: 300px;
  height: 450px;
  overflow-y: auto;
  /* border: 1px red solid; */
 }
 .label_title{
  width: 282px;
  height: 25px;
  background-color: #f8f8f8;
  font-weight: 600;
  padding: 8px;
 }
 .left_down{
  width: 300px;
  height: 300px;
  overflow-y: auto;
  /* border: 1px green solid; */
 }
 .right{
  width: 680px;
  height: 750px;
  /* border-right: 1px #1890ff solid; */
 }
 .box{
  width: 250px;
  height: 22px;
  padding: 10px 25px 10px 25px;
  display: flex;
  justify-self: flex-end;
  /* border: 1px red solid; */
 }
 .box:hover{
  background-color: gainsboro;
  cursor: pointer;
 }
 .box_select{
  width: 250px;
  height: 22px;
  padding: 10px 25px 10px 25px;
  display: flex;
  justify-self: flex-end;
  background-color: gainsboro;
 }
 .box_left{
  width: 230px;
  height: 22px;
 }
 .right_left{
  width: 50px;
  height: 22px;
  display: flex;
  justify-content: space-between;
  /* border: 1px red solid; */
 }
 .right_left_count{
  /* border: 1px blue solid; */
  padding-left: 10px;
  width: 20px;
 }
 .right_left_del{
  width: 20px;
  padding-left: 10px;
 }
 .up{
  width: 680px;
  height: 550px;
  overflow-y: scroll;
  overflow-x: hidden;
  /* padding-bottom: 40px; */
  border-bottom: 1px #1890ff solid;
 }
 .msg_left{
  width: 675px;
  /* padding-left: 5px; */
  margin-top: 5px;
  /* border: 1px #1890ff solid; */
 }
 .msg_left_up{
  height: 25px;
  margin-top: 5px;
 }
 .msg_left_down{
  height: 25px;
  /* border: 1px #1890ff solid; */
  padding-left: 10px;
 }
 .msg_right{
  width: 660px;
  /* padding-right: 20px; */
  margin-top: 5px;
  /* border: 1px #1890ff solid; */
  text-align: right;
 }
 .msg_right_up{
  height: 25px;

 }
 .msg_right_down{
  height: 25px;
  /* border: 1px #1890ff solid; */
  padding-right: 10px;
 }
 .down{
  width: 680px;
  height: 200px;
  /* border: 1px red solid; */
 }
</style>



实现发送语音

生成音频文件，并进行保存上传到服务器中。然后将文件名字保存到数据库中，聊天时前端判断返回的数据是否为语音，如果为语音则直接根据名字调用音频文件获得语音内容。

1.用户点击发送语音，保存语音到服务器上，并保存名字到数据库中

2.接收语音时获得音频文件即可

3.前端根据获得的音频文件进行展示即可。

package com.jt.controller;

import com.jt.util.FtpUtil;

import javax.sound.sampled.*;
import java.io.*;

public class EngineeCore {

    String filePath = timeNumber()+".mp3";//要存储文件的位置

    AudioFormat audioFormat;
    TargetDataLine targetDataLine;
    boolean flag = true;

    public static void main(String[] args) {
        EngineeCore engineeCore = new EngineeCore();  //调用麦克风获取音频

        engineeCore.startRecognize();
    }

    private void stopRecognize() {
        flag = false;
        targetDataLine.stop();
        targetDataLine.close();
    }private AudioFormat getAudioFormat() {
        float sampleRate = 16000;
        // 8000,11025,16000,22050,44100
        int sampleSizeInBits = 16;
        // 8,16
        int channels = 1;
        // 1,2
        boolean signed = true;
        // true,false
        boolean bigEndian = false;
        // true,false
        return new AudioFormat(sampleRate, sampleSizeInBits, channels, signed, bigEndian);
    }// end getAudioFormat


    private void startRecognize() {
        try {
            // 获得指定的音频格式
            audioFormat = getAudioFormat();
            DataLine.Info dataLineInfo = new DataLine.Info(TargetDataLine.class, audioFormat);
            targetDataLine = (TargetDataLine) AudioSystem.getLine(dataLineInfo);

            // Create a thread to capture the microphone
            // data into an audio file and start the
            // thread running. It will run until the
            // Stop button is clicked. This method
            // will return after starting the thread.
            flag = true;
            new CaptureThread().start();
        } catch (Exception e) {
            e.printStackTrace();
        } // end catch
    }// end captureAudio method

    class CaptureThread extends Thread {
        public void run() {
            AudioFileFormat.Type fileType = null;

            File audioFile = new File(filePath);

            fileType = AudioFileFormat.Type.WAVE;
            //声音录入的权值
            int weight = 2;
            //判断是否停止的计数
            int downSum = 0;

            ByteArrayInputStream bais = null;
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            AudioInputStream ais = null;
            try {
                targetDataLine.open(audioFormat);
                targetDataLine.start();
                byte[] fragment = new byte[1024];

                ais = new AudioInputStream(targetDataLine);
                while (flag) {

                    targetDataLine.read(fragment, 0, fragment.length);
                    //当数组末位大于weight时开始存储字节（有声音传入），一旦开始不再需要判断末位
                    if (Math.abs(fragment[fragment.length-1]) > weight || baos.size() > 0) {
                        baos.write(fragment);
                        System.out.println("守卫："+fragment[0]+",末尾："+fragment[fragment.length-1]+",lenght"+fragment.length);
                        //判断语音是否停止
                        if(Math.abs(fragment[fragment.length-1])<=weight){
                            downSum++;
                        }else{
                            System.out.println("重置奇数");
                            downSum=0;
                        }//计数超过20说明此段时间没有声音传入(值也可更改)
                        if(downSum>20){
                            System.out.println("停止录入");
                            break;
                        }

                    }
                }

                //取得录音输入流
                audioFormat = getAudioFormat();
                byte audioData[] = baos.toByteArray();
                bais = new ByteArrayInputStream(audioData);
                ais = new AudioInputStream(bais, audioFormat, audioData.length / audioFormat.getFrameSize());
                //定义最终保存的文件名
                System.out.println("开始生成语音文件");
                AudioSystem.write(ais, AudioFileFormat.Type.WAVE, audioFile);
                downSum = 0;
                stopRecognize();

                //上传到服务器中
                BufferedInputStream buffer = new BufferedInputStream(new FileInputStream(filePath));
                boolean b = FtpUtil.uploadFileFTP("111.111.111.111", 21, "ftpuser", "ftpuser", "/www/wwwroot/ftpuser", timeNumber()+".mp3", buffer);
                System.out.println("b = " + b);

                boolean delete = audioFile.delete();//删除本地文件
                System.out.println("delete = " + delete);

                buffer.close();

            } catch (Exception e) {
                e.printStackTrace();
            } finally {
                //关闭流

                try {
                    ais.close();
                    bais.close();
                    baos.reset();

                } catch (IOException e) {
                    e.printStackTrace();
                }
            }

        }
    }
    //获得当前时间戳
    public Long timeNumber(){
        long l = System.currentTimeMillis();
        return l;
    }
}
