IntelRealSense系列SDK开发

IntelRealSense系列SDK开发

RealSense系列深度传感器由Intel公司开发的消费级深度相机，需使用SDK对其进行开发，主要是了获得其传感器数据。

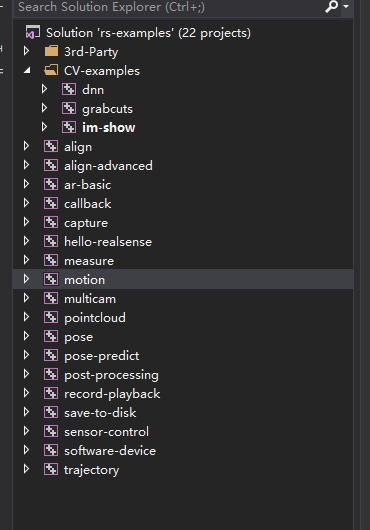

Samples

其中，

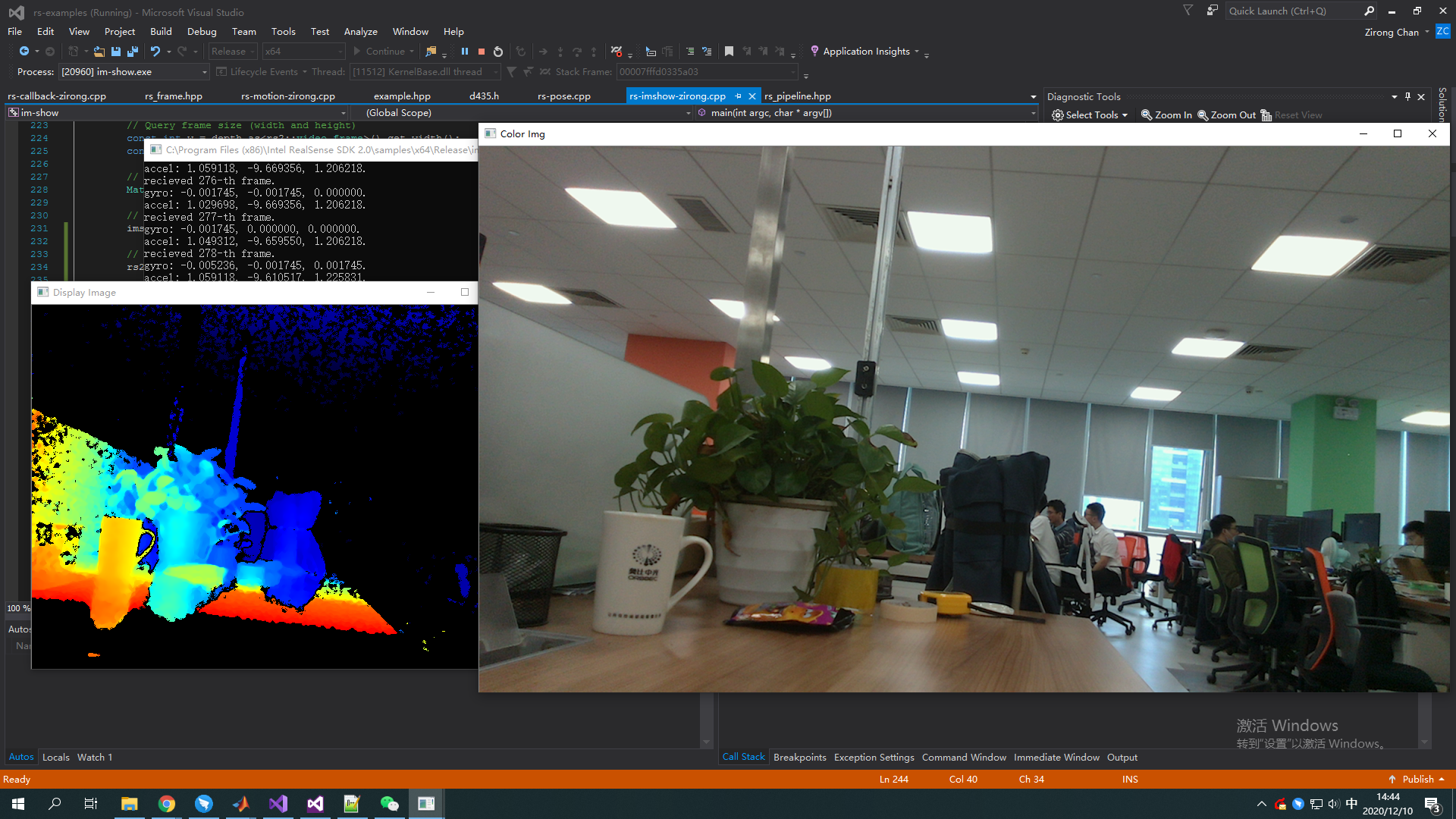

• im-show 提供支持OpenCV的数据接口与显示程序

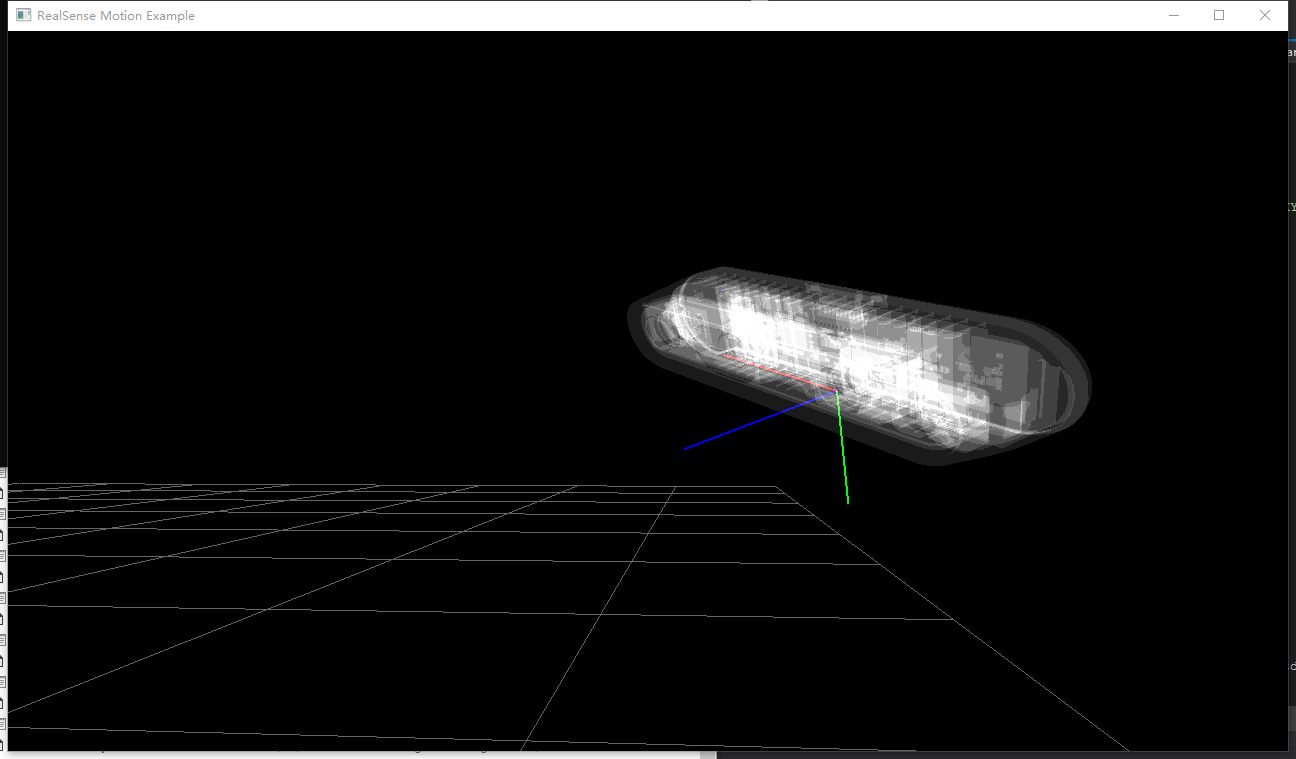

• motion 展示了如何从获取数据中解析陀螺仪与加速计的读数，即IMU数据，并以此展示相机位姿。

• callback 展示了如何通过回调函数，同时获取同步过的图像数据流，与不同步的IMU数据流。


获取数据基本流程

获取同步数据：深度/彩色

创建管线（pipeline)

rs2::pipeline pipe_sync;

配置（config）通过enable/disable函数控制数据流

// only enable the video frames
rs2::config cfg_sync;
//cfg.enable_stream(RS2_STREAM_COLOR, 1920, 1080, RS2_FORMAT_ANY, 30);
cfg_sync.enable_stream(RS2_STREAM_COLOR, 1280, 720, RS2_FORMAT_BGR8, 30);
cfg_sync.enable_stream(RS2_STREAM_DEPTH, 640, 480, RS2_FORMAT_Z16, 30);
cfg_sync.disable_stream(RS2_STREAM_ACCEL);
cfg_sync.disable_stream(RS2_STREAM_GYRO);

启动管线

pipe_sync.start(cfg_sync);

获取同步数据

while (true)
{


	rs2::frameset data = pipe_sync.wait_for_frames(); // Wait for next set of frames from the camera
	// color
	rs2::frame color = data.get_color_frame();
	// convert to OpenCV
	const int w_clr = color.as<rs2::video_frame>().get_width();
	const int h_clr = color.as<rs2::video_frame>().get_height();
	Mat color_img(Size(w_clr, h_clr), CV_8UC3, (void*)color.get_data(), Mat::AUTO_STEP);

	// depth is related to depth_scale
	rs2::depth_frame depth = data.get_depth_frame();
	const int w = depth.get_width();
	const int h = depth.get_height();
	Mat depth_image(Size(w, h), CV_16UC1, (void*)depth.get_data(), Mat::AUTO_STEP);

	// depth scale
	float depth_scale = depth.get_uints();

	// other operation goes here ...
}

停止管线

pipe_sync.stop();

获取运动数据：陀螺仪，加速计

    // Declare RealSense pipeline, encapsulating the actual device and sensors
    rs2::pipeline pipe;
    // Create a configuration for configuring the pipeline with a non default profile
    rs2::config cfg;

    // Add streams of gyro and accelerometer to configuration
    cfg.enable_stream(RS2_STREAM_ACCEL, RS2_FORMAT_MOTION_XYZ32F);
    cfg.enable_stream(RS2_STREAM_GYRO, RS2_FORMAT_MOTION_XYZ32F);

    // Start streaming with the given configuration;
    // Note that since we only allow IMU streams, only single frames are produced
    auto profile = pipe.start(cfg, [&](rs2::frame frame)
    {


        // Cast the frame that arrived to motion frame
        auto motion = frame.as<rs2::motion_frame>();
        // If casting succeeded and the arrived frame is from gyro stream
        if (motion && motion.get_profile().stream_type() == RS2_STREAM_GYRO && motion.get_profile().format() == RS2_FORMAT_MOTION_XYZ32F)
        {


            // Get the timestamp of the current frame
            double ts = motion.get_timestamp();
            // Get gyro measures
            rs2_vector gyro_data = motion.get_motion_data();
        }
        // If casting succeeded and the arrived frame is from accelerometer stream
        if (motion && motion.get_profile().stream_type() == RS2_STREAM_ACCEL && motion.get_profile().format() == RS2_FORMAT_MOTION_XYZ32F)
        {


            // Get accelerometer measures
            rs2_vector accel_data = motion.get_motion_data();
        }
    });

使用回调函数获取数据

#include <librealsense2/rs.hpp> // Include RealSense Cross Platform API
#include <iostream>
#include <mutex>
{


    std::mutex mutex;

    // Define frame callback
    // The callback is executed on a sensor thread and can be called simultaneously from multiple sensors
    // Therefore any modification to common memory should be done under lock
    auto callback = [&](const rs2::frame& frame)
    {


        std::lock_guard<std::mutex> lock(mutex);
        if (rs2::frameset fs = frame.as<rs2::frameset>())
        {


            // With callbacks, all synchronized stream will arrive in a single frameset
            for (const rs2::frame& f : fs)
                // operation ...
        }
        else
        {


            // Stream that bypass synchronization (such as IMU) will produce single frames
            // not a frameset class
            // operations ...
        }
    };

    // Declare RealSense pipeline, encapsulating the actual device and sensors.
    rs2::pipeline pipe;

    // Start streaming through the callback with default recommended configuration
    // The default video configuration contains Depth and Color streams
    // If a device is capable to stream IMU data, both Gyro and Accelerometer are enabled by default
    //
    rs2::pipeline_profile profiles = pipe.start(callback);

    while (true)
    {


        // operations ...
    }
}

进阶操作

使用不同的管线获取同一设备不同流

	// Declare RealSense pipeline, encapsulating the actual device and sensors.
	rs2::pipeline pipe_sync;
	// only enable the video frames
	rs2::config cfg_sync;
	//cfg.enable_stream(RS2_STREAM_COLOR, 1920, 1080, RS2_FORMAT_ANY, 30);
	cfg_sync.enable_stream(RS2_STREAM_COLOR, 1280, 720, RS2_FORMAT_BGR8, 30);
	cfg_sync.enable_stream(RS2_STREAM_DEPTH, 640, 480, RS2_FORMAT_Z16, 30);
	cfg_sync.disable_stream(RS2_STREAM_ACCEL);
	cfg_sync.disable_stream(RS2_STREAM_GYRO);

	// Pipeline for IMU data
	rs2::pipeline pipe_imu;
	rs2::config cfg_imu;
	cfg_imu.disable_stream(RS2_STREAM_COLOR);
	cfg_imu.disable_stream(RS2_STREAM_DEPTH);
	cfg_imu.enable_stream(RS2_STREAM_ACCEL, RS2_FORMAT_MOTION_XYZ32F);
	cfg_imu.enable_stream(RS2_STREAM_GYRO, RS2_FORMAT_MOTION_XYZ32F);

	pipe_sync.start();
	pipe_imu.start();

	// Operation goes here

	pipe_sync.stop();
	pipe_imu.stop();

同时开启不同设备

    rs2::context                          ctx;        // Create librealsense context for managing devices

    std::map<std::string, rs2::colorizer> colorizers; // Declare map from device serial number to colorizer (utility class to convert depth data RGB colorspace)

    std::vector<rs2::pipeline>            pipelines;

    // Capture serial numbers before opening streaming
    std::vector<std::string>              serials;
    for (auto&& dev : ctx.query_devices())
        serials.push_back(dev.get_info(RS2_CAMERA_INFO_SERIAL_NUMBER));

    // Start a streaming pipe per each connected device
    for (auto&& serial : serials)
    {


        rs2::pipeline pipe(ctx);
        rs2::config cfg;
        cfg.enable_device(serial);
        pipe.start(cfg);
        pipelines.emplace_back(pipe);
        // Map from each device's serial number to a different colorizer
        colorizers[serial] = rs2::colorizer();
    }
    // other operation goes here ...

获取相机参数

rs2::frameset data = pipe_sync.wait_for_frames(); // Wait for next set of frames from the camera
rs2::frame color = data.get_color_frame();
rs2_intrinsics intr = color.get_profile().as<rs2::video_stream_profile>().get_intrinsics(); // Calibration data

获取真实深度

rs2::frameset data = pipe_sync.wait_for_frames(); // Wait for next set of frames from the camera
// depth data
rs2::depth_frame depth = data.get_depth_frame();
// Query frame size (width and height)
const int w = depth.get_width();
const int h = depth.get_height();
cv::Mat depth_image = cv::Mat(Size(w, h), CV_16UC1);
for (int coo_x = 0; coo_x < w; coo_x++)
{


	for (int coo_y = 0; coo_y < h; coo_y++)
	{


		// in metrics
		float dist = depth.get_distance(coo_x, coo_y);
		// convert to millimeter
		depth_image.at<ushort>(coo_y, coo_x) = std::floor(dist * 1e3);
	}
}

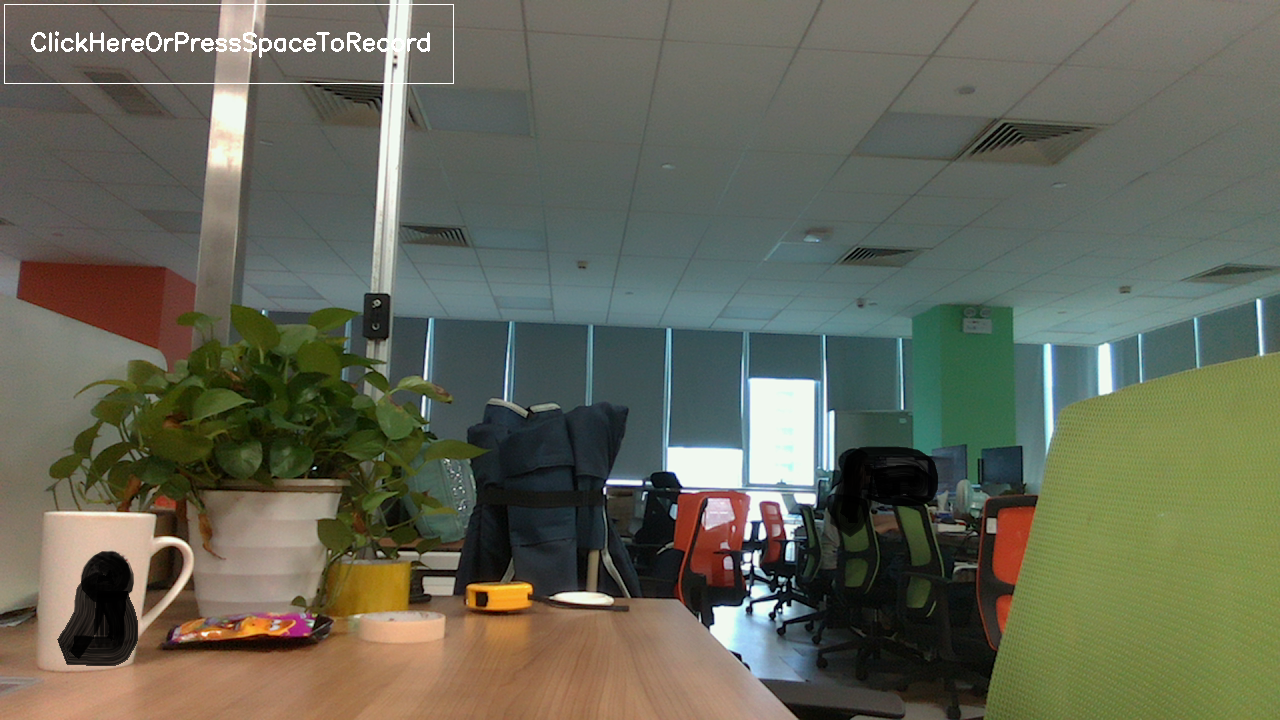

开发采集工具

• 使用两个管线分别采集图像/IMU数据；
• 将获取IMU数据的管线作为一个独立线程，利用其低存储尺寸的特点，到采集结束再写入硬盘；
• 另起两个独立线程解决串行图像数据存储问题（彩色、深度）。
