文章目录
Elasticsearch部署请参考:【 https://laker.blog.csdn.net/article/details/120977484】
Elasticsearch官网文档:https://www.elastic.co/guide/en/elasticsearch/client/index.html
SpringBoot集成
我使用的版本为
SpringBoot2.3.7RELEASE
,对应的ES版本为7.6.2
.
添加POM依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-elasticsearch</artifactId>
</dependency>
SpringBoot版本以及对应Elasticsearch版本如下图:
以
SpringBoot2.3.7RELEASE
版本为例子。
Spring Data Elasticsearch从 4.0 版本起不推荐使用 ElasticsearchTemplate,请改用 ElasticsearchRestTemplate。
下表显示了Spring Data发布系列所使用的Elasticsearch版本和其中包含的Spring Data Elasticsearch版本,以及针对特定Spring Data发布系列的Spring Boot版本:
Spring Data Release Train | Spring Data Elasticsearch | Elasticsearch | Spring Framework | Spring Boot |
---|---|---|---|---|
2021.1 (Q) | 4.3.x | 7.15.2 | 5.3.x | 2.5 .x |
2021.0 (Pascal) | 4.2.x | 7.12.0 | 5.3.x | 2.5.x |
2020.0 (Ockham) | 4.1.x | 7.9.3 | 5.3.2 | 2.4.x |
Neumann | 4.0.x | 7.6.2 | 5.2.12 | 2.3.x |
Moore | 3.2.x | 6.8.12 | 5.2.12 | 2.2.x |
Lovelace | 3.1.x | 6.2.2 | 5.1.19 | 2.1.x |
Kay | 3.0.x | 5.5.0 | 5.0.13 | 2.0.x |
Ingalls | 2.1.x | 2.4.0 | 4.3.25 | 1.5.x |
-
https://docs.spring.io/spring-data/elasticsearch/docs/4.0.6.RELEASE/reference/html/#new-features
-
https://github.com/spring-projects/spring-data-elasticsearch
配置文件
spring:
elasticsearch:
rest:
# ES的连接地址,多个地址用逗号分隔
uris: http://127.0.0.1:9200
# 读取超时时间
read-timeout: 30s
# 连接超时时间
connection-timeout: 1s
# 用户名
username:
# 密码
password:
注: 9300 是 Java 客户端的端口。9200 是支持 Restful HTTP 的接口。
创建映射对象
/**
* 注解:@Document用来声明Java对象与ElasticSearch索引的关系
* indexName 索引名称
* shards 主分区数量,默认1
* replicas 副本分区数量,默认1
* createIndex 索引不存在时,是否自动创建索引,默认true
*/
@Data
@Document(indexName = "goods_index", shards = 1, replicas = 0, createIndex = true)
public class Goods {
/**
* id
*/
@Id
private Long id;
/**
* 商品编号,不可使用分词器查询,精准匹配 FieldType.Keyword
*/
@Field(type = FieldType.Keyword)
private String goodsCode;
/**
* 商品名称,可以使用分词器查询,模糊匹配
*/
@Field(type = FieldType.Text, analyzer = "ik_max_word", searchAnalyzer = "ik_smart")
private String goodsName;
/**
* 商品发布时间
*/
@JsonFormat(timezone = "GMT+8", pattern = "yyyy-MM-dd HH:mm:ss")
@Field(type = FieldType.Date, format = DateFormat.basic_date_time)
private Date createDate;
/**
* 排名 默认都是100
*/
@Field(type = FieldType.Integer)
private Integer hotScore = 100;
/**
* 内嵌字段
*/
@Field(type = FieldType.Nested)
private List<GoodsAttr> attrs;
}
- @Id 作用在成员变量,标记一个字段作为id主键
- @Field 作用在成员变量,标记为文档的字段,并指定字段映射属性:
- type:字段类型,是枚举:FieldType,可以是text、long、short、date、integer、object等
- text:存储数据时候,会自动分词,并生成索引
- keyword:存储数据时候,不会分词建立索引
- Numerical:数值类型,分两类
- 基本数据类型:long、interger、short、byte、double、float、half_float
- 浮点数的高精度类型:scaled_float
- 需要指定一个精度因子,比如10或100。elasticsearch会把真实值乘以这个因子后存储,取出时再还原
- Date:日期类型
- elasticsearch可以对日期格式化为字符串存储,但是建议我们存储为毫秒值,存储为long,节省空间。
- index:是否索引,是否设置分词,布尔类型,默认是true
- store:是否存储,布尔类型,默认是false
- analyzer:分词器名称,存储时使用的分词器,这里的ik_max_word即使用ik分词器
- searchAnalyze:搜索时使用的分词器
- type:字段类型,是枚举:FieldType,可以是text、long、short、date、integer、object等
创建Repository接口
@Repository
public interface GoodsRepository extends ElasticsearchRepository<Goods, Long> {
}
常见操作
我们在操作索引和数据时,需要引用下面的类
@Autowired 用于高级查询
private ElasticsearchRestTemplate elasticsearchRestTemplate;
@Autowired 用于基础的CRUD
private GoodsRepository goodsRepository;
@Autowired
private RestHighLevelClient restHighLevelClient;
@Bean
RestHighLevelClient client() {
ClientConfiguration clientConfiguration = ClientConfiguration.builder()
.connectedTo("localhost:9200")
.build();
return RestClients.create(clientConfiguration)
.rest();
}
索引操作
# 判断索引是否存在
elasticsearchRestTemplate.indexOps(Goods.class).exists();
elasticsearchRestTemplate.indexOps(IndexCoordinates.of(indexNames)).exists();
# 创建索引
elasticsearchRestTemplate.indexOps(Goods.class).create();
# 删除索引
elasticsearchRestTemplate.indexOps(IndexCoordinates.of(indexName)).delete();
if (!esService.indexExists()) {
esService.indexCreate();
}

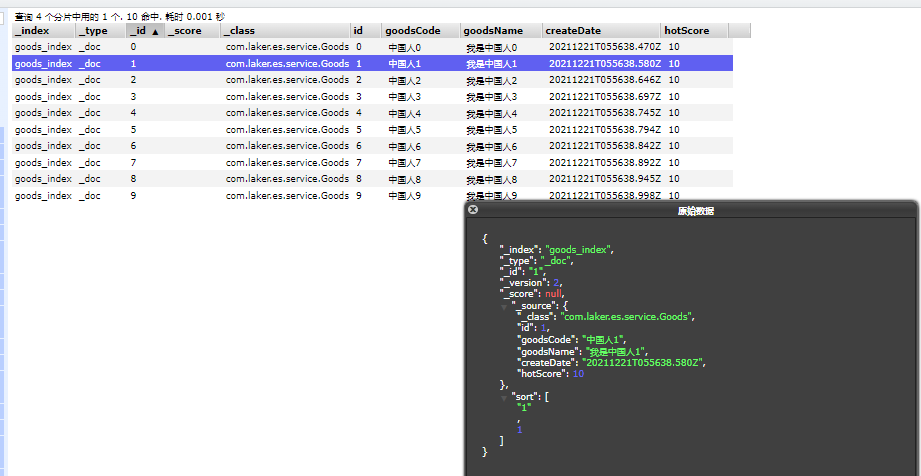

新增数据
Goods goods = new Goods();
goods.setId((long) i);
goods.setGoodsCode("中国人" + i);
goods.setCreateDate(new Date());
goods.setHotScore(10);
goods.setGoodsName("我是中国人" + i);
# 新增
goodsRepository.save(goods);
# 批量新增
goodsRepository.saveAll(goodsList);
删除数据
# 根据ID,删除数据
goodsRepository.deleteById(id);
# 根据对象删除数据,主键ID不能为空
goodsRepository.delete(bean);
# 根据对象集合,批量删除
goodsRepository.deleteAll(beanList);
# 删除所有
goodsRepository.deleteAll();
更新数据
Goods goods = new Goods();
goods.setId(id); // ID不能为空
goods.setGoodsCode("中国人");
goodsRepository.save(goods);// 根据主键更新 ID不能为空
更新某几个字段
查询
ElasticsearchRestTemplate的基本api
- SearchQuery 总的查询
- BoolQueryBuilder bool查询,可在后面加上must,mustNot,should等等
- MatchQueryBuilder 匹配查询
- TermQueryBuilder 倒排索引查询
- HighlightBuilder 高亮查询,用于设置要高亮的field
查询结果
SearchHit
包含以下信息:
-
Id
-
Score
-
Sort Values
-
Highlight fields
-
The retrieved entity of type
SearchHits
包含以下信息:
- Number of total hits
- Total hits relation
- Maximum score
- A list of
SearchHit<T>
objects - Returned aggregations
SearchPage
定义一个Spring Data Page
包含一个 SearchHits<T>
元素,可以使用存储库方法进行分页访问
SearchScrollHits
由ElasticsearchRestTemplate
中的底层滚动API函数返回,它用Elasticsearch滚动id充实了SearchHits
。
SearchHitsIterator
由SearchOperations
接口的流函数返回的迭代器。
QueryBuilders提供了大量的静态方法,用于生成各种不同类型的查询:
- matchQuery:词条匹配,先分词然后在调用termQuery进行匹配
- TermQuery:词条匹配,不分词
- wildcardQuery:通配符匹配
- fuzzyQuery:模糊匹配
- rangeQuery:范围匹配
- booleanQuery:布尔查询,组合查询
// 构建查询条件
NativeSearchQueryBuilder queryBuilder = new NativeSearchQueryBuilder();
// 添加基本分词查询
queryBuilder.withQuery(QueryBuilders.matchQuery(“title”, “小米手机”));
BooleanQuery(组合查询)
注意点:
BooleanClause用于表示布尔查询子句关系的类,包括:BooleanClause.Occur.MUST,BooleanClause.Occur.MUST_NOT,BooleanClause.Occur.SHOULD。必须包含,不能包含,可以包含三种.有以下6种组合:
1.MUST和MUST:交集。
2.MUST和MUST_NOT:表示查询结果中不能包含MUST_NOT所对应得查询子句的检索结果。
3.SHOULD与MUST_NOT:连用时,功能同MUST和MUST_NOT。
4.SHOULD与MUST连用时,结果为MUST子句的检索结果,但是SHOULD可影响排序。
5.SHOULD与SHOULD:并集。
6.MUST_NOT和MUST_NOT:无意义,检索无结果。
public void testBooleanQuery(){
NativeSearchQueryBuilder builder = new NativeSearchQueryBuilder();
builder.withQuery(QueryBuilders.boolQuery().must(QueryBuilders.termQuery("title","手机"))
.must(QueryBuilders.termQuery("brand","小米"))
);
Page<Item> list = this.itemRepository.search(builder.build());
排序
NativeSearchQueryBuilder queryBuilder = new NativeSearchQueryBuilder();
// 添加基本分词查询
queryBuilder.withQuery...
// 排序
queryBuilder.withSort(SortBuilders.fieldSort("price").order(SortOrder.ASC));
普通查询
可以使用goodsRepository
操作
@Repository
public interface GoodsRepository extends ElasticsearchRepository<Goods, Long> {
long countByGoodsCode(String goodsCode);
long deleteByGoodsCode(String goodsCode);
List<Goods> removeByGoodsCode(String goodsCode);
List<Goods> findByGoodsCode(String goodsCode);
Page<Goods> findByGoodsCode(String goodsCode, Pageable pageable);
Slice<Goods> findByGoodsCode(String goodsCode, Pageable pageable);
List<Goods> findByGoodsCode(String goodsCode, Sort sort);
List<Goods> findFirst10ByGoodsCode(String goodsCode, Pageable pageable);
@Query("{\"bool\": {\"must\": [{\"match\": {\"tags\": \"?0\"}}]}}")
Page<Goods> findFirst10ByGoodsCode(String tag, Pageable pageable);
Page<Article> findByAuthorsName(String name, Pageable pageable);
@Query("{\"bool\": {\"must\": [{\"match\": {\"authors.name\": \"?0\"}}]}}")
Page<Article> findByAuthorsNameUsingCustomQuery(String name, Pageable pageable);
@Query("{\"bool\": {\"must\": {\"match_all\": {}}, \"filter\": {\"term\": {\"tags\": \"?0\" }}}}")
Page<Article> findByFilteredTagQuery(String tag, Pageable pageable);
@Query("{\"bool\": {\"must\": {\"match\": {\"authors.name\": \"?0\"}}, \"filter\": {\"term\": {\"tags\": \"?1\" }}}}")
Page<Article> findByAuthorsNameAndFilteredTagQuery(String name, String tag, Pageable pageable);
}
API 接受
Sort
和Pageable
。如果您不想应用任何排序或分页,请使用Sort.unsorted()
和Pageable.unpaged()
,不要传null。Sort sort = Sort.by(“firstname”).ascending()
.and(Sort.by(“lastname”).descending());
与Elasticsearch 查询字符串映射如下:https://docs.spring.io/spring-data/elasticsearch/docs/4.0.6.RELEASE/reference/html/#elasticsearch.query-methods.criterions
分页查询
Page<User> users = repository.findAll(PageRequest.of(1, 20));
MatchQueryBuilder builder = QueryBuilders.matchQuery(field, value);
SearchQuery searchQuery = new NativeSearchQuery(builder).setPageable(PageRequest.of(0, 100));
AggregatedPage<EmployeeBean> page = restTemplate.queryForPage(searchQuery, EmployeeBean.class);
long totalElements = page.getTotalElements(); // 总记录数
int totalPages = page.getTotalPages(); // 总页数
int pageNumber = page.getPageable().getPageNumber(); // 当前页号
List<EmployeeBean> beanList = page.toList(); // 当前页数据集
Set<EmployeeBean> beanSet = page.toSet(); // 当前页数据集
高亮查询
权重查询
聚合查询
监控管理
ElasticHQ可以作为Docker容器使用。执行以下命令以使用ElasticHQ启动容器:
$ docker run -d --name elastichq -p 5000:5000 elastichq/elasticsearch-hq
问题总结
索引映射创建
方式一 在实体类上加**@Document**,而在这个类中有一个createIndex属性,默认为true,意思是在启动应用时es中还没创建该索引,则进行初始化。
下面是默认创建的索引和映射,很明显里面的映射创建是不对。不建议使用这种方式。
es服务端版本为7.3.0。不知道是不是不完全匹配的原因。试了7.6.2版本也不对哈哈哈。
{
"state": "open",
"settings": {
"index": {
"refresh_interval": "1s",
"number_of_shards": "1",
"provided_name": "goods_index",
"creation_date": "1640695057235",
"store": {
"type": "fs"
},
"number_of_replicas": "0",
"uuid": "La3XlrTTTu6-SoNtsuPl1g",
"version": {
"created": "7030099"
}
}
},
"mappings": {
"_doc": {
"properties": {
"hotScore": {
"type": "long"
},
"_class": {
"type": "text",
"fields": {
"keyword": {
"ignore_above": 256,
"type": "keyword"
}
}
},
"goodsCode": {
"type": "text",
"fields": {
"keyword": {
"ignore_above": 256,
"type": "keyword"
}
}
},
"id": {
"type": "long"
},
"goodsName": {
"type": "text",
"fields": {
"keyword": {
"ignore_above": 256,
"type": "keyword"
}
}
},
"createDate": {
"type": "text",
"fields": {
"keyword": {
"ignore_above": 256,
"type": "keyword"
}
}
}
}
}
}
方式二 使用postman、elasticsearch-head等提交put请求创建索引和映射。
这个就不用讲了哈,最原始的了。
方式三 设置**@Document**,的createIndex属性为false
,然后使用代码初始化索引和映射。
public boolean indexAndMappingCreate() {
IndexOperations indexOperations = elasticsearchRestTemplate.indexOps(Goods.class);
boolean exists = indexOperations.exists();
if (exists) {
return true;
}
boolean index = indexOperations.create();
Document mapping = indexOperations.createMapping(Goods.class);
boolean putMapping = indexOperations.putMapping(mapping);
if (index && putMapping) {
return true;
} else {
return false;
}
}
不支持fielddata = true
@Field(type = FieldType.Integer, fielddata = true)
private Integer hotScore = 100;
结果如下:
{
"state": "open",
"settings": {
"index": {
"refresh_interval": "1s",
"number_of_shards": "1",
"provided_name": "goods_index",
"creation_date": "1640697770606",
"store": {
"type": "fs"
},
"number_of_replicas": "0",
"uuid": "_N7I0GAJRsitjTbs9XnOcQ",
"version": {
"created": "7030099"
}
}
},
"mappings": {
"_doc": {
"properties": {
"hotScore": {
"type": "integer"
},
"goodsCode": {
"type": "keyword"
},
"goodsName": {
"search_analyzer": "ik_smart",
"analyzer": "ik_max_word",
"type": "text"
},
"attrs": {
"type": "nested"
},
"createDate": {
"format": "basic_date_time",
"type": "date"
}
}
}
},
方式四 使用RestHighLevelClient
发起请求,类似于postman发起put请求。
@Autowired
@Qualifier("elasticsearchClient")
protected RestHighLevelClient client;
方式五
排序查询报错
排序字段【goodsCode】需要设置fielddata=true
. 需要对 string类型的字段,单独设置加载到内存中,才能排序。
Fielddata is disabled on text fields by default. Set fielddata=true on [goodsCode] in order to load fielddata in memory by uninverting the inverted index
查询时错误如下:
Caused by: ElasticsearchException[Elasticsearch exception [type=illegal_argument_exception, reason=Fielddata is disabled on text fields by default. Set fielddata=true on [goodsCode] in order to load fielddata in memory by uninverting the inverted index. Note that this can however use significant memory. Alternatively use a keyword field instead.]]
at org.elasticsearch.ElasticsearchException.innerFromXContent(ElasticsearchException.java:496)
at org.elasticsearch.ElasticsearchException.fromXContent(ElasticsearchException.java:407)
at org.elasticsearch.ElasticsearchException.innerFromXContent(ElasticsearchException.java:437)
... 46 more
参考:
-
https://www.baeldung.com/spring-data-elasticsearch-queries
-
https://blog.csdn.net/weixin_43814195/article/details/85281287
-
https://www.cnblogs.com/huanshilang/p/14382279.html
-
https://github.com/eugenp/tutorials/tree/master/persistence-modules/spring-data-elasticsearch
