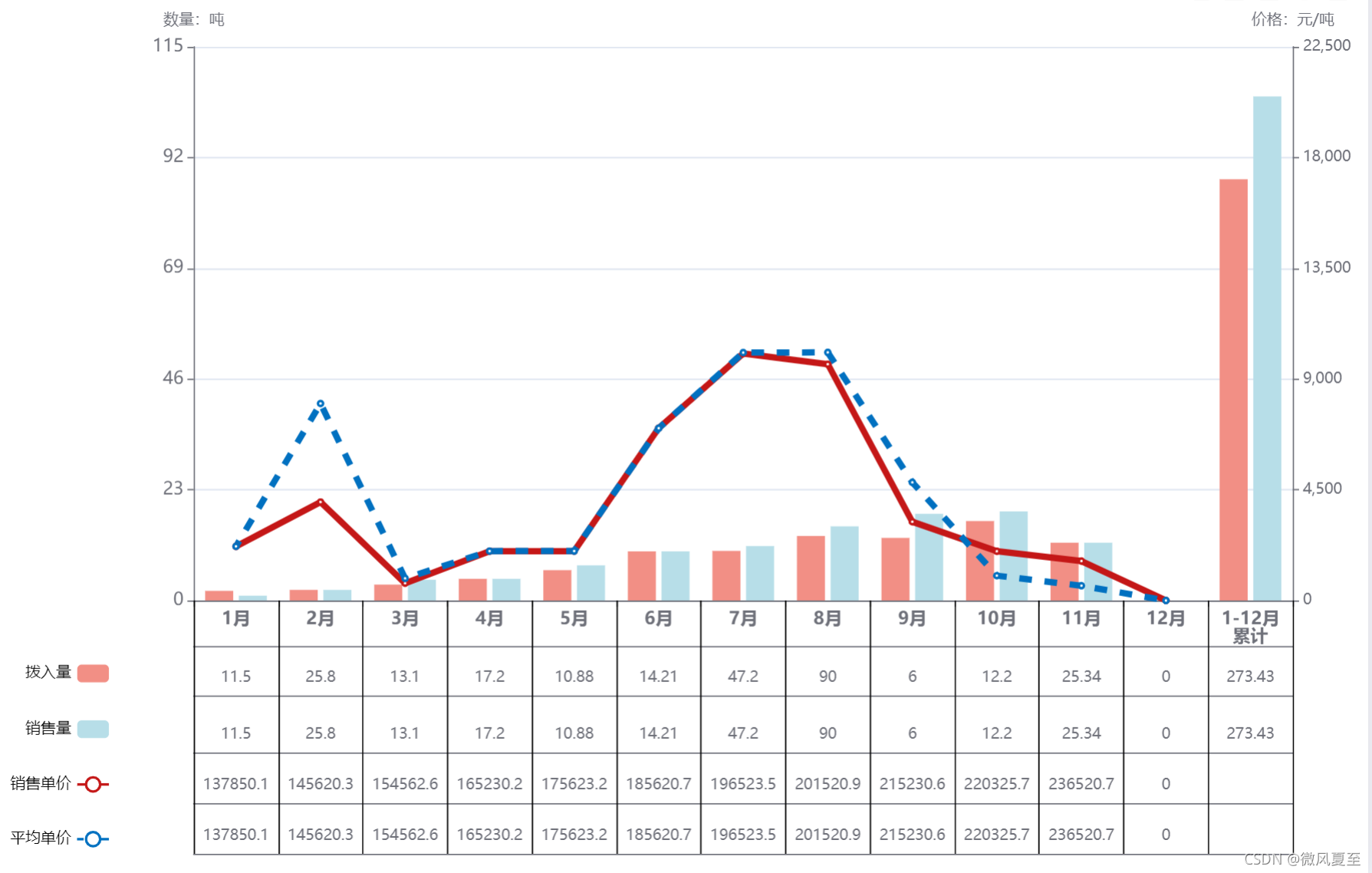

效果图:
把下面代码复制到官网实例的js代码编辑中即可预览( 附连接:Examples - Apache ECharts)
let map = {
销售单价: [
2200.0,
4000.9,
700.0,
2003.2,
2005.6,
7006.7,
10035.6,
9602.2,
3200.6,
2000.0,
1602.4,
0
],
市场价: [
2200.6,
8005.9,
900.0,
2006.4,
2008.7,
7000.7,
10075.6,
10082.2,
4800.7,
1008.8,
600.0,
0
],
拨入量: [
2.0,
2.2,
3.3,
4.5,
6.3,
10.2,
10.3,
13.4,
13.0,
16.5,
12.0,
0,
87.5
],
销售量: [
1.0,
2.2,
4.3,
4.5,
7.3,
10.2,
11.3,
15.4,
18.0,
18.5,
12.0,
0,
104.7
]
};
option = {
title: {
text: "2021年1-12月xxx量价对比图"
},
darkMode: true,
grid: {
x: 150,
// y:45,
x2: 50,
y2: 210
// borderWidth:1
},
tooltip: {
trigger: "axis",
axisPointer: {
type: "cross",
crossStyle: {
color: "#999"
}
}
},
toolbox: {
feature: {
dataView: { show: true, readOnly: false },
magicType: { show: true, type: ["line", "bar"] },
restore: { show: true },
saveAsImage: { show: true }
}
},
legend: {
align: "right",
itemGap: 30,
orient: "vertical",
textStyle: { color: "#000" },
bottom: 10,
left: 0,
data: ["拨入量", "销售量", "销售单价", "平均单价"]
},
xAxis: [
{
type: "category",
max: 12,
interval: Math.ceil(12) / 12,
// axisTick: {
// interval: 12/12
// },
axisLabel: {
fontWeight: "bold",
show: true,
textStyle: {
// color: "#f4f4f4",
fontSize: "14px"
}
},
data: [
"1月",
"2月",
"3月",
"4月",
"5月",
"6月",
"7月",
"8月",
"9月",
"10月",
"11月",
"12月",
"1-12月\n累计"
],
axisPointer: {
type: "shadow"
}
},
{
position: "bottom", // 将分组x轴位置定至底部,不然默认在顶部
offset: 45, // 向下偏移,使分组文字显示位置不与原x轴重叠
// axisLine: {
// show: false // 隐藏分组x轴的轴线
// },
axisTick: {
length: -200, // 延长刻度线做分组线
inside: true, // 使刻度线相对轴线在上面与原x轴相接,默认在轴线下方
lineStyle: { color: "#000" } // 非必须,仅为了演示,明显标示出分组刻度线
// interval: function(index, value) {
// return index === 0 || index === 2 || index === 5; // 在0、5、6处各画一条刻度线
// }
// interval: 1,
},
// min: -30,
max: 12,
interval: 1,
axisLabel: {
inside: true, // 使刻度名称相对轴线在上面与原x轴相接,默认在轴线下方
interval: 0 // 强制显示全部刻度名
},
data: [""]
},
{
position: "bottom", // 将分组x轴位置定至底部,不然默认在顶部
offset: 36, // 向下偏移,使分组文字显示位置不与原x轴重叠
max: 12,
interval: Math.ceil(12) / 12,
axisTick: {
length: 0, // 延长刻度线做分组线
inside: true, // 使刻度线相对轴线在上面与原x轴相接,默认在轴线下方
lineStyle: { color: "#000" } // 非必须,仅为了演示,明显标示出分组刻度线
},
axisLabel: {
inside: true, // 使刻度名称相对轴线在上面与原x轴相接,默认在轴线下方
interval: 0 // 强制显示全部刻度名
}
},
{
position: "bottom", // 将分组x轴位置定至底部,不然默认在顶部
offset: 75, // 向下偏移,使分组文字显示位置不与原x轴重叠
max: 12,
interval: 1,
axisTick: {
length: 0, // 延长刻度线做分组线
inside: true, // 使刻度线相对轴线在上面与原x轴相接,默认在轴线下方
lineStyle: { color: "#000" } // 非必须,仅为了演示,明显标示出分组刻度线
},
axisLabel: {
inside: true, // 使刻度名称相对轴线在上面与原x轴相接,默认在轴线下方
interval: 0 // 强制显示全部刻度名
},
data: [
11.5,
25.8,
13.1,
17.2,
10.88,
14.21,
47.2,
90,
6,
12.2,
25.34,
0,
273.43
]
},
{
position: "bottom", // 将分组x轴位置定至底部,不然默认在顶部
offset: 120, // 向下偏移,使分组文字显示位置不与原x轴重叠
max: 12,
interval: Math.ceil(12) / 12,
axisTick: {
length: 0, // 延长刻度线做分组线
inside: true, // 使刻度线相对轴线在上面与原x轴相接,默认在轴线下方
lineStyle: { color: "#000" } // 非必须,仅为了演示,明显标示出分组刻度线
},
axisLabel: {
inside: true, // 使刻度名称相对轴线在上面与原x轴相接,默认在轴线下方
interval: 0 // 强制显示全部刻度名
},
data: [
11.5,
25.8,
13.1,
17.2,
10.88,
14.21,
47.2,
90,
6,
12.2,
25.34,
0,
273.43
]
},
{
position: "bottom", // 将分组x轴位置定至底部,不然默认在顶部
offset: 160, // 向下偏移,使分组文字显示位置不与原x轴重叠
max: 12,
interval: 1,
axisTick: {
length: 0, // 延长刻度线做分组线
inside: true, // 使刻度线相对轴线在上面与原x轴相接,默认在轴线下方
lineStyle: { color: "#000" } // 非必须,仅为了演示,明显标示出分组刻度线
},
axisLabel: {
inside: true, // 使刻度名称相对轴线在上面与原x轴相接,默认在轴线下方
interval: 0 // 强制显示全部刻度名
},
data: [
137850.1,
145620.3,
154562.6,
165230.2,
175623.2,
185620.7,
196523.5,
201520.9,
215230.6,
220325.7,
236520.7,
0
]
},
{
position: "bottom", // 将分组x轴位置定至底部,不然默认在顶部
offset: 200, // 向下偏移,使分组文字显示位置不与原x轴重叠
max: 12,
interval: 1,
axisTick: {
length: 0, // 延长刻度线做分组线
inside: true, // 使刻度线相对轴线在上面与原x轴相接,默认在轴线下方
lineStyle: { color: "#000" } // 非必须,仅为了演示,明显标示出分组刻度线
},
axisLabel: {
inside: true, // 使刻度名称相对轴线在上面与原x轴相接,默认在轴线下方
interval: 0 // 强制显示全部刻度名
},
data: [
137850.1,
145620.3,
154562.6,
165230.2,
175623.2,
185620.7,
196523.5,
201520.9,
215230.6,
220325.7,
236520.7,
0
]
}
],
yAxis: [
{
type: "value",
name: "数量:吨",
// min: 0,
max: Math.ceil(115),
interval: Math.ceil(115) / 5,
axisLabel: {
formatter: "{value}",
textStyle: {
// color: "#f4f4f4",
fontSize: "14px"
}
}
},
{
type: "value",
name: "价格:元/吨",
// min: 0,
max: Math.ceil(22500),
// splitNumber: 6,
interval: Math.ceil(22500) / 5,
axisLabel: {
formatter: "{value}"
}
}
],
series: [
{
name: "拨入量",
type: "bar",
unit: "吨",
groupName: "拨入/销售量",
data: map["拨入量"],
itemStyle: {
color: "rgb(242, 143, 133)"
}
},
{
name: "销售量",
type: "bar",
unit: "吨",
groupName: "拨入/销售量",
data: map["销售量"],
itemStyle: {
color: "rgb(183, 222, 232)"
}
},
{
name: "销售单价",
type: "line",
yAxisIndex: 1,
unit: "元/吨",
data: map["销售单价"],
itemStyle: {
color: "rgb(196, 23, 23)"
},
lineStyle: {
width: 5
}
},
{
name: "平均单价",
type: "line",
yAxisIndex: 1,
unit: "元/吨",
data: map["市场价"],
itemStyle: {
color: "rgb(0, 112, 192)"
},
lineStyle: {
width: 5,
type: [10, 10],
dashOffset: 5
}
}
]
};

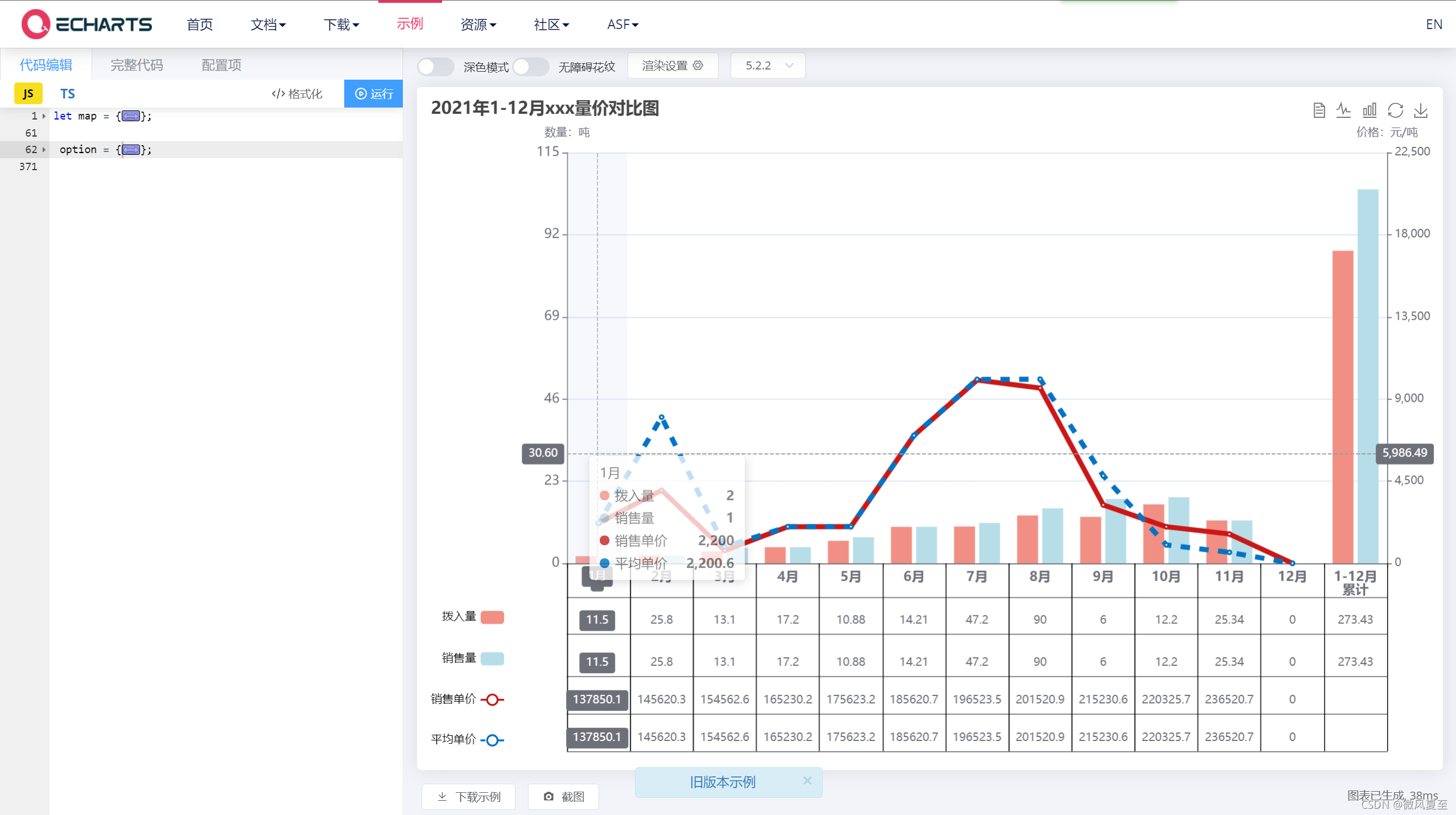

具体复制到如下图位置:
