Zed-Unity插件代码注释——ZEDCamera.cs
引言
Zed-Unity插件提供了在Unity中访问ZED相机SDK的工具，除了提供了SDK的接口外，插件里面还有一些很典型的demo，供开发者参考。
不得不说ZED的文档写的确实很用心， 每个脚本3000多行，但是里面一半以上是注释说明，由于是英文的，看的时候效率较低。
考虑到自己刚刚入门Unity和C#。 有很多知识点需要学，同时也因为现在项目需要的代码量越来越大，一直没有学过程序设计方面的东西，所以打算通读一下这个sdk的代码，顺便学习一些框架类的皮毛。
在通读的代码的过程，也会把里面的注释翻译成中文方便理解，所以就把中文的内容顺手添加到脚本里面去，方便后面自己回看，和后面的人学习。
基础环境
操作系统： Win10 专业版（不是必须的配置，只是习惯性统一写出来）
C# 版本：8.0
Unity版本：2019
Rider版本：2020
ZED型号：ZED-Mini
SDK版本：3.1
ZED-Unity插件版本：3.1
ZedCamera.cs脚本介绍
-

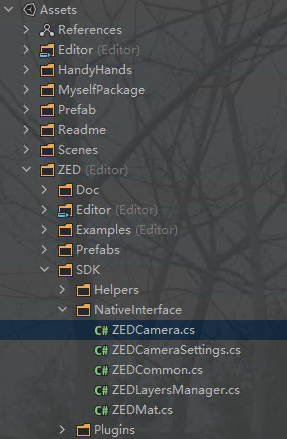

脚本位置：
-
脚本的功能：
这个脚本是插件里面较为底层的脚本，定义了一个命名空间sl,然后定义了一个ZEDCamera的基础类，这个类没有继承Unity的Mono，所以里面没有类似Unity脚本中的 update()、aware()这类型的函数。因此这个脚本在unity中主要是被其他的脚本引用的。在插件里面主要是在ZEDManager.cs中被调用。
这个脚本里面通过[DllImport]引入了SDK的动态链接库(.dll)。并定义了一些在Unity中使用的函数接口，这些函数内部的内容多为调用外部函数（.dll）以实现，只是方便Unity中识别使用。 -
命名空间：sl (在其他脚本中调用这个脚本的时候需要用)
-
类名称：ZEDCamera
-
代码结构:
0~365行：定义了所需要的大部分变量，包括私有和公开的。私有类型的名命规则
365~792行：都是[DllImport]载入动态链接库的代码，以及在C#中对载入函数入口的声明，这部分代码可以不看，基本上是固定的。
792~3040行：定义了一些函数，基本上里面都是调用了前面载入的外部函数。 包括相机参数设定、相机追踪功能、图像数据注册、深度数据注册等等的功能。 这些函数在ZEDManager.cs被调用。更细节的就不在这边展开了，直接从代码里面看吧。
ZedCamera.cs代码(注释后)
//======= Copyright (c) Stereolabs Corporation, All rights reserved. ===============
using UnityEngine;
using System.Collections.Generic;
using System;
using System.Runtime.InteropServices;
using System.Reflection;
namespace sl //定义命名空间
{
/// <summary>
/// Main interface between Unity and the ZED SDK. Primarily consists of extern calls to the ZED SDK wrapper .dll and
/// low-level logic to process data sent to/received from it.
/// Unity和ZED SDK之间的主要接口。主要包括对ZED SDK包装程序 .dll和
/// 低级逻辑的外部调用，以处理发送给它的数据或从中接收的数据
/// </summary>
/// <remarks>The ZEDManager component creates a ZEDCamera instance in Awake() and handles all initialization.
/// Most ZED functionality can be handled simply in Unity via ZEDManager or other high-level manager components
/// (ZEDSpatialMappingManager, ZEDPlaneDetectionManager, etc.)
/// Textures created by ZEDCamera by CreateTextureImageType() and CreateTextureMeasureType()
/// are updated automatically by the wrapper whenever a new frame is available. They represent a specific kind of
/// output, like left RGB image, or depth relative to the right sensor. As such, you never need more than one texture
/// of each kind, since it can simply be reused by all scripts that need it. Therefore, textures created in ZEDCamera
/// are indexed by their type (Image or Measure) and then by the options of each type. If a script needs a certain kind
/// of output, ZEDCamera will make a new one if it doesn't exist, but refer to the existing one otherwise.</remarks>
/// ZEDManager组件在Awake（）中创建一个ZEDCamera实例并处理所有初始化。
/// 大多数ZED功能可以通过ZEDManager或其他高级管理器组件简单地在Unity中处理
/// （（ZEDSpatialMappingManager，ZEDPlaneDetectionManager等）
/// ZEDCamera通过CreateTextureImageType（）和CreateTextureMeasureType（）创建的纹理
/// 只要有新帧，包装器就会自动更新。它们代表一种特定的输出，例如左RGB图像或相对于右传感器的深度。这样，您只需要一个texture就可以
/// 因为它可以被所有需要它的脚本简单地重用。因此，在ZEDCamera中创建的纹理
/// 由其类型（图像或度量）索引，然后由每种类型的选项索引。如果脚本需要某种输出
/// 则ZEDCamera创建一个新的，或者引用现有的输出。
public class ZEDCamera
{
/// <summary>
/// Type of textures requested.
/// 定义几个纹理的类型
/// </summary>
public enum TYPE_VIEW //定义一个枚举类型，
{
/// 枚举类型的相关知识 https://www.cnblogs.com/liujianshe1990-/p/10247930.html
/// <summary>
/// Image-type texture. Human-viewable but loses measurement accuracy.
/// 图像类型的纹理。肉眼可见但会失去测量精度。
/// Lance：指的应该就是采用RGB图像显示把
/// </summary>
RETRIEVE_IMAGE,
/// <summary>
/// Measure-type texture. Preserves measurement accuracy but isn't human-viewable.
/// 测量型纹理。保持测量精度，但人眼看不到。
/// Lance:指的应该是计算过深度的模式
/// </summary>
RETRIEVE_MEASURE
}
/// <summary>
/// Information for a requested texture. Stored in the texturesRequested list so DestroyTexture()
/// can be called with the correct arguments in DestroyAllTexture().
/// 所需纹理的信息。存储在texturesRequested列表中，
/// 因此可以在DestroyAllTexture（）中使用正确的参数调用DestroyTexture（）。
/// </summary>
private struct TextureRequested //定义一个结构体
{
/// <summary>
/// Texture type - 'image' or 'measure.' Assigned using ZEDCamera.TYPE_VIEW.
/// 纹理类型-“image”或“measure”。使用ZEDCamera.TYPE_VIEW分配。
/// Lance:texture、image、measure不知道怎么翻译才合适
/// </summary>
public int type;
/// <summary>
/// View mode (left/right eye, depth, etc.) Assigned using ZEDCommon.VIEW.
/// 观察的模式（左/右眼，深度等）.在ZEDCommon.VIEW中被使用。
/// </summary>
public int option;
};
#region 相机成员，这边定义大量的属性
/********* Camera members ********/
/// <summary>
/// DLL name, used for extern calls to the wrapper.
/// DLL名称，用于外部调用包装程序。
/// </summary>
const string nameDll = sl.ZEDCommon.NameDLL;
/// <summary>
/// List of all created textures, representing SDK output. Indexed by ints corresponding to its ZEDCamera.TYPE_VIEW
/// and its ZEDCommon.VIEW as you can't have more than one texture for each combination (nor would it be useful to).
/// 所有创建的纹理的列表，表示SDK输出。由与它的ZEDCamera.TYPE_VIEW
/// 和它的ZEDCommon.VIEW对应的int进行索引，因为每种组合都不能有多个纹理（也没有用）
/// Lance：不是很明白这边的东西
/// </summary>
private Dictionary<int, Dictionary<int, Texture2D>> textures; // 注册一个纹理的列表，是两个嵌套字典，最里面的元素内容是2D的纹理
/// <summary>
/// List of all requested textures. Used for destroying all textures when the camera closes.
/// 所有请求的纹理的列表。关闭相机时用于破坏所有纹理。
/// </summary>
private List<TextureRequested> texturesRequested;
/// <summary>
/// Width of the textures in pixels. Corresponds to the ZED's current resolution setting.
/// 纹理的宽度（以像素为单位）。对应于ZED的当前分辨率设置。
/// </summary>
private int imageWidth;
/// <summary>
/// Width of the images returned by the ZED in pixels. Corresponds to the ZED's current resolution setting.
/// ZED返回的图像的宽度（以像素为单位）。对应于ZED的当前分辨率设置。
/// Lance: 数据要在Unity中显示，就需要放到相应的texture上，因此图像的分辨率相当于unity中相应的texture的宽度
/// </summary>
public int ImageWidth
{
get {
return imageWidth; }
}
/// <summary>
/// Height of the textures in pixels. Corresponds to the ZED's current resolution setting.
/// 纹理的高度（以像素为单位）。对应于ZED的当前分辨率设置。
/// </summary>
private int imageHeight;
/// <summary>
/// Height of the images returned by the ZED in pixels. Corresponds to the ZED's current resolution setting.
/// ZED返回的图像的高度（以像素为单位）。对应于ZED的当前分辨率设置。
/// </summary>
public int ImageHeight
{
get {
return imageHeight; }
}
/// <summary>
/// Projection matrix corresponding to the ZED's camera traits. Useful for lining up virtual cameras with the ZED image.
/// 与ZED的相机特征相对应的投影矩阵。对于将虚拟相机与ZED图像对齐非常有用。
/// </summary>
private Matrix4x4 projection = new Matrix4x4();
/// <summary>
/// Projection matrix corresponding to the ZED's camera traits. Useful for lining up virtual cameras with the ZED image.
/// 与ZED的相机特征相对应的投影矩阵。对于将虚拟相机与ZED图像对齐非常有用。
/// </summary>
public Matrix4x4 Projection //定义一个私有的变量再定义一个共有的变量，这是为了防止外部类修改这个变量，引起不稳定
{
get {
return projection; }
}
/// <summary>
/// True if the ZED SDK is installed.
/// 如果已安装ZED SDK，则为True。
/// </summary>
private static bool pluginIsReady = true;
/// <summary>
/// Mutex for the image acquisition thread.
/// 用于图像获取线程的Mutex。
/// Lance：这是一个object类，可以接收各种类型的对象
/// </summary>
public object grabLock = new object();
/// <summary>
/// Current ZED resolution setting. Set at initialization.
/// 当前的ZED分辨率设置。在初始化时设置。
/// </summary>
private RESOLUTION currentResolution;
/// <summary>
/// Callback for c++ debugging. Should not be used in C#.
/// 用于c ++调试的回调。不应在C＃中使用。
/// </summary>
private delegate void DebugCallback(string message);
/// <summary>
/// Desired FPS from the ZED camera. This is the maximum FPS for the ZED's current
/// resolution unless a lower setting was specified in Init().
/// Maximum values are bound by the ZED's output, not system performance.
/// ZED相机所需的FPS。
/// 除非在Init（）中指定了较低的设置，否则这是ZED当前分辨率的最大FPS。
/// 最大值受ZED输出限制，而不是系统性能限制。
/// </summary>
private uint fpsMax = 60; //Defaults to HD720 resolution's output.
/// <summary>
/// Desired FPS from the ZED camera. This is the maximum FPS for the ZED's current
/// resolution unless a lower setting was specified in Init().
/// Maximum values are bound by the ZED's output, not system performance.
/// ZED相机所需的FPS。除非在Init（）中指定了较低的设置，否则这是ZED当前分辨率的最大FPS。
/// 最大值受ZED输出限制，而不是系统性能限制。
/// </summary>
public float GetRequestedCameraFPS() //获得最大采集帧率
{
return fpsMax;
}
/// <summary>
/// Holds camera settings like brightness/contrast, gain/exposure, etc.
/// 保持相机设置，例如亮度/对比度，增益/曝光等。
/// </summary>
private ZEDCameraSettings cameraSettingsManager = new ZEDCameraSettings();
/// <summary>
/// Camera's stereo baseline (distance between the cameras). Extracted from calibration files.
/// 相机的立体基线（相机之间的距离）。从校准文件中提取。
/// </summary>
private float baseline = 0.0f; //可以从这边获得基线的值，可能把这个API用于hololens的时候可以通过修改这个来适应HoloLens的双目图像
/// <summary>
/// Camera's stereo baseline (distance between the cameras). Extracted from calibration files.
/// 相机的立体基线（相机之间的距离）。从校准文件中提取。
/// </summary>
public float Baseline //获得相机的基线
{
get {
return baseline; }
}
/// <summary>
/// ZED's current horizontal field of view in degrees.
/// ZED当前的水平视场，以度为单位。
/// </summary>
private float fov_H = 0.0f;
/// <summary>
/// ZED's current vertical field of view in degrees.
/// ZED当前的垂直视场，以度为单位。
/// </summary>
private float fov_V = 0.0f;
/// <summary>
/// ZED's current horizontal field of view in degrees.
/// ZED当前的水平视场，以度为单位。
/// </summary>
public float HorizontalFieldOfView
{
get {
return fov_H; }
}
/// <summary>
/// ZED's current vertical field of view in degrees.
/// ZED当前的垂直视场，以度为单位。
/// </summary>
public float VerticalFieldOfView
{
get {
return fov_V; }
}
/// <summary>
/// Stereo parameters for current ZED camera prior to rectification (distorted).
/// 校正前当前ZED摄像机的双目视觉的参数（失真）。
/// Lance：这边应该是矫正畸变前的参数
/// </summary>
private CalibrationParameters calibrationParametersRaw; //相机畸变矫正参数
/// <summary>
/// Stereo parameters for current ZED camera prior to rectification (distorted).
/// 校正前当前ZED摄像机的stereo参数（失真）。
/// </summary>
public CalibrationParameters CalibrationParametersRaw
{
get {
return calibrationParametersRaw; }
}
/// <summary>
/// Stereo parameters for current ZED camera after rectification (undistorted).
/// 校正后当前ZED摄像机的stereo参数（未失真）。
/// Lance:矫正畸变后的参数 具体指哪些参数呢
/// </summary>
private CalibrationParameters calibrationParametersRectified;
/// <summary>
/// Stereo parameters for current ZED camera after rectification (undistorted).
/// 校正后当前ZED摄像机的stereo参数（未失真）。
/// Lance:矫正畸变后的参数 具体指哪些参数呢
/// </summary>
public CalibrationParameters CalibrationParametersRectified
{
get {
return calibrationParametersRectified; }
}
/// <summary>
/// Camera model - ZED or ZED Mini.
/// 相机型号
/// Lance:我的是mini
/// </summary>
private sl.MODEL cameraModel;
/// <summary>
/// Camera model - ZED or ZED Mini.
/// 相机型号-ZED或ZED Mini。
/// </summary>
public sl.MODEL CameraModel
{
get {
return cameraModel; }
}
/// <summary>
/// Whether the camera has been successfully initialized.
/// 相机是否已成功初始化。
/// </summary>
private bool cameraReady = false;
/// <summary>
/// Whether the camera has been successfully initialized.
/// 相机是否成功初始化
/// </summary>
public bool IsCameraReady
{
get {
return cameraReady; }
}
/// <summary>
/// Whether the current device (ZED or ZED Mini) should be used for pass-through AR.
/// True if using ZED Mini, false if using ZED.
/// 直通AR是否应使用当前设备（ZED或ZED Mini）。
/// 如果使用ZED Mini，则为true，如果使用ZED，则为false。
/// </summary><remarks>Note: the plugin will allow using the original ZED
/// for pass-through but it will feel quite uncomfortable due to the baseline.</remarks>
/// 该插件将允许使用原始的ZED作为AR的设备，但是由于基线不同，它会让用户感到非常不舒服
/// Lance:最好是用ZED设备的mini版本
public bool IsHmdCompatible //判断AR头盔是否兼容
{
get {
return cameraModel == sl.MODEL.ZED_M; }
}
/// <summary>
/// Camera ID (for multiple cameras)
/// 相机的序号（用于多个cameras的情景）
/// Lance: 这边的camera ID 应该指的是ZED的实体相机，而不是我们实例化camera的对象
/// </summary>
public int CameraID = 0; //在sdk3.2版本中似乎在实例化sl.Camera()的时候需要传入这个ID 在C#的API设置中遇到了这个问题
// /// <summary>
// /// Layer that the ZED can't see, but overlay cameras created by ZEDMeshRenderer and ZEDPlaneRenderer can.
// ///
// /// </summary>
// int tagInvisibleToZED = 16;
/// <summary>
/// Layer that the ZED can't see, but overlay cameras created by ZEDMeshRenderer and ZEDPlaneRenderer can.
/// ZED无法看到的图层，但是可以覆盖由ZEDMeshRenderer和ZEDPlaneRenderer创建的摄影机。
/// Lance：这边设置的是一个图层标签，标签对应的图层不会在AR模式下被看到,这边还不是特别理解，先往下看吧
/// </summary>
public int TagInvisibleToZED
{
get {
return ZEDLayers.tagInvisibleToZED; }
}
public const int brightnessDefault = 4; //设置亮度
public const int contrastDefault = 4; //对比度
public const int hueDefault = 0; // 色相类型
public const int saturationDefault = 4; // 饱和度
public const int sharpnessDefault = 3; // 清晰度
public const int gammaDefault = 5; //伽马默认值 什么是伽马值(https://www.zhihu.com/question/27467127)——Lance
public const int whitebalanceDefault = 2600; // 白平衡
#endregion
#region DLL Calls 就注释一部分，这部分的内容我们一般不会做修改。
/// <summary>
/// Current Plugin Version.
/// 当前插件版本
/// </summary>
public static readonly System.Version PluginVersion = new System.Version(3, 1, 0); //正常这个版本是3.1.0
/******** DLL members ***********/
//DllImport用于载入由C或者C++编写的动态链接库，这种动态链接库属于非托管类型。其实ZED官方在github已经把这个动态链接库转换成.net托管类型的动态链接库了，可以由C#直接引用
//估计在下一版本的插件上会弃用这部分的代码，而直接引用 C#的APi
[DllImport(nameDll, EntryPoint = "GetRenderEventFunc")] //用DllImport载入C的动态链接库，入口点为"GetRenderEvenFunc",
private static extern IntPtr
GetRenderEventFunc(); //入口点函数声明 extern 指的是外部链接库定义的对象 什么是IntPtr:https://blog.csdn.net/ABC13222880223/article/details/100192245
[DllImport(nameDll, EntryPoint = "dllz_register_callback_debuger")]
private static extern void dllz_register_callback_debuger(DebugCallback callback);
/*
* Utils function.
*实用程序功能。
*/
[DllImport(nameDll, EntryPoint = "dllz_unload_all_instances")]
private static extern void dllz_unload_all_instances();
[DllImport(nameDll, EntryPoint = "dllz_unload_instance")]
private static extern void dllz_unload_instance(int id);
[DllImport(nameDll, EntryPoint = "dllz_find_usb_device")]
private static extern bool dllz_find_usb_device(USB_DEVICE dev);
/*
* Create functions
*/
[DllImport(nameDll, EntryPoint = "dllz_create_camera")]
private static extern bool dllz_create_camera(int cameraID, bool verbose);
/*
* Opening function (Opens camera and creates textures).
* 打开功能（打开相机并创建纹理）。
*/
[DllImport(nameDll, EntryPoint = "dllz_open")]
private static extern int dllz_open(int cameraID, ref dll_initParameters parameters,
System.Text.StringBuilder svoPath, System.Text.StringBuilder ipStream, int portStream,
System.Text.StringBuilder output, System.Text.StringBuilder opt_settings_path);
/*
* Close function.
* 关闭相机
*/
[DllImport(nameDll, EntryPoint = "dllz_close")]
private static extern void dllz_close(int cameraID);
/*
* Grab function.
* 数据采集函数
*/
[DllImport(nameDll, EntryPoint = "dllz_grab")]
private static extern int dllz_grab(int cameraID, ref sl.RuntimeParameters runtimeParameters);
/*
* Recording functions.
* 录制函数
*/
[DllImport(nameDll, EntryPoint = "dllz_enable_recording")]
private static extern int dllz_enable_recording(int cameraID, byte[] video_filename, int compresssionMode);
[DllImport(nameDll, EntryPoint = "dllz_disable_recording")]
private static extern bool dllz_disable_recording(int cameraID);
/*
* Texturing functions.
* 纹理相关的函数
* 纹理、着色器、的概念http://blog.sina.com.cn/s/blog_14d5b8dff0102x5kq.html
* Lance：纹理就是实例化的着色器。纹理和着色器的关系更像是一个实体和属性的关系， 属性必须依附实体，实体通过属性彰显。 纹理就是一个实体，着色器是纹理的必有属性。
*/
[DllImport(nameDll, EntryPoint = "dllz_retrieve_textures")]
private static extern void dllz_retrieve_textures(int cameraID); //获取纹理
[DllImport(nameDll, EntryPoint = "dllz_get_updated_textures_timestamp")]
private static extern ulong dllz_get_updated_textures_timestamp(int cameraID); //更新纹理的时间戳
[DllImport(nameDll, EntryPoint = "dllz_swap_textures")]
private static extern void dllz_swap_textures(int cameraID); // 交互纹理？这是什么含义
[DllImport(nameDll, EntryPoint = "dllz_register_texture_image_type")]
private static extern int dllz_register_texture_image_type(int cameraID, int option, IntPtr id,
Resolution resolution); // 获取图像类型的纹理,指的是平面类型的纹理吗？ 觉得image 类型和 measure类型好迷糊
[DllImport(nameDll, EntryPoint = "dllz_register_texture_measure_type")]
private static extern int dllz_register_texture_measure_type(int cameraID, int option, IntPtr id,
Resolution resolution); //注册 测量类型的纹理
[DllImport(nameDll, EntryPoint = "dllz_unregister_texture_measure_type")]
private static extern int dllz_unregister_texture_measure_type(int cameraID, int option); //释放注册测量类型的数据
[DllImport(nameDll, EntryPoint = "dllz_unregister_texture_image_type")]
private static extern int dllz_unregister_texture_image_type(int cameraID, int option); //释放图片类型的纹理
[DllImport(nameDll, EntryPoint = "dllz_get_copy_mat_texture_image_type")]
private static extern IntPtr dllz_get_copy_mat_texture_image_type(int cameraID, int option); //返回平面图像类型的数据
[DllImport(nameDll, EntryPoint = "dllz_get_copy_mat_texture_measure_type")]
private static extern IntPtr dllz_get_copy_mat_texture_measure_type(int cameraID, int option); //返回测量图像类型的数据
/*
* Camera control functions.
* 相机控制函数
*/
[DllImport(nameDll, EntryPoint = "dllz_set_video_settings")]
private static extern void dllz_set_video_settings(int id, int mode, int value); //设置视频流
[DllImport(nameDll, EntryPoint = "dllz_get_video_settings")]
private static extern int dllz_get_video_settings(int id, int mode); //获得当前视频流的设置
[DllImport(nameDll, EntryPoint = "dllz_set_roi_for_aec_agc")]
private static extern int dllz_set_roi_for_aec_agc(int id, int side, iRect roi, bool reset); //不清楚什么功能
[DllImport(nameDll, EntryPoint = "dllz_get_roi_for_aec_agc")]
private static extern int dllz_get_roi_for_aec_agc(int id, int side, ref iRect roi);
[DllImport(nameDll, EntryPoint = "dllz_get_input_type")]
private static extern int dllz_get_input_type(int cameraID); //获得输入类型 指的是USB或者其他连接方式
[DllImport(nameDll, EntryPoint = "dllz_set_camera_fps")]
private static extern void dllz_set_camera_fps(int cameraID, int fps); //设置帧率
[DllImport(nameDll, EntryPoint = "dllz_get_camera_fps")]
private static extern float dllz_get_camera_fps(int cameraID); //获得帧率
[DllImport(nameDll, EntryPoint = "dllz_get_width")]
private static extern int dllz_get_width(int cameraID); //获得图像数据的宽度
[DllImport(nameDll, EntryPoint = "dllz_get_height")]
private static extern int dllz_get_height(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_calibration_parameters")]
private static extern IntPtr dllz_get_calibration_parameters(int cameraID, bool raw);
[DllImport(nameDll, EntryPoint = "dllz_get_camera_model")]
private static extern int dllz_get_camera_model(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_camera_firmware")]
private static extern int dllz_get_camera_firmware(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_sensors_firmware")]
private static extern int dllz_get_sensors_firmware(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_zed_serial")]
private static extern int dllz_get_zed_serial(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_camera_imu_transform")]
private static extern void dllz_get_camera_imu_transform(int cameraID, ulong timeStamp, bool useLatency,
out Vector3 translation, out Quaternion rotation);
[DllImport(nameDll, EntryPoint = "dllz_is_zed_connected")]
private static extern int dllz_is_zed_connected();
[DllImport(nameDll, EntryPoint = "dllz_get_camera_Timestamp")]
private static extern ulong dllz_get_camera_timestamp(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_current_Timestamp")]
private static extern ulong dllz_get_current_timestamp(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_image_updater_time_stamp")]
private static extern ulong dllz_get_image_updater_time_stamp(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_frame_dropped_count")]
private static extern uint dllz_get_frame_dropped_count(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_frame_dropped_percent")]
private static extern float dllz_get_frame_dropped_percent(int cameraID);
/*
* SVO control functions.
*/
[DllImport(nameDll, EntryPoint = "dllz_set_svo_position")]
private static extern void dllz_set_svo_position(int cameraID, int frame);
[DllImport(nameDll, EntryPoint = "dllz_get_svo_number_of_frames")]
private static extern int dllz_get_svo_number_of_frames(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_svo_position")]
private static extern int dllz_get_svo_position(int cameraID);
/*
* Depth Sensing utils functions.
*/
/* Removed as of ZED SDK v3.0.
[DllImport(nameDll, EntryPoint = "dllz_set_confidence_threshold")]
private static extern void dllz_set_confidence_threshold(int cameraID, int threshold);
[DllImport(nameDll, EntryPoint = "dllz_set_depth_max_range_value")]
private static extern void dllz_set_depth_max_range_value(int cameraID, float distanceMax);
*/
[DllImport(nameDll, EntryPoint = "dllz_get_confidence_threshold")]
private static extern int dllz_get_confidence_threshold(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_depth_max_range_value")]
private static extern float dllz_get_depth_max_range_value(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_depth_value")]
private static extern float dllz_get_depth_value(int cameraID, uint x, uint y);
[DllImport(nameDll, EntryPoint = "dllz_get_distance_value")]
private static extern float dllz_get_distance_value(int cameraID, uint x, uint y);
[DllImport(nameDll, EntryPoint = "dllz_get_normal_value")]
private static extern int dllz_get_normal_value(int cameraID, uint x, uint y, out Vector4 value);
[DllImport(nameDll, EntryPoint = "dllz_get_xyz_value")]
private static extern int dllz_get_xyz_value(int cameraID, uint x, uint y, out Vector4 value);
[DllImport(nameDll, EntryPoint = "dllz_get_depth_min_range_value")]
private static extern float dllz_get_depth_min_range_value(int cameraID);
/*
* Motion Tracking functions.
*/
[DllImport(nameDll, EntryPoint = "dllz_enable_tracking")]
private static extern int dllz_enable_tracking(int cameraID, ref Quaternion quat, ref Vector3 vec,
bool enableSpatialMemory = false, bool enablePoseSmoothing = false, bool enableFloorAlignment = false,
bool trackingIsStatic = false, bool enableIMUFusion = true, System.Text.StringBuilder aeraFilePath = null);
[DllImport(nameDll, EntryPoint = "dllz_disable_tracking")]
private static extern void dllz_disable_tracking(int cameraID, System.Text.StringBuilder path);
[DllImport(nameDll, EntryPoint = "dllz_save_current_area")]
private static extern int dllz_save_current_area(int cameraID, System.Text.StringBuilder path);
[DllImport(nameDll, EntryPoint = "dllz_get_position_data")]
private static extern int dllz_get_position_data(int cameraID, ref Pose pose, int reference_frame);
[DllImport(nameDll, EntryPoint = "dllz_get_position")]
private static extern int dllz_get_position(int cameraID, ref Quaternion quat, ref Vector3 vec,
int reference_frame);
[DllImport(nameDll, EntryPoint = "dllz_get_position_at_target_frame")]
private static extern int dllz_get_position_at_target_frame(int cameraID, ref Quaternion quaternion,
ref Vector3 translation, ref Quaternion targetQuaternion, ref Vector3 targetTranslation,
int reference_frame);
[DllImport(nameDll, EntryPoint = "dllz_transform_pose")]
private static extern void dllz_transform_pose(ref Quaternion quaternion, ref Vector3 translation,
ref Quaternion targetQuaternion, ref Vector3 targetTranslation);
[DllImport(nameDll, EntryPoint = "dllz_reset_tracking")]
private static extern int dllz_reset_tracking(int cameraID, Quaternion rotation, Vector3 translation);
[DllImport(nameDll, EntryPoint = "dllz_reset_tracking_with_offset")]
private static extern int dllz_reset_tracking_with_offset(int cameraID, Quaternion rotation,
Vector3 translation, Quaternion offsetQuaternion, Vector3 offsetTranslation);
[DllImport(nameDll, EntryPoint = "dllz_estimate_initial_position")]
private static extern int dllz_estimate_initial_position(int cameraID, ref Quaternion quaternion,
ref Vector3 translation, int countSuccess, int countTimeout);
[DllImport(nameDll, EntryPoint = "dllz_set_imu_prior_orientation")]
private static extern int dllz_set_imu_prior_orientation(int cameraID, Quaternion rotation);
[DllImport(nameDll, EntryPoint = "dllz_get_internal_imu_orientation")]
private static extern int dllz_get_internal_imu_orientation(int cameraID, ref Quaternion rotation,
int reference_time);
[DllImport(nameDll, EntryPoint = "dllz_get_internal_sensors_data")]
private static extern int dllz_get_internal_sensors_data(int cameraID, ref SensorsData imuData,
int reference_time);
[DllImport(nameDll, EntryPoint = "dllz_get_area_export_state")]
private static extern int dllz_get_area_export_state(int cameraID);
/*
* Spatial Mapping functions.
*/
[DllImport(nameDll, EntryPoint = "dllz_enable_spatial_mapping")]
private static extern int dllz_enable_spatial_mapping(int cameraID, float resolution_meter,
float max_range_meter, int saveTexture);
[DllImport(nameDll, EntryPoint = "dllz_disable_spatial_mapping")]
private static extern void dllz_disable_spatial_mapping(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_pause_spatial_mapping")]
private static extern void dllz_pause_spatial_mapping(int cameraID, bool status);
[DllImport(nameDll, EntryPoint = "dllz_request_mesh_async")]
private static extern void dllz_request_mesh_async(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_get_mesh_request_status_async")]
private static extern int dllz_get_mesh_request_status_async(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_update_mesh")]
private static extern int dllz_update_mesh(int cameraID, int[] nbVerticesInSubemeshes,
int[] nbTrianglesInSubemeshes, ref int nbSubmeshes, int[] updatedIndices, ref int nbVertices,
ref int nbTriangles, int nbSubmesh);
[DllImport(nameDll, EntryPoint = "dllz_retrieve_mesh")]
private static extern int dllz_retrieve_mesh(int cameraID, Vector3[] vertices, int[] triangles, int nbSubmesh,
Vector2[] uvs, IntPtr textures);
[DllImport(nameDll, EntryPoint = "dllz_save_mesh")]
private static extern bool dllz_save_mesh(int cameraID, string filename, MESH_FILE_FORMAT format);
[DllImport(nameDll, EntryPoint = "dllz_load_mesh")]
private static extern bool dllz_load_mesh(int cameraID, string filename, int[] nbVerticesInSubemeshes,
int[] nbTrianglesInSubemeshes, ref int nbSubmeshes, int[] updatedIndices, ref int nbVertices,
ref int nbTriangles, int nbMaxSubmesh, int[] textureSize = null);
[DllImport(nameDll, EntryPoint = "dllz_apply_texture")]
private static extern bool dllz_apply_texture(int cameraID, int[] nbVerticesInSubemeshes,
int[] nbTrianglesInSubemeshes, ref int nbSubmeshes, int[] updatedIndices, ref int nbVertices,
ref int nbTriangles, int[] textureSize, int nbSubmesh);
[DllImport(nameDll, EntryPoint = "dllz_filter_mesh")]
private static extern bool dllz_filter_mesh(int cameraID, FILTER meshFilter, int[] nbVerticesInSubemeshes,
int[] nbTrianglesInSubemeshes, ref int nbSubmeshes, int[] updatedIndices, ref int nbVertices,
ref int nbTriangles, int nbSubmesh);
[DllImport(nameDll, EntryPoint = "dllz_get_spatial_mapping_state")]
private static extern int dllz_get_spatial_mapping_state(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_spatial_mapping_merge_chunks")]
private static extern void dllz_spatial_mapping_merge_chunks(int cameraID, int numberFaces,
int[] nbVerticesInSubemeshes, int[] nbTrianglesInSubemeshes, ref int nbSubmeshes, int[] updatedIndices,
ref int nbVertices, ref int nbTriangles, int nbSubmesh);
[DllImport(nameDll, EntryPoint = "dllz_spatial_mapping_get_gravity_estimation")]
private static extern void dllz_spatial_mapping_get_gravity_estimation(int cameraID, ref Vector3 v);
/*
* Plane Detection functions (starting v2.4)
*/
[DllImport(nameDll, EntryPoint = "dllz_find_floor_plane")]
private static extern IntPtr dllz_find_floor_plane(int cameraID, out Quaternion rotation,
out Vector3 translation, Vector3 priorQuaternion, Vector3 priorTranslation);
[DllImport(nameDll, EntryPoint = "dllz_find_plane_at_hit")]
private static extern IntPtr dllz_find_plane_at_hit(int cameraID, Vector2 HitPixel, bool refine);
[DllImport(nameDll, EntryPoint = "dllz_convert_floorplane_to_mesh")]
private static extern int dllz_convert_floorplane_to_mesh(int cameraID, Vector3[] vertices, int[] triangles,
out int numVertices, out int numTriangles);
[DllImport(nameDll, EntryPoint = "dllz_convert_hitplane_to_mesh")]
private static extern int dllz_convert_hitplane_to_mesh(int cameraID, Vector3[] vertices, int[] triangles,
out int numVertices, out int numTriangles);
/*
* Streaming Module functions (starting v2.8)
*/
[DllImport(nameDll, EntryPoint = "dllz_enable_streaming")]
private static extern int dllz_enable_streaming(int cameraID, sl.STREAMING_CODEC codec, uint bitrate,
ushort port, int gopSize, int adaptativeBitrate, int chunk_size);
[DllImport(nameDll, EntryPoint = "dllz_is_streaming_enabled")]
private static extern int dllz_is_streaming_enabled(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_disable_streaming")]
private static extern void dllz_disable_streaming(int cameraID);
/*
* Objects Detection functions (starting v3.0)
*/
[DllImport(nameDll, EntryPoint = "dllz_enable_objects_detection")]
private static extern int dllz_enable_objects_detection(int cameraID,
ref dll_ObjectDetectionParameters od_params);
[DllImport(nameDll, EntryPoint = "dllz_disable_objects_detection")]
private static extern void dllz_disable_objects_detection(int cameraID);
[DllImport(nameDll, EntryPoint = "dllz_pause_objects_detection")]
private static extern void dllz_pause_objects_detection(int cameraID, bool status);
[DllImport(nameDll, EntryPoint = "dllz_retrieve_objects_data")]
private static extern int dllz_retrieve_objects_data(int cameraID,
ref dll_ObjectDetectionRuntimeParameters od_params, ref ObjectsFrameSDK objFrame);
/*
* Save utils function
*/
[DllImport(nameDll, EntryPoint = "dllz_save_current_image")]
private static extern int dllz_save_current_image(int cameraID, VIEW view, string filename);
[DllImport(nameDll, EntryPoint = "dllz_save_current_depth")]
private static extern int dllz_save_current_depth(int cameraID, int side, string filename);
[DllImport(nameDll, EntryPoint = "dllz_save_current_point_cloud")]
private static extern int dllz_save_current_point_cloud(int cameraID, int side, string filename);
/*
* Specific plugin functions
*/
[DllImport(nameDll, EntryPoint = "dllz_check_plugin")]
private static extern int dllz_check_plugin(int major, int minor);
[DllImport(nameDll, EntryPoint = "dllz_get_sdk_version")]
private static extern IntPtr dllz_get_sdk_version();
[DllImport(nameDll, EntryPoint = "dllz_compute_offset")]
private static extern void dllz_compute_offset(float[] A, float[] B, int nbVectors, float[] C);
[DllImport(nameDll, EntryPoint = "dllz_compute_optical_center_offsets")]
private static extern System.IntPtr dllz_compute_optical_center_offsets(ref Vector4 calibLeft,
ref Vector4 calibRight, sl.Resolution imageResolution, float planeDistance);
/*
* Retreieves used by mat
*/
[DllImport(nameDll, EntryPoint = "dllz_retrieve_measure")]
private static extern int dllz_retrieve_measure(int cameraID, System.IntPtr ptr, int type, int mem,
sl.Resolution resolution);
[DllImport(nameDll, EntryPoint = "dllz_retrieve_image")]
private static extern int dllz_retrieve_image(int cameraID, System.IntPtr ptr, int type, int mem,
sl.Resolution resolution);
#endregion
/// <summary>
/// 释放插件里面的所有实例
/// </summary>
public static void UnloadPlugin() // 释放插件的所有实例
{
dllz_unload_all_instances();
}
/// <summary>
/// 释放指定id的实例
/// </summary>
/// <param name="id"></param>
public static void UnloadInstance(int id) //释放指定的实例
{
dllz_unload_instance(id);
}
/// <summary>
/// 计算偏移，用于校正ZED相机在Unity中的位姿
/// </summary>
/// <param name="A"></param>
/// <param name="B"></param>
/// <param name="nbVectors"></param>
/// <param name="rotation"></param>
/// <param name="translation"></param>
public static void ComputeOffset(float[] A, float[] B, int nbVectors, ref Quaternion rotation,
ref Vector3 translation)
{
float[] C = new float[16];
if (A.Length != 4 * nbVectors || B.Length != 4 * nbVectors || C.Length != 16) return;
dllz_compute_offset(A, B, nbVectors, C);
Matrix4x4 m = Matrix4x4.identity;
Float2Matrix(ref m, C);
rotation = Matrix4ToQuaternion(m);
Vector4 t = m.GetColumn(3);
translation.x = t.x;
translation.y = t.y;
translation.z = t.z;
}
/// <summary>
/// Return a string from a pointer to a char. Used in GetSDKVersion().
/// 从指向char的指针返回字符串。在GetSDKVersion（）中使用。
/// </summary>
/// <param name="ptr">Pointer to a char.</param>
/// <returns>The char as a string.</returns>
private static string PtrToStringUtf8(IntPtr ptr)
{
if (ptr == IntPtr.Zero)
{
return "";
}
int len = 0;
while (Marshal.ReadByte(ptr, len) != 0)
len++;
if (len == 0)
{
return "";
}
byte[] array = new byte[len];
Marshal.Copy(ptr, array, 0, len);
return System.Text.Encoding.ASCII.GetString(array);
}
/// <summary>
/// Displays a console message. Used to display C++ SDK messages in Unity's console.
/// 显示控制台消息。用于在Unity的控制台中显示C ++ SDK消息。
/// </summary>
/// <param name="message"></param>
private static void DebugMethod(string message)
{
Debug.Log("[ZED plugin]: " + message);
}
/// <summary>
/// Convert a pointer to a char into an array of bytes. Used to send file names to SDK for SVO recording.
/// 将指向char的指针转换为字节数组。用于将文件名发送到SDK以进行SVO记录。
/// </summary>
/// <param name="ptr">Pointer to a char.</param>
/// <returns>The array.</returns>
private static byte[] StringUtf8ToByte(string str)
{
byte[] array = System.Text.Encoding.ASCII.GetBytes(str);
return array;
}
/// <summary>
/// Gets the max FPS for each resolution setting. Higher FPS will cause lower GPU performance.
/// 获取每个分辨率设置的最大FPS。较高的FPS将导致较低的GPU性能。
/// Lance：后面指的是越高帧率将要求更好的GPU性能
/// </summary>
/// <param name="reso"></param>
/// <returns>The resolution</returns>
static private uint GetFpsForResolution(RESOLUTION reso)
{
if (reso == RESOLUTION.HD1080) return 30;
else if (reso == RESOLUTION.HD2K) return 15;
else if (reso == RESOLUTION.HD720) return 60;
else if (reso == RESOLUTION.VGA) return 100;
return 30;
}
/// <summary>
/// Get a quaternion from a matrix with a minimum size of 3x3.
/// 从最小尺寸为3x3的矩阵中获取四元数。
/// Lance:四元素是三维旋转的另外一种数学描述 什么是四元素：https://blog.csdn.net/qq_36537774/article/details/86533999
/// </summary>
/// <param name="m">The matrix.</param>
/// <returns>A quaternion which contains the matrix's rotation.</returns>。
/// <returns>包含矩阵旋转的四元数</returns>。
public static Quaternion Matrix4ToQuaternion(Matrix4x4 m)
{
Quaternion q = new Quaternion();
q.w = Mathf.Sqrt(Mathf.Max(0, 1 + m[0, 0] + m[1, 1] + m[2, 2])) / 2;
q.x = Mathf.Sqrt(Mathf.Max(0, 1 + m[0, 0] - m[1, 1] - m[2, 2])) / 2;
q.y = Mathf.Sqrt(Mathf.Max(0, 1 - m[0, 0] + m[1, 1] - m[2, 2])) / 2;
q.z = Mathf.Sqrt(Mathf.Max(0, 1 - m[0, 0] - m[1, 1] + m[2, 2])) / 2;
q.x *= Mathf.Sign(q.x * (m[2, 1] - m[1, 2]));
q.y *= Mathf.Sign(q.y * (m[0, 2] - m[2, 0]));
q.z *= Mathf.Sign(q.z * (m[1, 0] - m[0, 1]));
return q;
}
/// <summary>
/// Performs a rigid transform.
/// 执行刚性变换。
/// </summary>
/// <param name="quaternion"></param> 原始角度
/// <param name="translation"></param> 原始位置
/// <param name="targetQuaternion"></param> 目标角度
/// <param name="targetTranslation"></param> 目标位置
public static void TransformPose(ref Quaternion quaternion, ref Vector3 translation,
ref Quaternion targetQuaternion, ref Vector3 targetTranslation)
{
dllz_transform_pose(ref quaternion, ref translation, ref targetQuaternion, ref targetTranslation);
}
/// <summary>
/// Checks that the ZED plugin's dependencies are installed.
/// 检查是否已安装ZED插件的依赖项。
/// </summary>
public static bool CheckPlugin()
{
try
{
int res = dllz_check_plugin(PluginVersion.Major, PluginVersion.Minor);
if (res != 0)
{
Debug.Log("Error : " + res);
//0 = installed SDK is compatible with plugin. 1 otherwise.
Debug.LogError(ZEDLogMessage.Error2Str(ZEDLogMessage.ERROR.SDK_DEPENDENCIES_ISSUE));
return false;
}
}
catch (DllNotFoundException) //In case could not resolve the dll/.so
{
Debug.Log("DllNotFoundException");
Debug.LogError(ZEDLogMessage.Error2Str(ZEDLogMessage.ERROR.SDK_DEPENDENCIES_ISSUE));
return false;
}
pluginIsReady = true;
return true;
}
/// <summary>
/// Checks if the USB device of a 'brand' type is connected. Used to check if a VR headset are connected
/// for display in ZEDManager's Inspector.
/// 检查是否已连接“brand”类型的USB设备。
/// 用于检查是否连接了VR耳机以在ZEDManager的Inspector中显示。
/// </summary>
/// <returns><c>True</c>, if USB device connected was found, <c>false</c> otherwise.</returns>
/// <param name="Device brand.">Type.</param>
public static bool CheckUSBDeviceConnected(USB_DEVICE Type)
{
if (dllz_find_usb_device(Type))
return true;
else
return false;
}
/// <summary>
/// Private constructor. Initializes lists to hold references to textures and texture requests.
/// 私有构造函数。初始化列表以保存对纹理和纹理请求的引用。
/// Lance：估计是后面发现其他类里面需要用 又改成public形式
/// 从下面的代码来看，实例化一个ZEDCamera相机相当于实例化图像的纹理列表?
/// </summary>
public ZEDCamera()
{
//Create the textures
textures = new Dictionary<int, Dictionary<int, Texture2D>>(); // 以字典的形式来组织，最内层的纹理的类型是2D的？
texturesRequested = new List<TextureRequested>(); //纹理请求列表
}
/// <summary>
/// Create a camera in Live mode (input comes from a connected ZED device, not SVO playback).
/// 在实时模式下创建相机（输入来自所连接的ZED设备，而不是SVO播放）。
/// </summary>
/// <param name="verbose">True to create detailed log file of SDK calls at the cost of performance.
/// 为True会创建SDK调用的详细日志文件，但会降低性能。</param>
public bool CreateCamera(int cameraID, bool verbose)
{
string infoSystem = SystemInfo.graphicsDeviceType.ToString().ToUpper();
if (!infoSystem.Equals("DIRECT3D11") && !infoSystem.Equals("OPENGLCORE"))
{
throw new Exception("The graphic library [" + infoSystem + "] is not supported");
}
CameraID = cameraID;
//tagOneObject += cameraID;
return dllz_create_camera(cameraID, verbose);
}
/// <summary>
/// Closes the camera and deletes all textures.
/// Once destroyed, you need to recreate a camera instance to restart again.
/// 关闭相机并删除所有纹理。
/// 一旦销毁，您需要重新创建相机实例以重新启动。
/// </summary>
public void Destroy()
{
cameraReady = false;
dllz_close(CameraID);
DestroyAllTexture();
}
/// <summary>
/// DLL-friendly version of InitParameters (found in ZEDCommon.cs).
/// DLL友好的InitParameters版本（可在ZEDCommon.cs中找到）。
/// Lance: 定义一个参数结构体，里面的参数变量大部分都是由sl定义的类型，在ZEDCommon.cs中引用
/// </summary>
[StructLayout(LayoutKind.Sequential)]
public struct dll_initParameters
{
public sl.INPUT_TYPE inputType;
/// <summary>
/// Resolution the ZED will be set to.
/// </summary>
public sl.RESOLUTION resolution; //分辨率
/// <summary>
/// Desired camera FPS. Max is set by resolution.
/// </summary>
public int cameraFps; //相机帧率
/// <summary>
/// ID for identifying which of multiple connected ZEDs to use.
/// </summary>
public int cameraDeviceID; //相机设备ID
/// <summary>
/// True to flip images horizontally.
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool cameraImageFlip; //是否水平镜像
/// <summary>
/// True to disable self-calibration, using unoptimized optional calibration parameters.
/// False is recommended for optimized calibration.
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool cameraDisableSelfCalib; // 如果为真，就不启动相机自身的自校准
/// <summary>
/// True if depth relative to the right sensor should be computed.
/// 如果应计算相对于右传感器的深度，则为True。
/// Lance： 一般情况下我们只用左相机的深度图，如果需要右相机的深度图的话，就把这个变量设置为真
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool enableRightSideMeasure;
/// <summary>
/// True to skip dropped frames during SVO playback.
/// 设为True可在SVO播放期间跳过掉帧。
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool svoRealTimeMode;
/// <summary>
/// Quality level of depth calculations. Higher settings improve accuracy but cost performance.
/// 深度计算的质量级别。较高的设置可以提高准确性，但可以提高性价比。
/// </summary>
public sl.DEPTH_MODE depthMode;
/// <summary>
/// True to stabilize the depth map. Recommended.
/// 为真：实现稳定的深度匹配。 推荐使用
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool depthStabilization;
/// <summary>
/// Minimum distance from the camera from which depth will be computed, in the defined coordinateUnit.
/// 在定义的coordinateUnit中，深度图像的最小距离。
/// </summary>
public float depthMinimumDistance;
/// <summary>
/// Maximum distance that can be computed.
/// 可以计算的最大深度距离。
/// </summary>
public float depthMaximumDistance;
/// <summary>
/// Coordinate unit for all measurements (depth, tracking, etc.). Meters are recommended for Unity.
/// 所有测量的坐标单位（深度，跟踪等）。在Unity中，最好采用"米"为单位。
/// </summary>
public UNIT coordinateUnit;
/// <summary>
/// Defines order and direction of coordinate system axes. Unity uses left-handed, Y up, so this setting is recommended.
/// 定义坐标系轴的顺序和方向。 Unity使用左手坐标系,向上是Y方向，因此建议使用此设置。
/// </summary>
public COORDINATE_SYSTEM coordinateSystem;
/// <summary>
/// ID of the graphics card on which the ZED's computations will be performed.
/// GPU的序号，ZED相关的运算在这个GPU上运行。
/// </summary>
public int sdkGPUId;
/// <summary>
/// True for the SDK to provide text feedback.
/// 真：SDK的信息反馈
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool sdkVerbose;
/// <summary>
/// True if sensors are required, false will not trigger an error if sensors are missing.
/// 如果需要传感器，则为true；如果缺少传感器，则为false不会触发错误。
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool sensorsRequired;
/// <summary>
/// Whether to enable improved color/gamma curves added in ZED SDK 3.0.
/// 是否启用ZED SDK 3.0中添加的改进的颜色/伽玛曲线。
/// </summary>
[MarshalAs(UnmanagedType.U1)] public bool enableImageEnhancement;
/// <summary>
/// Copy constructor. Takes values from
/// Unity-suited InitParameters class.
/// 复制构造函数。从适用于Unity的InitParameters类中获取值。
/// </summary>
/// <param name="init"></param>
public dll_initParameters(InitParameters init)
{
inputType = init.inputType;
resolution = init.resolution;
cameraFps = init.cameraFPS;
svoRealTimeMode = init.svoRealTimeMode;
coordinateUnit = init.coordinateUnit;
depthMode = init.depthMode;
depthMinimumDistance = init.depthMinimumDistance;
depthMaximumDistance = init.depthMaximumDistance;
cameraImageFlip = init.cameraImageFlip;
enableRightSideMeasure = init.enableRightSideMeasure;
cameraDisableSelfCalib = init.cameraDisableSelfCalib;
sdkVerbose = init.sdkVerbose;
sdkGPUId = init.sdkGPUId;
cameraDeviceID = init.cameraDeviceID;
coordinateSystem = init.coordinateSystem;
depthStabilization = init.depthStabilization;
sensorsRequired = init.sensorsRequired;
enableImageEnhancement = init.enableImageEnhancement;
}
}
/// <summary>
/// Checks if the ZED camera is plugged in, opens it, and initializes the projection matix and command buffers for updating textures.
/// 检查是否插入了ZED摄像机，将其打开，然后初始化投影矩阵和命令缓冲区以更新贴图。
/// </summary>
/// <param name="initParameters">Class with all initialization settings.
/// A newly-instantiated InitParameters will have recommended default values
/// 具有所有初始化设置的类。
/// 新实例化的InitParameters将具有建议的默认值。.</param>
/// <returns>ERROR_CODE: The error code gives information about the internal connection process.
/// If SUCCESS is returned, the camera is ready to use. Every other code indicates an error.
/// ERROR_CODE：错误代码提供有关内部连接过程的信息。
/// 如果返回SUCCESS，则可以使用相机。其他所有代码均指示错误。</returns>
public ERROR_CODE Init(ref InitParameters initParameters) //返回的是错误提示信息
{
//Update values with what we're about to pass to the camera.
//用我们将要传递给相机的值更新值。
currentResolution = initParameters.resolution; //分辨率
fpsMax = GetFpsForResolution(currentResolution); //最大帧率,与当前分辨率有关
if (initParameters.cameraFPS == 0) // 当前帧率是否为0
{
initParameters.cameraFPS = (int) fpsMax; //如果没有指定就直接采用最大的帧率
}
dll_initParameters
initP = new dll_initParameters(
initParameters); //DLL-friendly version of InitParameters. 能够被dll文件接收的参数对象
initP.coordinateSystem =
COORDINATE_SYSTEM
.LEFT_HANDED_Y_UP; //Left-hand, Y-up is Unity's coordinate system, so we match that. 左手系坐标系
int v = dllz_open(CameraID, ref initP,
new System.Text.StringBuilder(initParameters.pathSVO, initParameters.pathSVO.Length),
new System.Text.StringBuilder(initParameters.ipStream, initParameters.ipStream.Length),
initParameters.portStream,
new System.Text.StringBuilder(initParameters.sdkVerboseLogFile,
initParameters.sdkVerboseLogFile.Length),
new System.Text.StringBuilder(initParameters.optionalSettingsPath,
initParameters.optionalSettingsPath
.Length)); // 打开相机，传入相机ID，初始参数的引用, SVO的路径, 流的JP和长度，端口号，sdk的日志文件，最优设置的路径，
if ((ERROR_CODE) v != ERROR_CODE.SUCCESS) //判断是否成功
{
cameraReady = false; //没有成功
return (ERROR_CODE) v; // 返回错误信息 下面的代码不再执行
}
//Set more values if the initialization was successful.
// 如果初始化成功，则设置更多的参数值
imageWidth = dllz_get_width(CameraID); //图片的宽
imageHeight = dllz_get_height(CameraID); //图片的高
if (imageWidth > 0 && imageHeight > 0) //说明相机有返回图片的参数
{
GetCalibrationParameters(false); //获得相机的标定参数 如果为false 就是给calibrationParametersRectified变量赋值一下
FillProjectionMatrix(); // 填充投影变换矩阵,这个函数只需要调用一次
baseline = calibrationParametersRectified.Trans[0]; // 基线赋值
fov_H = calibrationParametersRectified.leftCam.hFOV * Mathf.Deg2Rad; //水平视野
fov_V = calibrationParametersRectified.leftCam.vFOV * Mathf.Deg2Rad; //垂直视野
cameraModel = GetCameraModel(); //获取相机的模型 这边指的是物理相机的模型
cameraReady = true; //相机准备好了
return (ERROR_CODE) v;
}
else
return sl.ERROR_CODE.CAMERA_NOT_INITIALIZED; //未正确启动相机
}
/// <summary>
/// Fills the projection matrix with the parameters of the ZED. Needs to be called only once.
/// This projection matrix is off-center.
/// 用ZED的参数填充投影矩阵。只需要调用一次。
/// 此投影矩阵偏离中心。
/// Lance: 这个投影矩阵我还不确定是哪个坐标系到哪个坐标系的投影
/// </summary>
/// <param name="zFar">应该是Z方向上最远点,500应该是近似无穷远</param>
/// <param name="zNear">Z方向上最近点</param>
public void FillProjectionMatrix(float zFar = 500, float zNear = 0.1f)
{
CalibrationParameters parameters = GetCalibrationParameters(false); //获得是矫正过后的标定参数
float fovx = parameters.leftCam.hFOV * Mathf.Deg2Rad; //水平视场角度 转换为弧度制
float fovy = parameters.leftCam.vFOV * Mathf.Deg2Rad; //垂直视场角度 转换为弧度制
float f_imageWidth = (float) ImageWidth; //图片宽度 指列数
float f_imageHeight = (float) ImageHeight; //图片高度 指行数
//Manually construct the matrix based on initialization/calibration values.
//根据初始化,标定值,手动构建矩阵。
// Lance: 明显感觉这个脚本写的没有ZEDManager的可读性好， 注释的内容比较少。下面是自己添加的变换矩阵示意图
// |Horizontal FoV, 0 , Horizontal offset , 0 |
// | 0 , Vertical FoV , Vertical offset , 0 |
// | 0 , 0 , Near and far planes , Near and far planes |
// | 0 , 0 , -1 , 0 |
projection[0, 0] = 1.0f / Mathf.Tan(fovx * 0.5f); //Horizontal FoV.
projection[0, 1] = 0;
//Horizontal offset. 水平偏移量， cx指图像的实际物理中心的x, 这个是由于镜片的加工误差，实际的镜头中心与图像中心并不完全重合
projection[0, 2] =
2.0f * ((f_imageWidth - 1.0f * parameters.leftCam.cx) / f_imageWidth) - 1.0f;
projection[0, 3] = 0;
projection[1, 0] = 0;
projection[1, 1] = 1.0f / Mathf.Tan(fovy * 0.5f); //Vertical FoV.
projection[1, 2] =
-(2.0f * ((f_imageHeight - 1.0f * parameters.leftCam.cy) / f_imageHeight) -
1.0f); //Vertical offset. 垂直偏移
projection[1, 3] = 0;
projection[2, 0] = 0;
projection[2, 1] = 0;
projection[2, 2] = -(zFar + zNear) / (zFar - zNear); //Near and far planes. 最远点和最近点的平面 这个还不是很理解
projection[2, 3] = -(2.0f * zFar * zNear) / (zFar - zNear); //Near and far planes.
projection[3, 0] = 0;
projection[3, 1] = 0;
projection[3, 2] = -1;
projection[3, 3] = 0.0f;
}
/// <summary>
/// Grabs a new image, rectifies it, and computes the disparity map and (optionally) the depth map.
/// The grabbing function is typically called in the main loop in a separate thread.
/// 抓取新图像，对其进行校正，然后计算视差和（可选）深度图。
/// 通常在主循环中的单独线程中调用抓取函数。
/// </summary><remarks>For more info, read about the SDK function it calls:
/// 有关更多信息，请阅读有关其调用的SDK函数的信息：
/// https://www.stereolabs.com/developers/documentation/API/v2.5.1/classsl_1_1Camera.html#afa3678a18dd574e162977e97d7cbf67b </remarks>
/// <param name="runtimeParameters">Struct holding all grab parameters.保留所有抓取参数的结构体 </param>
/// <returns>the function returns false if no problem was encountered,
/// true otherwise.如果没有遇到问题，该函数返回false，否则返回true。</returns>
public sl.ERROR_CODE
Grab(ref sl.RuntimeParameters runtimeParameters) // 发现这个函数并没有返回值，说明只是从上层告知下层相机说你给我采集新的一帧数据，但是采集完的数据并没有返回过来
{
return (sl.ERROR_CODE) dllz_grab(CameraID, ref runtimeParameters);
}
/// <summary>
/// Return the INPUT_TYPE currently used
/// 返回当前使用的INPUT_TYPE
/// Lance：指的是相机与电脑的连接类型，我的mini是USB3.0
/// </summary>
/// <returns></returns>
public sl.INPUT_TYPE GetInputType()
{
return (sl.INPUT_TYPE) dllz_get_input_type(CameraID);
}
/// <summary>
/// Creates a file for recording the ZED's output into a .SVO or .AVI video.
/// 创建一个文件，用于将ZED的录制输出为.SVO或.AVI视频。
/// </summary><remarks>An SVO is Stereolabs' own format designed for the ZED. It holds the video feed with timestamps
/// as well as info about the camera used to record it.
/// SVO是Stereolabs自己为ZED设计的格式。它包含带有时间戳的视频，以及有关用于记录它的摄像机的信息。</remarks>
/// <param name="videoFileName">Filename. Whether it ends with .svo or .avi defines its file type.文档名称。它以.svo还是.avi结尾定义其文件类型。</param>
/// <param name="compressionMode">How much compression to use,压缩模式</param>
/// <returns>An ERROR_CODE that defines if the file was successfully created and can be filled with images.
/// 一个ERROR_CODE，它定义文件是否已成功创建并且可以写入图片数据。</returns>
public ERROR_CODE EnableRecording(string videoFileName,
SVO_COMPRESSION_MODE compressionMode = SVO_COMPRESSION_MODE.H264_BASED)
{
return (ERROR_CODE) dllz_enable_recording(CameraID, StringUtf8ToByte(videoFileName), (int) compressionMode);
}
/// <summary>
/// Stops recording to an SVO/AVI, if applicable, and closes the file.
/// 停止记录到SVO / AVI（如果有），并关闭文件。
/// </summary>
public bool DisableRecording()
{
return dllz_disable_recording(CameraID);
}
/// <summary>
/// Sets a new target frame rate for the camera. If it's not possible with the current resolution,
/// the SDK will target the closest possible frame rate instead.
/// 设置相机的新目标帧频。如果使用当前分辨率无法实现，
/// SDK将以尽可能接近的帧速率为目标。
/// </summary>
/// <param name="fps">New target FPS.</param>
public void SetCameraFPS(int fps)
{
if (GetFpsForResolution(currentResolution) >= fps) // 当前分辨率下的最大帧率如果大于我们设置的大小
{
fpsMax = (uint) fps; //为什么要把最大帧率重新赋值???
}
dllz_set_camera_fps(CameraID, fps); //设置相机帧率
}
/// <summary>
/// Sets the position of the SVO file currently being read to a desired frame.
/// 就是把SVO文件当前的位置空间用来存放指定的一帧呗
/// </summary>
/// <param name="frame">Index of the desired frame to be decoded.</param>
public void SetSVOPosition(int frame)
{
dllz_set_svo_position(CameraID, frame);
}
/// <summary>
/// Gets the current confidence threshold value for the disparity map (and by extension the depth map).
/// Values below the given threshold are removed from the depth map.
/// 获取视差图（以及扩展的深度图）的当前置信度阈值。
/// 低于给定阈值的值将从深度图中删除。
/// </summary>
/// <returns>Filtering value between 0 and 100.</returns>
public int GetConfidenceThreshold()
{
return dllz_get_confidence_threshold(CameraID);
}
/// <summary>
/// Gets the timestamp at the time the latest grabbed frame was extracted from the USB stream.
/// This is the closest timestamp you can get from when the image was taken. Must be called after calling grab().
/// 获取从USB流中提取最新抓取的帧时的时间戳。
/// 这是您拍摄图像时可获得的最接近的时间戳。必须在调用grab（）之后调用。
/// </summary>
/// <returns>Current timestamp in nanoseconds. -1 means it's is not available, such as with an .SVO file without compression.</returns>
/// 当前时间戳（以纳秒为单位）。 -1表示它不可用，例如未压缩的.SVO文件。
public ulong GetCameraTimeStamp()
{
return dllz_get_camera_timestamp(CameraID);
}
/// <summary>
/// Gets the current timestamp at the time the function is called. Can be compared to the camera timestamp
/// for synchronization, since they have the same reference (the computer's start time).
/// 获取调用该函数时的当前时间戳。可以与相机时间戳
/// 进行比较，因为它们具有相同的参考（计算机的开始时间）。 时间单位是纳秒
/// </summary>
/// <returns>The timestamp in nanoseconds.</returns>
public ulong GetCurrentTimeStamp()
{
return dllz_get_current_timestamp(CameraID);
}
/// <summary>
/// Timestamp from the most recent image update. Based on the computer's start time.
/// 最近一次图像更新的时间戳。基于计算机的启动时间。
/// </summary>
/// <returns>The timestamp in nanoseconds.</returns>
public ulong GetImageUpdaterTimeStamp()
{
return dllz_get_image_updater_time_stamp(CameraID);
}
/// <summary>
/// Get the current position of the SVO being recorded to.
/// 获取SVO文件当前的位置，这个位置是要用来录制的。
/// </summary>
/// <returns>Index of the frame being recorded to.</returns>
public int GetSVOPosition()
{
return dllz_get_svo_position(CameraID);
}
/// <summary>
/// Gets the total number of frames in the loaded SVO file.
/// 获取已加载的SVO文件中的帧总数。
/// </summary>
/// <returns>Total frames in the SVO file. Returns -1 if the SDK is not reading an SVO.</returns>
public int GetSVONumberOfFrames()
{
return dllz_get_svo_number_of_frames(CameraID);
}
/// <summary>
/// Gets the closest measurable distance by the camera, according to the camera type and depth map parameters.
/// 根据摄像机类型和深度图参数，获取摄像机最近的可测量距离。
/// </summary>
/// <returns>The nearest possible depth value.</returns>
public float GetDepthMinRangeValue()
{
return dllz_get_depth_min_range_value(CameraID);
}
/// <summary>
/// Returns the current maximum distance of depth/disparity estimation.
/// 返回深度/视差估计的当前最大距离。
/// </summary>
/// <returns>The closest depth</returns>
public float GetDepthMaxRangeValue()
{
return dllz_get_depth_max_range_value(CameraID);
}
/// <summary>
/// Initialize and Start the tracking functions
/// 初始化并启动跟踪功能
/// </summary>
/// <param name="quat"> rotation used as initial world transform. By default it should be identity.初始化相机的时候的变换。默认情况下，它是确定的。</param>
/// <param name="vec"> translation used as initial world transform. By default it should be identity.初始化相机的时候的位置，默认情况下，它是确定的</param>
/// <param name="enableSpatialMemory"> (optional) define if spatial memory is enable or not.空间映射数据内存是否需要(可选)</param>
/// <param name="areaFilePath"> (optional) file of spatial memory file that has to be loaded to relocate in the scene.（可选）必须加载才能在场景中重新定位的空间存储文件的文件。</param>
/// <returns></returns>
public sl.ERROR_CODE EnableTracking(ref Quaternion quat, ref Vector3 vec, bool enableSpatialMemory = true,
bool enablePoseSmoothing = false, bool enableFloorAlignment = false, bool trackingIsStatic = false,
bool enableIMUFusion = true, string areaFilePath = "")
{
sl.ERROR_CODE trackingStatus = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
trackingStatus = (sl.ERROR_CODE) dllz_enable_tracking(CameraID, ref quat, ref vec, enableSpatialMemory,
enablePoseSmoothing, enableFloorAlignment,
trackingIsStatic, enableIMUFusion, new System.Text.StringBuilder(areaFilePath, areaFilePath.Length));
return trackingStatus;
}
/// <summary>
/// Reset tracking
/// 重置跟踪
/// </summary>
/// <param name="rotation"></param>
/// <param name="translation"></param>
/// <returns></returns>
public sl.ERROR_CODE ResetTracking(Quaternion rotation, Vector3 translation)
{
sl.ERROR_CODE trackingStatus = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
trackingStatus = (sl.ERROR_CODE) dllz_reset_tracking(CameraID, rotation, translation);
return trackingStatus;
}
/// <summary>
/// 重置追踪，但是附带有偏移量
/// </summary>
/// <param name="rotation"></param>
/// <param name="translation"></param>
/// <param name="rotationOffset"></param>
/// <param name="translationOffset"></param>
/// <returns></returns>
public sl.ERROR_CODE ResetTrackingWithOffset(Quaternion rotation, Vector3 translation,
Quaternion rotationOffset, Vector3 translationOffset)
{
sl.ERROR_CODE trackingStatus = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
trackingStatus = (sl.ERROR_CODE) dllz_reset_tracking_with_offset(CameraID, rotation, translation,
rotationOffset, translationOffset);
return trackingStatus;
}
/// <summary>
/// 计算初始的位置
/// </summary>
/// <param name="rotation"></param>
/// <param name="translation"></param>
/// <returns></returns>
public sl.ERROR_CODE EstimateInitialPosition(ref Quaternion rotation, ref Vector3 translation)
{
sl.ERROR_CODE status = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
status = (sl.ERROR_CODE) dllz_estimate_initial_position(CameraID, ref rotation, ref translation, 2, 100);
return status;
}
/// <summary>
/// 取消追踪的功能
/// </summary>
/// <param name="path">The path to save the area file</param>
public void DisableTracking(string path = "")
{
dllz_disable_tracking(CameraID, new System.Text.StringBuilder(path, path.Length));
}
/// <summary>
/// 保存当前的区域,这个应该是用于保存depth map的特征点才对，还得进一步确认
/// </summary>
/// <param name="path"></param>
/// <returns></returns>
public sl.ERROR_CODE SaveCurrentArea(string path)
{
return (sl.ERROR_CODE) dllz_save_current_area(CameraID, new System.Text.StringBuilder(path, path.Length));
}
/// <summary>
/// Returns the current state of the area learning saving
/// 返回区域学习保存的状态
/// </summary>
/// <returns></returns>
public sl.AREA_EXPORT_STATE GetAreaExportState()
{
return (sl.AREA_EXPORT_STATE) dllz_get_area_export_state(CameraID);
}
/// <summary>
/// Register a texture to the base
/// 注册一个基本的纹理
/// </summary>
private void RegisterTexture(Texture2D m_Texture, int type, int mode)
{
TextureRequested t = new TextureRequested();
t.type = type; // 纹理类型
t.option = mode; // 纹理选项
texturesRequested.Add(t); //把纹理添加到列表里面
textures[type].Add(mode, m_Texture); //添加到纹理字典里面
}
/// <summary>
/// Creates or retrieves a texture of type Image. Will be updated each frame automatically.
/// 创建或获取图像类型的纹理。将自动更新每帧。
/// Lance：其实就是我们常说的RGB图片而已
/// <para>Image type textures are human-viewable, but have less accuracy than measure types.</para>
/// <para>图像类型的纹理是人类可见的，但其精度低于度量类型。</para>
/// </summary>
/// <remarks>
/// Note that the new texture will exist on the GPU, so accessing from the CPU will result in an empty image. To get images
/// with the CPU, use RetrieveImage() instead and specify CPU memory in the arguments.
/// 请注意，新纹理将存在于GPU上，因此从CPU进行访问图像的结果是为空的。
/// 要使用CPU获取图像，请改用RetrieveImage（）并在参数中指定CPU内存。
/// </remarks>
/// <param name="mode">What the image shows (left RGB image, right depth image, normal map, etc.)
/// 图像显示的内容（左RGB图像，右深度图像，法线贴图等）</param>
/// /// <param name="resolution">Resolution of the image. Should correspond to ZED's current resolution.
/// 图像分辨率。应符合ZED当前的分辨率。</param>
/// <returns>Texture2D that will update each frame with the ZED SDK's output.
/// Texture2D将使用ZED SDK的输出更新每个帧。</returns>
public Texture2D CreateTextureImageType(VIEW mode, Resolution resolution = new Resolution())
{
if (HasTexture((int) TYPE_VIEW.RETRIEVE_IMAGE, (int) mode))
{
return textures[(int) TYPE_VIEW.RETRIEVE_IMAGE][(int) mode];
}
if (!cameraReady)
return null;
int width = ImageWidth;
int height = imageHeight;
if (!((uint) resolution.width == 0 && (uint) resolution.height == 0)
) //Handles if Resolution arg was empty, as in the default.
{
width = (int) resolution.width;
height = (int) resolution.height;
}
Texture2D m_Texture;
if (mode == VIEW.LEFT_GREY || mode == VIEW.RIGHT_GREY || mode == VIEW.LEFT_UNRECTIFIED_GREY ||
mode == VIEW.RIGHT_UNRECTIFIED_GREY)
{
m_Texture = new Texture2D(width, height, TextureFormat.Alpha8, false);
}
else if (mode == VIEW.SIDE_BY_SIDE)
{
m_Texture = new Texture2D(width * 2, height, TextureFormat.RGBA32,
false); //Needs to be twice as wide for SBS because there are two images.
}
else
{
m_Texture = new Texture2D(width, height, TextureFormat.RGBA32, false);
}
m_Texture.filterMode = FilterMode.Point;
m_Texture.wrapMode = TextureWrapMode.Clamp;
m_Texture.Apply();
IntPtr idTexture = m_Texture.GetNativeTexturePtr();
int error = dllz_register_texture_image_type(CameraID, (int) mode, idTexture, resolution);
if (error != 0)
{
throw new Exception("CUDA error:" + error +
" if the problem appears again, please contact Stereolabs support.");
}
if (!textures.ContainsKey((int) TYPE_VIEW.RETRIEVE_IMAGE))
{
textures.Add((int) TYPE_VIEW.RETRIEVE_IMAGE, new Dictionary<int, Texture2D>());
}
RegisterTexture(m_Texture, (int) TYPE_VIEW.RETRIEVE_IMAGE,
(int) mode); //Save so you don't make a duplicate if another script needs the texture.
return m_Texture;
}
/// <summary>
/// Creates or retrievse a texture of type Measure. Will be updated each frame automatically.
/// Measure types are not human-viewable, but don't lose any accuracy.
/// 创建或检索Measure类型的纹理。将自动更新每帧。
/// 度量类型不是人类可见的，但不会失去任何准确性。
/// Lance:这边的度量类型我一直不理解是什么类型，我估计是深度图的意思
/// </summary>
/// <remarks>
/// Note that the new texture will exist on the GPU, so accessing from the CPU will result in an empty image. To get images
/// with the CPU, use RetrieveMeasure() instead and specify CPU memory in the arguments.
/// 请注意，新纹理将存在于GPU上，因此从CPU进行访问的化返回结果将为空。
/// 要使用CPU获取图像，请改用RetrieveMeasure（）并在参数中指定CPU内存。
/// </remarks>
/// <param name="mode">What the image shows (disparity, depth, confidence, etc.),图像显示的内容（视差，深度，置信度等）</param>
/// <param name="resolution">Resolution of the image. Should correspond to ZED's current resolution.图像分辨率。应符合ZED当前的分辨率。</param>
/// <returns>Texture2D that will update each frame with the ZED SDK's output.Texture2D将使用ZED SDK的输出更新每个帧。</returns>
/// Lance: 这个measure类型的纹理确定就是深度图像，只是模式不同的话，返回的数据类型不同。
public Texture2D CreateTextureMeasureType(MEASURE mode, Resolution resolution = new Resolution())
{
if (HasTexture((int) TYPE_VIEW.RETRIEVE_MEASURE, (int) mode))
{
return textures[(int) TYPE_VIEW.RETRIEVE_MEASURE][(int) mode];
}
if (!cameraReady)
return null;
Texture2D m_Texture;
int width = ImageWidth;
int height = imageHeight;
if (!((uint) resolution.width == 0 && (uint) resolution.height == 0))
{
width = (int) resolution.width;
height = (int) resolution.height;
}
//Handle the mode options.
//不同的数据组织类型,
if (mode == MEASURE.XYZ || mode == MEASURE.XYZABGR || mode == MEASURE.XYZARGB || mode == MEASURE.XYZBGRA ||
mode == MEASURE.XYZRGBA || mode == MEASURE.NORMALS
|| mode == MEASURE.XYZ_RIGHT || mode == MEASURE.XYZABGR_RIGHT || mode == MEASURE.XYZARGB_RIGHT ||
mode == MEASURE.XYZBGRA_RIGHT || mode == MEASURE.XYZRGBA_RIGHT || mode == MEASURE.NORMALS_RIGHT)
{
//这边的类型就是点云的类型,XYZ
m_Texture = new Texture2D(width, height, TextureFormat.RGBAFloat, false, true); //实例化相应的纹理以准备接收相应的纹理数据
}
else if (mode == MEASURE.DEPTH || mode == MEASURE.CONFIDENCE || mode == MEASURE.DISPARITY ||
mode == MEASURE.DEPTH_RIGHT || mode == MEASURE.DISPARITY_RIGHT)
{
// 这边的类型是深度图像的类型
m_Texture = new Texture2D(width, height, TextureFormat.RFloat, false, true);
}
else
{
//这边的类型是彩色图像的类型
m_Texture = new Texture2D(width, height, TextureFormat.RGBA32, false, true);
}
if (!((uint) resolution.width == 0 && (uint) resolution.height == 0)) //确定设置了分辨率
{
m_Texture.filterMode = FilterMode.Bilinear; //双向线性滤波器
}
else
{
m_Texture.filterMode = FilterMode.Point; //点滤波器 这又是啥滤波器
}
m_Texture.wrapMode = TextureWrapMode.Clamp; // 包装的模式为堆类型 这个还不是很懂
m_Texture.Apply(); //应用设置的这些参数
IntPtr idTexture = m_Texture.GetNativeTexturePtr(); //纹理的ID号 这个是什么鬼
int error = dllz_register_texture_measure_type(CameraID, (int) mode, idTexture, resolution); //告诉底层抓取新的数据
if (error != 0) //如果错误
{
throw new Exception("CUDA error:" + error +
" if the problem appears again, please contact Stereolabs support.");
}
if (!textures.ContainsKey((int) TYPE_VIEW.RETRIEVE_MEASURE)) //如果没有包括这个键值
{
textures.Add((int) TYPE_VIEW.RETRIEVE_MEASURE, new Dictionary<int, Texture2D>()); //新添加这个键值对
}
RegisterTexture(m_Texture, (int) TYPE_VIEW.RETRIEVE_MEASURE,
(int) mode); //Save to avoid duplicates if texture type is needed elsewhere.
// 如果在其他位置需要纹理类型，请保存以免重复。
// Lance：就是说 如果需要需要点云数据 或者深度图像的话 在调用这个函数后，应该从 textures这个纹理字典中获得
return m_Texture;
}
/// <summary>
/// Unregisters a texture of type Image. The texture will be destroyed and will no longer be updated each frame.
/// 注销图像类型的纹理。纹理将被破坏，并且将不再在每一帧进行更新。
/// </summary>
/// <param name="view">What the image was showing (left RGB image, right depth image, normal map, etc.)
/// 图像显示的内容（左RGB图像，右深度图像，法线贴图等）</param>
public bool UnregisterTextureImageType(sl.VIEW view)
{
DestroyTextureImageType((int) view);
return dllz_unregister_texture_image_type(CameraID, (int) view) != 0;
}
/// <summary>
/// Unregisters a texture of type Measure, The texture will be destroyed and will no longer be updated each frame.
/// 取消注册Measure类型的纹理，该纹理将被销毁，并且不再在每个帧中更新。
/// </summary>
/// <param name="measure">What the measure was showing (disparity, depth, confidence, etc.),度量显示的内容（差异，深度，置信度等）</param>
public bool UnregisterTextureMeasureType(sl.MEASURE measure)
{
DestroyTextureMeasureType((int) measure);
return dllz_unregister_texture_measure_type(CameraID, (int) measure) != 0;
}
/// <summary>
/// Copies a Texture of type Image into a ZEDMat. This function should be called after a Grab() and an UpdateTextures().
/// 将Image类型的Texture复制到ZEDMat中。该函数应在Grab（）和UpdateTextures（）之后调用。
/// Lance:也就是说当我们需要以矩阵的形式获得彩色图片数据、深度图像需要调用这个函数
/// </summary>
/// <param name="view">View type (left rgb, right depth, etc.)</param>
/// <returns>New ZEDMat for an image texture of the selected view type.就是返回相应的图像矩阵ZEDMat。</returns>
public ZEDMat RequestCopyMatFromTextureImageType(sl.VIEW view)
{
return new ZEDMat(dllz_get_copy_mat_texture_image_type(CameraID, (int) view));
}
/// <summary>
/// Copies a texture of type Measure into a ZEDMat. This function should be called after a Grab() and an UpdateTextures().
/// 将“Measure”类型的纹理复制到ZEDMat中。该函数应在Grab（）和UpdateTextures（）之后调用。
/// </summary>
/// <param name="measure">Measure type (depth, disparity, confidence, etc.)，度量类型（深度，差异，置信度等）</param>
/// <returns>New ZEDMat for a measure texture of the selected measure type.相应的数据矩阵</returns>
public ZEDMat RequestCopyMatFromTextureMeasureType(sl.MEASURE measure)
{
return new ZEDMat(dllz_get_copy_mat_texture_measure_type(CameraID, (int) measure));
}
/// <summary>
/// Destroys a texture and removes its reference in the textures list.
/// 销毁纹理并在纹理列表中删除其参考。
/// </summary>
/// <param name="type">Type of texture as an int (0 for Image, 1 for Measure).纹理的类型（整数）（0表示图像，1表示测量类型）。</param>
/// <param name="option">Corresponding options enum (sl.VIEW if Image type, sl.MEASURE if Measure type) as an integer.
/// 对应的选项枚举（如果是图像类型，则为sl.VIEW；如果是度量类型，则为sl.MEASURE），以整数形式表示。</param>
private void DestroyTexture(int type, int option)
{
if (textures.ContainsKey(type) && textures[type].ContainsKey(option))
{
textures[type][option] = null;
textures[type].Remove(option);
if (textures[type].Count == 0)
{
textures.Remove(type);
}
}
}
/// <summary>
/// Destroy all textures that were ever requested.
/// 销毁所有需要的纹理。
/// </summary>
private void DestroyAllTexture()
{
if (cameraReady)
{
foreach (TextureRequested t in texturesRequested)
{
DestroyTexture(t.type, t.option);
}
texturesRequested.Clear();
}
}
/// <summary>
/// Destroy a texture created with CreateTextureImageType().
/// 销毁使用CreateTextureImageType（）创建的某个纹理。
/// </summary>
/// <param name="type">View type (left RGB, right depth image, etc.) as an integer.
/// 视图类型（左RGB，右深度图像等）为整数。</param>
private void DestroyTextureImageType(int option)
{
DestroyTexture((int) TYPE_VIEW.RETRIEVE_IMAGE, option);
}
/// <summary>
/// Destroy a texture created with CreateTextureMeasureType().
/// 销毁使用CreateTextureMeasureType（）创建的某个纹理。
/// </summary>
/// <param name="type">Measure type (depth, confidence, etc.) as an integer.
/// 度量类型（深度，置信度等）为整数。</param>
private void DestroyTextureMeasureType(int option)
{
DestroyTexture((int) TYPE_VIEW.RETRIEVE_MEASURE, option);
}
/// <summary>
/// Retrieves a texture that was already created.
/// 检索已经创建的纹理。
/// </summary>
/// <param name="type">Type of texture as an integer (0 for Image, 1 for Measure).
/// 纹理类型，为整数（对于图像为0，对于度量为1）。</param>
/// <param name="mode">Corresponding options enum (sl.VIEW if Image type, sl.MEASURE if Measure type) as an integer.
/// 对应的选项枚举（如果是图像类型，则为sl.VIEW；如果是度量类型，则为sl.MEASURE），以整数形式表示。</param>
/// <returns>Existing texture of the given type/mode.</returns>
public Texture2D GetTexture(TYPE_VIEW type, int mode)
{
if (HasTexture((int) type, mode))
{
return textures[(int) type][mode];
}
return null;
}
/// <summary>
/// Checks if a texture of a given type has already been created.
/// 检查是否已创建给定类型的纹理。
/// </summary>
/// <param name="type">Type of texture as an integer (0 for Image, 1 for Measure).</param>
/// <param name="mode">Corresponding options enum (sl.VIEW if Image type, sl.MEASURE if Measure type) as an integer.</param>
/// <returns>True if the texture is available.</returns>
private bool HasTexture(int type, int mode)
{
if (cameraReady) //Texture can't exist if the ZED hasn't been initialized yet.
{
return textures.ContainsKey((int) type) && textures[type].ContainsKey((int) mode);
}
return false;
}
/// <summary>
/// Returns the current camera FPS. This is limited primarily by resolution but can also be lower due to
/// setting a lower desired resolution in Init() or from USB connection/bandwidth issues.
/// 返回当前相机的FPS。这主要受分辨率限制，但由于///在Init（）中设置了较低的所需分辨率，或者由于USB连接/带宽问题，也可能较低。
/// </summary>
/// <returns>The current fps,当前帧率</returns>
public float GetCameraFPS()
{
return dllz_get_camera_fps(CameraID);
}
/// <summary>
/// 获得相机的标定参数
/// </summary>
/// <param name="raw">是否是原始图像，原始图像为未矫正畸变的图像</param>
/// <returns></returns>
public CalibrationParameters GetCalibrationParameters(bool raw = false)
{
IntPtr p = dllz_get_calibration_parameters(CameraID, raw);
if (p == IntPtr.Zero)
{
return new CalibrationParameters();
}
CalibrationParameters parameters =
(CalibrationParameters) Marshal.PtrToStructure(p, typeof(CalibrationParameters));
if (raw)
calibrationParametersRaw = parameters; //未矫正畸变的图像参数
else
calibrationParametersRectified = parameters; //畸变矫正过的图像参数
return parameters;
}
/// <summary>
/// Gets the ZED camera model (ZED or ZED Mini).
/// 获得相机的型号
/// </summary>
/// <returns>Model of the ZED as sl.MODEL.</returns>
public sl.MODEL GetCameraModel()
{
return (sl.MODEL) dllz_get_camera_model(CameraID);
}
/// <summary>
/// Gets the ZED's camera firmware version.
/// 获取ZED的相机固件版本。
/// </summary>
/// <returns>Firmware version.</returns>
public int GetCameraFirmwareVersion()
{
return dllz_get_camera_firmware(CameraID);
}
/// <summary>
/// Gets the ZED's sensors firmware version.
/// 获取ZED的传感器固件版本。
/// </summary>
/// <returns>Firmware version.</returns>
public int GetSensorsFirmwareVersion()
{
return dllz_get_sensors_firmware(CameraID);
}
/// <summary>
/// Gets the ZED's serial number.
/// 获取ZED的串口号。
/// </summary>
/// <returns>Serial number</returns>
public int GetZEDSerialNumber()
{
return dllz_get_zed_serial(CameraID);
}
/// <summary>
/// Returns the ZED's vertical field of view in radians.
/// 以弧度返回ZED的垂直视场。
/// </summary>
/// <returns>Vertical field of view.</returns>
public float GetFOV()
{
return GetCalibrationParameters(false).leftCam.vFOV * Mathf.Deg2Rad;
}
/// <summary>
/// Computes textures from the ZED. The new textures will not be displayed until an event is sent to the render thread.
/// This event is called from UpdateTextures().
/// 从ZEDz注册纹理。在将事件发送到渲染线程之前，不会显示新纹理。
/// ///从UpdateTextures（）调用此事件。
/// </summary>
public void RetrieveTextures()
{
dllz_retrieve_textures(CameraID);
}
/// <summary>
/// Swaps textures safely between the acquisition and rendering threads.
/// 在采集和渲染线程之间安全地交换纹理。
/// </summary>
public void SwapTextures()
{
dllz_swap_textures(CameraID);
}
/// <summary>
/// Timestamp of the images used the last time the ZED wrapper updated textures.
/// 上一次ZED包装器更新纹理时使用的图像时间戳。
/// </summary>
/// <returns></returns>
public ulong GetImagesTimeStamp()
{
return dllz_get_updated_textures_timestamp(CameraID);
}
/// <summary>
/// Gets the number of frames dropped since Grab() was called for the first time.
/// Based on camera timestamps and an FPS comparison.
/// 获取自首次调用Grab（）以来丢弃的帧数。
/// 基于相机时间戳和FPS比较。
/// </summary><remarks>Similar to the Frame Drop display in the ZED Explorer app.
/// 类似于ZED Explorer应用程序中的“丢帧”显示。</remarks>
/// <returns>Frames dropped since first Grab() call.
/// 自从第一次Grab（）调用以来，丢掉的帧数。</returns>
public uint GetFrameDroppedCount()
{
return dllz_get_frame_dropped_count(CameraID);
}
/// <summary>
/// Gets the percentage of frames dropped since Grab() was called for the first time.
/// 获取自首次调用Grab（）以来丢弃的帧的百分比。
/// </summary>
/// <returns>Percentage of frames dropped.</returns>
public float GetFrameDroppedPercent()
{
return dllz_get_frame_dropped_percent(CameraID);
}
/// <summary>
/// Gets the position of the camera and the current state of the ZED Tracking.
/// 获取摄像机的位置和ZED跟踪的当前状态。
/// Lance:这个函数可能在之后的hololens开发中需要用到，用于两者的空间匹配
/// </summary>
/// <param name="rotation">Quaternion filled with the current rotation of the camera depending on its reference frame.
/// 相机旋转的四元数（已赋值)，其值具体取决于摄像机的参考系。</param>
/// <param name="position">Vector filled with the current position of the camera depending on its reference frame.
/// 根据摄像机的参考帧填充摄像机当前位置的矢量</param>
/// <param name="referenceType">Reference frame for setting the rotation/position. CAMERA gives movement relative to the last pose.
/// WORLD gives cumulative movements since tracking started.
/// 用于设置旋转/位置的参考框架。相机给出相对于最后姿势的运动。
/// WORLD自跟踪开始以来提供累计移动。</param>
/// <returns>State of ZED's Tracking system (off, searching, ok).</returns>
public TRACKING_STATE GetPosition(ref Quaternion rotation, ref Vector3 position,
REFERENCE_FRAME referenceType = REFERENCE_FRAME.WORLD)
{
return (TRACKING_STATE) dllz_get_position(CameraID, ref rotation, ref position, (int) referenceType);
}
/// <summary>
/// Gets the current position of the camera and state of the tracking, with an optional offset to the tracking frame.
/// 获取摄像头的当前位置和跟踪状态，以及跟踪框的可选偏移量。
/// </summary>
/// <param name="rotation">Quaternion filled with the current rotation of the camera depending on its reference frame.</param>
/// <param name="position">Vector filled with the current position of the camera depending on its reference frame.</param>
/// <param name="targetQuaternion">Rotational offset applied to the tracking frame.</param>
/// <param name="targetTranslation">Positional offset applied to the tracking frame.</param>
/// <param name="referenceFrame">Reference frame for setting the rotation/position. CAMERA gives movement relative to the last pose.
/// WORLD gives cumulative movements since tracking started.</param>
/// <returns>State of ZED's Tracking system (off, searching, ok).</returns>
public TRACKING_STATE GetPosition(ref Quaternion rotation, ref Vector3 translation,
ref Quaternion targetQuaternion, ref Vector3 targetTranslation,
REFERENCE_FRAME referenceFrame = REFERENCE_FRAME.WORLD)
{
return (TRACKING_STATE) dllz_get_position_at_target_frame(CameraID, ref rotation, ref translation,
ref targetQuaternion, ref targetTranslation, (int) referenceFrame);
}
/// <summary>
/// Gets the current position of the camera and state of the tracking, with a defined tracking frame.
/// A tracking frame defines what part of the ZED is its center for tracking purposes. See ZEDCommon.TRACKING_FRAME.
/// 使用定义的跟踪frame,获取摄像机的当前位置和跟踪状态。
/// 跟踪frame定义ZED的哪一部分是其中心以进行跟踪。参见ZEDCommon.TRACKING_FRAME。
/// </summary>
/// <param name="rotation">Quaternion filled with the current rotation of the camera depending on its reference frame.</param>
/// <param name="position">Vector filled with the current position of the camera depending on its reference frame.</param>
/// <param name="trackingFrame">Center of the ZED for tracking purposes (left eye, center, right eye).</param>
/// <param name="referenceFrame">Reference frame for setting the rotation/position. CAMERA gives movement relative to the last pose.
/// WORLD gives cumulative movements since tracking started.</param>
/// <returns>State of ZED's Tracking system (off, searching, ok).</returns>
public TRACKING_STATE GetPosition(ref Quaternion rotation, ref Vector3 translation,
TRACKING_FRAME trackingFrame, REFERENCE_FRAME referenceFrame = REFERENCE_FRAME.WORLD)
{
Quaternion rotationOffset = Quaternion.identity;
Vector3 positionOffset = Vector3.zero;
switch (trackingFrame) //Add offsets to account for different tracking frames.
{
case sl.TRACKING_FRAME.LEFT_EYE:
positionOffset = new Vector3(0, 0, 0);
break;
case sl.TRACKING_FRAME.RIGHT_EYE:
positionOffset = new Vector3(Baseline, 0, 0);
break;
case sl.TRACKING_FRAME.CENTER_EYE:
positionOffset = new Vector3(Baseline / 2.0f, 0, 0);
break;
}
return (TRACKING_STATE) dllz_get_position_at_target_frame(CameraID, ref rotation, ref translation,
ref rotationOffset, ref positionOffset, (int) referenceFrame);
}
/// <summary>
/// Gets the current position of the camera and state of the tracking, filling a Pose struct useful for AR pass-through.
/// 获取摄像头的当前位置和跟踪状态，填充对AR有用的Pose结构体。
/// </summary>
/// <param name="pose">Current pose.</param>
/// <param name="referenceType">Reference frame for setting the rotation/position. CAMERA gives movement relative to the last pose.
/// WORLD gives cumulative movements since tracking started.</param>
/// <returns>State of ZED's Tracking system (off, searching, ok).</returns>
public TRACKING_STATE GetPosition(ref Pose pose, REFERENCE_FRAME referenceType = REFERENCE_FRAME.WORLD)
{
return (TRACKING_STATE) dllz_get_position_data(CameraID, ref pose, (int) referenceType);
}
/// <summary>
/// Sets a prior to the IMU orientation (only for ZED-M).
/// Prior must come from a external IMU, such as the HMD orientation and should be in a time frame
/// that's as close as possible to the camera.
/// 将IMU方向设置为先（仅适用于ZED-M）。
/// 先验必须来自外部IMU，例如HMD方向，
/// 并且应位于与摄像机尽可能近的时间范围内
/// Lance:不是很确定这是个什么东西
/// </summary>
/// <returns>Error code status.</returns>
/// <param name="rotation">Prior rotation.</param>
public ERROR_CODE SetIMUOrientationPrior(ref Quaternion rotation)
{
sl.ERROR_CODE trackingStatus = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
trackingStatus = (sl.ERROR_CODE) dllz_set_imu_prior_orientation(CameraID, rotation);
return trackingStatus;
}
/// <summary>
/// Gets the rotation given by the ZED-M/ZED2 IMU. Return an error if using ZED (v1) which does not contains internal sensors
/// 获取ZED-M / ZED2 IMU给出的旋转角度。
/// 如果使用不包含内部传感器的ZED（v1），则返回错误
/// Lance：想要获取相机内部的IMU数据的话得调用这个函数
/// </summary>
/// <returns>Error code status.</returns>
/// <param name="rotation">Rotation from the IMU.</param>
public ERROR_CODE GetInternalIMUOrientation(ref Quaternion rotation,
TIME_REFERENCE referenceTime = TIME_REFERENCE.IMAGE)
{
sl.ERROR_CODE err = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
err = (sl.ERROR_CODE) dllz_get_internal_imu_orientation(CameraID, ref rotation, (int) referenceTime);
return err;
}
/// <summary>
/// Gets the full Sensor data from the ZED-M or ZED2 . Return an error if using ZED (v1) which does not contains internal sensors
/// 从ZED-M或ZED2获取完整的传感器数据。如果使用不包含内部传感器的ZED（v1），则返回错误
/// </summary>
/// <returns>Error code status.</returns>
/// <param name="rotation">Rotation from the IMU.</param>
public ERROR_CODE GetInternalSensorsData(ref SensorsData data,
TIME_REFERENCE referenceTime = TIME_REFERENCE.IMAGE)
{
sl.ERROR_CODE err = sl.ERROR_CODE.CAMERA_NOT_DETECTED;
err = (sl.ERROR_CODE) dllz_get_internal_sensors_data(CameraID, ref data, (int) referenceTime);
return err;
}
/// <summary>
/// Converts a float array to a matrix.
/// 将float数组转换为矩阵。
/// </summary>
/// <param name="m">Matrix to be filled.</param>
/// <param name="f">Float array to be turned into a matrix.</param>
static public void
Float2Matrix(ref Matrix4x4 m, float[] f) //因为传入的是指针，所以不需要范围，直接修改是相应内存的参数，外部需要访问这个矩阵的话，只需要有相应的指针就可以
{
if (f == null) return;
if (f.Length != 16) return;
for (int i = 0; i < 4; ++i)
{
for (int j = 0; j < 4; ++j)
{
m[i, j] = f[i * 4 + j];
}
}
}
/// <summary>
/// Sets a value in the ZED's camera settings.
/// 在ZED的相机设置中设置一个值。
/// </summary>
/// <param name="settings">Setting to be changed (brightness, contrast, gain, exposure, etc.),要更改的设置（亮度，对比度，增益，曝光等）</param>
/// <param name="value">New value.</param>
/// <param name="usedefault">True to set the settings to their default values.如果为True，则将设置设为默认值。</param>
public void SetCameraSettings(CAMERA_SETTINGS settings, int value)
{
AssertCameraIsReady();
//cameraSettingsManager.SetCameraSettings(CameraID, settings, value);
dllz_set_video_settings(CameraID, (int) settings, value);
}
/// <summary>
/// Gets the value of a given setting from the ZED camera.
/// 从ZED摄像机获取给定设置的值。
/// </summary>
/// <param name="settings">Setting to be retrieved (brightness, contrast, gain, exposure, etc.)</param>
public int GetCameraSettings(CAMERA_SETTINGS settings)
{
AssertCameraIsReady();
return dllz_get_video_settings(CameraID, (int) settings);
//return cameraSettingsManager.GetCameraSettings(CameraID, settings);
}
/// <summary>
/// Overloaded function for CAMERA_SETTINGS.AEC_AGC_ROI (requires iRect as input)
/// CAMERA_SETTINGS.AEC_AGC_ROI的重载函数（需要iRect作为输入）
/// Lance: roi 是什么玩意
/// </summary>
/// <param name="settings"> Must be set to CAMERA_SETTINGS.AEC_AGC_ROI. Otherwise will return -1.</param>
/// <param name="side"> defines left=0 or right=1 or both=2 sensor target</param>
/// <param name="roi">the roi defined as a sl.Rect</param>
/// <param name="reset">Defines if the target must be reset to full sensor</param>
/// <returns></returns>
public int SetCameraSettings(CAMERA_SETTINGS settings, int side, iRect roi, bool reset)
{
AssertCameraIsReady();
if (settings == CAMERA_SETTINGS.AEC_AGC_ROI)
return dllz_set_roi_for_aec_agc(CameraID, side, roi, reset);
else
return -1;
}
/// <summary>
/// Overloaded function for CAMERA_SETTINGS.AEC_AGC_ROI (requires iRect as input)
/// CAMERA_SETTINGS.AEC_AGC_ROI的重载函数（需要iRect作为输入）
/// </summary>
/// <param name="settings"> Must be set to CAMERA_SETTINGS.AEC_AGC_ROI. Otherwise will return -1.</param>
/// <param name="side"> defines left=0 or right=1 or both=2 sensor target.</param>
/// <param name="roi"> Roi that will be filled.</param>
/// <returns></returns>
public int GetCameraSettings(CAMERA_SETTINGS settings, int side, ref iRect roi)
{
AssertCameraIsReady();
if (settings == CAMERA_SETTINGS.AEC_AGC_ROI)
return dllz_get_roi_for_aec_agc(CameraID, side, ref roi);
else
return -1;
}
/// <summary>
/// Reset camera settings to default
/// 将相机设置重置为默认设置
/// </zsummary>
public void ResetCameraSettings()
{
AssertCameraIsReady();
//cameraSettingsManager.ResetCameraSettings(this);
SetCameraSettings(sl.CAMERA_SETTINGS.BRIGHTNESS, sl.ZEDCamera.brightnessDefault);
SetCameraSettings(sl.CAMERA_SETTINGS.CONTRAST, sl.ZEDCamera.contrastDefault);
SetCameraSettings(sl.CAMERA_SETTINGS.HUE, sl.ZEDCamera.hueDefault);
SetCameraSettings(sl.CAMERA_SETTINGS.SATURATION, sl.ZEDCamera.saturationDefault);
SetCameraSettings(sl.CAMERA_SETTINGS.SHARPNESS, sl.ZEDCamera.sharpnessDefault);
SetCameraSettings(sl.CAMERA_SETTINGS.GAMMA, sl.ZEDCamera.gammaDefault);
SetCameraSettings(sl.CAMERA_SETTINGS.AUTO_WHITEBALANCE, 1);
SetCameraSettings(sl.CAMERA_SETTINGS.AEC_AGC, 1);
SetCameraSettings(sl.CAMERA_SETTINGS.LED_STATUS, 1);
SetCameraSettings(sl.CAMERA_SETTINGS.AEC_AGC_ROI, 2, new sl.iRect(), true);
}
/// <summary>
/// Loads camera settings (brightness, contrast, hue, saturation, gain, exposure) from a file in the
/// project's root directory.
/// 从项目根目录中的文件加载相机设置（亮度，对比度，色调，饱和度，增益，曝光）。
/// </summary>
/// <param name="path">Filename.</param>
public void LoadCameraSettings(string path)
{
cameraSettingsManager.LoadCameraSettings(this, path);
}
/// <summary>
/// Save the camera settings (brightness, contrast, hue, saturation, gain, exposure) to a file
/// relative to the project's root directory.
/// 将相机设置（亮度，对比度，色调，饱和度，增益，曝光）保存到文件
/// 相对于项目根目录。
/// </summary>
/// <param name="path">Filename.</param>
public void SaveCameraSettings(string path)
{
cameraSettingsManager.SaveCameraSettings(path);
}
/// <summary>
/// Retrieves camera settings from the ZED camera and loads them into a CameraSettings instance
/// handled by ZEDCameraSettingsManager.
/// 从ZED摄像机检索摄像机设置，并将其加载到由ZEDCameraSettingsManager处理的CameraSettings实例中。
/// </summary>
public void RetrieveCameraSettings()
{
cameraSettingsManager.RetrieveSettingsCamera(this);
}
/// <summary>
/// Returns if the camera's exposure mode is set to automatic.
/// 如果相机的曝光模式设置为自动，则返回。
/// </summary>
/// <returns><c>True</c> if automatic, <c>false</c> if manual.</returns>
public bool GetExposureUpdateType()
{
return cameraSettingsManager.auto;
}
/// <summary>
/// Returns if the camera's white balance is set to automatic.
/// 如果相机的白平衡设置为自动，则返回。
/// </summary>
/// <returns><c>True</c> if automatic, <c>false</c> if manual.</returns>
public bool GetWhiteBalanceUpdateType()
{
return cameraSettingsManager.whiteBalanceAuto;
}
/// <summary>
/// Applies all the settings registered in the ZEDCameraSettingsManager instance to the actual ZED camera.
/// 将在ZEDCameraSettingsManager实例中注册的所有设置应用于实际的ZED摄像机。
/// </summary>
public void SetCameraSettings()
{
cameraSettingsManager.SetSettings(this);
}
/// <summary>
/// Checks if the ZED camera is connected.
/// 检查是否连接了ZED相机。
/// </summary>
/// <remarks>The C++ SDK version of this call returns the number of connected ZEDs. But multiple ZEDs aren't supported in the Unity plugin.
/// 此调用的C ++ SDK版本返回已连接ZED的数量。但是Unity插件不支持多个ZED。</remarks>
/// <returns>True if ZED is connected.</returns>
public static bool IsZedConnected()
{
return Convert.ToBoolean(dllz_is_zed_connected());
}
/// <summary>
/// Gets the version of the currently installed ZED SDK.
/// 获取当前安装的ZED SDK的版本。
/// </summary>
/// <returns>ZED SDK version as a string in the format MAJOR.MINOR.PATCH.</returns>
public static string GetSDKVersion()
{
return PtrToStringUtf8(dllz_get_sdk_version());
}
/// <summary>
/// Checks if the camera has been initialized and the plugin has been loaded. Throws exceptions otherwise.
/// 检查相机是否已初始化以及插件是否已加载。否则抛出异常。
/// </summary>
private void AssertCameraIsReady()
{
if (!cameraReady)
throw new Exception("ZED camera is not connected or Init() was not called.");
if (!pluginIsReady)
throw new Exception("Could not resolve ZED plugin dependencies.");
}
/// <summary>
/// Deploys an event that causes the textures to be updated with images received from the ZED.
/// Should be called after RetrieveTextures() so there are new images available.
/// 部署一个事件，该事件使纹理使用从ZED接收的图像进行更新。
/// 应该在RetrieveTextures（）之后调用，以便有新的图像可用。
/// Lance:大概的意思是，底层SDK采集了新的图片，然后才能更新纹理
/// </summary>
public void UpdateTextures()
{
GL.IssuePluginEvent(GetRenderEventFunc(), 1); //这个函数还是不大懂
}
/ SINGLE PIXEL UTILITY FUNCTIONS
/// 单一像素操作，这部分对我们来说比较有用
/// <summary>
/// Gets the current depth value of a pixel in the UNITS specified when the camera was started with Init().
/// May result in errors if the ZED image does not fill the whole screen.
/// 使用Init（）启动相机时，获取指定的UNITS中像素的当前深度值。
/// 如果ZED图像不能填满整个屏幕，则可能会导致错误。
/// Lance:这边指的是获取电脑屏幕上某个点的深度数据,如果我们获取的图片与电脑屏幕没有对齐的话，可能会发生错误
/// <param name="position">The pixel's screen space coordinates as a Vector3.
/// The Z component is unused - designed to take input from Input.mousePosition.
/// 这里的参数是三维的向量，但是实际上在Z维度上是不起作用的，实际上就是图像坐标</param>
/// <returns>Depth value as a float. 浮点类型的深度值</returns>
/// </summary>
public float GetDepthValue(Vector3 pixel)
{
if (!cameraReady)
{
return -1;
}
//屏幕宽度指的是显示频的屏幕宽度
float posX = (float) ImageWidth * (float) ((float) pixel.x / (float) Screen.width); //这部分的操作是啥,
float posY = ImageHeight * (1 - (float) pixel.y / (float) Screen.height); //这部分的操作是啥，
posX = Mathf.Clamp(posX, 0, ImageWidth); //限制数值的范围，保证稳定性
posY = Mathf.Clamp(posY, 0, ImageHeight);
float d = dllz_get_depth_value(CameraID, (uint) posX, (uint) posY); //这个底层接口其实我们也可以调用，调来获得某个像素的深度值
return d;
}
/// <summary>
/// Gets the current Euclidean distance (sqrt(x²+y²+z²)) of the targeted pixel of the screen to the camera.
/// May result in errors if the ZED image does not fill the whole screen.
/// 获取屏幕目标像素到相机的当前欧几里得距离（sqrt（x²+y²+z²））。
/// 如果ZED图像不能填满整个屏幕，则可能会导致错误。
/// <param name="pixel">The pixel's screen space coordinates as a Vector3.
/// The Z component is unused - designed to take input from Input.mousePosition.
/// 像素的屏幕空间坐标为Vector3。 /// Z组件未使用-旨在从Input.mousePosition获取输入。</param>
/// <returns>Distance as a float.</returns>
/// Lance:这边的输入是电脑屏幕上的像素坐标，不是图像上的像素坐标
/// </summary>
public float GetDistanceValue(Vector3 pixel)
{
if (!cameraReady) //Do nothing if the ZED isn't initialized.
{
return -1;
}
float posX = ImageWidth * (float) pixel.x / (float) Screen.width;
float posY = ImageHeight * (1 - (float) pixel.y / (float) Screen.height);
posX = Mathf.Clamp(posX, 0, ImageWidth); //把posX限定在这个范围里面，以防万一出现问题
posY = Mathf.Clamp(posY, 0, ImageHeight);
return dllz_get_distance_value(CameraID, (uint) posX, (uint) posY);
}
/// <summary>
/// Gets the position of a camera-space pixel relative to the camera frame.
/// 获得相机空间下的位置， 和 camera frame相关 。
/// <param name="pixel">The pixel's screen space coordinates as a Vector3. //电脑屏幕的图象坐标
/// The Z component is unused - designed to take input from Input.mousePosition.</param>
/// <param name="xyz">Position relative to the camera.相机空间下的坐标</param>
/// <returns>True if successful.</returns>
/// Lance：这个是我们需要的，就是获得某个点云点,但是有一个问题就是，这边的输入是屏幕坐标
/// </summary>
public bool GetXYZValue(Vector3 pixel, out Vector4 xyz)
{
if (!cameraReady) //Do nothing if the ZED isn't initialized.
{
xyz = Vector3.zero;
return false;
}
float posX = (float) ImageWidth * (float) ((float) pixel.x / (float) Screen.width);
float posY = ImageHeight * (1 - (float) pixel.y / (float) Screen.height);
posX = Mathf.Clamp(posX, 0, ImageWidth);
posY = Mathf.Clamp(posY, 0, ImageHeight);
bool r = dllz_get_xyz_value(CameraID, (uint) posX, (uint) posY, out xyz) != 0; //这个函数接口是我们要用的，可以重新定义一下。
return r;
}
/// <summary>
/// Gets the normal of a camera-space pixel. The normal is relative to the camera.
/// Use cam.worldToCameraMatrix.inverse to transform it to world space.
/// Note that ZEDSupportFunctions contains high-level versions of this function that are easier to use.
/// 获取相机空间下的某个法线。法线相对于相机。
/// 使用cam.worldToCameraMatrix.inverse将其转换为世界空间。
/// 请注意，ZEDSupportFunctions包含此函数的高级版本，这些版本更易于使用。
/// <param name="pixel">The pixel's screen space coordinates as a Vector3.
/// The Z component is unused - designed to take input from Input.mousePosition.</param>
/// <param name="normal">Normal value of the pixel as a Vector4.注意这边是一个四维向量</param>
/// <returns>True if successful.</returns>
/// </summary>
public bool GetNormalValue(Vector3 pixel, out Vector4 normal)
{
if (!cameraReady) //Do nothing if the ZED isn't initialized.
{
normal = Vector3.zero;
return false;
}
float posX = (float) ImageWidth * (float) ((float) pixel.x / (float) Screen.width);
float posY = ImageHeight * (1 - (float) pixel.y / (float) Screen.height);
posX = Mathf.Clamp(posX, 0, ImageWidth);
posY = Mathf.Clamp(posY, 0, ImageHeight);
bool r = dllz_get_normal_value(CameraID, (uint) posX, (uint) posY, out normal) != 0; //某个法向向量
return r;
}
/// <summary>
/// Initializes and begins the spatial mapping processes.
/// 初始化并开始空间映射过程
/// </summary>
/// <param name="resolution_meter">Spatial mapping resolution in meters.空间映射分辨率，以米为单位。</param>
/// <param name="max_range_meter">Maximum scanning range in meters.最大扫描范围，以米为单位。</param>
/// <param name="saveTexture">True to scan surface textures in addition to geometry.除几何图形外，还适用于扫描表面纹理。</param>
/// <returns></returns>
public sl.ERROR_CODE EnableSpatialMapping(float resolution_meter, float max_range_meter,
bool saveTexture = false)
{
sl.ERROR_CODE spatialMappingStatus = ERROR_CODE.FAILURE;
lock (grabLock)
{
spatialMappingStatus = (sl.ERROR_CODE) dllz_enable_spatial_mapping(CameraID, resolution_meter,
max_range_meter, System.Convert.ToInt32(saveTexture));
}
return spatialMappingStatus;
}
/// <summary>
/// Disables the Spatial Mapping process.
/// 禁用空间映射过程。
/// </summary>
public void DisableSpatialMapping()
{
lock (grabLock)
{
dllz_disable_spatial_mapping(CameraID);
}
}
/// <summary>
/// Updates the internal version of the mesh and returns the sizes of the meshes.
/// 更新网格的内部版本并返回网格的大小。
/// Lance:这个功能不是很明确
/// </summary>
/// <param name="nbVerticesInSubmeshes">Array of the number of vertices in each submesh.每个子网格中顶点数量的数组</param>
/// <param name="nbTrianglesInSubmeshes">Array of the number of triangles in each submesh.每个子网格中三角形数量的数组。</param>
/// <param name="nbSubmeshes">Number of submeshes.子网格数</param>
/// <param name="updatedIndices">List of all submeshes updated since the last update.自上次更新以来已更新的所有子网格的列表</param>
/// <param name="nbVertices">Total number of updated vertices in all submeshes.所有子网格中更新的顶点总数</param>
/// <param name="nbTriangles">Total number of updated triangles in all submeshes.所有子网格中更新的顶点总数</param>
/// <param name="nbSubmeshMax">Maximum number of submeshes that can be handled.可以处理的最大子网格数</param>
/// <returns>Error code indicating if the update was successful, and why it wasn't otherwise.错误代码，指示更新是否成功，以及为什么更新失败。</returns>
public sl.ERROR_CODE UpdateMesh(int[] nbVerticesInSubmeshes, int[] nbTrianglesInSubmeshes, ref int nbSubmeshes,
int[] updatedIndices, ref int nbVertices, ref int nbTriangles, int nbSubmeshMax)
{
sl.ERROR_CODE err = sl.ERROR_CODE.FAILURE;
err = (sl.ERROR_CODE) dllz_update_mesh(CameraID, nbVerticesInSubmeshes, nbTrianglesInSubmeshes,
ref nbSubmeshes, updatedIndices, ref nbVertices, ref nbTriangles, nbSubmeshMax);
return err;
}
/// <summary>
/// Retrieves all chunks of the generated mesh. Call UpdateMesh() before calling this.
/// Vertex and triangle arrays must be at least of the sizes returned by UpdateMesh (nbVertices and nbTriangles).
/// 检索生成的网格的所有块。在调用此方法之前，请先调用UpdateMesh（）。
/// 顶点和三角形数组必须至少具有UpdateMesh返回的大小（nbVertices和nbTriangles）。
/// </summary>
/// <param name="vertices">Vertices of the mesh.</param>
/// <param name="triangles">Triangles, formatted as the index of each triangle's three vertices in the vertices array.</param>
/// <param name="nbSubmeshMax">Maximum number of submeshes that can be handled.</param>
/// <returns>Error code indicating if the retrieval was successful, and why it wasn't otherwise.</returns>
public sl.ERROR_CODE RetrieveMesh(Vector3[] vertices, int[] triangles, int nbSubmeshMax, Vector2[] uvs,
IntPtr textures)
{
return (sl.ERROR_CODE) dllz_retrieve_mesh(CameraID, vertices, triangles, nbSubmeshMax, uvs, textures);
}
/// <summary>
/// Starts the mesh generation process in a thread that doesn't block the spatial mapping process.
/// ZEDSpatialMappingHelper calls this each time it has finished applying the last mesh update.
/// 在不阻塞空间映射过程的线程中启动网格生成过程。
/// ZEDSpatialMappingHelper每次完成应用最后一个网格更新时都会调用此方法。
/// </summary>
public void RequestMesh()
{
dllz_request_mesh_async(CameraID);
}
/// <summary>
/// Sets the pause state of the data integration mechanism for the ZED's spatial mapping.
/// 为ZED的空间映射设置数据集成机制的暂停状态。
/// </summary>
/// <param name="status">If true, the integration is paused. If false, the spatial mapping is resumed.</param>
public void PauseSpatialMapping(bool status)
{
dllz_pause_spatial_mapping(CameraID, status);
}
/// <summary>
/// Returns the mesh generation status. Useful for knowing when to update and retrieve the mesh.
/// 返回网格生成状态。有助于了解何时更新和检索网格。
/// </summary>
public sl.ERROR_CODE GetMeshRequestStatus()
{
return (sl.ERROR_CODE) dllz_get_mesh_request_status_async(CameraID);
}
/// <summary>
/// Saves the scanned mesh in a specific file format.
/// 将扫描的网格保存为特定的文件格式。
/// </summary>
/// <param name="filename">Path and filename of the mesh.</param>
/// <param name="format">File format (extension). Can be .obj, .ply or .bin.</param>
public bool SaveMesh(string filename, MESH_FILE_FORMAT format)
{
return dllz_save_mesh(CameraID, filename, format);
}
/// <summary>
/// Loads a saved mesh file. ZEDSpatialMapping then configures itself as if the loaded mesh was just scanned.
/// 加载保存的网格文件。然后，ZEDSpatialMapping将自身配置为就像刚刚扫描加载的网格一样。
/// </summary>
/// <param name="filename">Path and filename of the mesh. Should include the extension (.obj, .ply or .bin).</param>
/// <param name="nbVerticesInSubmeshes">Array of the number of vertices in each submesh.</param>
/// <param name="nbTrianglesInSubmeshes">Array of the number of triangles in each submesh.</param>
/// <param name="nbSubmeshes">Number of submeshes.</param>
/// <param name="updatedIndices">List of all submeshes updated since the last update.</param>
/// <param name="nbVertices">Total number of updated vertices in all submeshes.</param>
/// <param name="nbTriangles">Total number of updated triangles in all submeshes.</param>
/// <param name="nbSubmeshMax">Maximum number of submeshes that can be handled.</param>
/// <param name="textureSize">Array containing the sizes of all the textures (width, height) if applicable.</param>
public bool LoadMesh(string filename, int[] nbVerticesInSubmeshes, int[] nbTrianglesInSubmeshes,
ref int nbSubmeshes, int[] updatedIndices,
ref int nbVertices, ref int nbTriangles, int nbSubmeshMax, int[] textureSize = null)
{
return dllz_load_mesh(CameraID, filename, nbVerticesInSubmeshes, nbTrianglesInSubmeshes, ref nbSubmeshes,
updatedIndices, ref nbVertices,
ref nbTriangles, nbSubmeshMax, textureSize);
}
/// <summary>
/// Filters a mesh to remove triangles while still preserving its overall shape (though less accurate).
/// 过滤网格以删除三角形，同时仍保留其总体形状（尽管精度较低）。
/// Lance:大概的意思就是一些网格可能是在同一个平面上的，那么就可以结合在一起，减少网格的定点数，
/// </summary>
/// <param name="filterParameters">Filter level. Higher settings remove more triangles.</param>
/// <param name="nbVerticesInSubmeshes">Array of the number of vertices in each submesh.</param>
/// <param name="nbTrianglesInSubmeshes">Array of the number of triangles in each submesh.</param>
/// <param name="nbSubmeshes">Number of submeshes.</param>
/// <param name="updatedIndices">List of all submeshes updated since the last update.</param>
/// <param name="nbVertices">Total number of updated vertices in all submeshes.</param>
/// <param name="nbTriangles">Total number of updated triangles in all submeshes.</param>
/// <param name="nbSubmeshMax">Maximum number of submeshes that can be handled.</param>
public bool FilterMesh(FILTER filterParameters, int[] nbVerticesInSubemeshes, int[] nbTrianglesInSubemeshes,
ref int nbSubmeshes, int[] updatedIndices, ref int nbVertices, ref int nbTriangles, int nbSubmeshMax)
{
return dllz_filter_mesh(CameraID, filterParameters, nbVerticesInSubemeshes, nbTrianglesInSubemeshes,
ref nbSubmeshes, updatedIndices, ref nbVertices, ref nbTriangles, nbSubmeshMax);
}
/// <summary>
/// Applies the scanned texture onto the internal scanned mesh.
/// You will need to call RetrieveMesh() with uvs and textures to get the result into Unity.
/// 将扫描的纹理应用于内部扫描的网格。
/// 您将需要使用uvs和纹理调用RetrieveMesh（）才能将结果导入Unity。
/// Lance:这部分内容还需要理解一下
/// </summary>
/// <param name="nbVerticesInSubmeshes">Array of the number of vertices in each submesh.</param>
/// <param name="nbTrianglesInSubmeshes">Array of the number of triangles in each submesh.</param>
/// <param name="nbSubmeshes">Number of submeshes.</param>
/// <param name="updatedIndices">List of all submeshes updated since the last update.</param>
/// <param name="nbVertices">Total number of updated vertices in all submeshes.</param>
/// <param name="nbTriangles">Total number of updated triangles in all submeshes.</param>
/// <param name="textureSize"> Vector containing the size of all the texture (width, height). </param>
/// <param name="nbSubmeshMax">Maximum number of submeshes that can be handled.</param>
/// <returns></returns>
public bool ApplyTexture(int[] nbVerticesInSubmeshes, int[] nbTrianglesInSubmeshes, ref int nbSubmeshes,
int[] updatedIndices, ref int nbVertices, ref int nbTriangles, int[] textureSize, int nbSubmeshMax)
{
return dllz_apply_texture(CameraID, nbVerticesInSubmeshes, nbTrianglesInSubmeshes, ref nbSubmeshes,
updatedIndices, ref nbVertices, ref nbTriangles, textureSize, nbSubmeshMax);
}
/// <summary>
/// Gets the current state of spatial mapping.
/// 获取空间映射的当前状态。
/// </summary>
/// <returns></returns>
public SPATIAL_MAPPING_STATE GetSpatialMappingState()
{
return (sl.SPATIAL_MAPPING_STATE) dllz_get_spatial_mapping_state(CameraID);
}
/// <summary>
/// Gets a vector pointing toward the direction of gravity. This is estimated from a 3D scan of the environment,
/// and as such, a scan must be started/finished for this value to be calculated.
/// If using the ZED Mini, this isn't required thanks to its IMU.
/// 获取指向重力方向的向量。这是根据对环境的3D扫描估算的，
/// 因此必须开始/完成扫描才能计算该值。
/// 如果使用ZED Mini，则由于其IMU而不需要。
/// Lance： Mini版本有Imu自动可以检测到重力方向
/// </summary>
/// <returns>Vector3 pointing downward.</returns>
public Vector3 GetGravityEstimate()
{
Vector3 v = Vector3.zero;
dllz_spatial_mapping_get_gravity_estimation(CameraID, ref v);
return v;
}
/// <summary>
/// Consolidates the chunks from a scan. This is used to turn lots of small meshes (which are efficient for
/// the scanning process) into several large meshes (which are more convenient to work with).
/// 合并扫描中的块。这用于将许多小网格（对扫描过程有效）
/// 变成几个大网格（使用起来更方便）。
/// </summary>
/// <param name="numberFaces"></param>
/// <param name="nbVerticesInSubmeshes">Array of the number of vertices in each submesh.</param>
/// <param name="nbTrianglesInSubmeshes">Array of the number of triangles in each submesh.</param>
/// <param name="nbSubmeshes">Number of submeshes.</param>
/// <param name="updatedIndices">List of all submeshes updated since the last update.</param>
/// <param name="nbVertices">Total number of updated vertices in all submeshes.</param>
/// <param name="nbTriangles">Total number of updated triangles in all submeshes.</param>
public void MergeChunks(int numberFaces, int[] nbVerticesInSubmeshes, int[] nbTrianglesInSubmeshes,
ref int nbSubmeshes, int[] updatedIndices, ref int nbVertices, ref int nbTriangles, int nbSubmesh)
{
dllz_spatial_mapping_merge_chunks(CameraID, numberFaces, nbVerticesInSubmeshes, nbTrianglesInSubmeshes,
ref nbSubmeshes, updatedIndices, ref nbVertices, ref nbTriangles, nbSubmesh);
}
/// <summary>
/// Retrieves a measure texture from the ZED SDK and loads it into a ZEDMat. Use this to get an individual
/// texture from the last grabbed frame with measurements in every pixel - such as a depth map, confidence map, etc.
/// Measure textures are not human-viewable but don't lose accuracy, unlike image textures.
/// 从ZED SDK检索度量纹理并将其加载到ZEDMat中。
/// 使用此参数从最后一个抓取的帧中获取单个
/// 纹理，每个像素中都有测量值-例如深度图，置信度图等。
/// 测量纹理不是人类可见的，但不会失去准确性，这与图像纹理不同。
/// Lance:这个函数就是用来获取点云和实际深度数据的
/// </summary><remarks>
/// If you want to access the texture via script, you'll usually want to specify CPU memory. Then you can use
/// Marshal.Copy to move them into a new byte array, which you can load into a Texture2D.
/// 如果要通过脚本访问纹理，通常需要指定CPU内存。然后可以使用Marshal.Copy将其移动到新的字节数组中，然后可以将其加载到Texture2D中。
/// RetrieveMeasure() calls Camera::retrieveMeasure() in the C++ SDK. For more info, read:
/// https://www.stereolabs.com/developers/documentation/API/v2.5.1/classsl_1_1Camera.html#af799d12342a7b884242def5588a7f
/// </remarks>
/// <param name="mat">ZEDMat to fill with the new texture.</param>
/// <param name="measure">Measure type (depth, confidence, xyz, etc.)</param>
/// <param name="mem">Whether the image should be on CPU or GPU memory.</param>
/// <param name="resolution">Resolution of the texture.</param>
/// <returns>Error code indicating if the retrieval was successful, and why it wasn't otherwise.</returns>
public sl.ERROR_CODE RetrieveMeasure(sl.ZEDMat mat, sl.MEASURE measure,
sl.ZEDMat.MEM mem = sl.ZEDMat.MEM.MEM_CPU, sl.Resolution resolution = new sl.Resolution())
{
return (sl.ERROR_CODE) (dllz_retrieve_measure(CameraID, mat.MatPtr, (int) measure, (int) mem, resolution));
}
/// <summary>
/// Retrieves an image texture from the ZED SDK and loads it into a ZEDMat. Use this to get an individual
/// texture from the last grabbed frame in a human-viewable format. Image textures work for when you want the result to be visible,
/// such as the direct RGB image from the camera, or a greyscale image of the depth. However it will lose accuracy if used
/// to show measurements like depth or confidence, unlike measure textures.
/// 从ZED SDK检索图像纹理并将其加载到ZEDMat中。使用此功能以人类可见的格式从上一个抓取的帧中获取单独的
/// 纹理。图像纹理适用于希望结果可见的
/// 例如来自相机的直接RGB图像或深度的灰度图像。但是，如果使用
/// 来显示深度或置信度之类的度量，则它会失去准确性，这与度量纹理不同。
/// Lance:只能用于彩色图象和深度图象， 不能用于置信度矩阵或者精确的深度数据
/// </summary><remarks>
/// If you want to access the texture via script, you'll usually want to specify CPU memory. Then you can use
/// Marshal.Copy to move them into a new byte array, which you can load into a Texture2D. Note that you may need to
/// change the color space and/or flip the image.
/// 如果要通过脚本访问纹理，通常需要指定CPU内存。然后可以使用
/// Marshal.Copy将其移动到新的字节数组中，然后可以将其加载到Texture2D中。请注意，您可能需要
/// 更改颜色空间和/或翻转图像。
/// Lance:如果想要获得图象数据的话，需要调用这边的函数
/// RetrieveMeasure() calls Camera::retrieveMeasure() in the C++ SDK. For more info, read:
/// https://www.stereolabs.com/developers/documentation/API/v2.5.1/classsl_1_1Camera.html#ac40f337ccc76cacd3412b93f7f4638e2
/// </remarks>
/// <param name="mat">ZEDMat to fill with the new texture.</param>
/// <param name="view">Image type (left RGB, right depth map, etc.)</param>
/// <param name="mem">Whether the image should be on CPU or GPU memory.</param>
/// <param name="resolution">Resolution of the texture.</param>
/// <returns>Error code indicating if the retrieval was successful, and why it wasn't otherwise.</returns>
public sl.ERROR_CODE RetrieveImage(sl.ZEDMat mat, sl.VIEW view, sl.ZEDMat.MEM mem = sl.ZEDMat.MEM.MEM_CPU,
sl.Resolution resolution = new sl.Resolution())
{
return (sl.ERROR_CODE) (dllz_retrieve_image(CameraID, mat.MatPtr, (int) view, (int) mem, resolution));
}
/// <summary>
/// Computes offsets of the optical centers used to line up the ZED's images properly with Unity cameras.
/// Called in ZEDRenderingPlane after the ZED finished initializing.
/// 计算用于与Unity相机正确对齐ZED图像的光学中心的偏移量。
/// 在ZED完成初始化之后，调用ZEDRenderingPlane。
/// </summary>
/// <param name="planeDistance">Distance from a camera in the ZED rig to the quad/Canvas object holding the ZED image.
/// ZED的摄影机到包含ZED图像的Quad / Canvas对象的距离。</param>
/// <returns></returns>
public Vector4 ComputeOpticalCenterOffsets(float planeDistance)
{
IntPtr p = IntPtr.Zero;
sl.CalibrationParameters calib = GetCalibrationParameters(false);
sl.Resolution imageResolution = new sl.Resolution((uint) this.ImageWidth, (uint) this.ImageHeight);
Vector4 calibLeft = new Vector4(calib.leftCam.fx, calib.leftCam.fy, calib.leftCam.cx, calib.leftCam.cy);
Vector4 calibRight =
new Vector4(calib.rightCam.fx, calib.rightCam.fy, calib.rightCam.cx, calib.rightCam.cy);
p = dllz_compute_optical_center_offsets(ref calibLeft, ref calibRight, imageResolution, planeDistance);
if (p == IntPtr.Zero)
{
return new Vector4();
}
Vector4 parameters = (Vector4) Marshal.PtrToStructure(p, typeof(Vector4));
return parameters;
}
/// Plane Detection ///
/// <summary>
/// Looks for a plane in the visible area that is likely to represent the floor.
/// Use ZEDPlaneDetectionManager.DetectFloorPlane for a higher-level version that turns planes into GameObjects.
/// 在可能代表地板的可见区域中寻找一个平面。
/// 将ZEDPlaneDetectionManager.DetectFloorPlane用于将平面转换成GameObjects的更高版本。
/// </summary>
/// <param name="plane">Data on the detected plane.</param>
/// <param name="playerHeight">Height of the camera from the newly-detected floor.</param>
/// <param name="priorQuat">Prior rotation.</param>
/// <param name="priorTrans">Prior position.</param>
/// <returns></returns>
public sl.ERROR_CODE findFloorPlane(ref ZEDPlaneGameObject.PlaneData plane, out float playerHeight,
Quaternion priorQuat, Vector3 priorTrans)
{
IntPtr p = IntPtr.Zero;
Quaternion out_quat = Quaternion.identity;
Vector3 out_trans = Vector3.zero;
p = dllz_find_floor_plane(CameraID, out out_quat, out out_trans, priorTrans, priorTrans);
plane.Bounds = new Vector3[256];
playerHeight = 0;
if (p != IntPtr.Zero)
{
plane = (ZEDPlaneGameObject.PlaneData) Marshal.PtrToStructure(p, typeof(ZEDPlaneGameObject.PlaneData));
playerHeight = out_trans.y;
return (sl.ERROR_CODE) plane.ErrorCode;
}
else
return sl.ERROR_CODE.FAILURE;
}
/// <summary>
/// Using data from a detected floor plane, updates supplied vertex and triangle arrays with
/// data needed to make a mesh that represents it. These arrays are updated directly from the wrapper.
/// 使用来自检测到的地板平面的数据，使用更新提供的顶点和三角形阵列，以制作表示它的网格。这些数组直接从包装器更新。
/// </summary>
/// <param name="vertices">Array to be filled with mesh vertices.</param>
/// <param name="triangles">Array to be filled with mesh triangles, stored as indexes of each triangle's points.</param>
/// <param name="numVertices">Total vertices in the mesh.</param>
/// <param name="numTriangles">Total triangle indexes (3x number of triangles).</param>
/// <returns></returns>
public int convertFloorPlaneToMesh(Vector3[] vertices, int[] triangles, out int numVertices,
out int numTriangles)
{
return dllz_convert_floorplane_to_mesh(CameraID, vertices, triangles, out numVertices, out numTriangles);
}
/// <summary>
/// Checks for a plane in the real world at given screen-space coordinates.
/// Use ZEDPlaneDetectionManager.DetectPlaneAtHit() for a higher-level version that turns planes into GameObjects.
/// 在给定的屏幕空间坐标处检查现实世界中的平面。
/// 将ZEDPlaneDetectionManager.DetectPlaneAtHit（）用于将平面转换成GameObjects的更高版本。
/// </summary>
/// <param name="plane">Data on the detected plane.检测平面上的数据。</param>
/// <param name="screenPos">Point on the ZED image to check for a plane.在ZED图像上指向以检查平面。</param>
/// <returns></returns>
public sl.ERROR_CODE findPlaneAtHit(ref ZEDPlaneGameObject.PlaneData plane, Vector2 screenPos)
{
IntPtr p = IntPtr.Zero;
Quaternion out_quat = Quaternion.identity;
Vector3 out_trans = Vector3.zero;
float posX = (float) ImageWidth * (float) ((float) screenPos.x / (float) Screen.width);
float posY = ImageHeight * (1 - (float) screenPos.y / (float) Screen.height);
posX = Mathf.Clamp(posX, 0, ImageWidth);
posY = Mathf.Clamp(posY, 0, ImageHeight);
p = dllz_find_plane_at_hit(CameraID, new Vector2(posX, posY), true);
plane.Bounds = new Vector3[256];
if (p != IntPtr.Zero)
{
plane = (ZEDPlaneGameObject.PlaneData) Marshal.PtrToStructure(p, typeof(ZEDPlaneGameObject.PlaneData));
return (sl.ERROR_CODE) plane.ErrorCode;
}
else
return sl.ERROR_CODE.FAILURE;
}
/// <summary>
/// Using data from a detected hit plane, updates supplied vertex and triangle arrays with
/// data needed to make a mesh that represents it. These arrays are updated directly from the wrapper.
/// 使用来自检测到的击中平面的数据，用来更新提供的顶点和三角形阵列，以制作表示它的网格。这些数组直接从包装器更新。
/// Lance：这部分的知识点还需要补一下
/// Lance: 仅在ZEDPlaneDetectionManager中被调用一次
/// </summary>
/// <param name="vertices">Array to be filled with mesh vertices.要用网格顶点填充的数组</param>。
/// <param name="triangles">Array to be filled with mesh triangles, stored as indexes of each triangle's points.用网格三角形填充的数组，存储为每个三角形点的索引。</param>
/// <param name="numVertices">Total vertices in the mesh.网格中的总顶点。</param>
/// <param name="numTriangles">Total triangle indexes (3x number of triangles).三角形索引总数（三角形的3倍）。</param>
/// <returns></returns>
public int convertHitPlaneToMesh(Vector3[] vertices, int[] triangles, out int numVertices, out int numTriangles)
{
return dllz_convert_hitplane_to_mesh(CameraID, vertices, triangles, out numVertices, out numTriangles);
}
/// Streaming Module ///
/// <summary>
/// Creates an streaming pipeline.
/// 创建一个流管道
/// </summary>
/// <params>
/// Streaming parameters: See sl::StreamingParameters of ZED SDK. See ZED SDK API doc for more informations
/// </params>
/// <returns>An ERROR_CODE that defines if the streaming pipe was successfully created
/// 一个ERROR_CODE，定义是否成功创建了流管道</returns>
public ERROR_CODE EnableStreaming(STREAMING_CODEC codec = STREAMING_CODEC.AVCHD_BASED, uint bitrate = 8000,
ushort port = 30000, int gopSize = -1, bool adaptativeBitrate = false, int chunk_size = 32768)
{
int doAdaptBitrate = adaptativeBitrate ? 1 : 0;
return (ERROR_CODE) dllz_enable_streaming(CameraID, codec, bitrate, port, gopSize, doAdaptBitrate,
chunk_size);
}
/// <summary>
/// Tells if streaming is running or not.
/// 告知流媒体是否正在运行。
/// </summary>
/// <returns> false if streaming is not enabled, true if streaming is on</returns>
public bool IsStreamingEnabled()
{
int res = dllz_is_streaming_enabled(CameraID);
if (res == 1)
return true;
else
return false;
}
/// <summary>
/// Stops the streaming pipeline.
/// 停止流传输管道。
/// </summary>
public void DisableStreaming()
{
dllz_disable_streaming(CameraID);
}
/// Save utils fct ///
/// <summary>
/// Save current image (specified by view) in a file defined by filename
/// Supported formats are jpeg and png. Filename must end with either .jpg or .png
/// 将当前图像（由视图指定）保存在文件名定义的文件中
/// 支持的格式为jpeg和png。文件名必须以.jpg或.png结尾
/// </summary>
public sl.ERROR_CODE SaveCurrentImageInFile(sl.VIEW view, String filename)
{
sl.ERROR_CODE err = (sl.ERROR_CODE) dllz_save_current_image(CameraID, view, filename);
return err;
}
/// <summary>
/// Save the current depth in a file defined by filename.
/// Supported formats are PNG,PFM and PGM
/// 将当前深度保存在filename定义的文件中。
/// 支持的格式为PNG，PFM和PGM
/// </summary>
/// <param name="side"> defines left (0) or right (1) depth</param>
/// <param name="filename"> filename must end with .png, .pfm or .pgm</param>
/// <returns></returns>
public sl.ERROR_CODE SaveCurrentDepthInFile(int side, String filename)
{
sl.ERROR_CODE err = (sl.ERROR_CODE) dllz_save_current_depth(CameraID, side, filename);
return err;
}
/// <summary>
/// Save the current point cloud in a file defined by filename.
/// Supported formats are PLY,VTK,XYZ and PCD
/// 将当前点云保存在filename定义的文件中。
/// 支持的格式为PLY，VTK，XYZ和PCD
/// Lance:这是在Unity插件里面第一次看到点云的概念啊
/// </summary>
/// <param name="side">defines left (0) or right (1) point cloud,哪一边相机的点云</param>
/// <param name="filename"> filename must end with .ply, .xyz , .vtk or .pcd </param>
/// <returns></returns>
public sl.ERROR_CODE SaveCurrentPointCloudInFile(int side, String filename)
{
sl.ERROR_CODE err = (sl.ERROR_CODE) dllz_save_current_point_cloud(CameraID, side, filename);
return err;
}
/// Object detection ///
/// <summary>
/// Enable object detection module
/// 启用对象检测模块
/// </summary>
public sl.ERROR_CODE EnableObjectsDetection(ref dll_ObjectDetectionParameters od_params)
{
sl.ERROR_CODE objDetectStatus = ERROR_CODE.FAILURE;
lock (grabLock)
{
objDetectStatus = (sl.ERROR_CODE) dllz_enable_objects_detection(CameraID, ref od_params);
}
return objDetectStatus;
}
/// <summary>
/// Disable object detection module and release the resources.
/// 禁用对象检测模块并释放资源
/// </summary>
public void DisableObjectsDetection()
{
lock (grabLock)
{
dllz_disable_objects_detection(CameraID);
}
}
/// <summary>
/// Pause or Unpause the object detection
/// 暂停或取消暂停对象检测
/// </summary>
/// <param name="status"></param>
public void PauseObjectsDetection(bool status)
{
lock (grabLock)
{
dllz_pause_objects_detection(CameraID, status);
}
}
/// <summary>
/// Retrieve object detection data
/// 检索物体检测数据
/// </summary>
/// <param name="od_params"> Object detection runtime parameters,
/// 对象检测运行时参数</param>
/// <param name="objFrame"> ObjectsFrameSDK that contains all the detection data,
/// 包含所有检测数据的ObjectsFrameSDK</param>
/// <returns></returns>
public sl.ERROR_CODE RetrieveObjectsDetectionData(ref dll_ObjectDetectionRuntimeParameters od_params,
ref ObjectsFrameSDK objFrame)
{
return (sl.ERROR_CODE) dllz_retrieve_objects_data(CameraID, ref od_params, ref objFrame);
}
} //Zed Camera class
} // namespace sl
