本实验通过I2C master控制器去控制I2C接口的EEPROM的读写。
代码来源 opencores
`timescale 1ns / 1ps
//
// Design Name:
// Module Name: I2C_EEPROM
// Project Name:
//
module i2c_eeprom_test (
input clk,
input rst_n,
input key1,
inout i2c_sda,
inout i2c_scl,
output [5:0] seg_sel,
output [7:0] seg_data);
localparam S_IDLE = 0;
localparam S_READ = 1;
localparam S_WAIT = 2;
localparam S_WRITE = 3;
reg[3:0] state;
wire button_negedge;
reg[7:0] read_data;
reg[31:0] timer;
wire scl_pad_i;
wire scl_pad_o;
wire scl_padoen_o;
wire sda_pad_i;
wire sda_pad_o;
wire sda_padoen_o;
reg[ 7:0] i2c_slave_dev_addr;
reg[15:0] i2c_slave_reg_addr;
reg[ 7:0] i2c_write_data;
reg i2c_read_req;
wire i2c_read_req_ack;
reg i2c_write_req;
wire i2c_write_req_ack;
wire[7:0] i2c_read_data;
ax_debounce ax_debounce_m0 (
.clk (clk),
.rst (~rst_n),
.button_in (key1),
.button_posedge (),
.button_negedge (button_negedge),
.button_out ()
);
wire[6:0] seg_data_0;
seg_decoder seg_decoder_m0 (
.bin_data (read_data[3:0]),
.seg_data (seg_data_0)
);
wire[6:0] seg_data_1;
seg_decoder seg_decoder_m1(
.bin_data (read_data[7:4]),
.seg_data (seg_data_1)
);
seg_scan seg_scan_m0 (
.clk (clk ),
.rst_n (rst_n ),
.seg_sel (seg_sel ),
.seg_data (seg_data ),
.seg_data_0 ({
1'b1,7'b1111_111}),
.seg_data_1 ({
1'b1,7'b1111_111}),
.seg_data_2 ({
1'b1,7'b1111_111}),
.seg_data_3 ({
1'b1,7'b1111_111}),
.seg_data_4 ({
1'b1,seg_data_1} ),
.seg_data_5 ({
1'b1,seg_data_0} )
);
always@(posedge clk or negedge rst_n)
begin
if(rst_n == 1'b0) //if(!rst_n)
begin
state <= S_IDLE;
i2c_write_req <= 1'b0;
read_data <= 8'h00;
timer <= 32'd0;
i2c_write_data <= 8'd0;
i2c_slave_reg_addr <= 16'd0;
i2c_slave_dev_addr <= 8'ha0;//1010 000 0(default address ‘000’ write operation)
i2c_read_req <= 1'b0;
end
else
case(state)
S_IDLE:
begin
if(timer >= 32'd12_499_999)//250ms
state <= S_READ;
else
timer <= timer + 32'd1;
end
S_READ:
begin
if(i2c_read_req_ack)
begin
i2c_read_req <= 1'b0;
read_data <= i2c_read_data;
state <= S_WAIT;
end
else
begin
i2c_read_req <= 1'b1;
i2c_slave_dev_addr <= 8'ha0;
i2c_slave_reg_addr <= 16'd0;
end
end
S_WAIT:
begin
if(button_negedge)
begin
state <= S_WRITE;
read_data <= read_data + 8'd1;
end
end
S_WRITE:
begin
if(i2c_write_req_ack)
begin
i2c_write_req <= 1'b0;
state <= S_READ;
end
else
begin
i2c_write_req <= 1'b1;
i2c_write_data <= read_data;
end
end
default:
state <= S_IDLE;
endcase
end
assign sda_pad_i = i2c_sda;
assign i2c_sda = ~sda_padoen_o ? sda_pad_o : 1'bz;
assign scl_pad_i = i2c_scl;
assign i2c_scl = ~scl_padoen_o ? scl_pad_o : 1'bz;
i2c_master_top i2c_master_top_m0
(
.rst (~rst_n ),
.clk (clk ),
.clk_div_cnt (16'd500 ), //Standard mode:100Khz
// I2C signals
// i2c clock line
.scl_pad_i (scl_pad_i ), // SCL-line input
.scl_pad_o (scl_pad_o ), // SCL-line output (always 1'b0)
.scl_padoen_o (scl_padoen_o), // SCL-line output enable (active low)
// i2c data line
.sda_pad_i (sda_pad_i ), // SDA-line input
.sda_pad_o (sda_pad_o ), // SDA-line output (always 1'b0)
.sda_padoen_o (sda_padoen_o), // SDA-line output enable (active low)
.i2c_addr_2byte (1'b0 ),
.i2c_read_req (i2c_read_req ),
.i2c_read_req_ack (i2c_read_req_ack ),
.i2c_write_req (i2c_write_req ),
.i2c_write_req_ack (i2c_write_req_ack ),
.i2c_slave_dev_addr (i2c_slave_dev_addr),
.i2c_slave_reg_addr (i2c_slave_reg_addr),
.i2c_write_data (i2c_write_data ),
.i2c_read_data (i2c_read_data ),
.error ( )
);
wire [35:0] CONTROL0;
wire [255:0] TRIG0;
chipscope_icon icon_debug
(
.CONTROL0(CONTROL0)
);
chipscope_ila ila_filter_debug
(
.CONTROL (CONTROL0),
.CLK (clk ),
.TRIG0 (TRIG0 )
);
assign TRIG0[7:0] = i2c_write_data;
assign TRIG0[15:8]= i2c_read_data;
endmodule
`timescale 1ns / 1ps
//
// Design Name:
// Module Name: ax_debounce
// Project Name:
//
module ax_debounce
(
input clk,
input rst,
input button_in,
output reg button_posedge,
output reg button_negedge,
output reg button_out
);
---------------- internal constants --------------
parameter N = 32 ; // debounce timer bitwidth
parameter FREQ = 50; //model clock :Mhz
parameter MAX_TIME = 20; //ms
localparam TIMER_MAX_VAL = MAX_TIME * 1000 * FREQ;
---------------- internal variables ---------------
reg [N-1 : 0] q_reg; // timing regs
reg [N-1 : 0] q_next;
reg DFF1, DFF2; // input flip-flops
wire q_add; // control flags
wire q_reset;
reg button_out_d0;
------------------------------------------------------
contenious assignment for counter control
assign q_reset = (DFF1 ^ DFF2); // xor input flip flops to look for level chage to reset counter
assign q_add = ~(q_reg == TIMER_MAX_VAL); // add to counter when q_reg msb is equal to 0
combo counter to manage q_next
always @ ( q_reset, q_add, q_reg)
begin
case( {q_reset , q_add})
2'b00 :
q_next <= q_reg;
2'b01 :
q_next <= q_reg + 1;
default :
q_next <= { N {1'b0} };
endcase
end
Flip flop inputs and q_reg update
always @ ( posedge clk or posedge rst)
begin
if(rst == 1'b1)
begin
DFF1 <= 1'b0;
DFF2 <= 1'b0;
q_reg <= { N {1'b0} };
end
else
begin
DFF1 <= button_in;
DFF2 <= DFF1;
q_reg <= q_next;
end
end
counter control
always @ ( posedge clk or posedge rst)
begin
if(rst == 1'b1)
button_out <= 1'b1;
else if(q_reg == TIMER_MAX_VAL)
button_out <= DFF2;
else
button_out <= button_out;
end
always @ ( posedge clk or posedge rst)
begin
if(rst == 1'b1)
begin
button_out_d0 <= 1'b1;
button_posedge <= 1'b0;
button_negedge <= 1'b0;
end
else
begin
button_out_d0 <= button_out;
button_posedge <= ~button_out_d0 & button_out;
button_negedge <= button_out_d0 & ~button_out;
end
end
endmodule
module seg_decoder
(
input[3:0] bin_data, // bin data input
output reg[6:0] seg_data // seven segments LED output
);
always@(*)
begin
case(bin_data)
4'd0:seg_data <= 7'b100_0000;
4'd1:seg_data <= 7'b111_1001;
4'd2:seg_data <= 7'b010_0100;
4'd3:seg_data <= 7'b011_0000;
4'd4:seg_data <= 7'b001_1001;
4'd5:seg_data <= 7'b001_0010;
4'd6:seg_data <= 7'b000_0010;
4'd7:seg_data <= 7'b111_1000;
4'd8:seg_data <= 7'b000_0000;
4'd9:seg_data <= 7'b001_0000;
4'ha:seg_data <= 7'b000_1000;
4'hb:seg_data <= 7'b000_0011;
4'hc:seg_data <= 7'b100_0110;
4'hd:seg_data <= 7'b010_0001;
4'he:seg_data <= 7'b000_0110;
4'hf:seg_data <= 7'b000_1110;
default:seg_data <= 7'b111_1111;
endcase
end
endmodule
module seg_scan(
input clk,
input rst_n,
output reg[5:0] seg_sel, //digital led chip select
output reg[7:0] seg_data, //eight segment digital tube output,MSB is the decimal point
input[7:0] seg_data_0,
input[7:0] seg_data_1,
input[7:0] seg_data_2,
input[7:0] seg_data_3,
input[7:0] seg_data_4,
input[7:0] seg_data_5
);
parameter SCAN_FREQ = 200; //scan frequency
parameter CLK_FREQ = 50000000; //clock frequency
parameter SCAN_COUNT = CLK_FREQ /(SCAN_FREQ * 6) - 1;
reg[31:0] scan_timer; //scan time counter
reg[3:0] scan_sel; //Scan select counter
always@(posedge clk or negedge rst_n)
begin
if(rst_n == 1'b0)
begin
scan_timer <= 32'd0;
scan_sel <= 4'd0;
end
else if(scan_timer >= SCAN_COUNT)
begin
scan_timer <= 32'd0;
if(scan_sel == 4'd5)
scan_sel <= 4'd0;
else
scan_sel <= scan_sel + 4'd1;
end
else
begin
scan_timer <= scan_timer + 32'd1;
end
end
always@(posedge clk or negedge rst_n)
begin
if(rst_n == 1'b0)
begin
seg_sel <= 6'b111111;
seg_data <= 8'hff;
end
else
begin
case(scan_sel)
//first digital led
4'd0:
begin
seg_sel <= 6'b11_1110;
seg_data <= seg_data_0;
end
//second digital led
4'd1:
begin
seg_sel <= 6'b11_1101;
seg_data <= seg_data_1;
end
//...
4'd2:
begin
seg_sel <= 6'b11_1011;
seg_data <= seg_data_2;
end
4'd3:
begin
seg_sel <= 6'b11_0111;
seg_data <= seg_data_3;
end
4'd4:
begin
seg_sel <= 6'b10_1111;
seg_data <= seg_data_4;
end
4'd5:
begin
seg_sel <= 6'b01_1111;
seg_data <= seg_data_5;
end
default:
begin
seg_sel <= 6'b11_1111;
seg_data <= 8'hff;
end
endcase
end
end
endmodule
`timescale 1ns / 1ps
//
// Design Name:
// Module Name: i2c_master_top
// Project Name:
//

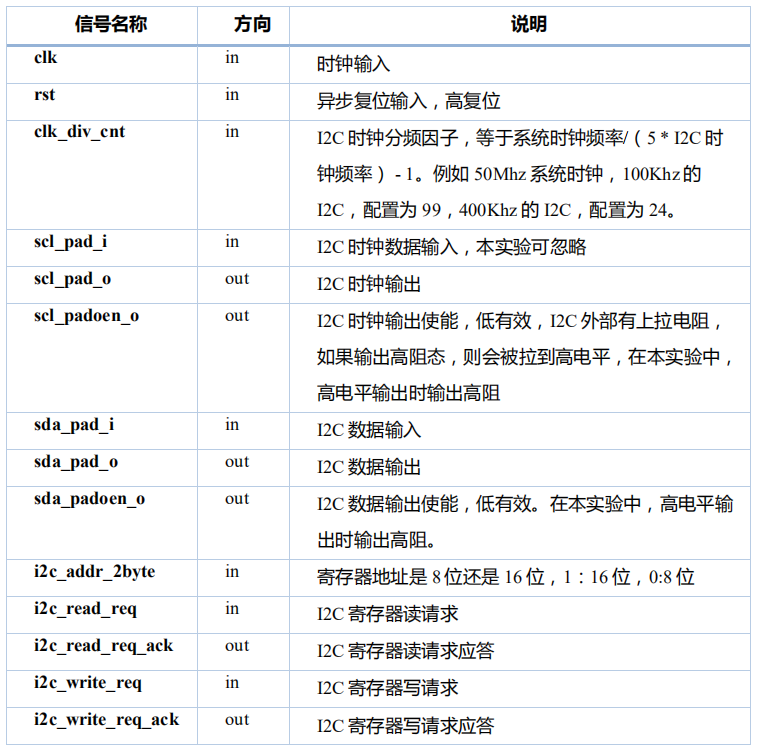

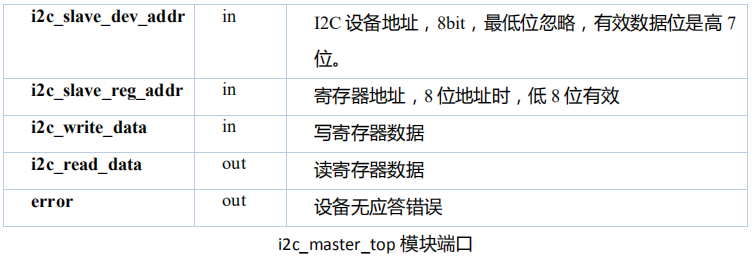

module i2c_master_top
(
input rst,
input clk,
input[15:0] clk_div_cnt, //This register is used to prescale the SCL clock line. Due to the structure of the I2C
//interface, the core uses a 5*SCL clock internally. The prescale register must be
//programmed to this 5*SCL frequency (minus 1); 50Mhz/(5*100Khz) - 1 = 99;
//50Mhz/(5*400Khz) - 1 = 24;
// I2C signals
// i2c clock line
input scl_pad_i, // SCL-line input
output scl_pad_o, // SCL-line output (always 1'b0)
output scl_padoen_o, // SCL-line output enable (active low)
// i2c data line
input sda_pad_i, // SDA-line input
output sda_pad_o, // SDA-line output (always 1'b0)
output sda_padoen_o, // SDA-line output enable (active low)
input i2c_addr_2byte, // Is the register address 16bit?
input i2c_read_req, // Read register request
output i2c_read_req_ack, // Read register request response
input i2c_write_req, // Write register request
output i2c_write_req_ack, // Write register request response
input[7:0] i2c_slave_dev_addr, // I2c device address
input[15:0] i2c_slave_reg_addr, // I2c register address
input[7:0] i2c_write_data, // I2c write register data
output reg[7:0] i2c_read_data, // I2c read register data
output reg error // The error indication, generally there is no response
);
//State machine definition
localparam S_IDLE = 0; // Idle state, waiting for read and write
localparam S_WR_DEV_ADDR = 1; // Write device address
localparam S_WR_REG_ADDR = 2; // Write register address
localparam S_WR_DATA = 3; // Write register data
localparam S_WR_ACK = 4; // Write request response
localparam S_WR_ERR_NACK = 5; // Write error, I2C device is not responding
localparam S_RD_DEV_ADDR0 = 6; // I2C read state, first writes the device address and the register address
localparam S_RD_REG_ADDR = 7; // I2C read state, read register address (8bit)
localparam S_RD_DEV_ADDR1 = 8; // Write the device address again
localparam S_RD_DATA = 9; // Read data
localparam S_RD_STOP = 10;
localparam S_WR_STOP = 11;
localparam S_WAIT = 12;
localparam S_WR_REG_ADDR1 = 13;
localparam S_RD_REG_ADDR1 = 14;
localparam S_RD_ACK = 15;
reg start;
reg stop;
reg read;
reg write;
reg ack_in;
reg[7:0] txr;
wire[7:0] rxr;
wire i2c_busy;
wire i2c_al;
wire done;
wire irxack;
reg[3:0] state, next_state;
assign i2c_read_req_ack = (state == S_RD_ACK);
assign i2c_write_req_ack = (state == S_WR_ACK);
always@(posedge clk or posedge rst)
begin
if(rst)
state <= S_IDLE;
else
state <= next_state;
end
always@(*)
begin
case(state)
S_IDLE:
//Waiting for read and write requests
if(i2c_write_req)
next_state <= S_WR_DEV_ADDR;
else if(i2c_read_req)
next_state <= S_RD_DEV_ADDR0;
else
next_state <= S_IDLE;
//Write I2C device address
S_WR_DEV_ADDR:
if(done && irxack)
next_state <= S_WR_ERR_NACK;
else if(done)
next_state <= S_WR_REG_ADDR;
else
next_state <= S_WR_DEV_ADDR;
//Write the address of the I2C register
S_WR_REG_ADDR:
if(done)
//If it is the 8bit register address, it enters the write data state
next_state <= i2c_addr_2byte ? S_WR_REG_ADDR1 : S_WR_DATA;
else
next_state <= S_WR_REG_ADDR;
S_WR_REG_ADDR1:
if(done)
next_state <= S_WR_DATA;
else
next_state <= S_WR_REG_ADDR1;
//Write data
S_WR_DATA:
if(done)
next_state <= S_WR_STOP;
else
next_state <= S_WR_DATA;
S_WR_ERR_NACK:
next_state <= S_WR_STOP;
S_RD_ACK,S_WR_ACK:
next_state <= S_WAIT;
S_WAIT:
next_state <= S_IDLE;
S_RD_DEV_ADDR0:
if(done && irxack)
next_state <= S_WR_ERR_NACK;
else if(done)
next_state <= S_RD_REG_ADDR;
else
next_state <= S_RD_DEV_ADDR0;
S_RD_REG_ADDR:
if(done)
next_state <= i2c_addr_2byte ? S_RD_REG_ADDR1 : S_RD_DEV_ADDR1;
else
next_state <= S_RD_REG_ADDR;
S_RD_REG_ADDR1:
if(done)
next_state <= S_RD_DEV_ADDR1;
else
next_state <= S_RD_REG_ADDR1;
S_RD_DEV_ADDR1:
if(done)
next_state <= S_RD_DATA;
else
next_state <= S_RD_DEV_ADDR1;
S_RD_DATA:
if(done)
next_state <= S_RD_STOP;
else
next_state <= S_RD_DATA;
S_RD_STOP:
if(done)
next_state <= S_RD_ACK;
else
next_state <= S_RD_STOP;
S_WR_STOP:
if(done)
next_state <= S_WR_ACK;
else
next_state <= S_WR_STOP;
default:
next_state <= S_IDLE;
endcase
end
always@(posedge clk or posedge rst)
begin
if(rst)
error <= 1'b0;
else if(state == S_IDLE)
error <= 1'b0;
else if(state == S_WR_ERR_NACK)
error <= 1'b1;
end
always@(posedge clk or posedge rst)
begin
if(rst)
start <= 1'b0;
else if(done)
start <= 1'b0;
else if(state == S_WR_DEV_ADDR || state == S_RD_DEV_ADDR0 || state == S_RD_DEV_ADDR1)
start <= 1'b1;
end
always@(posedge clk or posedge rst)
begin
if(rst)
stop <= 1'b0;
else if(done)
stop <= 1'b0;
else if(state == S_WR_STOP || state == S_RD_STOP)
stop <= 1'b1;
end
always@(posedge clk or posedge rst)
begin
if(rst)
ack_in <= 1'b0;
else
ack_in <= 1'b1;
end
always@(posedge clk or posedge rst)
begin
if(rst)
write <= 1'b0;
else if(done)
write <= 1'b0;
else if(state == S_WR_DEV_ADDR || state == S_WR_REG_ADDR || state == S_WR_REG_ADDR1|| state == S_WR_DATA || state == S_RD_DEV_ADDR0 || state == S_RD_DEV_ADDR1 || state == S_RD_REG_ADDR || state == S_RD_REG_ADDR1)
write <= 1'b1;
end
always@(posedge clk or posedge rst)
begin
if(rst)
read <= 1'b0;
else if(done)
read <= 1'b0;
else if(state == S_RD_DATA)
read <= 1'b1;
end
always@(posedge clk or posedge rst)
begin
if(rst)
i2c_read_data <= 8'h00;
else if(state == S_RD_DATA && done)
i2c_read_data <= rxr;
end
always@(posedge clk or posedge rst)
begin
if(rst)
txr <= 8'd0;
else
case(state)
S_WR_DEV_ADDR,S_RD_DEV_ADDR0:
txr <= {
i2c_slave_dev_addr[7:1],1'b0};//The LSB is 0 was express write operation
S_RD_DEV_ADDR1:
txr <= {
i2c_slave_dev_addr[7:1],1'b1};//The MSB is 1 was express write operation
S_WR_REG_ADDR,S_RD_REG_ADDR:
txr <= (i2c_addr_2byte == 1'b1) ? i2c_slave_reg_addr[15:8] : i2c_slave_reg_addr[7:0];//General firstly send the low byte
S_WR_REG_ADDR1,S_RD_REG_ADDR1:
txr <= i2c_slave_reg_addr[7:0];
S_WR_DATA:
txr <= i2c_write_data;
default:
txr <= 8'hff;
endcase
end
i2c_master_byte_ctrl byte_controller
(
.clk ( clk ),
.rst ( rst ),
.nReset ( 1'b1 ),
.ena ( 1'b1 ),
.clk_cnt ( clk_div_cnt ),
.start ( start ),
.stop ( stop ),
.read ( read ),
.write ( write ),
.ack_in ( ack_in ),
.din ( txr ),
.cmd_ack ( done ),
.ack_out ( irxack ),
.dout ( rxr ),
.i2c_busy ( i2c_busy ),
.i2c_al ( i2c_al ),
.scl_i ( scl_pad_i ),
.scl_o ( scl_pad_o ),
.scl_oen ( scl_padoen_o ),
.sda_i ( sda_pad_i ),
.sda_o ( sda_pad_o ),
.sda_oen ( sda_padoen_o )
);
endmodule
byte_controller代码
// synopsys translate_off
`include "timescale.v"
// synopsys translate_on
`include "i2c_master_defines.v"
module i2c_master_byte_ctrl (
clk, rst, nReset, ena,
clk_cnt, start, stop,
read, write, ack_in, din,
cmd_ack, ack_out, dout,
i2c_busy, i2c_al, scl_i,
scl_o, scl_oen, sda_i,
sda_o, sda_oen
);
//
// inputs & outputs
//
input clk; // master clock
input rst; // synchronous active high reset
input nReset; // asynchronous active low reset always "1"
input ena; // core enable signal always "1"
input [15:0] clk_cnt; // 4x SCL
// control inputs
input start;
input stop;
input read;
input write;
input ack_in;
input [7:0] din;
// status outputs
output cmd_ack;
reg cmd_ack;
output ack_out;
reg ack_out;
output i2c_busy;
output i2c_al;
output [7:0] dout;
// I2C signals
input scl_i;
output scl_o;
output scl_oen;
input sda_i;
output sda_o;
output sda_oen;
//
// Variable declarations
//
// statemachine
parameter [4:0] ST_IDLE = 5'b0_0000;
parameter [4:0] ST_START = 5'b0_0001;
parameter [4:0] ST_READ = 5'b0_0010;
parameter [4:0] ST_WRITE = 5'b0_0100;
parameter [4:0] ST_ACK = 5'b0_1000;
parameter [4:0] ST_STOP = 5'b1_0000;
// signals for bit_controller
reg [3:0] core_cmd;
reg core_txd;
wire core_ack, core_rxd;
// signals for shift register
reg [7:0] sr; //8bit shift register
reg shift, ld;
// signals for state machine
wire go;
reg [2:0] dcnt;
wire cnt_done;
//
// Module body
//
// hookup bit_controller
i2c_master_bit_ctrl bit_controller (
.clk ( clk ),
.rst ( rst ),
.nReset ( nReset ),
.ena ( ena ),
.clk_cnt ( clk_cnt ),
.cmd ( core_cmd ),
.cmd_ack ( core_ack ),
.busy ( i2c_busy ),
.al ( i2c_al ),
.din ( core_txd ),
.dout ( core_rxd ),
.scl_i ( scl_i ),
.scl_o ( scl_o ),
.scl_oen ( scl_oen ),
.sda_i ( sda_i ),
.sda_o ( sda_o ),
.sda_oen ( sda_oen )
);
// generate go-signal
assign go = (read | write | stop) & ~cmd_ack;
// assign dout output to shift-register
assign dout = sr;
// generate shift register
always @(posedge clk or negedge nReset)
if (!nReset)
sr <= #1 8'h0;
else if (rst)
sr <= #1 8'h0;
else if (ld) //if have any command will driver "ld"
sr <= #1 din; //wrtie data in
else if (shift)
sr <= #1 {sr[6:0], core_rxd};
// generate counter
always @(posedge clk or negedge nReset)
if (!nReset)
dcnt <= #1 3'h0;
else if (rst)
dcnt <= #1 3'h0;
else if (ld)
dcnt <= #1 3'h7;
else if (shift)
dcnt <= #1 dcnt - 3'h1;
assign cnt_done = ~(|dcnt);//Abbreviated operation,dcnt=0 and cnt_done =1
//
// state machine
//
reg [4:0] c_state; // synopsys enum_state
always @(posedge clk or negedge nReset)
if (!nReset)
begin
core_cmd <= #1 `I2C_CMD_NOP;
core_txd <= #1 1'b0;
shift <= #1 1'b0;
ld <= #1 1'b0;
cmd_ack <= #1 1'b0;
c_state <= #1 ST_IDLE;
ack_out <= #1 1'b0;
end
else if (rst | i2c_al)
begin
core_cmd <= #1 `I2C_CMD_NOP;
core_txd <= #1 1'b0;
shift <= #1 1'b0;
ld <= #1 1'b0;
cmd_ack <= #1 1'b0;
c_state <= #1 ST_IDLE;
ack_out <= #1 1'b0;
end
else
begin
// initially reset all signals
core_txd <= #1 sr[7];
shift <= #1 1'b0;
ld <= #1 1'b0;
cmd_ack <= #1 1'b0;
case (c_state) // synopsys full_case parallel_case
ST_IDLE:
if (go)
begin
if (start)
begin
c_state <= #1 ST_START;
core_cmd <= #1 `I2C_CMD_START;
end
else if (read)
begin
c_state <= #1 ST_READ;
core_cmd <= #1 `I2C_CMD_READ;
end
else if (write)
begin
c_state <= #1 ST_WRITE;
core_cmd <= #1 `I2C_CMD_WRITE;
end
else // stop
begin
c_state <= #1 ST_STOP;
core_cmd <= #1 `I2C_CMD_STOP;
end
ld <= #1 1'b1;
end
ST_START:
if (core_ack)
begin
if (read)
begin
c_state <= #1 ST_READ;
core_cmd <= #1 `I2C_CMD_READ;
end
else
begin
c_state <= #1 ST_WRITE;
core_cmd <= #1 `I2C_CMD_WRITE;
end
ld <= #1 1'b1;
end
ST_WRITE:
if (core_ack)
if (cnt_done)
begin
c_state <= #1 ST_ACK;
core_cmd <= #1 `I2C_CMD_READ;
end
else
begin
c_state <= #1 ST_WRITE; // stay in same state
core_cmd <= #1 `I2C_CMD_WRITE; // write next bit
shift <= #1 1'b1;
end
ST_READ:
if (core_ack)
begin
if (cnt_done)
begin
c_state <= #1 ST_ACK;
core_cmd <= #1 `I2C_CMD_WRITE;
end
else
begin
c_state <= #1 ST_READ; // stay in same state
core_cmd <= #1 `I2C_CMD_READ; // read next bit
end
shift <= #1 1'b1;
core_txd <= #1 ack_in; //it's noack bit
end
ST_ACK:
if (core_ack)
begin
if (stop)
begin
c_state <= #1 ST_STOP;
core_cmd <= #1 `I2C_CMD_STOP;
end
else
begin
c_state <= #1 ST_IDLE;
core_cmd <= #1 `I2C_CMD_NOP;
// generate command acknowledge signal
cmd_ack <= #1 1'b1;
end
// assign ack_out output to bit_controller_rxd (contains last received bit)
ack_out <= #1 core_rxd;
core_txd <= #1 1'b1;
end
else
core_txd <= #1 ack_in;
ST_STOP:
if (core_ack)
begin
c_state <= #1 ST_IDLE;
core_cmd <= #1 `I2C_CMD_NOP;
// generate command acknowledge signal
cmd_ack <= #1 1'b1;
end
endcase
end
endmodule
bit_controller代码
// Bit controller section
/
//
// Translate simple commands into SCL/SDA transitions
// Each command has 5 states, A/B/C/D/idle
//
// start: SCL ~~~~~~~~~~\____
// SDA ~~~~~~~~\______
// x | A | B | C | D | i
//
// repstart SCL ____/~~~~\___
// SDA __/~~~\______
// x | A | B | C | D | i
//
// stop SCL ____/~~~~~~~~
// SDA ==\____/~~~~~
// x | A | B | C | D | i
//
//- write SCL ____/~~~~\____
// SDA ==X=========X=
// x | A | B | C | D | i
//
//- read SCL ____/~~~~\____
// SDA XXXX=====XXXX
// x | A | B | C | D | i
//
// Timing: Normal mode Fast mode
///
// Fscl 100KHz 400KHz
// Th_scl 4.0us 0.6us High period of SCL
// Tl_scl 4.7us 1.3us Low period of SCL
// Tsu:sta 4.7us 0.6us setup time for a repeated start condition
// Tsu:sto 4.0us 0.6us setup time for a stop conditon
// Tbuf 4.7us 1.3us Bus free time between a stop and start condition
//
// synopsys translate_off
`include "timescale.v"
// synopsys translate_on
`include "i2c_master_defines.v"
module i2c_master_bit_ctrl (
input clk, // system clock
input rst, // synchronous active high reset
input nReset, // asynchronous active low reset
input ena, // core enable signal
input [15:0] clk_cnt, // clock prescale value
input [ 3:0] cmd, // command (from byte controller)
output reg cmd_ack, // command complete acknowledge
output reg busy, // i2c bus busy
output reg al, // i2c bus arbitration lost
input din,
output reg dout,
input scl_i, // i2c clock line input
output scl_o, // i2c clock line output
output reg scl_oen, // i2c clock line output enable (active low)
input sda_i, // i2c data line input
output sda_o, // i2c data line output
output reg sda_oen // i2c data line output enable (active low)
);
//
// variable declarations
//
reg [1:0] cSCL, cSDA; // capture SCL and SDA
reg [2:0] fSCL, fSDA; // SCL and SDA filter inputs
reg sSCL, sSDA; // filtered and synchronized SCL and SDA inputs
reg dSCL, dSDA; // delayed versions of sSCL and sSDA
reg dscl_oen; // delayed scl_oen
reg sda_chk; // check SDA output (Multi-master arbitration)
reg clk_en; // clock generation signals
reg slave_wait; // slave inserts wait states
reg [15:0] cnt; // clock divider counter (synthesis)
reg [13:0] filter_cnt; // clock divider for filter
// state machine variable
reg [17:0] c_state; // synopsys enum_state
//
// module body
//
// whenever the slave is not ready it can delay the cycle by pulling SCL low
// delay scl_oen
always @(posedge clk)
dscl_oen <= #1 scl_oen;
// slave_wait is asserted when master wants to drive SCL high, but the slave pulls it low
// slave_wait remains asserted until the slave releases SCL
always @(posedge clk or negedge nReset)
if (!nReset) slave_wait <= 1'b0;
else slave_wait <= (scl_oen & ~dscl_oen & ~sSCL) | (slave_wait & ~sSCL);
// master drives SCL high, but another master pulls it low
// master start counting down its low cycle now (clock synchronization)
wire scl_sync = dSCL & ~sSCL & scl_oen;
// generate clk enable signal
always @(posedge clk or negedge nReset)
if (~nReset)
begin
cnt <= #1 16'h0;
clk_en <= #1 1'b1;
end
else if (rst || ~|cnt || !ena || scl_sync)
begin
cnt <= #1 clk_cnt;
clk_en <= #1 1'b1;
end
else if (slave_wait)
begin
cnt <= #1 cnt;
clk_en <= #1 1'b0;
end
else
begin
cnt <= #1 cnt - 16'h1;
clk_en <= #1 1'b0;
end
// generate bus status controller
// capture SDA and SCL
// reduce metastability risk
always @(posedge clk or negedge nReset)
if (!nReset)
begin
cSCL <= #1 2'b00;
cSDA <= #1 2'b00;
end
else if (rst)
begin
cSCL <= #1 2'b00;
cSDA <= #1 2'b00;
end
else
begin
cSCL <= {
cSCL[0],scl_i};
cSDA <= {
cSDA[0],sda_i};
end
// filter SCL and SDA signals; (attempt to) remove glitches
always @(posedge clk or negedge nReset)
if (!nReset ) filter_cnt <= 14'h0;
else if (rst || !ena ) filter_cnt <= 14'h0;
else if (~|filter_cnt) filter_cnt <= clk_cnt >> 2; //16x I2C bus frequency
else filter_cnt <= filter_cnt -1;
always @(posedge clk or negedge nReset)
if (!nReset)
begin
fSCL <= 3'b111;
fSDA <= 3'b111;
end
else if (rst)
begin
fSCL <= 3'b111;
fSDA <= 3'b111;
end
else if (~|filter_cnt)
begin
fSCL <= {
fSCL[1:0],cSCL[1]};
fSDA <= {
fSDA[1:0],cSDA[1]};
end
// generate filtered SCL and SDA signals
always @(posedge clk or negedge nReset)
if (~nReset)
begin
sSCL <= #1 1'b1;
sSDA <= #1 1'b1;
dSCL <= #1 1'b1;
dSDA <= #1 1'b1;
end
else if (rst)
begin
sSCL <= #1 1'b1;
sSDA <= #1 1'b1;
dSCL <= #1 1'b1;
dSDA <= #1 1'b1;
end
else
begin
sSCL <= #1 &fSCL[2:1] | &fSCL[1:0] | (fSCL[2] & fSCL[0]);
sSDA <= #1 &fSDA[2:1] | &fSDA[1:0] | (fSDA[2] & fSDA[0]);
dSCL <= #1 sSCL;
dSDA <= #1 sSDA;
end
// detect start condition => detect falling edge on SDA while SCL is high
// detect stop condition => detect rising edge on SDA while SCL is high
reg sta_condition;
reg sto_condition;
always @(posedge clk or negedge nReset)
if (~nReset)
begin
sta_condition <= #1 1'b0;
sto_condition <= #1 1'b0;
end
else if (rst)
begin
sta_condition <= #1 1'b0;
sto_condition <= #1 1'b0;
end
else
begin
sta_condition <= #1 ~sSDA & dSDA & sSCL;
sto_condition <= #1 sSDA & ~dSDA & sSCL;
end
// generate i2c bus busy signal
always @(posedge clk or negedge nReset)
if (!nReset) busy <= #1 1'b0;
else if (rst ) busy <= #1 1'b0;
else busy <= #1 (sta_condition | busy) & ~sto_condition;
// generate arbitration lost signal
// aribitration lost when:
// 1) master drives SDA high, but the i2c bus is low
// 2) stop detected while not requested
reg cmd_stop;
always @(posedge clk or negedge nReset)
if (~nReset)
cmd_stop <= #1 1'b0;
else if (rst)
cmd_stop <= #1 1'b0;
else if (clk_en)
cmd_stop <= #1 cmd == `I2C_CMD_STOP;
always @(posedge clk or negedge nReset)
if (~nReset)
al <= #1 1'b0;
else if (rst)
al <= #1 1'b0;
else
al <= #1 (sda_chk & ~sSDA & sda_oen) | (|c_state & sto_condition & ~cmd_stop);
// generate dout signal (store SDA on rising edge of SCL)
always @(posedge clk)
if (sSCL & ~dSCL)
dout <= #1 sSDA;
// generate statemachine
// nxt_state decoder
parameter [17:0] idle = 18'b0_0000_0000_0000_0000;
parameter [17:0] start_a = 18'b0_0000_0000_0000_0001;
parameter [17:0] start_b = 18'b0_0000_0000_0000_0010;
parameter [17:0] start_c = 18'b0_0000_0000_0000_0100;
parameter [17:0] start_d = 18'b0_0000_0000_0000_1000;
parameter [17:0] start_e = 18'b0_0000_0000_0001_0000;
parameter [17:0] stop_a = 18'b0_0000_0000_0010_0000;
parameter [17:0] stop_b = 18'b0_0000_0000_0100_0000;
parameter [17:0] stop_c = 18'b0_0000_0000_1000_0000;
parameter [17:0] stop_d = 18'b0_0000_0001_0000_0000;
parameter [17:0] rd_a = 18'b0_0000_0010_0000_0000;
parameter [17:0] rd_b = 18'b0_0000_0100_0000_0000;
parameter [17:0] rd_c = 18'b0_0000_1000_0000_0000;
parameter [17:0] rd_d = 18'b0_0001_0000_0000_0000;
parameter [17:0] wr_a = 18'b0_0010_0000_0000_0000;
parameter [17:0] wr_b = 18'b0_0100_0000_0000_0000;
parameter [17:0] wr_c = 18'b0_1000_0000_0000_0000;
parameter [17:0] wr_d = 18'b1_0000_0000_0000_0000;
always @(posedge clk or negedge nReset)
if (!nReset)
begin
c_state <= #1 idle;
cmd_ack <= #1 1'b0;
scl_oen <= #1 1'b1;
sda_oen <= #1 1'b1;
sda_chk <= #1 1'b0;
end
else if (rst | al)
begin
c_state <= #1 idle;
cmd_ack <= #1 1'b0;
scl_oen <= #1 1'b1;
sda_oen <= #1 1'b1;
sda_chk <= #1 1'b0;
end
else
begin
cmd_ack <= #1 1'b0; // default no command acknowledge + assert cmd_ack only 1clk cycle
if (clk_en)
case (c_state) // synopsys full_case parallel_case
// idle state
idle:
begin
case (cmd) // synopsys full_case parallel_case
`I2C_CMD_START: c_state <= #1 start_a;
`I2C_CMD_STOP: c_state <= #1 stop_a;
`I2C_CMD_WRITE: c_state <= #1 wr_a;
`I2C_CMD_READ: c_state <= #1 rd_a;
default: c_state <= #1 idle;
endcase
scl_oen <= #1 scl_oen; // keep SCL in same state
sda_oen <= #1 sda_oen; // keep SDA in same state
sda_chk <= #1 1'b0; // don't check SDA output
end
// start
start_a:
begin
c_state <= #1 start_b;
scl_oen <= #1 scl_oen; // keep SCL in same state
sda_oen <= #1 1'b1; // set SDA high
sda_chk <= #1 1'b0; // don't check SDA output
end
start_b:
begin
c_state <= #1 start_c;
scl_oen <= #1 1'b1; // set SCL high
sda_oen <= #1 1'b1; // keep SDA high
sda_chk <= #1 1'b0; // don't check SDA output
end
start_c:
begin
c_state <= #1 start_d;
scl_oen <= #1 1'b1; // keep SCL high
sda_oen <= #1 1'b0; // set SDA low
sda_chk <= #1 1'b0; // don't check SDA output
end
start_d:
begin
c_state <= #1 start_e;
scl_oen <= #1 1'b1; // keep SCL high
sda_oen <= #1 1'b0; // keep SDA low
sda_chk <= #1 1'b0; // don't check SDA output
end
start_e:
begin
c_state <= #1 idle;
cmd_ack <= #1 1'b1;
scl_oen <= #1 1'b0; // set SCL low
sda_oen <= #1 1'b0; // keep SDA low
sda_chk <= #1 1'b0; // don't check SDA output
end
// stop
stop_a:
begin
c_state <= #1 stop_b;
scl_oen <= #1 1'b0; // keep SCL low
sda_oen <= #1 1'b0; // set SDA low
sda_chk <= #1 1'b0; // don't check SDA output
end
stop_b:
begin
c_state <= #1 stop_c;
scl_oen <= #1 1'b1; // set SCL high
sda_oen <= #1 1'b0; // keep SDA low
sda_chk <= #1 1'b0; // don't check SDA output
end
stop_c:
begin
c_state <= #1 stop_d;
scl_oen <= #1 1'b1; // keep SCL high
sda_oen <= #1 1'b0; // keep SDA low
sda_chk <= #1 1'b0; // don't check SDA output
end
stop_d:
begin
c_state <= #1 idle;
cmd_ack <= #1 1'b1;
scl_oen <= #1 1'b1; // keep SCL high
sda_oen <= #1 1'b1; // set SDA high
sda_chk <= #1 1'b0; // don't check SDA output
end
// read
rd_a:
begin
c_state <= #1 rd_b;
scl_oen <= #1 1'b0; // keep SCL low
sda_oen <= #1 1'b1; // tri-state SDA
sda_chk <= #1 1'b0; // don't check SDA output
end
rd_b:
begin
c_state <= #1 rd_c;
scl_oen <= #1 1'b1; // set SCL high
sda_oen <= #1 1'b1; // keep SDA tri-stated
sda_chk <= #1 1'b0; // don't check SDA output
end
rd_c:
begin
c_state <= #1 rd_d;
scl_oen <= #1 1'b1; // keep SCL high
sda_oen <= #1 1'b1; // keep SDA tri-stated
sda_chk <= #1 1'b0; // don't check SDA output
end
rd_d:
begin
c_state <= #1 idle;
cmd_ack <= #1 1'b1;
scl_oen <= #1 1'b0; // set SCL low
sda_oen <= #1 1'b1; // keep SDA tri-stated
sda_chk <= #1 1'b0; // don't check SDA output
end
// write
wr_a:
begin
c_state <= #1 wr_b;
scl_oen <= #1 1'b0; // keep SCL low
sda_oen <= #1 din; // set SDA
sda_chk <= #1 1'b0; // don't check SDA output (SCL low)
end
wr_b:
begin
c_state <= #1 wr_c;
scl_oen <= #1 1'b1; // set SCL high
sda_oen <= #1 din; // keep SDA
sda_chk <= #1 1'b0; // don't check SDA output yet
// allow some time for SDA and SCL to settle
end
wr_c:
begin
c_state <= #1 wr_d;
scl_oen <= #1 1'b1; // keep SCL high
sda_oen <= #1 din;
sda_chk <= #1 1'b1; // check SDA output
end
wr_d:
begin
c_state <= #1 idle;
cmd_ack <= #1 1'b1;
scl_oen <= #1 1'b0; // set SCL low
sda_oen <= #1 din;
sda_chk <= #1 1'b0; // don't check SDA output (SCL low)
end
endcase
end
// assign scl and sda output (always gnd)
assign scl_o = 1'b0;
assign sda_o = 1'b0;
endmodule
module chipscope_icon(
CONTROL0) /* synthesis syn_black_box syn_noprune=1 */;
inout [35 : 0] CONTROL0;
endmodule
`timescale 1ns/1ps
module chipscope_ila(
CONTROL,
CLK,
TRIG0) /* synthesis syn_black_box syn_noprune=1 */;
inout [35 : 0] CONTROL;
input CLK;
input [255 : 0] TRIG0;
endmodule
预定义文件记得添加
// bitcontroller states
`define I2C_CMD_NOP 4'b0000
`define I2C_CMD_START 4'b0001
`define I2C_CMD_STOP 4'b0010
`define I2C_CMD_WRITE 4'b0100
`define I2C_CMD_READ 4'b1000
