Flink之DataSet数据输出

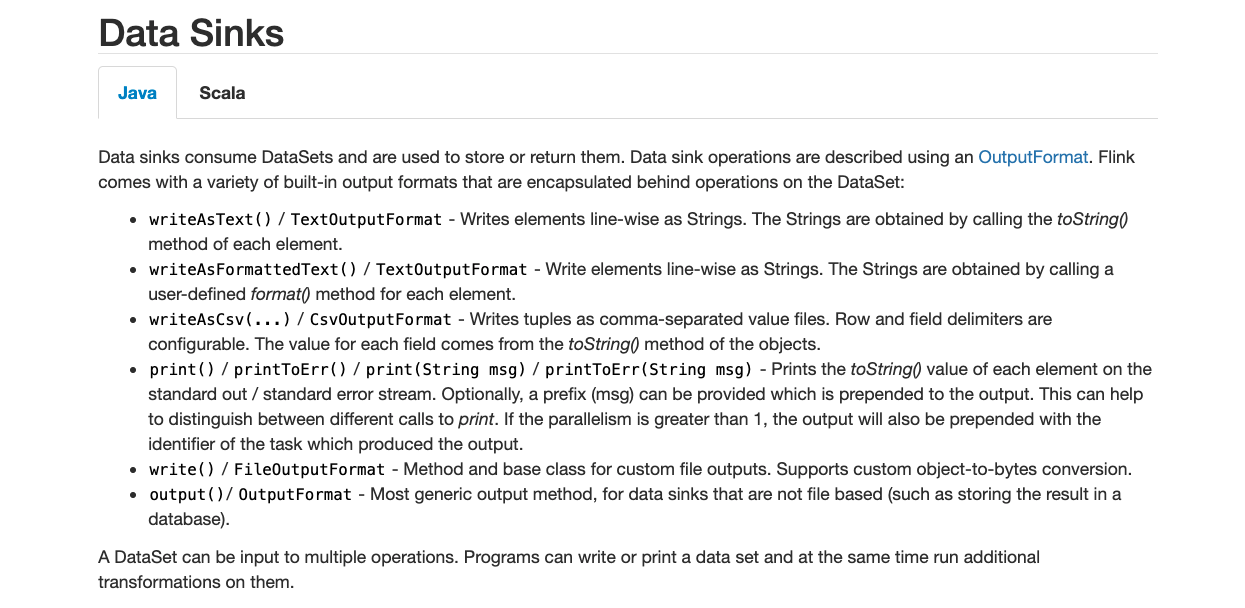

Flink1.12官网对dataset数据输出（sink）的解释：

• https://ci.apache.org/projects/flink/flink-docs-release-1.12/zh/dev/batch/#data-sinks

（1）Flink Sink之TextFile

将DataSet数据以Text0utputFormat文本格式写入文件系统，其中文件系统可以是本地文件系统，也可以是HDFS文件系统，根据用户指定路径的前缀进行识别。

// write DataSet to a file on the local file system
textData.writeAsText("file:///my/result/on/localFS");

// write DataSet to a file on an HDFS with a namenode running at nnHost:nnPort
textData.writeAsText("hdfs://nnHost:nnPort/my/result/on/localFS");

// write DataSet to a file and overwrite the file if it exists
textData.writeAsText("file:///my/result/on/localFS", WriteMode.OVERWRITE);

writeAsText直接将DataSet数据输出到指定文件，在使用write相关方式输出文件的过程中，用户也可以指定写入文件的模式，分为0VERWRITE模式和NOT_OVERWRITE模式，前者代表对文件内容进行覆盖写入，后者代表输出的数据将追加到文件尾部。

示例代码：

package com.aikfk.flink.dataset.sink;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.GroupReduceFunction;
import org.apache.flink.api.java.DataSet;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.core.fs.FileSystem;
import org.apache.flink.util.Collector;

/**
 * @author ：caizhengjie
 * @description：TODO
 * @date ：2021/3/8 11:14 下午
 */
public class TextSinkJava {


    public static void main(String[] args) throws Exception {


        // 准备环境
        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(2);

        DataSet<String> dateSource = env.fromElements(
                "java java spark hive",
                "hive java java spark",
                "java java hadoop"
        );

        /**
         * String -> flatMap() -> groupBy() -> reduceGroup() -> Tuple2
         */
        DataSet<Tuple2<String,Integer>> wordcount = dateSource.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {


            @Override
            public void flatMap(String s, Collector<Tuple2<String, Integer>> collector) throws Exception {


                for (String word : s.split(" ")){


                    collector.collect(new Tuple2<>(word,1));
                }
            }
        }).groupBy(0).reduceGroup(new GroupReduceFunction<Tuple2<String, Integer>, Tuple2<String, Integer>>() {


            @Override
            public void reduce(Iterable<Tuple2<String, Integer>> iterable, Collector<Tuple2<String, Integer>> collector) throws Exception {


                String key = null;
                int count = 0;
                for (Tuple2<String, Integer> tuple2 : iterable){


                    key = tuple2.f0;
                    count = count + tuple2.f1;
                }
                collector.collect(new Tuple2<>(key,count));
            }
        });

        // 写入到text文件中，写的模式是覆盖之前的内容
        wordcount.writeAsText("/Users/caizhengjie/IdeaProjects/aikfk_flink/src/main/java/resources/textfile", FileSystem.WriteMode.OVERWRITE);

        env.execute();
    }
}

查看结果集

(hadoop,1)
(hive,2)
(java,6)
(spark,2)

（2）Flink Sink之CSV

该方法将数据集以CSV文件格式输出到指定文件系统中，并且可以在输出方法中指定行切割符、列切割符等基于csv文件的配置。

dataSet.writeAsCsv(本地文件路径,指定行切割符,列切割符)
例如：
dataSet.writeAsCsv("file://path/file", "\n" , ",")

示例代码：

package com.aikfk.flink.dataset.sink;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.GroupReduceFunction;
import org.apache.flink.api.java.DataSet;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.util.Collector;

/**
 * @author ：caizhengjie
 * @description：TODO
 * @date ：2021/3/8 11:14 下午
 */
public class CsvSinkJava {


    public static void main(String[] args) throws Exception {


        // 准备环境
        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);

        DataSet<String> dateSource = env.fromElements(
                "java java spark hive",
                "hive java java spark",
                "java java hadoop"
        );

        /**
         * String -> flatMap() -> groupBy() -> reduceGroup() -> Tuple2
         */
        DataSet<Tuple2<String,Integer>> wordcount = dateSource.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {


            @Override
            public void flatMap(String s, Collector<Tuple2<String, Integer>> collector) throws Exception {


                for (String word : s.split(" ")){


                    collector.collect(new Tuple2<>(word,1));
                }
            }
        }).groupBy(0).reduceGroup(new GroupReduceFunction<Tuple2<String, Integer>, Tuple2<String, Integer>>() {


            @Override
            public void reduce(Iterable<Tuple2<String, Integer>> iterable, Collector<Tuple2<String, Integer>> collector) throws Exception {


                String key = null;
                int count = 0;
                for (Tuple2<String, Integer> tuple2 : iterable){


                    key = tuple2.f0;
                    count = count + tuple2.f1;
                }
                collector.collect(new Tuple2<>(key,count));
            }
        });

        // 写入到csv文件里，指定行切割符、列切割符
        wordcount.writeAsCsv("/Users/caizhengjie/IdeaProjects/aikfk_flink/src/main/java/resources/csvfile.csv", "\n",",");

        env.execute();
    }
}

查看结果集：

hadoop,1
hive,2
java,6
spark,2

（3）Flink Sink之MySQL

Flink也支持将结果集写入到外部数据中，比如mysql数据库

// write Tuple DataSet to a relational database
myResult.output(
    // build and configure OutputFormat
    JdbcOutputFormat.buildJdbcOutputFormat()
                    .setDrivername("org.apache.derby.jdbc.EmbeddedDriver")
                    .setDBUrl("jdbc:derby:memory:persons")
                    .setQuery("insert into persons (name, age, height) values (?,?,?)")
                    .finish()
    );

示例代码：

package com.aikfk.flink.dataset.sink;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.GroupReduceFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.DataSet;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.connector.jdbc.JdbcOutputFormat;
import org.apache.flink.types.Row;
import org.apache.flink.util.Collector;

/**
 * @author ：caizhengjie
 * @description：TODO
 * @date ：2021/3/8 11:14 下午
 */
public class MySQLSinkJava {


    public static void main(String[] args) throws Exception {


        // 准备环境
        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);

        DataSet<String> dateSource = env.fromElements(
                "java java spark hive",
                "hive java java spark",
                "java java hadoop"
        );

        /**
         * String -> flatMap() -> groupBy() -> reduceGroup() -> Tuple2
         */
        DataSet<Tuple2<String,Integer>> wordcount = dateSource.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {


            @Override
            public void flatMap(String s, Collector<Tuple2<String, Integer>> collector) throws Exception {


                for (String word : s.split(" ")){


                    collector.collect(new Tuple2<>(word,1));
                }
            }
        }).groupBy(0).reduceGroup(new GroupReduceFunction<Tuple2<String, Integer>, Tuple2<String, Integer>>() {


            @Override
            public void reduce(Iterable<Tuple2<String, Integer>> iterable, Collector<Tuple2<String, Integer>> collector) throws Exception {


                String key = null;
                int count = 0;
                for (Tuple2<String, Integer> tuple2 : iterable){


                    key = tuple2.f0;
                    count = count + tuple2.f1;
                }
                collector.collect(new Tuple2<>(key,count));
            }
        });

        /**
         * Tuple2 -> map() -> Row
         */
        DataSet<Row> wordcountMysql = wordcount.map(new MapFunction<Tuple2<String, Integer>, Row>() {


            @Override
            public Row map(Tuple2<String, Integer> stringIntegerTuple2) throws Exception {


                return Row.of(stringIntegerTuple2.f0,stringIntegerTuple2.f1);
            }
        });

        // write Tuple DataSet to a relational database
        wordcountMysql.output(
                // build and configure OutputFormat
                JdbcOutputFormat.buildJdbcOutputFormat()
                        .setDrivername("com.mysql.jdbc.Driver")
                        .setDBUrl("jdbc:mysql://bigdata-pro-m07:3306/flink?serverTimezone=GMT%2B8&useSSL=false")
                        .setUsername("root")
                        .setPassword("199911")
                        .setQuery("insert into wordcount (word, count) values (?,?)")
                        .finish()
        );

        env.execute();
    }
}

查看结果集：

mysql> select * from wordcount;
+--------+-------+
| word   | count |
+--------+-------+
| hadoop |     1 |
| hive   |     2 |
| java   |     6 |
| spark  |     2 |
+--------+-------+
4 rows in set (0.01 sec)

---
