prometheus: docker容器的监控

1.安装prometheus

1.官方下载地址
wget https://github.com/prometheus/prometheus/releases/download/v2.25.0/prometheus-2.25.0.linux-arm64.tar.gz

上传压缩包
[root@docker03 opt]# rz
[root@docker03 opt]# ls
prometheus-2.23.0.linux-amd64.tar.gz
解压
[root@docker03 opt]# tar prometheus-2.23.0.linux-amd64.tar.gz
[root@docker03 opt]# mv prometheus-2.23.0.linux-amd64 prometheus
启动
[root@docker03 opt] cd prometheus
[root@docker03 prometheus]# ./prometheus --config.file="prometheus.yml" &

web页面
http://10.0.0.13:9090/

#客户端docker01 docker02节点
上传压缩包  docker_monitor_node.tar.gz
导入到docker中   docker load -i docker_monitor_node.tar.gz
#启动node-exporter （ node-exporter监控宿主机）
docker run -d   -p 9100:9100   -v "/:/host:ro,rslave"   --name=node_exporter   quay.io/prometheus/node-exporter   --path.rootfs /host
​
#启动cadvisor  （cadvisor监控容器）
docker run --volume=/:/rootfs:ro  --volume=/var/run:/var/run:rw --volume=/sys:/sys:ro --volume=/var/lib/docker/:/var/lib/docker:ro  -p 8080:8080 -d --name=cadvisor google/cadvisor:latest

#prometheus节点
静态发现的配置
​vim prometheus.yml

scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
    - targets: ['localhost:9090']

动态发现的配置
​vim prometheus.yml

scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'
    static_configs:
    - targets: ['localhost:9090']
  - job_name: 'cadvisor'
    file_sd_configs:
      - files:
        - /opt/prometheus/discovery/discovery_cadvisor.yml
        refresh_interval: 10s
  - job_name: 'node-exporter'
    file_sd_configs:
      - files:
        - /opt/prometheus/discovery/discovery_exporter.yml
        refresh_interval: 10s

或者是

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
    - targets: ['localhost:9090']
  - job_name: 'cadvisor'
    static_configs:
    - targets: ['10.0.0.11:8080','10.0.0.12:8080']
  - job_name: 'node_exporter'
    static_configs:
    - targets: ['10.0.0.11:9100','10.0.0.12:9100']

修改完重启prometheus
kill 7639
./prometheus --config.file=“prometheus.yml”

2.Prometheus邮件报警

安装altermanager

上传压缩包
[root@docker03 opt]# rz
[root@docker03 opt]# ls
alertmanager-0.21.0.linux-amd64.tar.gz
解压
[root@docker03 opt]# tar xf alertmanager-0.21.0.linux-amd64.tar.gz
[root@docker03 opt]# mv alertmanager-0.21.0.linux-amd64.tar.gz alertmanager

vim alertmanager.yml
global:
  resolve_timeout: 5m
  smtp_from: '[email protected]'
  smtp_smarthost: 'smtp.qq.com:465'
  smtp_auth_username: '[email protected]'
  smtp_auth_password: 'xxxxxxxxxxxxxxx'  授权码
  smtp_require_tls: false
  smtp_hello: 'qq.com'
route:
  group_by: ['alertname']
  group_wait: 5s
  group_interval: 5s
  repeat_interval: 5m
  receiver: 'email'
receivers:
- name: 'email'
  email_configs:
  - to: '[email protected]'
    send_resolved: true
inhibit_rules:
  - source_match:
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname', 'dev', 'instance']
​
启动
[root@docker03 opt] cd alertmanager
[root@docker03 prometheus]# ./alertmanager --config.file="alertmanager.yml" &

prometheus报警规则
[root@docker03 prometheus]# pwd
/opt/prometheus
在/opt/prometheus下添加node-up.rules
vim node-up.rules
groups:
- name: node-up
  rules:
  - alert: node-up
    expr: up{job="node-exporter"} == 0
    for: 15s
    labels:
      severity: 1
      team: node
    annotations:
      summary: "{

   { $labels.instance }} 已停止运行超过 15s！"

修改prometheus.yml配置文件
# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets:
      - 10.0.0.13:9093
​
rule_files:
  - "node-up.rules"

修改完重启prometheus
kill 7639
./prometheus --config.file="prometheus.yml"

3.#安装grafana

在prometheus节点
yum localinstall grafana-6.3.3-1.x86_64.rpm -y
systemctl start grafana-server.service
systemctl enable grafana-server.service
#访问grafana http://IP:3000，默认账号admin:admin

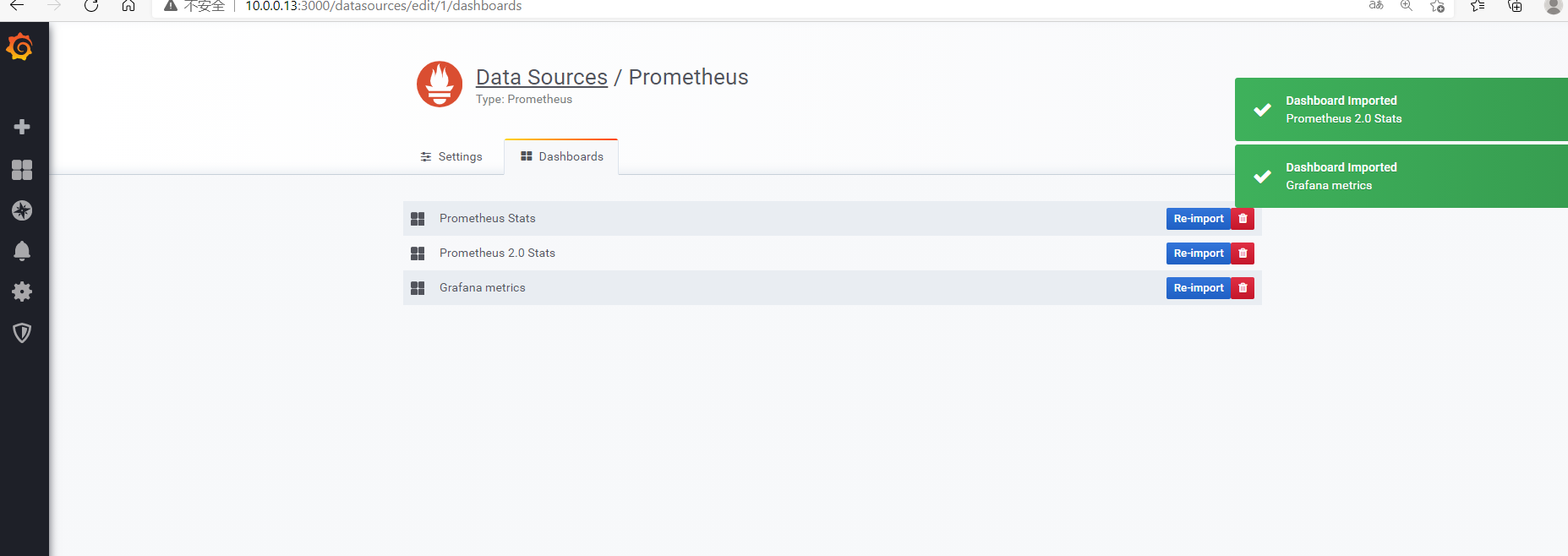

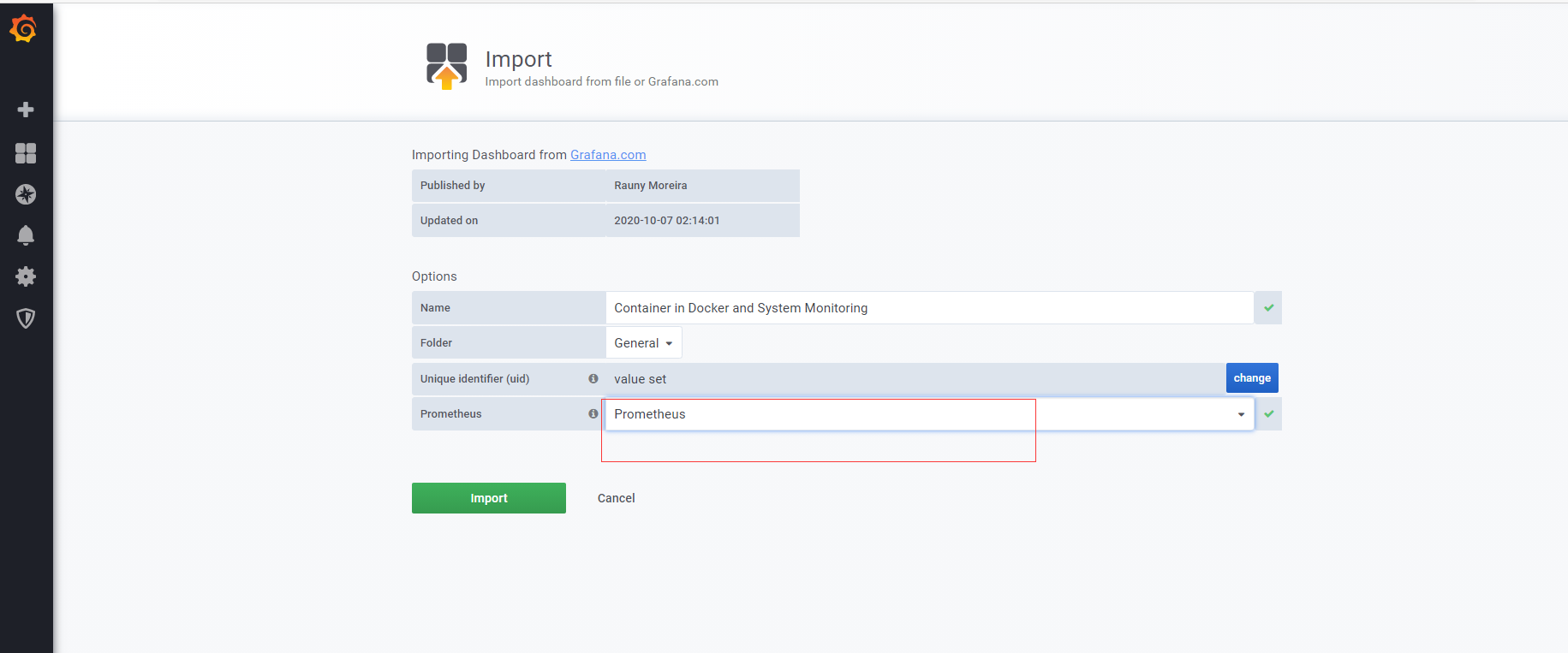

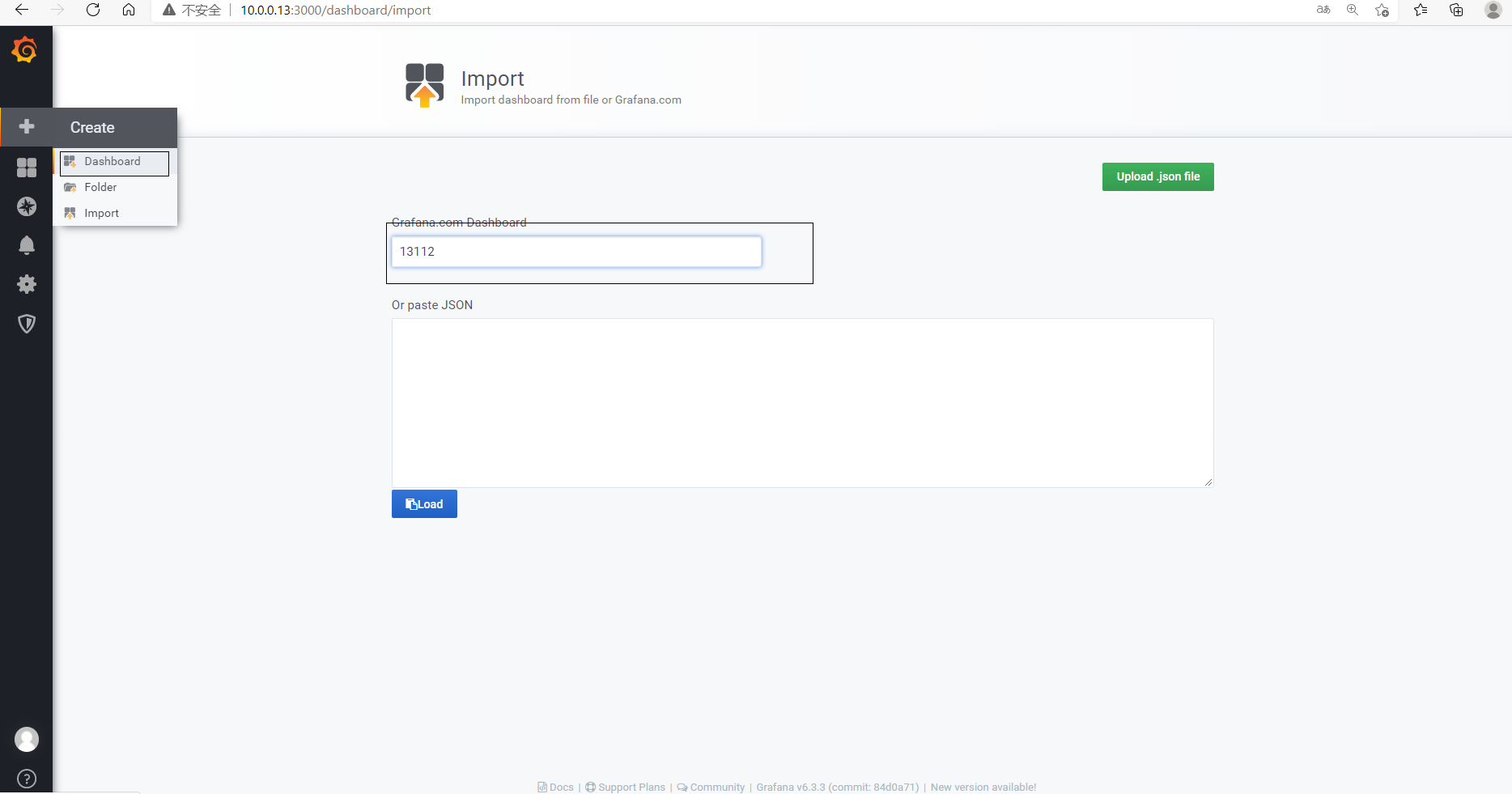

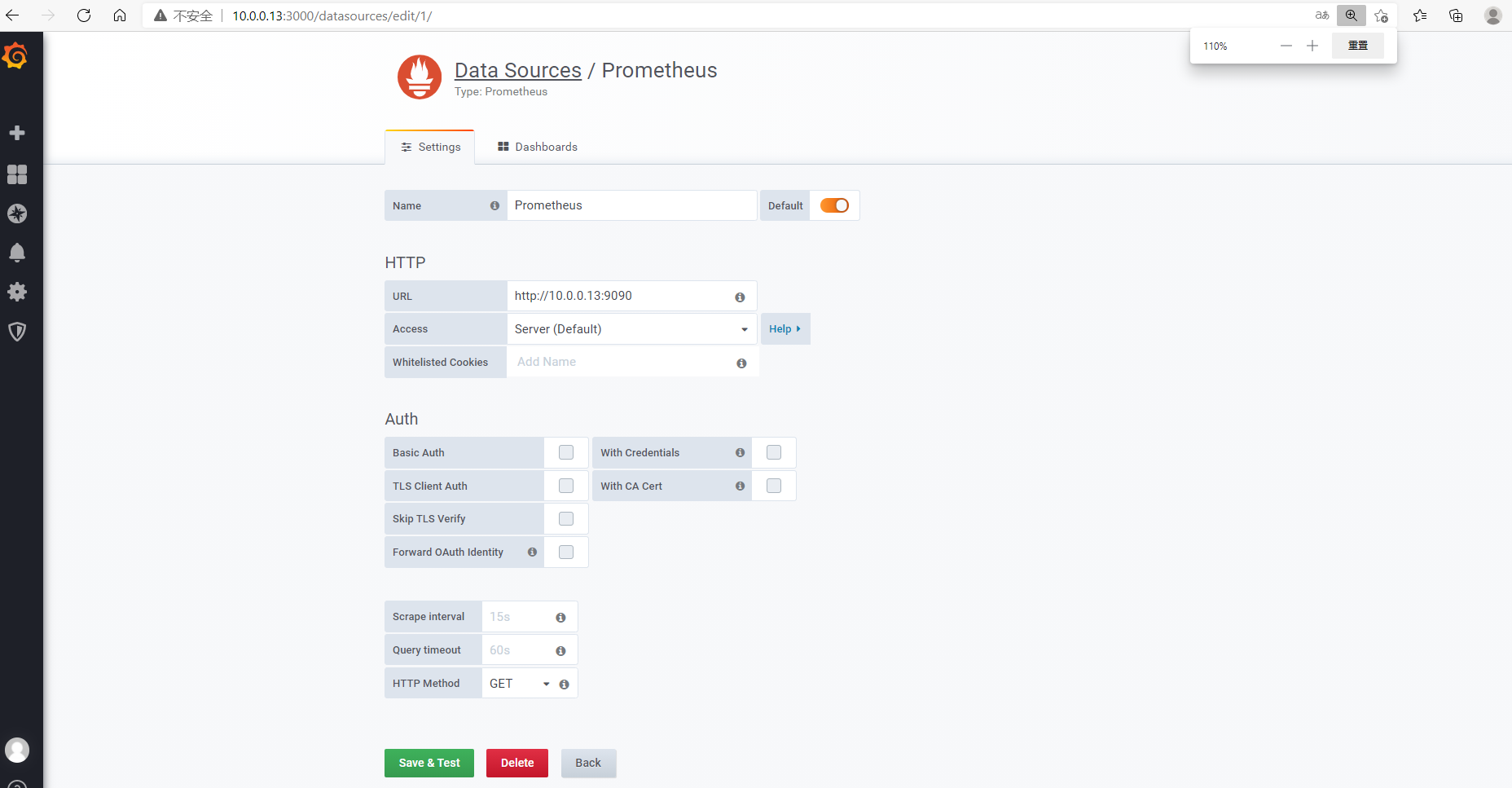

新建数据源–导入dashboard模板

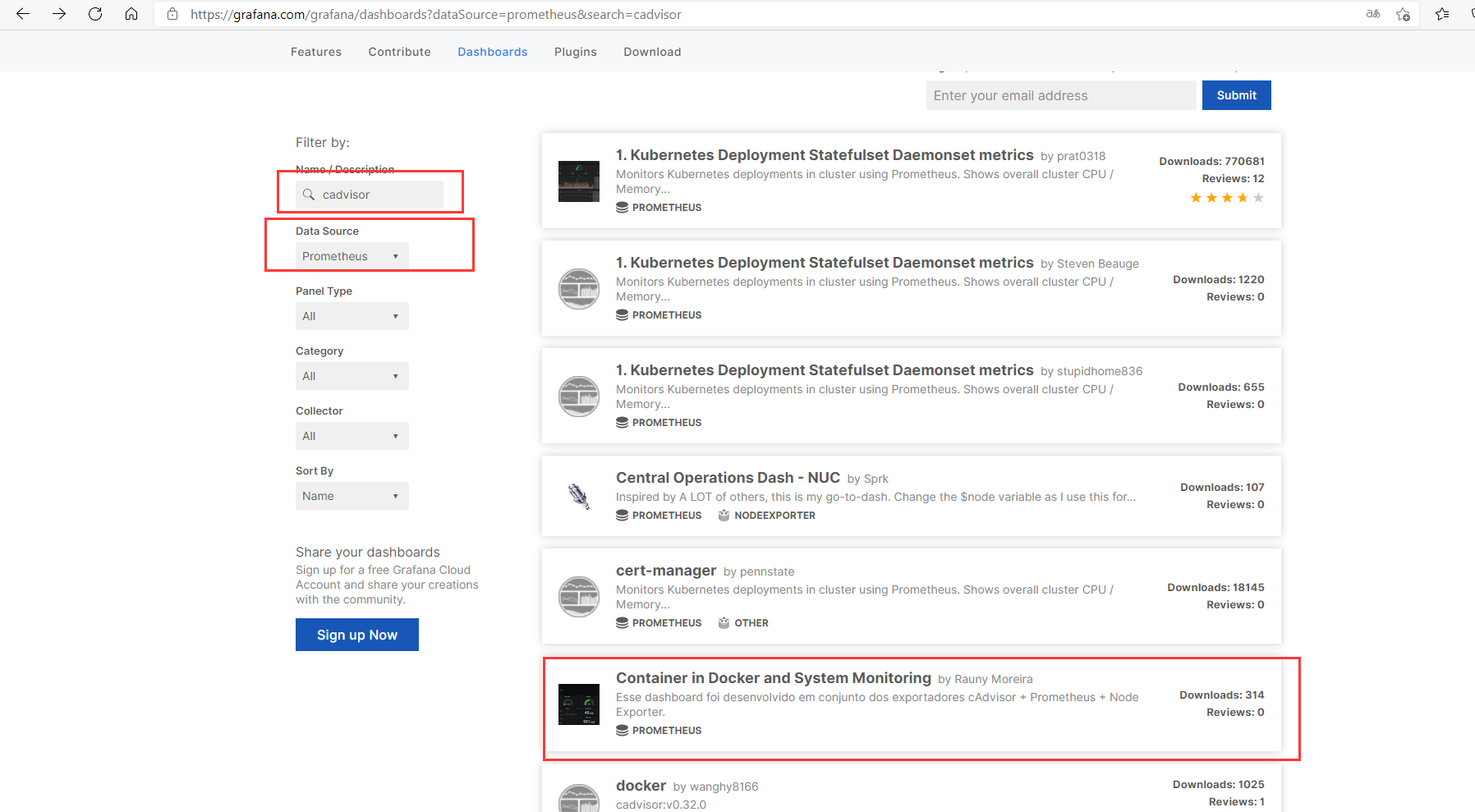

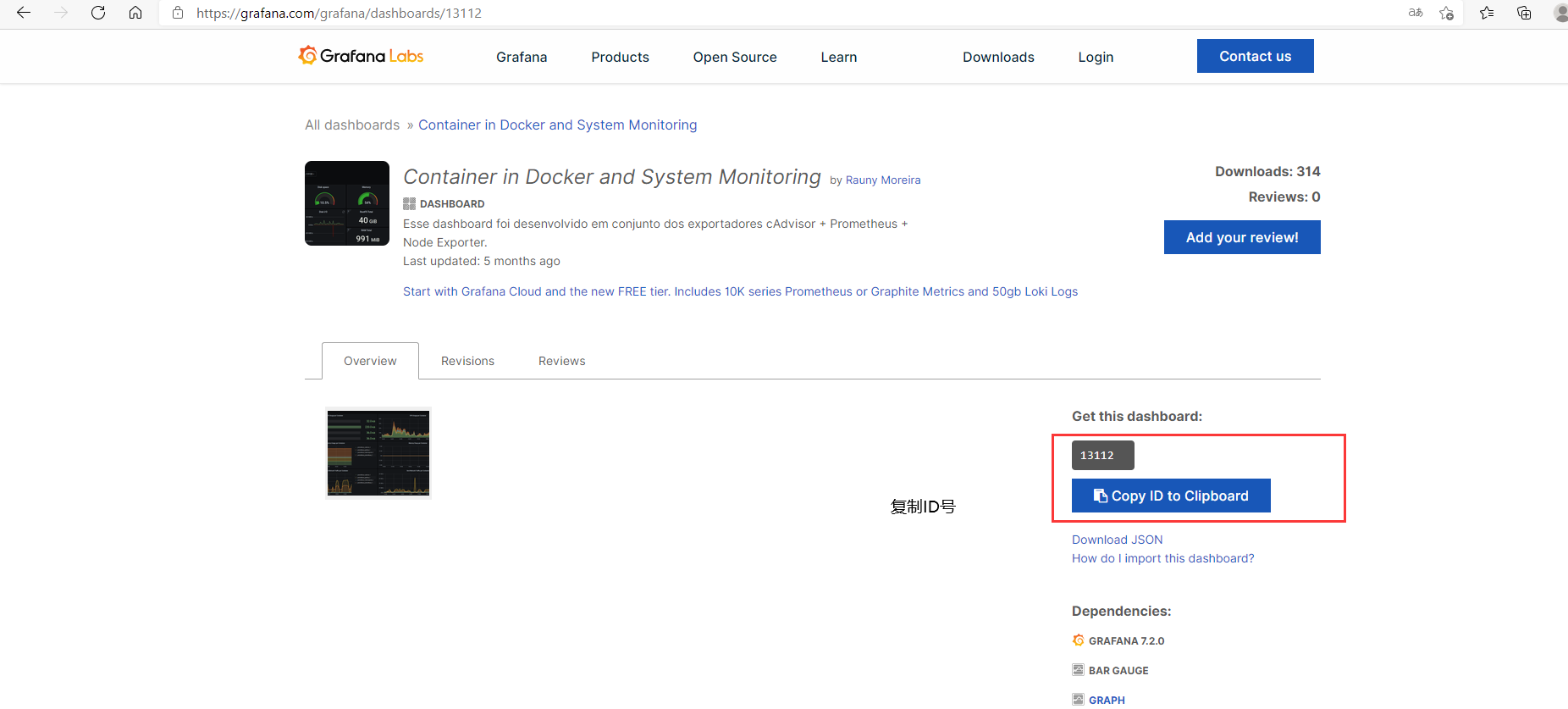

在https://grafana.com/grafana/dashboards上查找数据源
