前言：

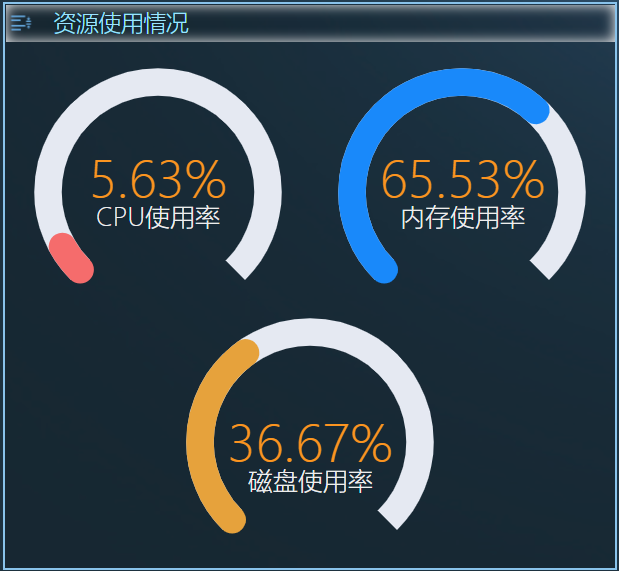

本篇博客主要说明使用java程序如何获取liunx系统中的cpu使用率、内存使用率以及磁盘使用率，效果图如下：
1.创建三个实体类，分别为cpu、内存以及磁盘相关信息：
cpu相关信息实体
package com.gdhengdian.monitorservice.domain.server;
import org.springframework.stereotype.Component;
import java.io.Serializable;
/**
* CPU相关信息
*
*
*/
@Component
public class Cpu implements Serializable {
/**
* 核心数
*/
private int cpuNum;
/**
* CPU总的使用率
*/
private String total;
/**
* CPU系统使用率
*/
private String sys;
/**
* CPU用户使用率
*/
private String used;
/**
* CPU当前等待率
*/
private String wait;
/**
* CPU当前空闲率
*/
private String free;
@Override
public String toString() {
return "Cpu{" +
"核心数=" + getCpuNum() +
", CPU总的使用率=" + getTotal() +
", CPU系统使用率=" + getSys() +
", CPU用户使用率=" + getUsed() +
", CPU当前等待率=" + getWait() +
", CPU当前空闲率=" + getFree() +
'}';
}
public int getCpuNum() {
return cpuNum;
}
public void setCpuNum(int cpuNum) {
this.cpuNum = cpuNum;
}
public String getTotal() {
return total;
}
public void setTotal(String total) {
this.total = total;
}
public String getSys() {
return sys;
}
public void setSys(String sys) {
this.sys = sys;
}
public String getUsed() {
return used;
}
public void setUsed(String used) {
this.used = used;
}
public String getWait() {
return wait;
}
public void setWait(String wait) {
this.wait = wait;
}
public String getFree() {
return free;
}
public void setFree(String free) {
this.free = free;
}
}
内存相关信息实体:
package com.gdhengdian.monitorservice.domain.server;
import org.springframework.stereotype.Component;
import java.io.Serializable;
/**
* 內存相关信息
*
* @author ruoyi
*/
@Component
public class Mem implements Serializable {
private String usedRate;
/**
* 内存总量
*/
private long total;
/**
* 已用内存
*/
private long used;
/**
* 剩余内存
*/
private long free;
@Override
public String toString() {
return "Mem{" +
"内存总量=" + getTotal() +
",同上=" + getUsed() +
", 剩余内存=" + getFree() +
", 使用率="+ getUsedRate() +
'}';
}
public double getTotal()
{
return Arith.div(total, (1024 * 1024 * 1024), 2);
}
public void setTotal(long total)
{
this.total = total;
}
public double getUsed()
{
return Arith.div(used, (1024 * 1024 * 1024), 2);
}
public void setUsed(long used)
{
this.used = used;
}
public double getFree()
{
return Arith.div(free, (1024 * 1024 * 1024), 2);
}
public void setFree(long free)
{
this.free = free;
}
public double getUsage()
{
return Arith.mul(Arith.div(used, total, 4), 100);
}
public String getUsedRate() {
return usedRate;
}
public void setUsedRate(String usedRate) {
this.usedRate = usedRate;
}
}
磁盘相关信息实体
package com.gdhengdian.monitorservice.domain.server;
import org.springframework.stereotype.Component;
import java.io.Serializable;
/**
* 系统文件相关信息
*
*/
@Component
public class SysFile implements Serializable {
/**
* 盘符路径
*/
private String dirName;
/**
* 盘符类型
*/
private String sysTypeName;
/**
* 文件类型
*/
private String typeName;
/**
* 总大小
*/
private String total;
/**
* 剩余大小
*/
private String free;
/**
* 已经使用量
*/
private String used;
/**
* 资源的使用率
*/
private String usage;
@Override
public String toString() {
return "SysFile{" +
"盘符路径='" + getDirName() + '\'' +
", 盘符类型='" + getSysTypeName() + '\'' +
", 文件类型='" + getTypeName() + '\'' +
", 总大小='" + getTotal() + '\'' +
", 剩余大小='" + getFree()+ '\'' +
", 已经使用量='" + getUsed() + '\'' +
", 资源的使用率=" + getUsage() +
'}';
}
public String getDirName()
{
return dirName;
}
public void setDirName(String dirName)
{
this.dirName = dirName;
}
public String getSysTypeName()
{
return sysTypeName;
}
public void setSysTypeName(String sysTypeName)
{
this.sysTypeName = sysTypeName;
}
public String getTypeName()
{
return typeName;
}
public void setTypeName(String typeName)
{
this.typeName = typeName;
}
public String getTotal()
{
return total;
}
public void setTotal(String total)
{
this.total = total;
}
public String getFree()
{
return free;
}
public void setFree(String free)
{
this.free = free;
}
public String getUsed()
{
return used;
}
public void setUsed(String used)
{
this.used = used;
}
public String getUsage()
{
return usage;
}
public void setUsage(String usage)
{
this.usage = usage;
}
}
2.再创建一个初始化服务器相关信息类：
package com.gdhengdian.monitorservice.domain;
import com.gdhengdian.monitorservice.domain.server.Arith;
import com.gdhengdian.monitorservice.domain.server.Cpu;
import com.gdhengdian.monitorservice.domain.server.Mem;
import com.gdhengdian.monitorservice.domain.server.SysFile;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import oshi.SystemInfo;
import oshi.hardware.CentralProcessor;
import oshi.hardware.GlobalMemory;
import oshi.hardware.HardwareAbstractionLayer;
import oshi.software.os.FileSystem;
import oshi.software.os.OSFileStore;
import oshi.software.os.OperatingSystem;
import oshi.util.Util;
import oshi.hardware.CentralProcessor.TickType;
import java.text.NumberFormat;
/**
* 服务器相关信息
*
*/
@Component
public class Server
{
private static final int OSHI_WAIT_SECOND = 2000;
/**
* CPU相关信息
*/
@Autowired
private Cpu cpu;
/**
* 內存相关信息
*/
@Autowired
private Mem mem;
/**
* 磁盘相关信息
*/
@Autowired
private SysFile sysFiles;
/**
* 获取磁盘，CPU，运行内存等数据
* @throws Exception
*/
public void copyTo() throws Exception
{
SystemInfo si = new SystemInfo();
HardwareAbstractionLayer hal = si.getHardware();
//cpux信息
setCpuInfo(hal.getProcessor());
//内存信息
setMemInfo(hal.getMemory());
//磁盘信息
setSysFiles(si.getOperatingSystem());
}
/**
* 设置CPU信息
*/
private void setCpuInfo(CentralProcessor processor)
{
// CPU信息
long[] prevTicks = processor.getSystemCpuLoadTicks();//cpu时钟1的计算出来的cpu各项指标（单位：节拍数）
Util.sleep(OSHI_WAIT_SECOND);
long[] ticks = processor.getSystemCpuLoadTicks(); //cpu时钟2的计算出来的cpu各项值（单位：节拍数）
//以高优先级在用户级别执行时发生的CPU节拍数。
Long nice = ticks[CentralProcessor.TickType.NICE.getIndex()] - prevTicks[TickType.NICE.getIndex()];
//CPU中断花销的节拍
Long irq = ticks[TickType.IRQ.getIndex()] - prevTicks[TickType.IRQ.getIndex()];
//软中断花销的节拍
Long softirq = ticks[TickType.SOFTIRQ.getIndex()] - prevTicks[TickType.SOFTIRQ.getIndex()];
//系统监控程序为其它用户开启的cpu节拍，Only supported on Linux.
Long steal = ticks[TickType.STEAL.getIndex()] - prevTicks[TickType.STEAL.getIndex()];
//CPU在内核空间运行的节拍花销
Long cSys = ticks[TickType.SYSTEM.getIndex()] - prevTicks[TickType.SYSTEM.getIndex()];
//用户进程对CPU的节拍花销
Long user = ticks[TickType.USER.getIndex()] - prevTicks[TickType.USER.getIndex()];
//CPU调用IO操作的节拍花销
Long iowait = ticks[TickType.IOWAIT.getIndex()] - prevTicks[TickType.IOWAIT.getIndex()];
//CPU处于空闲状态节拍花销
Long idle = ticks[TickType.IDLE.getIndex()] - prevTicks[TickType.IDLE.getIndex()];
Long totalCpu = user + nice + cSys + idle + iowait + irq + softirq + steal;
Long cpuUsed = (cSys + user);
double usedRate = cpuUsed.doubleValue() / totalCpu.doubleValue();
// 创建一个数值格式化对象
NumberFormat numberFormat = NumberFormat.getInstance();
// 设置精确到小数点后2位
numberFormat.setMaximumFractionDigits(2);
String totalRate = numberFormat.format( usedRate * 100) ;//所占百分比
cpu.setCpuNum(processor.getLogicalProcessorCount());
cpu.setTotal(totalRate);
}
/**
* 设置内存信息
*/
private void setMemInfo(GlobalMemory memory) {
long totalMem = memory.getTotal();
mem.setTotal(totalMem);
mem.setUsed(memory.getTotal() - memory.getAvailable());
mem.setFree(memory.getAvailable());
// 创建一个数值格式化对象
NumberFormat numberFormat = NumberFormat.getInstance();
// 设置精确到小数点后2位
numberFormat.setMaximumFractionDigits(2);
String usedRate = numberFormat.format(mem.getUsed() / mem.getTotal() * 100);//所占百分比
mem.setUsedRate(usedRate);
}
/**
* 设置磁盘信息
*/
private void setSysFiles(OperatingSystem os)
{
FileSystem fileSystem = os.getFileSystem();
OSFileStore[] fsArray = fileSystem.getFileStores();
long total = 0;
long used = 0;
long free = 0;
for (OSFileStore fs : fsArray)
{
free += fs.getUsableSpace();
total += fs.getTotalSpace();
}
used = total - free;
double rate = Arith.mul(Arith.div(used, total, 4), 100);
sysFiles.setUsage(new StringBuffer().append(rate).toString());
}
@Override
public String toString() {
return "Server{" +
"cpu=" + getCpu() +
"\n, memory=" + getMem() +
",\n sysFiles=" + getSysFiles() +
'}';
}
public Cpu getCpu() {
return cpu;
}
public void setCpu(Cpu cpu) {
this.cpu = cpu;
}
public Mem getMem() {
return mem;
}
public void setMem(Mem mem) {
this.mem = mem;
}
public SysFile getSysFiles() {
return sysFiles;
}
public void setSysFiles(SysFile sysFiles) {
this.sysFiles = sysFiles;
}
}
3.然后创建一个页面显示VO类：
package com.gdhengdian.monitorservice.domain;
import org.springframework.stereotype.Component;
import java.io.Serializable;
@Component
public class SystemResourceInfo implements Serializable {
/**
* CPU相关信息
*/
private String cpuInfo;
/**
* 內存相关信息
*/
private String ramInfo;
/**
* JVM相关信息
*/
private String fileInfo;
public String getCpuInfo() {
return cpuInfo;
}
public void setCpuInfo(String cpuInfo) {
this.cpuInfo = cpuInfo;
}
public String getRamInfo() {
return ramInfo;
}
public void setRamInfo(String ramInfo) {
this.ramInfo = ramInfo;
}
public String getFileInfo() {
return fileInfo;
}
public void setFileInfo(String fileInfo) {
this.fileInfo = fileInfo;
}
@Override
public String toString(){
return getCpuInfo() + "----"+getRamInfo() +"----"+getFileInfo();
}
}
4.控制器代码如下：
package com.gdhengdian.monitorservice.controller;
import com.gdhengdian.monitorservice.common.HttpRespond;
import com.gdhengdian.monitorservice.domain.SystemResourceInfo;
import com.gdhengdian.monitorservice.service.ServerService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
@RequestMapping("/api/v1/monitor")
public class MonitorController {
@Autowired
private ServerService serverService;
@GetMapping("/system/info")
public HttpRespond<SystemResourceInfo> getSystemInfo(){
HttpRespond<SystemResourceInfo> respond = serverService.getSystemInfo();
return respond;
}
}
5.service代码如下：
package com.gdhengdian.monitorservice.service;
import com.gdhengdian.monitorservice.common.HttpRespond;
public interface ServerService {
HttpRespond getSystemInfo();
}
实现类代码如下：
package com.gdhengdian.monitorservice.service.impl;
import com.gdhengdian.monitorservice.common.HttpRespond;
import com.gdhengdian.monitorservice.domain.Server;
import com.gdhengdian.monitorservice.domain.SystemResourceInfo;
import com.gdhengdian.monitorservice.service.ServerService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.ValueOperations;
import org.springframework.stereotype.Service;
@Service
public class ServerServiceImpl implements ServerService {
@Autowired
private RedisTemplate<String, Object> redisTemplate;
@Autowired
Server server;
@Autowired
SystemResourceInfo systemResourceInfo;
/*
* 获取系统运行过程的系统数据
*/
@Override
public HttpRespond<SystemResourceInfo> getSystemInfo() {
try {
server.copyTo();
systemResourceInfo.setCpuInfo(server.getCpu().getTotal());
systemResourceInfo.setRamInfo(server.getMem().getUsedRate());
systemResourceInfo.setFileInfo(server.getSysFiles().getUsage());
} catch (Exception e) {
e.printStackTrace();
}
infoIntoRedis(systemResourceInfo);
return HttpRespond.success(systemResourceInfo);
}
/**
* 将系统运行过程的信息放入Redis
* @param systemResourceInfo
*/
private void infoIntoRedis(SystemResourceInfo systemResourceInfo) {
ValueOperations valueOperations = this.redisTemplate.opsForValue();
valueOperations.set("systemsource", systemResourceInfo);
}
}
这里接口返回的格式是使用了自己写的封装类HttpRespond，success方法就是将数据返回给前端页面，这里将所得到的数据存入了redis方便读取，你也可以按照你的业务逻辑进行数据处理。
