Flink教程(13) Keyed State状态管理之ValueState的使用 温差报警

一、ValueState的方法

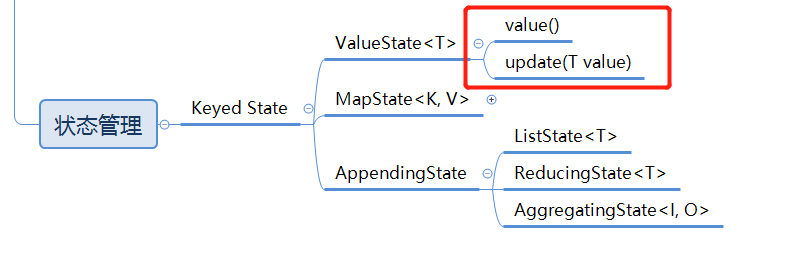

ValueState的使用比较简单，方法如下图

• 用ValueStateDescriptor定义ValueState的描述器
• value()方法获取值
• update(T value)方法更新值


二、实验案例

1. 温度Bean

public class SensorRecord {



    private String id;

    private Double lastRecord;

    private Double record;

    private LocalDateTime time;

    //省略其他get set

	//将Long类型的时间值
    public Long getTimeEpochMilli() {


        return time.toInstant(ZoneOffset.of("+8")).toEpochMilli();
    }
}

2. 将字符串映射成SensorRecord对象

/**
 * 将字符串映射成SensorRecord对象
 */
public static class BeanMap implements MapFunction<String, SensorRecord> {



    @Override
    public SensorRecord map(String s) throws Exception {


        if (StringUtils.isNotBlank(s)) {


            String[] split = s.split(",");
            if (split != null && split.length == 3) {


                return new SensorRecord(
                        split[0],
                        Double.valueOf(split[1]),
                        LocalDateTime.parse(split[2], FormatterConstant.commonDtf));
            }
        }
        return null;
    }
}

3. ValueStateDescriptor描述器

描述器：指定id=last-temp，和类型是Double类型

//描述器：指定id=last-temp，和类型是Double
ValueStateDescriptor<Double> lastTempDescriptor = new ValueStateDescriptor<Double>(
        "last-temp",
        Double.class);

lastTemp = getRuntimeContext().getState(lastTempDescriptor);

4. 程序主体

指定温差超过10就返回

public class Test01_ValueState {



    public static void main(String[] args) throws Exception {



        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        //方便测试，设置为1
        env.setParallelism(1);

        DataStreamSource<String> source = env.socketTextStream(BaseConstant.URL, BaseConstant.PORT);

        /*
        设置watermark和指定时间属性
         */
        SingleOutputStreamOperator<SensorRecord> dataStream = source
                .map(new SensorRecordUtils.BeanMap())
                .assignTimestampsAndWatermarks(
                        WatermarkStrategy.<SensorRecord>forBoundedOutOfOrderness(Duration.ofSeconds(1))
                                .withTimestampAssigner(new SerializableTimestampAssigner<SensorRecord>() {



                                    @Override
                                    public long extractTimestamp(SensorRecord element, long recordTimestamp) {


                                        return element.getTimeEpochMilli();
                                    }
                                })
                );

        dataStream
                .keyBy(SensorRecord::getId)
                .process(new MyKeyedProcessFunction(10))
                .print();

        env.execute();
    }
}

5. KeyedProcessFunction处理数据流

public static class MyKeyedProcessFunction extends KeyedProcessFunction<String, SensorRecord, SensorRecord> {



    private int tempDiff;

    public MyKeyedProcessFunction(int tempDiff) {


        this.tempDiff = tempDiff;
    }

    private transient ValueState<Double> lastTemp;

    @Override
    public void open(Configuration parameters) throws Exception {


        super.open(parameters);

        ValueStateDescriptor<Double> lastTempDescriptor = new ValueStateDescriptor<Double>(
                "last-temp",
                Double.class);

        lastTemp = getRuntimeContext().getState(lastTempDescriptor);
    }

    @Override
    public void processElement(SensorRecord value, Context ctx, Collector<SensorRecord> out) throws Exception {



        //第一条数据，需要处理
        if (lastTemp.value() == null){


            lastTemp.update(Double.MIN_VALUE);
        }
        //从第二条数据开始比较两者的差值
        else if (Math.abs(value.getRecord() - lastTemp.value()) > tempDiff){


            value.setLastRecord(lastTemp.value());
            out.collect(value);
        }

        //value state 记录最新的值
        if (value.getRecord() != null){


            lastTemp.update(value.getRecord());
        }
    }
}
