Proxy实现转账案例
- 们可以将业务代码和事务代码进行拆分,通过动态代理的方式,对业务方法进行事务的增强。

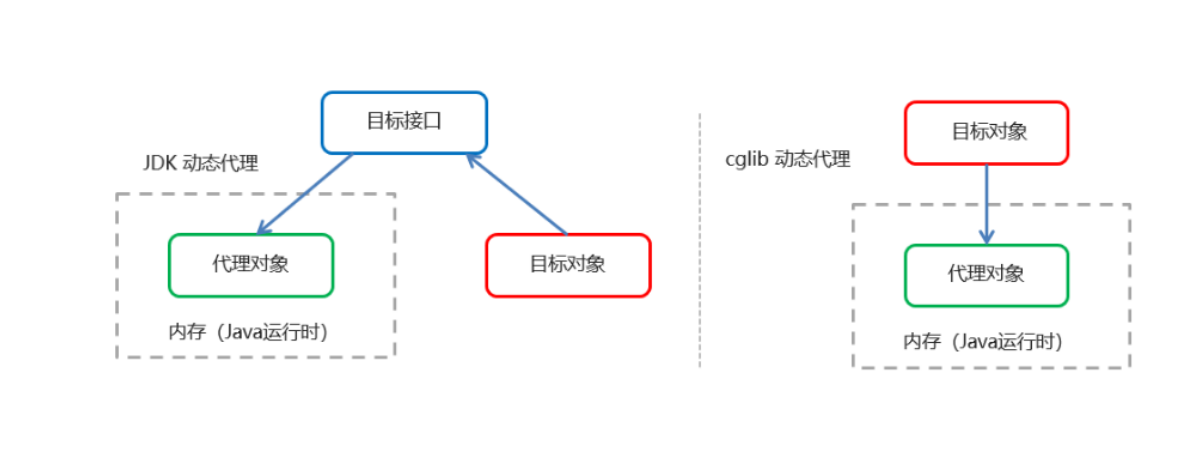

常用的动态代理技术
- JDK 代理 : 基于接口的动态代理技术,利用拦截器(必须实现invocationHandler)加上反射机制生成一个代理接口的匿名类,在调用具体方法前调用InvokeHandler来处理,从而实现方法增强
- CGLIB代理:基于父类的动态代理技术,动态生成一个要代理的子类,子类重写要代理的类的所有不是final的方法。在子类中采用方法拦截技术拦截所有的父类方法的调用,顺势织入横切逻辑,对方法进行增强
JDK动态代理
Proxy.newProxyInstance(ClassLoader loader, Class<?>[] interfaces,InvocationHandler h)
ClassLoader loader
:类加载器 借助被代理对象获取到的类加载器Class<?>[] interfaces
:被代理类所需要实现的全部接口InvocationHandler h
:当代理对象调用接口中的任意方法 那么都会执行InvocationHandler中的invoke
代码实现
- dao层实现类
@Repository("accountDao") //生成该类实例存入IOC容器中
public class AccountDaoImpl implements AccountDao {
@Autowired
private QueryRunner queryRunner;
@Autowired
private ConnectionUtils connectionUtils;
@Override
public void out(String outUser, Double money) {
String sql = "update account set money = money - ? where name = ?";
try {
queryRunner.update(connectionUtils.getThreadConnection(),sql,money,outUser);
} catch (SQLException e) {
e.printStackTrace();
}
}
@Override
public void in(String inUser, Double money) {
String sql = "update account set money = money + ? where name = ?";
try {
queryRunner.update(connectionUtils.getThreadConnection(),sql,money,inUser);
} catch (SQLException e) {
e.printStackTrace();
}
}
}
- service层实现类
public class AccountServiceImpl implements AccountService {
@Autowired
private AccountDao accountDao;
/**
* 转账方法
* @param outUser
* @param inUser
* @param money
*/
@Override
public void transfer(String outUser, String inUser, Double money) {
accountDao.out(outUser,money);
//int i = 2/0;
accountDao.in(inUser,money);
}
}
- 连接工具类:保证一个线程一个连接
/**
* 连接工具类 从数据源中获取连接 并且将获取到的连接与线程进行绑定
* ThreadLocal:线程内部的存储类 可以在指定的线程内存储数据 key:threadlocal(当前线程) value:任意类型的值 Connection
*/
@Component//不属于三层架构以外的类使用的注解 实例化ConnectionUtils对象到容器中
public class ConnectionUtils {
@Autowired//从容器中获取一个DataSource类型的对象
private DataSource dataSource;
private ThreadLocal<Connection> threadLocal = new ThreadLocal<>();
/**
* 获取当前线程绑定的连接 如果获取到的连接为空则从数据源中获取链接并且放入ThreadLocal中(绑定当前线程)
*
*/
public Connection getThreadConnection(){
//1、从ThreadLocal中获取连接
Connection connection = threadLocal.get();
//2、判断当前线程是否为空
if (connection == null){
//从数据源中获取connection 并存入ThreadLocal
try {
connection = dataSource.getConnection();
threadLocal.set(connection);
} catch (SQLException e) {
e.printStackTrace();
}
}
return connection;
}
/**
* 解除绑定
*/
public void removeThreadConnection(){
threadLocal.remove();
}
}
- 事务管理工具类
/**
* 事务管理器工具类:包含 开启事务 提交事务 回滚事务 释放资源
* 必须保证是同一个Connection
*/
@Component
public class TransactionManager {
@Autowired
private ConnectionUtils connectionUtils;
/**
* 开启事务
*/
public void beginTransaction(){
//获取connection对象
Connection connection = connectionUtils.getThreadConnection();
try {
connection.setAutoCommit(false);
} catch (SQLException e) {
e.printStackTrace();
}
}
/**
* 提交事务
*/
public void commit(){
//获取到的是同一个connection
Connection connection = connectionUtils.getThreadConnection();
try {
connection.commit();
} catch (SQLException e) {
e.printStackTrace();
}
}
/**
* 回滚事务
*/
public void rollback(){
//获取到的是同一个connection
Connection connection = connectionUtils.getThreadConnection();
try {
connection.rollback();
} catch (SQLException e) {
e.printStackTrace();
}
}
/**
* 释放资源
*/
public void release(){
Connection connection = connectionUtils.getThreadConnection();
try {
//将手动提交事务改成自动提交事务
connection.setAutoCommit(true);
//将连接归还连接池
connectionUtils.getThreadConnection().close();
//接触线程绑定
connectionUtils.removeThreadConnection();
} catch (SQLException e) {
e.printStackTrace();
}
}
}
- jdk工厂类
/*
jdk动态代理工厂类
*/
@Component
public class JDkProxyFactory {
@Autowired
private AccountService accountService;
@Autowired
private TransactionManager transactionManager;
/*
采用动态代理技术来生成目标类的对象
ClassLoader loader, 类加载器 借助被代理对象获取到的类加载器
Class<?>[] interfaces, 被代理类所需要实现的全部接口
InvocationHandler h 当代理对象调用接口中的任意方法 那么都会执行InvocationHandler中的invoke
*/
public AccountService createAccountServiceJDKProxy(){
//生成代理对象
AccountService accountServiceProxy = (AccountService) Proxy.newProxyInstance(accountService.getClass().getClassLoader(), accountService.getClass().getInterfaces(), new InvocationHandler() {
@Override
//proxy : 当前代理对象的引用 method: 被调用的目标方法的引用 args:被调用的目标方法所用到的参数
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
if (method.getName().equals("transfer")){
//手动开启事务
//第一次获取Connection对象
transactionManager.beginTransaction();
System.out.println("进行了前置增强");
//被代理对象的原方法执行
//当调用的方法文transfer时 method就为transfer
method.invoke(accountService, args);
//手动提交事务
System.out.println("进行了后置增强");
transactionManager.commit();
}else {
method.invoke(accountService,args);
}
} catch (Exception e) {
e.printStackTrace();
//手动回滚事务
transactionManager.rollback();
}finally {
//手动释放资源
transactionManager.release();
}
return null;
}
});
return accountServiceProxy;
}
}
- 测试类
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({
"classpath:applicationContext.xml"})
public class AccountServiceTest {
@Autowired
private AccountService accountService;
@Autowired
private JDkProxyFactory jDkProxyFactory;
@Autowired
private CglibProxyFactory cglibProxyFactory;
/*
测试JDK动态代理
*/
@Test
public void testTransferProxyJDK(){
//当前返回的是AccountService的代理对象
AccountService accountServiceJDKProxy = jDkProxyFactory.createAccountServiceJDKProxy();
//代理接口调用接口中的任何方法时 都会调用底层的invoke方法
accountServiceJDKProxy.transfer("tom","jerry",100d);
}
}
Cglib动态代理
Enhancer.create(x,y)
- 参数一:目标类的字节码对象
- 参数二: 动作类 当代理对象调用目标对象中的原方法时会执行intercept方法
代码实现
- 其他工具类实现类代码省略
- cglib工厂类
/*
该类采用Cglib动态代理来对目标类Account ServiceImpl进行动态增强(添加事务控制)
*/
@Component
public class CglibProxyFactory {
@Autowired
private AccountService accountService;
@Autowired
private TransactionManager transactionManager;
public AccountService createAccountServiceCglibProxy(){
// 编写cglib对应的API来生产代理对象进行返回
// Enhancer:cglib的字节码增强器
// 参数一:目标类的字节码对象 参数二: 动作类 当代理对象调用目标对象中原方法时 会执行intercept方法
AccountService accountServiceProxy = (AccountService) Enhancer.create(accountService.getClass(), new MethodInterceptor() {
// o:代表生成的代理对象引用 method:调用目标方法的引用 objects:方法入参 methodProxy:代理方法
@Override
public Object intercept(Object o, Method method, Object[] objects, MethodProxy methodProxy) throws Throwable {
try {
//手动开启事务
//第一次获取Connection对象
transactionManager.beginTransaction();
//被代理对象的原方法执行
//当调用的方法文transfer时 method就为transfer
method.invoke(accountService, objects);
//手动提交事务
transactionManager.commit();
} catch (Exception e) {
e.printStackTrace();
//手动回滚事务
transactionManager.rollback();
} finally {
//手动释放资源
transactionManager.release();
}
return null;
}
});
return accountServiceProxy;
}
}
- 测试类
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({
"classpath:applicationContext.xml"})
public class AccountServiceTest {
@Autowired
private AccountService accountService;
@Autowired
private JDkProxyFactory jDkProxyFactory;
@Autowired
private CglibProxyFactory cglibProxyFactory;
@Test
public void testTransferProxyCglib(){
AccountService accountServiceCglibProxy = cglibProxyFactory.createAccountServiceCglibProxy();
accountServiceCglibProxy.transfer("tom","jerry",100d);
}
}
SpringAOP
- AOP 为 Aspect Oriented Programming 的缩写,意思为面向切面编程
- AOP 是 OOP(面向对象编程) 的延续,是软件开发中的一个热点,也是Spring框架中的一个重要内容,利用AOP可以对业务逻辑的各个部分进行隔离,从而使得业务逻辑各部分之间的耦合度降低,提高程序的可重用性,同时提高了开发的效率。
- 好处:
- 在程序运行期间,在不修改源码的情况下对方法进行功能增强
- 逻辑清晰,开发核心业务的时候,不必关注增强业务的代码
- 减少重复代码,提高开发效率,便于后期维护
AOP底层实现
- 实际上,AOP 的底层是通过 Spring 提供的的动态代理技术实现的。在运行期间,Spring通过动态代理技术动态的生成代理对象,代理对象方法执行时进行增强功能的介入,在去调用目标对象的方法,从而完成功能的增强。
AOP相关术语
- Spring 的 AOP 实现底层就是对上面的动态代理的代码进行了封装,封装后我们只需要对需要关注的部分进行代码编写,并通过配置的方式完成指定目标的方法增强。
- Target(目标对象):代理的目标对象
- Proxy (代理):一个类被 AOP 织入增强后,就产生一个结果代理类
- Joinpoint(连接点):所谓连接点是指那些可以被拦截到的点。在spring中,这些点指的是方法,因为 spring只支持方法类型的连接点
- Pointcut(切入点):所谓切入点是指我们要对哪些 Joinpoint 进行拦截的定义
- Advice(通知/ 增强):所谓通知是指拦截到 Joinpoint 之后所要做的事情就是通知 分类:前置通知、后置通知、异常通知、最终通知、环绕通知
- Aspect(切面):是切入点和通知(引介)的结合
- Weaving(织入):是指把增强应用到目标对象来创建新的代理对象的过程。spring采用动态代理织 入,而AspectJ采用编译期织入和类装载期织入
AOP开发明确事项
- 开发阶段(程序员需要做的)
- 编写核心业务代码(目标类的目标方法) 切入点
- 把公用代码抽取出来,制作成通知(增强功能方法) 通知
- 在配置文件中,声明切入点与通知间的关系,即切面
- 运行阶段(Spring框架完成的)
- Spring 框架监控切入点方法的执行。一旦监控到切入点方法被运行,使用代理机制,动态创建目标对象的代理对象,根据通知类别,在代理对象的对应位置,将通知对应的功能织入,完成完整的代码逻辑运行。
- 底层代理实现
- 在 Spring 中,框架会根据目标类是否实现了接口来决定采用哪种动态代理的方式。
- 当bean实现接口时,会用JDK代理模式
- 当bean没有实现接口,用cglib实现
- 可以强制使用cglib(在spring配置中加入
<aop:aspectjautoproxy proxyt-target-class=”true”/>
基于xml的AOP开发
- 需要导入的坐标
<dependencies>
<!--导入spring的context坐标,context依赖aop-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.1.5.RELEASE</version>
</dependency>
<!-- aspectj的织入(切点表达式需要用到该jar包) -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.8.13</version>
</dependency>
<!--spring整合junit-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.1.5.RELEASE</version>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
</dependencies>
- 目标接口实现类
public interface AccountService {
public void transfer();
}
public class AccountServiceImpl implements AccountService {
public void transfer() {
System.out.println("转账方法 执行了");
// int i = 1/0;
}
}
- 通知类
public class MyAdvice {
public void before(){
System.out.println("前置通知执行了");
}
public void afterReturn(){
System.out.println("后置通知执行了");
}
public void afterThrowing(){
System.out.println("异常通知执行了");
}
public void after(){
System.out.println("最终通知执行了");
}
//ProceedingJoinPoint正在执行的连接点:切点
public void around(ProceedingJoinPoint proceedingJoinPoint){
Object proceed= null;
try {
System.out.println("前置通知执行了");
proceed = proceedingJoinPoint.proceed();
System.out.println("后置通知执行了");
} catch (Throwable throwable) {
throwable.printStackTrace();
System.out.println("异常通知执行了");
}finally {
System.out.println("最终通知执行了");
}
}
}
- 配置文件配置
<!-- 目标类交给ioc容器 -->
<bean id="accountService" class="com.lagou.service.impl.AccountServiceImpl"></bean>
<!-- 通知类交给ioc容器 -->
<bean id="myAdvice" class="com.lagou.advice.MyAdvice"></bean>
<!-- aop 配置 -->
<aop:config>
<!-- 抽取切点表达式 -->
<aop:pointcut id="myPointCut" expression="execution(public void com.lagou.service.impl.AccountServiceImpl.transfer())"/>
<!-- 配置切面:切入点和通知 -->
<aop:aspect ref="myAdvice">
<aop:before method="before" pointcut-ref="myPointCut"/>
<aop:after-returning method="afterReturn" pointcut-ref="myPointCut"/>
<aop:after-throwing method="afterThrowing" pointcut-ref="myPointCut"/>
<aop:after method="after" pointcut-ref="myPointCut"/>
<aop:around method="around" pointcut-ref="myPointCut"/>
</aop:aspect>
</aop:config>
- 测试类
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({
"classpath:applicationContext.xml"})
public class AccountServiceTest {
@Autowired
private AccountService accountService;
@Test
public void test(){
accountService.transfer();
}
}
XML配置AOP详解
切点表达式
execution([修饰符] 返回值类型 包名.类名.方法名(参数))
execution([修饰符] 返回值类型 包名.类名.方法名(参数))
execution(public void com.lagou.servlet.impl.AccountServiceImpl.transfer(java.lang.String))
- 访问修饰符可以省略
execution(void com.lagou.servlet.impl.AccountServiceImpl.transfer(java.lang.String))
- 返回值类型、包名、类名、方法名可以使用星号 * 代替,代表任意
execution(* *.*.*.*.*.*())
- 包名与类名之间一个点 . 代表当前包下的类,两个点 .. 表示当前包及其子包下的类
execution(* *..*.*())
- 参数列表可以使用两个点 .. 表示任意个数,任意类型的参数列表
execution(* *..*.*(..))
切点表达式抽取
<aop:pointcut id="myPointcut" expression="execution(* com.lagou.service..*.* (..))">
</aop:pointcut>
通知类型
- 配置语法
<aop:通知类型 method=“通知类中方法名” pointcut=“切点表达式"></aop:通知类型>
通知类型 | 说明 |
---|---|
前置通知 <aop:before> |
用于配置前置通知。指定增强的方法在切入点方法之前执行 |
后置通知<aop:afterReturning> |
用于配置后置通知。指定增强的方法在切入点方法之后执行 |
异常通知<aop:afterThrowing> |
用于配置异常通知。指定增强的方法出现异常后执行 |
最终通知<aop:after> |
无论切入点方法执行时是否有异常,都会执行 |
环绕通知<aop:around> |
开发者可以手动控制增强代码在什么时候执行 |
- 其中环绕通知独立使用
基于注解的AOP开发
- 导入的坐标同上
- 目标类
@Service
public class AccountServiceImpl implements AccountService{
public void transfer() {
System.out.println("转账方法 执行了");
// int i = 1/0;
}
}
- 通知类
@Component
//将此类升级为切面类 配置切入点和通知的关系
@Aspect
public class MyAdvice {
//抽取切点表达式
@Pointcut("execution(* com.lagou.service.impl.AccountServiceImpl.*(..))")
public void myPoint(){
}
@Before("MyAdvice.myPoint()")
public void before(){
System.out.println("前置通知执行了");
}
@AfterReturning("MyAdvice.myPoint()")
public void afterReturn(){
System.out.println("后置通知执行了");
}
@AfterThrowing("MyAdvice.myPoint()")
public void afterThrowing(){
System.out.println("异常通知执行了");
}
@After("MyAdvice.myPoint()")
public void after(){
System.out.println("最终通知执行了");
}
//ProceedingJoinPoint正在执行的连接点:切点
public void around(ProceedingJoinPoint proceedingJoinPoint){
Object proceed= null;
try {
System.out.println("前置通知执行了");
proceed = proceedingJoinPoint.proceed();
System.out.println("后置通知执行了");
} catch (Throwable throwable) {
throwable.printStackTrace();
System.out.println("异常通知执行了");
}finally {
System.out.println("最终通知执行了");
}
}
}
- 测试同上
注解配置AOP详解
切点表达式抽取
@Pointcut("execution(* com.lagou..*.*(..))")
public void myPoint(){
}
@Before("MyAdvice.myPoint()")
public void before() {
System.out.println("前置通知...");
}
通知类型
通知类型 | 说明 |
---|---|
前置通知 @Before |
用于配置前置通知。指定增强的方法在切入点方法之前执行 |
后置通知@AfterReturning |
用于配置后置通知。指定增强的方法在切入点方法之后执行 |
异常通知@AfterThrowing |
用于配置异常通知。指定增强的方法出现异常后执行 |
最终通知@After |
无论切入点方法执行时是否有异常,都会执行 |
环绕通知@Around |
开发者可以手动控制增强代码在什么时候执行 |
- 注意:当前四个通知组合在一起时,执行顺序如下:
@Before -> @After -> @AfterReturning(如果有异常:@AfterThrowing)
纯注解配置
//使此类成为核心配置类
@Configuration
//开启注解扫描
@ComponentScan("com.lagou")
//开启aop自动代理
@EnableAspectJAutoProxy
public class SpringConfig {
}
- 其中
@EnableAspectJAutoProxy
代替<aop:aspectj-autoproxy />
标签
AOPxml优化转账案例
- 通知类(事务管理器)
/**
* 事务管理器工具类:包含 开启事务 提交事务 回滚事务 释放资源
* 必须保证是同一个Connection
*/
@Component("transactionManager")
public class TransactionManager {
@Autowired
private ConnectionUtils connectionUtils;
/**
* 开启事务
*/
public void beginTransaction(){
//获取connection对象
Connection connection = connectionUtils.getThreadConnection();
try {
connection.setAutoCommit(false);
} catch (SQLException e) {
e.printStackTrace();
}
}
/**
* 提交事务
*/
public void commit(){
//获取到的是同一个connection
Connection connection = connectionUtils.getThreadConnection();
try {
connection.commit();
} catch (SQLException e) {
e.printStackTrace();
}
}
/**
* 回滚事务
*/
public void rollback(){
//获取到的是同一个connection
Connection connection = connectionUtils.getThreadConnection();
try {
connection.rollback();
} catch (SQLException e) {
e.printStackTrace();
}
}
/**
* 释放资源
*/
public void release(){
Connection connection = connectionUtils.getThreadConnection();
try {
//将手动提交事务改成自动提交事务
connection.setAutoCommit(true);
//将连接归还连接池
connectionUtils.getThreadConnection().close();
//接触线程绑定
connectionUtils.removeThreadConnection();
} catch (SQLException e) {
e.printStackTrace();
}
}
}
- xml配置
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop.xsd
">
<!-- 开启注解扫描 -->
<context:component-scan base-package="com.lagou"></context:component-scan>
<!-- 引入properties -->
<context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>
<!-- 配置DATa Source-->
<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
<property name="driverClassName" value="${jdbc.driverClassName}"/>
<property name="url" value="${jdbc.url}"/>
<property name="username" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</bean>
<!-- 配置queryRunner -->
<bean id="queryRunner" class="org.apache.commons.dbutils.QueryRunner">
<constructor-arg name="ds" ref="dataSource"/>
</bean>
<!-- AOP配置 -->
<aop:config>
<!-- 切点表达式 -->
<aop:pointcut id="myPointcut" expression="execution(* com.lagou.service.impl.AccountServiceImpl.*(..))"/>
<!--配置切面 -->
<aop:aspect ref="transactionManager">
<aop:before method="beginTransaction" pointcut-ref="myPointcut"/>
<aop:after-returning method="commit" pointcut-ref="myPointcut"/>
<aop:after-throwing method="rollback" pointcut-ref="myPointcut"/>
<aop:after method="release" pointcut-ref="myPointcut"/>
</aop:aspect>
</aop:config>
</beans>
AOP注解优化转账案例
- 配置
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop.xsd
">
<!-- 开启注解扫描 -->
<context:component-scan base-package="com.lagou"></context:component-scan>
<!-- 引入properties -->
<context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>
<!-- 配置DATa Source-->
<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
<property name="driverClassName" value="${jdbc.driverClassName}"/>
<property name="url" value="${jdbc.url}"/>
<property name="username" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
</bean>
<!-- 配置queryRunner -->
<bean id="queryRunner" class="org.apache.commons.dbutils.QueryRunner">
<constructor-arg name="ds" ref="dataSource"/>
</bean>
</beans>
- 事务管理器(通知类)
@Component
@Aspect
public class TransactionManager {
@Autowired ConnectionUtils connectionUtils;
@Around("execution(* com.lagou.serivce..*.*(..))")
public Object around(ProceedingJoinPoint pjp) {
Object object = null;
try {
// 开启事务
connectionUtils.getThreadConnection().setAutoCommit(false);
// 业务逻辑
pjp.proceed();
// 提交事务
connectionUtils.getThreadConnection().commit();
} catch (Throwable throwable) {
throwable.printStackTrace();
// 回滚事务
try {
connectionUtils.getThreadConnection().rollback();
}
catch (SQLException e) {
e.printStackTrace();
}
} finally {
try {
connectionUtils.getThreadConnection().setAutoCommit(true);
connectionUtils.getThreadConnection().close();
connectionUtils.removeThreadConnection(); }
catch (SQLException e) {
e.printStackTrace();
}
}
return object;
}
}
