Yii使用PhpSpreadsHeet 生成 Excel 和导入 Excel 前后端分离版和未分离版

Yii使用PhpSpreadsHeet 生成 Excel 和导入 Excel 前后端分离版和未分离版

前提下载PhpSpreadsHeet依赖 ：

composer require phpoffice/phpspreadsheet

1.开始正题：

1.1 这里使用这个数据库 检测工具表：

DROP TABLE IF EXISTS `test_tool`;
CREATE TABLE `test_tool` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '检测工具id',
  `tool_number` varchar(50) NOT NULL COMMENT '工具编号',
  `tool_name` varchar(50) NOT NULL COMMENT '工具名称',
  `tool_brand` varchar(50) DEFAULT NULL COMMENT '工具品牌',
  `tool_class` varchar(50) NOT NULL COMMENT '工具分类',
  `tool_calibration_cycle` varchar(50) NOT NULL COMMENT '工具校验周期',
  `tool_status` varchar(50) NOT NULL COMMENT '工具状态',
  `tool_functions` text NOT NULL COMMENT '工具功能',
  `tool_scope` varchar(255) DEFAULT NULL COMMENT '工具适用范围',
  `purchase_time` datetime DEFAULT NULL COMMENT '购置日期',
  `supplier` varchar(50) DEFAULT NULL COMMENT '供应商',
  `storage_address` varchar(255) DEFAULT NULL COMMENT '存放地址',
  `tool_notes` text COMMENT '工具备注',
  `created_time` datetime DEFAULT CURRENT_TIMESTAMP COMMENT '记录创建时间',
  `updated_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '记录更新时间',
  `tool_file` varchar(255) DEFAULT NULL COMMENT '工具图片地址',
  `create_by` int(11) DEFAULT NULL COMMENT '记录创建者user_id',
  `updated_by` int(11) DEFAULT NULL COMMENT '记录更新者user_id',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=15 DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC;

INSERT INTO `test_tool` VALUES ('1', '', '弛度观测仪', null, '1', '7', '1', '剪指甲', '全部', null, null, null, '使用方便', '2020-05-06 17:35:44', '2020-05-20 10:05:34', '/uploads/5ec4906e2e768_login_bg.jpg', null, null);
INSERT INTO `test_tool` VALUES ('2', '', '电力测量工具', null, '1', '7', '1', '剪指甲', '全部', null, null, null, '使用方便', '2020-05-06 17:36:07', '2020-05-20 09:31:55', '', null, null);
INSERT INTO `test_tool` VALUES ('3', '', '弧垂弛度观测仪', null, '1', '7', '1', '剪指甲', '全部', null, null, null, '使用方便', '2020-05-06 17:36:11', '2020-05-20 09:31:55', '', null, null);
INSERT INTO `test_tool` VALUES ('4', '', '接地电阻测试仪', null, '1', '7', '1', '剪指甲', '全部', null, null, null, '使用方便', '2020-05-06 17:36:14', '2020-05-20 09:31:55', '', null, null);
INSERT INTO `test_tool` VALUES ('5', '', '电磁式电压互感器', null, '1', '7', '1', '剪指甲', '全部', null, null, null, '使用方便', '2020-05-06 17:36:17', '2020-05-20 09:31:55', '', null, null);

1.2 创建ExitController 这个控制器名字随便你们这么写。

<?php


namespace app\controllers;

use app\models\TestTool;
use PhpOffice\PhpSpreadsheet\Spreadsheet;
use PhpOffice\PhpSpreadsheet\Style\Color;
use PhpOffice\PhpSpreadsheet\Style\Fill;
use PhpOffice\PhpSpreadsheet\Writer\Xlsx;
use yii\web\Controller;

class ExitController extends  Controller
{


    /**
     * @throws \PhpOffice\PhpSpreadsheet\Exception
     * @throws \PhpOffice\PhpSpreadsheet\Writer\Exception
     */
    public function actionSamples()
    {


        $spreadsheet = new Spreadsheet();
        $worksheet = $spreadsheet->getActiveSheet();
        //图片
        $drawing = new \PhpOffice\PhpSpreadsheet\Worksheet\Drawing();
        //设置工作表标题名称
        //$worksheet->setTitle('phpspreadsheet——检测工具');
        //表头   1
        $spreadsheet->getActiveSheet()->setTitle('检测工具');
        //设置单元格内容
        $k=1;
        $worksheet->setCellValue('A' . $k, 'id');
        $worksheet->setCellValue('B' . $k, '工具编号');
        $worksheet->setCellValue('C' . $k, '工具名称');
        $worksheet->setCellValue('D' . $k, '工具品牌');
        $worksheet->setCellValue('E' . $k, '工具分类');
        $worksheet->setCellValue('F' . $k, '工具校验周期');
        $worksheet->setCellValue('G' . $k, '工具状态');
        $worksheet->setCellValue('H' . $k, '工具功能');
        $worksheet->setCellValue('I' . $k, '工具适用范围');
        $worksheet->setCellValue('J' . $k, '购置日期');
        $worksheet->setCellValue('K' . $k, '供应商');
        $worksheet->setCellValue('L' . $k, '存放地址');
        $worksheet->setCellValue('M' . $k, '工具备注');
        $worksheet->setCellValue('N' . $k, '工具图片地址');
        // 设置个表格宽度
        $spreadsheet->getActiveSheet()->getColumnDimension('A')->setWidth(5);
        $spreadsheet->getActiveSheet()->getColumnDimension('B')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('C')->setWidth(30);
        $spreadsheet->getActiveSheet()->getColumnDimension('D')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('E')->setWidth(12);
        $spreadsheet->getActiveSheet()->getColumnDimension('F')->setWidth(12);
        $spreadsheet->getActiveSheet()->getColumnDimension('G')->setWidth(12);
        $spreadsheet->getActiveSheet()->getColumnDimension('H')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('I')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('J')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('K')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('L')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('M')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('N')->setWidth(30);
        $styleArray = [
            'font' => [
                'bold' => true,
                'color'=>[
                    'argb'=>Color::COLOR_BLUE
                ]
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
        //背景颜色
        $worksheet->getStyle('A1:N1')->getFill()->setFillType(Fill::FILL_SOLID)->getStartColor()->setARGB('FFFF0000');// 设置背景色
        //设置单元格样式
        $worksheet->getStyle('A1:N1')->applyFromArray($styleArray)->getFont()->setSize(12);
        //访问的数据库
        $jzInfo = TestTool::find()->all();
        $len = count($jzInfo);
        $j = 0;
        for ($i=0; $i < $len; $i++) {


            $j = $i + 2; //从表格第3行开始
            $worksheet->setCellValueByColumnAndRow(1, $j, $jzInfo[$i]['id']);
            $worksheet->setCellValueByColumnAndRow(2, $j, $jzInfo[$i]['tool_number']);
            $worksheet->setCellValueByColumnAndRow(3, $j, $jzInfo[$i]['tool_name']);
            $worksheet->setCellValueByColumnAndRow(4, $j, $jzInfo[$i]['tool_brand']);
            $worksheet->setCellValueByColumnAndRow(5, $j, $jzInfo[$i]['tool_class']);
            $worksheet->setCellValueByColumnAndRow(6, $j, $jzInfo[$i]['tool_calibration_cycle']);
            $worksheet->setCellValueByColumnAndRow(7, $j, $jzInfo[$i]['tool_status']);
            $worksheet->setCellValueByColumnAndRow(8, $j, $jzInfo[$i]['tool_functions']);
            $worksheet->setCellValueByColumnAndRow(9, $j, $jzInfo[$i]['tool_scope']);
            $worksheet->setCellValueByColumnAndRow(10, $j, $jzInfo[$i]['purchase_time']);
            $worksheet->setCellValueByColumnAndRow(11, $j, $jzInfo[$i]['supplier']);
            $worksheet->setCellValueByColumnAndRow(12, $j, $jzInfo[$i]['storage_address']);
            $worksheet->setCellValueByColumnAndRow(13, $j, $jzInfo[$i]['tool_notes']);
            $worksheet->setCellValueByColumnAndRow(14, $j, $jzInfo[$i]['tool_file']);
        }
        $styleArrayBody = [
            'borders' => [
                'allBorders' => [
                    'borderStyle' => \PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THIN,
                    'color' => ['argb' => '666666'],
                ],
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
         $total_jzInfo = $len + 1;
        //添加所有边框/居中
        $worksheet->getStyle('A1:N'.$total_jzInfo)->applyFromArray($styleArrayBody);
        //设置文件前缀
        $filename = date('Y-m-d', time()) . rand(1000, 9999);
        $filename = $filename.'无忧巡检工具列表.xlsx';
        header('Content-Type: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet');
        header('Content-Disposition: attachment;filename="'.$filename.'"');
        header('Cache-Control: max-age=0');
        $writer = \PhpOffice\PhpSpreadsheet\IOFactory::createWriter($spreadsheet, 'Xlsx');
        $writer->save('php://output');
    }
    public function actionImp()
    {



    }
}

1.3访问url 我本机是具体看你们自己的:

http://localhost/yii-excal/basic/web/index.php?r=exit/samples

就会下载这个 无忧巡检工具列表.xlsx

这里面的数据就是来自数据库，具体看我上面的代码。

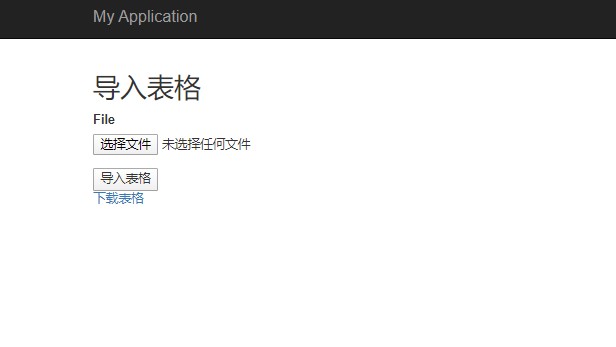

1.4 创建其他有导入和导出的页面方式。

1.4.1 创建Excel

<?php

namespace app\common\tools;
use PhpOffice\PhpSpreadsheet\Reader\Exception;
use PhpOffice\PhpSpreadsheet\Reader\Xlsx;
use PhpOffice\PhpSpreadsheet\Reader\Xls;
use PhpOffice\PhpSpreadsheet\IOFactory;
use PhpOffice\PhpSpreadsheet\Cell\Coordinate;
use PhpOffice\PhpSpreadsheet\Spreadsheet;
use PhpOffice\PhpSpreadsheet\Style\Color;
use PhpOffice\PhpSpreadsheet\Style\Fill;

class Excel
{



    # 导入excel
    static function importExecl($file = '', $sheet = 0, $columnCnt = 0, &$options = [])
    {


        try {


            /* 转码 */
            $file = iconv("utf-8", "gb2312", $file);

            if (empty($file) OR !file_exists($file)) {


                throw new \Exception('文件不存在!');
            }

            /** @var Xlsx $objRead */
            $objRead = IOFactory::createReader('Xlsx');

            if (!$objRead->canRead($file)) {


                /** @var Xls $objRead */
                $objRead = IOFactory::createReader('Xls');

                if (!$objRead->canRead($file)) {


                    throw new \Exception('只支持导入Excel文件！');
                }
            }

            /* 如果不需要获取特殊操作，则只读内容，可以大幅度提升读取Excel效率 */
            empty($options) && $objRead->setReadDataOnly(true);
            /* 建立excel对象 */
            $obj = $objRead->load($file);
            /* 获取指定的sheet表 */
            $currSheet = $obj->getSheet($sheet);

            if (isset($options['mergeCells'])) {


                /* 读取合并行列 */
                $options['mergeCells'] = $currSheet->getMergeCells();
            }
            if (0 == $columnCnt) {


                /* 取得最大的列号 */
                $columnH = $currSheet->getHighestColumn();
                /* 兼容原逻辑，循环时使用的是小于等于 */
                $columnCnt = Coordinate::columnIndexFromString($columnH);
            }

            /* 获取总行数 */
            $rowCnt = $currSheet->getHighestRow();
            $data   = [];
            /* 读取内容 */
            for ($_row = 1; $_row <= $rowCnt; $_row++) {


                $isNull = true;

                for ($_column = 1; $_column <= $columnCnt; $_column++) {


                    $cellName = Coordinate::stringFromColumnIndex($_column);
                    $cellId   = $cellName . $_row;
                    $cell     = $currSheet->getCell($cellId);
                    if (isset($options['format'])) {


                        /* 获取格式 */
                        $format = $cell->getStyle()->getNumberFormat()->getFormatCode();
                        /* 记录格式 */
                        $options['format'][$_row][$cellName] = $format;
                    }
                    if (isset($options['formula'])) {


                        /* 获取公式，公式均为=号开头数据 */
                        $formula = $currSheet->getCell($cellId)->getValue();

                        if (0 === strpos($formula, '=')) {


                            $options['formula'][$cellName . $_row] = $formula;
                        }
                    }
                    if (isset($format) && 'm/d/yyyy' == $format) {


                        /* 日期格式翻转处理 */
                        $cell->getStyle()->getNumberFormat()->setFormatCode('yyyy/mm/dd');
                    }
                    $data[$_row][$cellName] = trim($currSheet->getCell($cellId)->getFormattedValue());

                    if (!empty($data[$_row][$cellName])) {


                        $isNull = false;
                    }
                }
                /* 判断是否整行数据为空，是的话删除该行数据 */
                if ($isNull) {


                    unset($data[$_row]);
                }
            }
            return $data;
        } catch (\Exception $e) {


            throw $e;
        }
    }
    # 导出
    /**
     * @param $data
     * @param $title
     * @throws Exception
     * @throws \PhpOffice\PhpSpreadsheet\Exception
     * @throws \PhpOffice\PhpSpreadsheet\Writer\Exception
     */
     static function exportExcel($data,$title)
    {


        $spreadsheet = new Spreadsheet();
        $worksheet = $spreadsheet->getActiveSheet();
        //设置工作表标题名称
        $worksheet->setTitle('检测工具');
        //设置宽度
        $spreadsheet->getActiveSheet()->getColumnDimension('A')->setWidth(5);
        $spreadsheet->getActiveSheet()->getColumnDimension('B')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('C')->setWidth(28);
        $spreadsheet->getActiveSheet()->getColumnDimension('D')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('E')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('F')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('G')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('H')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('I')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('J')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('K')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('L')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('M')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('N')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('O')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('P')->setWidth(50);
        $spreadsheet->getActiveSheet()->getColumnDimension('Q')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('R')->setWidth(15);
        //设置样式
        $styleArray = [
            'font' => [
                'bold' => true,
                'color'=>[
                    'argb'=>Color::COLOR_BLUE
                ]
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
        //背景颜色
        $worksheet->getStyle('A1:R1')->getFill()->setFillType(Fill::FILL_SOLID)->getStartColor()->setARGB('787FF6');// 设置背景色
        //设置单元格样式
        $worksheet->getStyle('A1:R1')->applyFromArray($styleArray)->getFont()->setSize(12);
        //表头 设置单元格内容
        foreach ($title as $key => $value) {


            $worksheet->setCellValueByColumnAndRow($key+1, 1, $value);
        }
        $row = 2; //从第二行开始
        //样式
        $styleArrayBody = [
            'borders' => [
                'allBorders' => [
                    'borderStyle' => \PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THIN,
                    'color' => ['argb' => '666666'],
                ],
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
        //数据库的长度+1
        $length= count($data)+1;
        $worksheet->getStyle('A1:R'.$length)->applyFromArray($styleArrayBody);
        foreach ($data as $item) {


            $column = 1; //从第一列设置并初始化
            foreach ($item as $value) {


                $worksheet->setCellValueByColumnAndRow($column, $row, $value); //哪一列哪一行设置哪个值
                $column++; //列数加1
            }
            $row++; //行数加1
        }
        //输出到浏览器
        $fileName = date('Y-m-d', time()) . rand(1000, 9999);
        $fileName = $fileName.'无忧巡检工具列表';
        $fileType = 'Xlsx';
        $writer = IOFactory::createWriter($spreadsheet, 'Xlsx');
        self::excelBrowserExport($fileName, $fileType);
        $writer->save('php://output');
    }
    #格式校验
    static public function excelBrowserExport($fileName, $fileType)
    {


        //文件名称校验
        if (!$fileName) {


            throw new Exception('文件名不能为空');
        }
        //Excel文件类型校验
        $type = ['Excel2007', 'Xlsx', 'Excel5', 'xls'];
        if (!in_array($fileType, $type)) {


            throw new Exception('未知文件类型');
        }
        if ($fileType == 'Excel2007' || $fileType == 'Xlsx') {


            header('Content-Type: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet');
            header('Content-Disposition: attachment;filename="' . $fileName . '.xlsx"');
            header('Cache-Control: max-age=0');
        } else {


            header('Content-Type: application/vnd.ms-excel');
            header('Content-Disposition: attachment;filename="' . $fileName . '.xls"');
            header('Cache-Control: max-age=0');
        }
    }

}

1.4.2 创建TestController

<?php
namespace app\controllers;


use app\models\TestTool;
use app\models\UploadForm;
use app\common\tools\Excel;
use PhpOffice\PhpSpreadsheet\IOFactory;
use PhpOffice\PhpSpreadsheet\Reader\Exception;
use PhpOffice\PhpSpreadsheet\Spreadsheet;
use Yii;
use yii\web\UploadedFile;

class TestController extends \yii\web\Controller
{


    # 用来测试的index页面
    public function actionIndex()
    {


        # 文件上传的model
        $file = new UploadForm();
        return $this->render('index', [
            'file' => $file
        ]);

    }
    # 导入表格
    public function actionImport_excel_data(){


        $model = new UploadForm();
        if (Yii::$app->request->isPost) {


            $model->file = UploadedFile::getInstance($model, 'file');
            if ($model->file && $model->validate()) {


                $path = 'uploads/';
                if (!file_exists($path)) {


                    mkdir($path, 0755, true);
                }
                $time = time();
                $rand = rand(100,999);
                $basename = $model->file->baseName;
                $filename = md5($basename.$time.$rand);
                $fname = $path . $filename . '.' . $model->file->extension;
                if ($model->file && $model->validate()) {


                    $model->file->saveAs($fname);
                }
                $fpath = Yii::$app->BasePath.'/web/'.$fname;
//                echo $fpath;
//                exit;
                $data = Excel::importExecl($fpath);
                # 得到表头
                $biaotou = $data[1];
                $count  = count($data);
//                var_dump($data);
//                exit;
                if ($biaotou['A'] != 'id'||$biaotou['B'] != '工具编号'||$biaotou['C'] != '工具名称'
                    ||$biaotou['D'] != '工具品牌'||$biaotou['E'] != '工具分类'||$biaotou['F'] != '工具校验周期'
                    ||$biaotou['G'] != '工具状态'||$biaotou['H'] != '工具功能'||$biaotou['I'] != '工具适用范围'
                    ||$biaotou['J'] != '购置日期'||$biaotou['K'] != '供应商'||$biaotou['L'] != '存放地址'
                    ||$biaotou['M'] != '工具备注'||$biaotou['N'] != '记录创建时间'||$biaotou['O'] != '记录更新时间'
                    ||$biaotou['P'] != '工具图片地址'||$biaotou['Q'] != '记录创建者'||$biaotou['R'] != '记录更新者'
                ){


                    return "表格表头不匹配";
                }
                # 这里要从第二行开始读 因为第一行是表头
                # 拿到数据后写入数据里面 建议这里用批量写入的方式而不是再循环里面写入数据库
                for ($i = 2; $i<$count+1; $i++){


                       var_dump($data[$i]);
//                    echo 'id'.$data[$i]['A']."</br>";
//                    echo '工具编号'.$data[$i]['B']."</br>";
//                    echo '工具品牌'.$data[$i]['C']."</br>";
//                    echo '工具分类'.$data[$i]['D']."</br>";
//                    echo '工具适用范围'.$data[$i]['E']."</br>";
                }
            }
        }
        return "";
    }
    # 导出表格
    /**
     * @throws \Exception
     */
    public function actionExport_excel_data(){



        $data=TestTool::find()->all();
        $title = ['id', '工具编号', '工具名称','工具品牌','工具分类','工具校验周期','工具状态','工具功能'
            ,'工具适用范围','购置日期','供应商','存放地址','工具备注','记录创建时间','记录更新时间','工具图片地址',
            '记录创建者','记录更新者'];
         Excel::exportExcel($data,$title);
    }
}

1.4.3 创建UploadForm 因为使用到了文件上传

<?php


namespace app\models;


class UploadForm extends \yii\base\Model
{



    /**
     * @var
     */
    public $file;

    /**
     * @return array the validation rules.
     */
    public function rules()
    {


        return [
            [['file'], 'file'],
        ];
    }
}

1.4.4 创建视图 viwes/test/ index.php

<?php
use yii\bootstrap\ActiveForm;
?>

<!--导入表格-->
<h2>导入表格</h2>
<?php $form = ActiveForm::begin(['options' => ['enctype' => 'multipart/form-data'],'action' => ['import_excel_data'],'method'=>'post']) ?>

<?= $form->field($file, 'file')->fileInput() ?>

<button>导入表格</button>

<?php ActiveForm::end() ?>
<!--下载表格-->
<a  href="index.php?r=test/export_excel_data">下载表格</a>

完成以上就是可以访问：

http://localhost/yii-excal/basic/web/index.php?r=test/index

就可以完成导入和导出。

1.5创建前后端分离的api方式：

使用导入前下载一个模板 然后再模板中输入 对应的数据 就可以说进行导入：

1.5.1创建ExcelTools

<?php


namespace app\helper;
use PhpOffice\PhpSpreadsheet\Reader\Exception;
use PhpOffice\PhpSpreadsheet\Reader\Xlsx;
use PhpOffice\PhpSpreadsheet\Reader\Xls;
use PhpOffice\PhpSpreadsheet\IOFactory;
use PhpOffice\PhpSpreadsheet\Cell\Coordinate;
use PhpOffice\PhpSpreadsheet\Spreadsheet;
use PhpOffice\PhpSpreadsheet\Style\Color;
use PhpOffice\PhpSpreadsheet\Style\Fill;

class ExcelTools
{



   // 导入excel
    static function importExecl($file = '', $sheet = 0, $columnCnt = 0, &$options = [])
    {


        try {


            /* 转码 */
            $file = iconv("utf-8", "gb2312", $file);

            if (empty($file) OR !file_exists($file)) {


                throw new \Exception('文件不存在!');
            }

            /** @var Xlsx $objRead */
            $objRead = IOFactory::createReader('Xlsx');

            if (!$objRead->canRead($file)) {


                /** @var Xls $objRead */
                $objRead = IOFactory::createReader('Xls');

                if (!$objRead->canRead($file)) {


                    throw new \Exception('只支持导入Excel文件！');
                }
            }
            /* 如果不需要获取特殊操作，则只读内容，可以大幅度提升读取Excel效率 */
            empty($options) && $objRead->setReadDataOnly(true);
            /* 建立excel对象 */
            $obj = $objRead->load($file);
            /* 获取指定的sheet表 */
            $currSheet = $obj->getSheet($sheet);

            if (isset($options['mergeCells'])) {


                /* 读取合并行列 */
                $options['mergeCells'] = $currSheet->getMergeCells();
            }
            if (0 == $columnCnt) {


                /* 取得最大的列号 */
                $columnH = $currSheet->getHighestColumn();
                /* 兼容原逻辑，循环时使用的是小于等于 */
                $columnCnt = Coordinate::columnIndexFromString($columnH);
            }
            /* 获取总行数 */
            $rowCnt = $currSheet->getHighestRow();
            $data   = [];
            /* 读取内容 */
            for ($_row = 1; $_row <= $rowCnt; $_row++) {


                $isNull = true;
                for ($_column = 1; $_column <= $columnCnt; $_column++) {


                    $cellName = Coordinate::stringFromColumnIndex($_column);
                    $cellId   = $cellName . $_row;
                    $cell     = $currSheet->getCell($cellId);
                    if (isset($options['format'])) {


                        /* 获取格式 */
                        $format = $cell->getStyle()->getNumberFormat()->getFormatCode();
                        /* 记录格式 */
                        $options['format'][$_row][$cellName] = $format;
                    }
                    if (isset($options['formula'])) {


                        /* 获取公式，公式均为=号开头数据 */
                        $formula = $currSheet->getCell($cellId)->getValue();
                        if (0 === strpos($formula, '=')) {


                            $options['formula'][$cellName . $_row] = $formula;
                        }
                    }
                    if (isset($format) && 'm/d/yyyy' == $format) {


                        /* 日期格式翻转处理 */
                        $cell->getStyle()->getNumberFormat()->setFormatCode('yyyy/mm/dd');
                    }
                    $data[$_row][$cellName] = trim($currSheet->getCell($cellId)->getFormattedValue());
                    if (!empty($data[$_row][$cellName])) {


                        $isNull = false;
                    }
                }
                /* 判断是否整行数据为空，是的话删除该行数据 */
                if ($isNull) {


                    unset($data[$_row]);
                }
            }
            return $data;
        } catch (\Exception $e) {


            throw $e;
        }
    }

   // 导出
    /**
     * @param $data
     * @param $title
     * @throws Exception
     * @throws \PhpOffice\PhpSpreadsheet\Exception
     * @throws \PhpOffice\PhpSpreadsheet\Writer\Exception
     */
    static function exportExcel($data,$title)
    {


        $spreadsheet = new Spreadsheet();
        $worksheet = $spreadsheet->getActiveSheet();
        //设置工作表标题名称
        $worksheet->setTitle('检测工具');
        //设置宽度
        $spreadsheet->getActiveSheet()->getColumnDimension('A')->setWidth(5);
        $spreadsheet->getActiveSheet()->getColumnDimension('B')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('C')->setWidth(28);
        $spreadsheet->getActiveSheet()->getColumnDimension('D')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('E')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('F')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('G')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('H')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('I')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('J')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('K')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('L')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('M')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('N')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('O')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('P')->setWidth(50);
        $spreadsheet->getActiveSheet()->getColumnDimension('Q')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('R')->setWidth(15);
        //设置样式
        $styleArray = [
            'font' => [
                'bold' => true,
                'color'=>[
                    'argb'=>Color::COLOR_BLUE
                ]
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
        //背景颜色
        $worksheet->getStyle('A1:R1')->getFill()->setFillType(Fill::FILL_SOLID)->getStartColor()->setARGB('787FF6');// 设置背景色
        //设置单元格样式
        $worksheet->getStyle('A1:R1')->applyFromArray($styleArray)->getFont()->setSize(12);
        //表头 设置单元格内容
        foreach ($title as $key => $value) {


            $worksheet->setCellValueByColumnAndRow($key+1, 1, $value);
        }
        $row = 2; //从第二行开始
        //样式
        $styleArrayBody = [
            'borders' => [
                'allBorders' => [
                    'borderStyle' => \PhpOffice\PhpSpreadsheet\Style\Border::BORDER_THIN,
                    'color' => ['argb' => '666666'],
                ],
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
        //数据库的长度+1
        $length= count($data)+1;
        $worksheet->getStyle('A1:R'.$length)->applyFromArray($styleArrayBody);
        foreach ($data as $item) {


            $column = 1; //从第一列设置并初始化
            foreach ($item as $value) {


                $worksheet->setCellValueByColumnAndRow($column, $row, $value); //哪一列哪一行设置哪个值
                $column++; //列数加1
            }
            $row++; //行数加1
        }
        //输出到浏览器
        $fileName = date('Y-m-d', time()) . rand(1000, 9999);
        $fileName = $fileName.'EWY-Tools';
        $fileType = 'Xlsx';
        $writer = IOFactory::createWriter($spreadsheet, 'Xlsx');
        self::excelBrowserExport($fileName, $fileType);
        $writer->save('php://output');
    }
    //格式校验
    static public function excelBrowserExport($fileName, $fileType)
    {


        //文件名称校验
        if (!$fileName) {


            throw new Exception('文件名不能为空');
        }
        //Excel文件类型校验
        $type = ['Excel2007', 'Xlsx', 'Excel5', 'xls'];
        if (!in_array($fileType, $type)) {


            throw new Exception('未知文件类型');
        }
        if ($fileType == 'Excel2007' || $fileType == 'Xlsx') {


            header('Content-Type: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet');
            header('Content-Disposition: attachment;filename="' . $fileName . '.xlsx"');
            header('Cache-Control: max-age=0');
        } else {


            header('Content-Type: application/vnd.ms-excel');
            header('Content-Disposition: attachment;filename="' . $fileName . '.xls"');
            header('Cache-Control: max-age=0');
        }
    }

    /**
     * 模板下载 导出
     * @param $title
     * @throws Exception
     * @throws \PhpOffice\PhpSpreadsheet\Exception
     * @throws \PhpOffice\PhpSpreadsheet\Writer\Exception
     */
    static function exportTemplate($title)
    {


        $spreadsheet = new Spreadsheet();
        $worksheet = $spreadsheet->getActiveSheet();
        //设置工作表标题名称
        $worksheet->setTitle('检测工具');
        //设置宽度
        $spreadsheet->getActiveSheet()->getColumnDimension('A')->setWidth(5);
        $spreadsheet->getActiveSheet()->getColumnDimension('B')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('C')->setWidth(28);
        $spreadsheet->getActiveSheet()->getColumnDimension('D')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('E')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('F')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('G')->setWidth(10);
        $spreadsheet->getActiveSheet()->getColumnDimension('H')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('I')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('J')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('K')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('L')->setWidth(20);
        $spreadsheet->getActiveSheet()->getColumnDimension('M')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('N')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('O')->setWidth(18);
        $spreadsheet->getActiveSheet()->getColumnDimension('P')->setWidth(50);
        $spreadsheet->getActiveSheet()->getColumnDimension('Q')->setWidth(15);
        $spreadsheet->getActiveSheet()->getColumnDimension('R')->setWidth(15);
        //设置样式
        $styleArray = [
            'font' => [
                'bold' => true,
                'color'=>[
                    'argb'=>Color::COLOR_BLUE
                ]
            ],
            'alignment' => [
                'horizontal' => \PhpOffice\PhpSpreadsheet\Style\Alignment::HORIZONTAL_CENTER,
            ],
        ];
        //背景颜色
        $worksheet->getStyle('A1:R1')->getFill()->setFillType(Fill::FILL_SOLID)->getStartColor()->setARGB('787FF6');// 设置背景色
        //设置单元格样式
        $worksheet->getStyle('A1:R1')->applyFromArray($styleArray)->getFont()->setSize(12);
        //表头 设置单元格内容
        foreach ($title as $key => $value) {


            $worksheet->setCellValueByColumnAndRow($key+1, 1, $value);
        }
        //输出到浏览器
        $fileName = date('Y-m-d', time()) . rand(1000, 9999);
        $fileName = $fileName.'EWY-ToolTemplate';
        $fileType = 'Xlsx';
        $writer = IOFactory::createWriter($spreadsheet, 'Xlsx');
        self::excelBrowserExport($fileName, $fileType);
        $writer->save('php://output');
    }

}

1.5.2 下载工具模板

  /**
     *
     * 下载工具模板
     * @throws \PhpOffice\PhpSpreadsheet\Exception
     * @throws \PhpOffice\PhpSpreadsheet\Reader\Exception
     * @throws \PhpOffice\PhpSpreadsheet\Writer\Exception
     */
    public function actionDownload()
    {


        $title = ['id', '工具编号', '工具名称','工具品牌','工具分类','工具校验周期','工具状态','工具功能'
            ,'工具适用范围','购置日期','供应商','存放地址','工具备注','记录创建时间','记录更新时间','工具图片地址',
            '记录创建者','记录更新者'];
        ExcelTools::exportTemplate($title);
    }

1.5.3 导入到数据库

   public function actionImport_excel_data()
    {


        $params = \Yii::$app->request->getBodyParams();
        $model = new UploadForm();
        if (Yii::$app->request->isPost) {


            $model->File = UploadedFile::getInstance($model, 'File');
            if ($model->File && $model->validate()) {


                $path = 'uploads/';
                if (!file_exists($path)) {


                    mkdir($path, 0755, true);
                }
                $time = time();
                $rand = rand(100,999);
                $basename = $model->File->baseName;
                $filename = md5($basename.$time.$rand);
                $Fname = $path . $filename . '.' . $model->File->extension;
                if ($model->File && $model->validate()) {


                    $model->File->saveAs($Fname);
                }
                $fpath = Yii::$app->BasePath.'/web/'.$Fname;
                $data = ExcelTools::importExecl($fpath);
                # 得到表头
                $biaotou = $data[1];
                $count  = count($data);
                if ($biaotou['A'] != 'id'||$biaotou['B'] != '工具编号'||$biaotou['C'] != '工具名称'
                    ||$biaotou['D'] != '工具品牌'||$biaotou['E'] != '工具分类'||$biaotou['F'] != '工具校验周期'
                    ||$biaotou['G'] != '工具状态'||$biaotou['H'] != '工具功能'||$biaotou['I'] != '工具适用范围'
                    ||$biaotou['J'] != '购置日期'||$biaotou['K'] != '供应商'||$biaotou['L'] != '存放地址'
                    ||$biaotou['M'] != '工具备注'||$biaotou['N'] != '记录创建时间'||$biaotou['O'] != '记录更新时间'
                    ||$biaotou['P'] != '工具图片地址'||$biaotou['Q'] != '记录创建者'||$biaotou['R'] != '记录更新者'
                ){


                    return "表格表头不匹配";
                }
                # 这里要从第二行开始读 因为第一行是表头
                # 拿到数据后写入数据里面 建议这里用批量写入的方式而不是再循环里面写入数据库
                for ($i = 2; $i<$count+1; $i++){


                    $model = new TestTool();
                    $model->tool_number=$data[$i]['B'];
                    $model->tool_name=$data[$i]['C'];
                    $model->tool_brand=$data[$i]['D'];
                    $model->tool_class=$data[$i]['E'];
                    $model->tool_calibration_cycle=$data[$i]['F'];
                    $model->tool_status=$data[$i]['G'];
                    $model->tool_functions=$data[$i]['H'];
                    $model->tool_scope=$data[$i]['I'];
                  //  $model->purchase_time=$data[$i]['J'];  待处理
                    $model->supplier=$data[$i]['K'];
                    $model->storage_address=$data[$i]['L'];
                    $model->tool_notes=$data[$i]['M'];
                    $model->save();
                }
                return "导入成功";
            }
        }
        return "";
    }

导出和上面的的导出基本以上这里就不展示的。

具体调试api 大家百度下PostMan excel 接口调试方式就是可以。
