Activemq消息组件发布订阅ReDelivery消息重新投递

ActiveMQ师出名门是Apache 出品，最流行的，能力强劲的开源消息总线。是完全基于JMS规范的消息组件，并且容易集成主流spring框架，spring boot等，本文以spring boot集成实现生产者发送消息，消费者消费消息，以及消息重新投递。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>lab-32-activemq-demo</artifactId>

    <dependencies>
        <!-- 实现对 ActiveMQ 的自动化配置 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-activemq</artifactId>
        </dependency>

        <!-- 方便等会写单元测试 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

消息生产者ActiveMqProducer

package com.story.storyadmin.mq.active;

import com.alibaba.fastjson.JSONObject;
import com.story.storyadmin.mq.vo.MessageVo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsMessagingTemplate;
import org.springframework.stereotype.Service;

/**
 * @Description TODO
 * @Author huangd
 * @Date 2020-08-11
 **/
@Service
public class ActiveMqProducer {



    @Autowired
    private JmsMessagingTemplate jmsTemplate;

    public void syncSend(Integer id) {


        MessageVo messageVo = new MessageVo();
        messageVo.setMessage("hello world");
        messageVo.setMsgId(123456L);
        for (int i=0; i < 5; i++) {


            jmsTemplate.convertAndSend("first_queue", JSONObject.toJSONString(messageVo));
        }
    }
}

消息消费者Customer

package com.story.storyadmin.mq.active;

import org.springframework.jms.annotation.JmsListener;
import org.springframework.stereotype.Service;

/**
 * @Description TODO
 * @Author huangd
 * @Date 2020-08-11
 **/
@Service
public class Customer {



    @JmsListener(destination="first_queue", concurrency = "2")
    public void customer(String message) {


        System.out.println("thread=" + Thread.currentThread().getId() + " receive msg is: " + message);
    }

}

package com.story.storyadmin;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.servlet.support.SpringBootServletInitializer;

@SpringBootApplication
public class StoryAdminApplication extends SpringBootServletInitializer {



    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder builder) {


        return builder.sources(this.getClass());
    }

    public static void main(String[] args) {


        SpringApplication.run(StoryAdminApplication.class, args);
    }
}

spring:
  activemq:
    broker-url: tcp://你的虚拟机地址:61616
    user: admin
    password: admin

单元测试类

package com.story.storyadmin;

import com.story.storyadmin.mq.active.ActiveMqProducer;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.io.IOException;


@RunWith(SpringRunner.class)
@SpringBootTest(classes = StoryAdminApplication.class)
public class StoryAdminApplicationTests {


    @Autowired
    private ActiveMqProducer activeMqProducer;

	@Test
	public void contextLoads() throws IOException {


        activeMqProducer.syncSend(101);
        System.in.read();
	}
}

在这里插入图片描述
看到有两个线程在消费消息，这是因为在配置监听类加了@JmsListener(destination=“first_queue”, concurrency = “2”)

以上是正常消费，如果在消费时出现了异常，activemq默认是会重新投递消费的。
官网指明以下情况会导致消息重发:

A transacted session is used and rollback() is called.
A transacted session is closed before commit() is called.
A session is using CLIENT_ACKNOWLEDGE and Session.recover() is called.
A client connection times out (perhaps the code being executed takes longer than the configured time-out period).

官网地址：Message Redelivery and DLQ Handling

对Customer做以下修改，模拟处理异常

@Service
public class Customer {



    @JmsListener(destination="first_queue", concurrency = "2")
    public void customer(String message) {


        throw new RuntimeException("customer error");
//        System.out.println("thread=" + Thread.currentThread().getId() + " receive msg is: " + message);
    }
}

重新执行可以看到会重试，因为spring-boot自动装配的原因,(ActiveMQAutoConfiguration入口类)，默认会重试6次，每隔1秒重试一次。

如果不想使用spring boot自动装配的重试策略，可以自定义Bean，并通过IOC注入到spring容器中，如下：

ActiveMqConfig.java

扫描二维码关注公众号，回复： 12527860 查看本文章

package com.story.storyadmin.mq.active;

import org.apache.activemq.ActiveMQConnectionFactory;
import org.apache.activemq.RedeliveryPolicy;
import org.springframework.boot.autoconfigure.jms.activemq.ActiveMQProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jms.config.DefaultJmsListenerContainerFactory;
import org.springframework.jms.core.JmsTemplate;

import javax.annotation.Resource;

/**
 * @Description TODO
 * @Author huangd
 * @Date 2020-08-13
 **/
@Configuration
public class ActiveMqConfig {



    @Resource
    private ActiveMQProperties activeMQProperties;

    @Bean
    public RedeliveryPolicy redeliveryPolicy() {


        RedeliveryPolicy redeliveryPolicy = new RedeliveryPolicy();
        // 重试两次
        redeliveryPolicy.setMaximumRedeliveries(2);
        // 每隔2秒重试一次
        redeliveryPolicy.setInitialRedeliveryDelay(2000L);
        return redeliveryPolicy;
    }


    @Bean
    public ActiveMQConnectionFactory activeMQConnectionFactory(RedeliveryPolicy redeliveryPolicy) {


        ActiveMQConnectionFactory activeMQConnectionFactory =
                new ActiveMQConnectionFactory(activeMQProperties.getUser(), activeMQProperties.getPassword(), activeMQProperties.getBrokerUrl());

        activeMQConnectionFactory.setRedeliveryPolicy(redeliveryPolicy);
        return activeMQConnectionFactory;
    }

    @Bean
    public DefaultJmsListenerContainerFactory defaultJmsListenerContainerFactory(ActiveMQConnectionFactory activeMQConnectionFactory) {


        DefaultJmsListenerContainerFactory jmsListenerContainerFactory = new DefaultJmsListenerContainerFactory();
        jmsListenerContainerFactory.setConcurrency("2");
        jmsListenerContainerFactory.setConnectionFactory(activeMQConnectionFactory);
        jmsListenerContainerFactory.setSessionAcknowledgeMode(4);
        return jmsListenerContainerFactory;
    }

    @Bean
    public JmsTemplate jmsTemplate(ActiveMQConnectionFactory activeMQConnectionFactory) {


        JmsTemplate jmsTemplate = new JmsTemplate(activeMQConnectionFactory);
        jmsTemplate.setSessionAcknowledgeMode(4);
        return jmsTemplate;
    }
}

ActiveMqProducer.java

package com.story.storyadmin.mq.active;

import com.alibaba.fastjson.JSONObject;
import com.story.storyadmin.mq.vo.MessageVo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.stereotype.Service;

/**
 * @Description TODO
 * @Author huangd
 * @Date 2020-08-11
 **/
@Service
public class ActiveMqProducer {



    @Autowired
    private JmsTemplate jmsTemplate;

    public void syncSend(Integer id) {


        MessageVo messageVo = new MessageVo();
        messageVo.setMessage("hello world " + id);
        messageVo.setMsgId(123456L);
        for (int i=0; i < 5; i++) {


            jmsTemplate.convertAndSend("first_queue", JSONObject.toJSONString(messageVo));
        }
    }

}

Customer.java

package com.story.storyadmin.mq.active;

import org.springframework.jms.annotation.JmsListener;
import org.springframework.stereotype.Service;

import javax.jms.JMSException;
import javax.jms.Session;
import javax.jms.TextMessage;

/**
 * @Description TODO
 * @Author huangd
 * @Date 2020-08-11
 **/
@Service
public class Customer {



    @JmsListener(destination="first_queue", containerFactory = "defaultJmsListenerContainerFactory")
    public void customer(final TextMessage text, Session session) throws JMSException {


        try{


            String message = text.getText();
            System.out.println("thread=" + Thread.currentThread().getId() + " receive msg is: " + message);
            throw new RuntimeException("customer error");
//            text.acknowledge();
        }catch (Exception e) {


            session.recover();
        }
    }
}

Application启动类加上@EnableConfigurationProperties({ ActiveMQProperties.class})让ActiveMQProperties类生效。

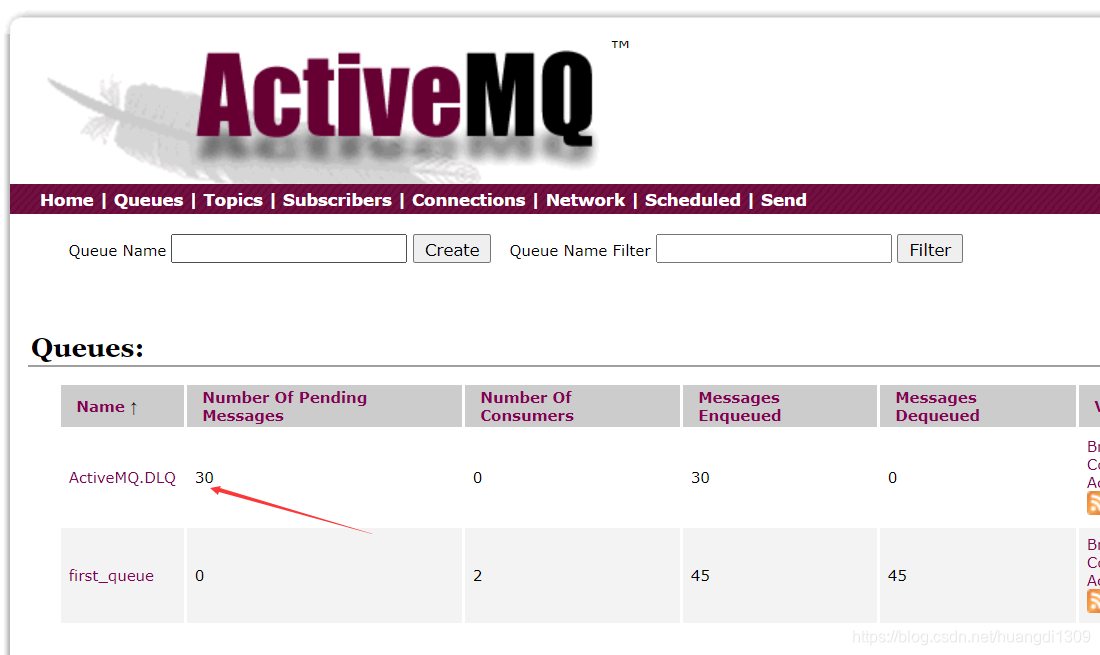

如果重试到最大次数还没正常消费，则会进入死信队列ActiveMQ.DLQ
在这里插入图片描述
