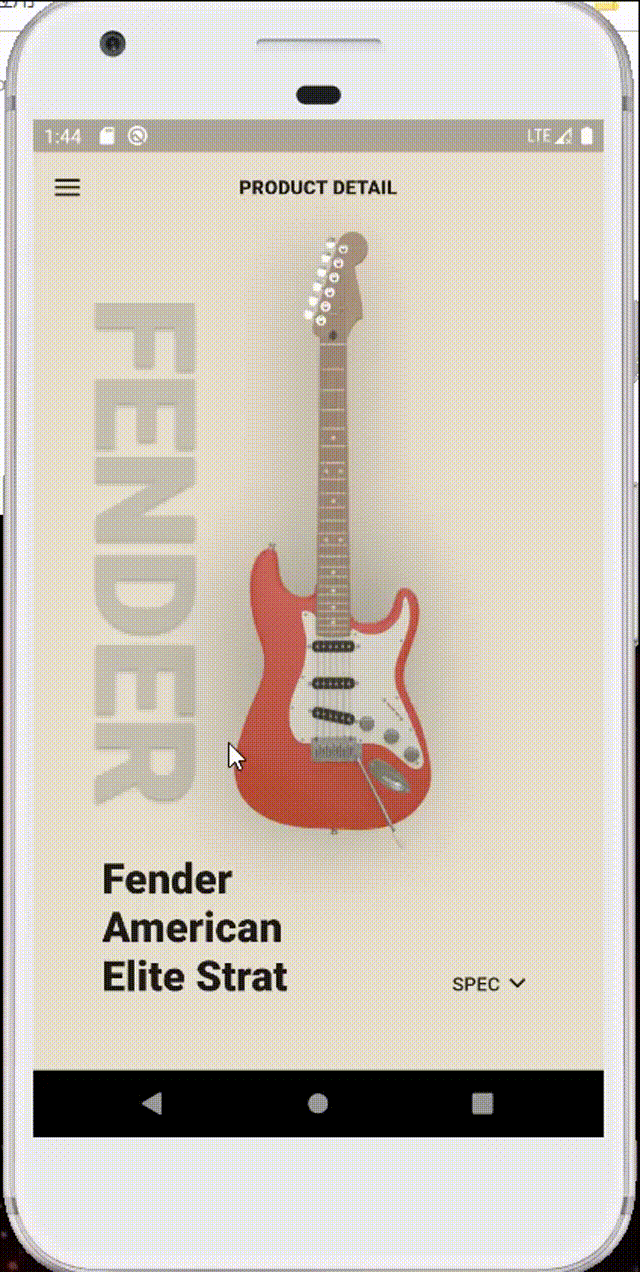

先放效果
我在github上找到了这个的源码，https://github.com/papmodern/drawer3d
可以看到它是跟随drawer拉出的宽度，不断改变吉他的图片，这里有120张吉他不同角度的图片，营造出3d效果。
这里用到了一个flutter的工具叫做image_sequence_animator，是用来显示连续的图片，做成一个gif的效果。

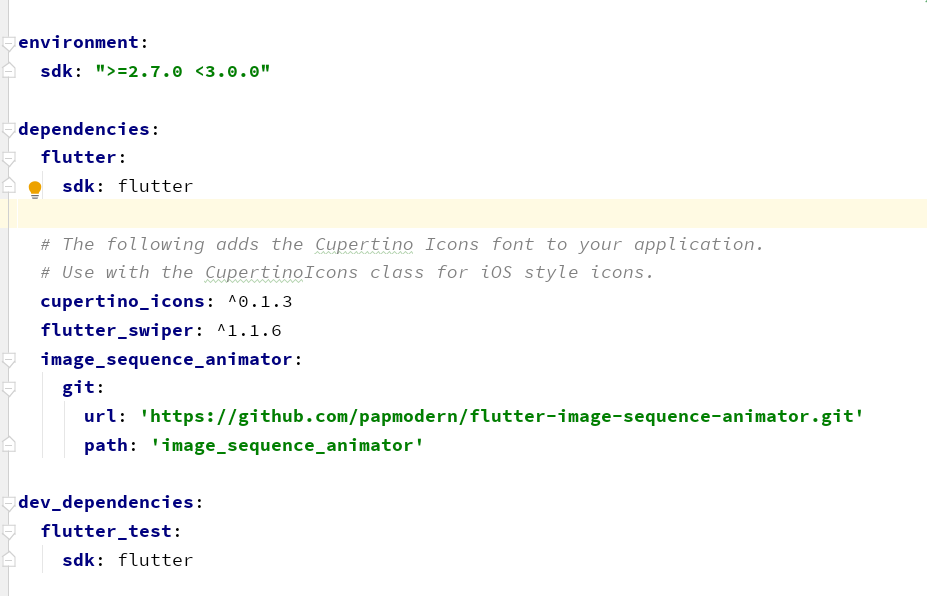

然后就是我试着运行这个项目，基本没有遇到什么困难，在配置pubspec.yaml的时候，没有写对位置，这里的规范实在太严谨了。
源码(记得配置好要用的图片)：
import 'dart:math';
import 'dart:ui';
import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';
import 'package:flutter/widgets.dart';
import 'package:image_sequence_animator/image_sequence_animator.dart';
class Drawer3D extends StatefulWidget {
final Widget child;
Drawer3D({this.child});
@override
_Drawer3DState createState() => _Drawer3DState();
}
class _Drawer3DState extends State<Drawer3D>
with SingleTickerProviderStateMixin {
var _maxSlide = 0.75;
var _extraHeight = 0.1;
double _startingPos;
var _drawerVisible = false;
AnimationController _animationController;
Size _screen = Size(0, 0);
CurvedAnimation _animator;
CurvedAnimation _objAnimator;
@override
void initState() {
super.initState();
_animationController = AnimationController(
vsync: this,
duration: Duration(milliseconds: 800),
);
_animator = CurvedAnimation(
parent: _animationController,
curve: Curves.easeInOutQuad,
reverseCurve: Curves.easeInQuad,
);
_objAnimator = CurvedAnimation(
parent: _animationController,
curve: Curves.easeInOut,
reverseCurve: Curves.easeIn,
);
}
@override
void didChangeDependencies() {
_screen = MediaQuery.of(context).size;
_maxSlide *= _screen.width;
_extraHeight *= _screen.height;
super.didChangeDependencies();
}
@override
Widget build(BuildContext context) {
return Material(
child: GestureDetector(
onHorizontalDragStart: _onDragStart,
onHorizontalDragUpdate: _onDragUpdate,
onHorizontalDragEnd: _onDragEnd,
child: Stack(
overflow: Overflow.visible,
children: <Widget>[
//Space color - it also makes the empty space touchable
Container(color: Color(0xFFaaa598)),
_buildBackground(),
_build3dObject(),
_buildDrawer(),
_buildHeader(),
_buildOverlay(),
],
),
),
);
}
void _onDragStart(DragStartDetails details) {
_startingPos = details.globalPosition.dx;
}
void _onDragUpdate(DragUpdateDetails details) {
final globalDelta = details.globalPosition.dx - _startingPos;
if (globalDelta > 0) {
final pos = globalDelta / _screen.width;
if (_drawerVisible && pos <= 1.0) return;
_animationController.value = pos;
} else {
final pos = 1 - (globalDelta.abs() / _screen.width);
if (!_drawerVisible && pos >= 0.0) return;
_animationController.value = pos;
}
}
void _onDragEnd(DragEndDetails details) {
if (details.velocity.pixelsPerSecond.dx.abs() > 500) {
if (details.velocity.pixelsPerSecond.dx > 0) {
_animationController.forward(from: _animationController.value);
_drawerVisible = true;
} else {
_animationController.reverse(from: _animationController.value);
_drawerVisible = false;
}
return;
}
if (_animationController.value > 0.5) {
{
_animationController.forward(from: _animationController.value);
_drawerVisible = true;
}
} else {
{
_animationController.reverse(from: _animationController.value);
_drawerVisible = false;
}
}
}
void _toggleDrawer() {
if (_animationController.value < 0.5)
_animationController.forward();
else
_animationController.reverse();
}
_buildMenuItem(String s, {bool active = false}) {
return Padding(
padding: const EdgeInsets.symmetric(vertical: 5),
child: InkWell(
onTap: () {},
child: Text(
s.toUpperCase(),
style: TextStyle(
fontSize: 25,
color: active ? Color(0xffbb0000) : null,
fontWeight: FontWeight.w900,
),
),
),
);
}
_buildFooterMenuItem(String s) {
return Padding(
padding: const EdgeInsets.symmetric(vertical: 5),
child: InkWell(
onTap: () {},
child: Text(
s.toUpperCase(),
style: TextStyle(
fontSize: 14,
fontWeight: FontWeight.w900,
),
),
),
);
}
_buildBackground() => Positioned.fill(
top: -_extraHeight,
bottom: -_extraHeight,
child: AnimatedBuilder(
animation: _animator,
builder: (context, widget) => Transform.translate(
offset: Offset(_maxSlide * _animator.value, 0),
child: Transform(
transform: Matrix4.identity()
..setEntry(3, 2, 0.001)
..rotateY((pi / 2 + 0.1) * -_animator.value),
alignment: Alignment.centerLeft,
child: widget,
),
),
child: Container(
color: Color(0xffe8dfce),
child: Stack(
overflow: Overflow.visible,
children: <Widget>[
//Fender word
Positioned(
top: _extraHeight + 0.1 * _screen.height,
left: 80,
child: Transform.rotate(
angle: 90 * (pi / 180),
alignment: Alignment.centerLeft,
child: Text(
"FENDER",
style: TextStyle(
fontSize: 100,
color: Color(0xFFc7c0b2),
shadows: [
Shadow(
color: Colors.black26,
blurRadius: 5,
offset: Offset(2.0, 0.0),
),
],
fontWeight: FontWeight.w900,
),
),
),
),
// Shadow
Positioned(
top: _extraHeight + 0.13 * _screen.height,
bottom: _extraHeight + 0.24 * _screen.height,
left: _maxSlide - 0.41 * _screen.width,
right: _screen.width * 1.06 - _maxSlide,
child: Column(
children: <Widget>[
Flexible(
child: FractionallySizedBox(
widthFactor: 0.2,
child: Container(
decoration: BoxDecoration(
boxShadow: [
BoxShadow(
blurRadius: 50,
color: Colors.black38,
)
],
borderRadius: BorderRadius.circular(50),
),
),
),
),
Flexible(
child: Container(
decoration: BoxDecoration(
boxShadow: [
BoxShadow(
blurRadius: 50,
color: Colors.black26,
)
],
borderRadius: BorderRadius.circular(50),
),
),
),
],
),
),
AnimatedBuilder(
animation: _animator,
builder: (_, __) => Container(
color: Colors.black.withAlpha(
(150 * _animator.value).floor(),
),
),
),
],
),
),
),
);
_buildDrawer() => Positioned.fill(
top: -_extraHeight,
bottom: -_extraHeight,
left: 0,
right: _screen.width - _maxSlide,
child: AnimatedBuilder(
animation: _animator,
builder: (context, widget) {
return Transform.translate(
offset: Offset(_maxSlide * (_animator.value - 1), 0),
child: Transform(
transform: Matrix4.identity()
..setEntry(3, 2, 0.001)
..rotateY(pi * (1 - _animator.value) / 2),
alignment: Alignment.centerRight,
child: widget,
),
);
},
child: Container(
color: Color(0xffe8dfce),
child: Stack(
overflow: Overflow.visible,
children: <Widget>[
Positioned(
top: 0,
bottom: 0,
right: 0,
child: Container(
width: 5,
decoration: BoxDecoration(
gradient: LinearGradient(
colors: [Colors.transparent, Colors.black12],
),
),
),
),
Positioned.fill(
top: _extraHeight,
bottom: _extraHeight,
child: SafeArea(
child: Container(
width: _maxSlide,
child: Padding(
padding: const EdgeInsets.all(40.0),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: <Widget>[
Row(
children: <Widget>[
Container(
width: 25,
height: 25,
decoration: BoxDecoration(
border: Border.all(
color: Colors.black26,
width: 4,
),
shape: BoxShape.circle,
),
),
Transform.translate(
offset: Offset(-15, 0),
child: Text(
"STRING",
style: TextStyle(
fontSize: 12,
backgroundColor: Color(0xffe8dfce),
fontWeight: FontWeight.w900,
fontStyle: FontStyle.italic,
),
),
)
],
),
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: <Widget>[
_buildMenuItem("Guitars", active: true),
_buildMenuItem("Basses"),
_buildMenuItem("Amps"),
_buildMenuItem("Pedals"),
_buildMenuItem("Others"),
],
),
Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: <Widget>[
_buildFooterMenuItem("About"),
_buildFooterMenuItem("Support"),
_buildFooterMenuItem("Terms"),
_buildFooterMenuItem("Faqs"),
],
),
],
),
),
),
),
),
AnimatedBuilder(
animation: _animator,
builder: (_, __) => Container(
width: _maxSlide,
color: Colors.black.withAlpha(
(150 * (1 - _animator.value)).floor(),
),
),
),
],
),
),
),
);
_build3dObject() => Positioned(
top: 0.1 * _screen.height,
bottom: 0.22 * _screen.height,
left: _maxSlide - _screen.width * 0.5,
right: _screen.width * 0.85 - _maxSlide,
child: AnimatedBuilder(
animation: _objAnimator,
builder: (_, __) => ImageSequenceAnimator(
"assets/guitarSequence", //folderName
"", //fileName
1, //suffixStart
4, //suffixCount
"png", //fileFormat
120, //frameCount
fps: 60,
isLooping: false,
isBoomerang: true,
isAutoPlay: false,
frame: (_objAnimator.value * 120).ceil(),
),
),
);
_buildHeader() => SafeArea(
child: AnimatedBuilder(
animation: _animator,
builder: (_, __) {
return Transform.translate(
offset: Offset((_screen.width - 60) * _animator.value, 0),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: <Widget>[
SizedBox(
width: 50,
height: 50,
child: InkWell(
onTap: _toggleDrawer,
child: Icon(Icons.menu),
),
),
Opacity(
opacity: 1 - _animator.value,
child: Text(
"PRODUCT DETAIL",
style: TextStyle(fontWeight: FontWeight.w900),
),
),
SizedBox(width: 50, height: 50),
],
),
);
}),
);
_buildOverlay() => Positioned(
top: 0,
bottom: 50,
left: 0,
right: 0,
child: AnimatedBuilder(
animation: _animator,
builder: (_, widget) => Opacity(
opacity: 1 - _animator.value,
child: Transform.translate(
offset: Offset((_maxSlide + 50) * _animator.value, 0),
child: Transform(
transform: Matrix4.identity()
..setEntry(3, 2, 0.001)
..rotateY((pi / 2 + 0.1) * -_animator.value),
alignment: Alignment.centerLeft,
child: widget,
),
),
),
child: Padding(
padding: const EdgeInsets.symmetric(horizontal: 50.0),
child: Row(
crossAxisAlignment: CrossAxisAlignment.end,
mainAxisAlignment: MainAxisAlignment.spaceBetween,
mainAxisSize: MainAxisSize.max,
children: <Widget>[
Text(
"Fender\nAmerican\nElite Strat",
style: TextStyle(
fontSize: 30,
fontWeight: FontWeight.w900,
),
),
Row(
children: <Widget>[
Text(
"SPEC",
style: TextStyle(fontWeight: FontWeight.w600),
),
Icon(Icons.keyboard_arrow_down),
],
),
],
),
),
),
);
}
